Product Overview

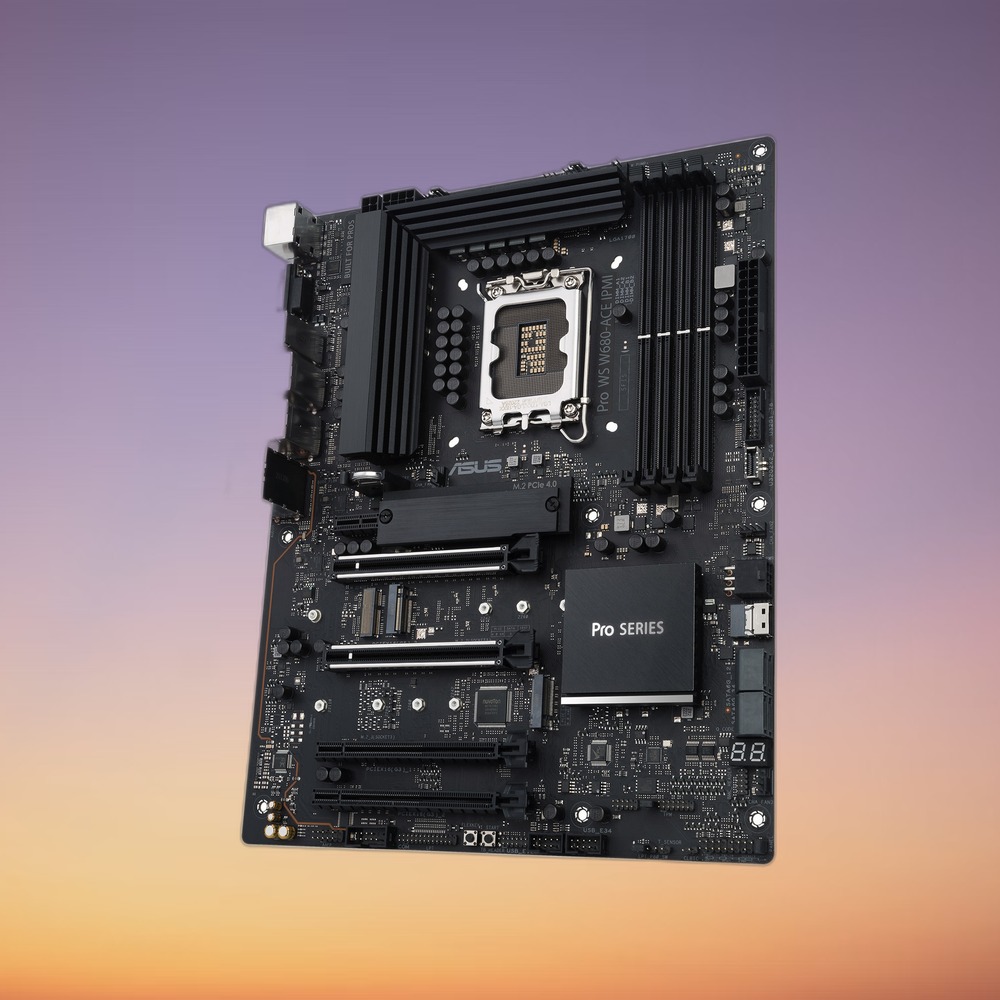

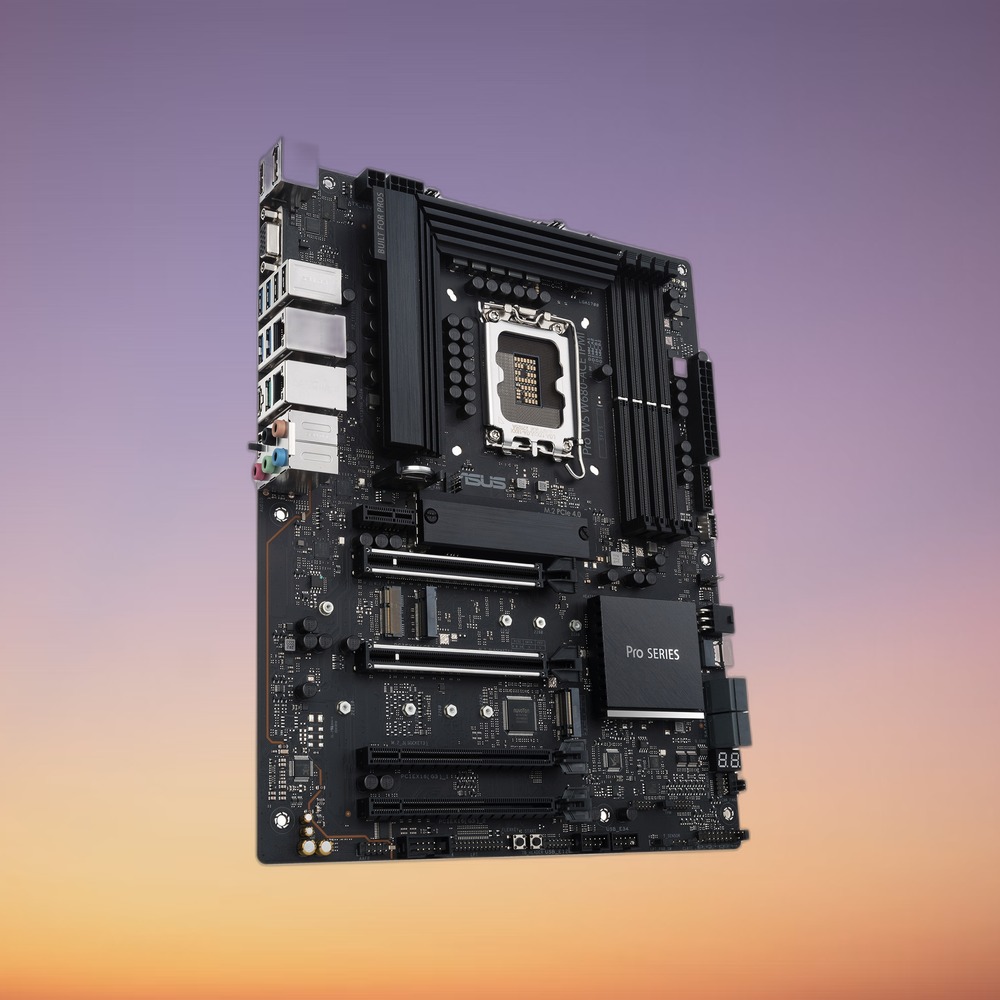

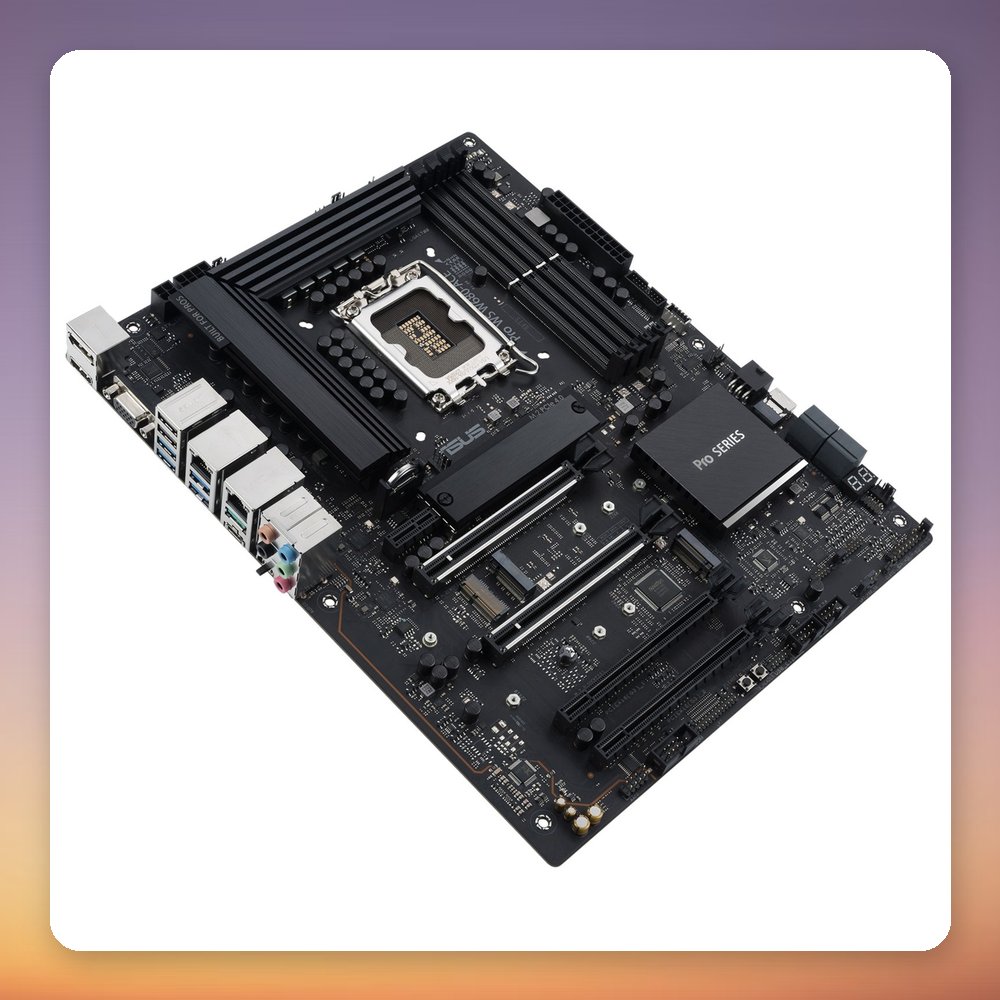

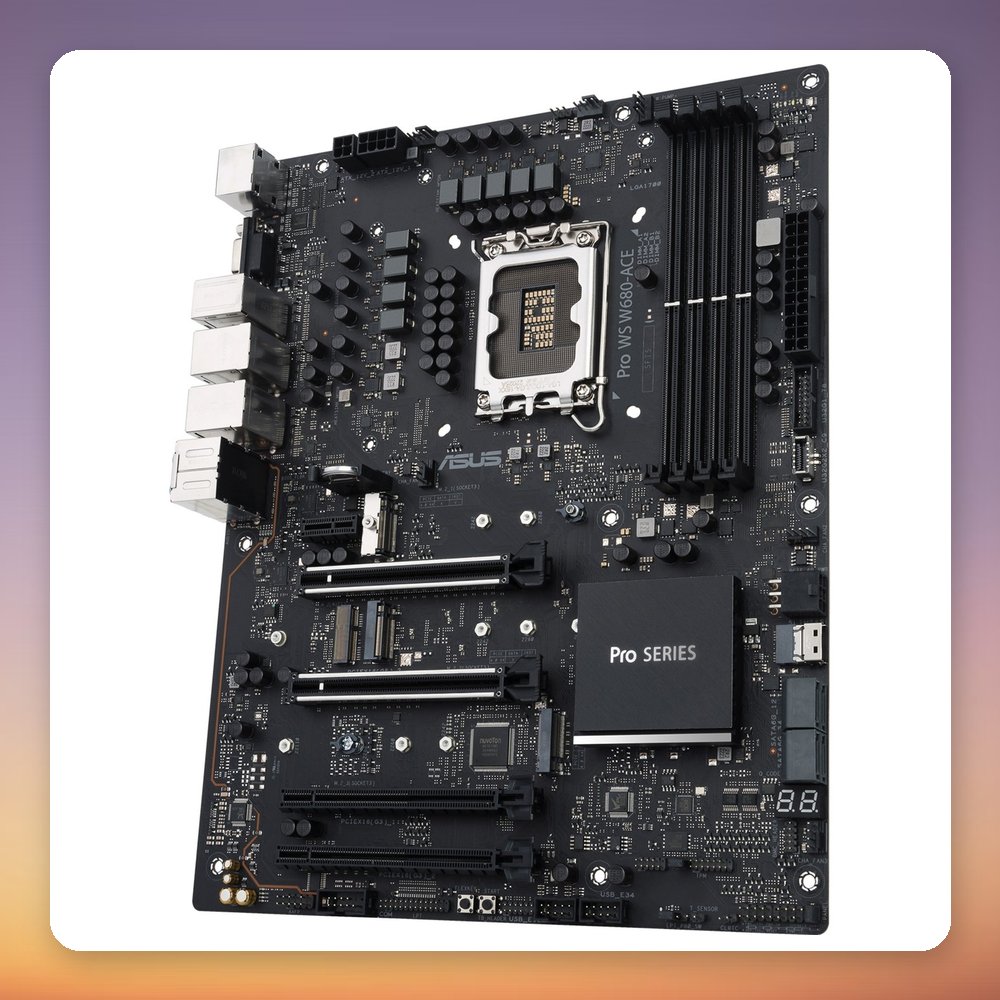

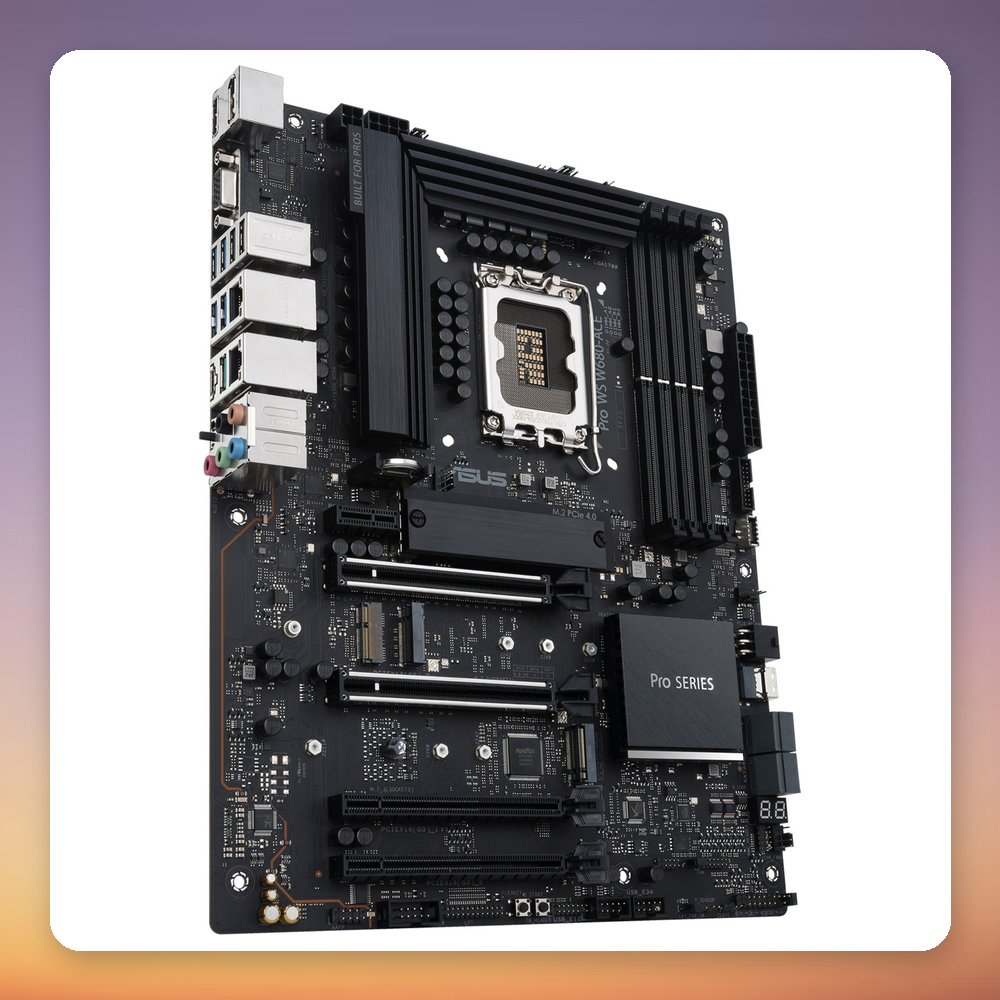

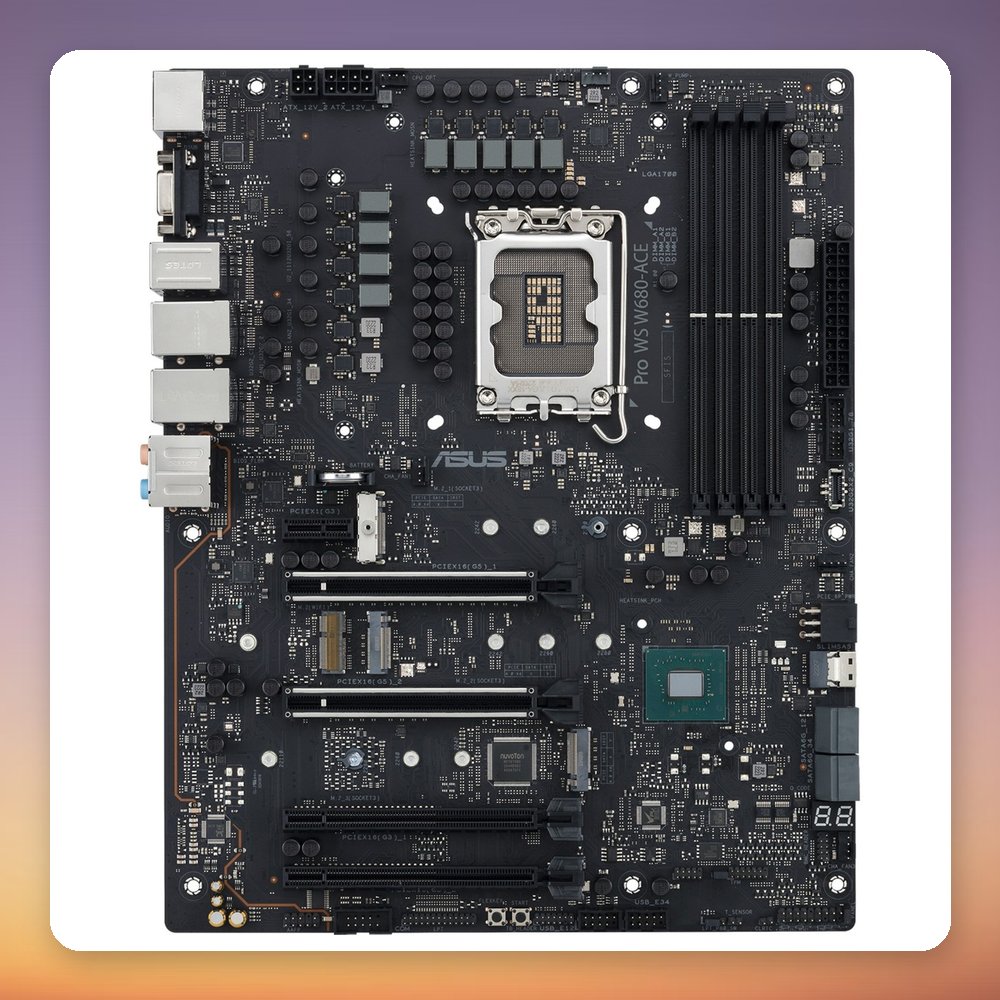

The Asus PRO WS W680-ACE is an ATX workstation motherboard built on the Intel W680 chipset for LGA 1700 processors. What sets it apart from consumer boards is ECC memory support across four DDR5 DIMM slots (dual-channel, up to 192 GB per Wave data), two PCIe 5.0 x16 slots, three M.2 slots and dual Intel 2.5 Gb Ethernet. It also adds SlimSAS and a Thunderbolt header.

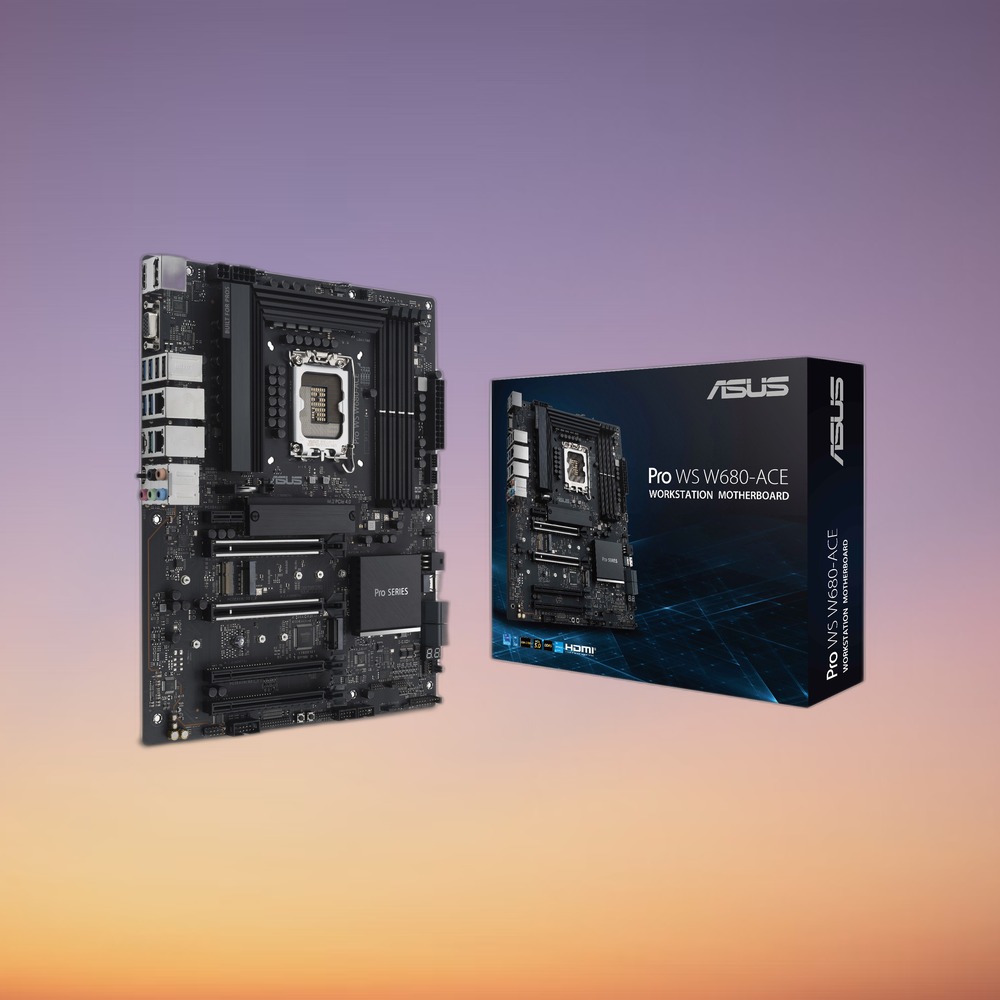

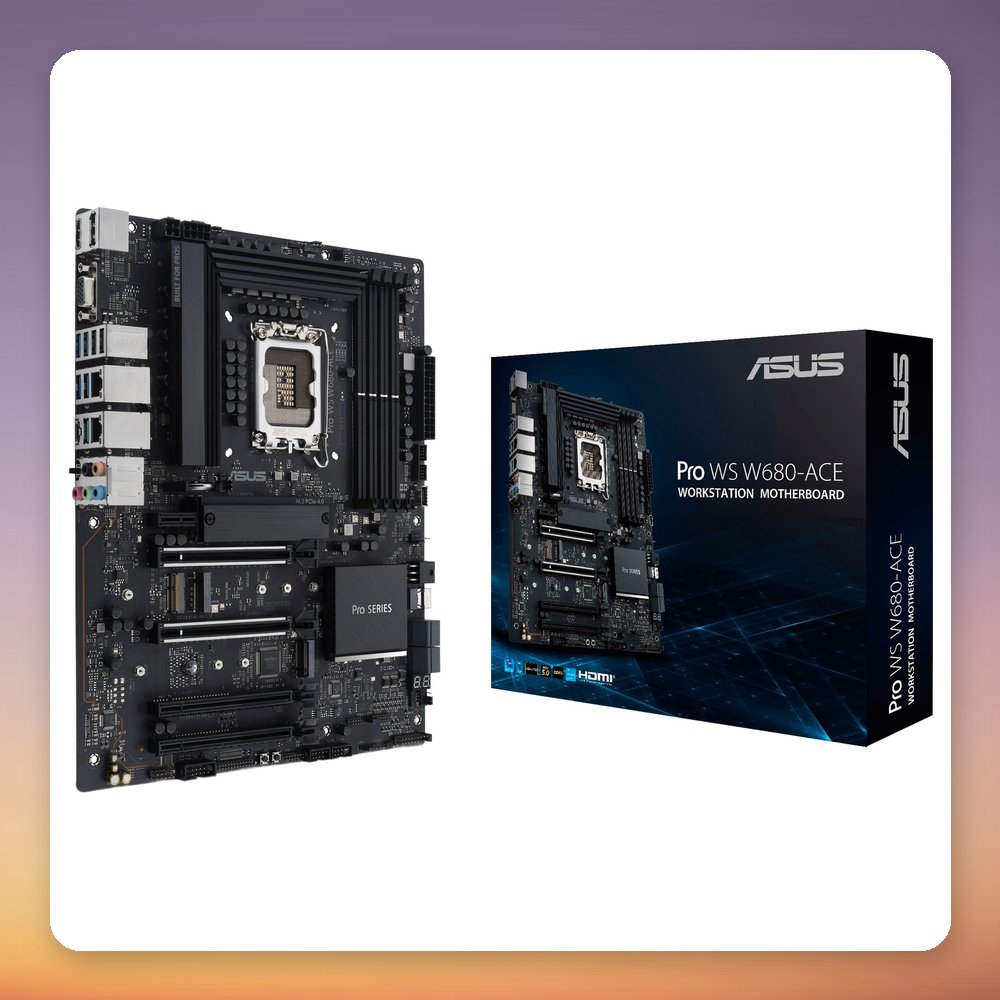

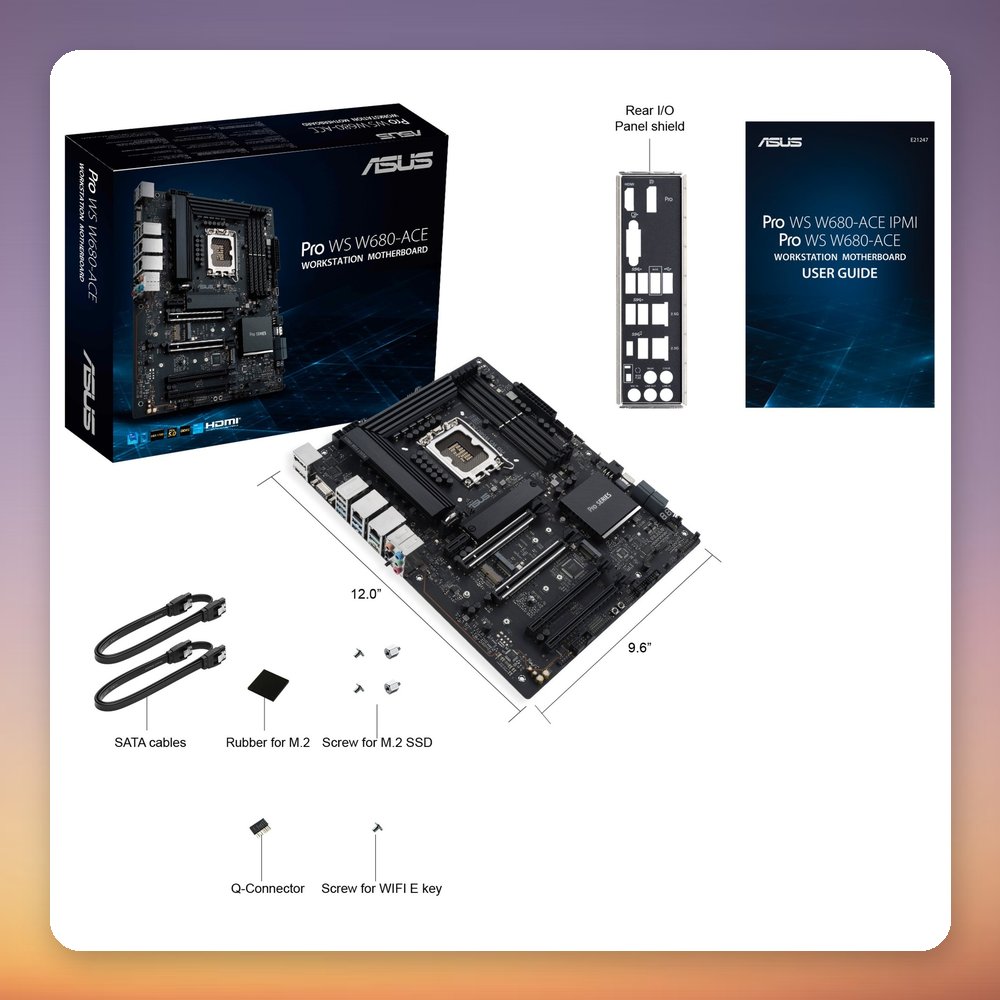

This board suits workstation and always-on builds that need ECC memory, multi-GPU expansion and plenty of storage, such as rendering, modelling or media production. Storage options include four SATA ports, one SlimSAS connector and three M.2 slots, with RAID 0, 1, 5 and 10 available. Video outputs (VGA, HDMI, DisplayPort) only work with a CPU that has integrated graphics. A BIOS update may be needed for the newest processors. Supplied with two SATA cables, an I/O shield and M.2 mounting accessories.

Specification

• Manufacturer: Asus
• Model: PRO WS W680-ACE
• MPN: 90MB1DZ0-M0EAY0
• EAN: 4711387006177
• Chipset: Intel W680
• CPU socket: LGA 1700
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, ECC and non-ECC, up to 192 GB (Icecat lists 128 GB)
• Memory speeds: DDR5-4400 to DDR5-6400
• Expansion slots: 2x PCIe 5.0 x16, 2x PCIe 3.0 x4 (x16 size), 1x PCIe 3.0 x1
• M.2 slots: 3x M.2 (PCIe 4.0), 1x M.2 Key E for WLAN
• SATA / other storage: 4x SATA 6Gb/s, 1x SlimSAS
• RAID: 0, 1, 5, 10
• LAN: 2x Intel 2.5 Gb Ethernet
• Rear USB: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB 2.0
• Video outputs: HDMI 2.1, DisplayPort 1.4, VGA (CPU with integrated graphics required)
• Audio: Realtek 7.1 channel HD Audio
• BIOS: 256 Mb Flash ROM, UEFI AMI
• Dimensions (W x H x D): 244 x 305 mm (board depth/width as listed)
• Weight: 997 g
