Product Overview

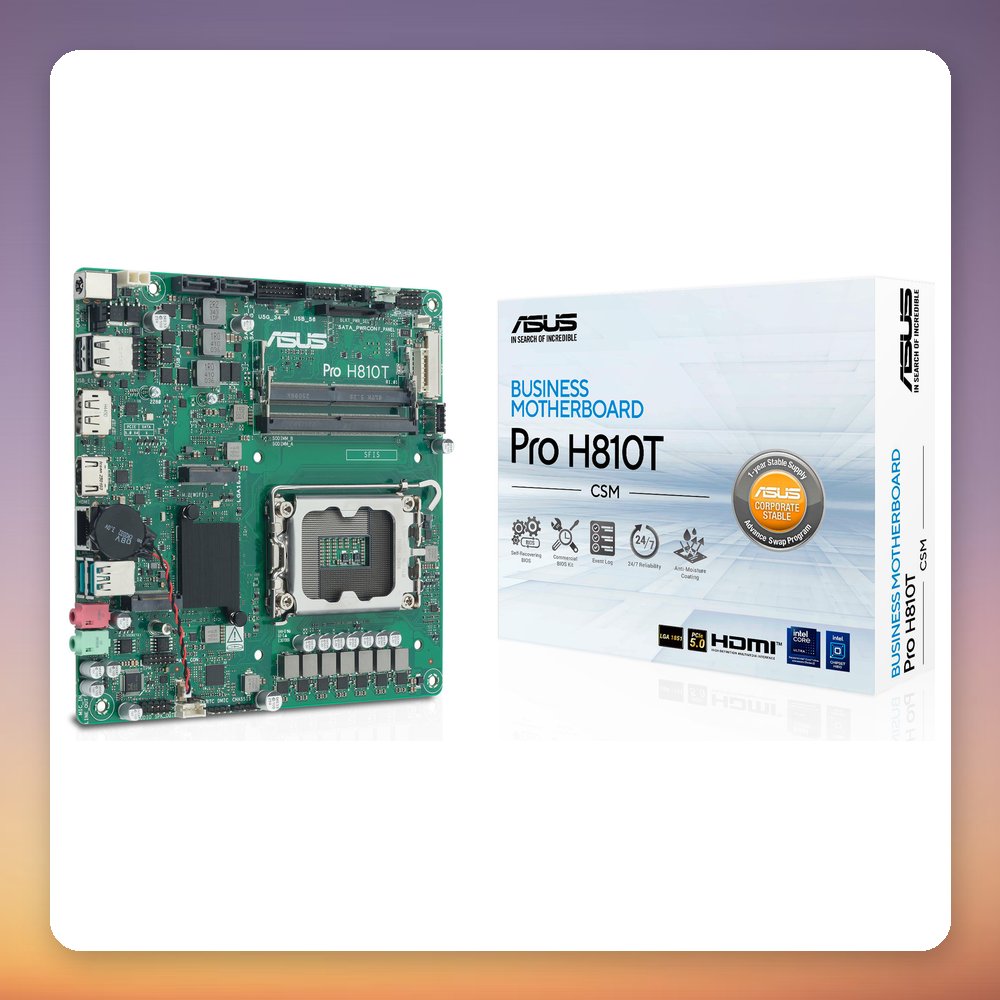

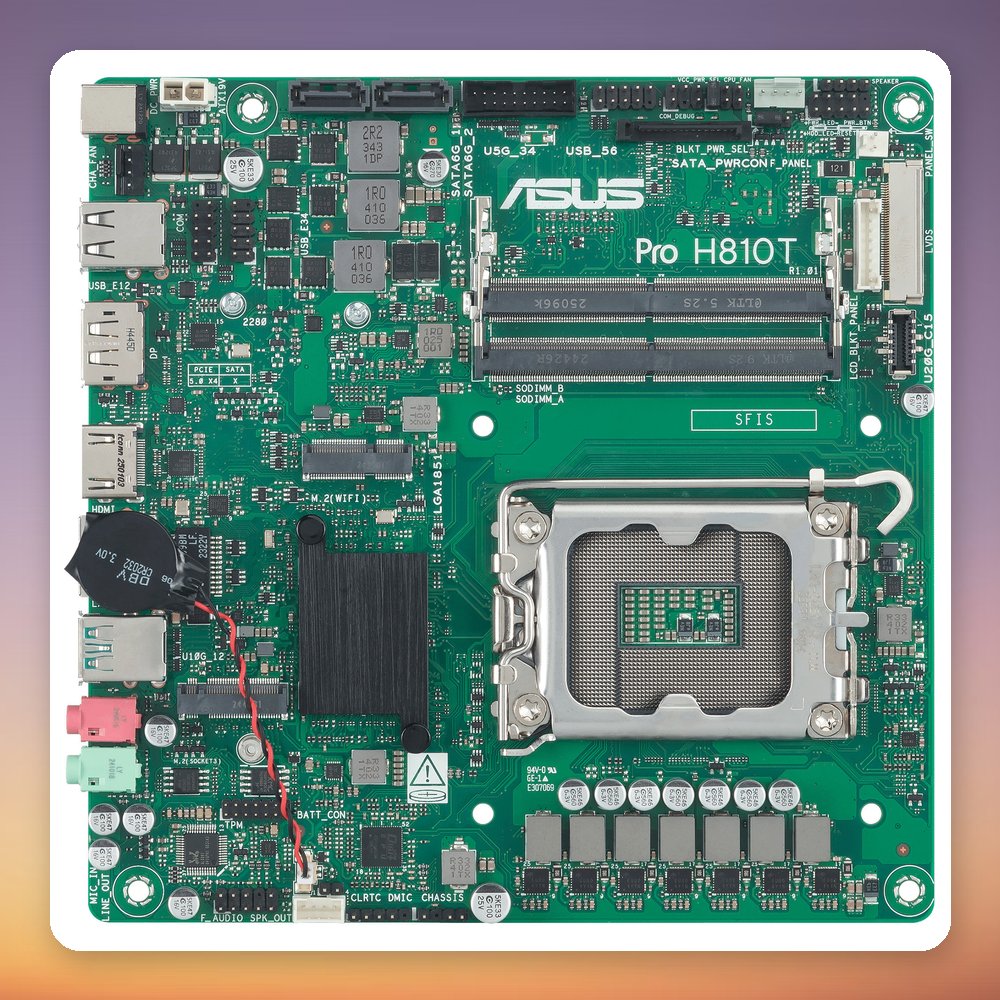

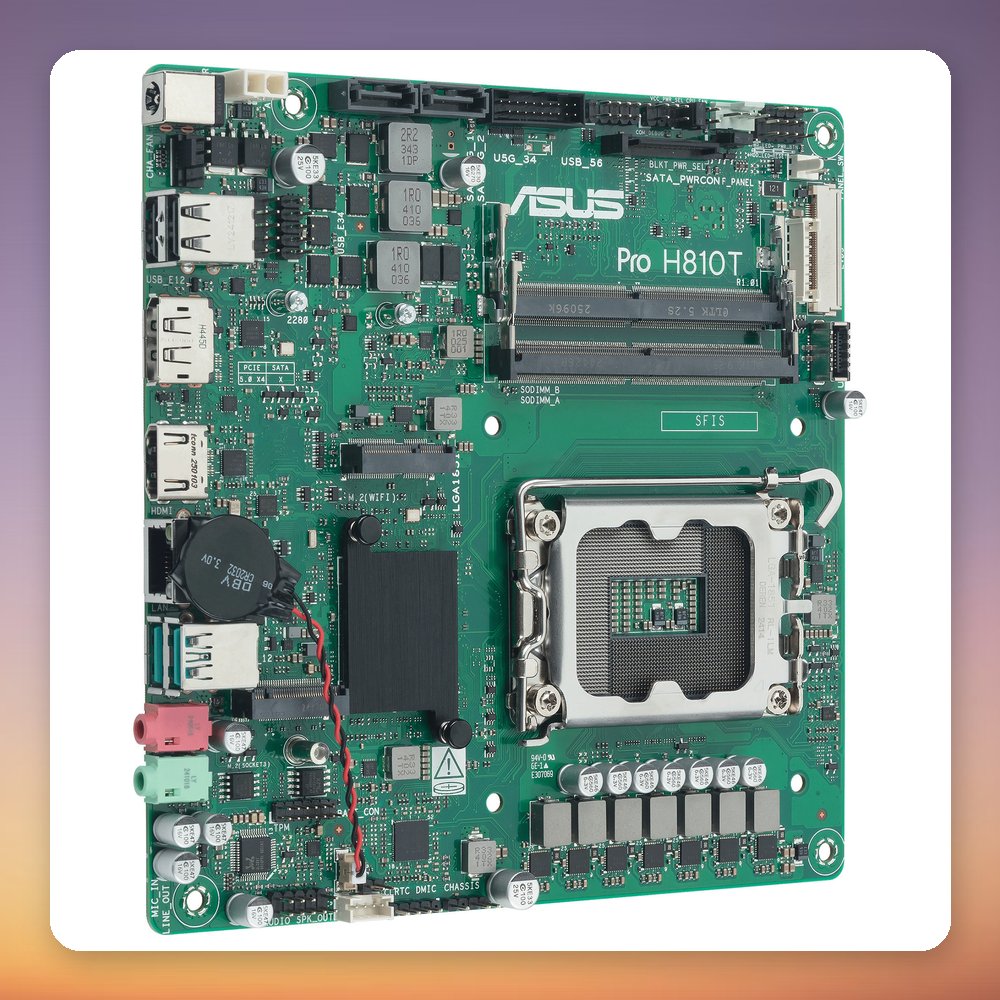

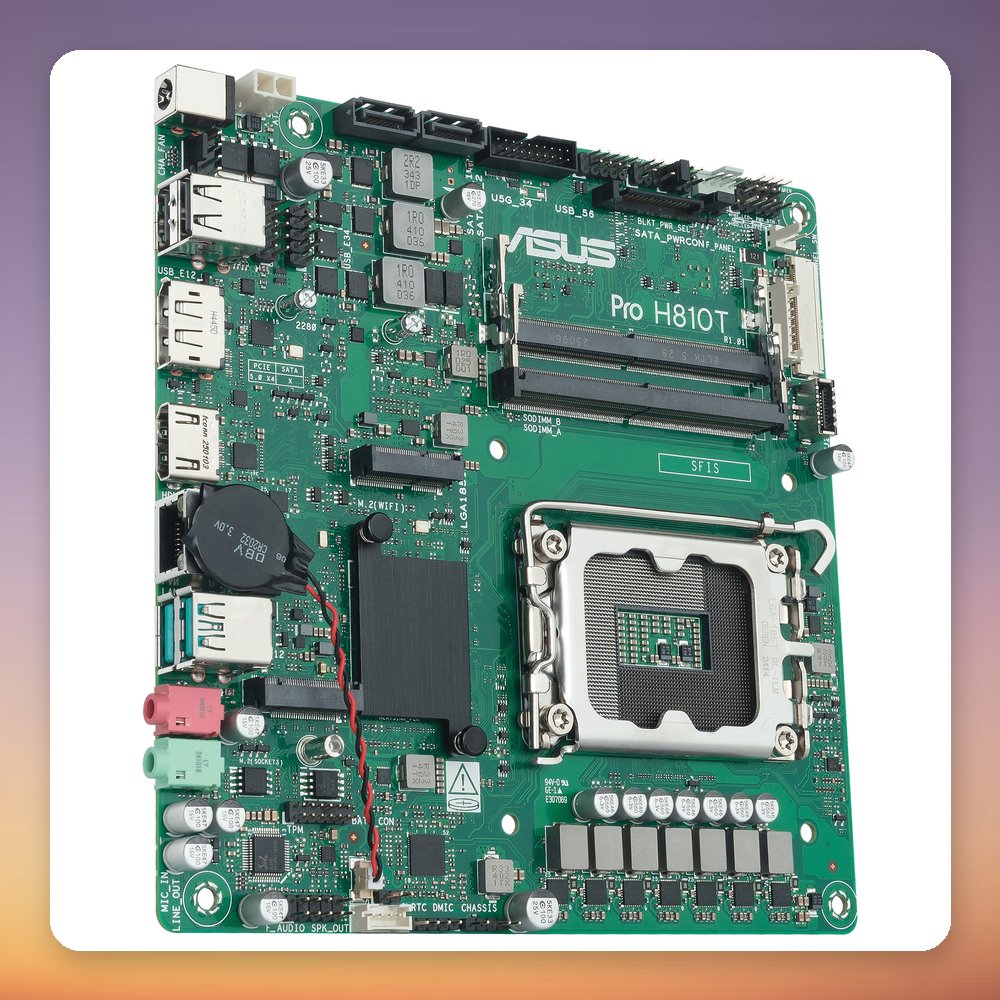

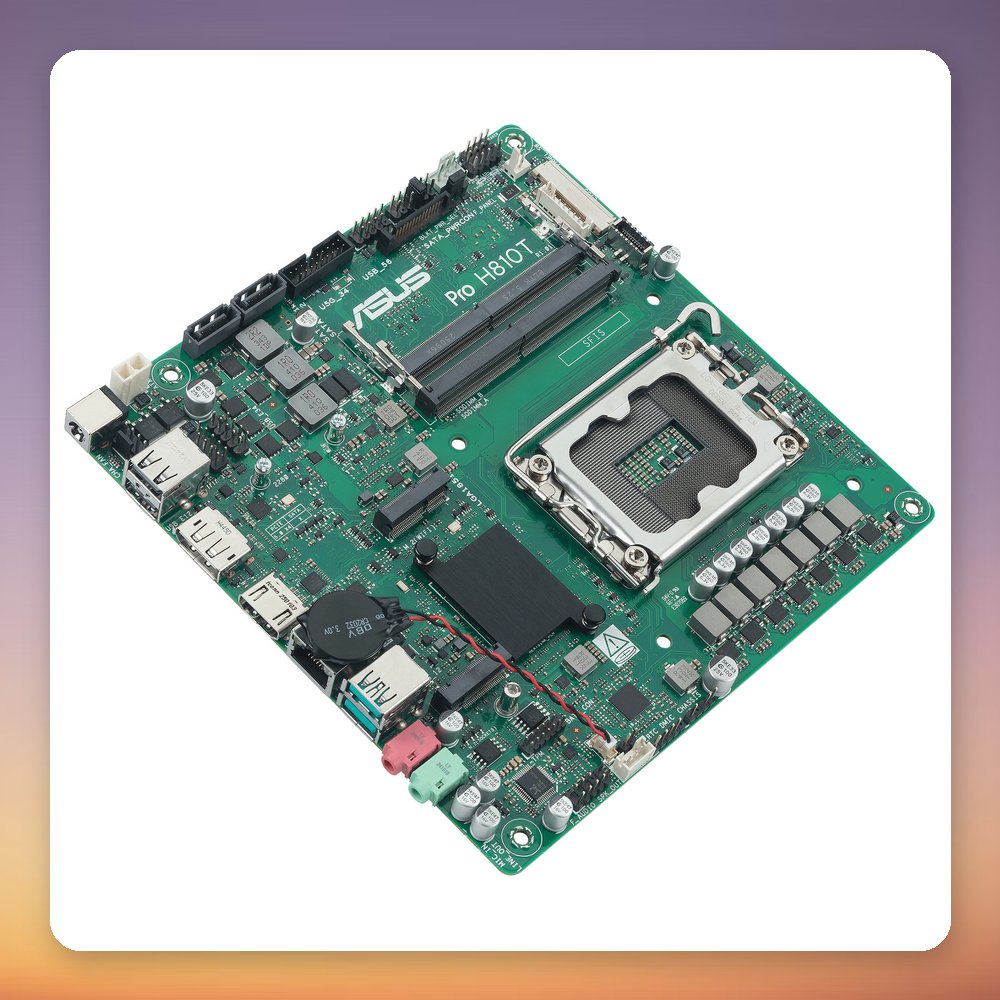

The Asus PRO H810T-CSM Intel H810 motherboard is a compact LGA 1851 board for Intel Core Ultra (Series 2) processors, built around the H810 chipset. It uses two DDR5 SO-DIMM slots rather than full-size DIMMs, supporting up to 128 GB at speeds up to DDR5-6400, and measures just 170 x 170 mm in the Thin Mini-ITX form factor.

This board suits small-form-factor and business-style PCs where space is tight. It has one M.2 slot, two SATA 6Gb/s ports, Gigabit LAN, HDMI and DisplayPort outputs, two USB 3.2 Gen 2 Type-A ports and an internal USB-C 3.2 Gen 2×2 header. It runs from an external power supply, so check your chassis supports that. Asus notes a BIOS update may be needed for the newest processors, and the video outputs only work with a CPU that has integrated graphics.

Specification

• Manufacturer: Asus
• Model: PRO H810T-CSM
• MPN: 90MB1LGM-M0EAYC
• EAN: 47116361013250
• Socket: LGA 1851
• Chipset: Intel H810
• Form factor: Thin Mini-ITX (170 x 170 mm)
• Supported processors: Intel Core Ultra 3 / 5 / 7 / 9 (Series 2, Arrow Lake)
• Memory: 2x DDR5 SO-DIMM, dual-channel, up to 128 GB, non-ECC
• Memory speeds: DDR5-6400 / 5200 / 4800 / 4400
• Storage: 1x M.2 (M key, PCIe, 42-80 mm), 2x SATA 6Gb/s, RAID 0/1/5/10

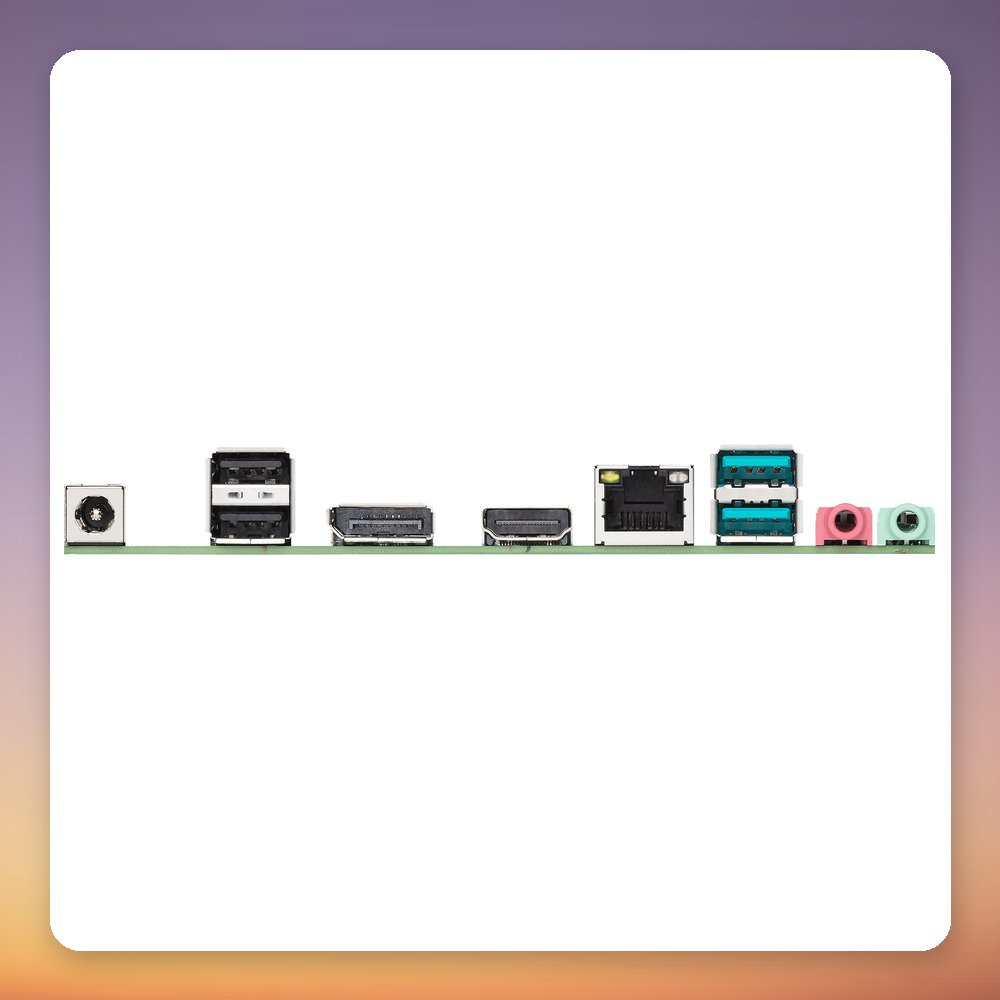

• Rear USB: 2x USB 3.2 Gen 2 (10 Gbit/s) Type-A, 2x USB 2.0
• Internal USB: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s) header
• Video outputs: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
• Networking: Realtek Gigabit Ethernet (no Wi-Fi)
• Audio: Realtek, 7.1 channels
• Power: External power supply
• Dimensions (W x H x D): 170 x 49 x 170 mm
• Weight: 319 g
