Product Overview

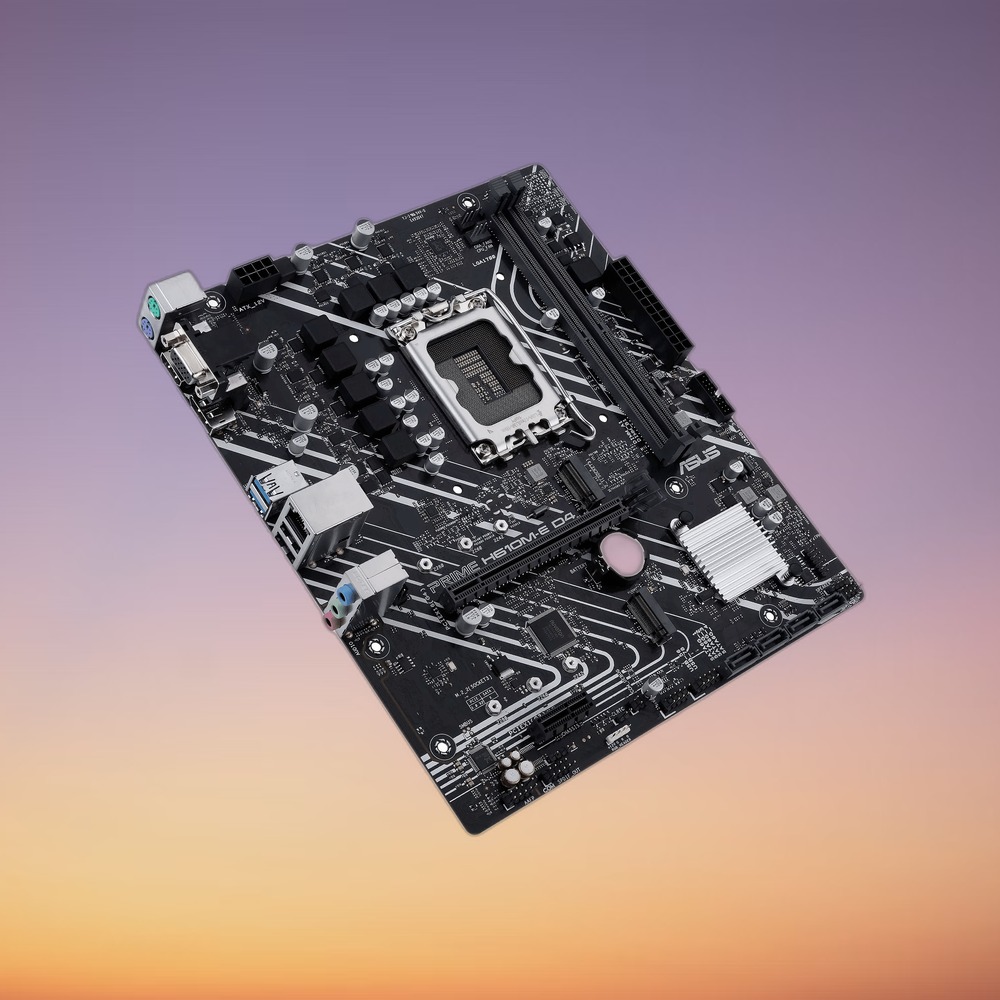

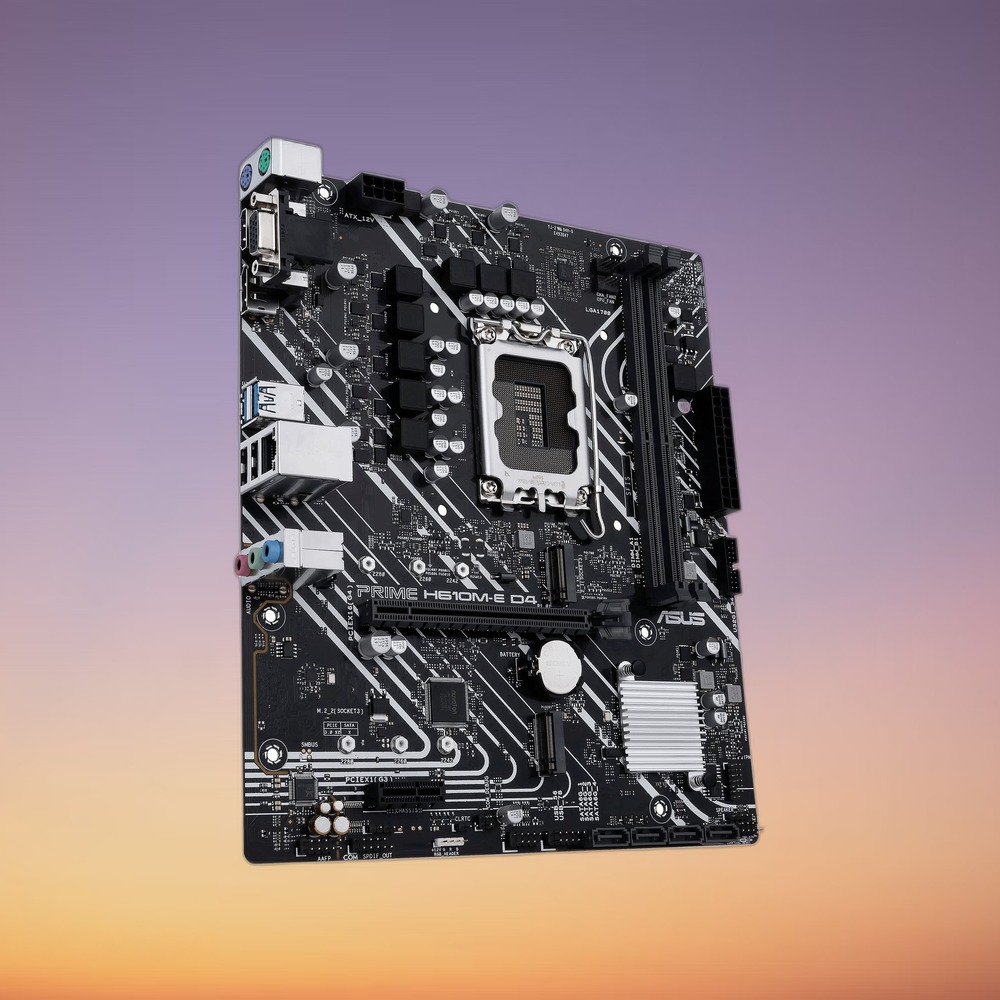

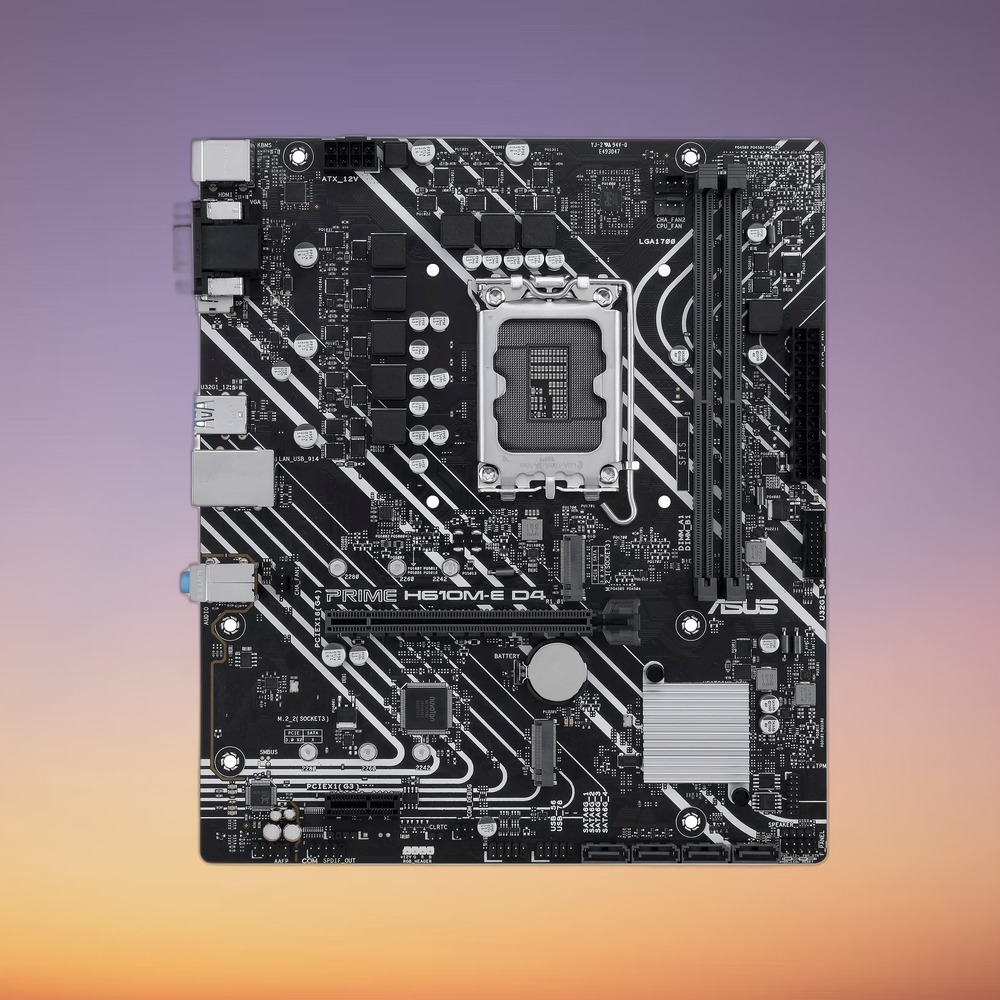

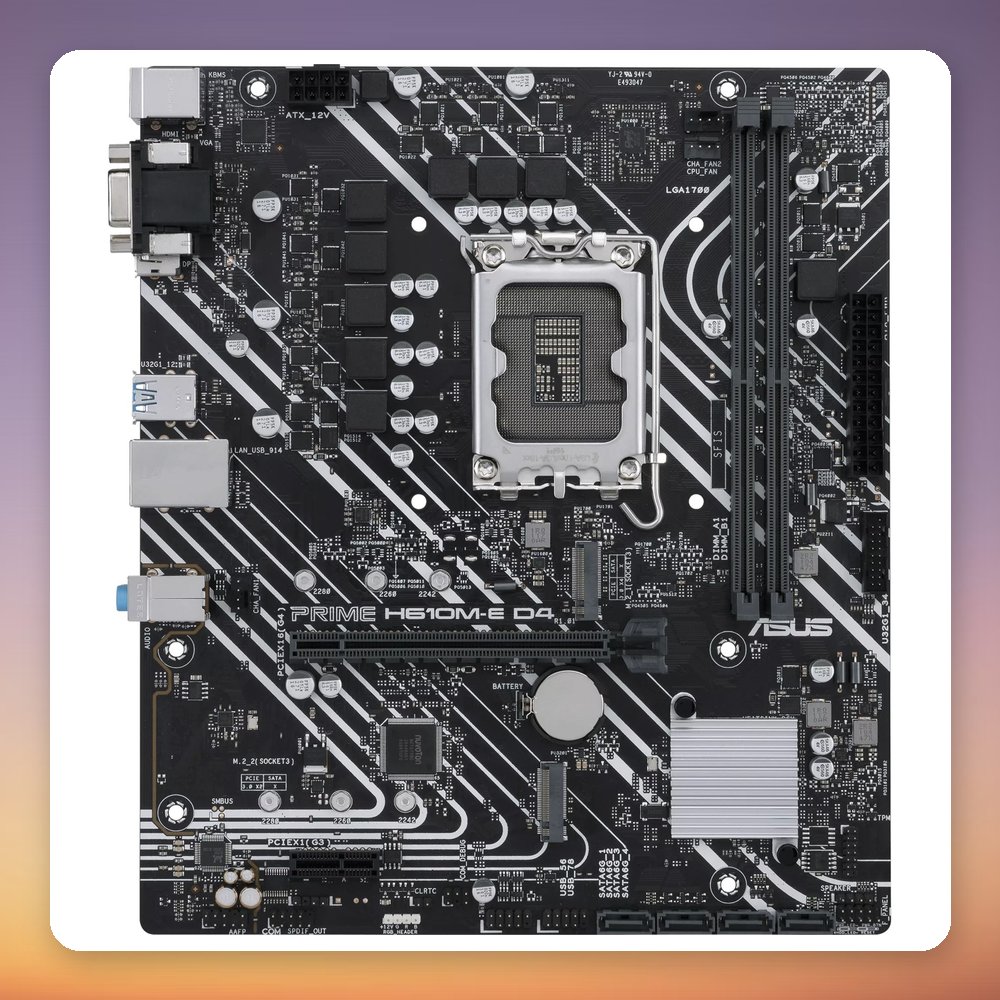

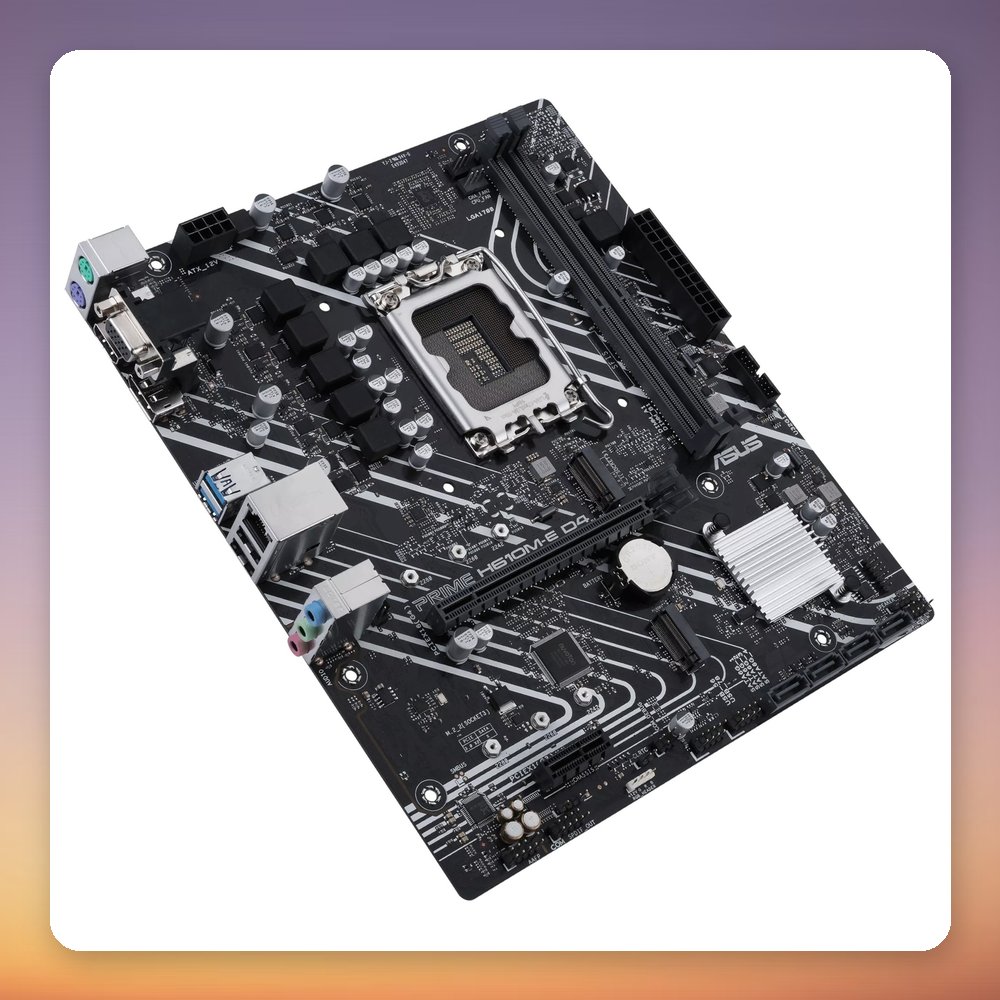

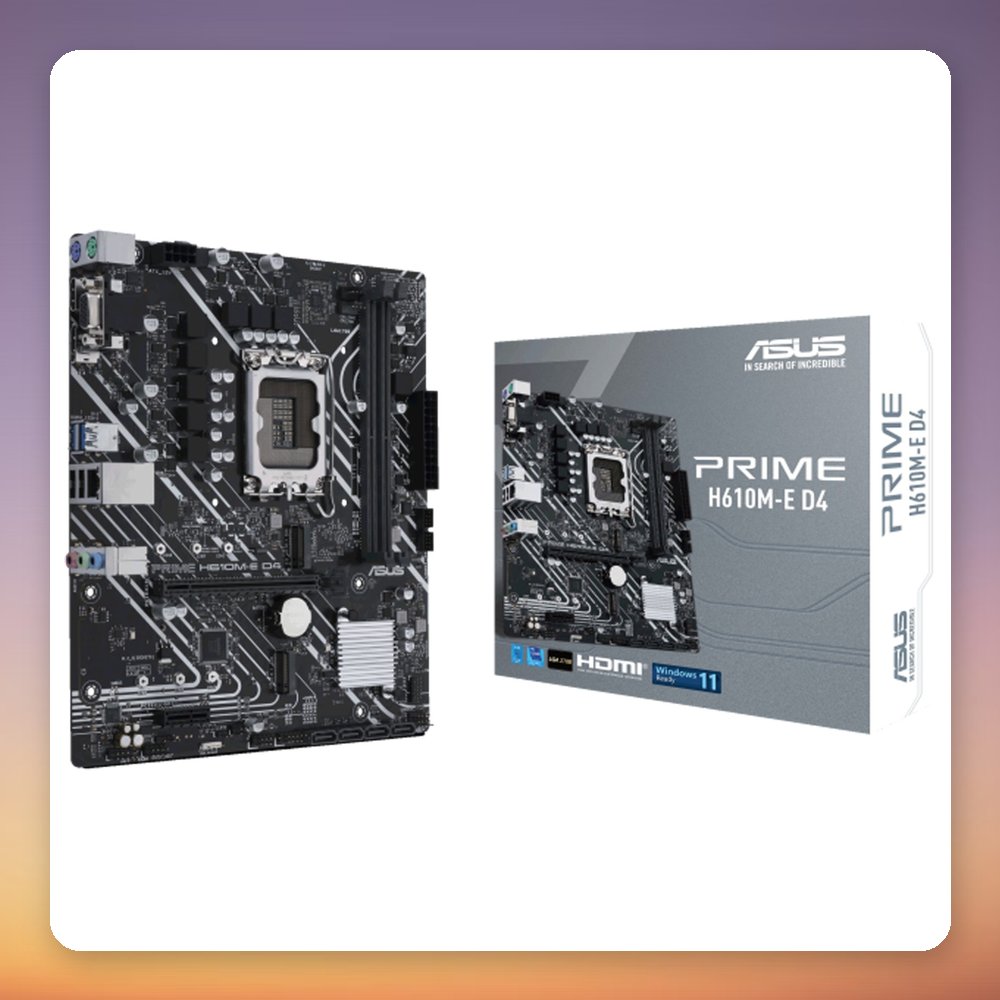

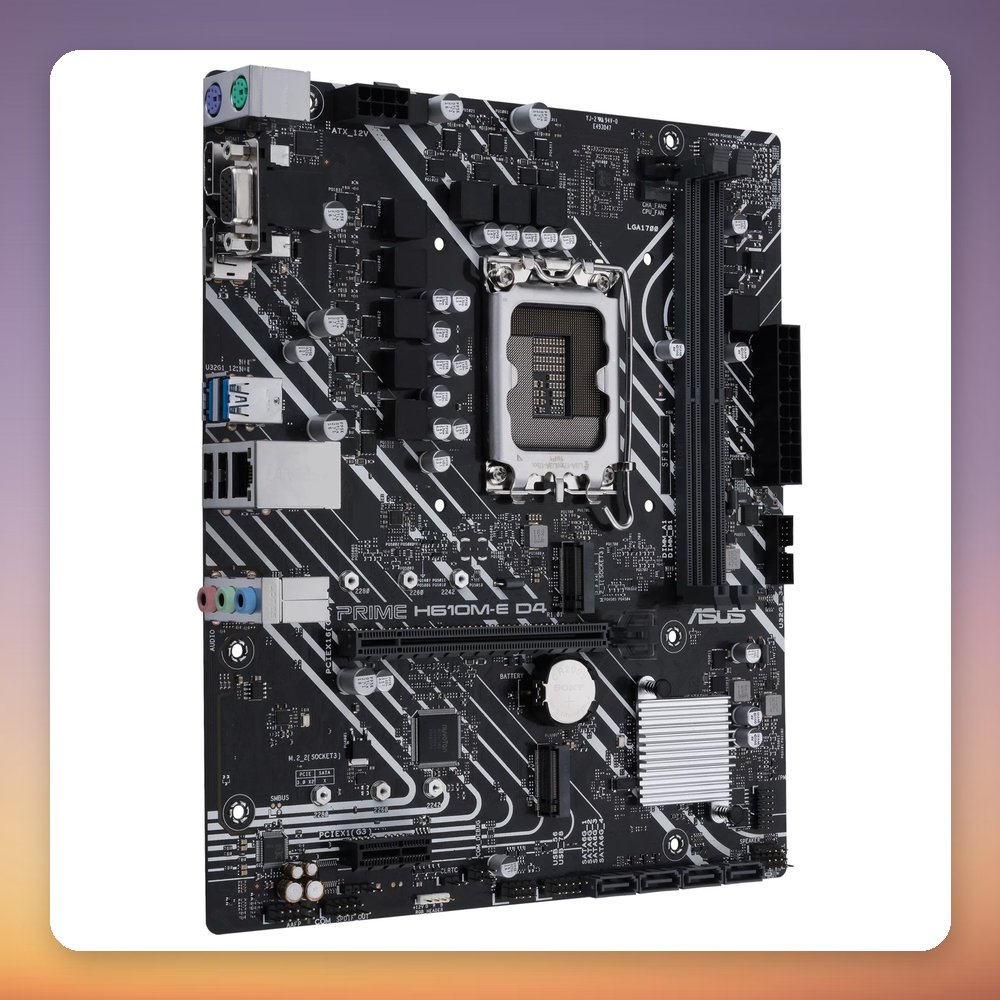

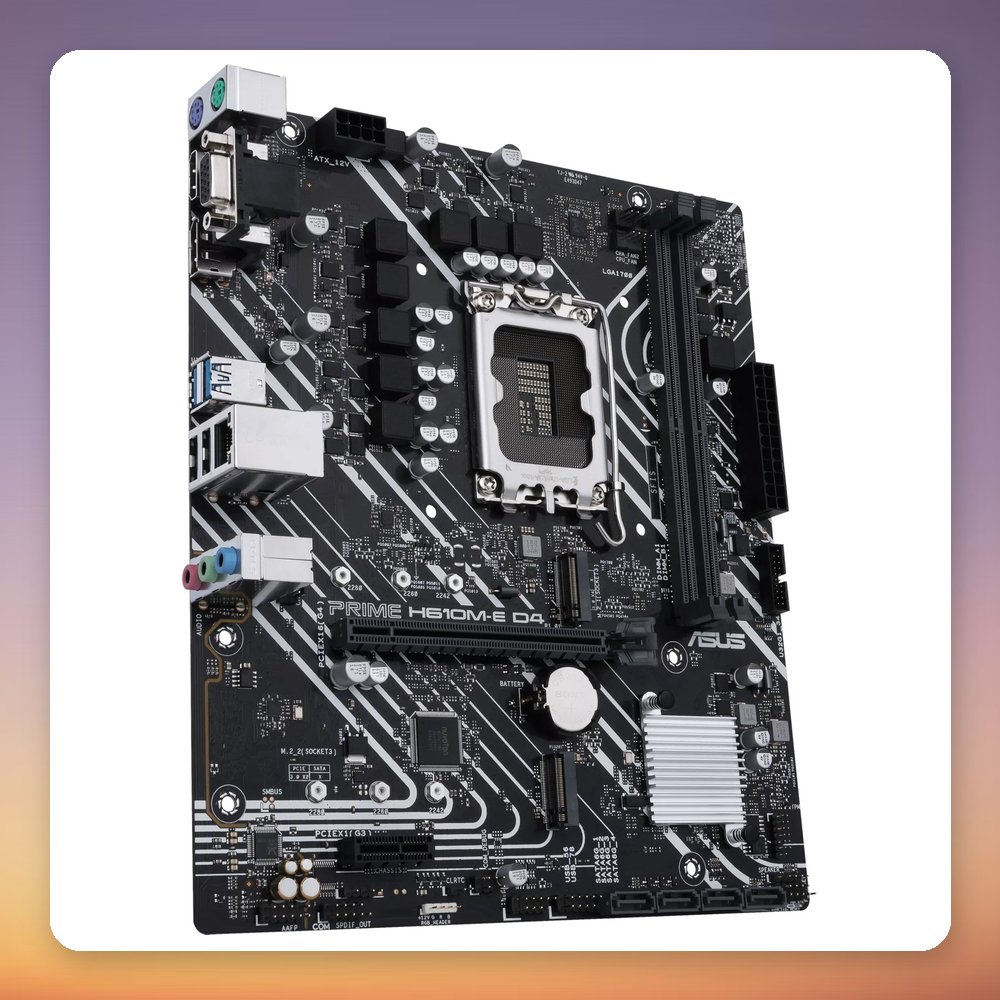

The Asus PRIME H610M-E D4-CSM is a micro-ATX motherboard built on the Intel H610 chipset with an LGA 1700 socket. It takes two DDR4 DIMMs in dual-channel mode for up to 64 GB at speeds up to 3200 MHz. Storage is well covered, with two M.2 slots (M key, 42-80 mm, SATA and PCIe) alongside four SATA III ports.

This board suits a compact, budget-minded Intel LGA 1700 build. It has one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, plus HDMI, DisplayPort and VGA outputs for CPUs with integrated graphics. Realtek Gigabit LAN, 7.1-channel audio, a TPM header and an Aura Sync RGB header are included. As a CSM model it comes with ASUS Control Center Express management software and up to 36 months of lifecycle support. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME H610M-E D4-CSM
• MPN: 90MB19N0-M1EAYC
• EAN: 47110815148000
• Socket: LGA 1700
• Chipset: Intel H610
• Form factor: Micro-ATX
• Memory: 2x DDR4 DIMM, dual-channel, up to 64 GB
• Supported memory speeds: DDR4-2133 to DDR4-3200 MHz (non-ECC, unbuffered)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• M.2 slots: 2x M.2 (M key), 42-80 mm, SATA and PCIe
• SATA ports: 4x SATA III 6 Gb/s

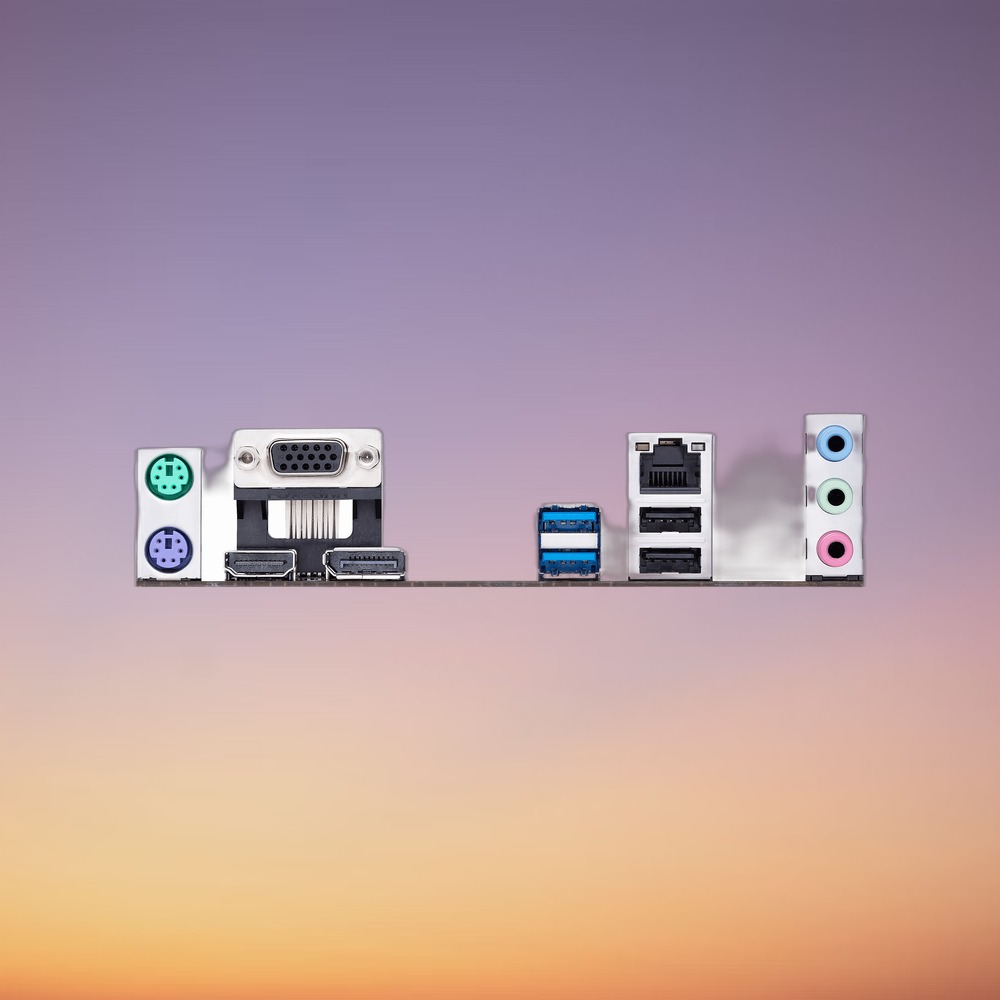

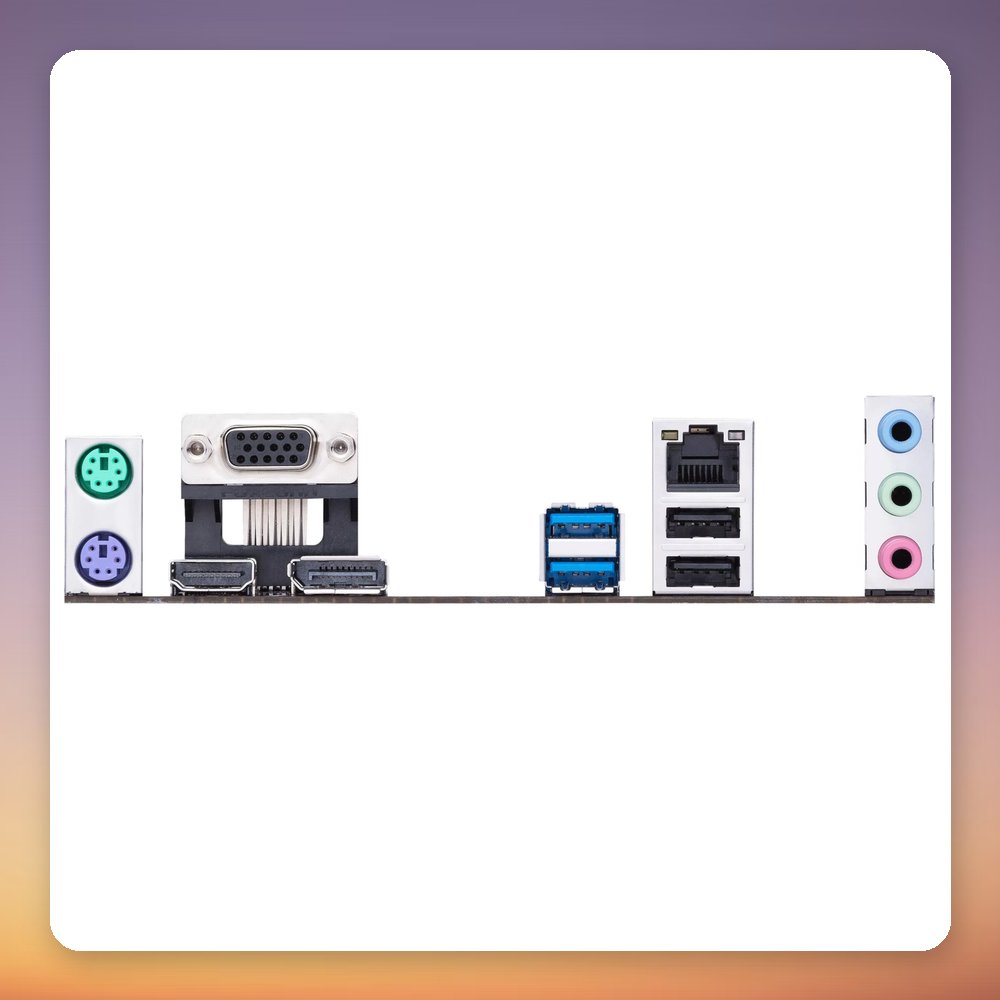

• Rear video outputs: HDMI 2.1, DisplayPort 1.4, VGA (needs CPU with integrated graphics)
• Rear USB ports: 2x USB-A 3.2 Gen 1 (5 Gbit/s), 2x USB-A 2.0
• Other rear ports: RJ-45 Gigabit LAN, 2x PS/2, 3x 3.5 mm audio
• Audio: Realtek 7.1 channel HD audio codec
• Fan and RGB headers: 3x 4-pin PWM fan, 1x RGB header (Aura Sync)
• BIOS: 128 Mbit UEFI AMI BIOS
• Dimensions (W x D): 244 mm x 211 mm
