Product Overview

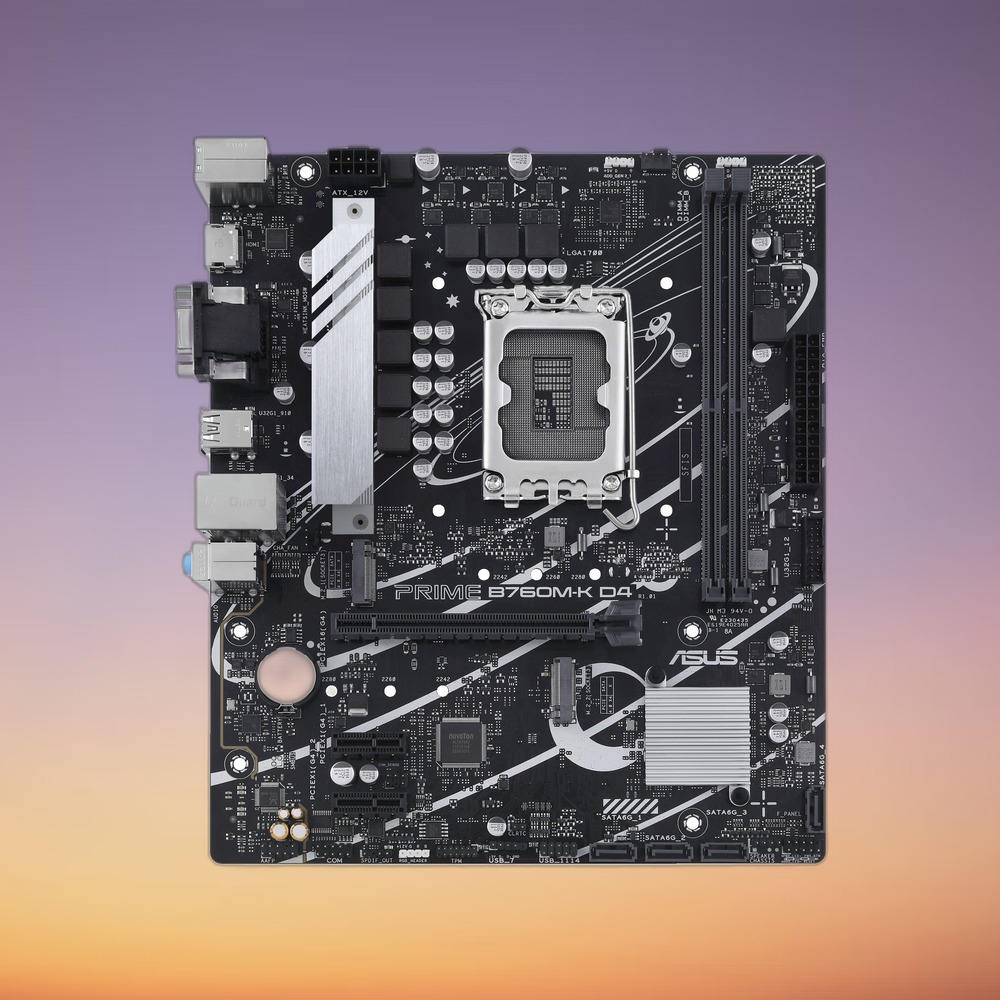

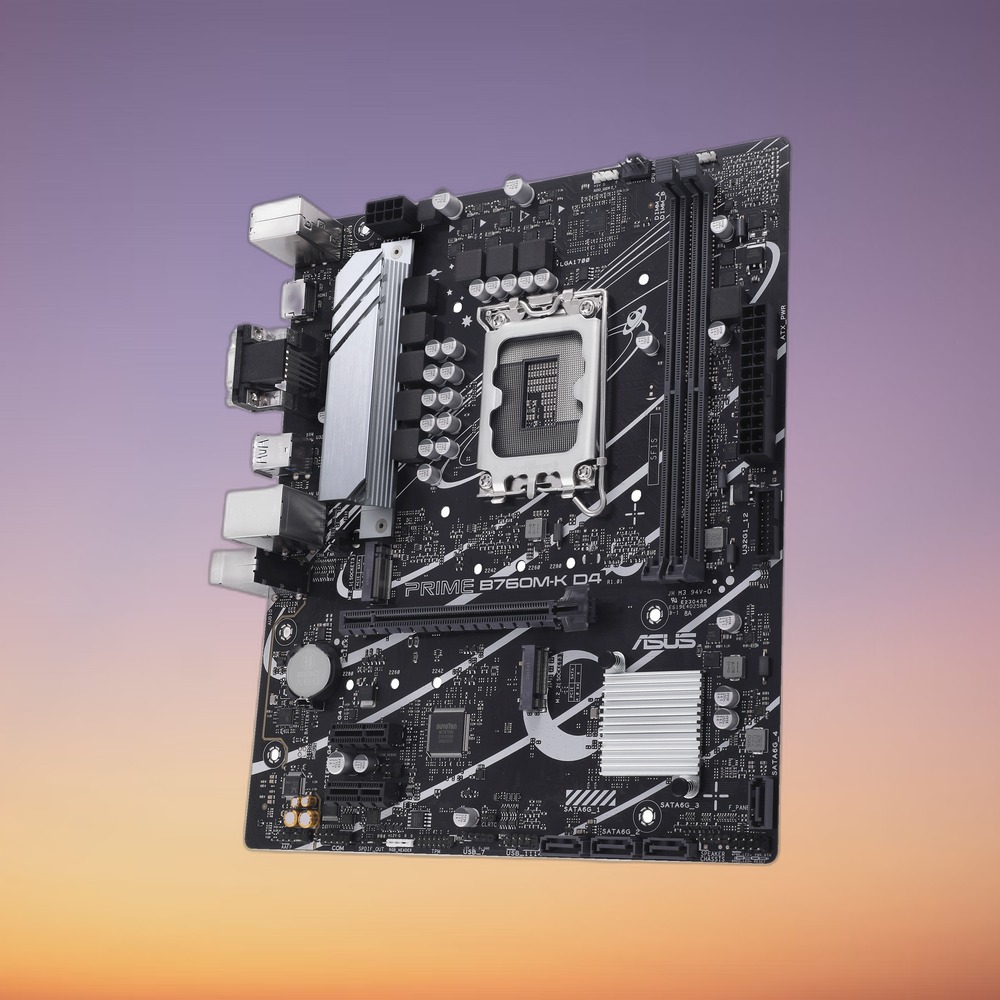

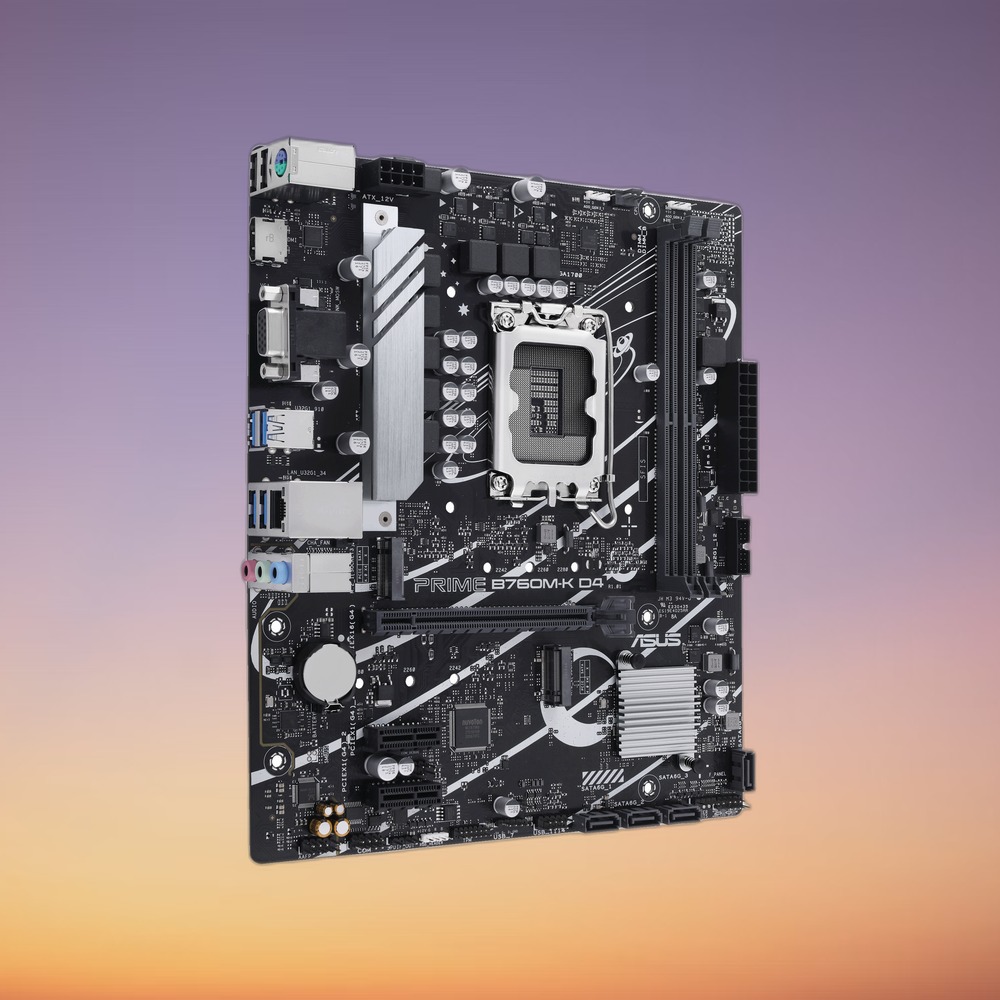

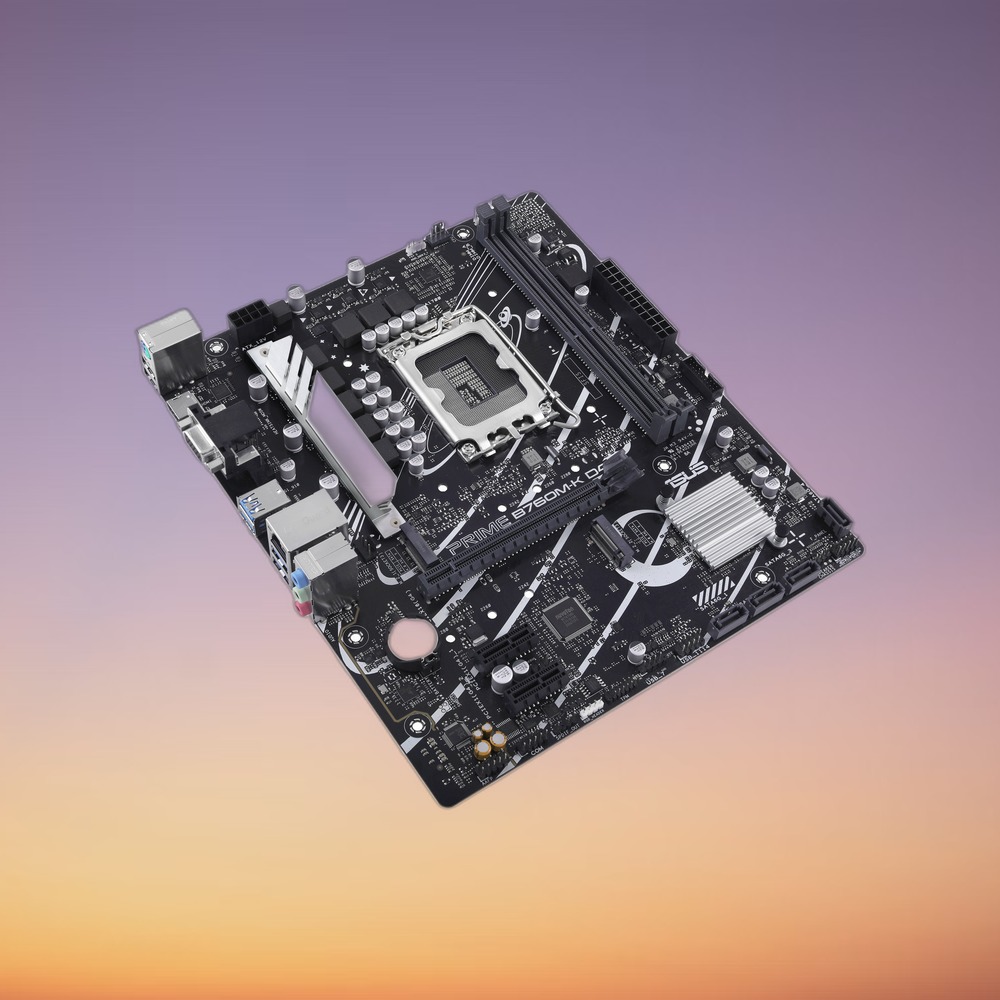

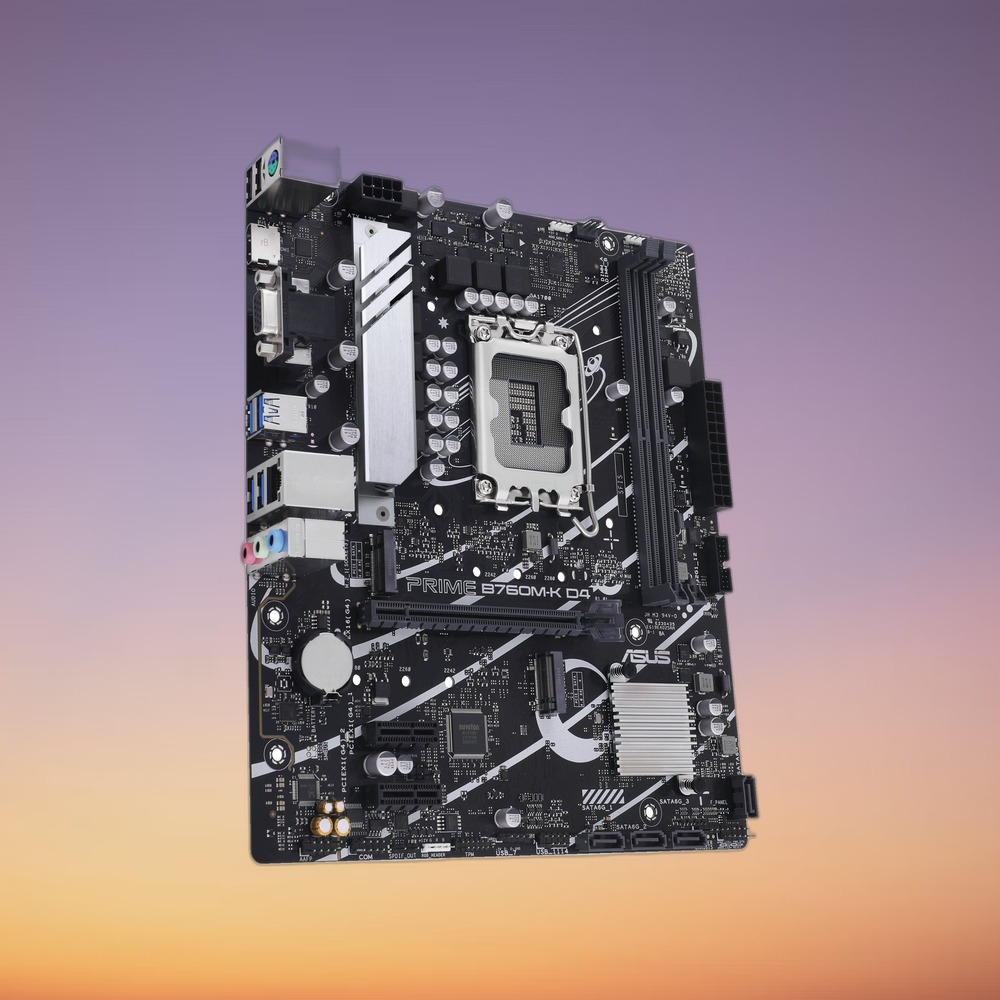

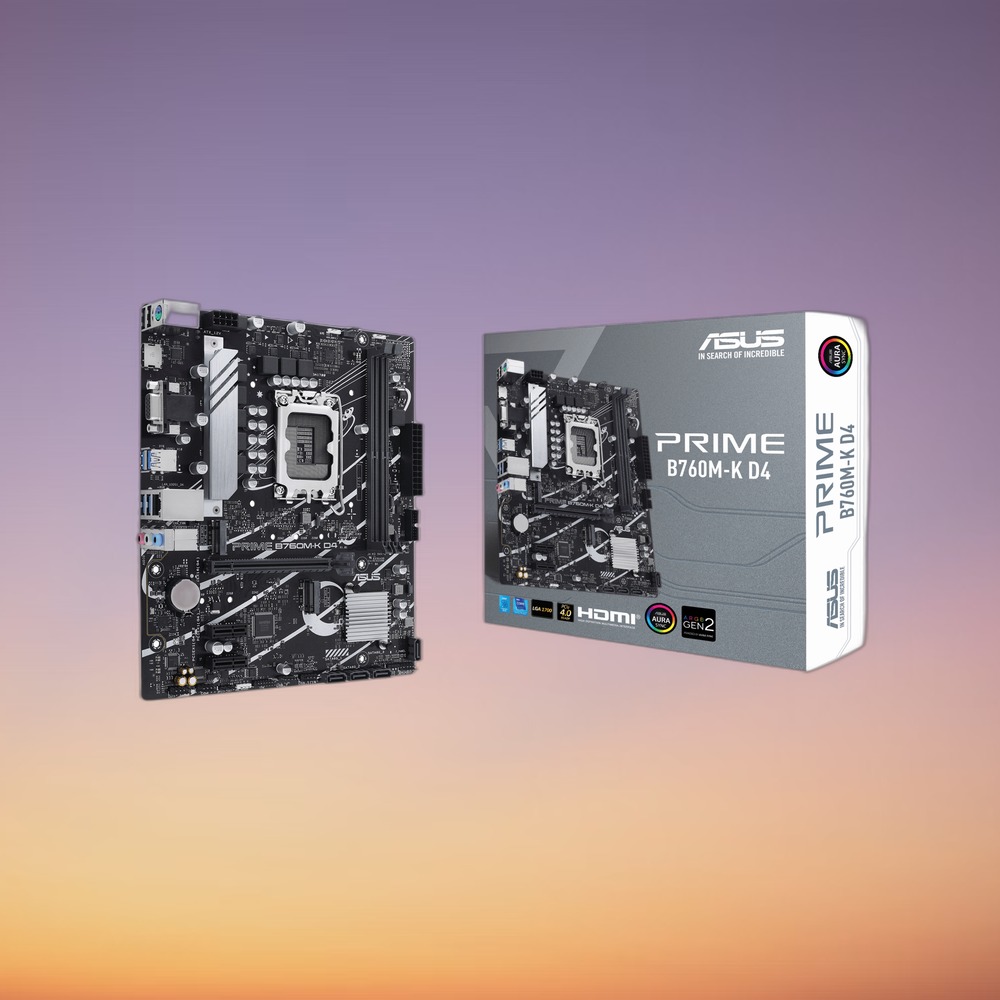

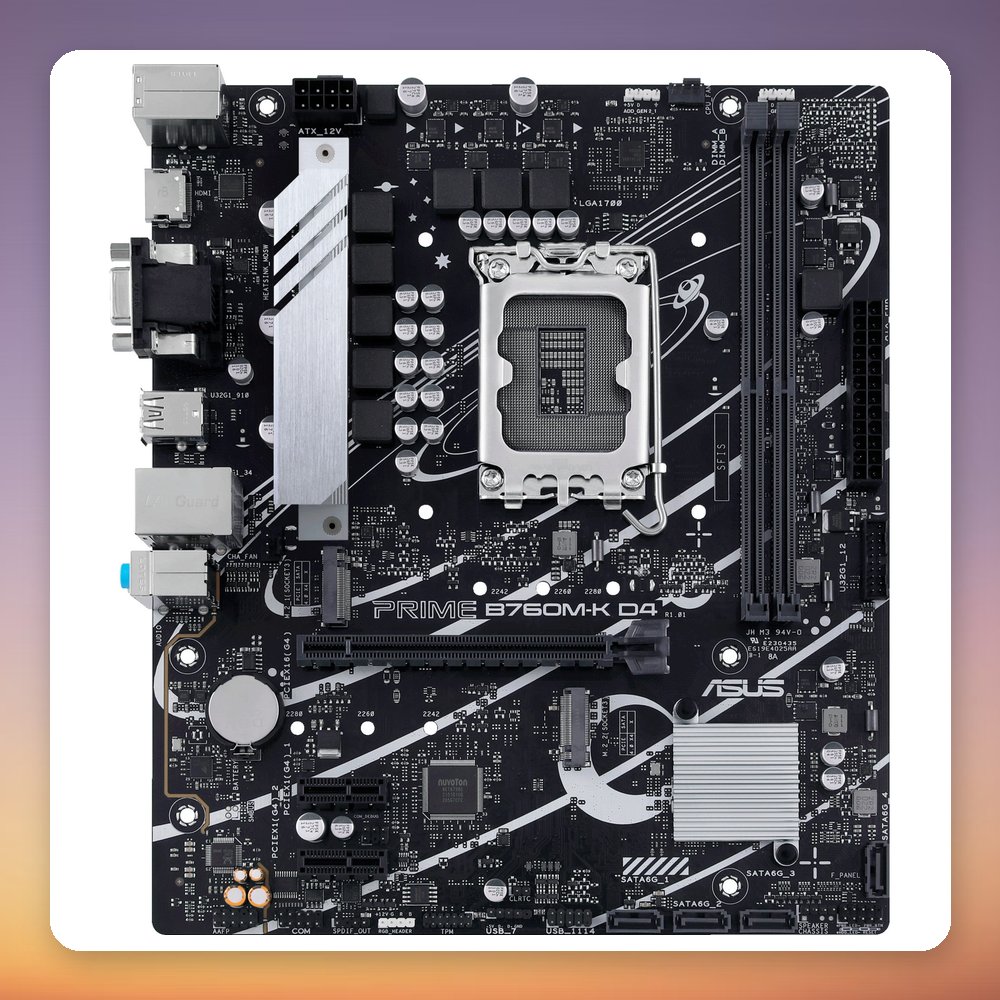

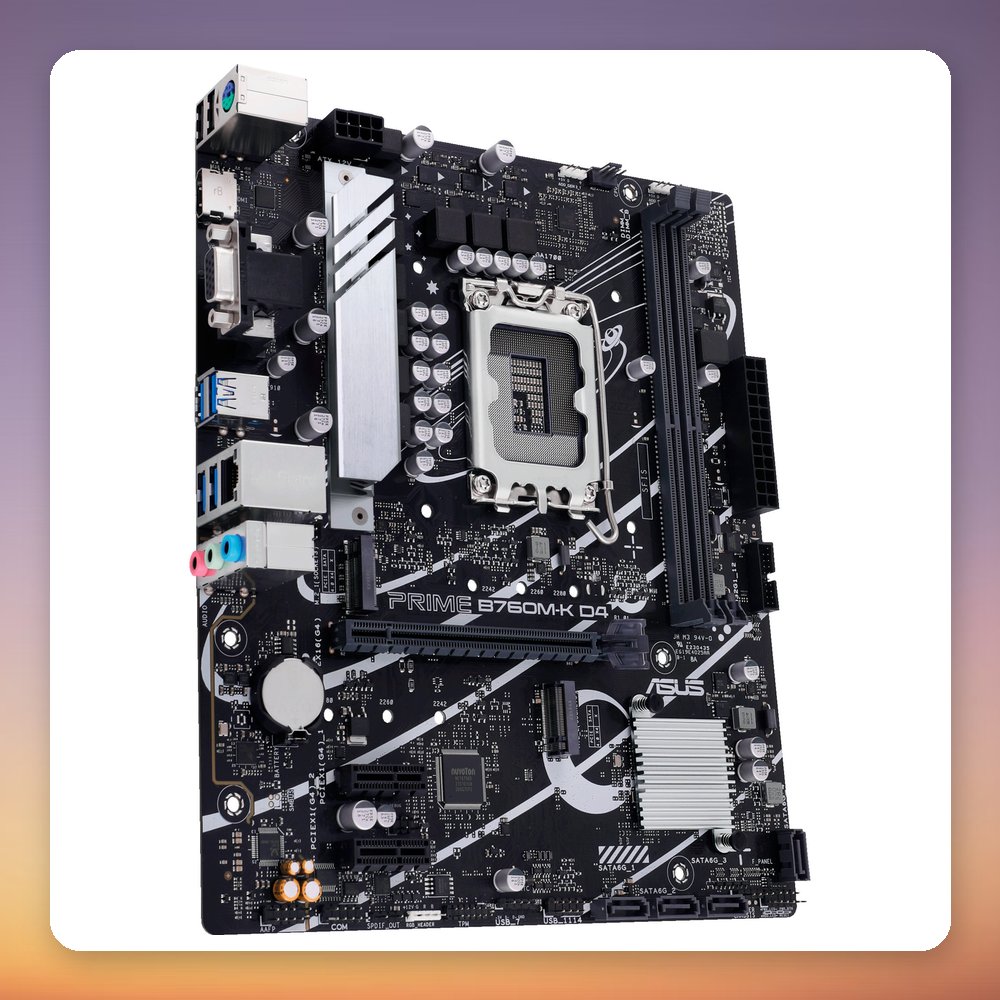

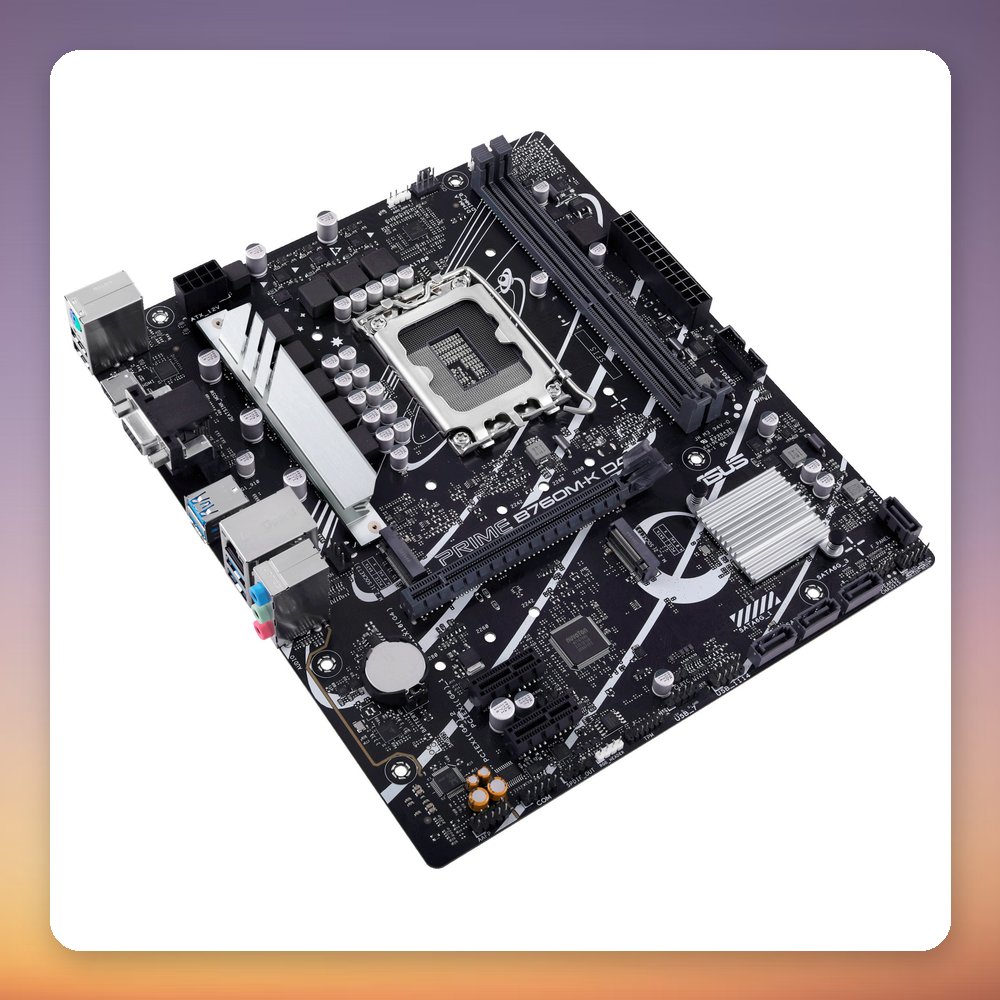

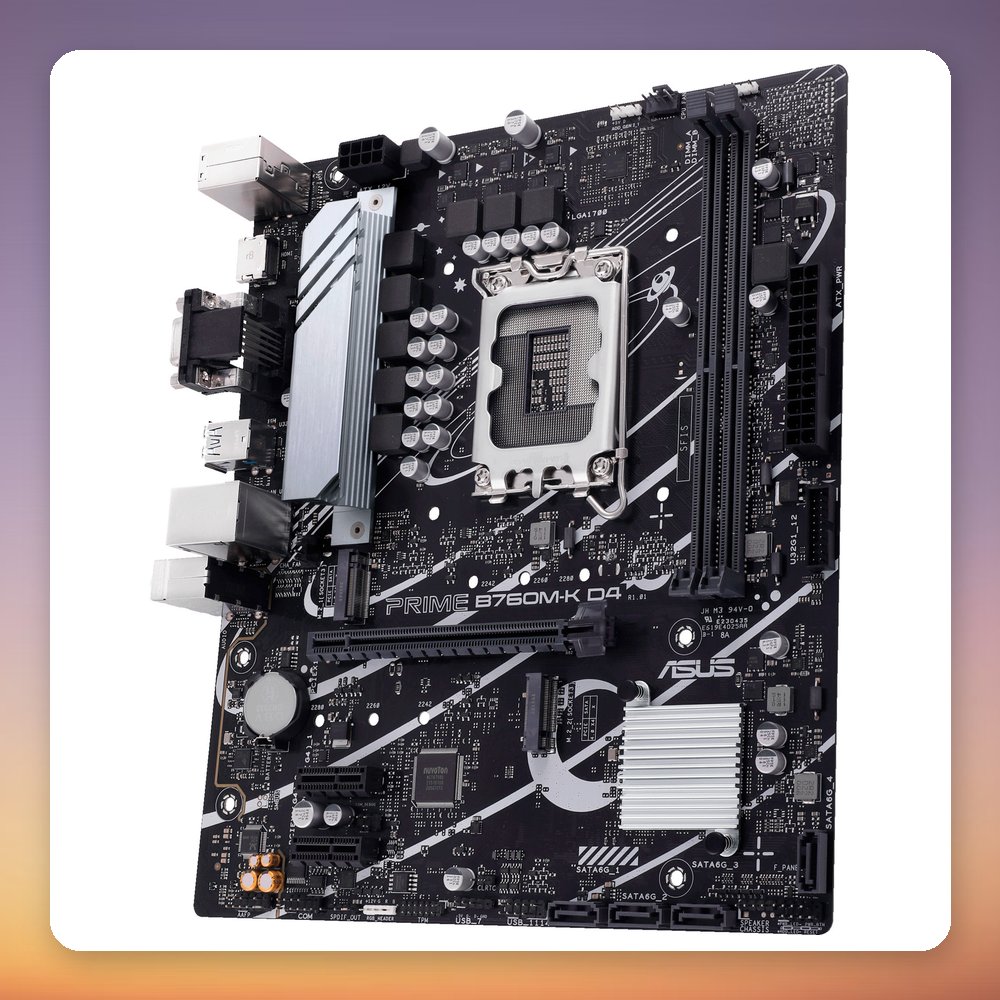

The Asus PRIME B760M-K D4 is a micro ATX motherboard built on the Intel B760 chipset for LGA 1700 processors, supporting 12th and 13th generation Intel Core CPUs. What sets it apart is the combination of DDR4 memory support (two DIMM slots, up to 64 GB, dual-channel), two M.2 slots, a PCIe 4.0 x16 slot and Realtek 2.5 Gb Ethernet in a compact board.

It suits budget and mid-range builds that reuse or buy DDR4 memory, such as a compact gaming PC or an everyday desktop. Four SATA III ports and two M.2 slots give plenty of storage options, while HDMI and VGA outputs work with CPUs that have integrated graphics. AURA Sync RGB headers are included. Note that a BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME B760M-K D4
• MPN: 90MB1DS0-M1EAY0
• EAN: 4711387006917
• CPU socket: LGA 1700
• Chipset: Intel B760
• Form factor: micro ATX
• Memory: 2x DIMM, DDR4, dual-channel, up to 64 GB (non-ECC)
• Memory speed: DDR4-2133 up to DDR4-5333 (OC)
• Expansion slots: 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
• M.2 slots: 2x M.2 (M key), PCIe, 42-80 mm
• SATA: 4x SATA III, RAID 0/1/5/10

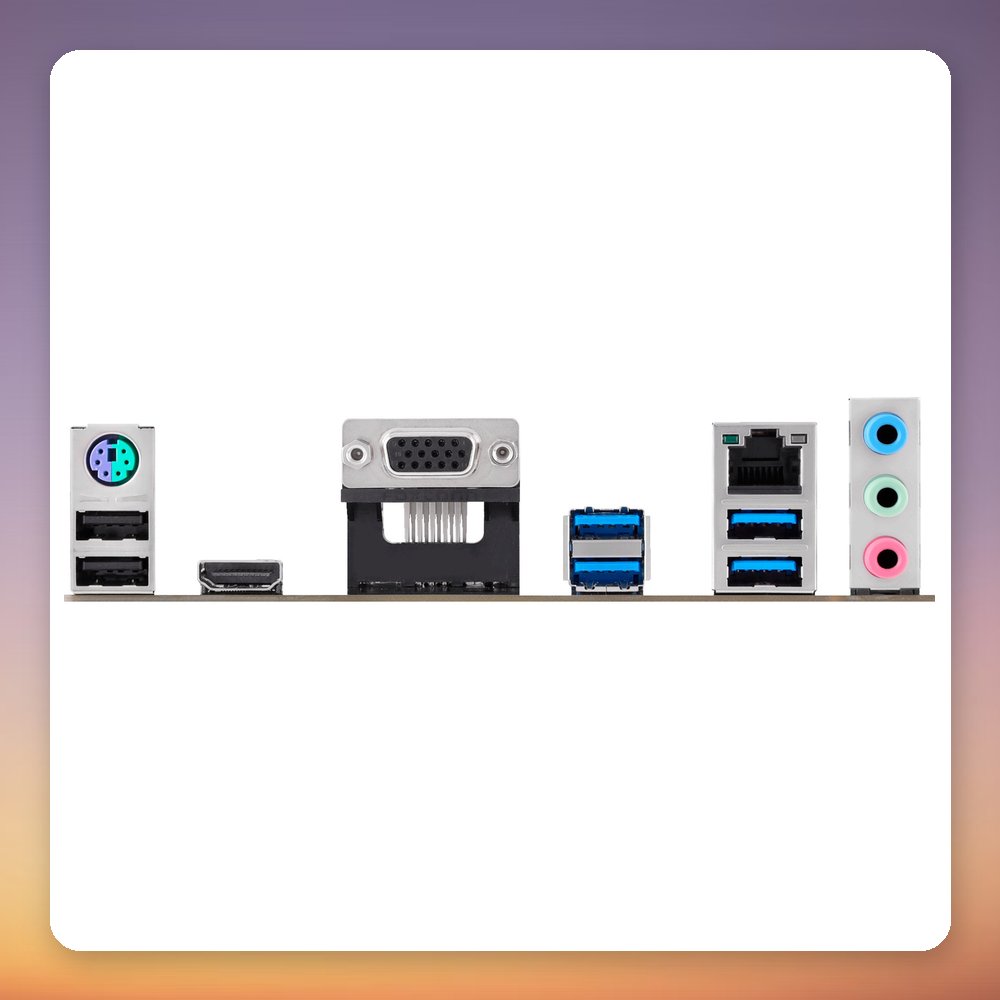

• Rear USB: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 1x PS/2 combo
• Video outputs: 1x HDMI, 1x VGA (CPU with integrated graphics required)
• LAN: Realtek 2.5 Gb Ethernet
• Audio: Realtek 7.1 channel HD audio
• RGB headers: 1x RGB, 2x addressable RGB (AURA Sync)
• Fan headers: 2x 4-pin PWM
• Wi-Fi: No
• Dimensions (W x D): 244 x 211 mm
• Weight: 528 g
