Product Overview

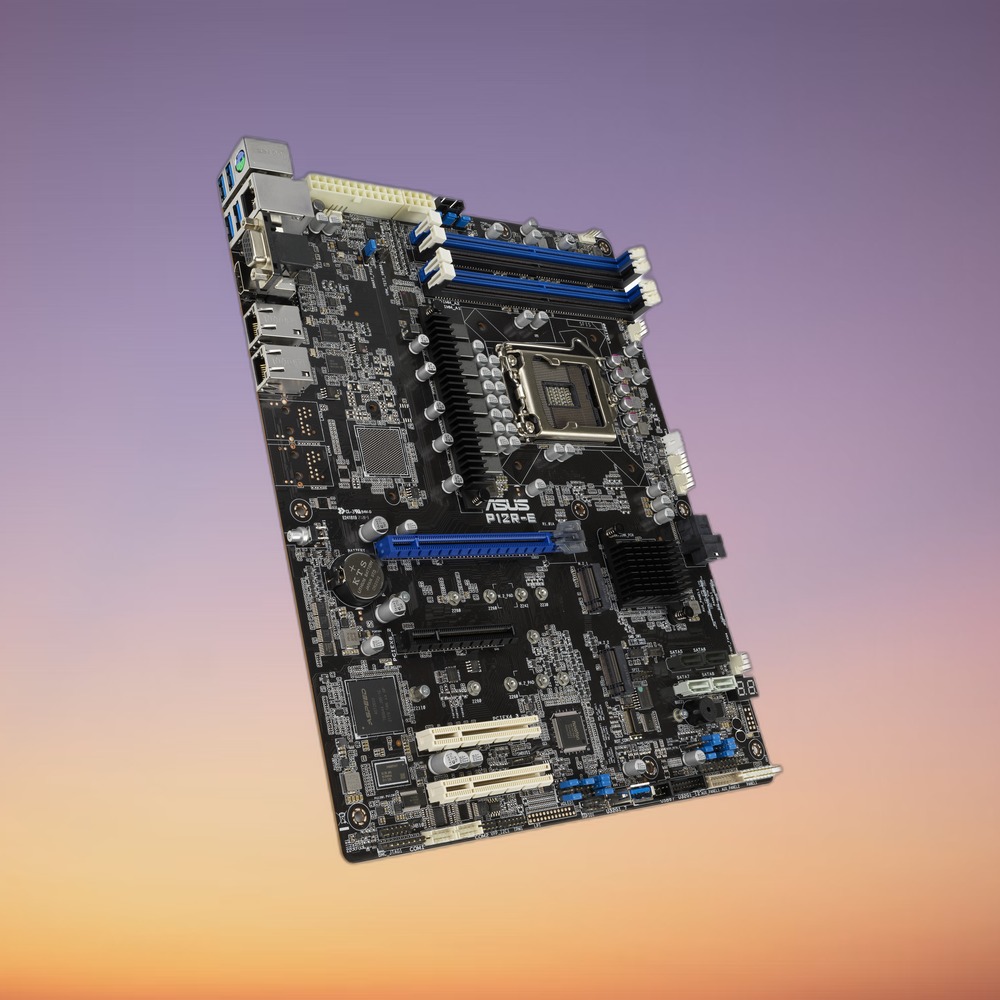

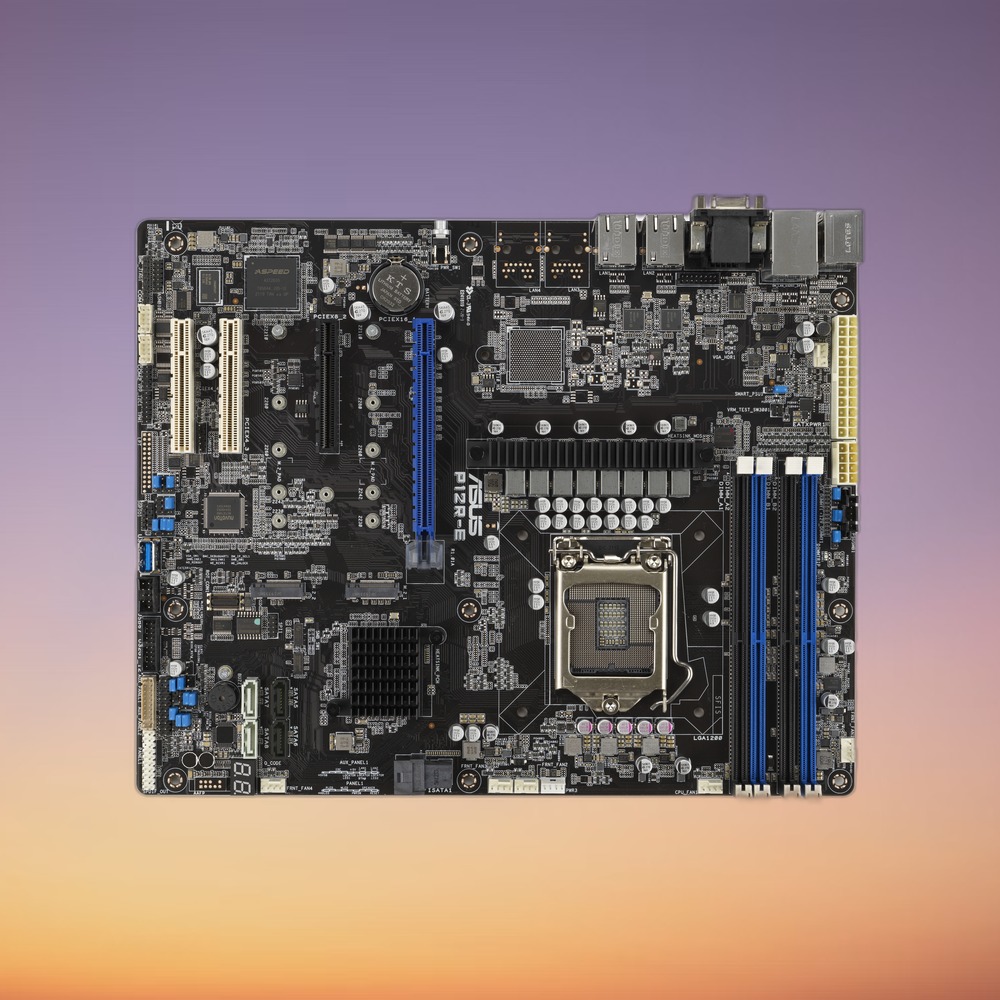

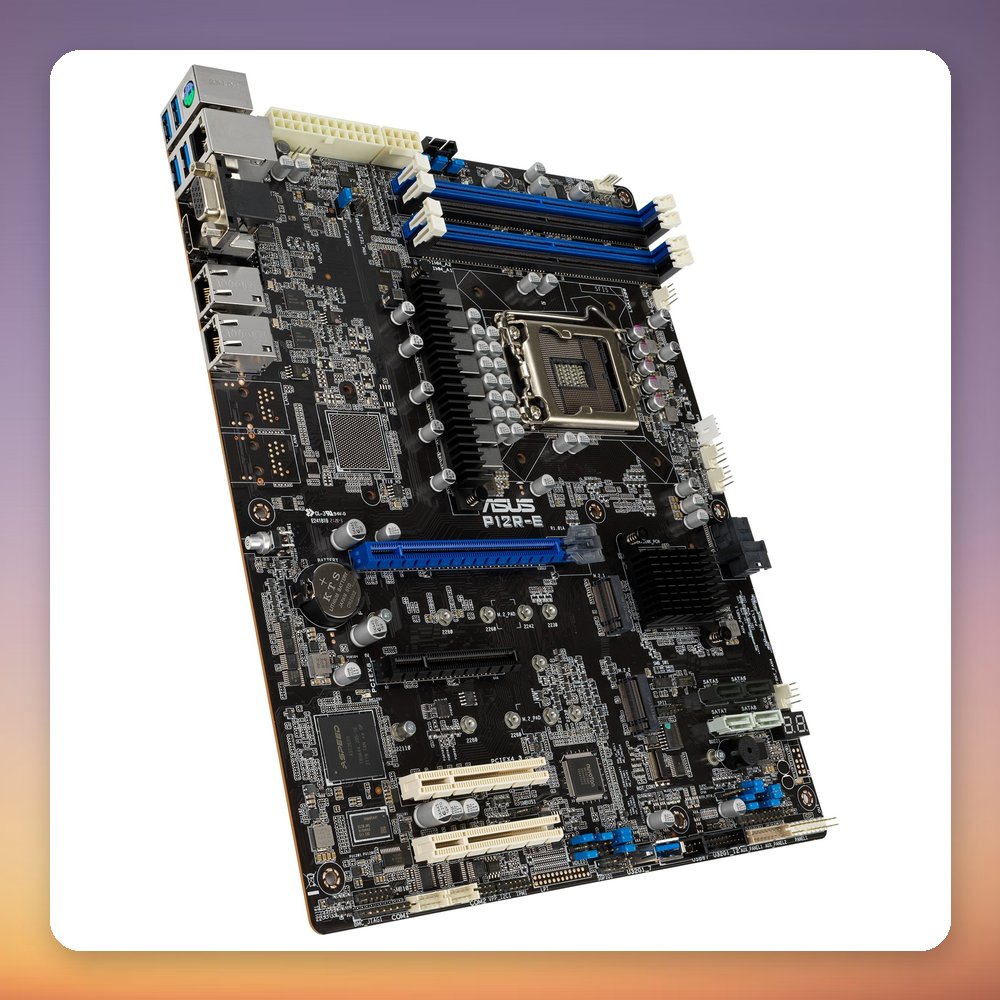

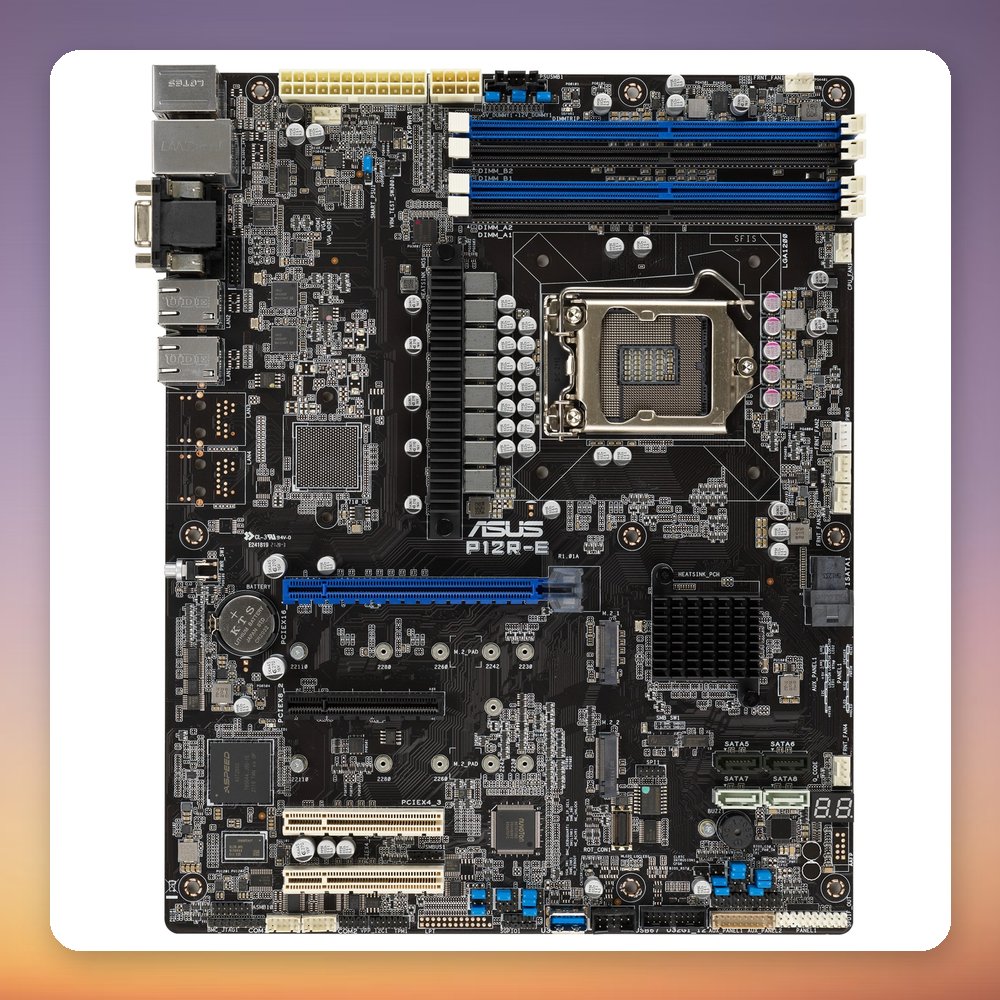

The Asus P12R-E is an ATX server motherboard that supports the Asus P12R-E Intel C256 platform for LGA 1200 processors. It has four DDR4 DIMM slots running dual-channel for up to 128 GB at speeds up to 3200 MHz, a PCIe 4.0 x16 slot, three PCIe x8 slots and two M.2 connectors. Dual Intel I210-AT Gigabit LAN, an extra management LAN port and Intel VROC set it apart from standard desktop boards.

Built as a server board rather than a gaming board, the P12R-E suits file servers, small business servers and workstation-style builds based on Intel Xeon E or Pentium processors. Four Mini-SAS HD connectors provide eight SATA III ports, with RAID 0, 1, 5 and 10 available, and the Aspeed AST2600 provides onboard graphics with 64 MB of VRAM. Outputs include VGA and HDMI. A BIOS update may be required for the newest processors.

Specification

• Manufacturer: Asus
• Model: P12R-E
• MPN: 90SB0A90-M0UAY0
• EAN: 4711081420217
• CPU socket: LGA 1200 (Socket H5)
• Chipset: Intel C256
• Form factor: ATX
• Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB
• Supported memory speeds: DDR4-3200 / 2933 / 2666
• Expansion slots: 1x PCIe 4.0 x16, 3x PCIe x8 (2x Gen 3, 1x Gen 4 per Icecat)
• Storage: 2x M.2, 8x SATA III (via 4x Mini-SAS HD SFF-8643)
• RAID: 0, 1, 5, 10; Intel VROC
• LAN: 2x Intel I210-AT Gigabit LAN + 1x management LAN
• Onboard graphics: Aspeed AST2600, 64 MB

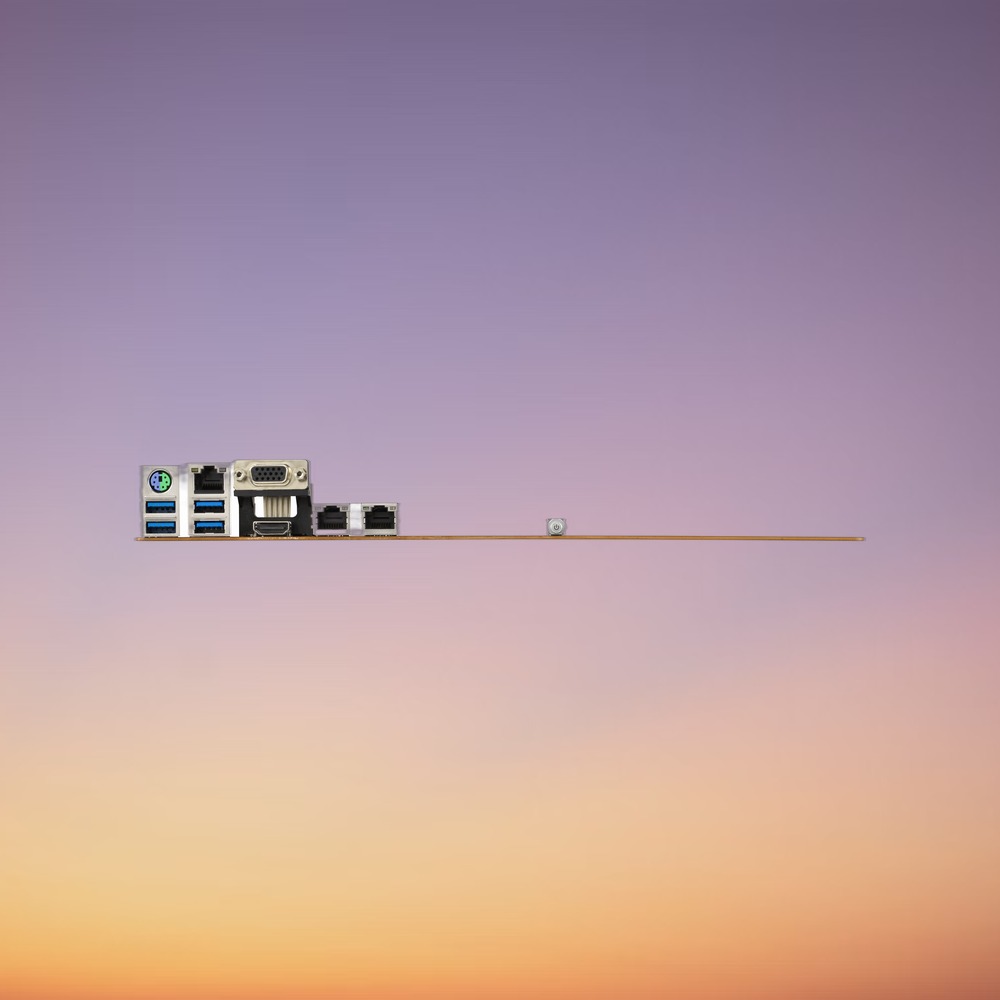

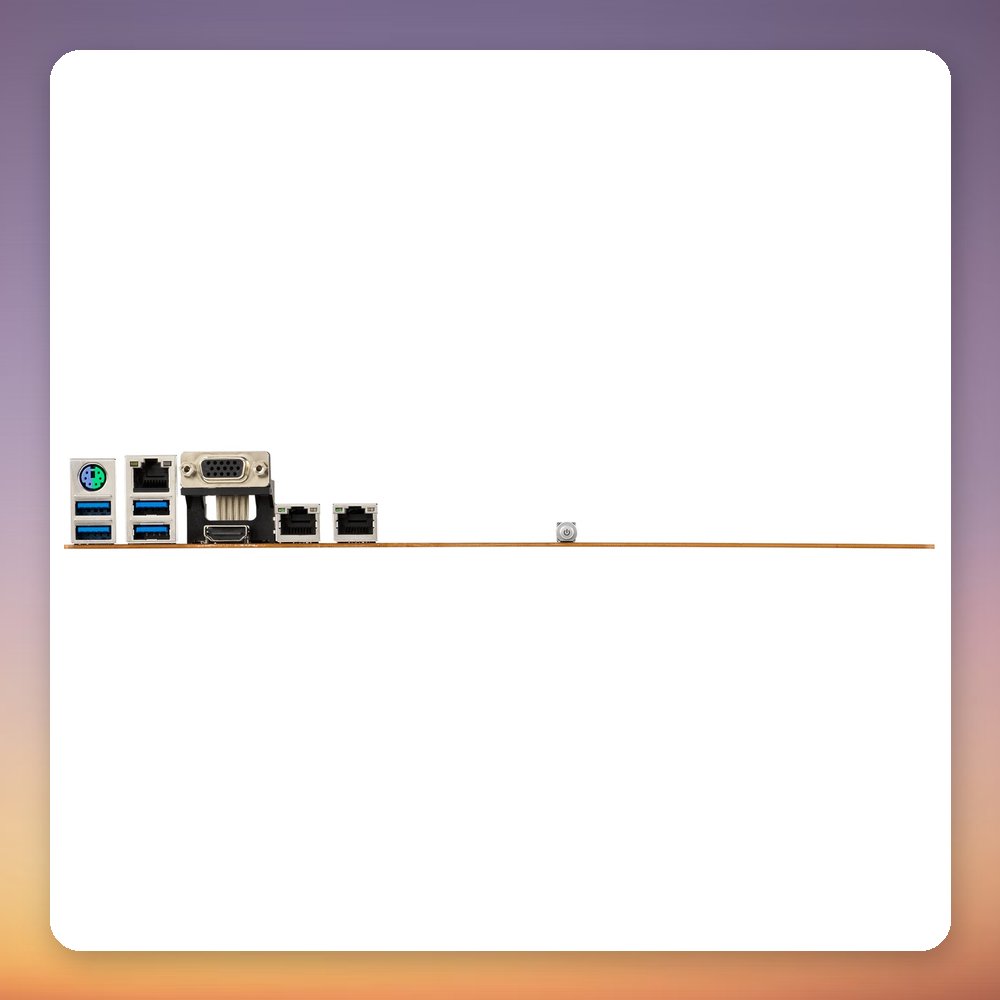

• Rear I/O: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, VGA, HDMI, 2x RJ-45, PS/2 combo
• Power connectors: ATX 24-pin + 8-pin, 6x 4-pin PWM fan headers
• Other: TPM header, AURA Sync, 256 Mbit UEFI AMI BIOS
• Dimensions (W x D x H): 305 x 244 x 68 mm
• Weight: 800 g
