Product Overview

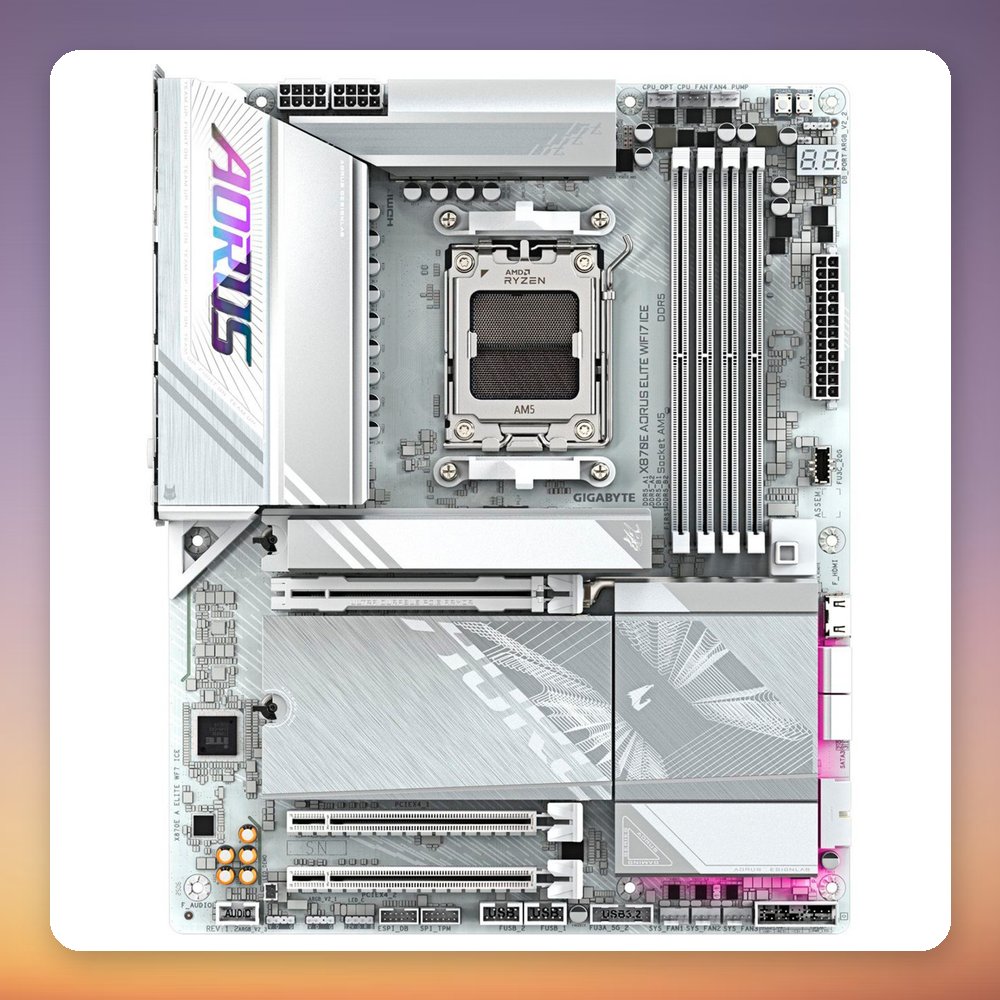

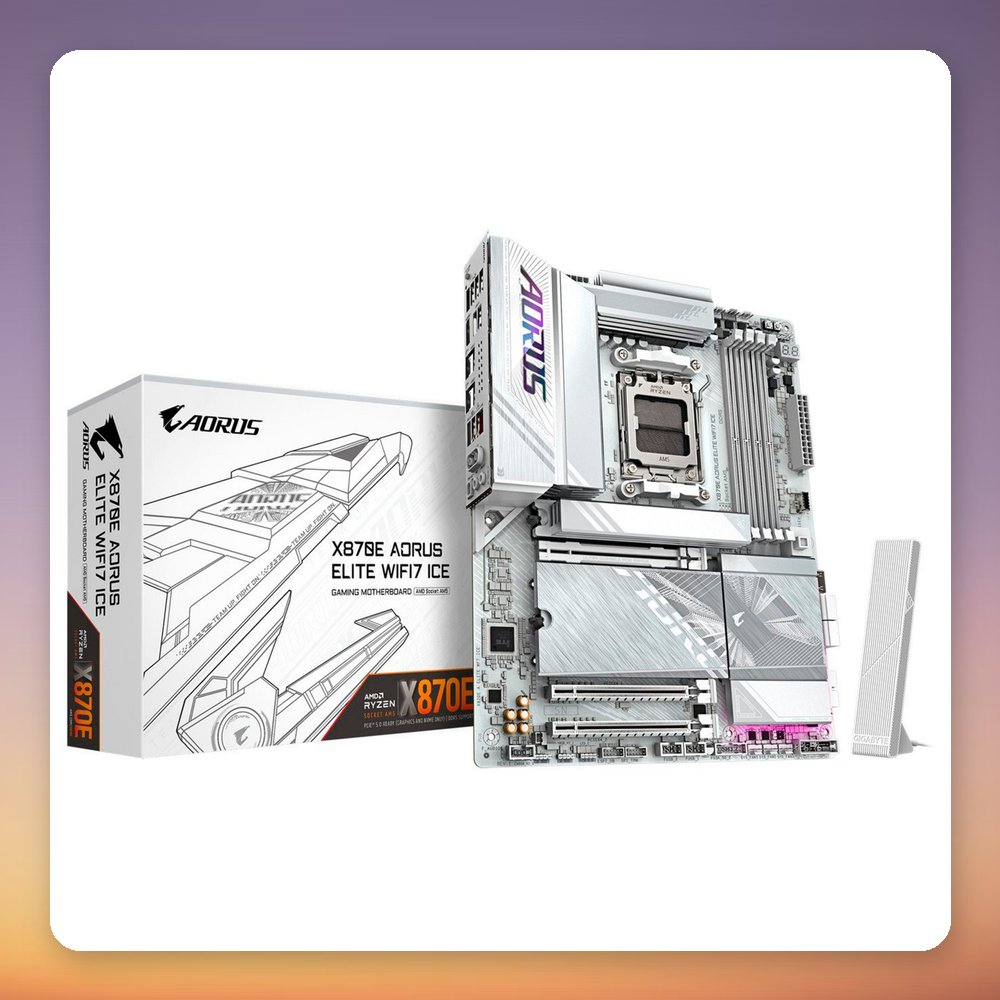

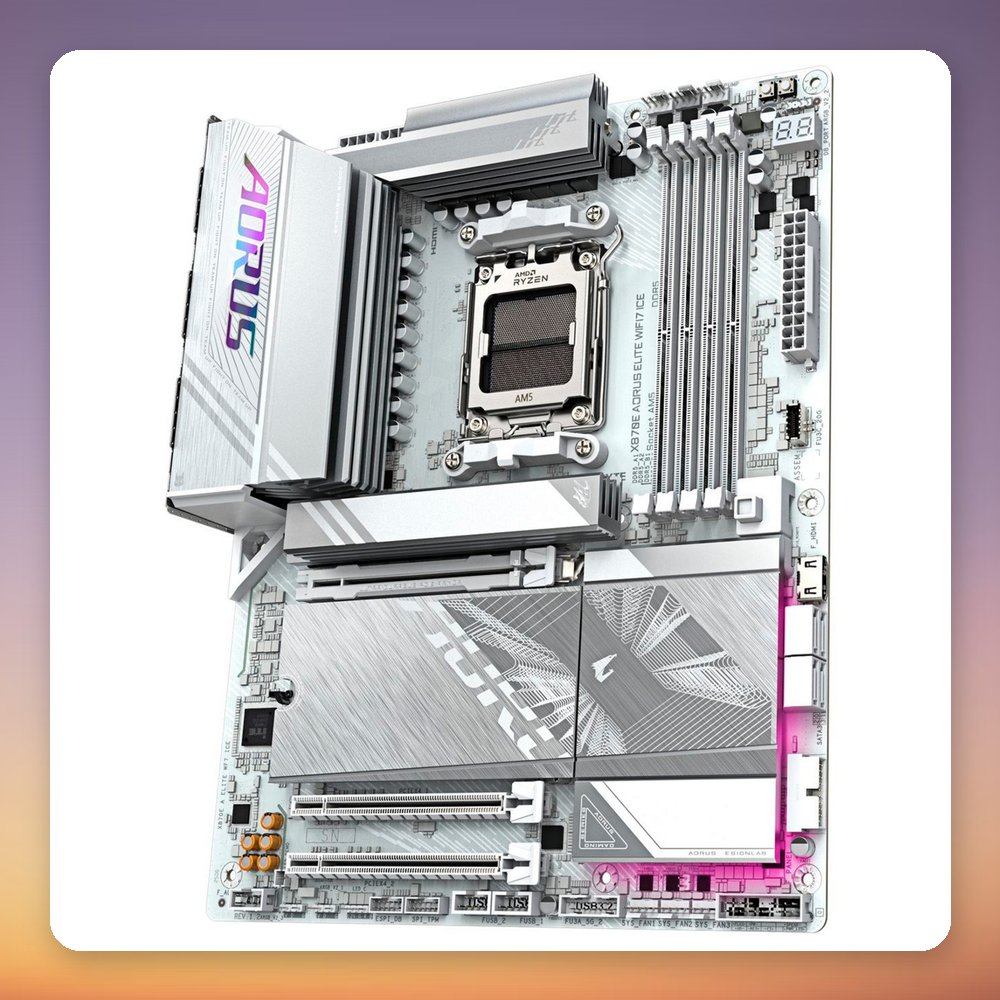

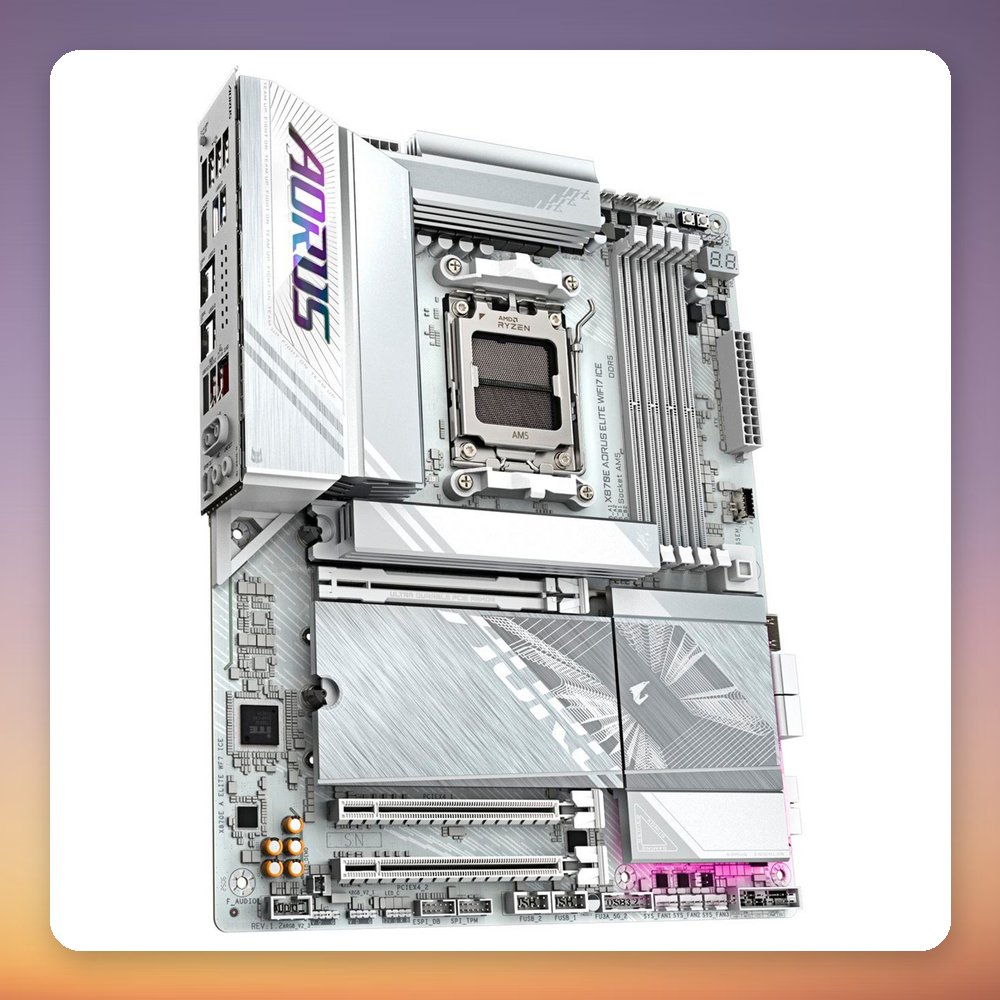

The Gigabyte X870E AORUS Elite WiFi7 ICE AM5 motherboard is a white ATX board built on the AMD X870E chipset for Socket AM5 processors. What sets it apart is the storage and connectivity package: four M.2 slots (three PCIe 5.0, one PCIe 4.0), two USB4 ports, Wi-Fi 7 with Bluetooth 5.4 and 2.5 GbE LAN, plus four DDR5 slots supporting up to 256 GB at speeds up to DDR5-8200 (OC).

It suits white-themed AMD builds that need fast storage and modern connectivity, from Ryzen 7000 and 8000 to Ryzen 9000 series processors, including X3D models. Expansion comes from one PCIe 5.0 x16 slot and two further x16-size slots running at x4. Four SATA III ports, six 4-pin PWM fan headers and 7.1-channel Realtek ALC1220 audio round out the board. A BIOS update may be needed for the newest CPUs.

Specification

• Manufacturer: GigaByte
• Model: X870E AORUS Elite WiFi7 ICE
• MPN: X870E A ELITE WF7 ICE
• EAN: 47193318715290
• Socket: AMD AM5
• Chipset: AMD X870E
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: Up to DDR5-8200 (OC)
• M.2 slots: 4x (3x PCIe 5.0, 1x PCIe 4.0), 42-110 mm
• SATA: 4x SATA III
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4)

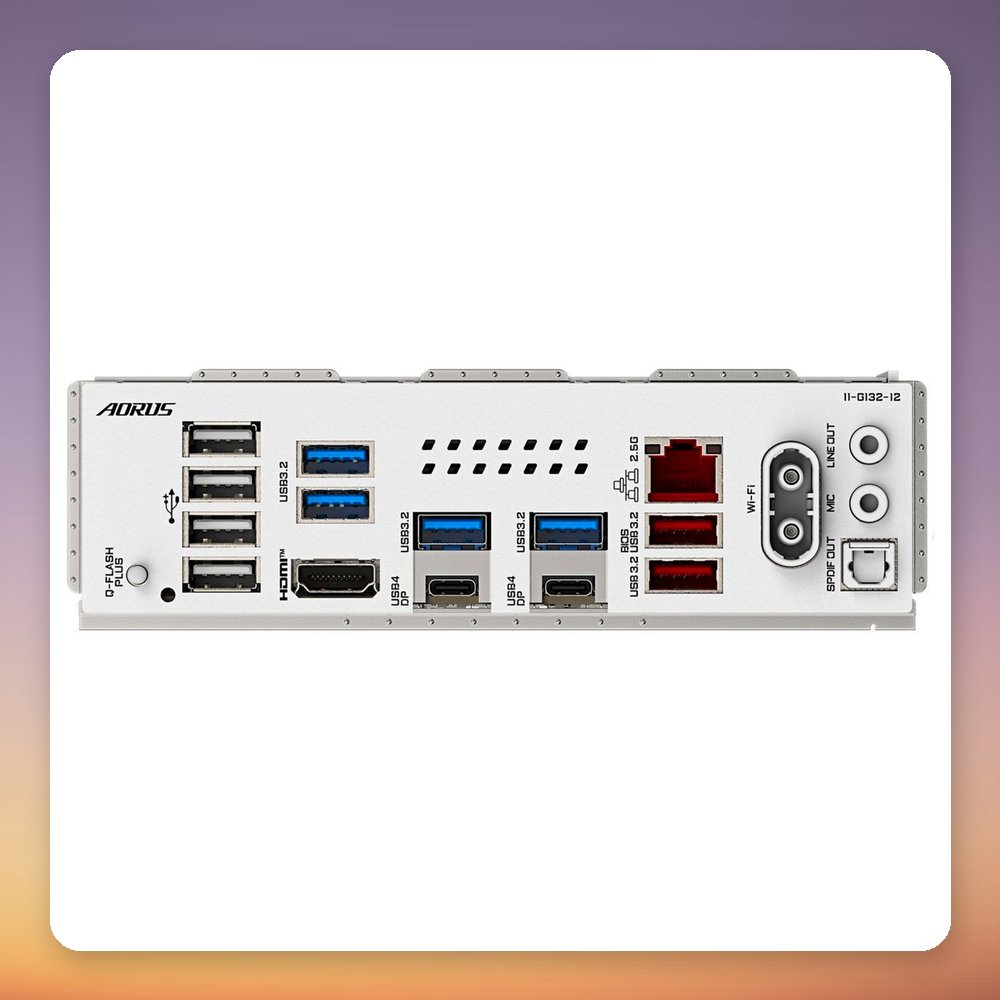

• Rear USB: 2x USB4, 2x USB-A 10 Gbit/s, 3x USB-A 5 Gbit/s, 4x USB 2.0
• Internal USB: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s)
• Networking: Realtek 2.5 GbE LAN, Wi-Fi 7, Bluetooth 5.4
• Video output: HDMI, 2x USB4 DisplayPort (CPU with integrated graphics required)
• Audio: Realtek ALC1220, 7.1 channels
• Fan headers: 6x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB
• Colour: White
• Dimensions (W x H): 244 x 305 mm
