Product Overview

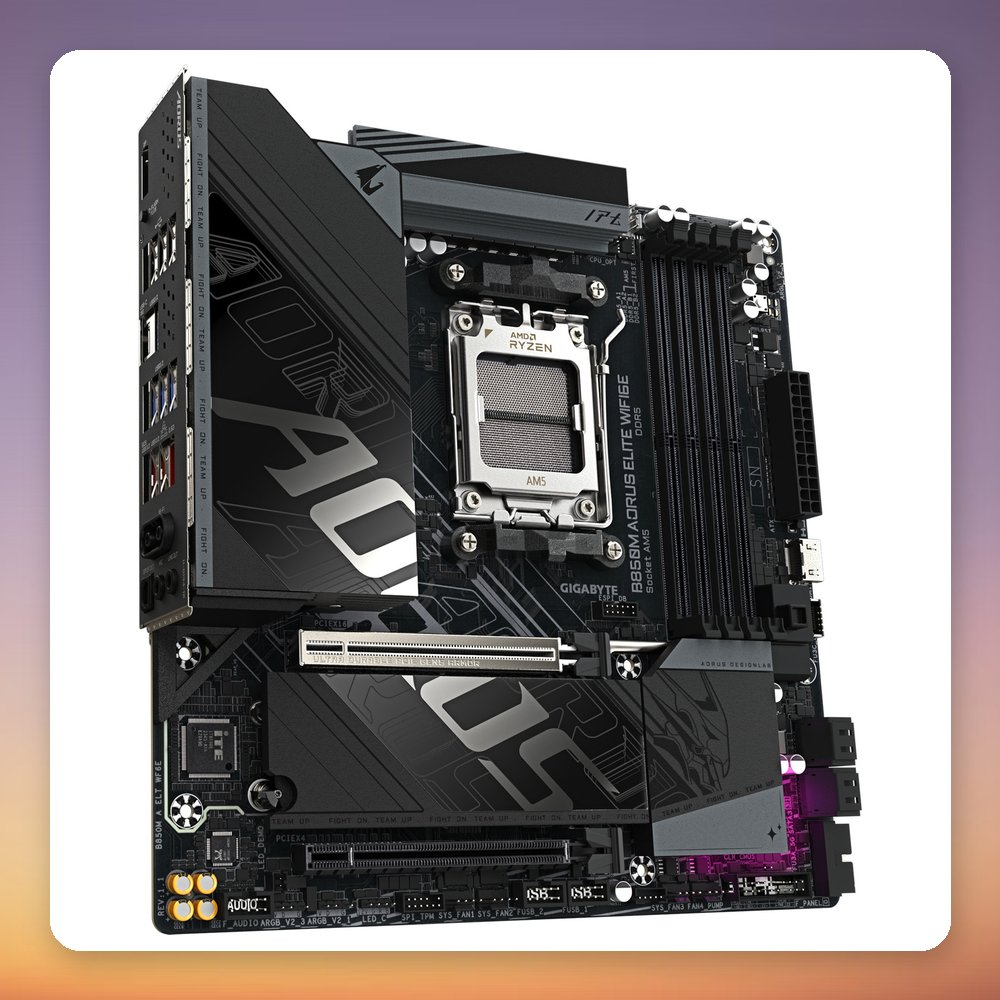

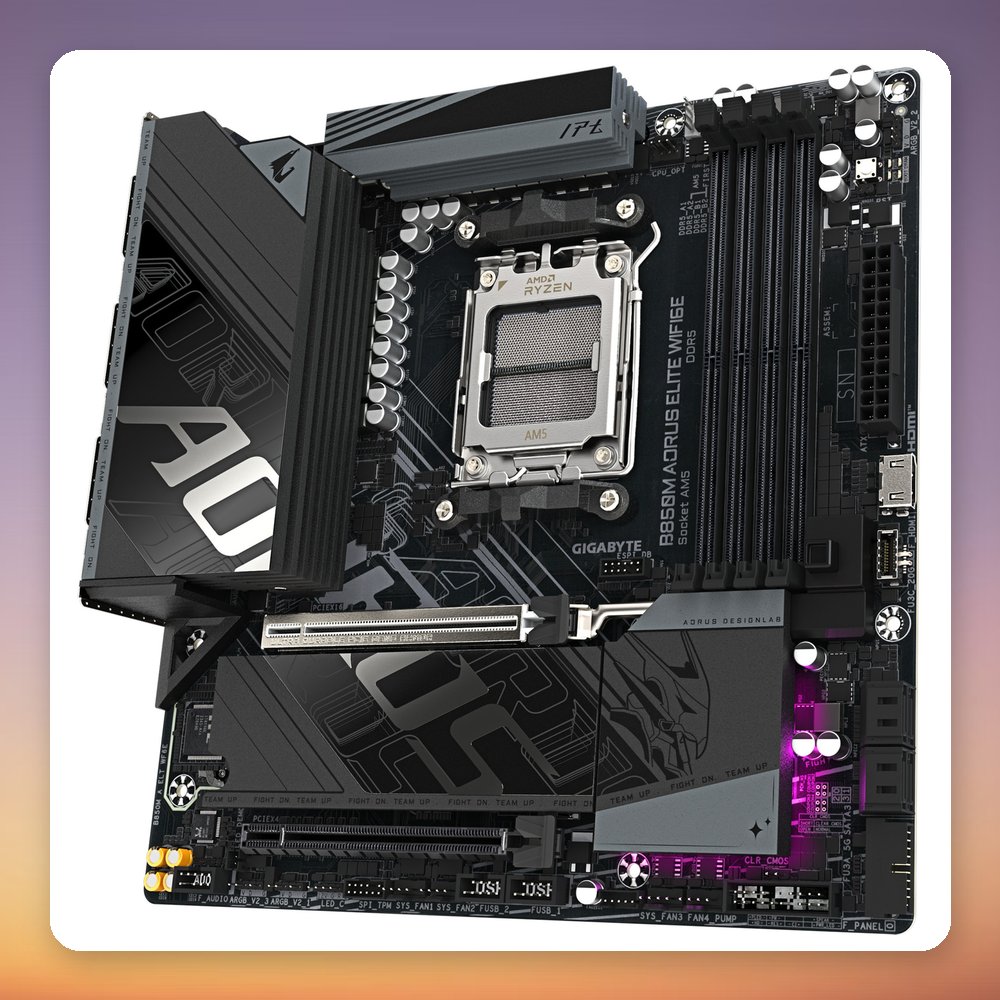

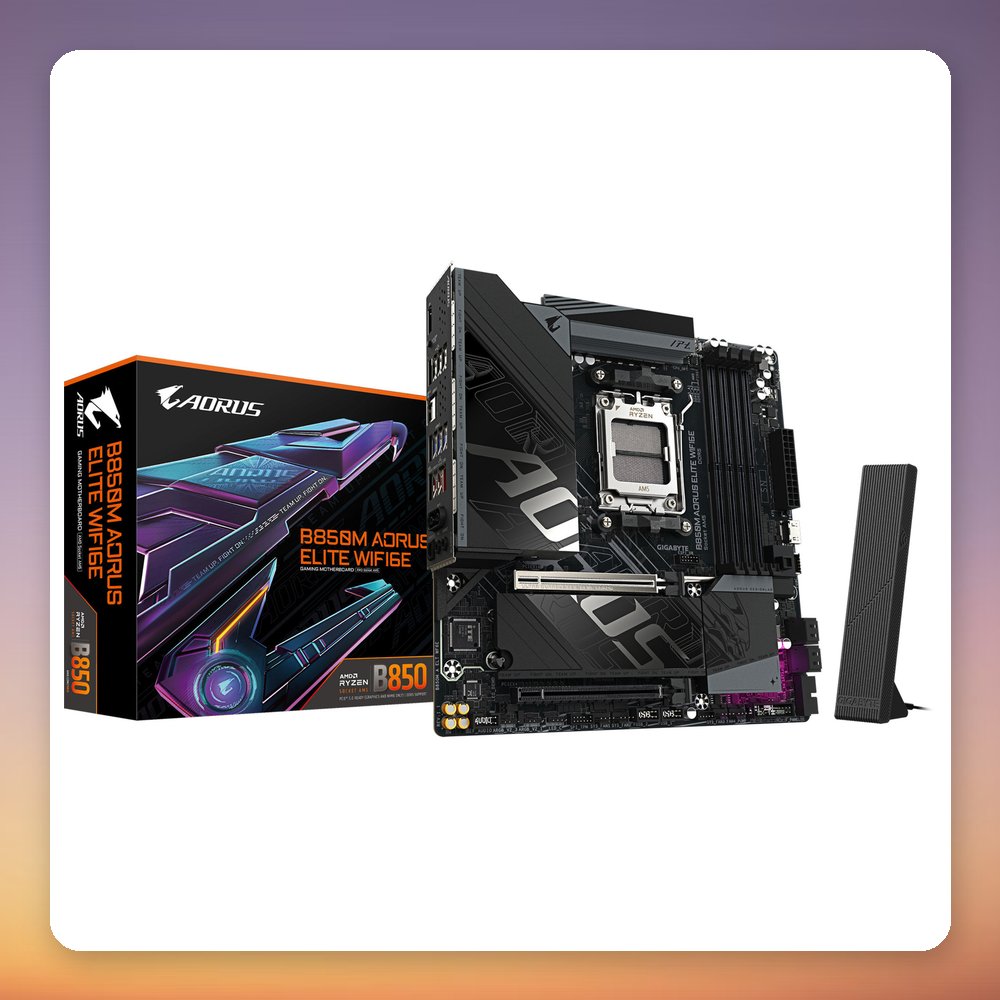

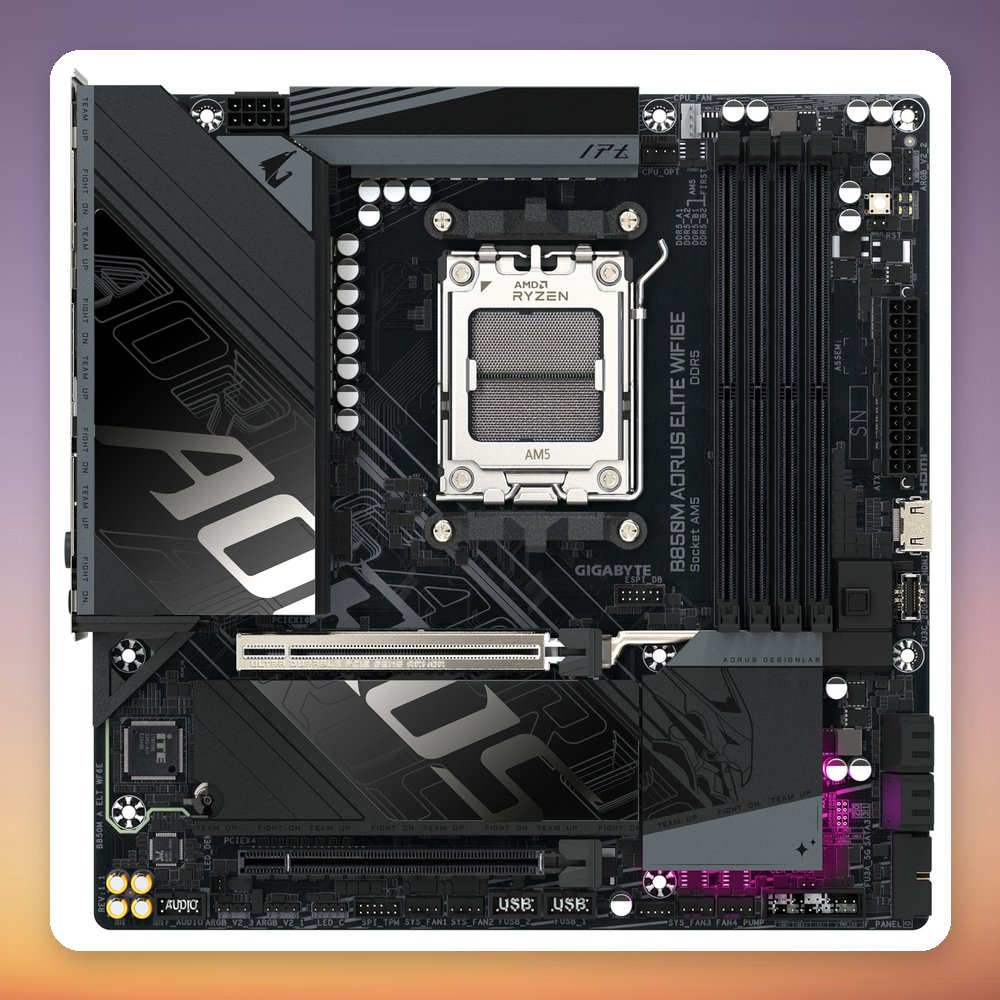

The Gigabyte B850M AORUS ELITE WIFI6E is a micro ATX motherboard for AMD Socket AM5, built on the AMD B850 chipset. It supports Ryzen 7000, 8000 and 9000 series processors, including X3D models, and has four DDR5 slots for up to 256 GB at speeds up to DDR5-8200 (O.C.). It also includes Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gigabit Ethernet, so a wireless or wired network is covered without extra cards.

This board suits compact and mid-size AM5 gaming builds that still need room to grow. The first M.2 slot runs at PCIe 5.0 and the second at PCIe 4.0, with four SATA III ports for extra drives. Rear I/O includes one USB-C and three USB-A ports at 10 Gbit/s, HDMI and DisplayPort for CPUs with integrated graphics, and a Realtek ALC1220-VB 7.1 audio codec. Some CPUs may need a BIOS update before they boot.

Specification

• Manufacturer: GigaByte
• Model: B850M AORUS ELITE WIFI6E
• MPN: B850M A ELT WF6E
• EAN: 47193318711230
• Socket: AMD AM5
• Chipset: AMD B850
• Form factor: micro ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, non-ECC
• Memory speed: Up to DDR5-8200 (O.C.)
• M.2 slots: 2x M.2 (M key): 1st PCIe 5.0 up to 25110, 2nd PCIe 4.0 up to 22110
• SATA: 4x SATA III, RAID 0/1/10
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe x16 (x4 lanes)
• Networking: 2.5 Gigabit Ethernet (Realtek RTL8125), Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 10 Gbit/s, 3x USB-A 10 Gbit/s, 5x USB-A 5 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI, 2x DisplayPort (CPU with integrated graphics required)
• Audio: Realtek ALC1220-VB, 7.1 channels
• Fan headers: 6x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB
• Power connectors: 24-pin ATX + 8-pin EPS
• Colour: Black
