Product Overview

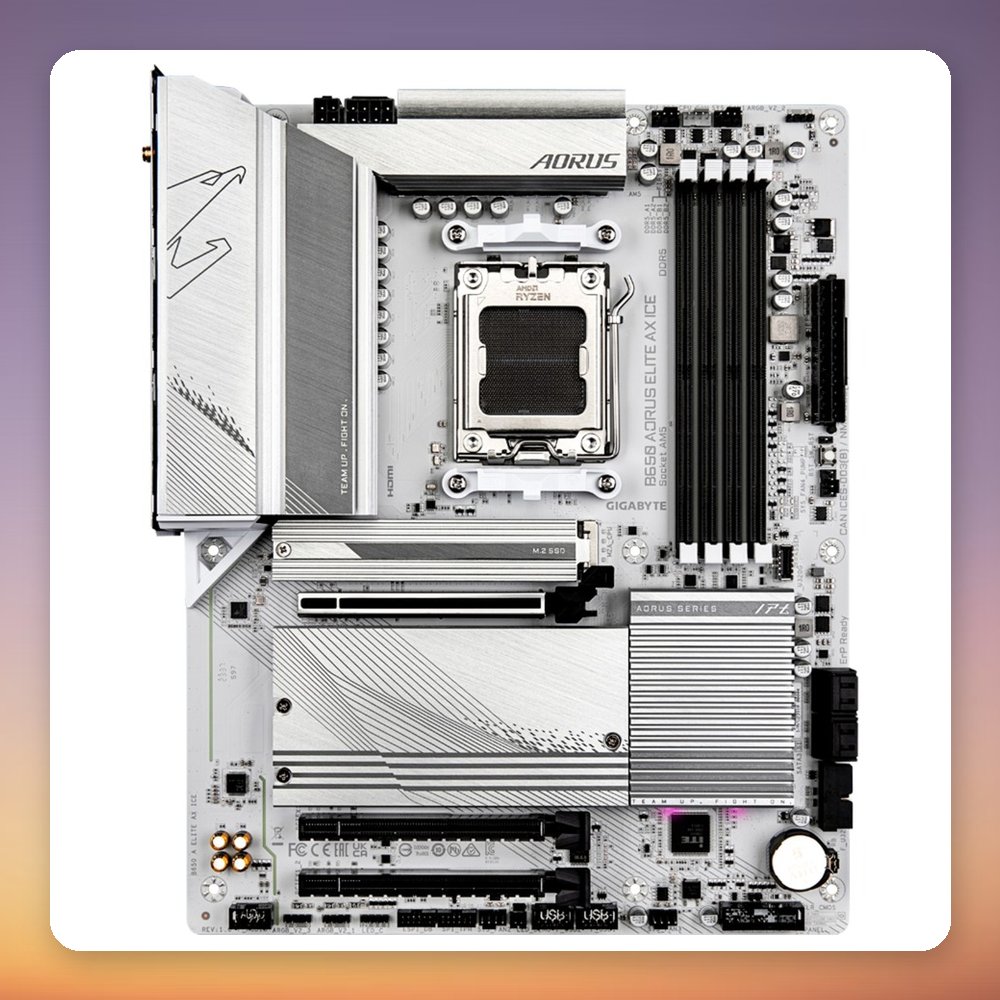

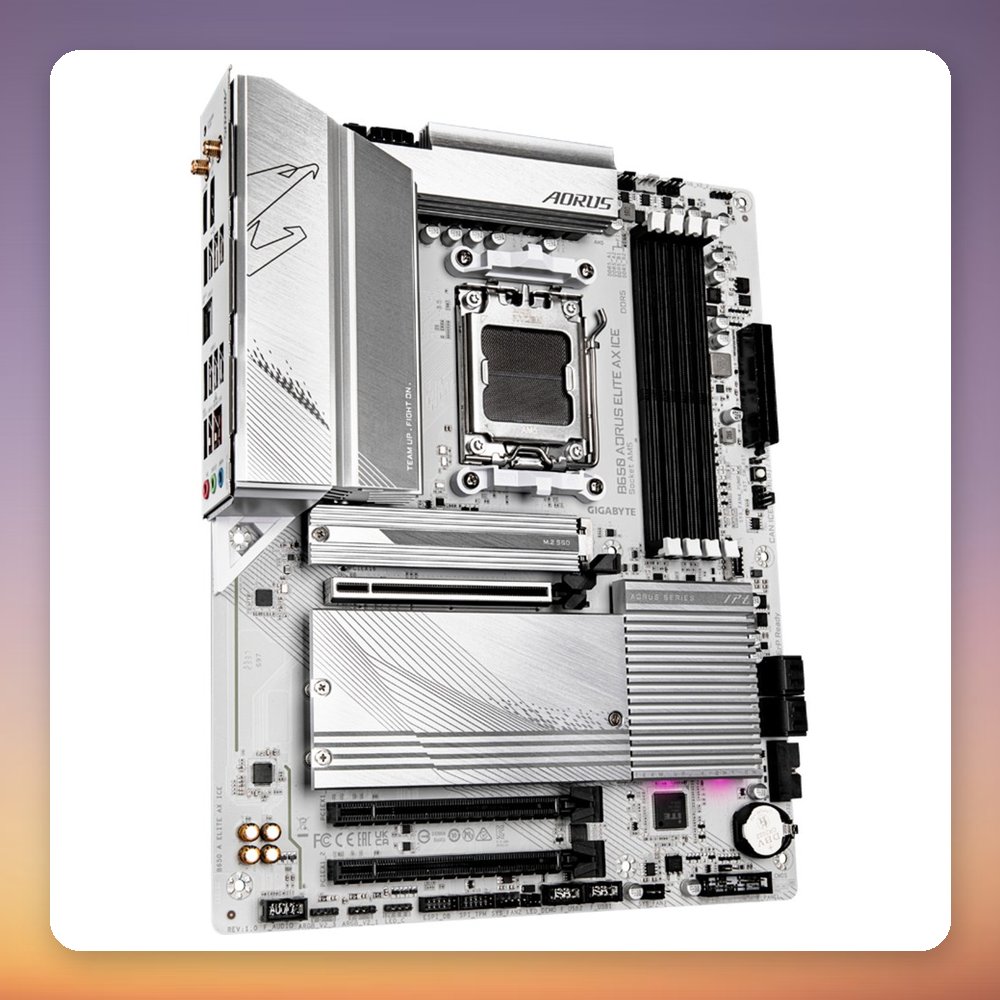

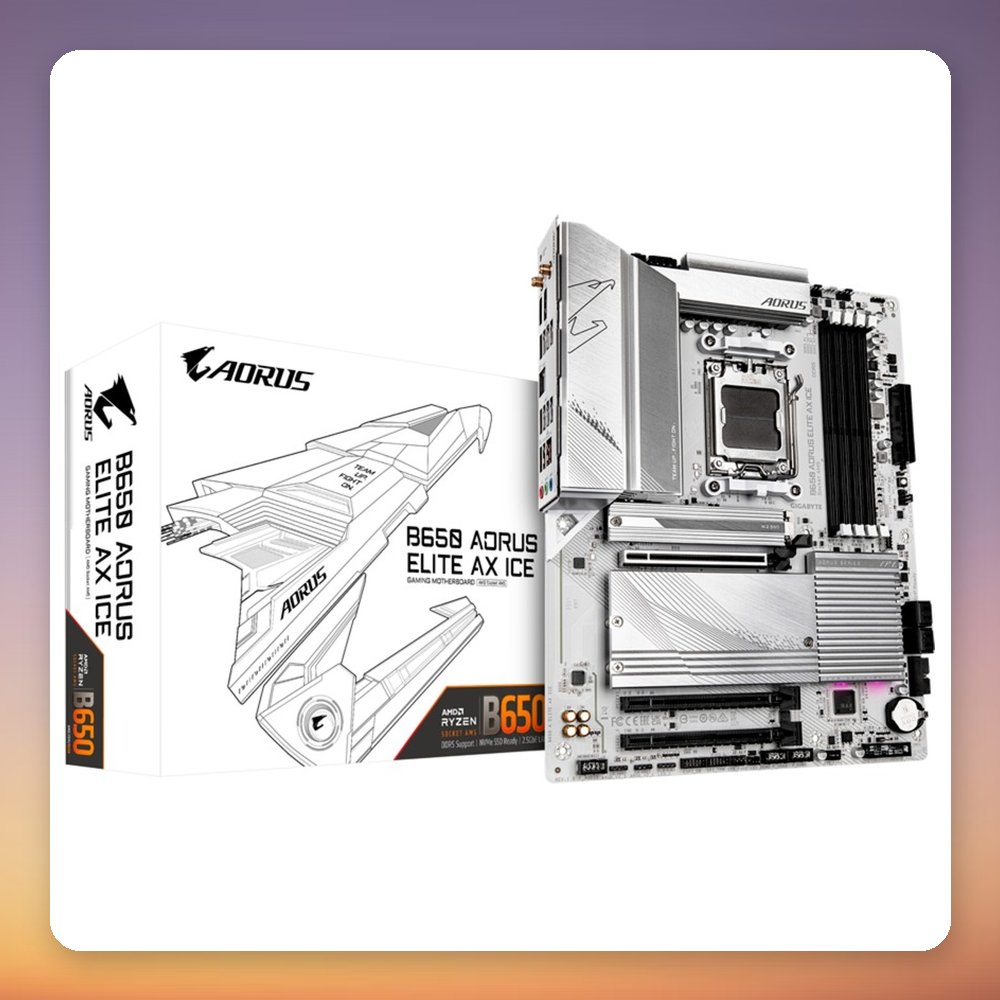

The Gigabyte B650 AORUS Elite AX ICE is an ATX motherboard for AMD Socket AM5 processors, built on the AMD B650 chipset in a white colour scheme. It combines a 12+2+2 phase digital VRM with a PCIe 5.0 M.2 slot, two further PCIe 4.0 M.2 slots, Wi-Fi 6E with Bluetooth 5.3, 2.5GbE LAN and a USB 3.2 Gen 2×2 Type-C port, with support for Ryzen 7000, 8000 and 9000 series CPUs.

With four DDR5 slots supporting up to 192 GB and memory speeds up to DDR5-8000 (OC), it suits a white-themed gaming or general-purpose AM5 build where you want fast storage and modern connectivity without moving up to a more expensive chipset. Three M.2 slots and four SATA ports give plenty of room for drives, and the board offers six 4-pin PWM fan headers, three addressable RGB headers and RGB Fusion support.

Specification

• Manufacturer: GigaByte
• Model: B650 AORUS Elite AX ICE
• MPN: B650 AORUS ELITE AX ICE
• EAN: 4719331859374
• Socket: AMD AM5
• Chipset: AMD B650
• Form factor: ATX
• Colour: White
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB, non-ECC
• Memory speed: DDR5-4400 to DDR5-8000 (OC)
• M.2 slots: 3x M.2 (M key), 1x PCIe 5.0 and 2x PCIe 4.0, up to 25110 length
• SATA: 4x SATA III, RAID 0/1/10
• PCIe slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (slot size), 3 slots total
• Networking: Realtek 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3

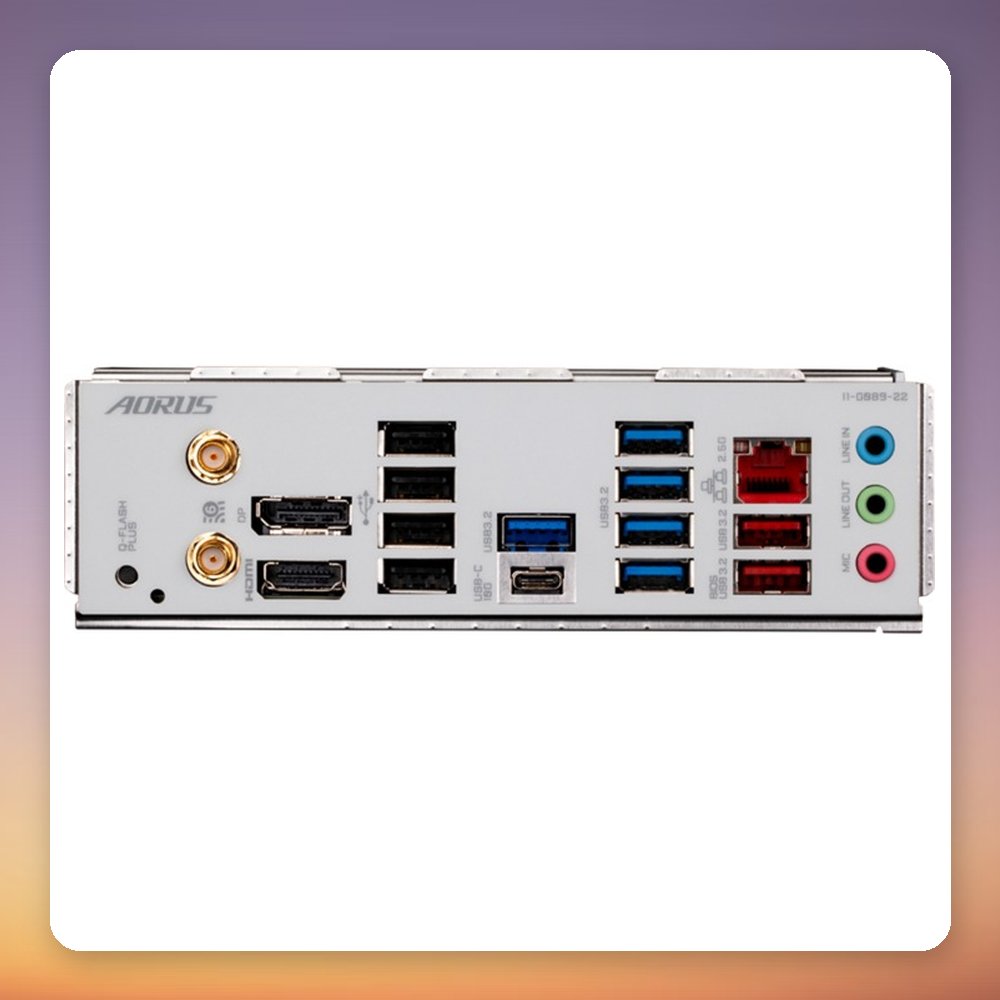

• Rear USB: 1x USB-C 20 Gbit/s, 1x USB-C 10 Gbit/s, 2x USB-A 10 Gbit/s, 5x USB-A 5 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Audio: Realtek ALC897, 7.1 channel
• Power connectors: 24-pin ATX, 8-pin + 4-pin 12V
• Fan headers: 6x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB (RGB Fusion)
