Product Overview

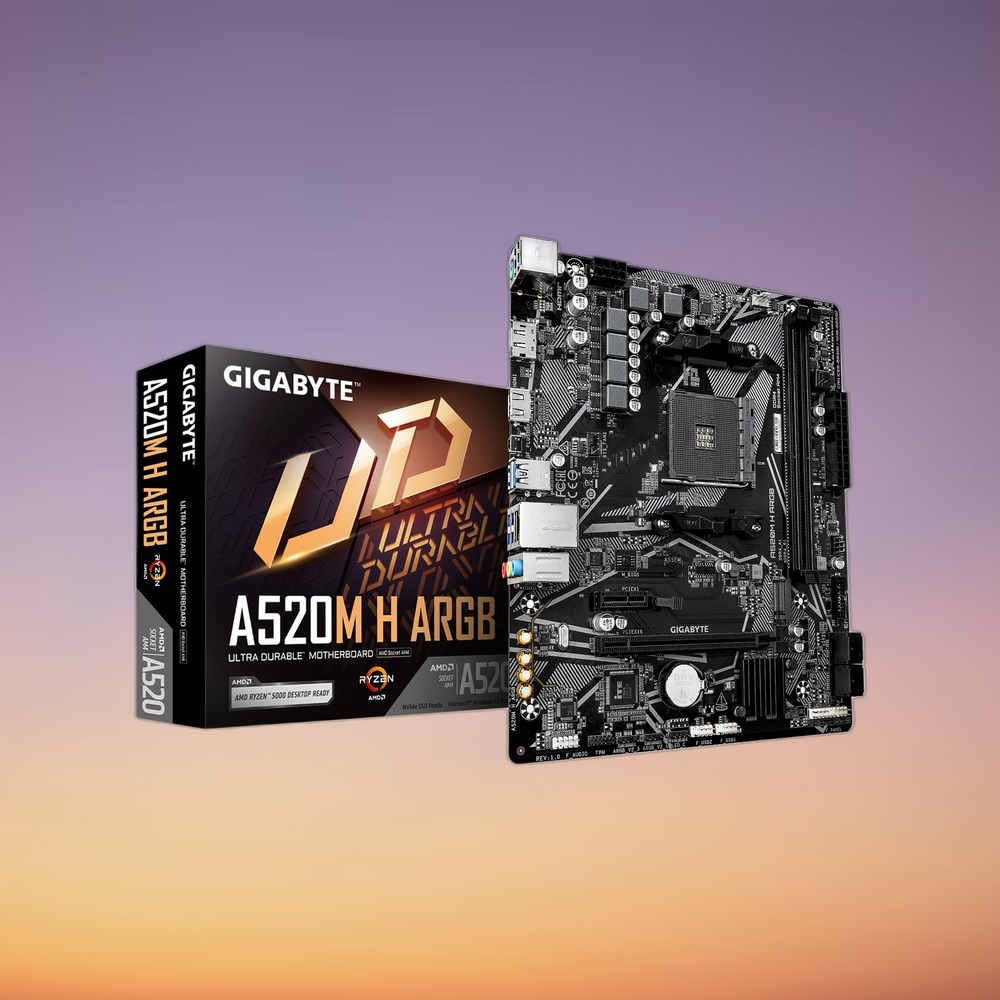

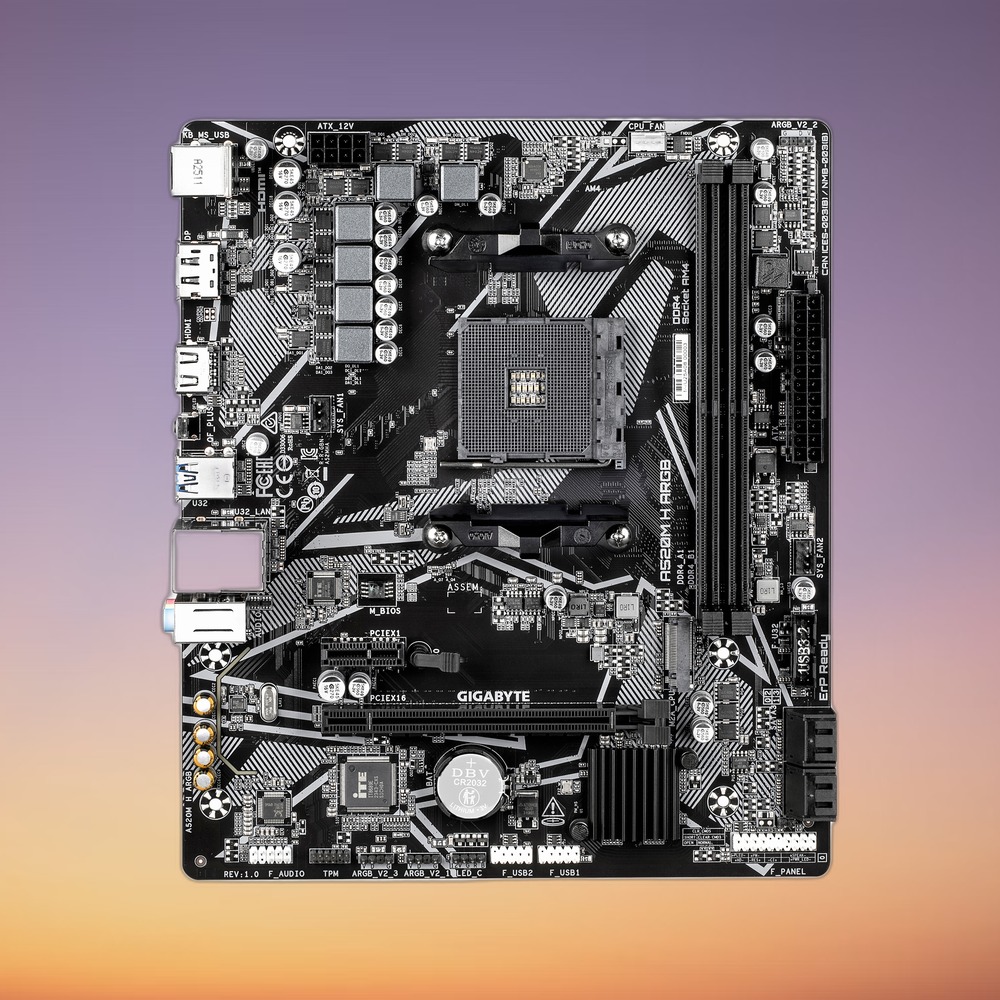

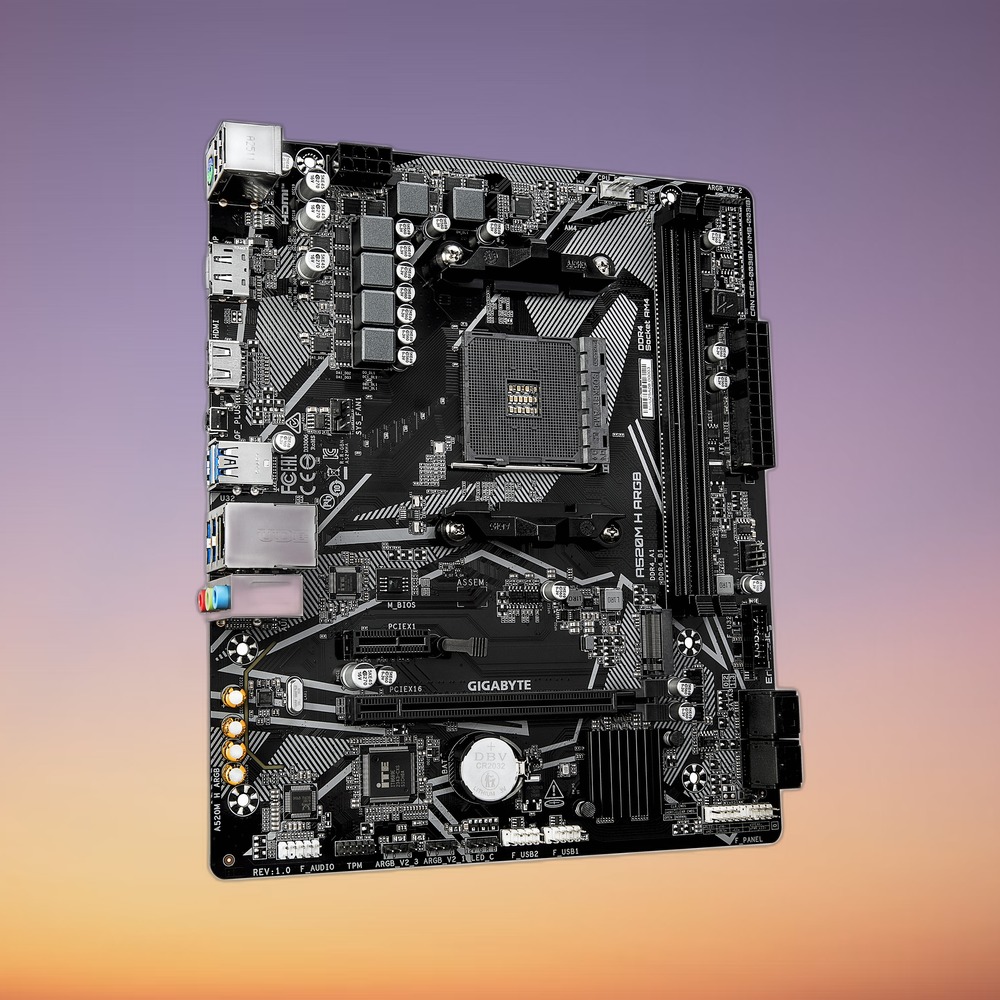

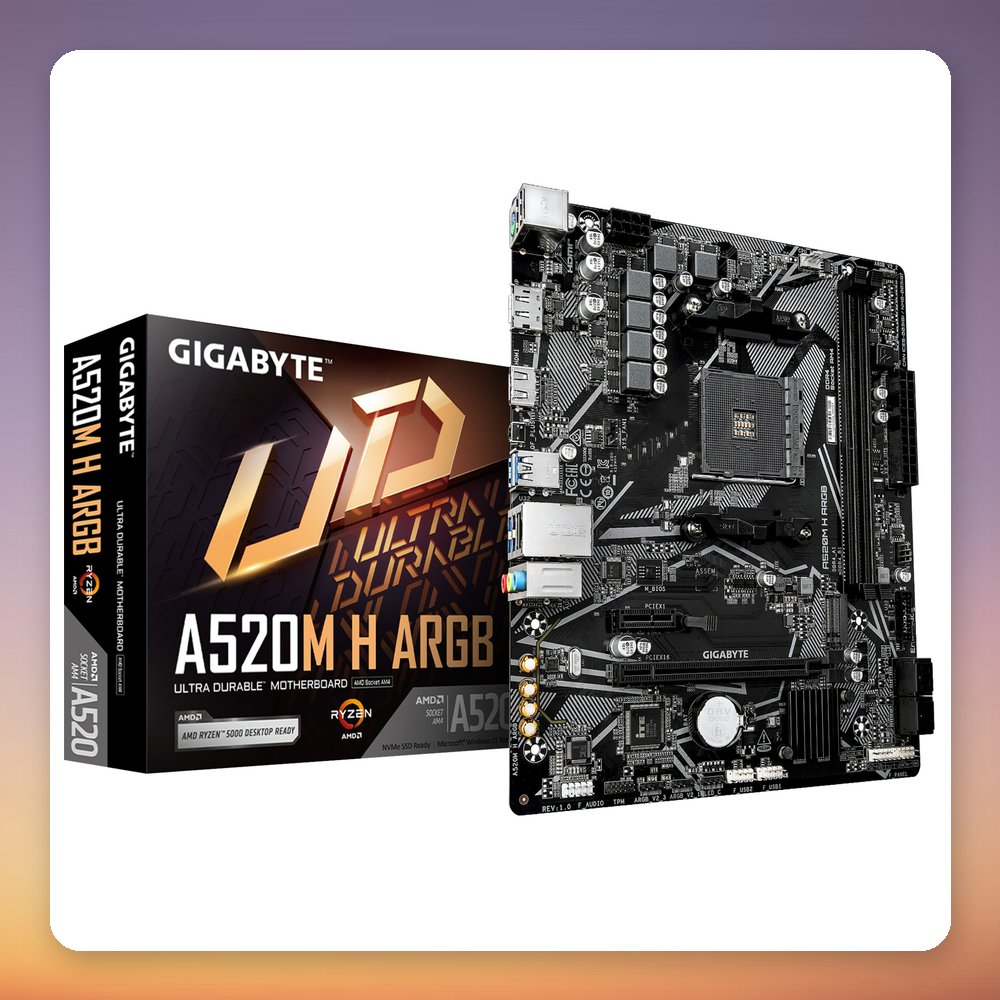

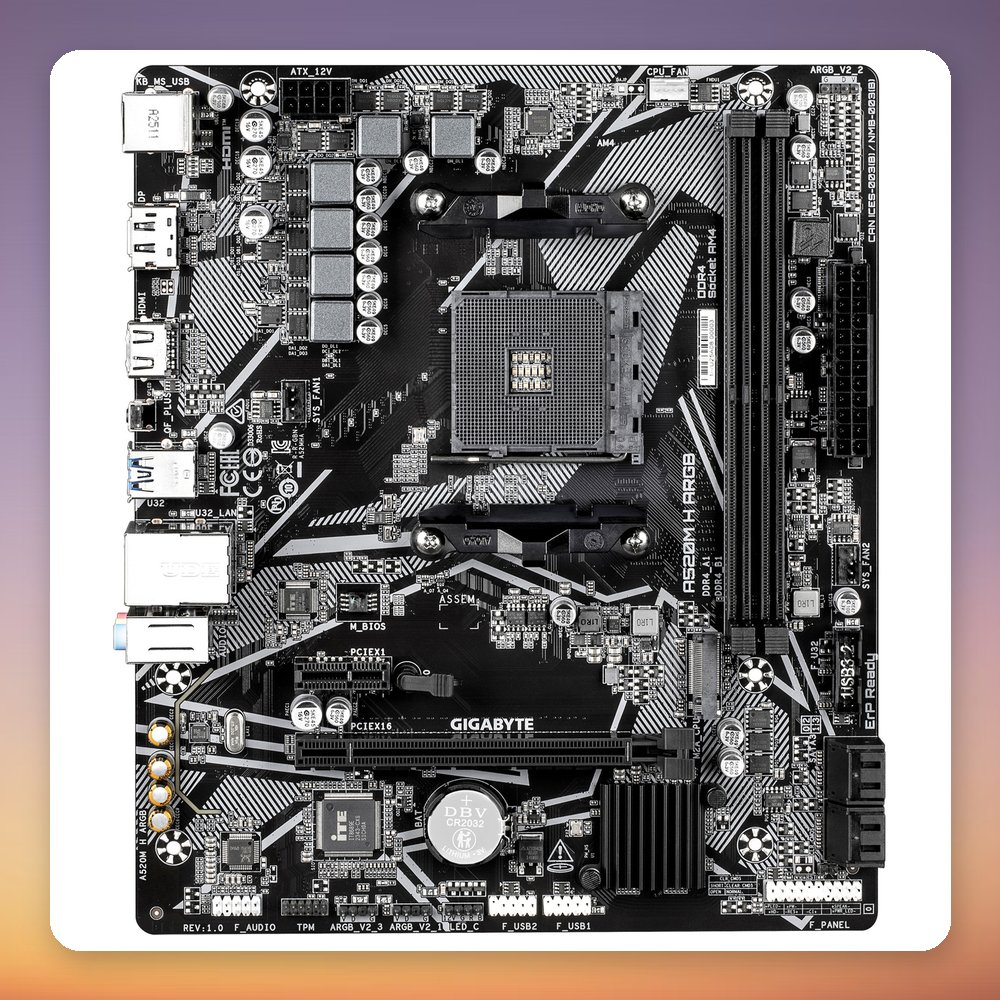

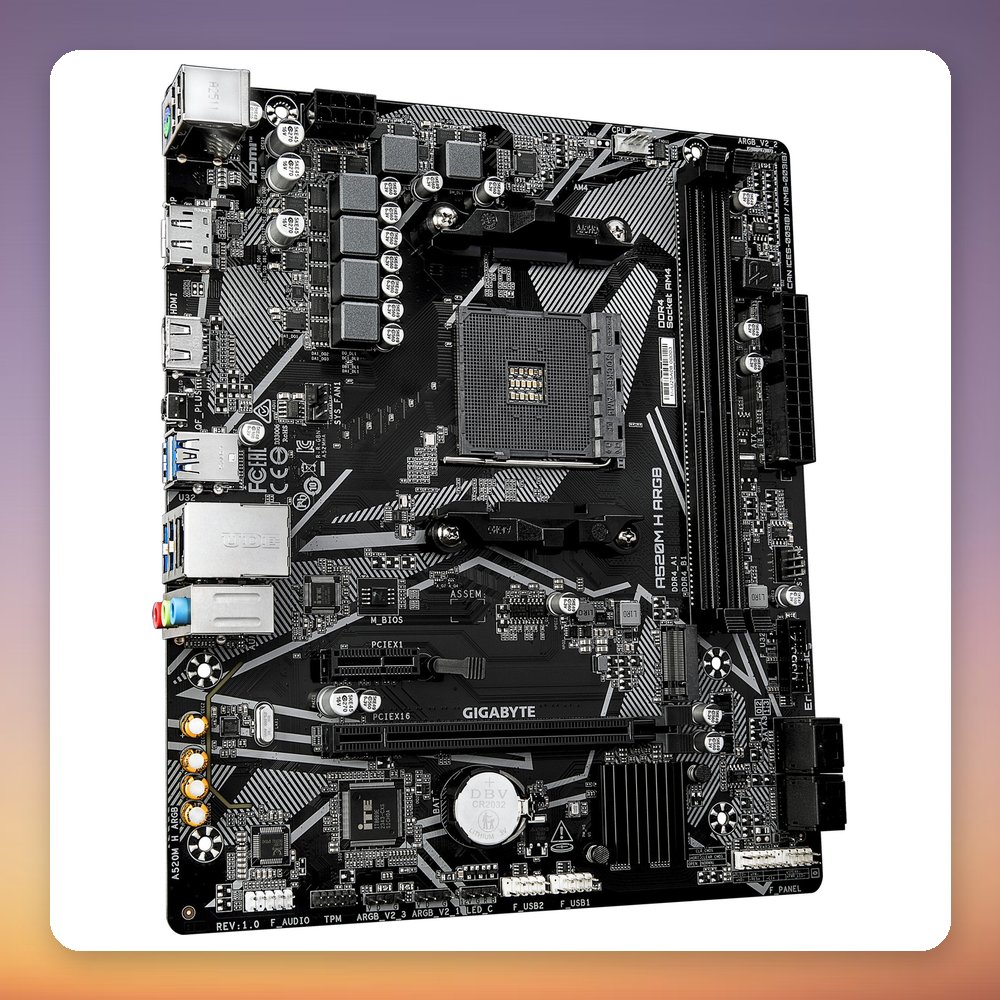

GIGABYTE A520M H ARGB Motherboard – Supports AMD Ryzen 5000 Series CPUs, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, 1 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM.

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Specification

• EAN: [‘4719331879822’]
• Supported memory clock speed (max): 5100 MHz
• Maximum internal memory: 64 GB
• Unbuffered memory: Yes
• Maximum internal memory per slot: 32 GB
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 5
• RAID support: Yes
• RAID levels: 0, 1, 10
• Parallel processing technology support: Not supported
• Maximum resolution: 5120 x 2880 pixels
• HDCP: Yes
• HDCP version: 2.3
• DirectX version: 12.0
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Number of chassis fan connectors: 2
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• TPM connector: Yes
• 12V power connector: Yes
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 4

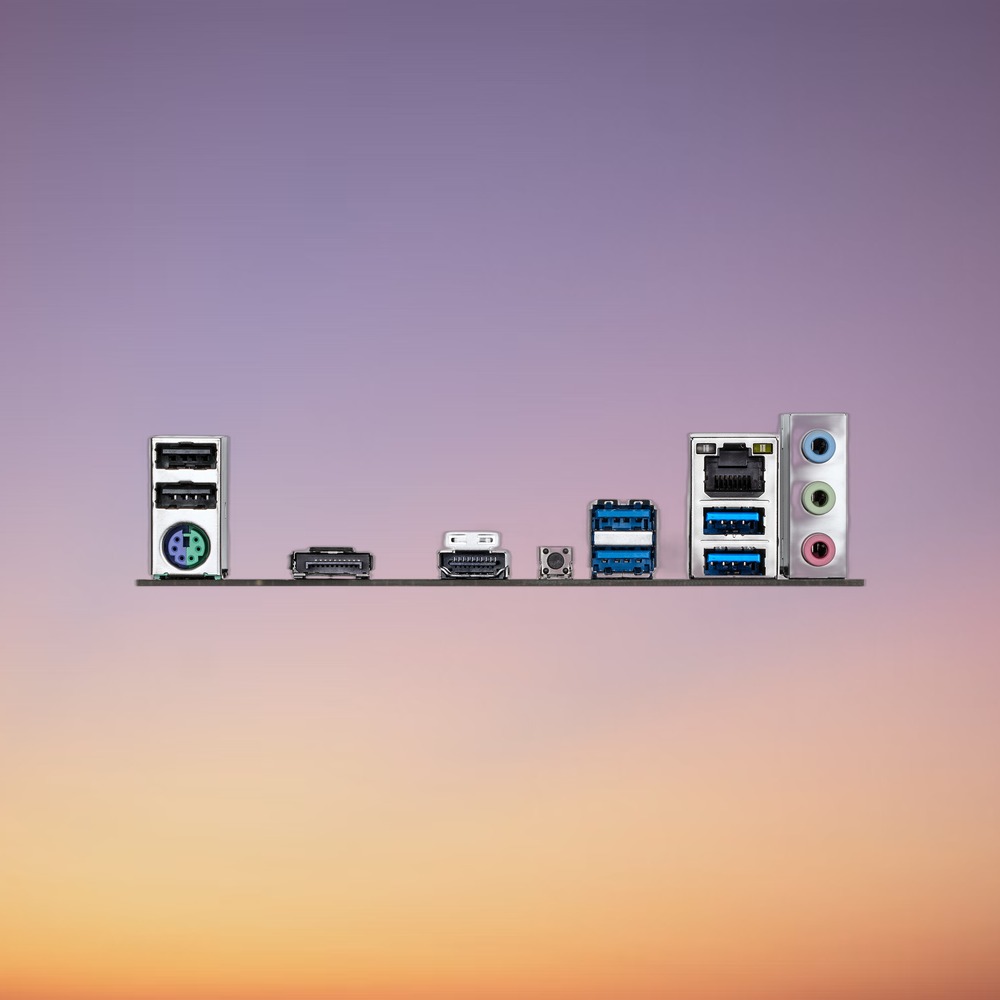

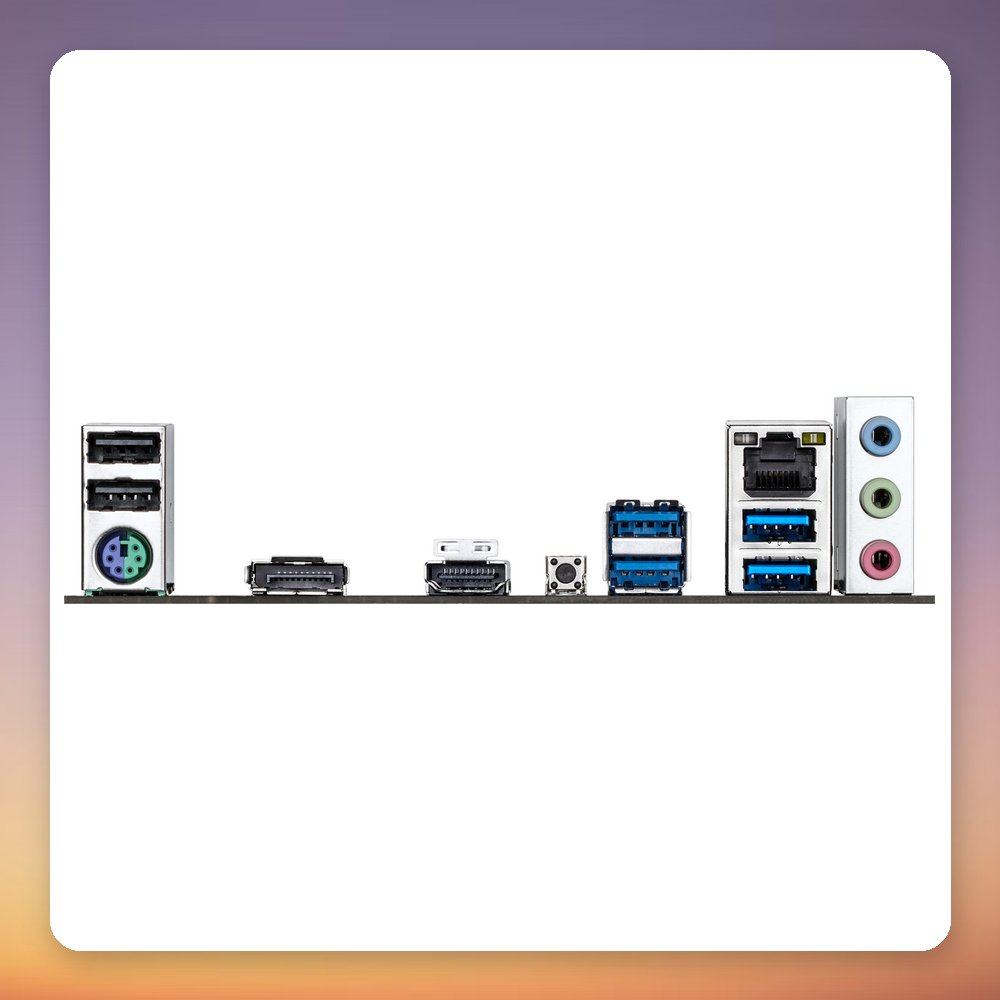

• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
