Product Overview

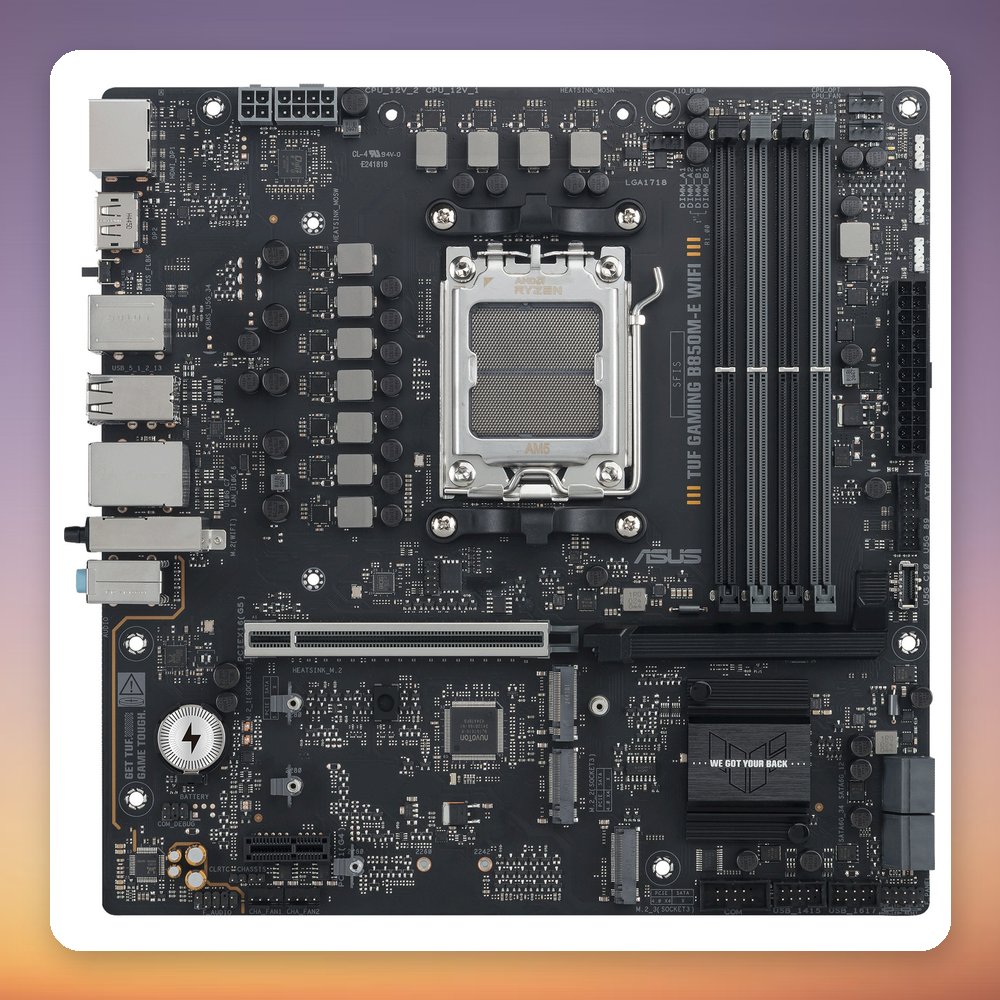

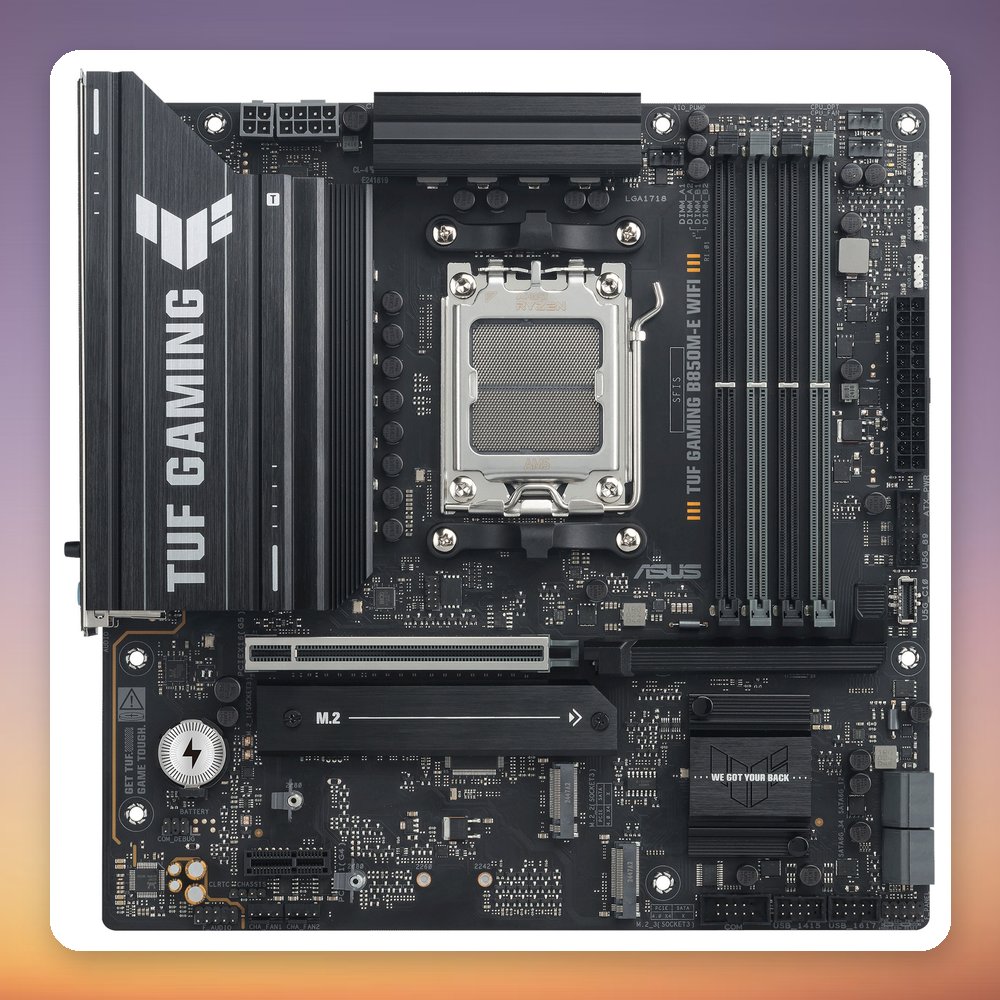

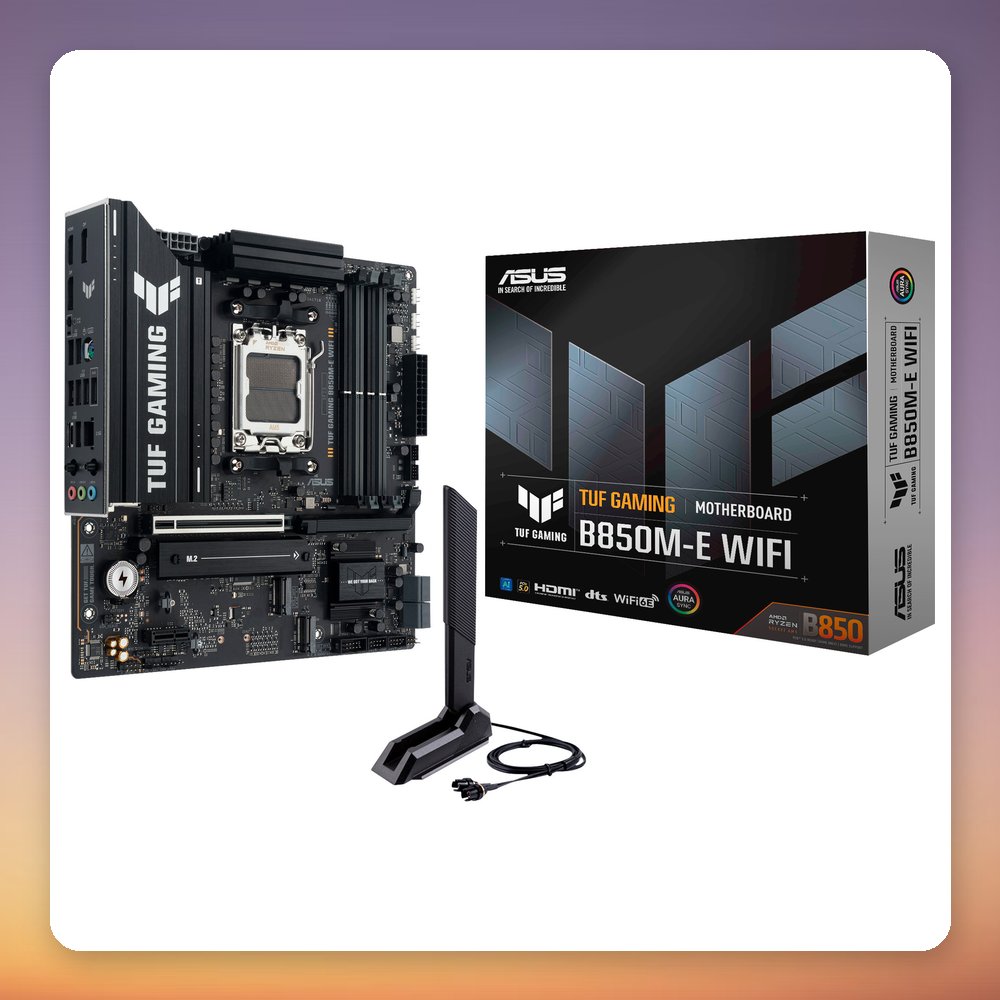

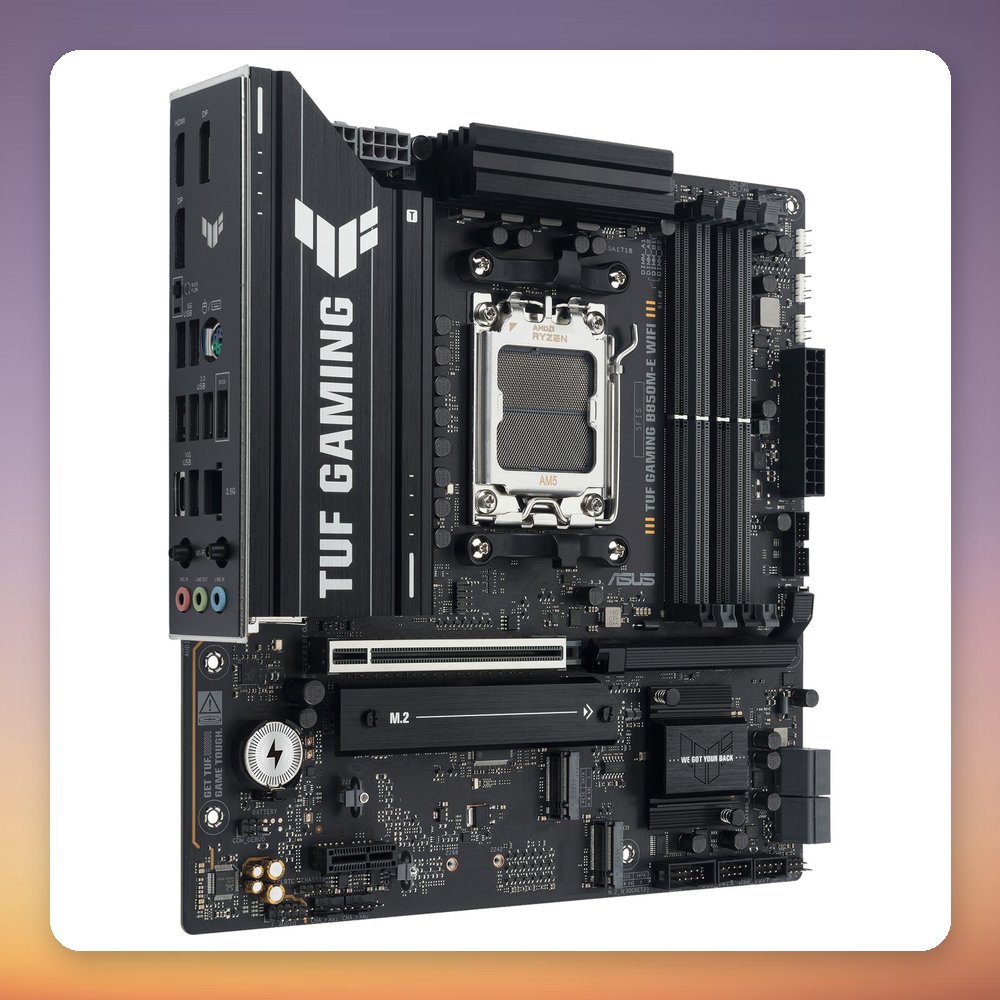

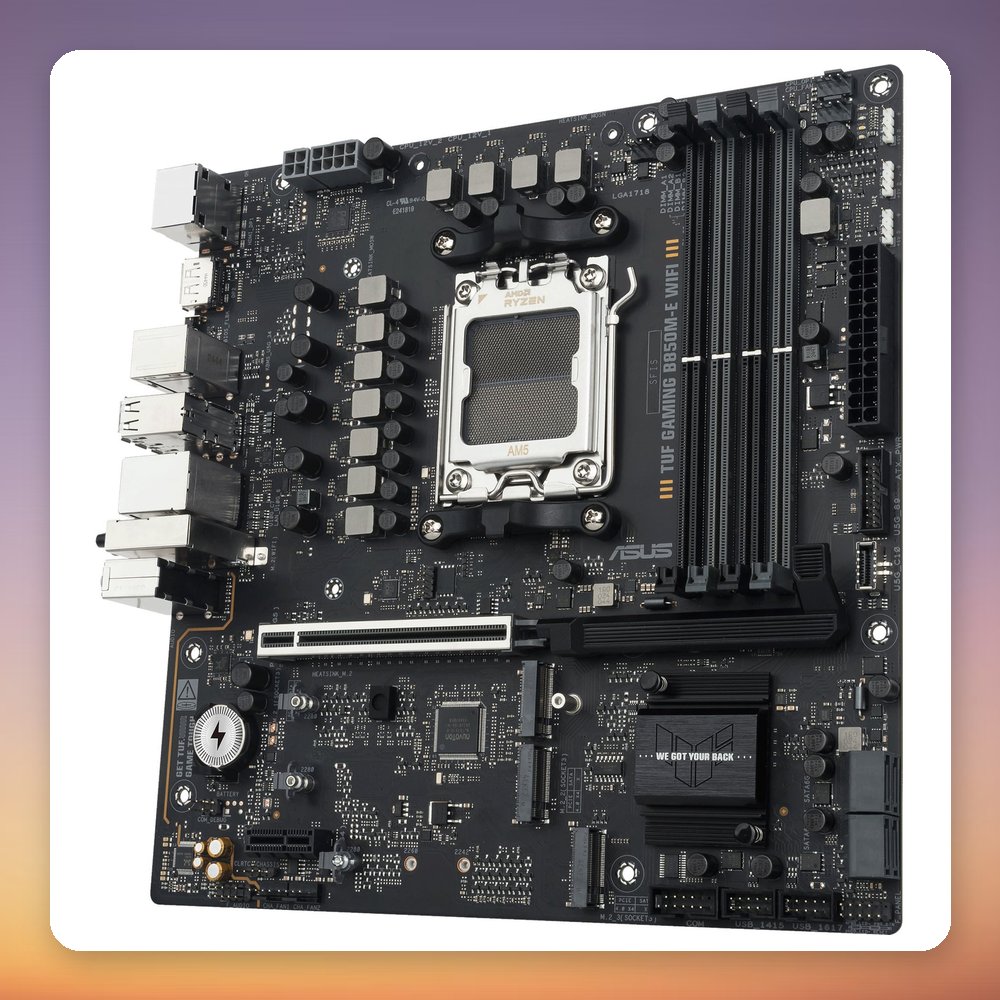

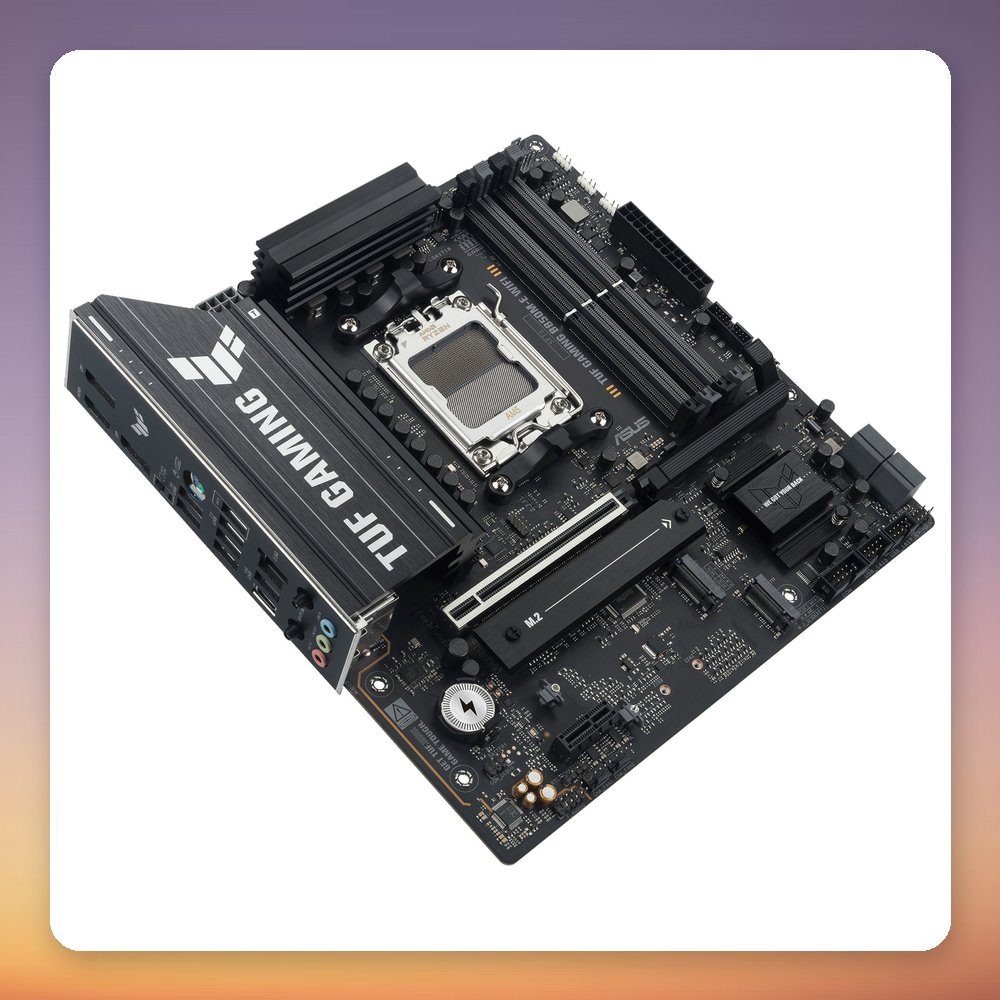

The Asus TUF Gaming B850M-E WiFi is a micro-ATX motherboard on the AMD B850 chipset for Socket AM5, supporting Ryzen 7000, 8000 and 9000 series processors. It pairs four DDR5 slots (up to 256 GB, DDR5-8000+ with overclocking) with a PCIe 5.0 x16 slot and three M.2 slots, the first of which runs at PCIe 5.0. Power comes from an 8(80A) + 2(80A) + 1(80A) power stage design.

This board suits a compact gaming or general-purpose AM5 build where fast storage and built-in wireless matter. Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet are onboard, and the rear panel has a USB-C 20 Gbps port, HDMI 2.1 and two DisplayPort 1.4 outputs for CPUs with integrated graphics. Four SATA III ports, five PWM fan headers and three addressable RGB headers round out the layout. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B850M-E WiFi
• MPN: 90MB1LS0-M0EAY0
• EAN: 4711636068499
• Socket: AMD AM5
• Chipset: AMD B850
• Form factor: micro-ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, up to DDR5-8000+ (OC), ECC and non-ECC supported
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x1
• M.2 slots: 3x M.2 (M key, 2280): slot 1 PCIe 5.0, slots 2 and 3 PCIe 4.0
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Realtek 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 3.2 Gen 2×2 (20 Gbps), 1x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Video outputs: 1x HDMI 2.1, 2x DisplayPort 1.4 (CPU with integrated graphics required)
• Audio: Realtek 7.1 channel
• Power connectors: 24-pin ATX, 2x 8-pin EPS
• Fan and RGB headers: 5x 4-pin PWM fan headers, 3x addressable RGB headers (Aura Sync)
• Weight: 1.01 kg
