Product Overview

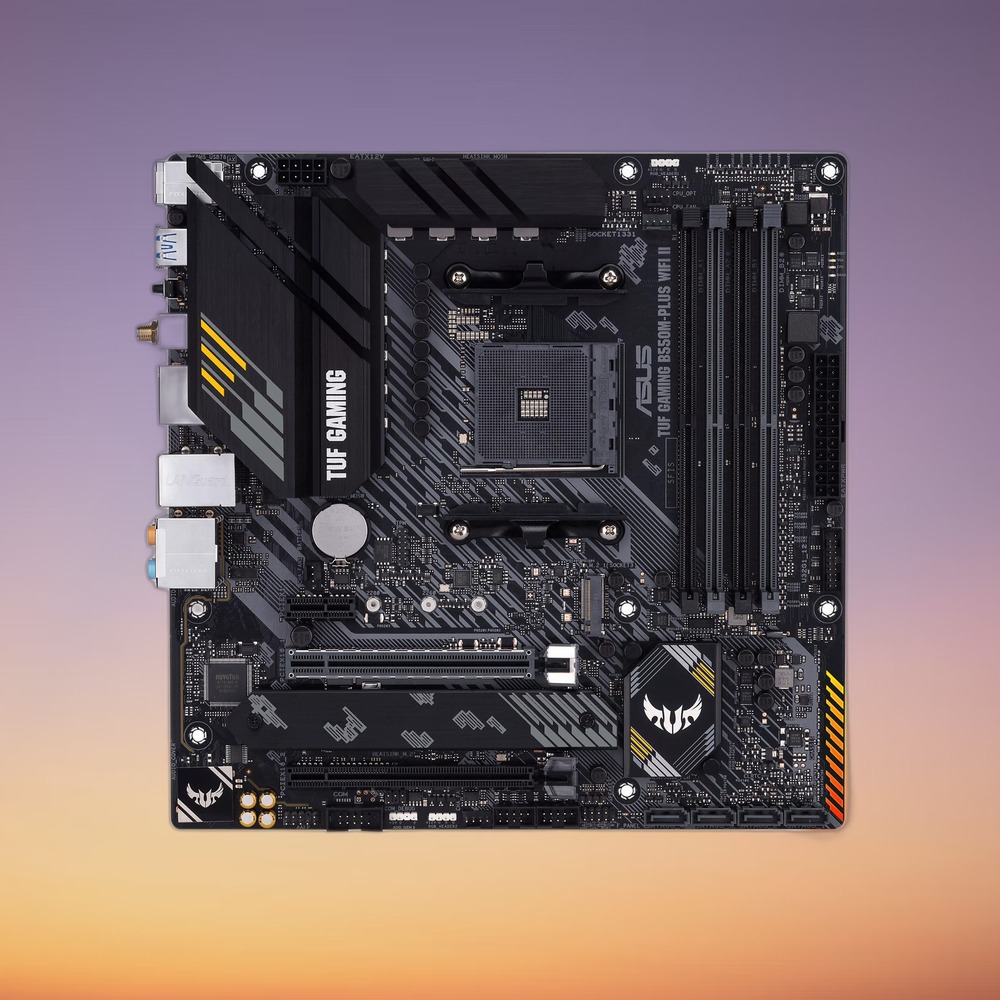

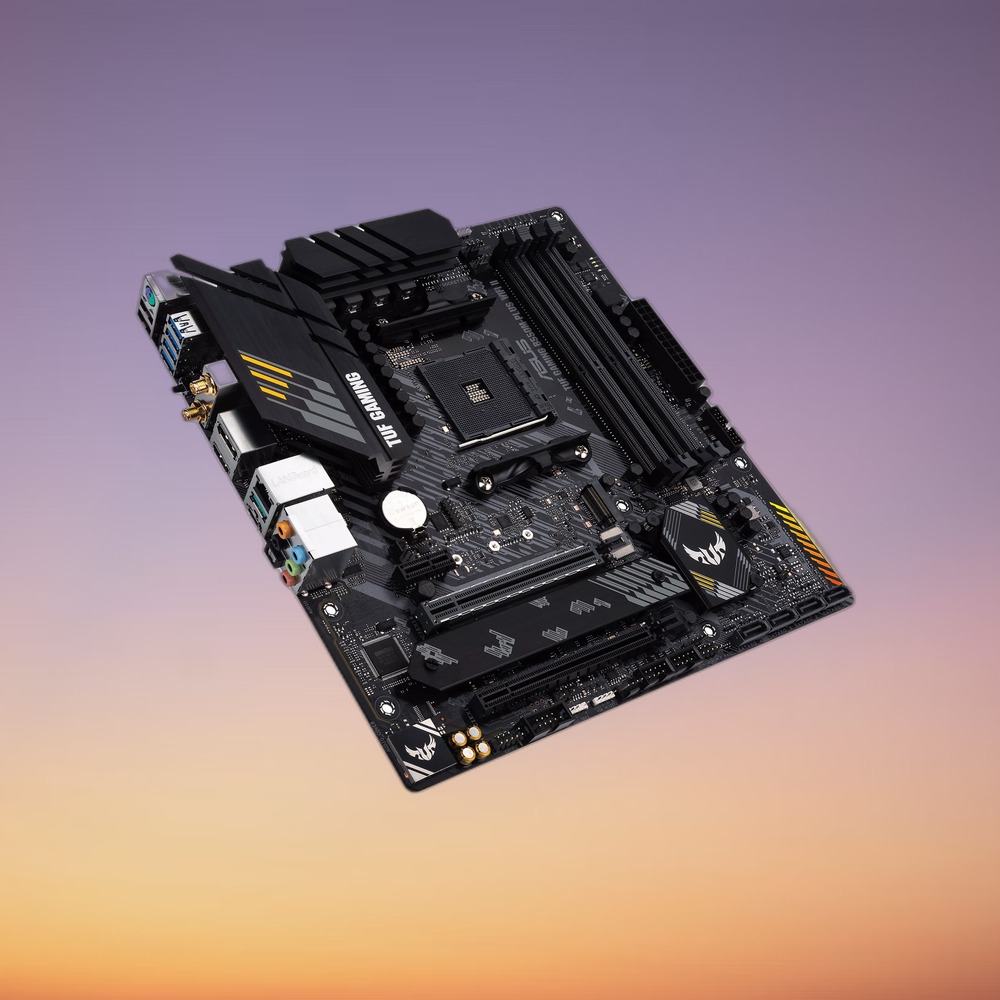

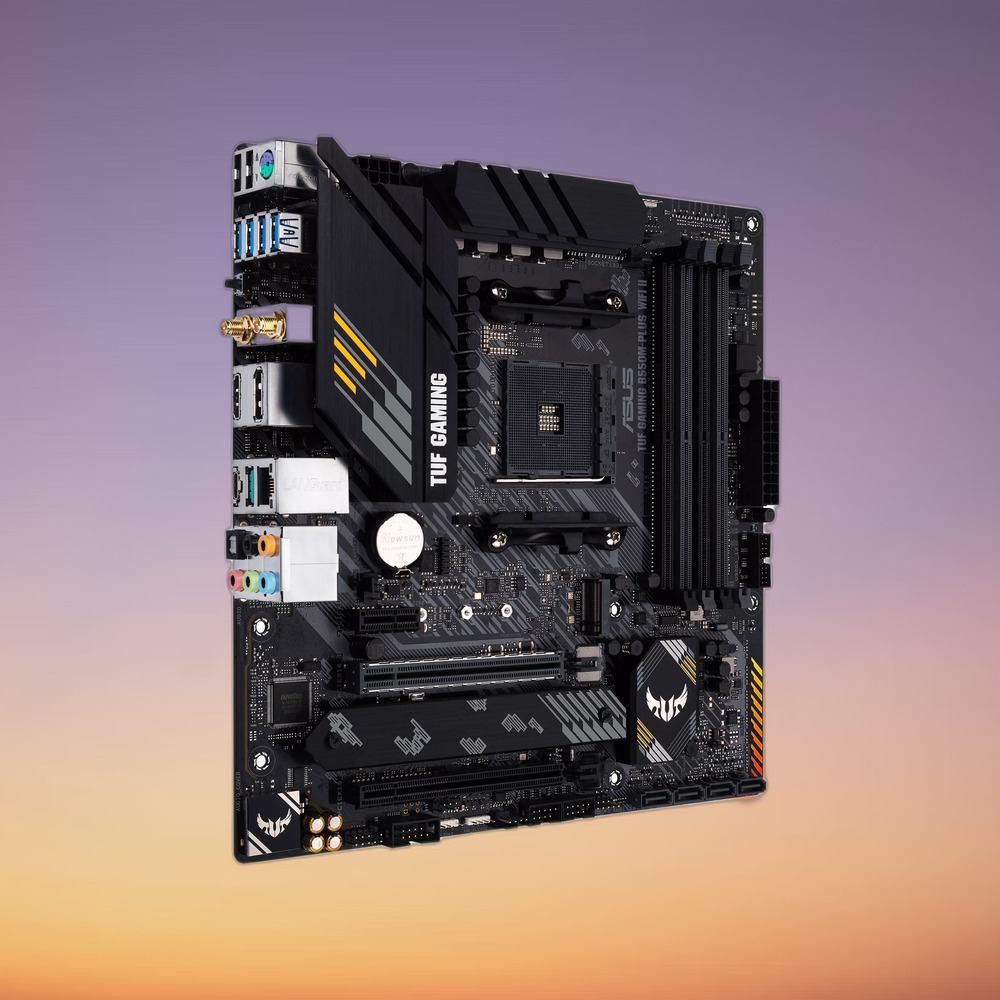

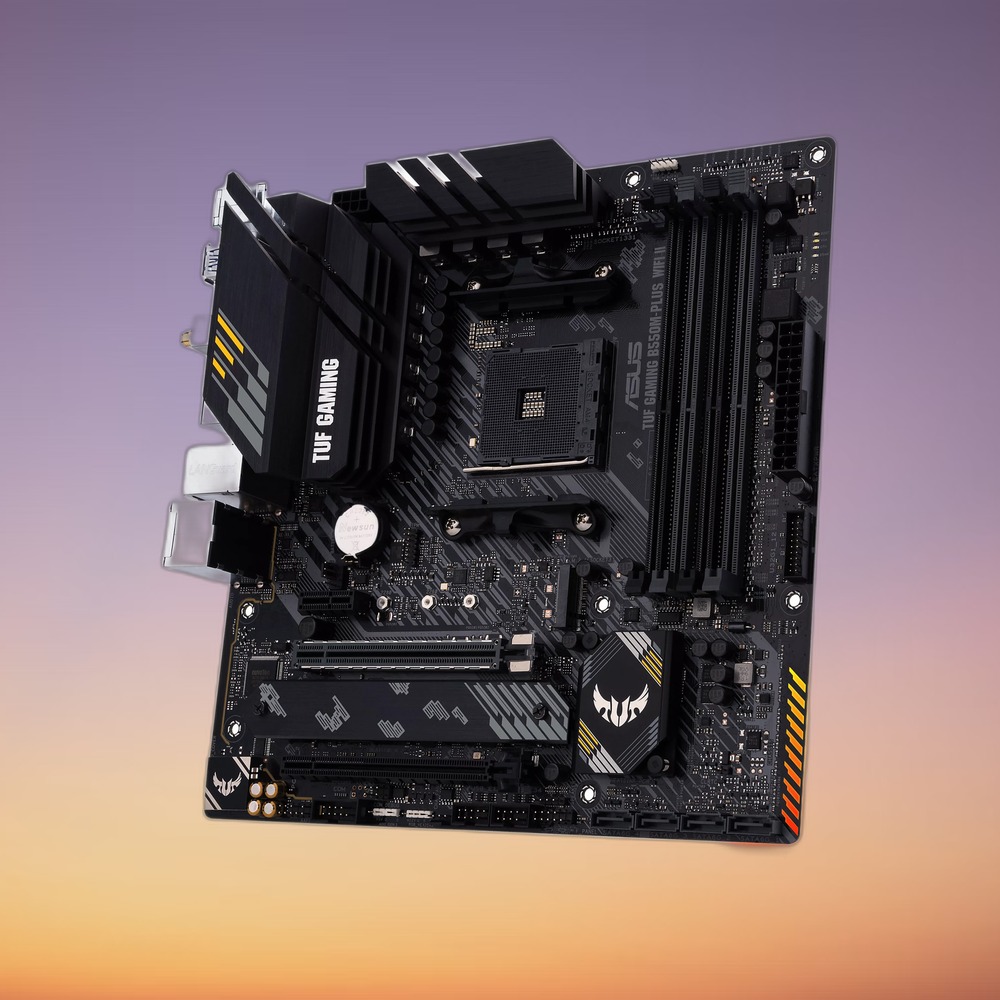

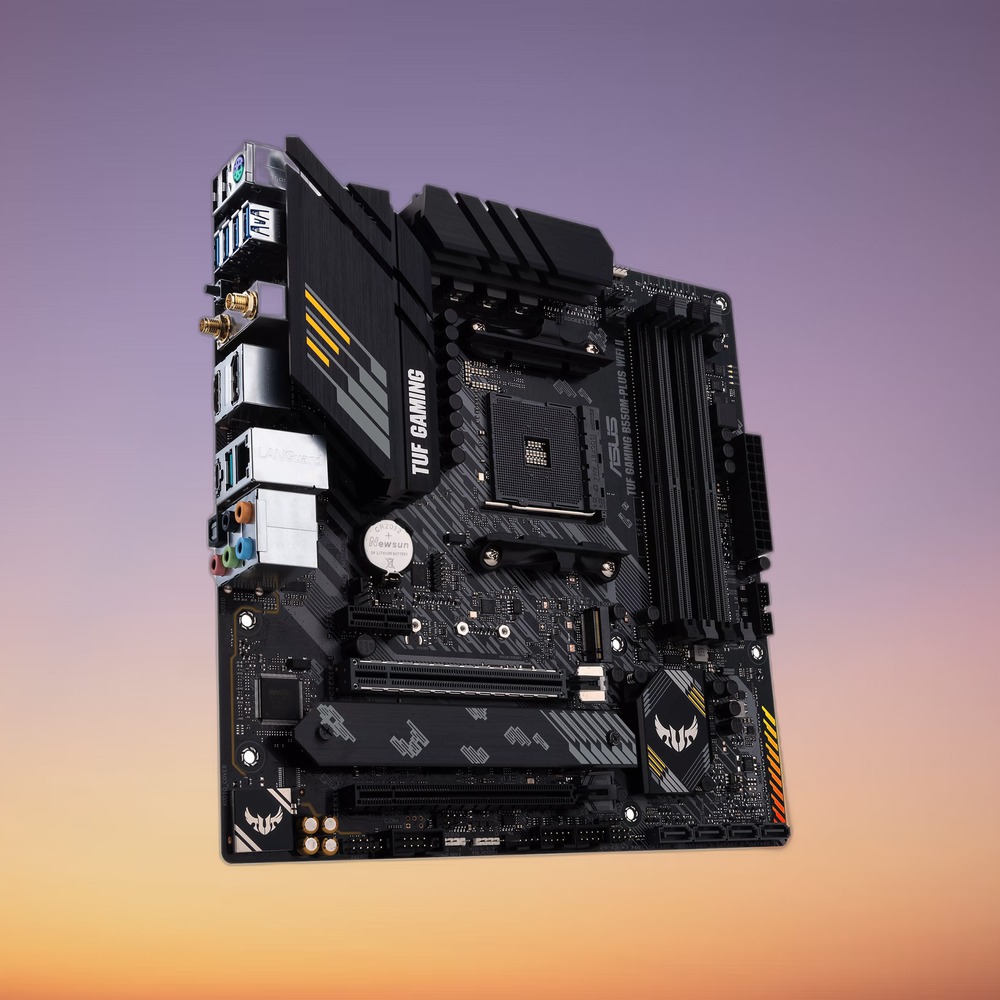

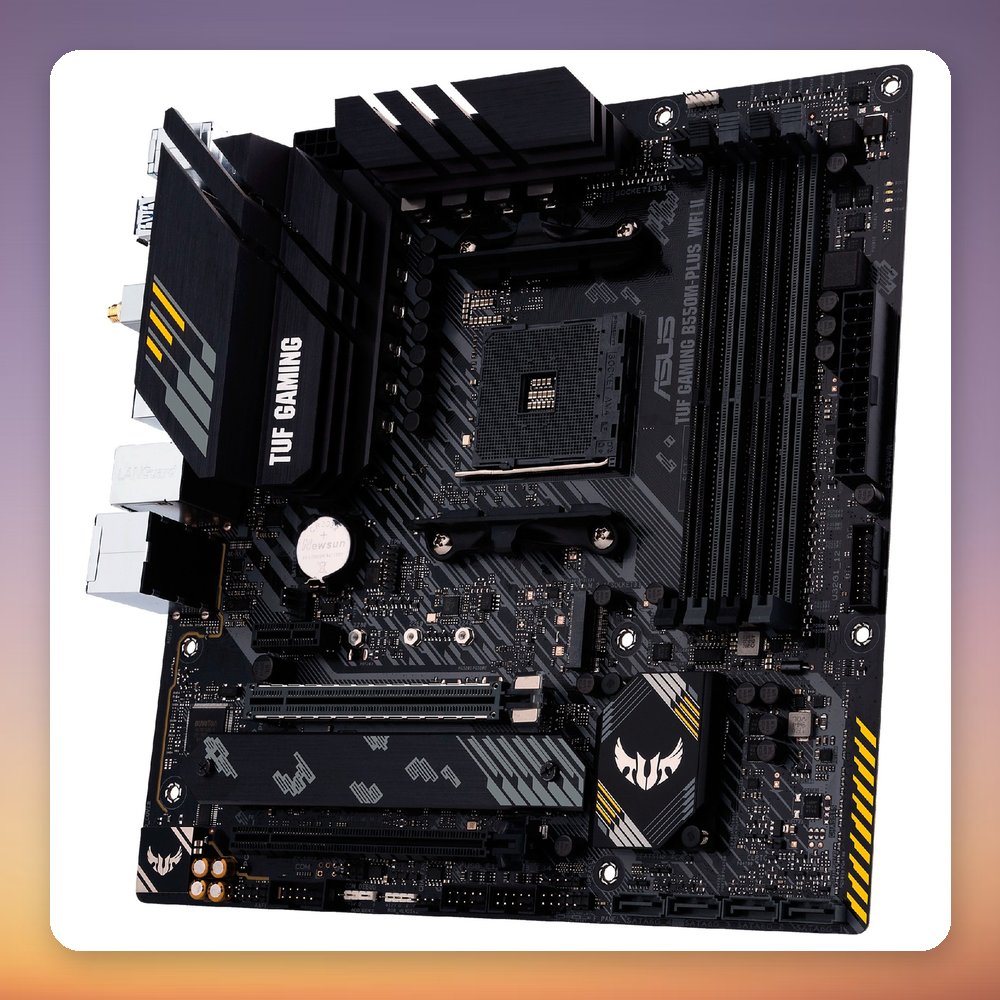

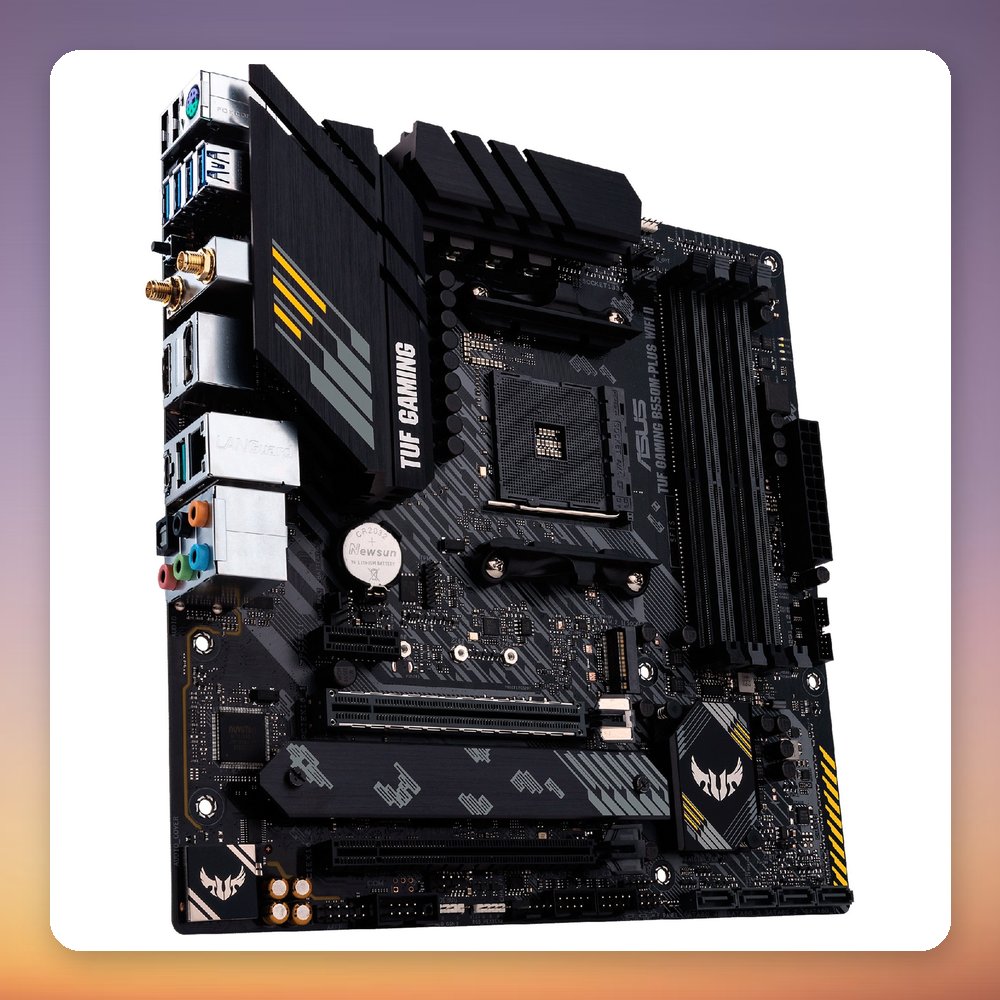

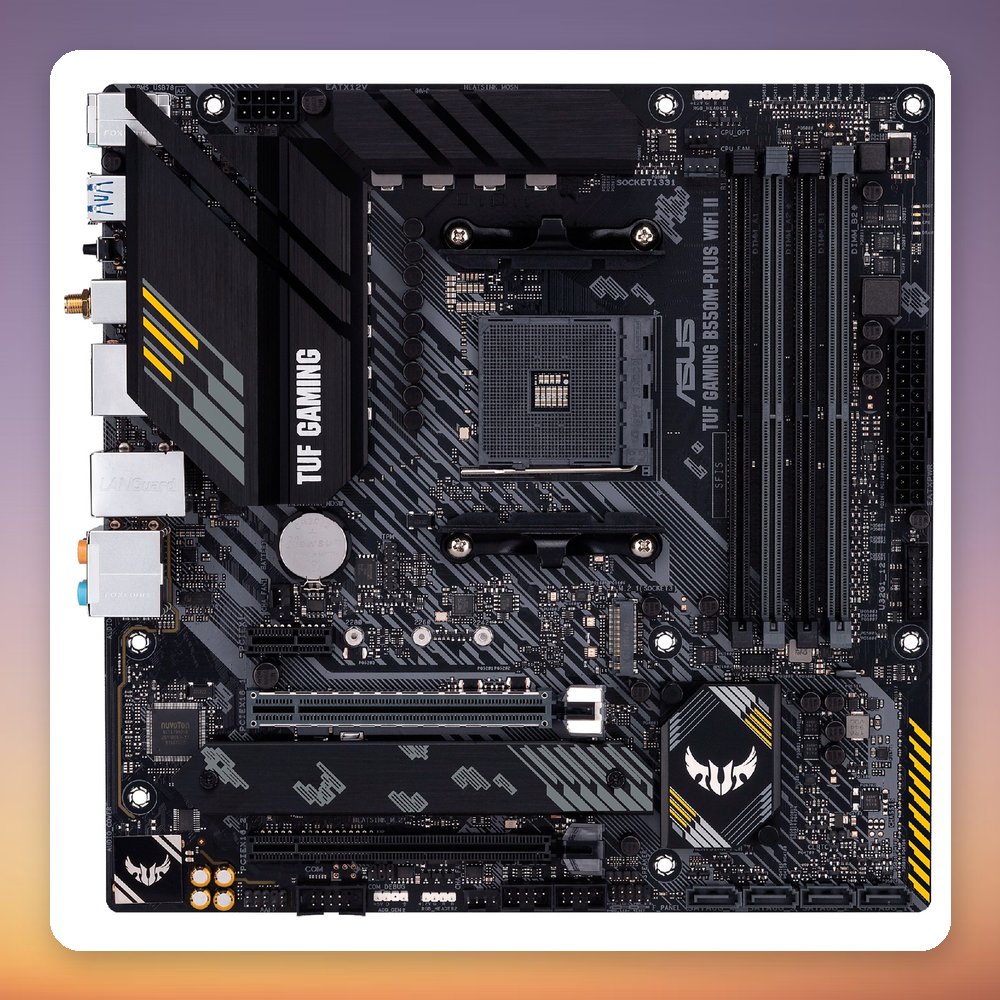

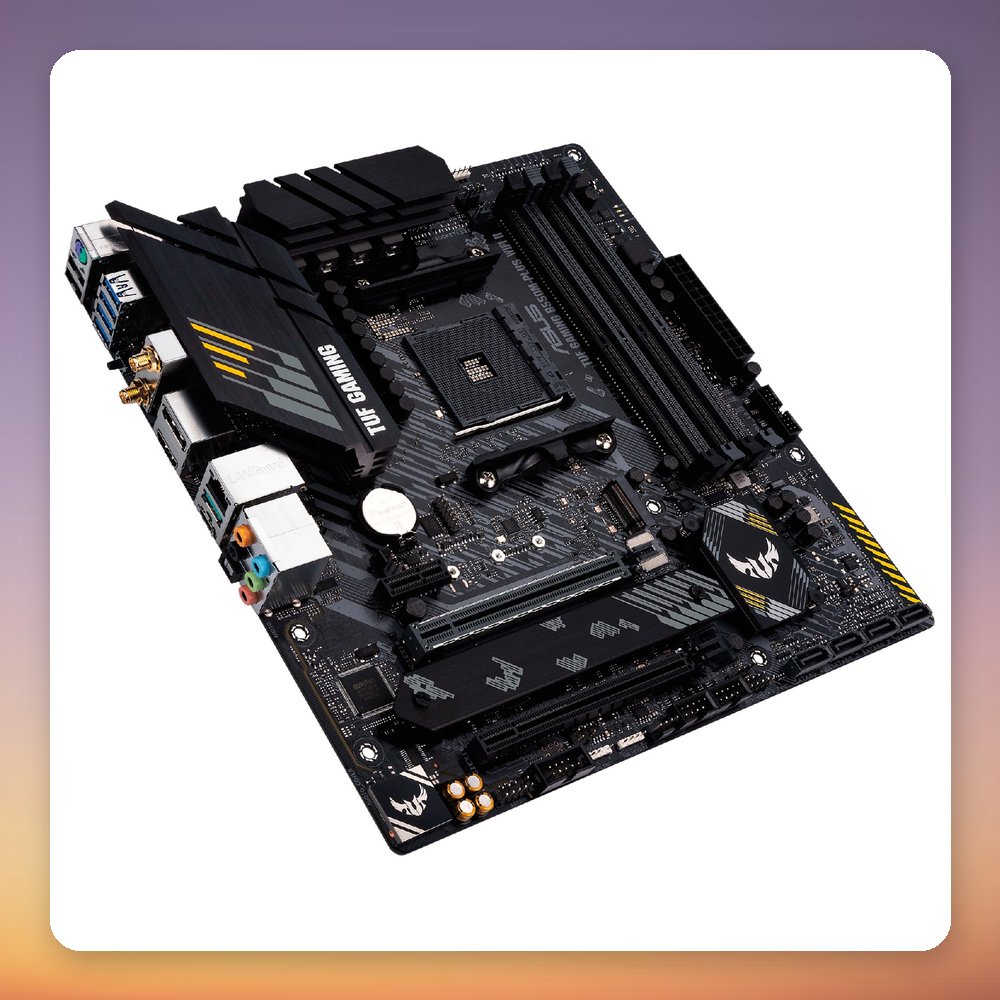

The ASUS TUF Gaming B550M-Plus WiFi II is a micro ATX motherboard for Socket AM4 built on the AMD B550 chipset. It supports AMD Ryzen 3000 and 5000 series processors and has four DDR4 slots for up to 128 GB of dual-channel memory. Wi-Fi 6, Bluetooth 5.2 and 2.5 Gigabit Ethernet are built in, and storage is covered by two M.2 slots (one PCIe 4.0) and four SATA III ports.

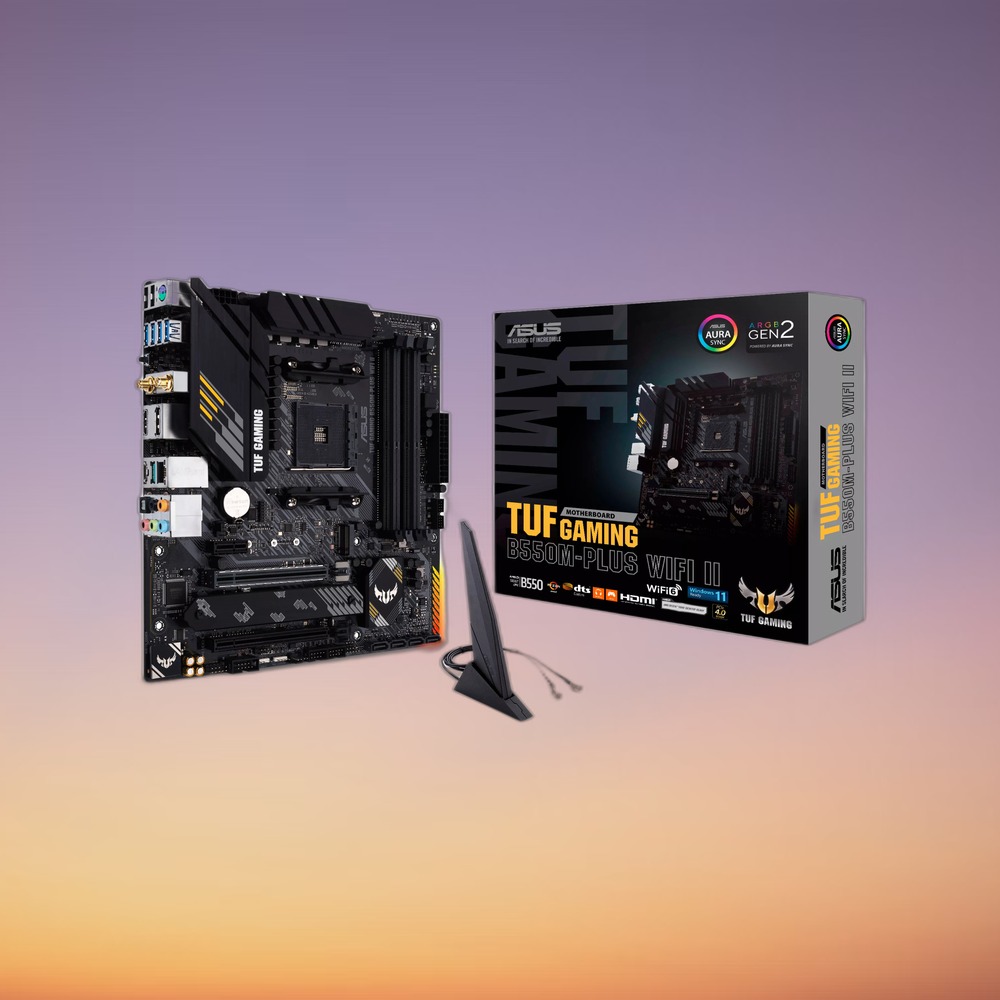

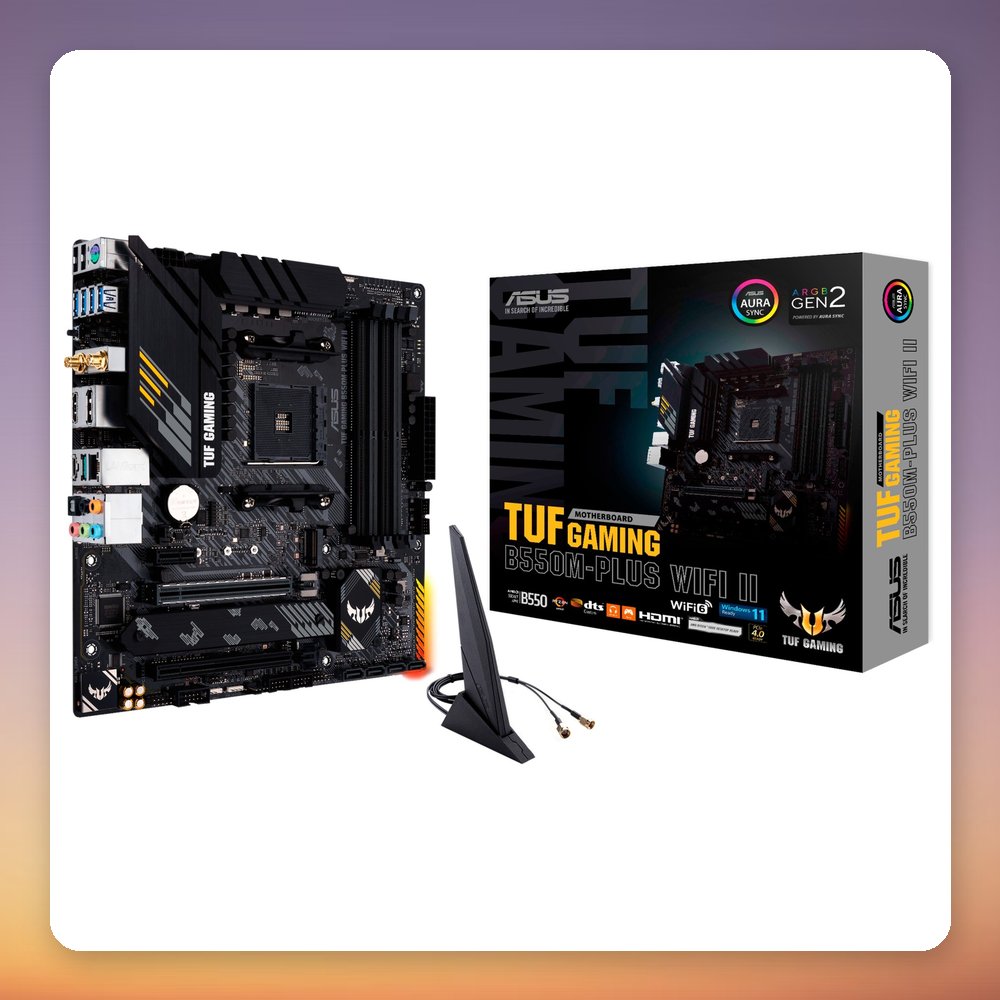

With an 8+2 DrMOS power design and a ProCool 8-pin power socket, this board suits Ryzen gaming builds in a compact micro ATX case. It offers a PCIe 4.0 x16 slot for the graphics card, HDMI and DisplayPort outputs for CPUs with integrated graphics, and a USB-C 3.2 Gen 2 port on the rear panel. Two SATA cables, a Wi-Fi antenna and M.2 screws are included in the box. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B550M-Plus WiFi II
• MPN: 90MB19Y0-M0EAY0
• EAN: 4711081305705
• Socket: AM4
• Chipset: AMD B550
• Form factor: micro ATX
• Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB
• Memory speeds: DDR4-2133 to DDR4-4866 (OC), ECC supported
• PCIe slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1
• M.2 slots: 2x M.2 (M key): slot 1 PCIe 4.0, slot 2 PCIe 3.0, 42-110 mm
• SATA: 4x SATA III, RAID 0/1/10
• Networking: 2.5 Gb Ethernet, Wi-Fi 6 (802.11ax), Bluetooth 5.2

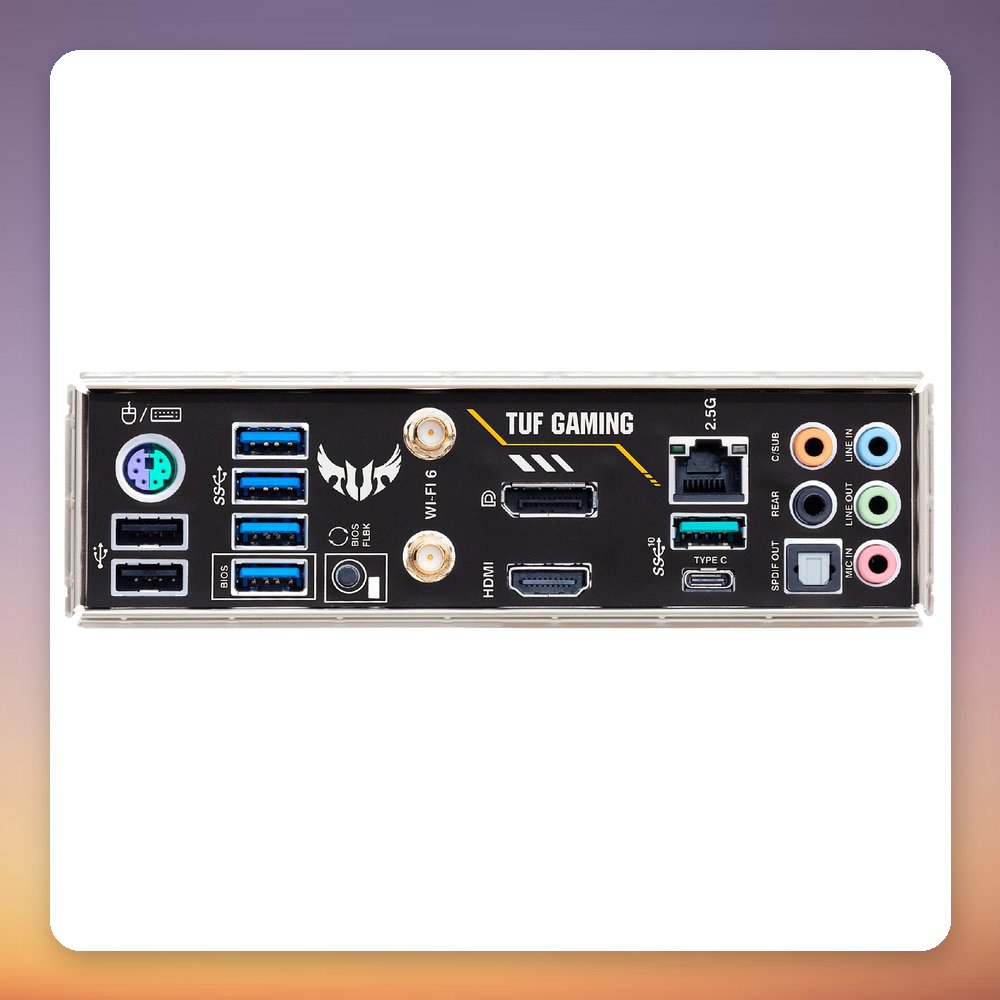

• Rear USB: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB 2.0
• Video outputs: HDMI 2.1, DisplayPort 1.2
• Audio: Realtek ALC897, 7.1 channel
• RGB: 2x RGB header, 1x addressable RGB header, AURA Sync
• Dimensions (W x D x H): 244 x 244 x 67 mm
• Weight: 845 g
