Product Overview

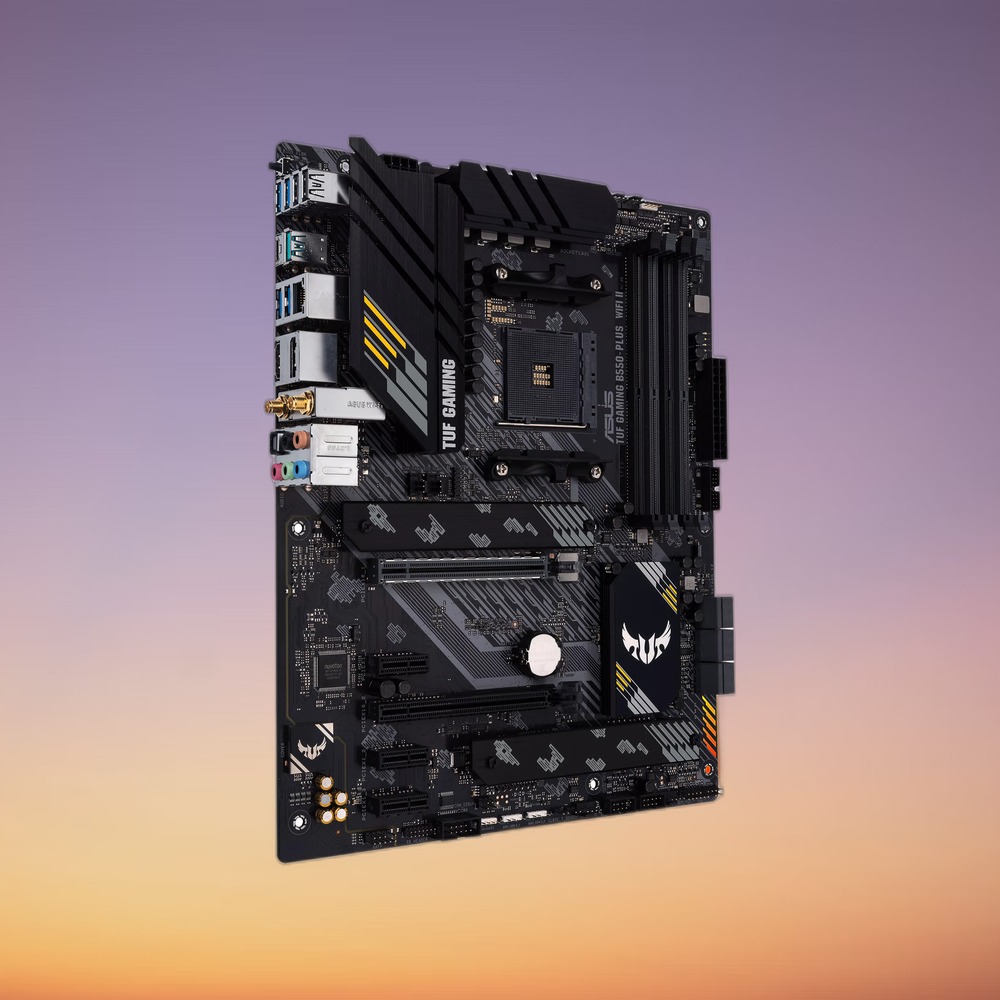

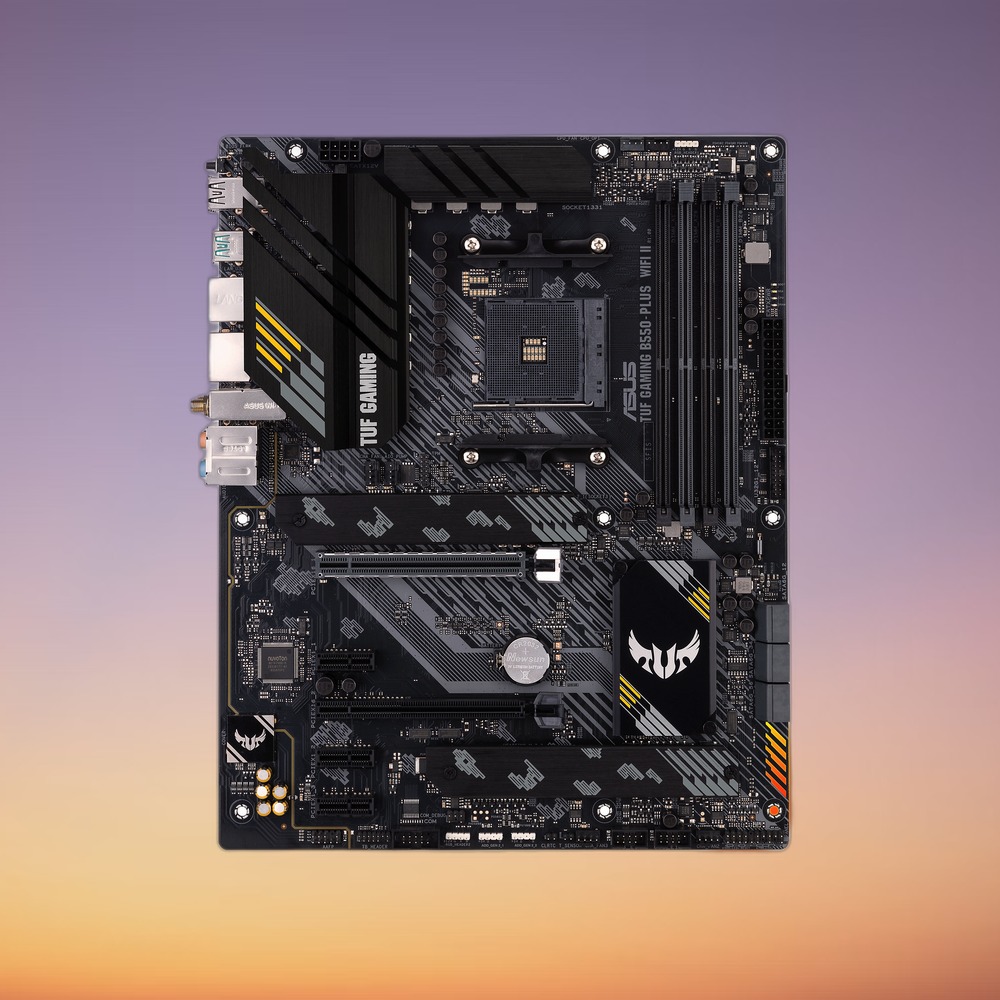

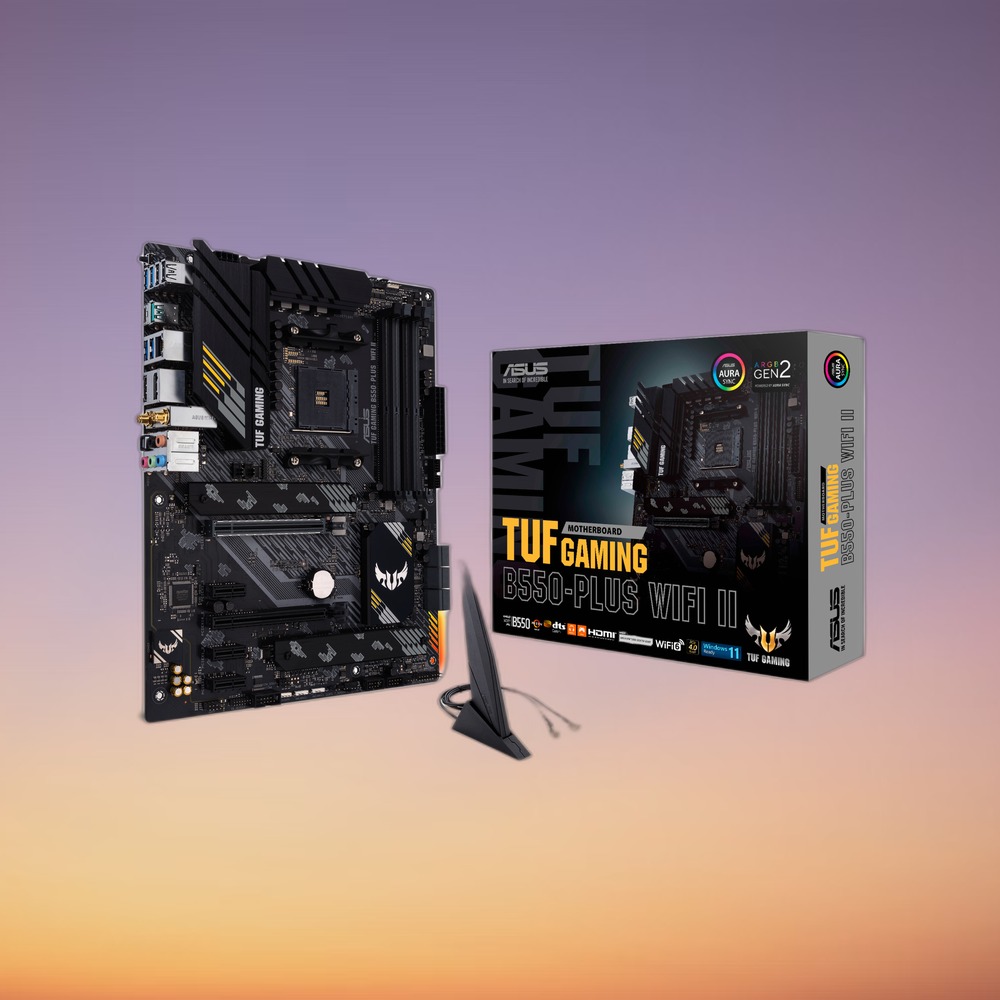

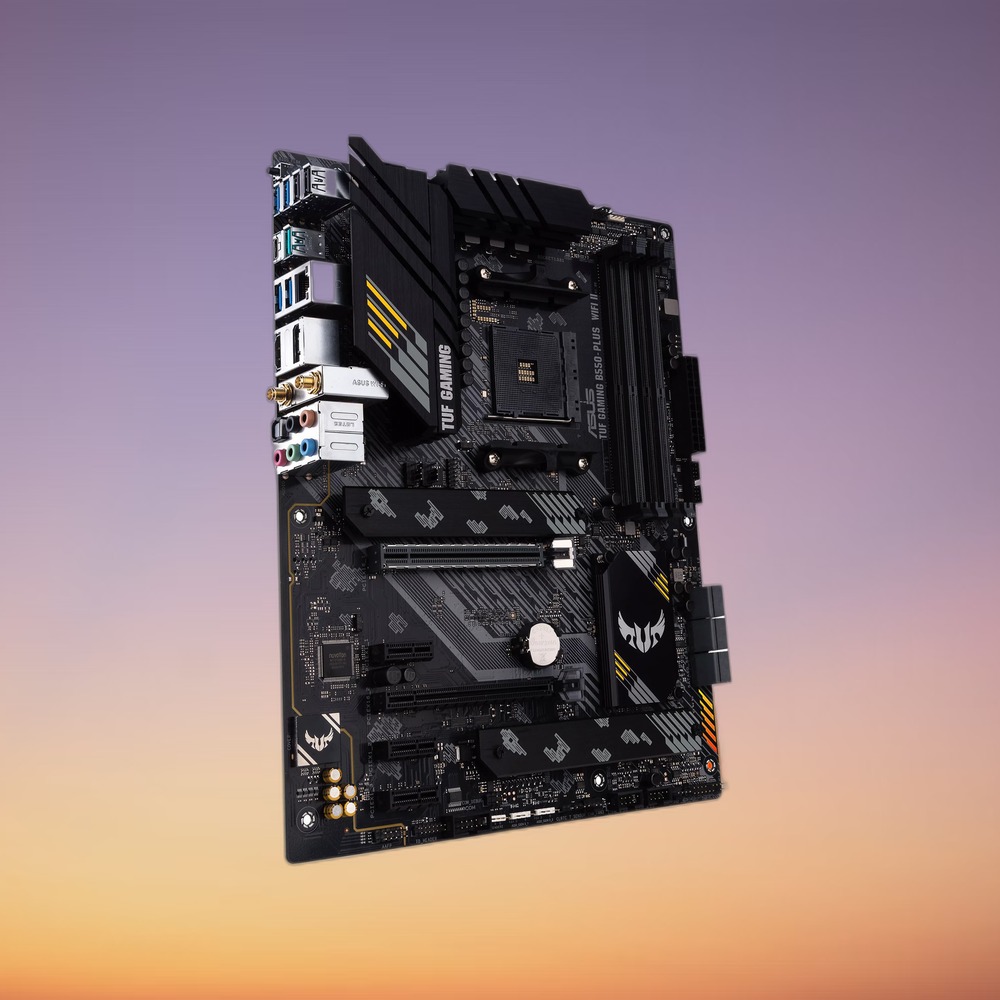

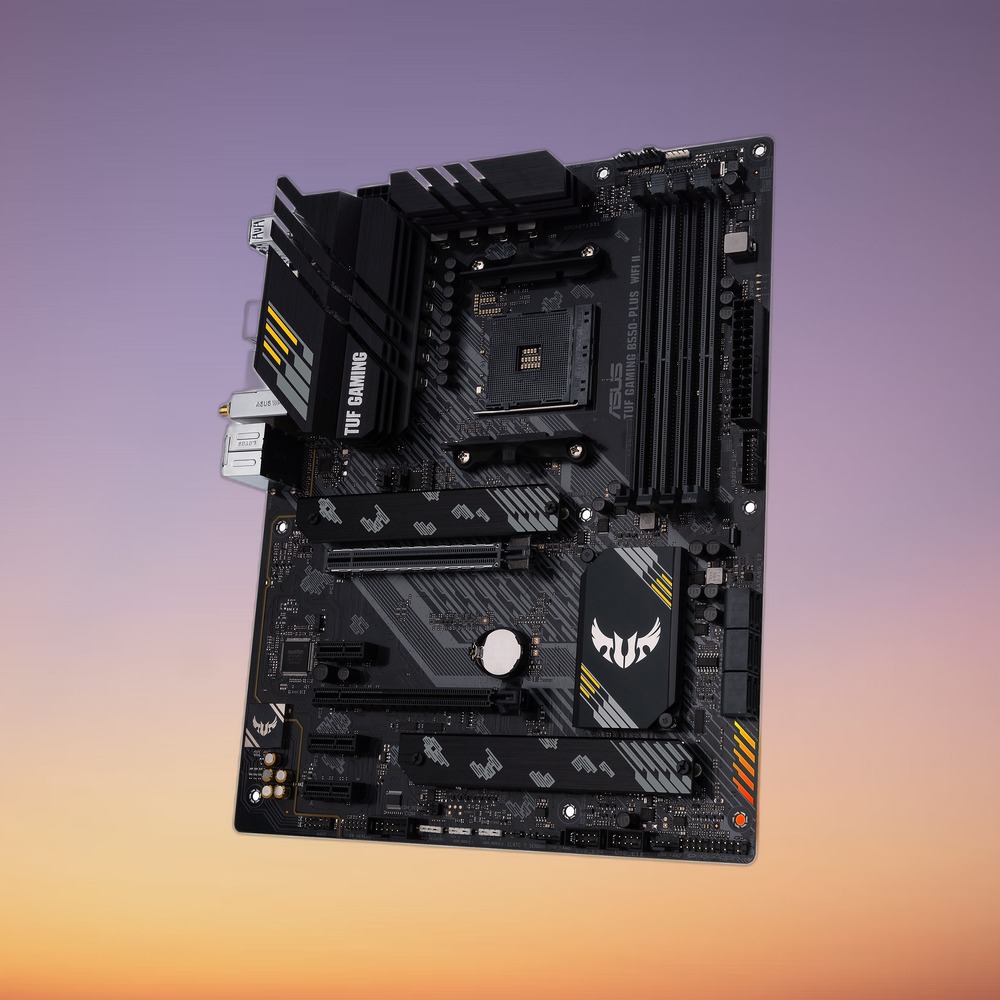

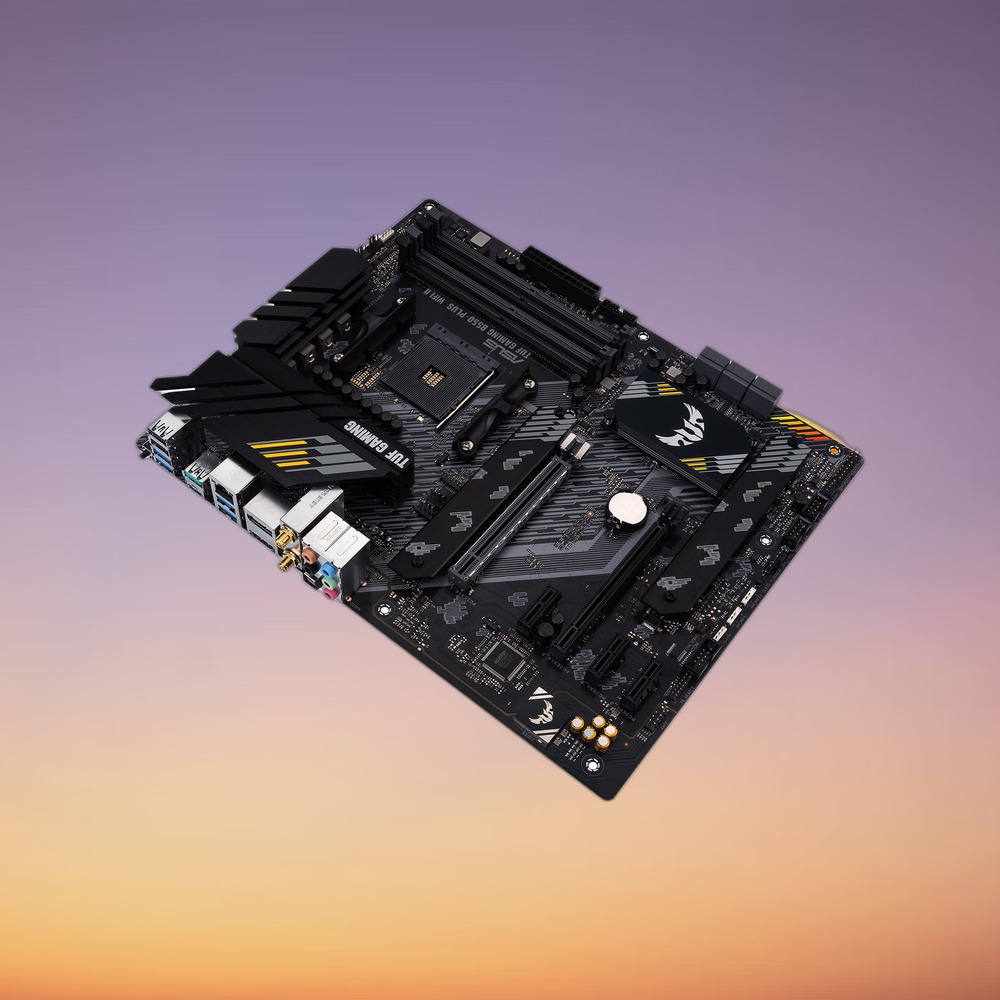

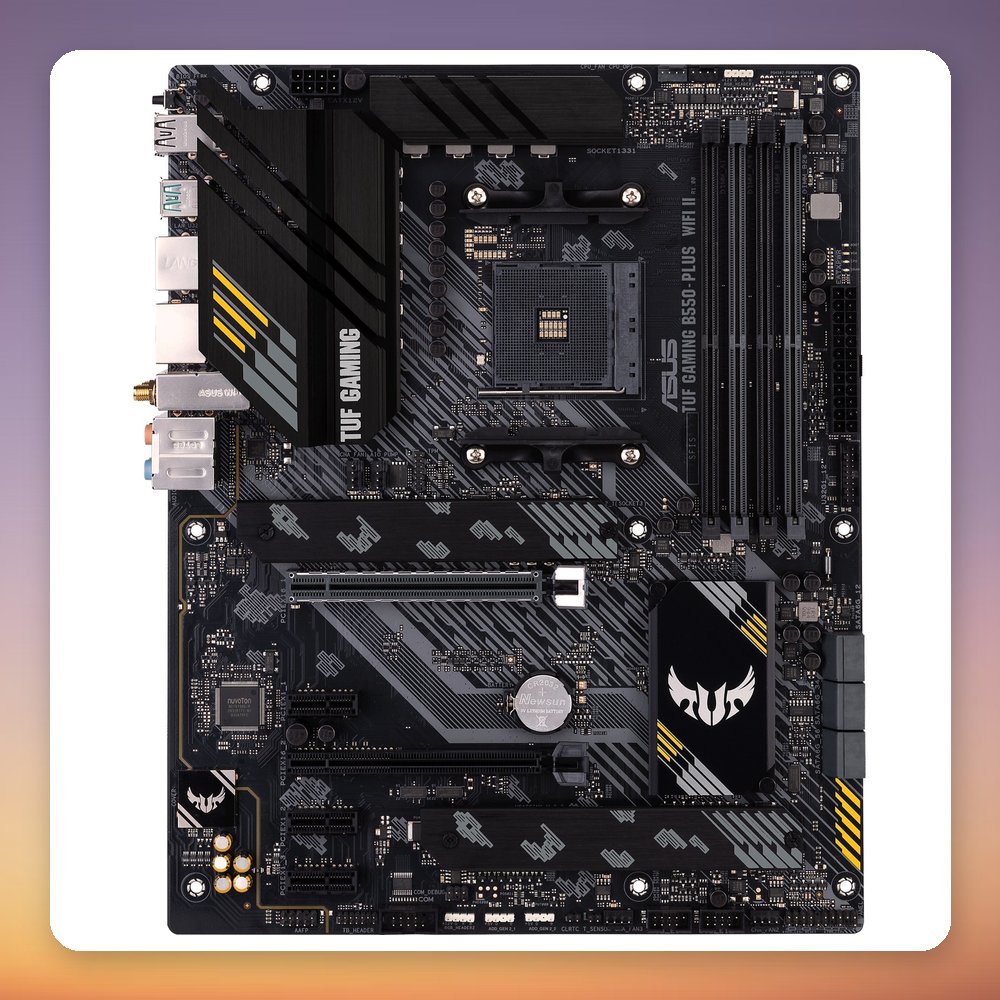

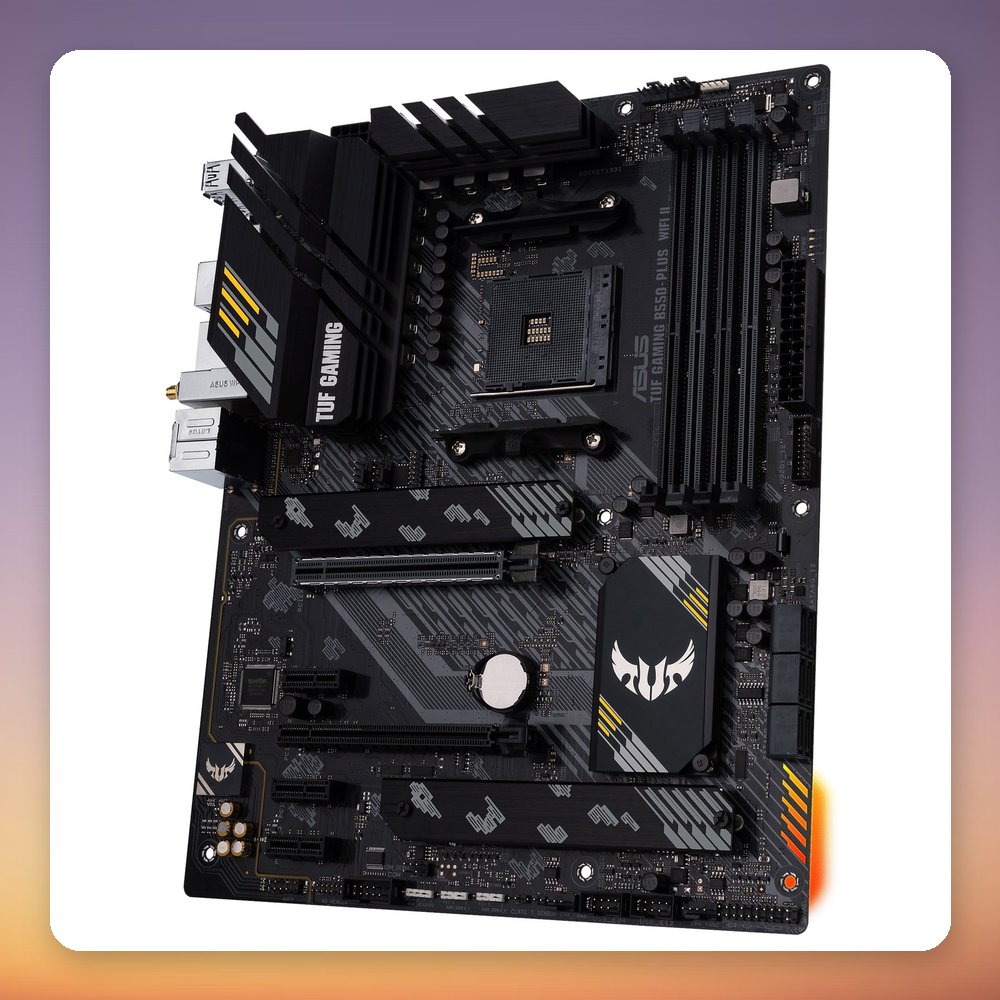

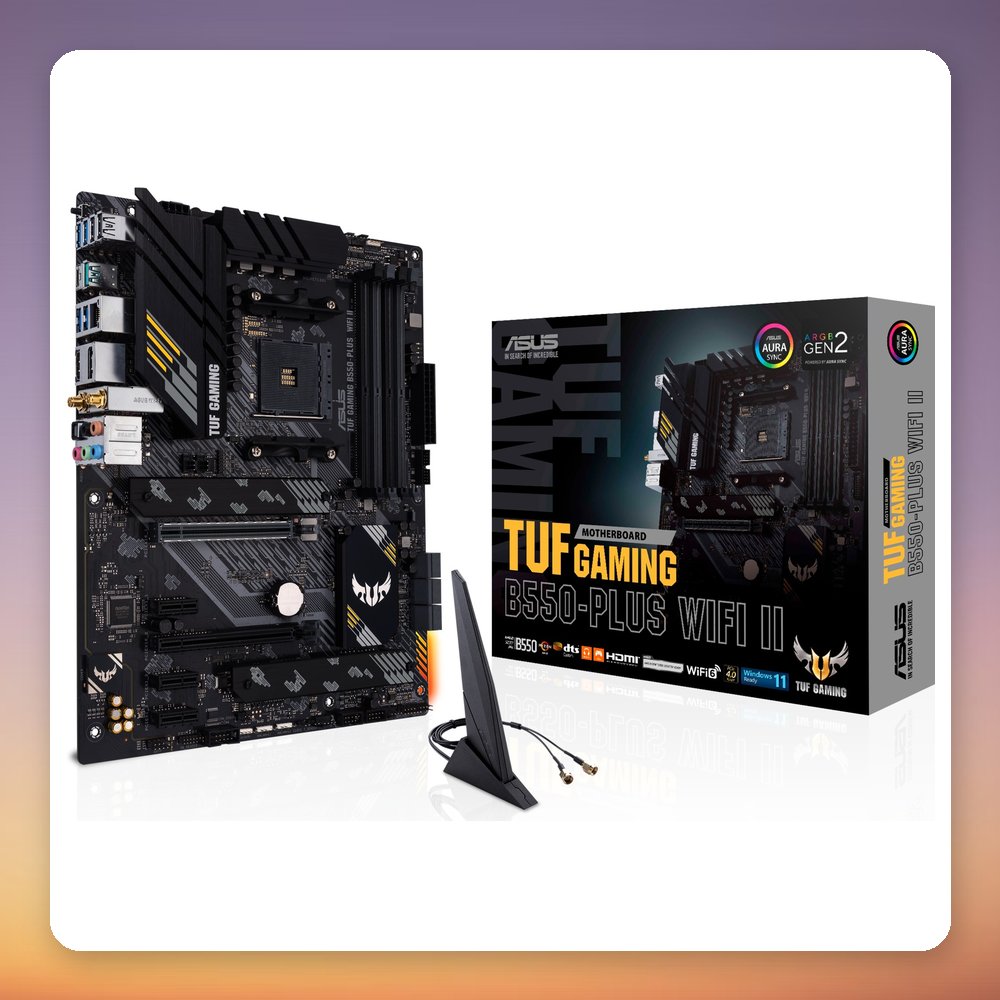

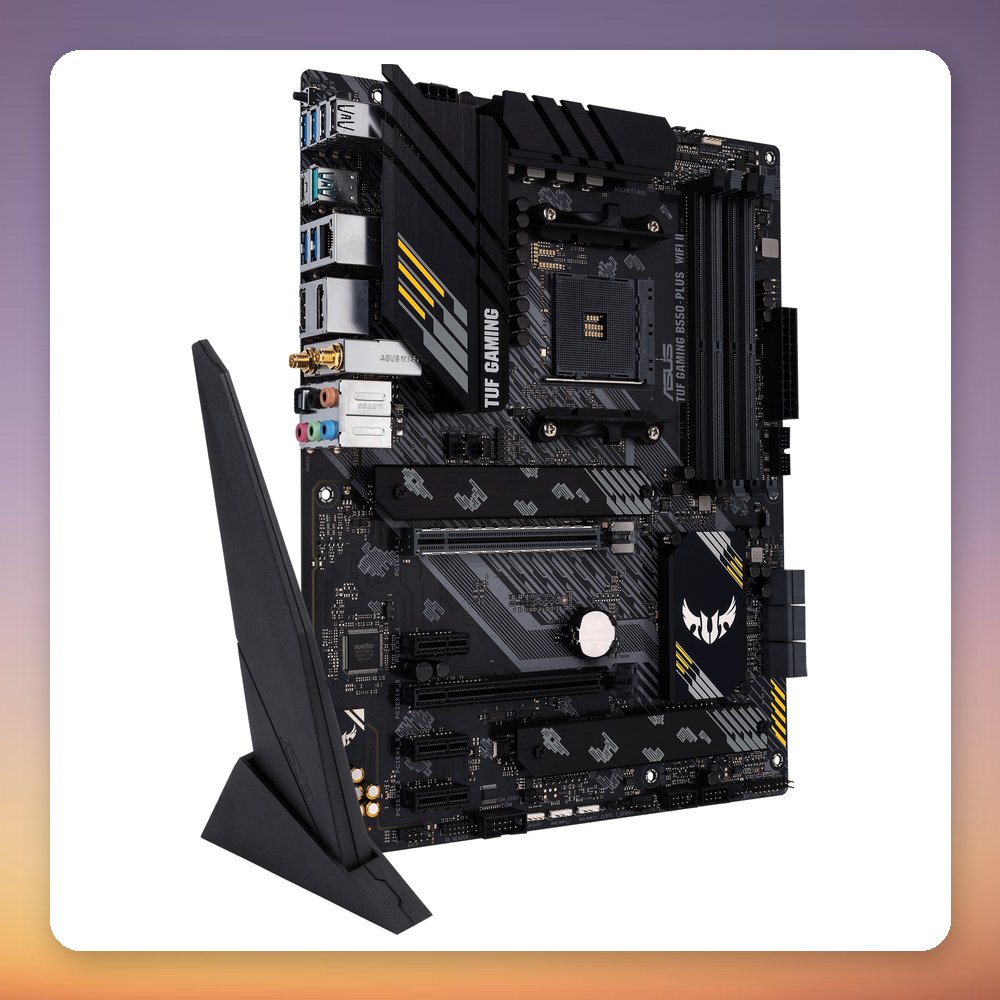

The ASUS TUF Gaming B550-Plus WiFi II is an ATX motherboard for Socket AM4 built on the AMD B550 chipset. It stands out with Wi-Fi 6 and Bluetooth 5.2 on board, 2.5 Gigabit Ethernet, a PCIe 4.0 M.2 slot, and a VRM with 8+2 DrMOS power stages under a large heatsink. Four DDR4 slots support up to 128 GB of dual-channel memory, with ECC support listed.

This board suits Ryzen gaming and general-purpose builds on AM4 where wireless connectivity is needed without a separate adapter. Storage options include two M.2 slots (one PCIe 4.0, one PCIe 3.0) and six SATA ports with RAID 0, 1 and 10. At the back you get HDMI, DisplayPort, a USB-C port and an optical S/PDIF output. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B550-Plus WiFi II
• MPN: 90MB19U0-M0EAY0
• EAN: 4711081338413
• Socket: AMD AM4
• Chipset: AMD B550
• Form factor: ATX
• Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB, ECC supported
• Memory speed: DDR4-2133 to DDR4-4866 (O.C.)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1
• M.2 slots: 2x M key: slot 1 PCIe 4.0, slot 2 PCIe 3.0 (SATA/PCIe, 42-110 mm)
• SATA ports: 6x SATA 6Gb/s, RAID 0/1/10
• LAN: Realtek RTL8125B 2.5 Gigabit Ethernet

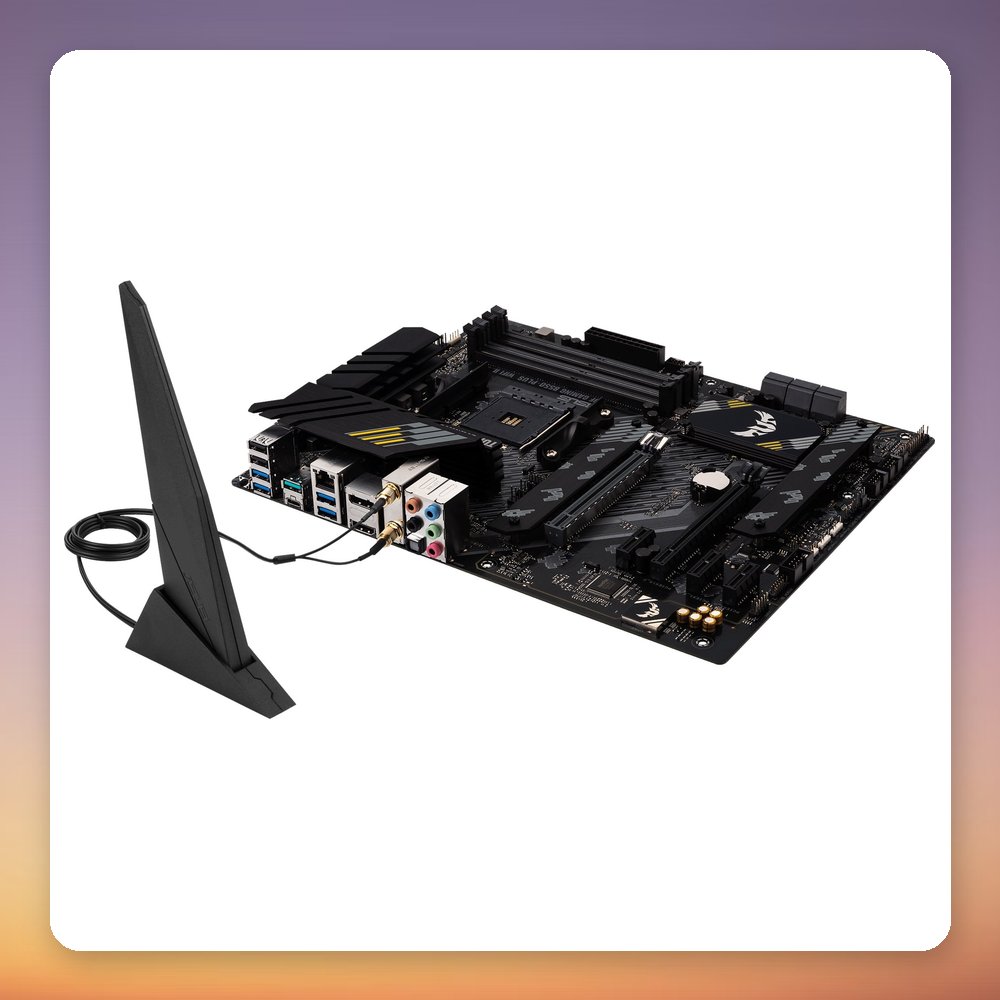

• Wireless: Intel Wi-Fi 6 AX200, Bluetooth 5.2
• Rear USB: 1x USB-C 3.2 Gen 1, 1x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
• Audio: Realtek S1200A, 7.1 channels, optical S/PDIF out
• RGB headers: 2x RGB, 2x addressable RGB (AURA Sync)
• Fan headers: 6x 4-pin PWM
• Colour: Black
• Dimensions (W x H x D): 244 x 305 x 75 mm
