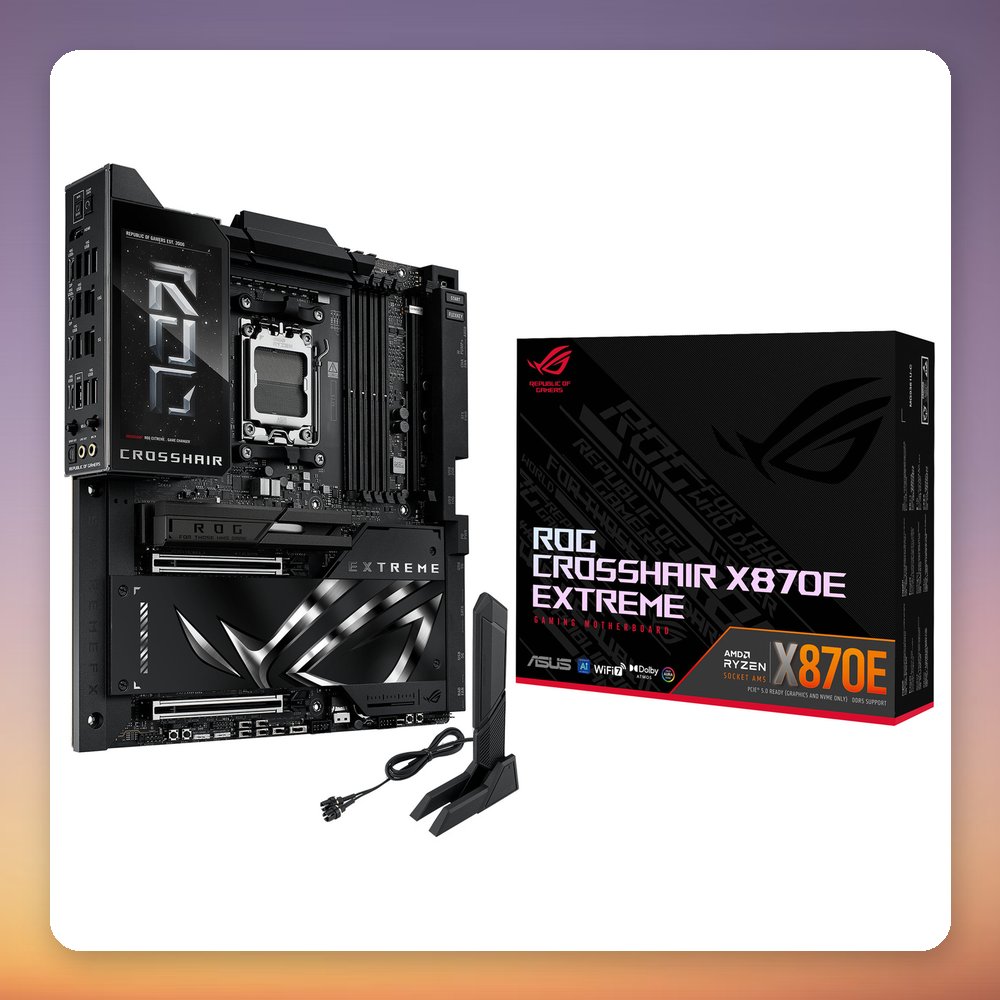

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE

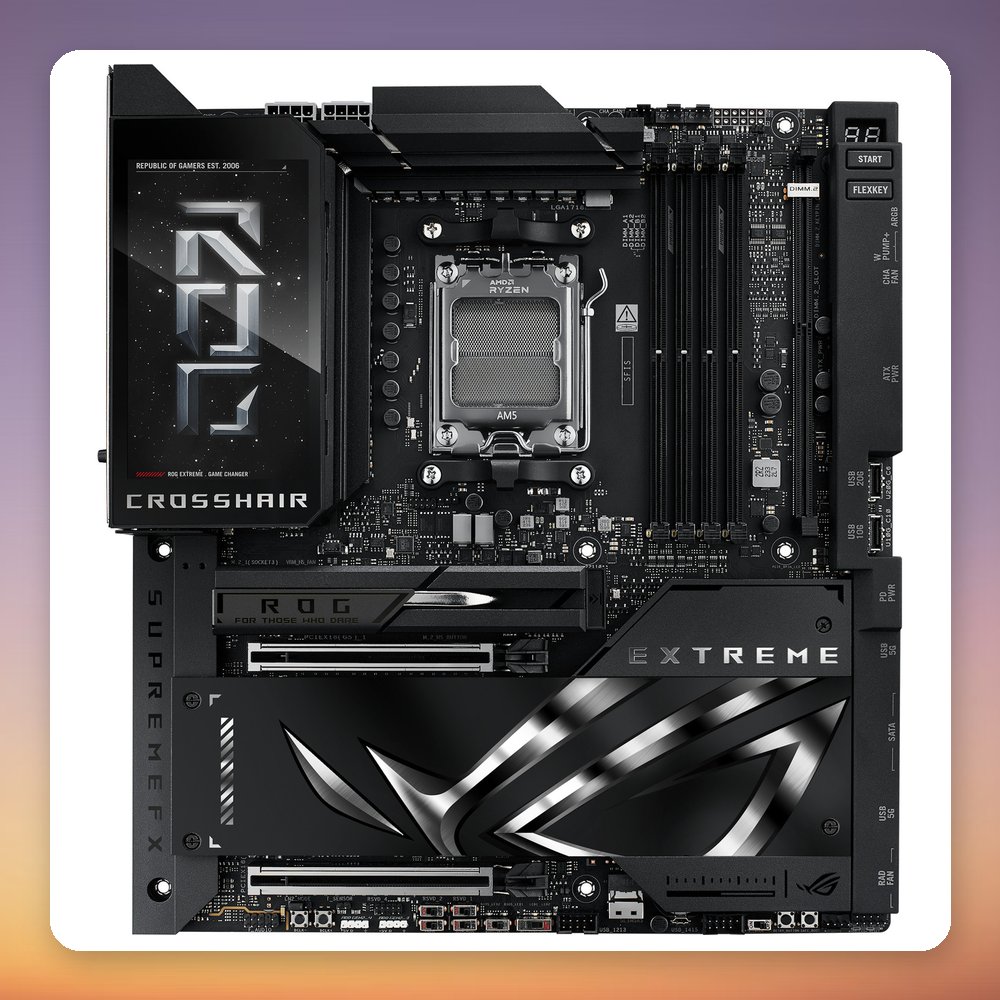

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE – image 2

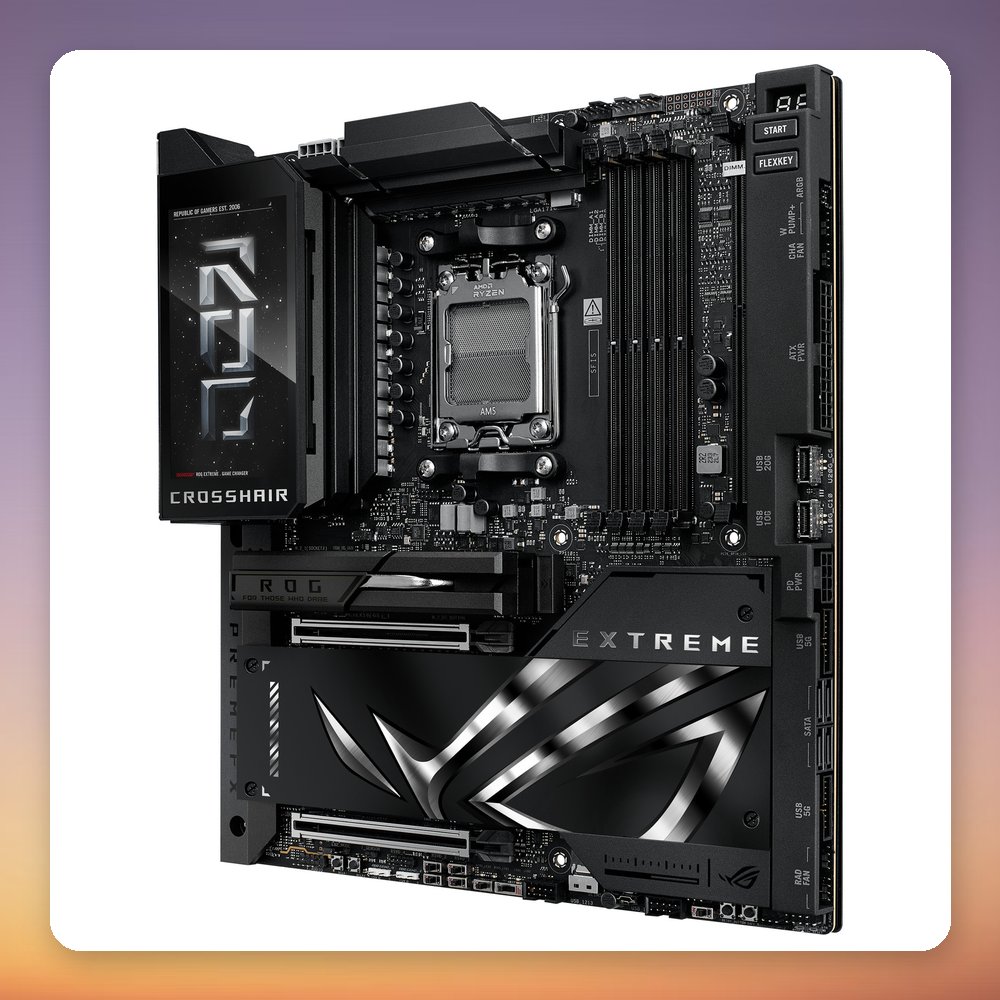

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE – image 3

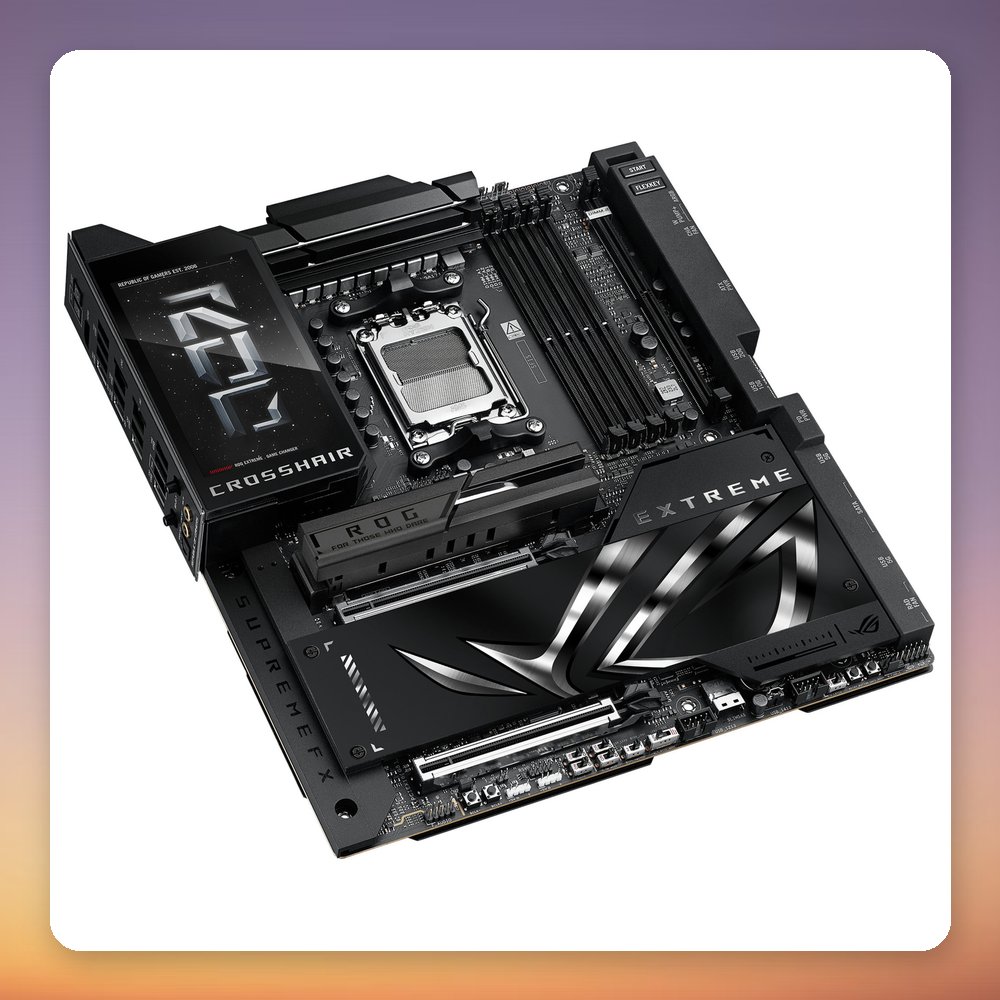

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE – image 4

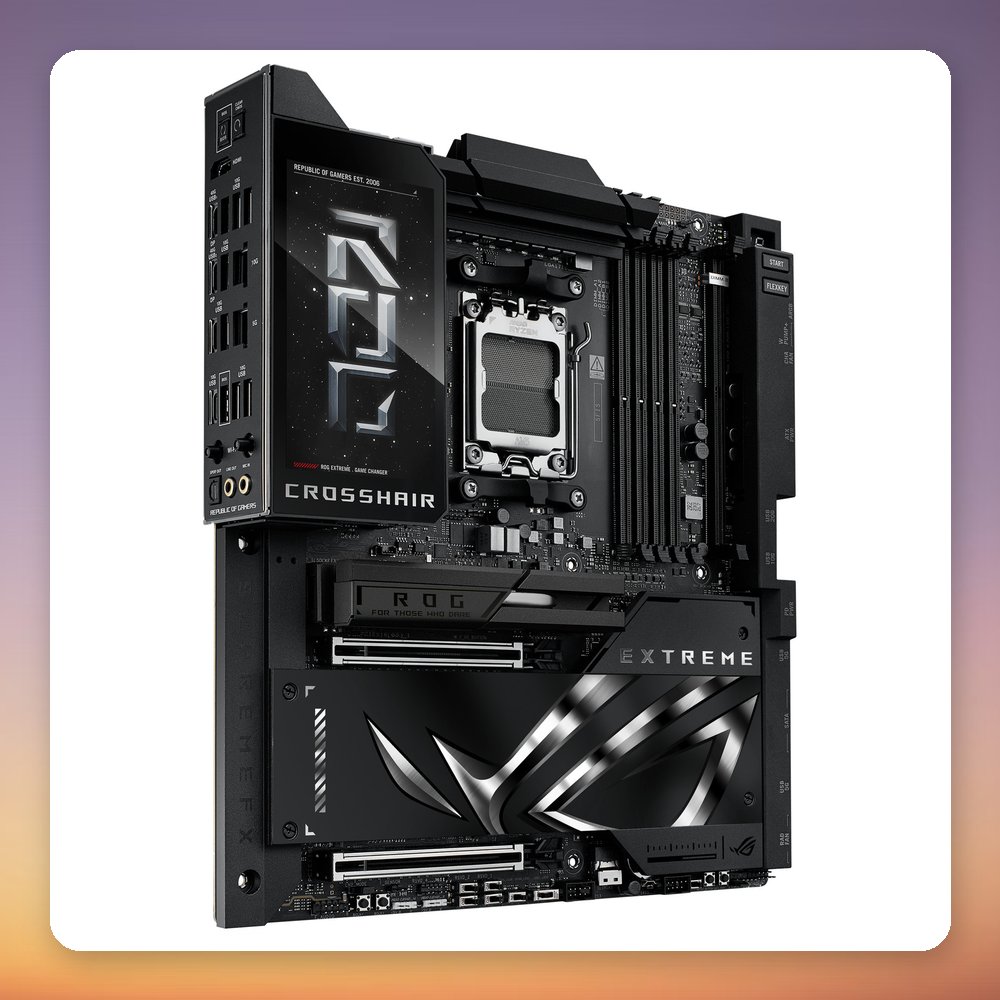

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE – image 5

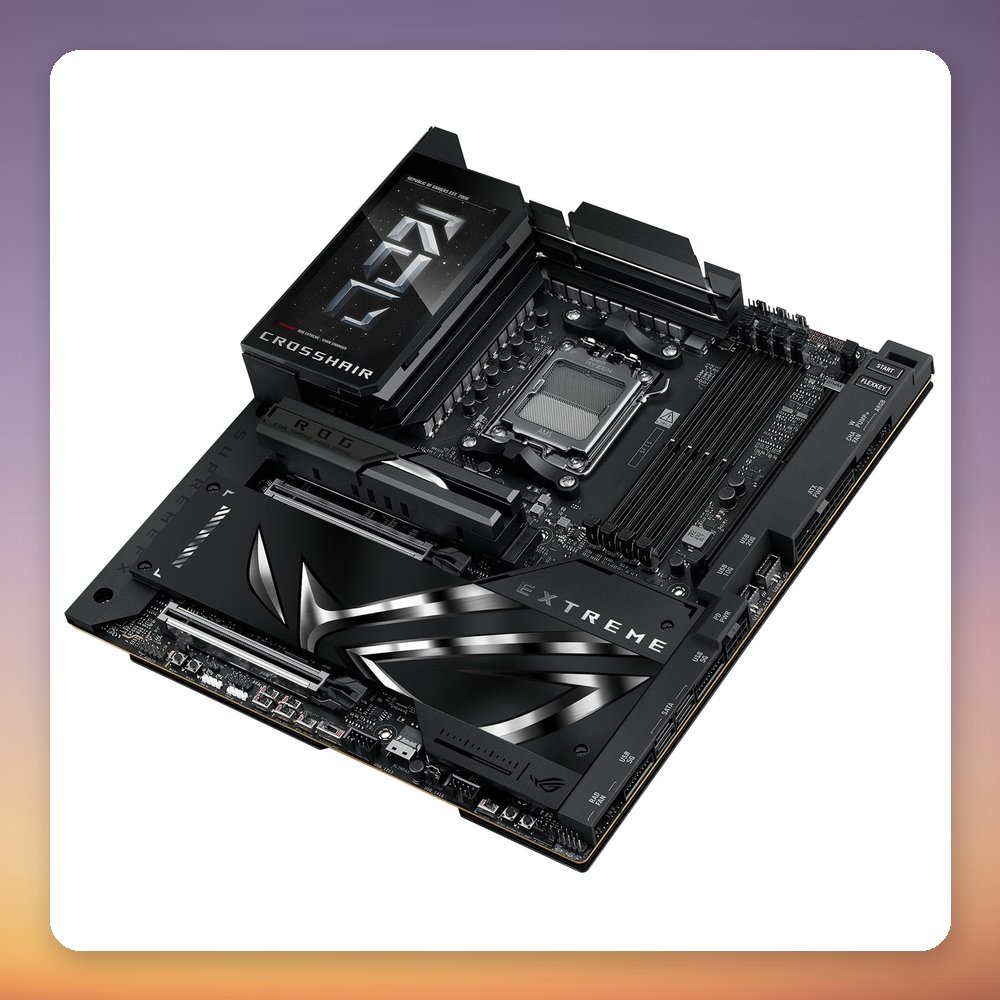

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE – image 6

Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE

€1,330.10

Delivery: 7-12 business days
Asus ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, DDR5, Wi-Fi 7, 10 GbE

  • Five M.2 slots, three of them PCIe 5.0 x4
  • 10 Gb and 5 Gb Ethernet plus Wi-Fi 7
  • Two USB4 ports with DisplayPort output
  • DDR5-8200+ (OC) with Ryzen 9000, up to 256 GB

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100121871 Category: Tags: , , , Brand:

✅

Product Overview

The Asus ROG Crosshair X870E Extreme is an E-ATX motherboard for Socket AM5, built on the AMD X870E chipset and described by Asus as its flagship board for Ryzen 9000 processors. It offers five M.2 slots (three of them PCIe 5.0), two USB4 ports, 10 Gb and 5 Gb Ethernet, Wi-Fi 7 and an integrated 5-inch LCD for monitoring system performance.

With four DDR5 slots supporting up to 256 GB and speeds of 8200+ MT/s (OC) on Ryzen 9000 CPUs, this board suits high-end AM5 builds that need lots of fast storage and connectivity. It supports AMD EXPO and ASUS AEMP memory profiles, ECC and non-ECC unbuffered memory, and has a Realtek ALC4082 audio codec with an ESS ES9219 QUAD DAC. Being E-ATX, it needs a case that supports that form factor. A BIOS update may be needed for the newest CPUs.

Specification

  • Manufacturer: Asus
  • Model: ROG Crosshair X870E Extreme
  • MPN: 90MB1LB0-M0EAY0
  • EAN: 47113879849630
  • Socket: AMD AM5
  • Chipset: AMD X870E
  • Form factor: E-ATX
  • Memory: 4x DDR5 DIMM, max. 256 GB, dual-channel, up to 8200+ MT/s (OC) with Ryzen 9000
  • Memory profiles: AMD EXPO, ASUS AEMP, ECC and non-ECC unbuffered
  • Expansion slots: 2x PCIe x16 (PCIe 5.0 x16 and PCIe 4.0 x16 running at x8)
  • M.2 slots: 5x (3x PCIe 5.0 x4, 2x PCIe 4.0 x4 via ROG Q-DIMM.2)
  • Other storage: 4x SATA 6Gb/s, 1x SlimSAS (PCIe 4.0 x4, adapter cable sold separately), RAID 0/1/5/10
  • Networking: 10 Gb Ethernet (Marvell AQtion), 5 Gb Ethernet (Realtek), Wi-Fi 7, Bluetooth 5.4
  • Rear USB: 2x USB4 (40 Gbps), 2x USB-C 10 Gbps, 8x USB-A 10 Gbps
  • Video output: 1x HDMI, 2x USB4 DisplayPort Alt Mode (up to 4K@60Hz)
  • Audio: Realtek ALC4082, ESS ES9219 QUAD DAC, 7.1 channels, optical S/PDIF out
  • Power connectors: 24-pin ATX + 2x 8-pin
  • RGB: AURA Sync
  • Dimensions (W x D): 305 x 277 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 6.226 kg
