Product Overview

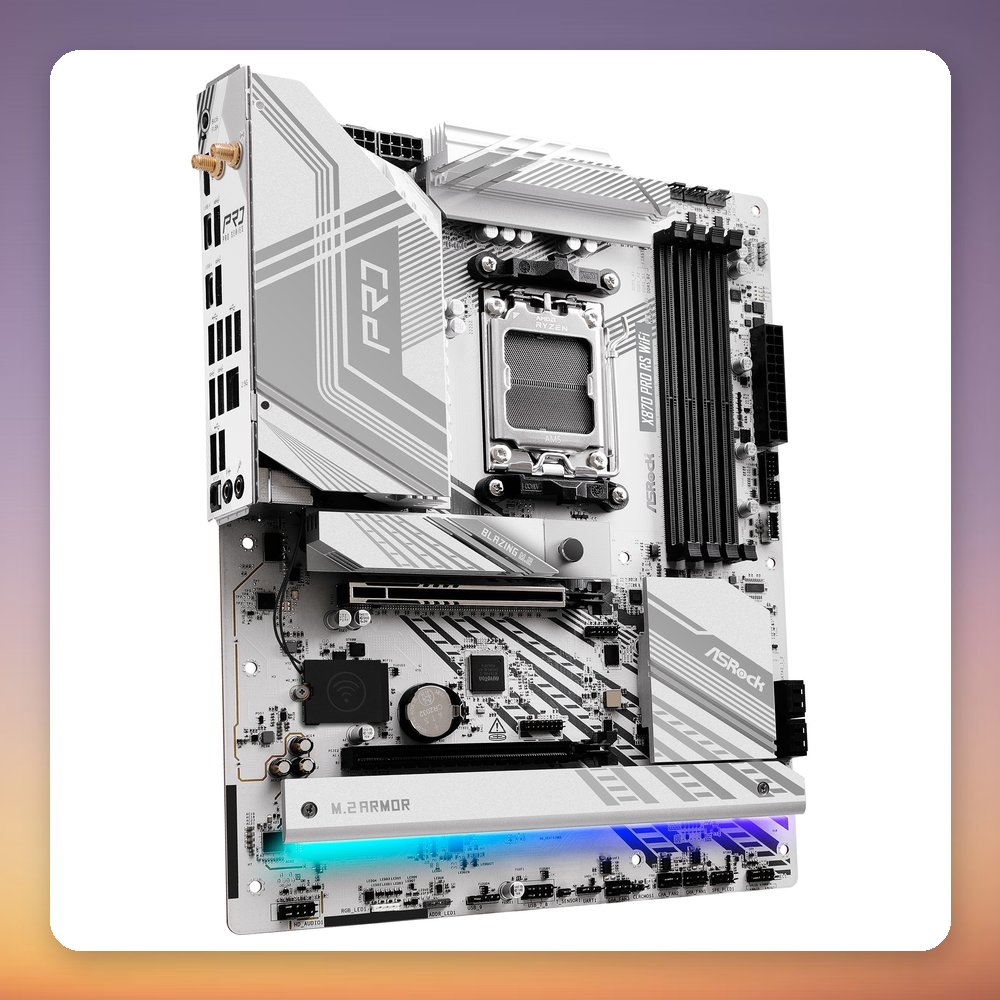

The ASRock X870 Pro RS WiFi is an ATX motherboard built on the AMD X870 chipset for Socket AM5 processors. It stands out with three M.2 slots, including a PCIe Gen 5.0 slot for the fastest NVMe drives, two USB4 ports on the rear I/O and built-in Wi-Fi 7 with Bluetooth 5.4. Four DDR5 slots support up to 256 GB, with memory standards listed up to DDR5-8200.

This board suits AM5 builds that need modern connectivity without extra add-in cards. Supported CPUs span Ryzen 5, 7 and 9 from the 7000, 8000 and 9000 series, including X3D models, though a BIOS update may be needed for the newest processors. Storage is covered by four SATA ports and three M.2 slots, while a 2.5 Gb Ethernet port, seven 4-pin fan headers and four RGB headers round out the feature set. Two SATA data cables and two Wi-Fi antennas are included.

Specification

• Manufacturer: Asrock
• Model: X870 Pro RS WiFi
• MPN: 90-MXBQ00-A0UAYZ
• EAN: 4710483949333
• Socket: AM5
• Chipset: AMD X870
• Form factor: ATX
• Memory slots: 4x DDR5, dual channel
• Max memory: 256 GB
• Supported memory speeds: DDR5 8200 / 5200 / 4800 / 4400
• PCIe slots: 1x PCIe x16, 1x PCIe x4 (x16 size)
• M.2 slots: 3x (Slot 1: PCIe Gen 5.0, Slot 2: PCIe Gen 4.0, Slot 3: PCIe Gen 3.0), Key M, 80 mm
• SATA ports: 4x SATA, RAID 0/1/10
• LAN: Dragon RTL8125BG 2.5 Gb Ethernet
• Wireless: Wi-Fi 7, Bluetooth 5.4
• Rear USB: 2x USB4, 4x USB-A 3.2 Gen 1, 6x USB-A 2.0
• Internal USB-C: 1x USB 3.2 Gen 2×2 (20 Gbit/s)
• Video output: 1x HDMI, 2x USB4 DisplayPort (CPU with integrated graphics required)
• Fan headers: 7x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB
• Power connectors: ATX12V (24-pin + 2x 8-pin)
• Dimensions (W x H): 244 mm x 305 mm
