Product Overview

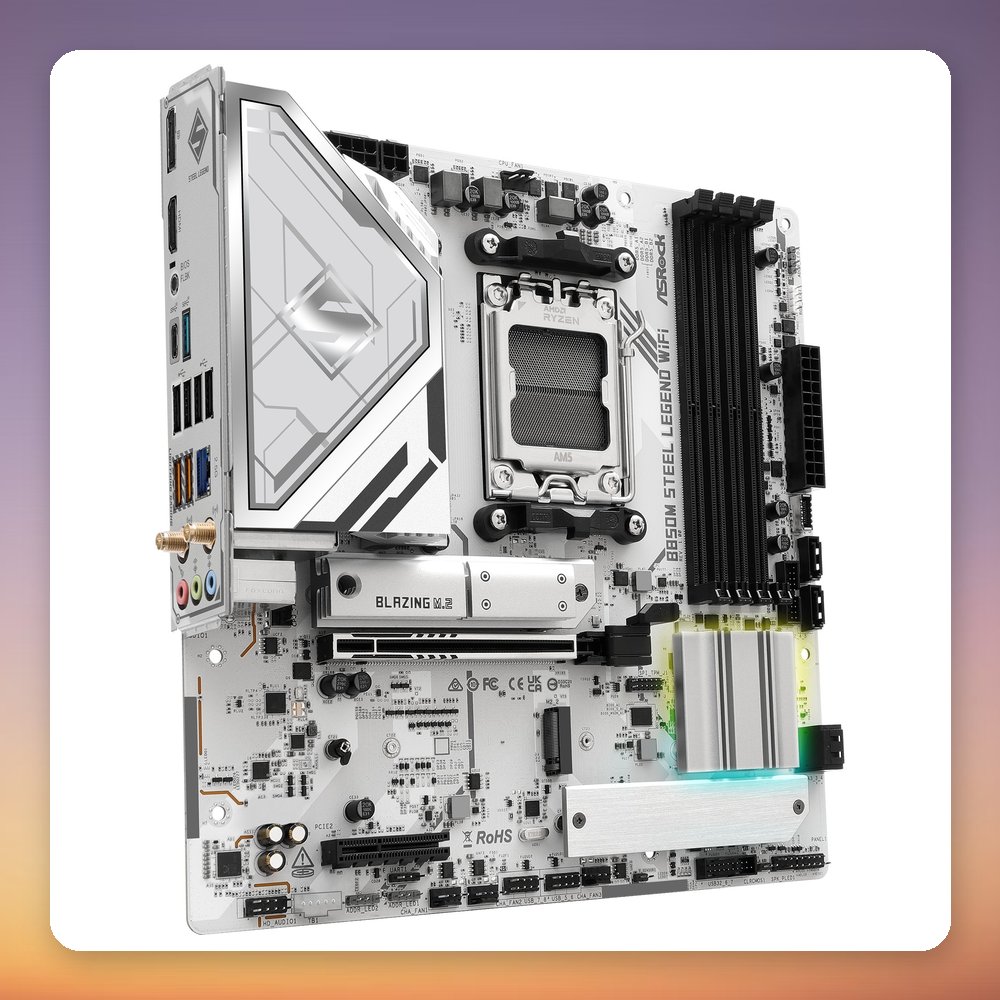

The ASRock B850M Steel Legend WiFi is a Micro-ATX motherboard for AMD Socket AM5 processors, built on the AMD B850 chipset. It supports four DDR5 slots with up to 256 GB of memory and speeds of DDR5-8000+ (OC), and combines a PCIe 5.0 x16 slot with three M.2 sockets. Connectivity is a strong point, with Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit LAN all onboard.

This board suits compact to mid-size AM5 builds using Ryzen 7000, 8000 and 9000 series processors, including X3D models. The rear panel offers HDMI and DisplayPort outputs (usable with a CPU that has integrated graphics), a USB-C 3.2 Gen 2 port and a total of nine USB-A ports. Five 4-pin PWM fan headers and four RGB headers cover cooling and lighting. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asrock
• Model: B850M Steel Legend WiFi
• MPN: 90-MXBS20-A0UAYZ
• EAN: 4711581490499
• CPU socket: AMD AM5
• Chipset: AMD B850
• Form factor: Micro-ATX (244 x 244 mm)
• Memory: 4x DDR5, up to 256 GB, DDR5-8000+ (OC), dual channel
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
• Storage: 3x M.2 (M key, PCIe), 4x SATA3, RAID 0/1/10
• Networking: 2.5 Gigabit LAN (Dragon RTL8125BG), Wi-Fi 7, Bluetooth 5.4
• Audio: Realtek ALC1220, 8-channel
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Rear USB: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Fan headers: 5x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB
• Power connectors: 24-pin + 8-pin + 4-pin ATX12V
• BIOS: 256 Mb AMI UEFI
