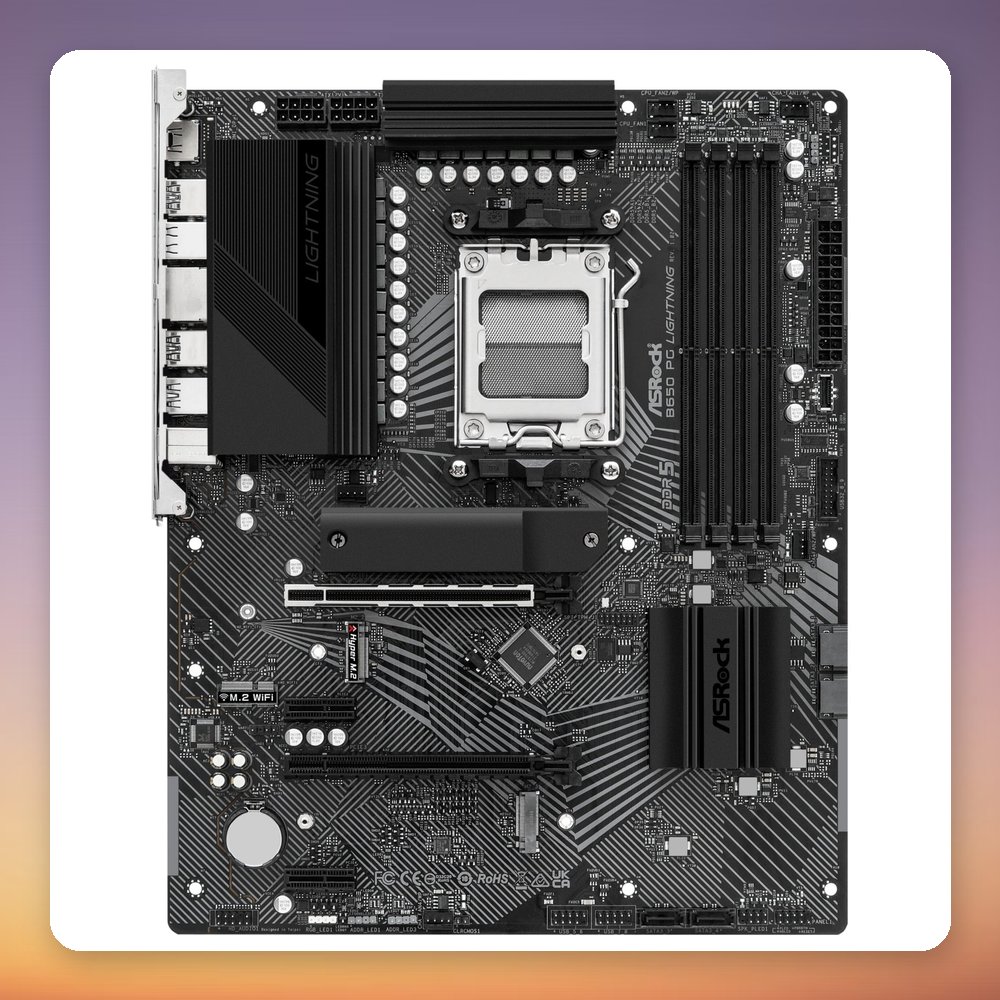

ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi – image 2

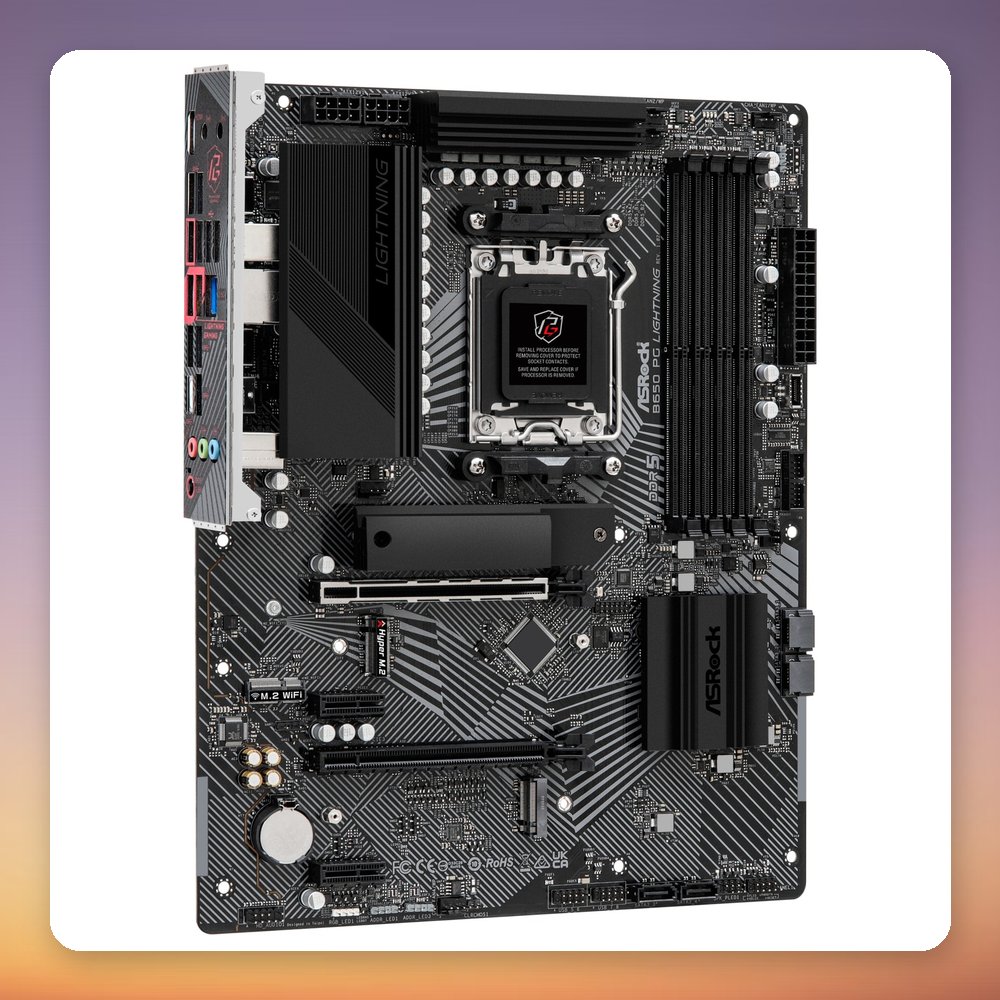

ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi – image 3

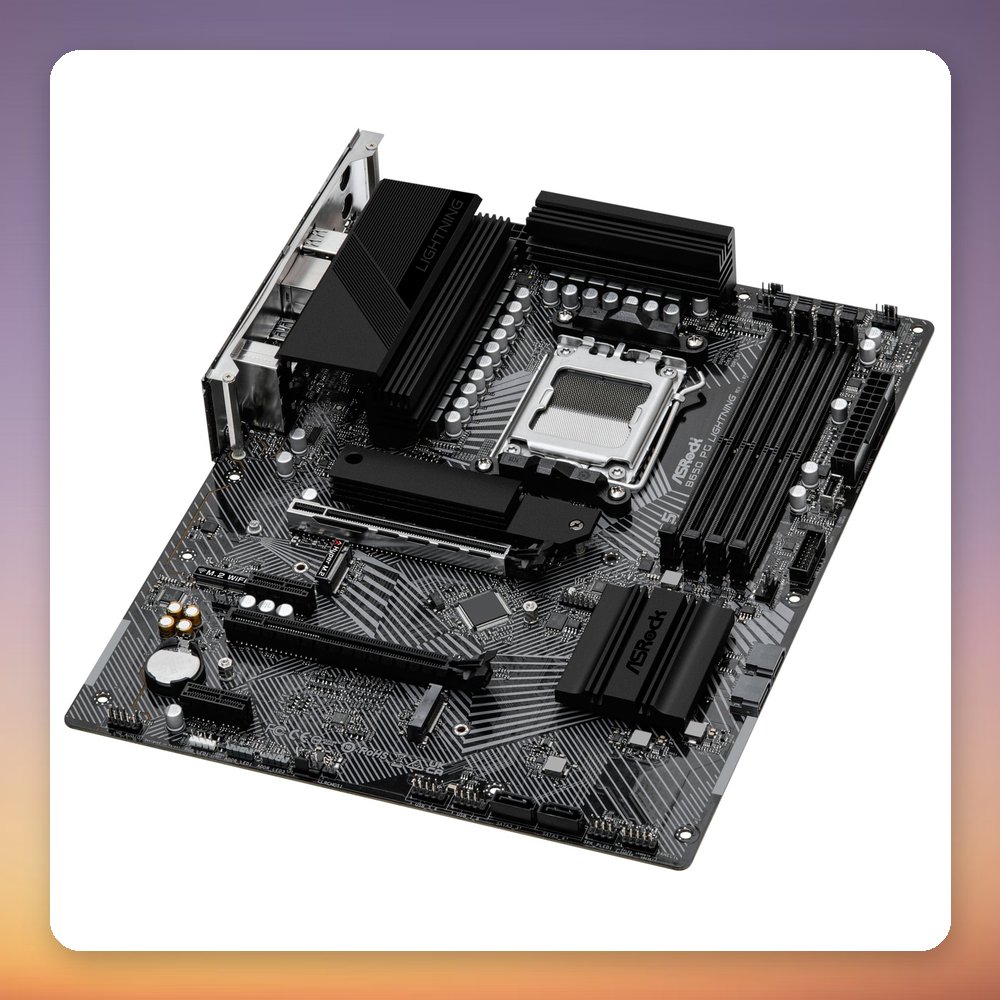

ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi – image 4
ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi – image 5
ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi – image 6

ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi

€209.42

Delivery: 7-12 business days
ASRock B650 PG Lightning AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi

  • PCIe Gen 5.0 M.2 slot plus two Gen 4.0 M.2 slots
  • Four DDR5 slots, up to 192 GB, speeds to DDR5-7200
  • Wi-Fi, Bluetooth and 2.5GbE LAN built in
  • USB-C 3.2 Gen 2×2 (20 Gbit/s) and six 4-pin PWM fan headers

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 1874518 Categories: , , Tags: , , , Brand:

✅

Product Overview

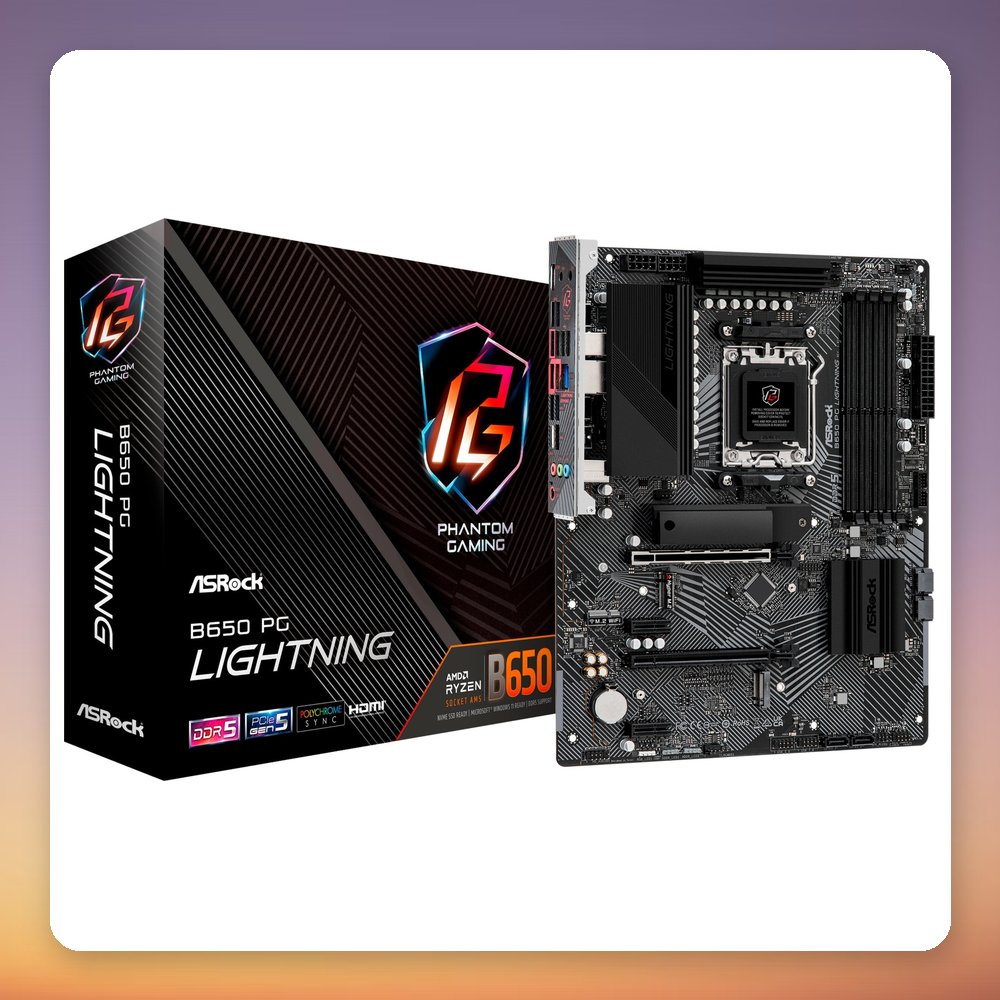

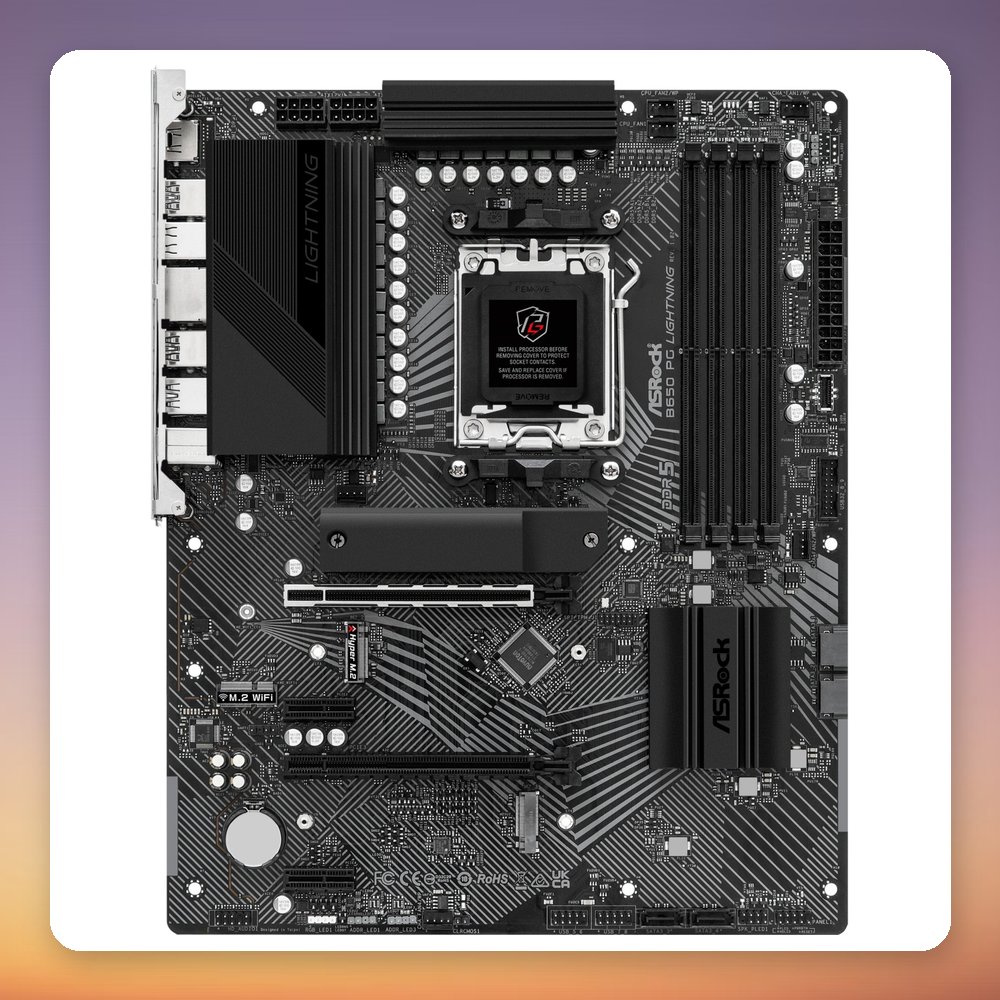

The ASRock B650 PG Lightning is an ATX motherboard for AMD Socket AM5 processors, built on the AMD B650 chipset. It stands out with a PCIe Gen 5.0 M.2 slot alongside two PCIe Gen 4.0 M.2 slots, four DDR5 memory slots supporting up to 192 GB, and onboard Wi-Fi and Bluetooth, so no extra adapter is needed.

With support for Ryzen 7000, 8000 and 9000 series processors, including X3D models, this board suits a modern AM5 gaming or general-purpose build. Rear I/O includes one USB-C 3.2 Gen 2×2 (20 Gbit/s) port, seven USB-A 3.2 Gen 1 ports, HDMI and 2.5GbE LAN, with four SATA ports for extra storage. A BIOS update may be required for the newest processors.

Specification

  • Manufacturer: Asrock
  • Model: B650 PG Lightning
  • MPN: 90-MXBK20-A0UAYZ
  • EAN: 47104839409100
  • CPU Socket: AM5
  • Chipset: AMD B650
  • Form Factor: ATX (244 x 305 mm)
  • Memory: 4x DDR5 DIMM, dual channel, up to 192 GB
  • Memory Speeds: DDR5-4400 to DDR5-7200
  • M.2 Slots: 3x (1x PCIe Gen 5.0, 2x PCIe Gen 4.0)
  • SATA Ports: 4
  • Expansion Slots: 1x PCIe x16, 1x PCIe x2 (x16 size), 2x PCIe x1
  • Networking: Realtek Dragon RTL8125BG 2.5GbE LAN, Wi-Fi, Bluetooth
  • Rear USB: 1x USB-C 3.2 Gen 2×2, 7x USB-A 3.2 Gen 1, 4x USB-A 2.0
  • Video Output: 1x HDMI (requires CPU with integrated graphics)
  • Audio: Realtek ALC897
  • Fan Headers: 6x 4-pin PWM
  • RGB Headers: 1x RGB, 3x addressable RGB
  • Power Connectors: 24-pin ATX + 2x 8-pin
