Overview

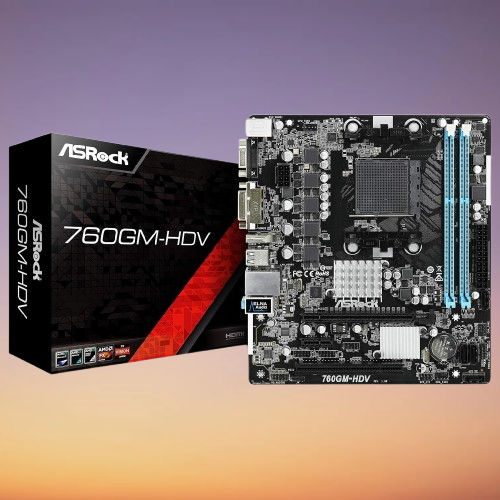

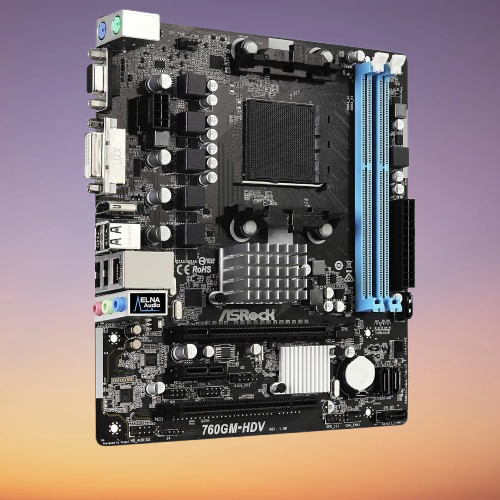

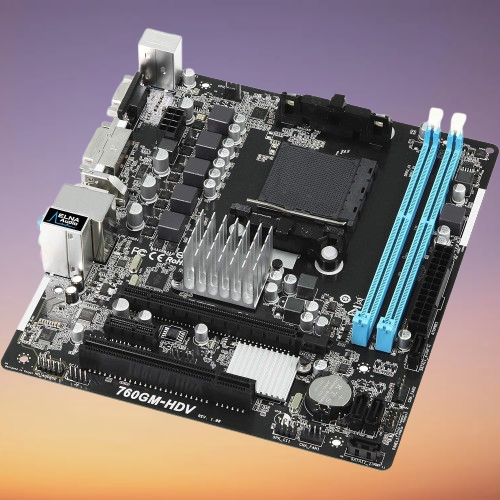

This motherboard supports Socket AM3+ and AM3 processors, including 8-Core CPUs, making it suitable for high-performance computing. It is compatible with Dual Channel DDR3 memory, supporting speeds up to 1800 MHz (overclocked). The board is designed with solid capacitors, ensuring durability and reliability.

For expansion, it features one PCIe 2.0 x16 slot and one PCIe 2.0 x1 slot. Audio capabilities include 7.1-channel HD sound powered by the Realtek ALC887 codec, delivering an immersive audio experience. Storage options include four SATA2 ports, providing ample connectivity for hard drives and SSDs.

The motherboard also offers eight USB 2.0 ports, with four accessible from the front panel and four on the rear I/O panel. Additionally, it includes ASRock Full Spike Protection to safeguard your components against power surges and other electrical issues.

This motherboard is a reliable choice for users seeking a balance of performance and essential features at an affordable price point.

• AM3+ 8-Core Processor SupportThis board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
• 3 Graphics OutputsComplete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo.
• Solid Capacitor DesignASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
• ELNA Audio CapsWho says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Technical Specification

• PCI Express – 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
• RAM Speeds – 1800(OC) / 1600(OC) / 1333/1066 MHz
• Accessories – Quick Installation Guide, I/O Shield, 2 x SATA Data Cables
• USB Ports Supported – 8 x USB 2.0 ports (4 at back, 4 at mid-board)
• Storage – 4 x SATA III
• RAID – RAID 0, 1, 10, JBOD
• Motherboard Type – Desktop
• Form Factor – Micro ATX
• Socket – AMD AM3+
• Chipset – AMD 760G
• DDR Type – DDR3
• RAM Technology – DDR3 (Dual Channel)
• RAM Slots – 2 x DIMM
• Maximum Memory – 32GB
• PCI – 1 x PCI
• LAN – GB LAN
• Audio – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

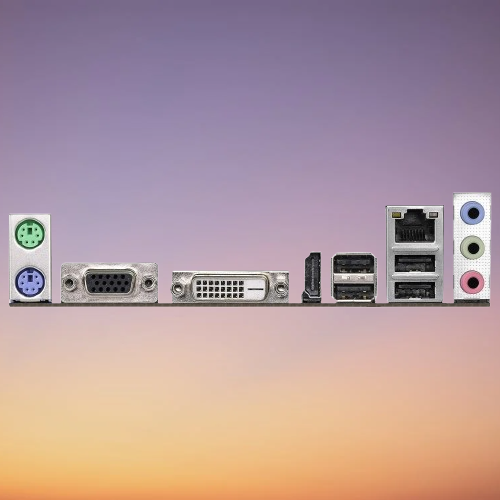

• Back Panel I/O Ports:
  • 1 x PS/2 Mouse, 1 x PS/2 Keyboard
  • 1 x D-Sub, 1 x DVI-D, 1 x HDMI
  • 4 x USB 2.0
  • 1 x RJ-45 LAN
  • HD Audio Jacks
• Internal I/O Connectors:
  • 1 x Chassis Intrusion and Speaker
  • 1 x CPU Fan, 2 x Chassis Fan
  • 1 x 24 pin ATX, 1 x 8 pin 12V
  • 1 x Front Panel Audio
  • 2 x USB 2.0 Headers
• CPU Support – AM3+ processors/ AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
• Package Type – Retail
• Package Weight – 0.7000 kg
• Graphics Ports – 1 x VGA/ 1 x DVI-D/ 1 x HDMI
• Graphics – Integrated AMD Radeon 3000 Graphics
• No. LAN Ports – 1 x LAN
• Max LAN Speed – GB LAN
• RGB Lighting – No
• PCI/PCI Express – 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
