Product Overview

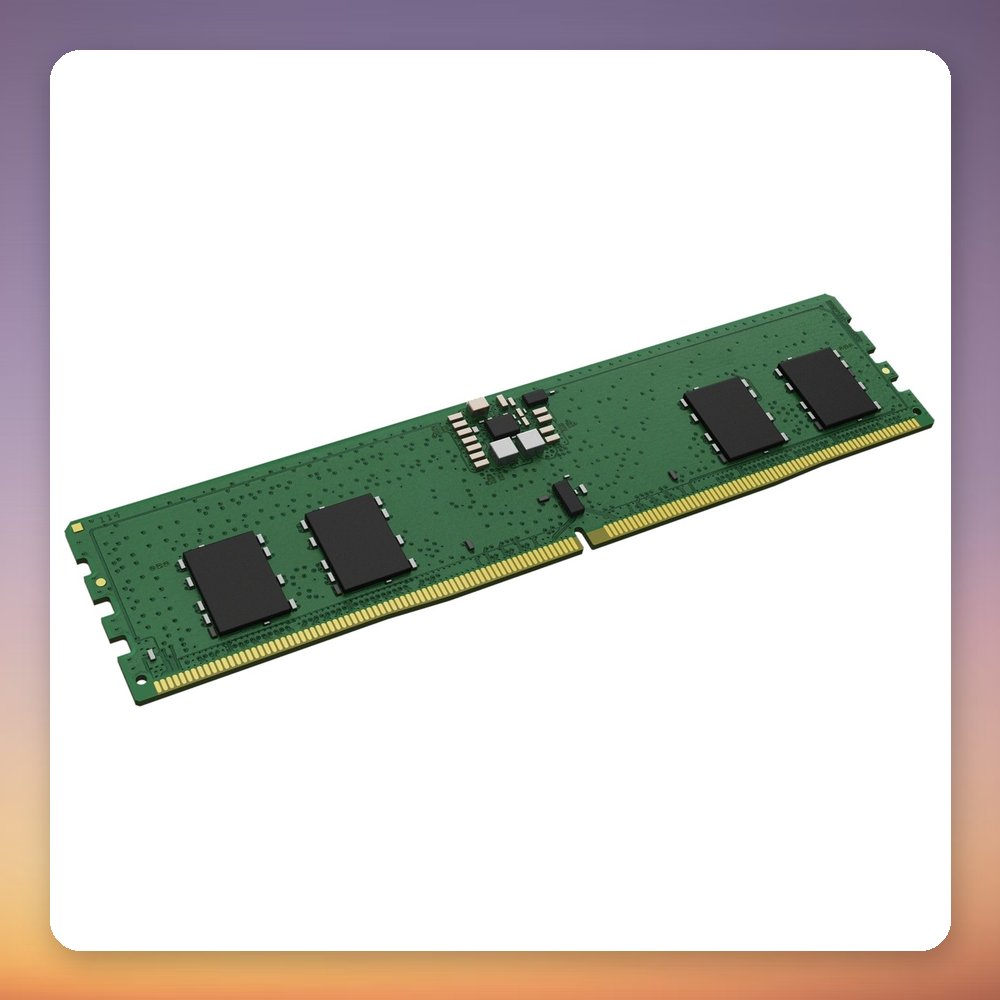

The Kingston ValueRAM DDR5-6400 CUDIMM is a single 8 GB module running at 6400 MT/s (PC5-51200) with a physical clock of 3200 MHz. It is a clocked unbuffered DIMM (CUDIMM) with a 288-pin connector, running at 1.1 V with CL52 timings. It is a JEDEC-standard module with an SPD profile, so no overclocking profile is needed.

This module suits PC builders who want a plain, standards-based DDR5 upgrade on a platform that supports CUDIMM memory. Check your motherboard’s memory support list before buying. It has on-die ECC (not full ECC), single-rank layout, gold-plated contacts and a green PCB. At 133.3 mm wide and 31.2 mm high, it is a standard-size DIMM, and it is halogen-free and RoHS compliant.

Specification

• Manufacturer: Kingston
• Model: ValueRAM KVR64A52BS6-8
• MPN: KVR64A52BS6-8
• EAN: 0740617348194
• Capacity: 8 GB (1 x 8 GB)
• Memory type: DDR5
• Speed: DDR5-6400 (PC5-51200), 6400 MT/s
• Form factor: CUDIMM, 288-pin
• CAS latency: CL52
• Voltage: 1.1 V
• Physical clock: 3200 MHz
• Memory ranking: Single rank
• ECC: On-die ECC (no full ECC)
• Buffering: Clocked unregistered (unbuffered)
• Colour: Green
• Dimensions (W x H): 133.3 x 31.2 mm
• Operating temperature: 0 – 85 °C
