Product Overview

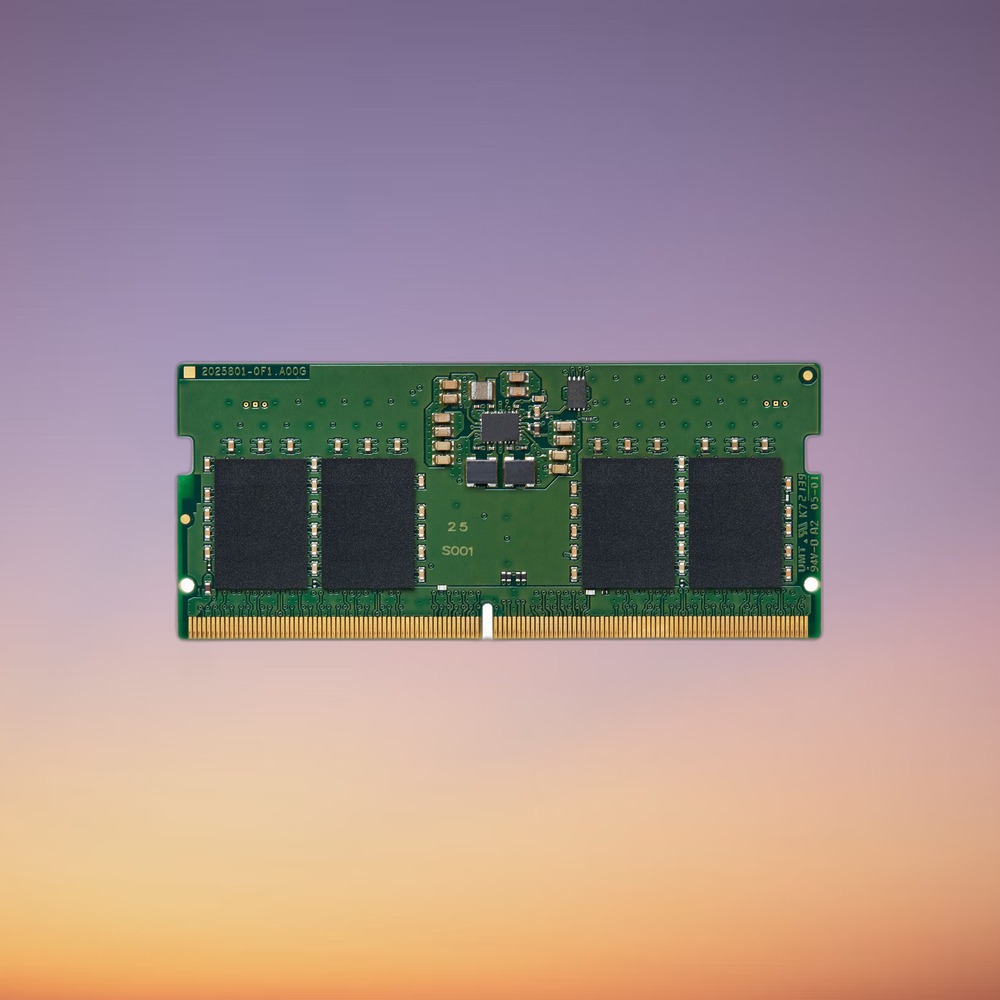

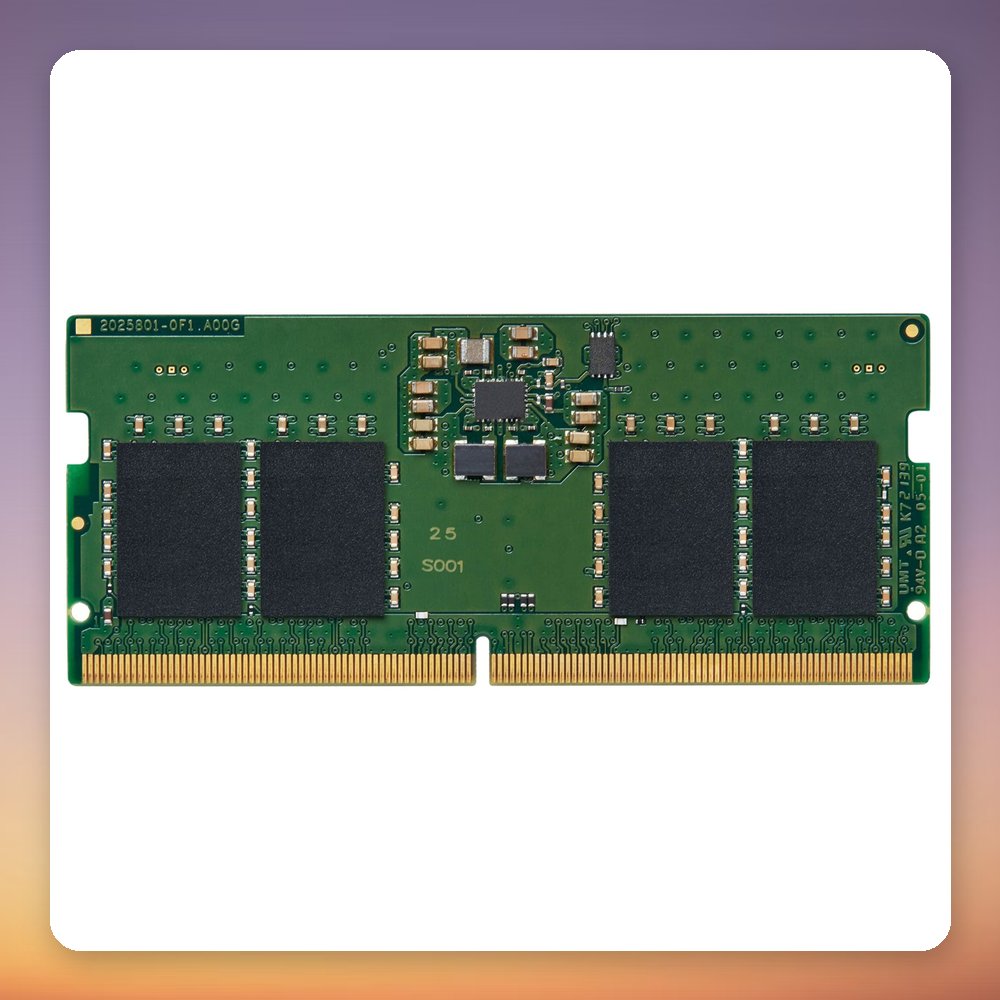

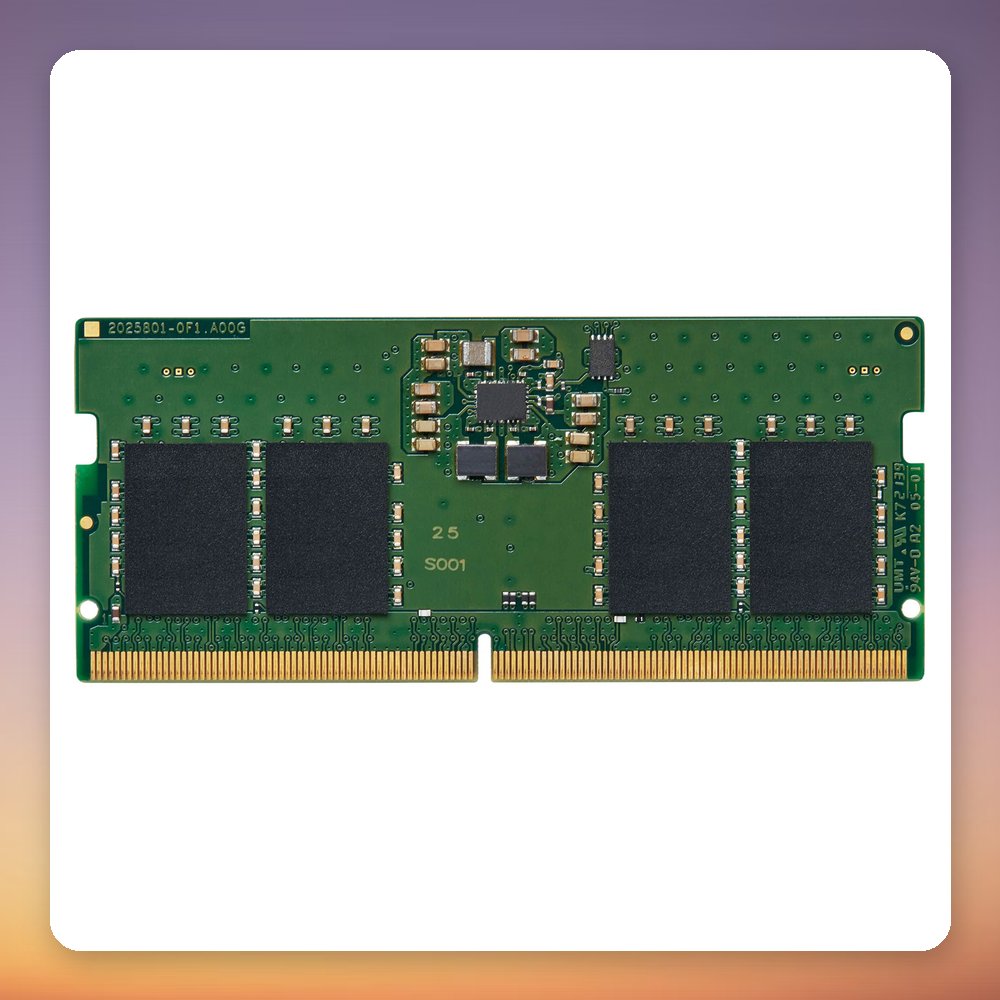

The Kingston ValueRAM DDR5-5600 SO-DIMM is an 8 GB single-module memory kit built for laptops. It runs at DDR5-5600 (PC5-44800) with a physical clock of 2800 MHz, tested at 46-45-45 timings, and operates at just 1.1 V. It is a single-sided, single-rank 262-pin module with four memory chips, and includes On-Die ECC.

This is an unbuffered, non-ECC SO-DIMM, so it suits laptops and other compact systems that take 262-pin DDR5 modules. At 8 GB in a single 1 x 8 GB module it is a straightforward way to add DDR5 memory to a supported notebook, and the SPD profile lets the system configure it automatically. The gold-plated contacts and halogen-free construction come with RoHS compliance, and the module measures 69.6 mm x 30 mm.

Specification

• Manufacturer: Kingston
• Model: ValueRAM KVR56S46BS6-8
• MPN: KVR56S46BS6-8
• EAN: 0740617334074
• Capacity: 8 GB (1 x 8 GB)
• Memory type: DDR5
• Speed: DDR5-5600 (PC5-44800), 5600 MT/s
• Timings: CL46-45-45
• Form factor: SO-DIMM, 262-pin
• Voltage: 1.1 V
• Memory type (buffering): Unbuffered (unregistered)
• ECC: No (On-Die ECC only)
• Ranking: Single rank, single-sided
• Memory chips: 4 per module
• Intended for: Laptops
• Operating temperature: 0 – 85 °C
• Dimensions (W x H): 69.6 mm x 30 mm
