Product Overview

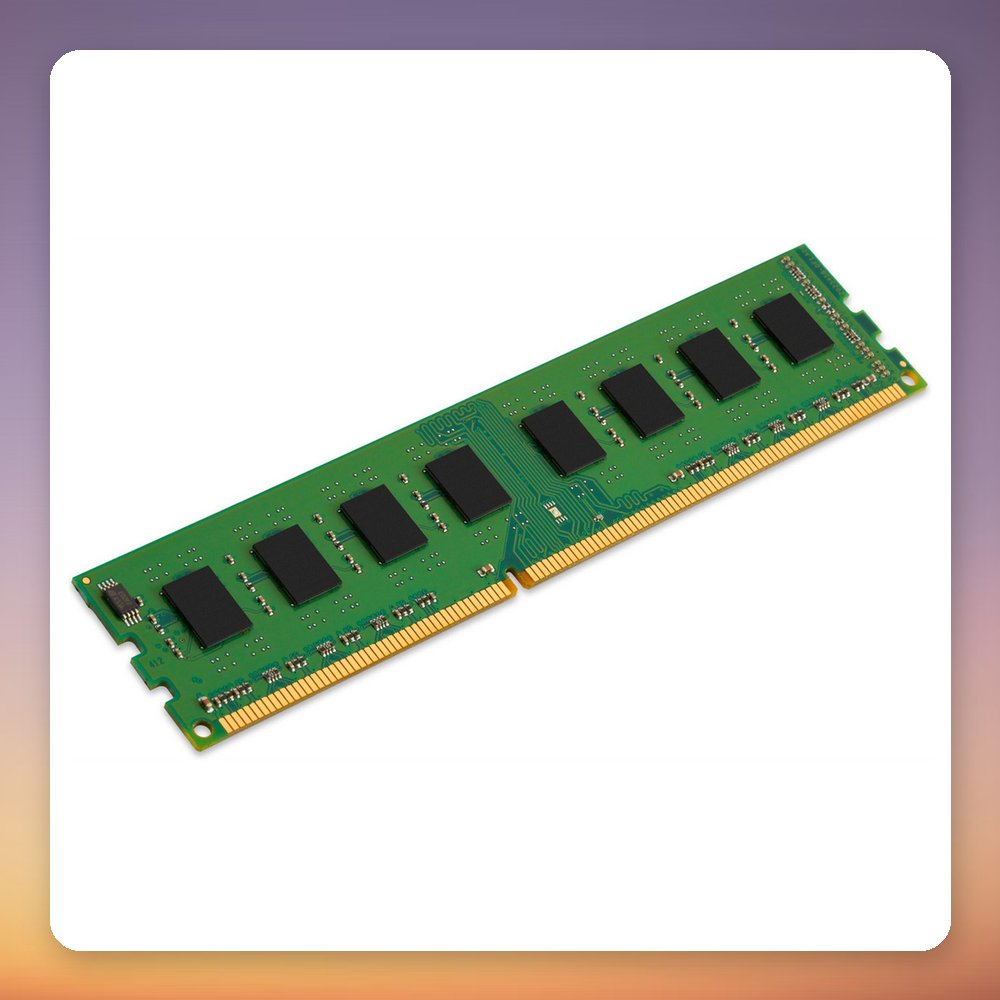

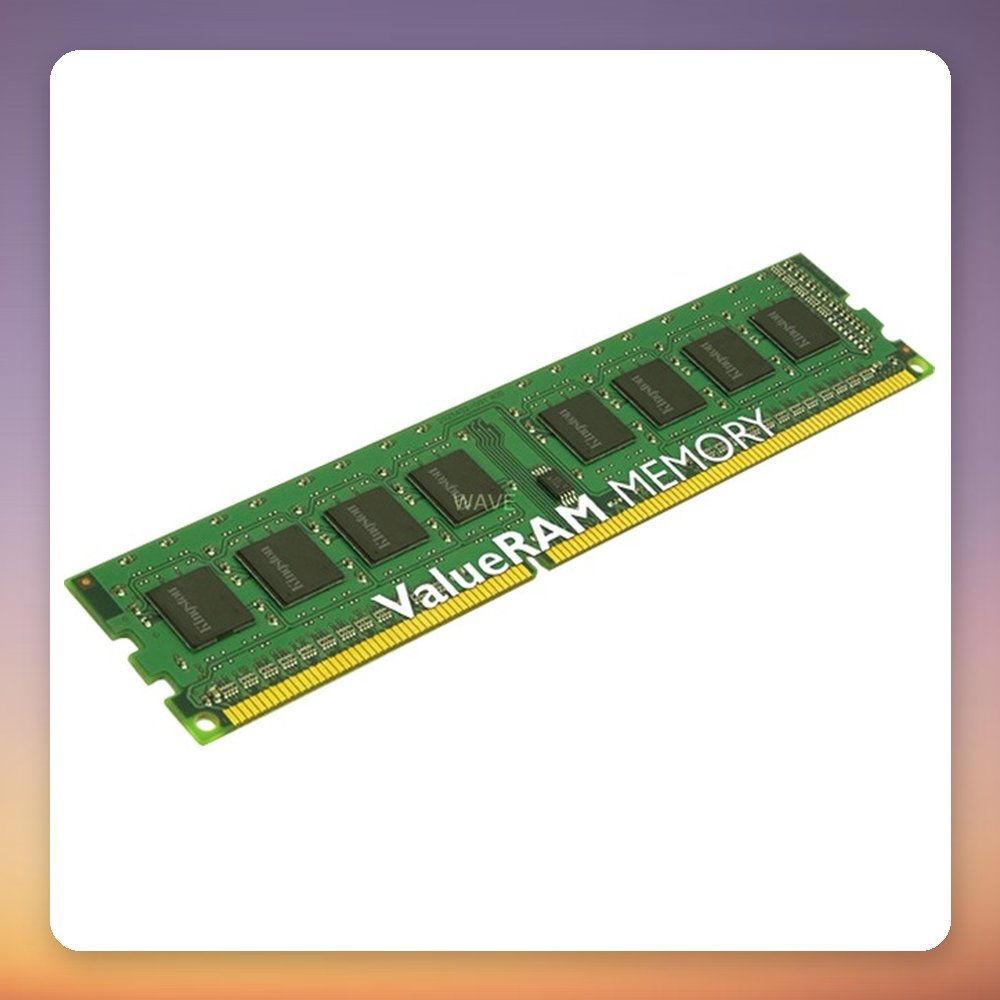

The Kingston ValueRAM DDR3-1600 8 GB module is a single 8 GB, 240-pin unbuffered DIMM that follows the PC3-12800 standard. It runs at 1600 MT/s (800 MHz physical clock) with CL11-11-11-35 timings at the standard 1.5 V, and uses sixteen 4 Gbit chips arranged single-sided (512Mx8) for a 1024M x 64 module configuration.

This is a plain, standard-spec module for systems that use desktop DDR3 memory, whether you are adding a second stick to an existing machine or replacing a faulty one. It is non-ECC and unregistered, so it suits ordinary desktop boards rather than server platforms. It has gold-plated contacts, is made in Taiwan, and weighs just 19 g. Check that your motherboard supports DDR3 DIMMs before ordering.

Specification

• Manufacturer: Kingston
• Model: ValueRAM KVR16N11/8
• MPN: KVR16N11/8
• EAN: 0740617206937
• Capacity: 8 GB (1 x 8 GB)
• Memory type: DDR3
• Speed: DDR3-1600 (PC3-12800), 1600 MT/s
• Timings: CL11-11-11-35
• Voltage: 1.5 V (1.425–1.575 V)
• Form factor: DIMM, 240-pin
• Buffering: Unregistered (unbuffered)
• ECC: No
• Chips: 16 x 4 Gbit, single-sided, 512Mx8
• Physical clock: 800 MHz
• Contacts: Gold plated
• Weight: 19 g
• Width: 133.3 mm
