Overview

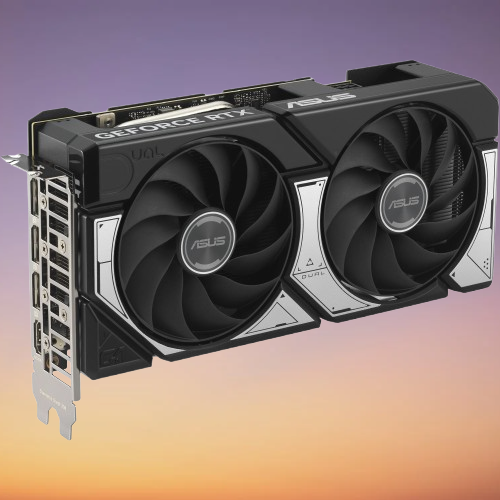

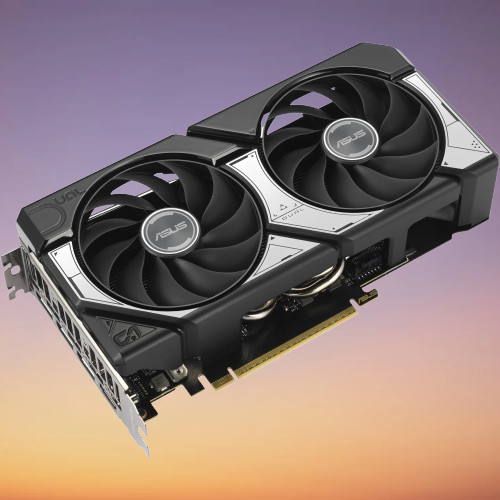

The ASUS GeForce RTX 5060 Ti DUAL OC 16GB is a top-tier graphics card powered by NVIDIA’s GeForce RTX 5060 Ti GPU. Built on the advanced NVIDIA Blackwell architecture, it delivers exceptional gaming performance, enhanced power efficiency, and cutting-edge AI capabilities. Key features include real-time ray tracing, ray reconstruction, and AI-driven technologies like frame generation and multi-frame generation for immersive gaming and VR experiences. It also supports NVIDIA Ansel for high-quality in-game screenshots, NVIDIA G-SYNC and G-SYNC HDR for smooth visuals, and NVIDIA DLSS 4 for better performance with AI upscaling. Additionally, it comes equipped with NVENC Gen 9 for efficient video encoding and decoding, supporting the AV1 format. The card boasts 4608 CUDA cores and 16 GB of GDDR7 memory with a 128-bit memory interface, making it a powerful choice for gamers and creators seeking high performance and advanced features.

Technical Specification

• Type – graphics card
• Color – Black
• EAN – 4711387994306
• Manufacturer number – 90YV0MH0-M0NA00
• Slot – PCIe x16 version 5.0
• Occupied slots – 2.5
• GPU:
  Designation – NVIDIA GeForce RTX 5060 Ti
  GPU class – NVIDIA GeForce RTX Gaming
  Clock frequency – 2407 MHz
  GPU Boost clock – 2602 MHz
  GPU Boost clock (OC) – 2632 MHz
  Stream processors – 4608
  Support – DirectX 12 Ultimate, OpenGL 4.6
• Memory:
  Capacity – 16 GB (GDDR7)
  Connection – 128 bits
  Effective clock – 28 GHz
• Connections – 1 x HDMI version 2.1b / 3 x Displayport version 2.1b
• Power supply:
  Average consumption – 180 W
  Connections – 1 x 8-pin (6+2) power connector
  Required power supply – min. 600 W
• Cooling – cooling with fan
• RGB Standard – Mystic Light
• Operating systems Supports – Windows 11, Windows 10
• Feature – NVIDIA DLSS 4, Reflex 2, RTX Video, RTX Remix, NVIDIA Broadcast, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, NVIDIA App, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Encoder: Gen 9, NVENC Decoder: Gen 6, AV1 Encoder and Decoder, Raytracing Cores: Gen 4, TensorCores (AI): Gen 5
• More information – Max. resolution: 4K at 480Hz or 8K at 120Hz with DSC
• Dimensions – Width: 120 mm x Height: 50 mm x Depth/Length: 229 mm
• Weight – 656 grams


  ---
