Product Overview

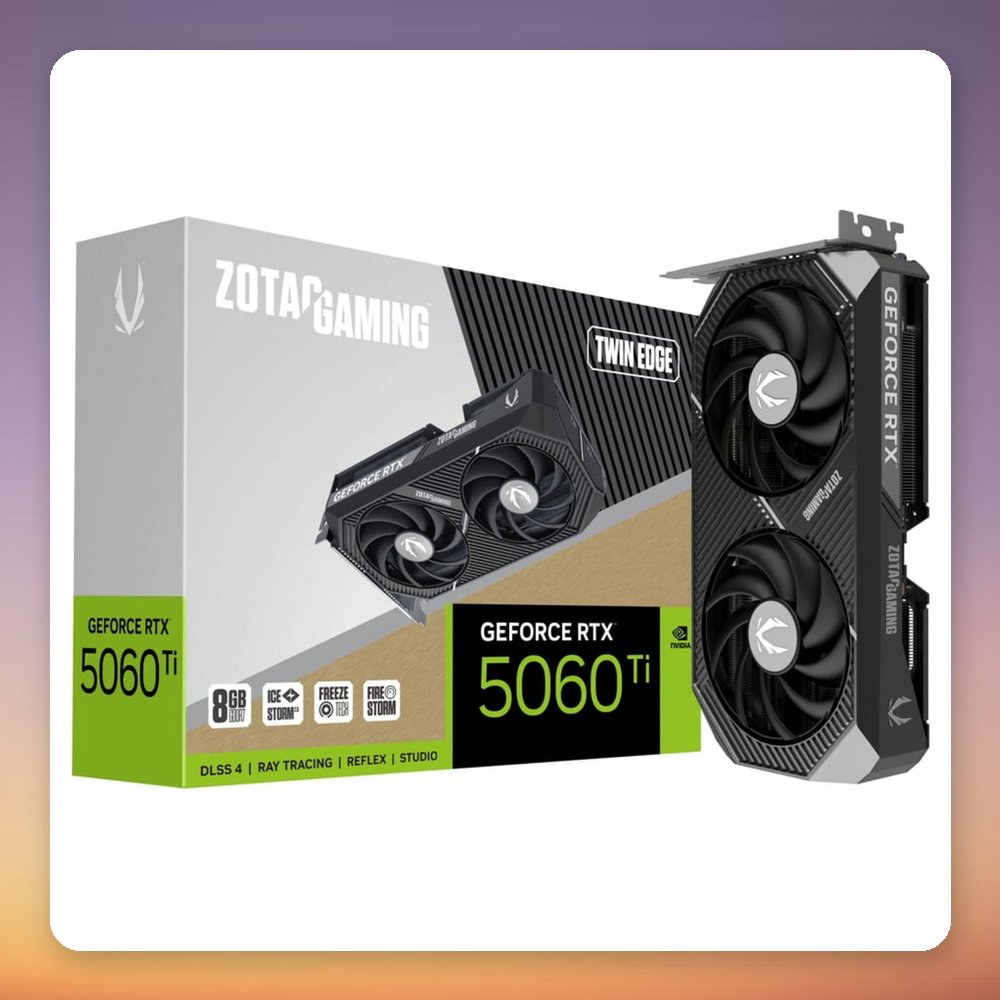

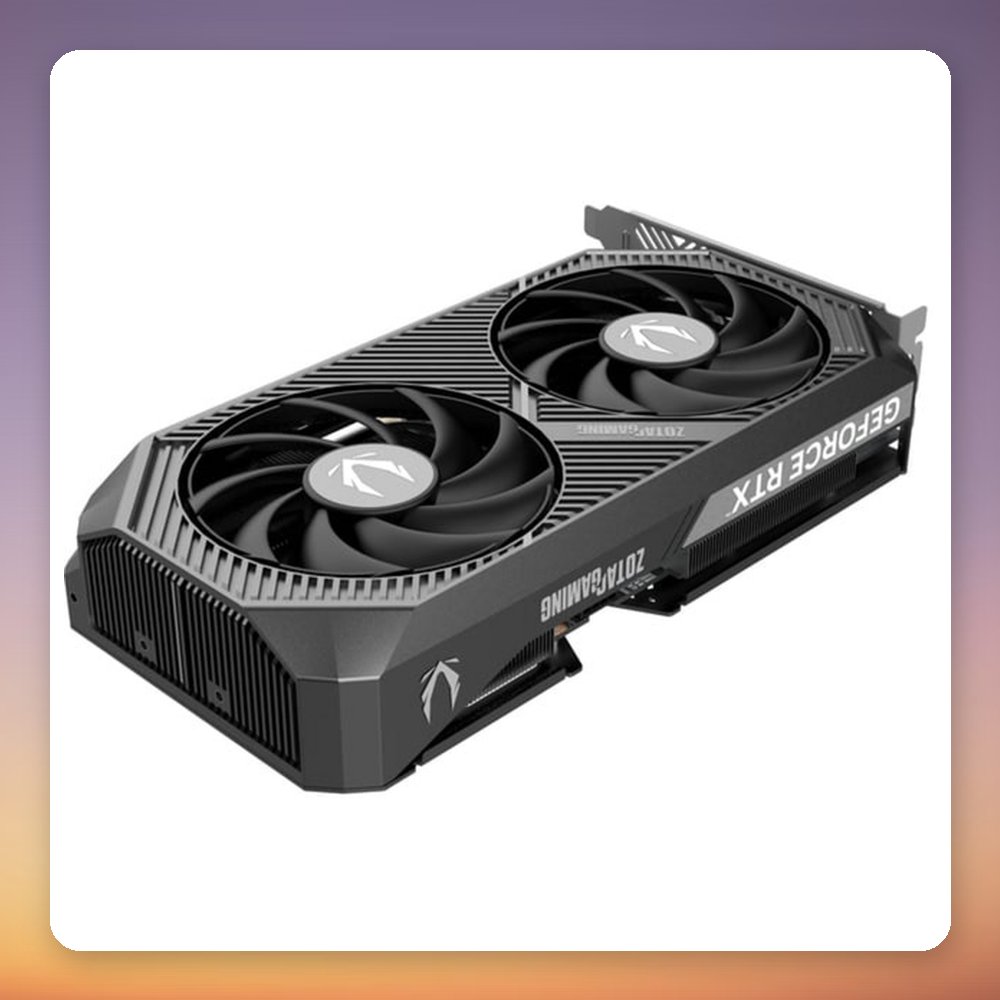

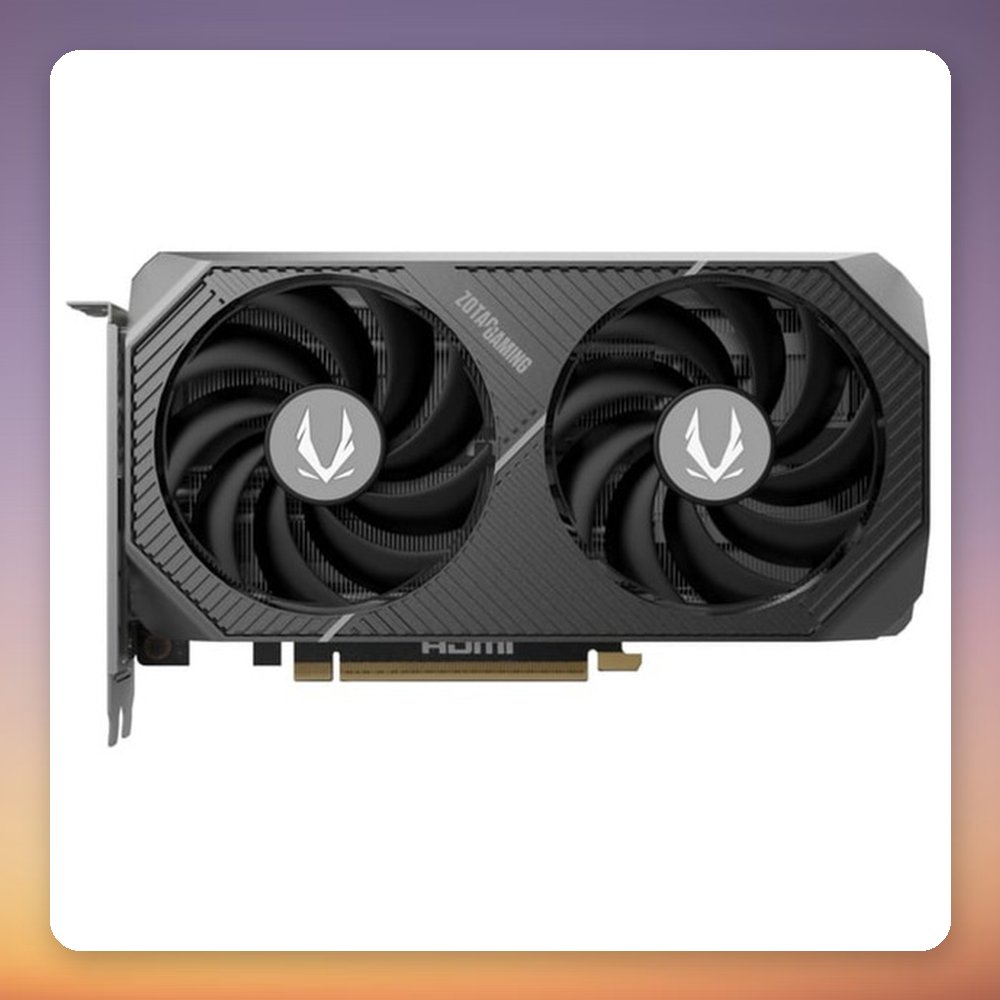

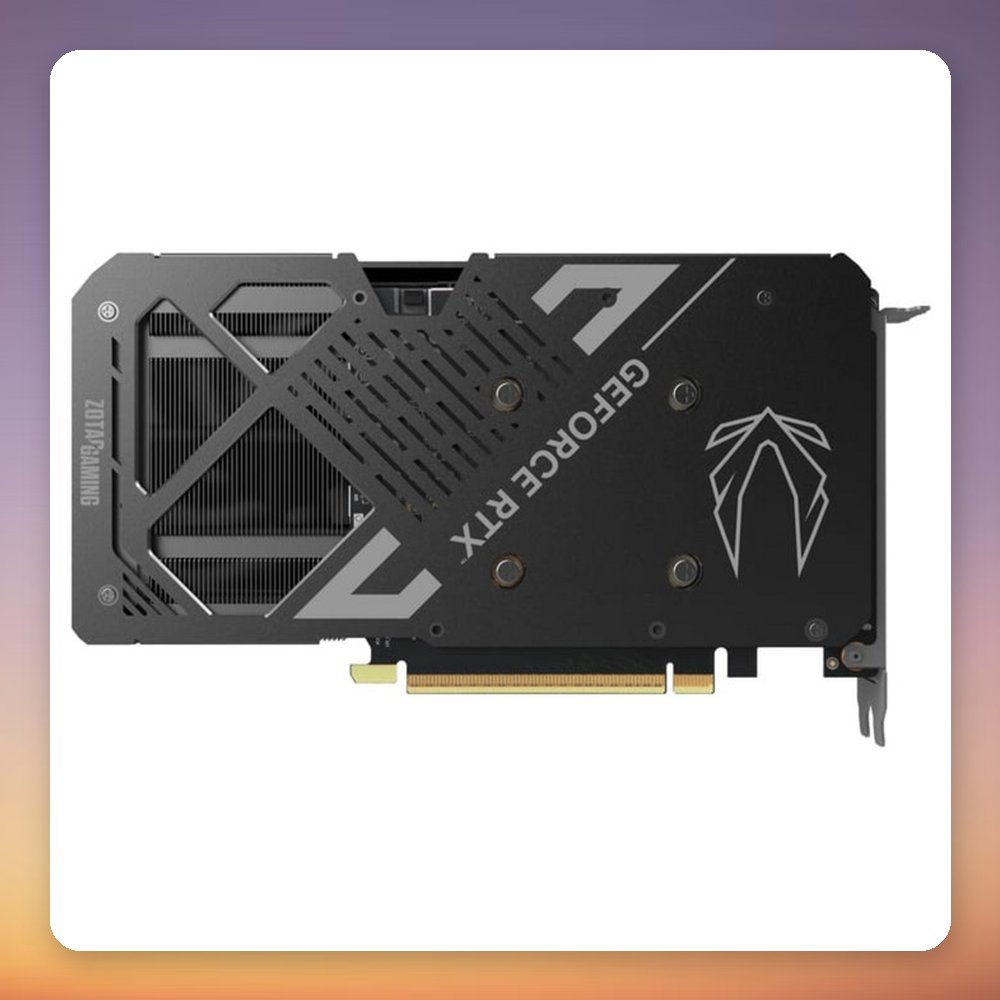

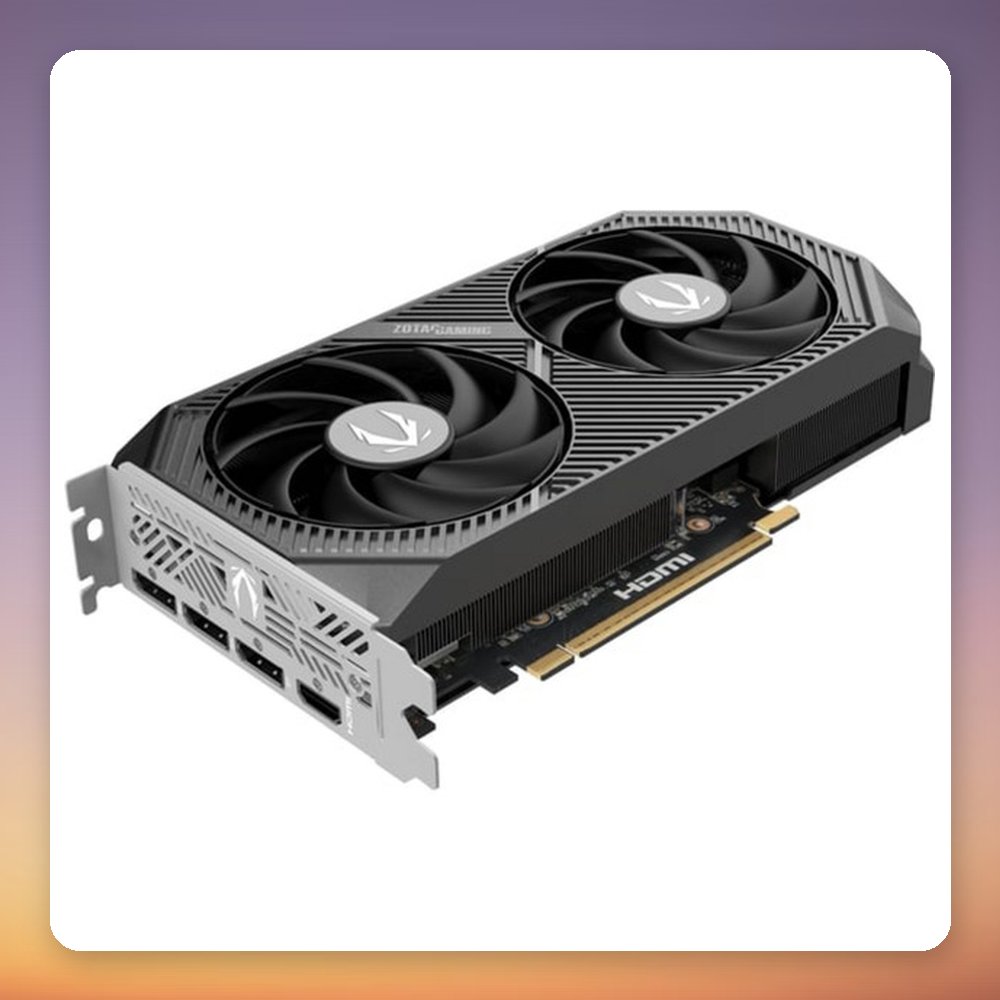

The Zotac GeForce RTX 5060 Ti Twin Edge 8GB is a graphics card built on the NVIDIA GeForce RTX 5060 Ti GPU and the Blackwell architecture. It has 4608 CUDA cores, a 2407 MHz base clock and a 2572 MHz boost clock, paired with 8 GB of GDDR7 memory on a 128-bit bus at 28 Gbit/s. It supports a maximum resolution of 4K at 480 Hz or 8K at 120 Hz with DSC.

With a PCIe 5.0 x16 interface and a single 8-pin (6+2) power connector, this card suits gaming builds that need a straightforward power setup. NVIDIA recommends a power supply of at least 650 W. It offers one HDMI 2.1b and three DisplayPort 2.1b outputs, plus NVIDIA features such as DLSS, Reflex 2, G-SYNC, ShadowPlay and AV1 encode and decode. At 220.5 mm long, it is compact enough for many cases.

Specification

• Manufacturer: Zotac
• Model: GeForce RTX 5060 Ti Twin Edge
• MPN: ZT-B50610E-10M
• EAN: 8886307700636
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA Cores: 4608
• Base Clock: 2407 MHz
• Boost Clock: 2572 MHz
• Memory: 8 GB GDDR7
• Memory Interface: 128-bit
• Memory Speed: 28 Gbit/s
• Interface: PCIe 5.0 x16

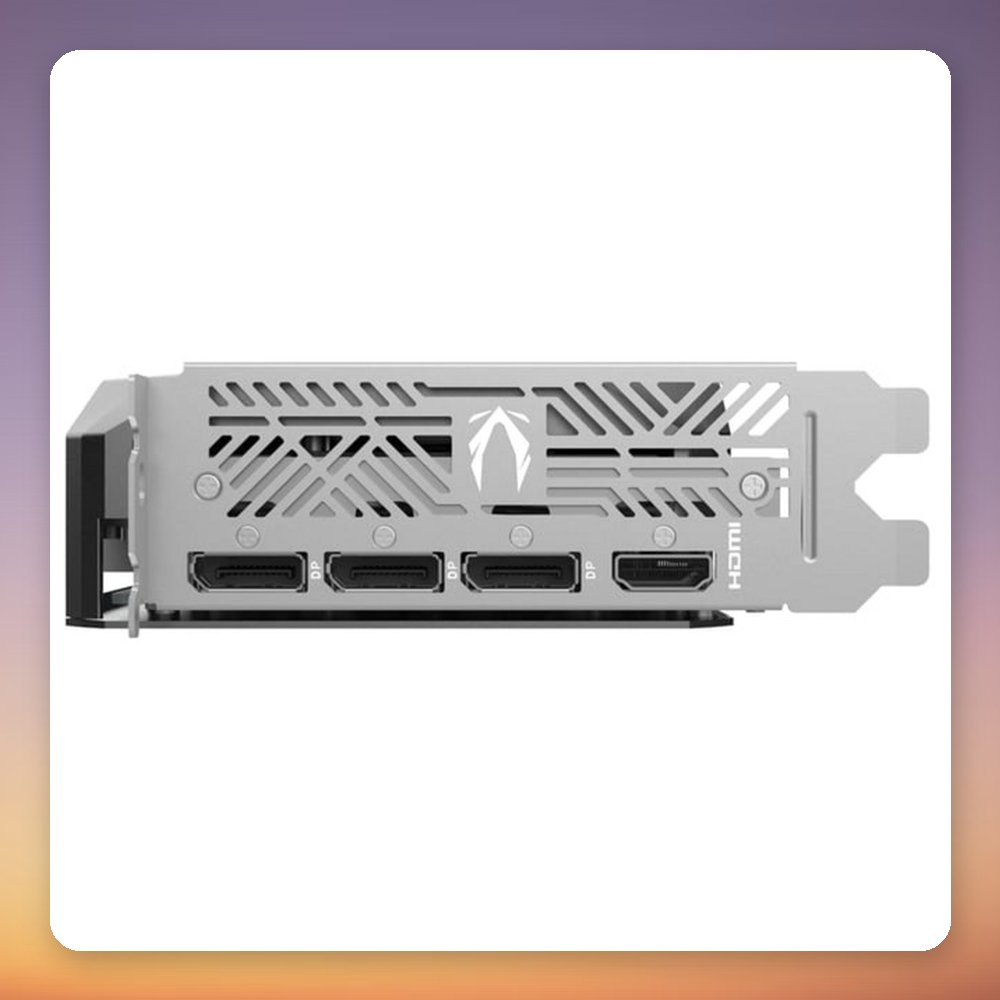

• Video Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Power Connector: 1x 8-pin (6+2)
• Average Power Consumption: 180 W
• Minimum PSU: 650 W
• Slots Occupied: 3
• Dimensions (W x H x D): 120.25 x 41.6 x 220.5 mm
