Product Overview

The MSI GeForce RTX 5080 GAMING TRIO OC 16 GB GDDR7 is a high-end graphics card built on NVIDIA’s Blackwell architecture with 10,752 CUDA cores. It pairs 16 GB of GDDR7 memory on a 256-bit bus with an OC boost clock of 2715 MHz, and offers 3x DisplayPort 2.1a and 1x HDMI 2.1b outputs for up to 4K at 480 Hz or 8K at 120 Hz with DSC.

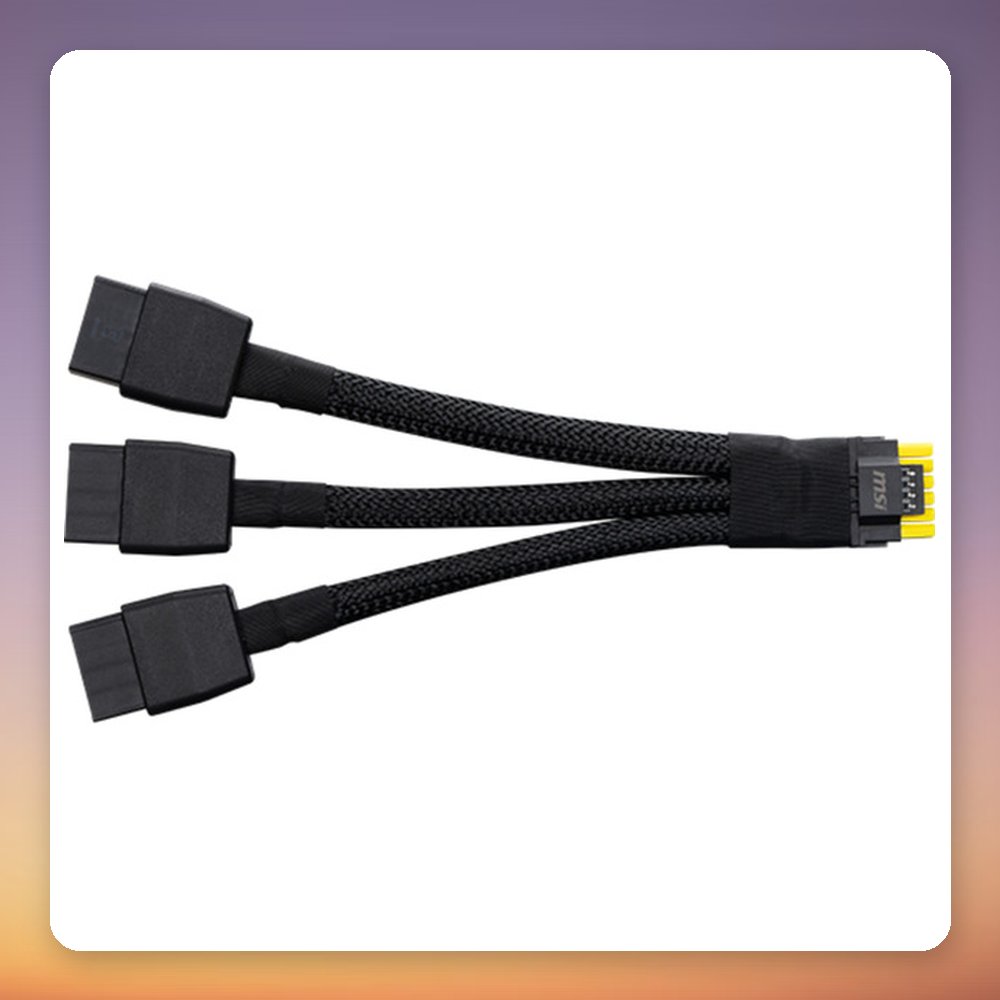

This card suits gaming PCs built for high-resolution, high-refresh-rate play, and it adds DLSS 5, Reflex 2 and fourth-generation ray tracing cores plus fifth-generation Tensor cores. It takes up 2.5 slots and is 338 mm long, so check case clearance. Power comes through a single 16-pin (12VHPWR) connector; MSI recommends an 850 W PSU, and an adapter is supplied for PSUs with 3x 8-pin PCIe connectors. It also includes the Gen 9 NVENC encoder and AV1 encode/decode.

Specification

• Manufacturer: MSI
• Model: GeForce RTX 5080 GAMING TRIO OC
• MPN: V531-005R
• EAN: 47113772921600
• GPU: NVIDIA GeForce RTX 5080
• CUDA cores: 10,752
• Memory: 16 GB GDDR7, 256-bit
• Memory data rate: 30 Gbps
• Base clock: 2300 MHz
• Boost clock: 2700 MHz (2715 MHz OC)
• Interface: PCIe 5.0 x16

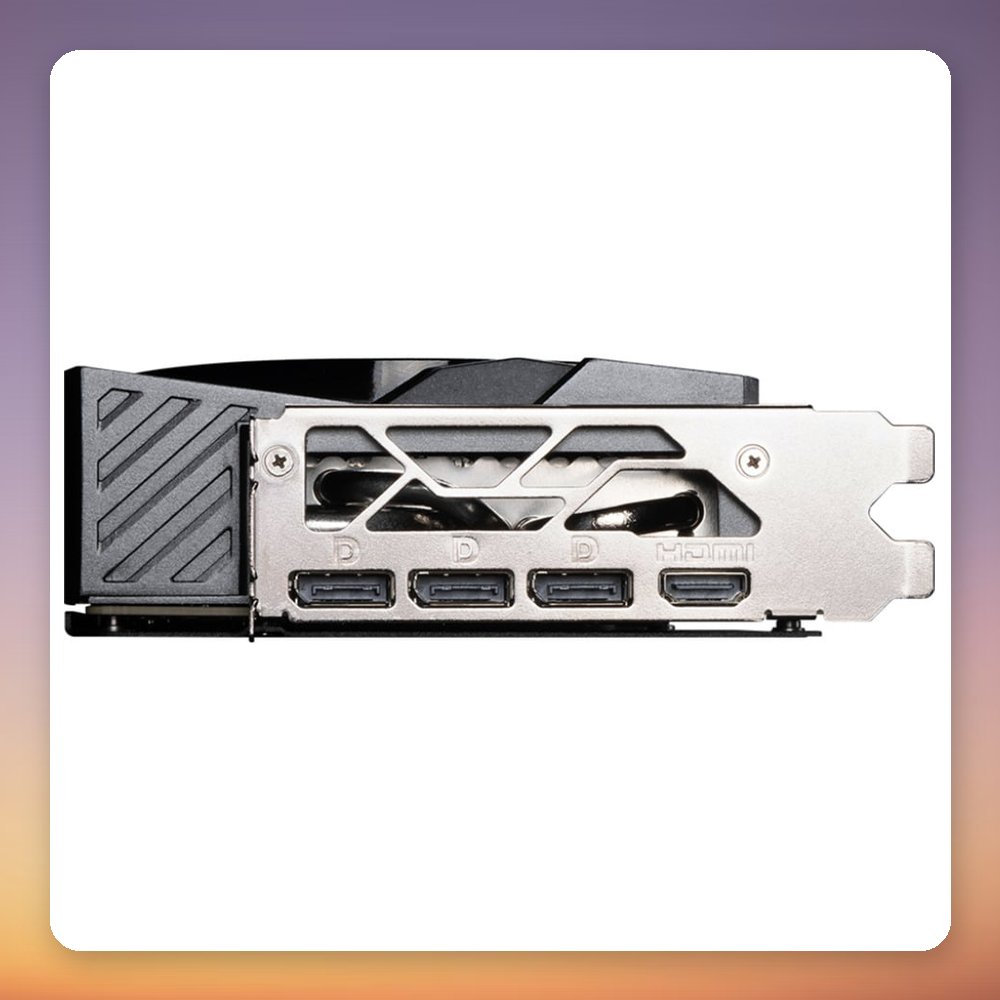

• Outputs: 3x DisplayPort 2.1a, 1x HDMI 2.1b
• Max resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Power connector: 1x 16-pin (12VHPWR)
• Average power consumption: 360 W
• Recommended PSU: Min. 850 W
• Slots occupied: 2.5
• Dimensions (W x H x D): 140 x 50 x 338 mm
• Weight: 1.4 kg
• Cooling: Fan cooling
