Product Overview

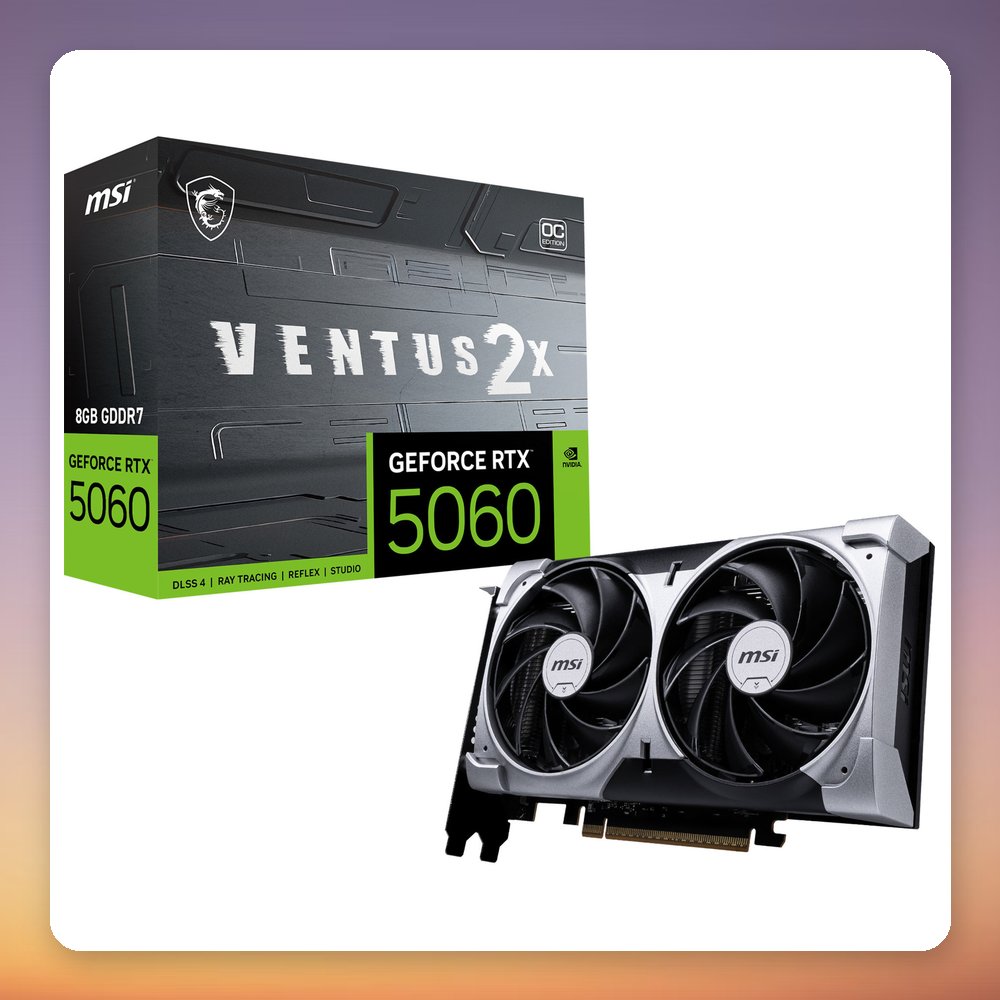

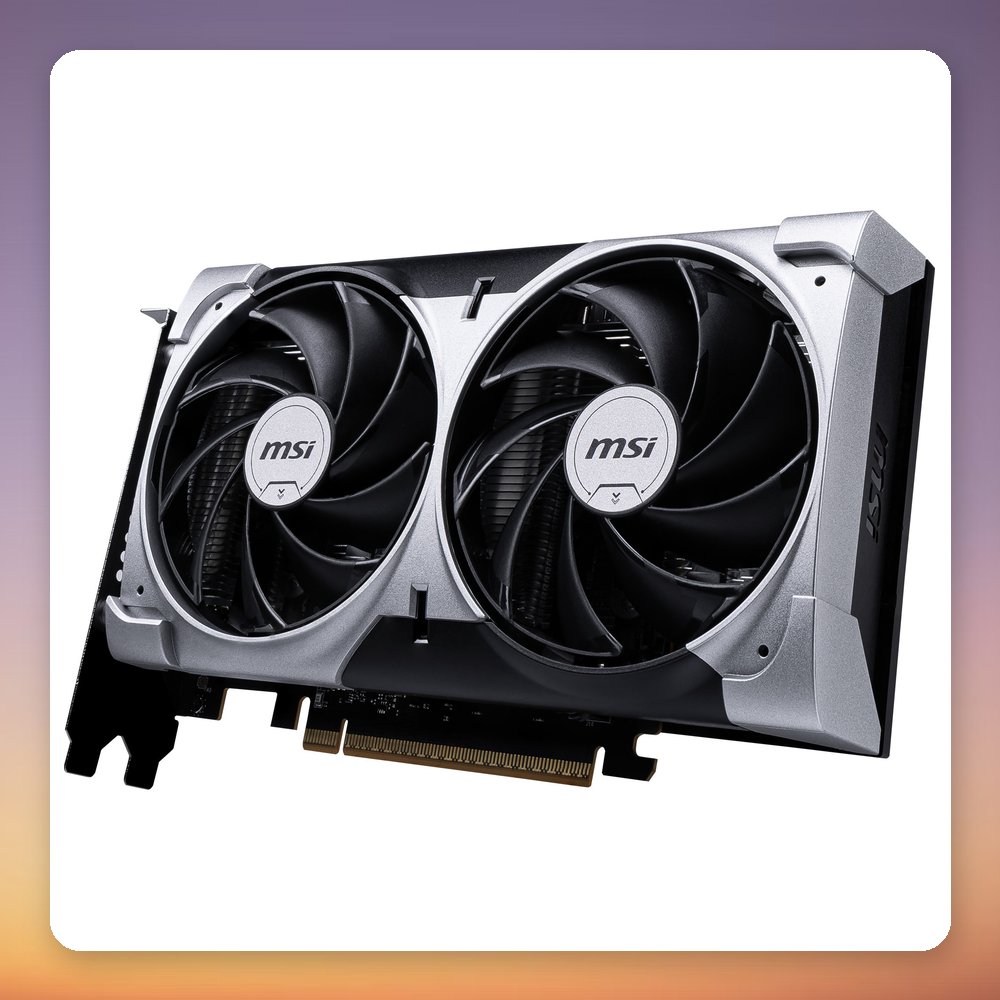

The MSI GeForce RTX 5060 VENTUS 2X OC 8G is a compact graphics card built around the NVIDIA GeForce RTX 5060 with 8 GB of GDDR7 memory on a 128-bit bus. It is factory overclocked to a 2535 MHz boost clock, runs two 12 cm TORX FAN 5.0 fans and needs only a single 8-pin power connector. At 197 mm long, it is a short card for its class.

This card suits 1080p and 1440p gaming builds, especially small form factor PCs where space is limited, as it is marked SFF-Ready by MSI. It draws around 145 W, with a minimum 550 W power supply recommended. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, and it supports NVIDIA DLSS, Reflex 2, G-SYNC and AV1 encoding and decoding, on a PCIe 5.0 x16 interface.

Specification

• Manufacturer: MSI
• Model: GeForce RTX 5060 VENTUS 2X OC 8G
• MPN: V537-002R
• EAN: 4711377344272
• GPU: NVIDIA GeForce RTX 5060
• Memory: 8 GB GDDR7, 128-bit, 28 Gbit/s
• Boost clock: 2535 MHz (OC mode), 2527 MHz standard
• CUDA cores: 3840
• Interface: PCI Express x16 5.0

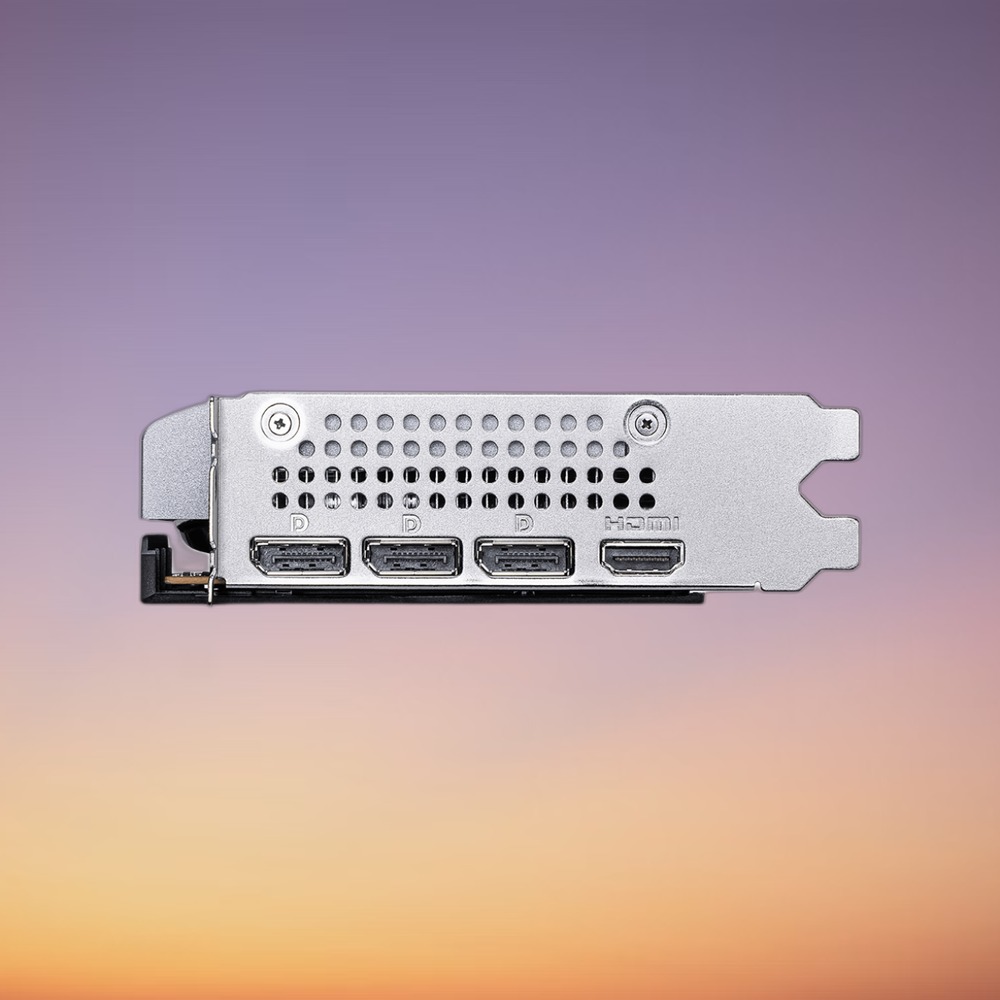

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

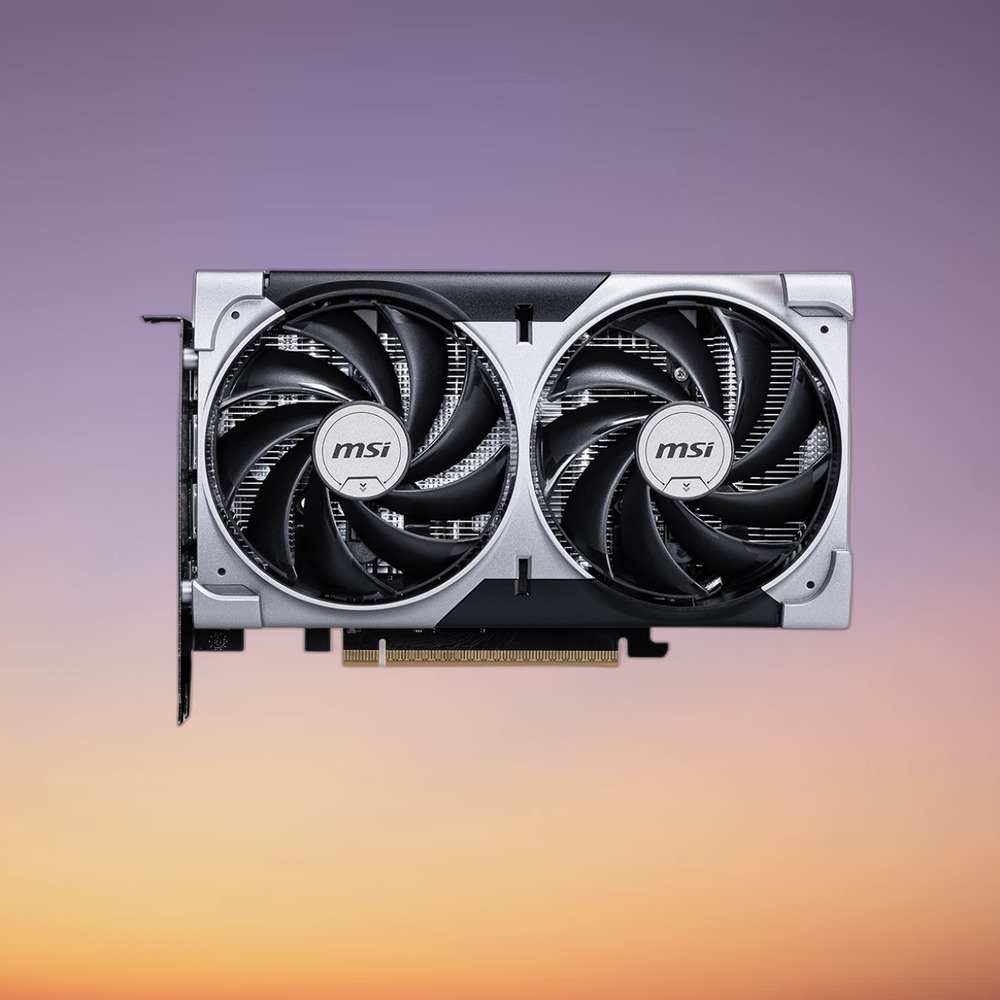

• Cooling: Active, 2x 12 cm MSI TORX FAN 5.0

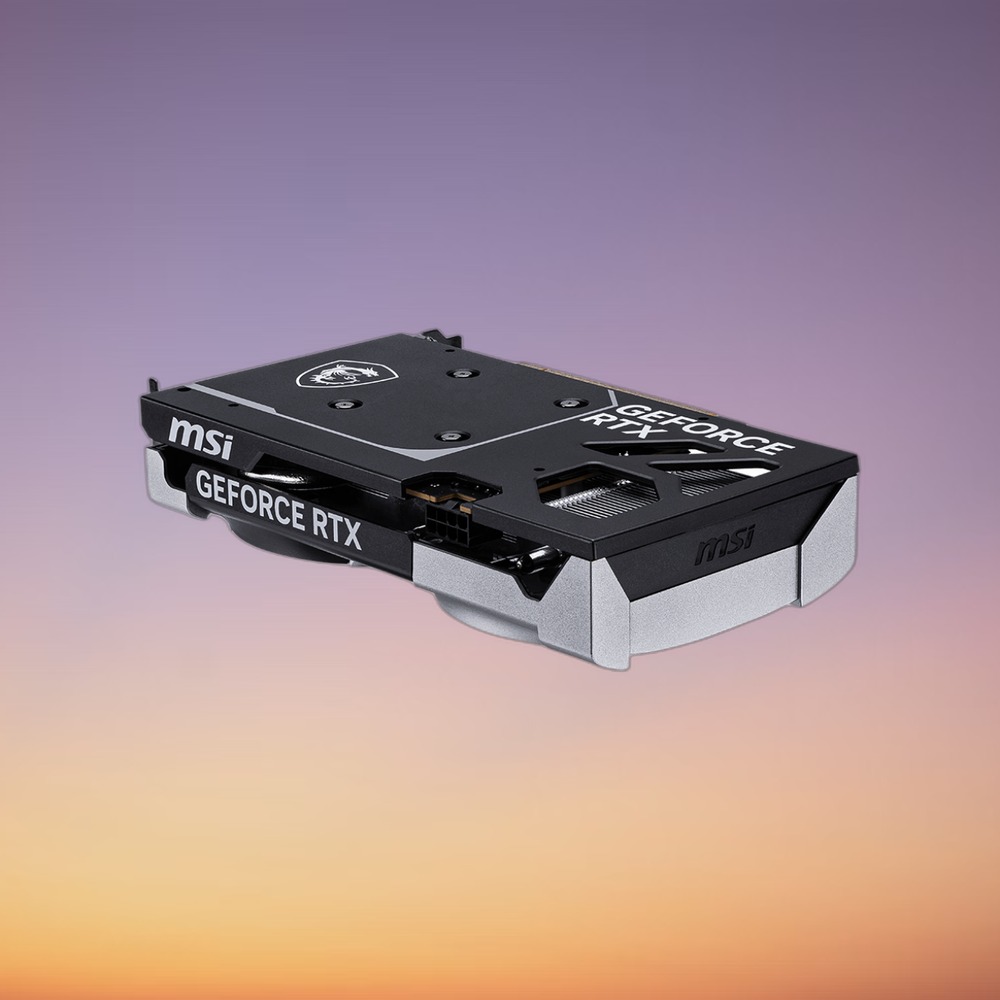

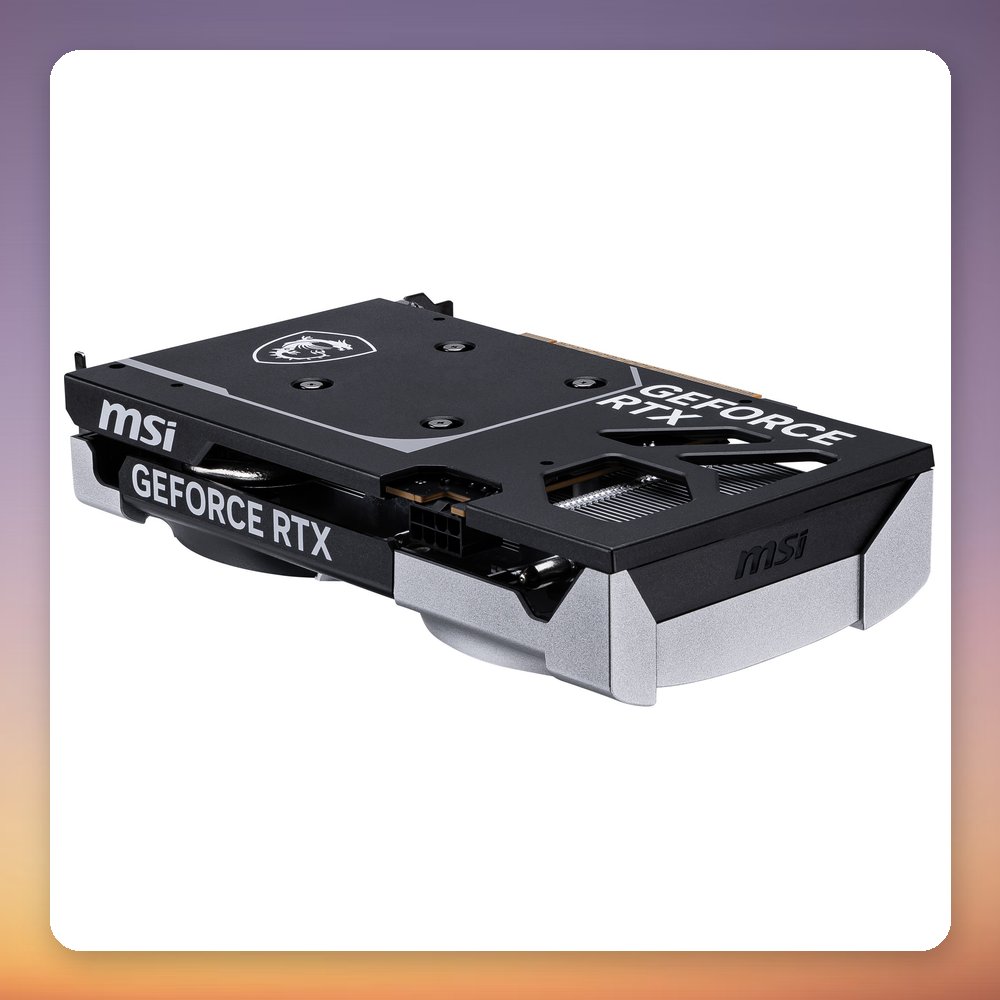

• Power connector: 1x 8-pin
• Typical power consumption: 145 W
• Minimum PSU: 550 W
• Slots occupied: 3
• Form factor: Full-Height / Half-Length
• Dimensions (W x H x D): 120 x 41 x 197 mm
• Weight: 511 g
• Colour: Silver
