Product Overview

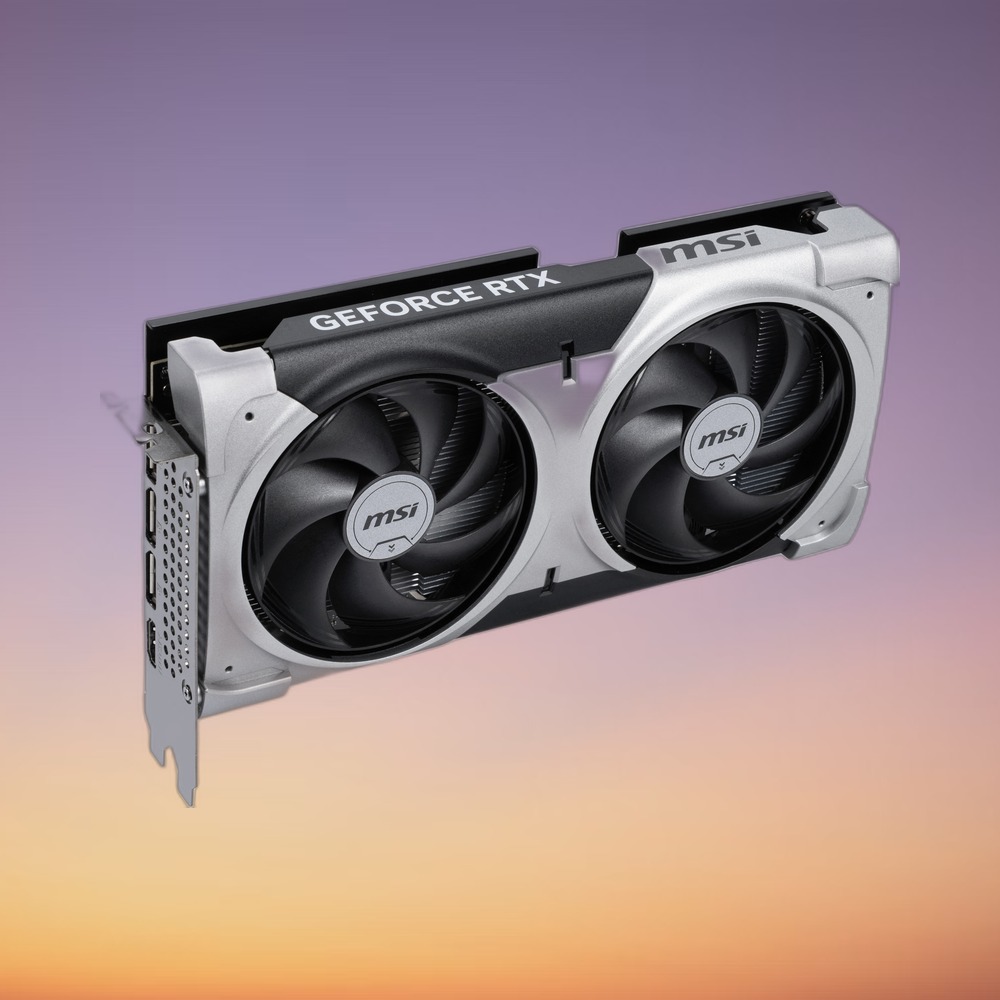

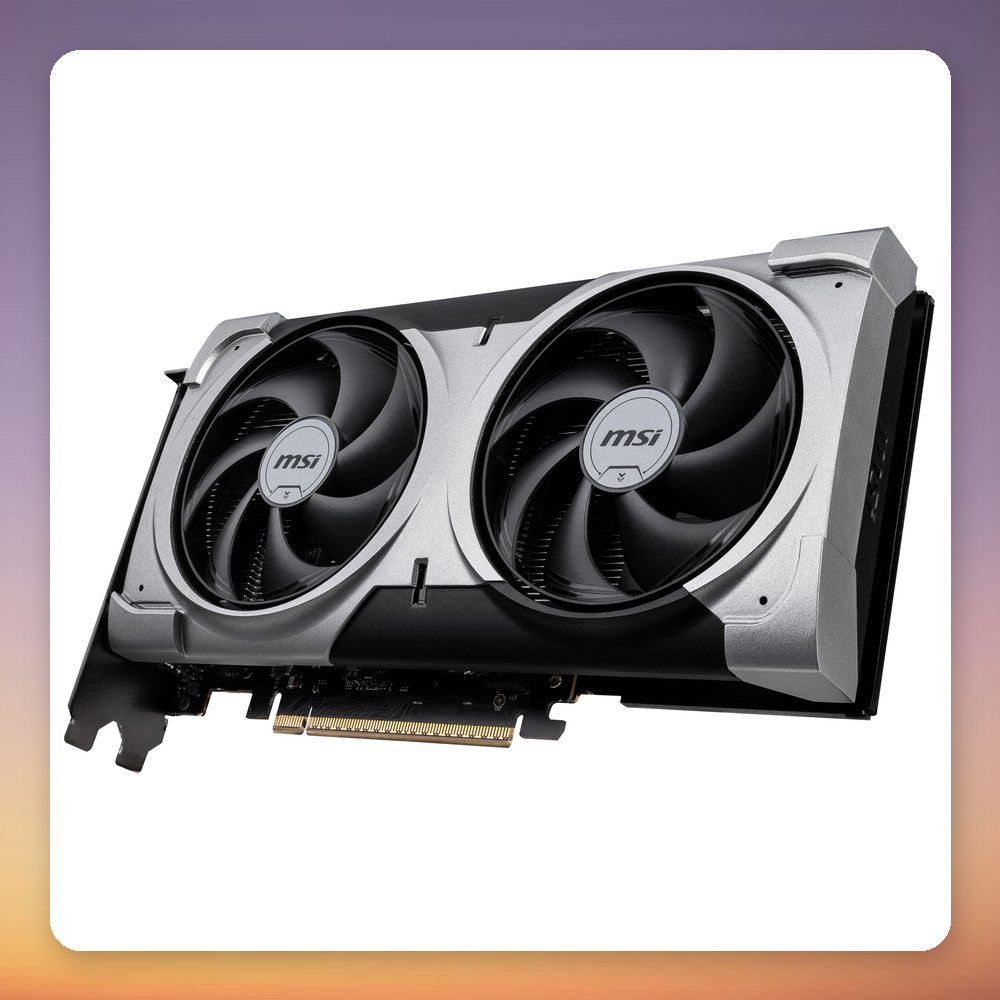

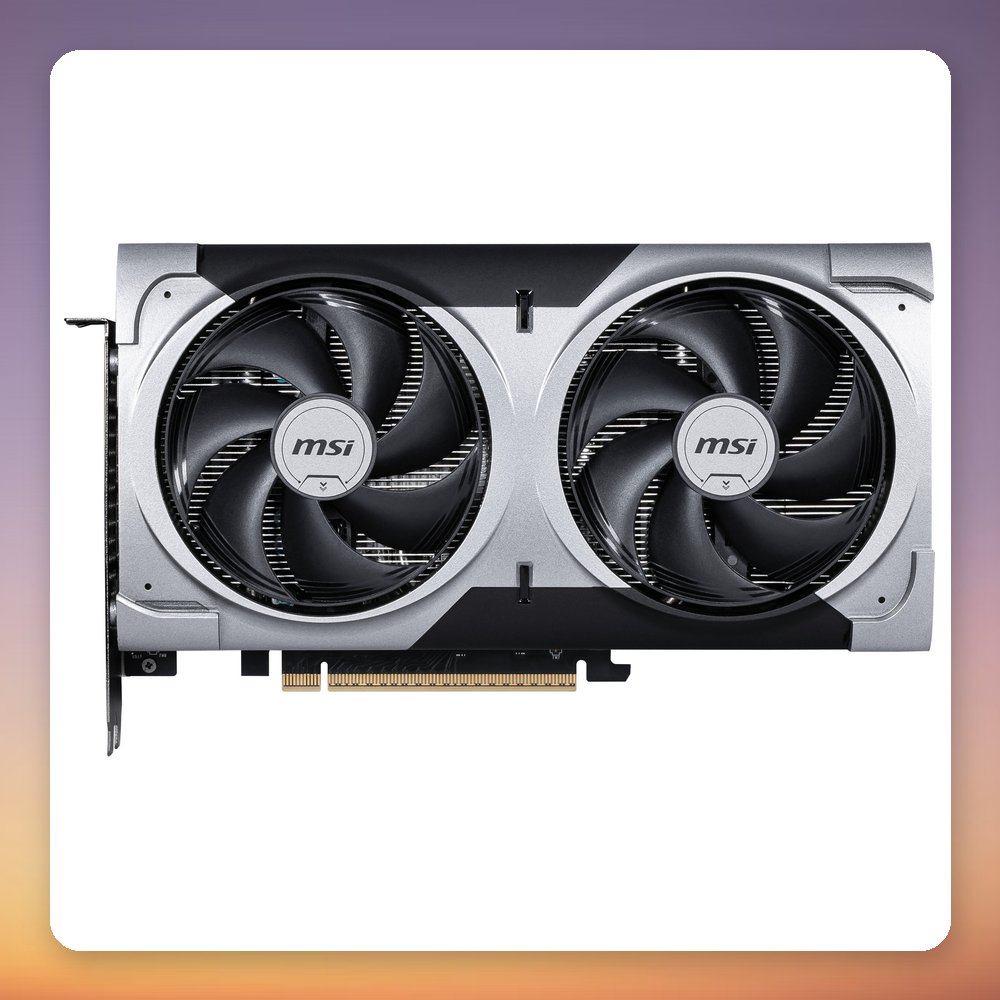

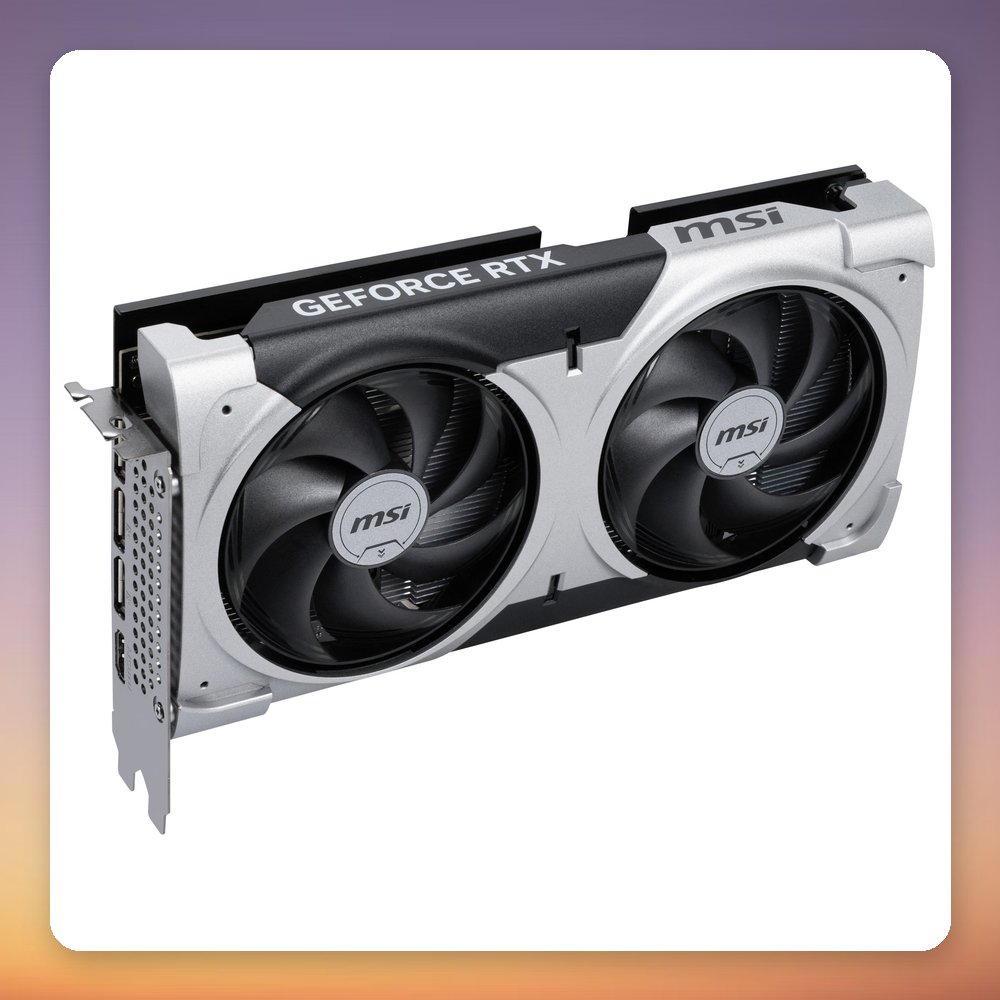

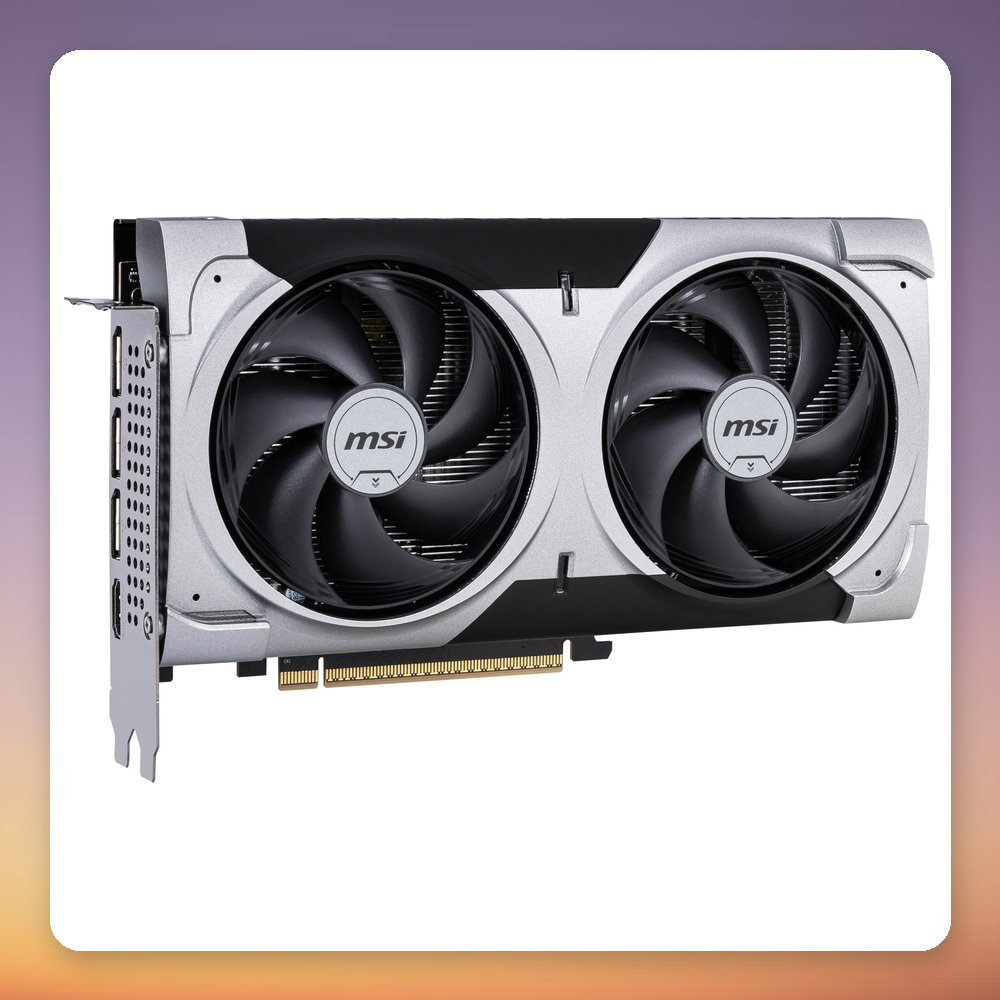

The MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS 16 GB is a graphics card built on the NVIDIA Blackwell architecture with 4608 CUDA cores and 16 GB of GDDR7 memory on a 128-bit bus. It runs a factory-overclocked boost clock of 2617 MHz, and at just 227 mm long and two slots wide it is a compact card for its class. Two fans sit on a large heatsink.

With DLSS, Multi Frame Generation, fourth-generation ray tracing cores and AV1 encoding and decoding, this card suits 1440p gaming builds and streaming setups. The 227 mm length and 600 g weight make it a good fit for small form factor and mid-tower cases. It draws around 180 W through a single 8-pin connector according to the Wave data, and NVIDIA recommends a power supply of at least 600 W. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b.

Specification

• Manufacturer: MSI
• Model: GeForce RTX 5060 Ti VENTUS 2X OC PLUS 16G
• MPN: V535-005R
• EAN: 4711377334471
• GPU: NVIDIA GeForce RTX 5060 Ti
• Memory: 16 GB GDDR7, 128-bit, 28 Gbit/s
• CUDA cores: 4608
• Base clock: 2407 MHz
• Boost clock: 2602 MHz (OC mode: 2617 MHz)
• Interface: PCI Express x16 5.0
• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max. resolution: 7680 x 4320 (8K at 120 Hz with DSC)

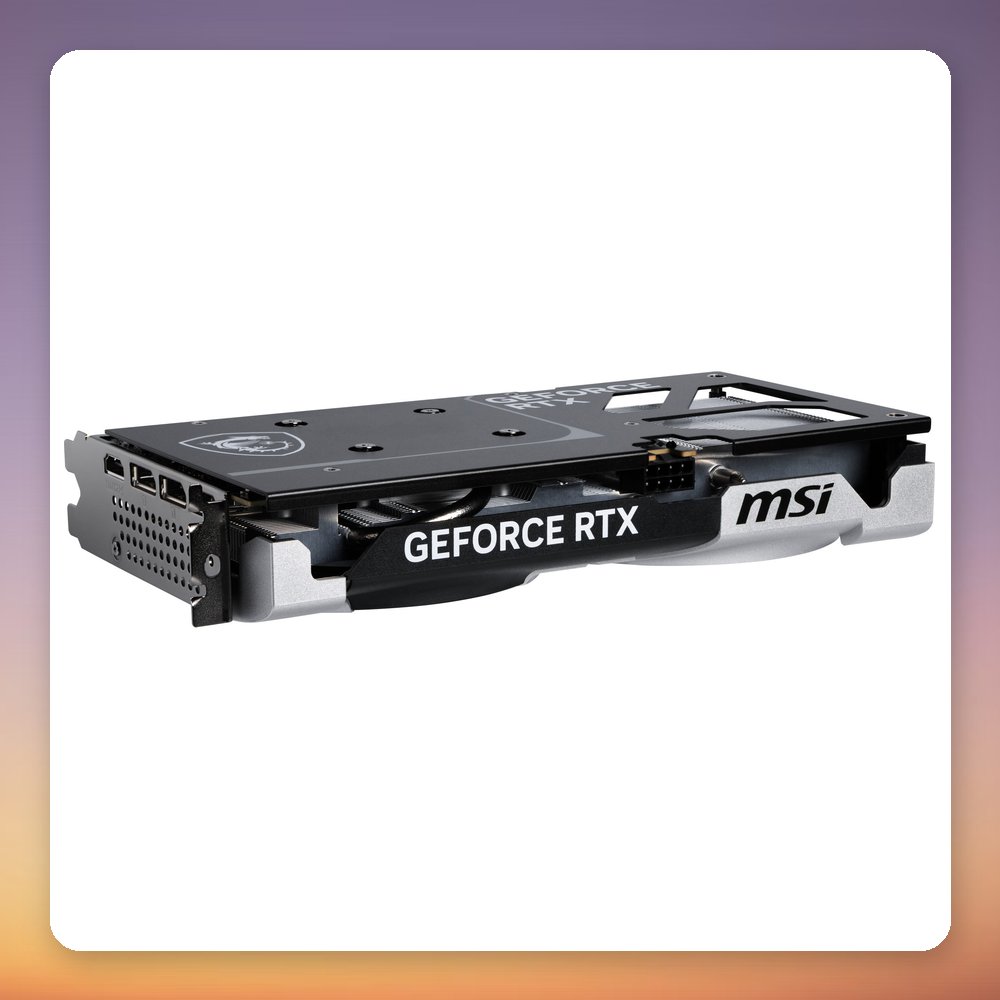

• Power connector: 1x 8-pin (6+2)
• Typical power consumption: 180 W
• Recommended PSU: 600 W minimum
• Cooling: Active, 2 fans
• Slots occupied: 2
• Dimensions (L x H x D): 227 x 127 x 41 mm
• Weight: 600 g
• Colour: Black, Grey
