Product Overview

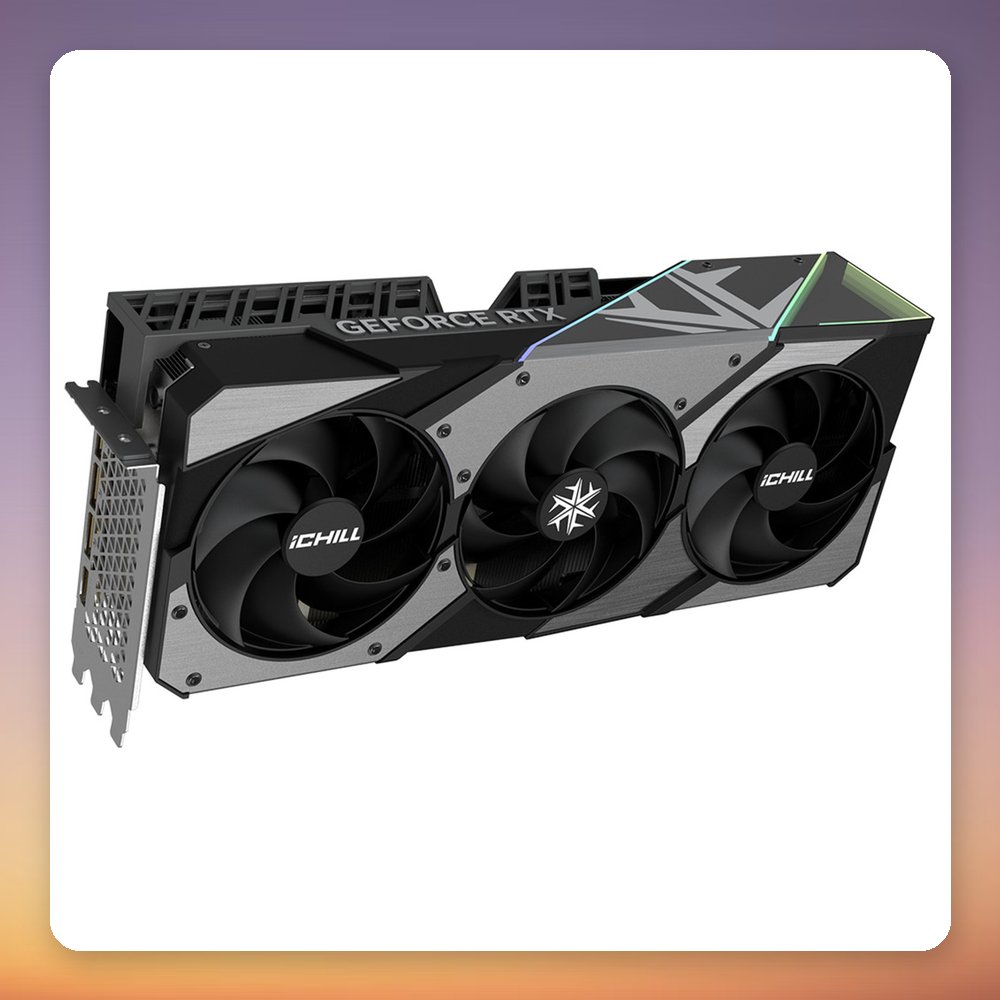

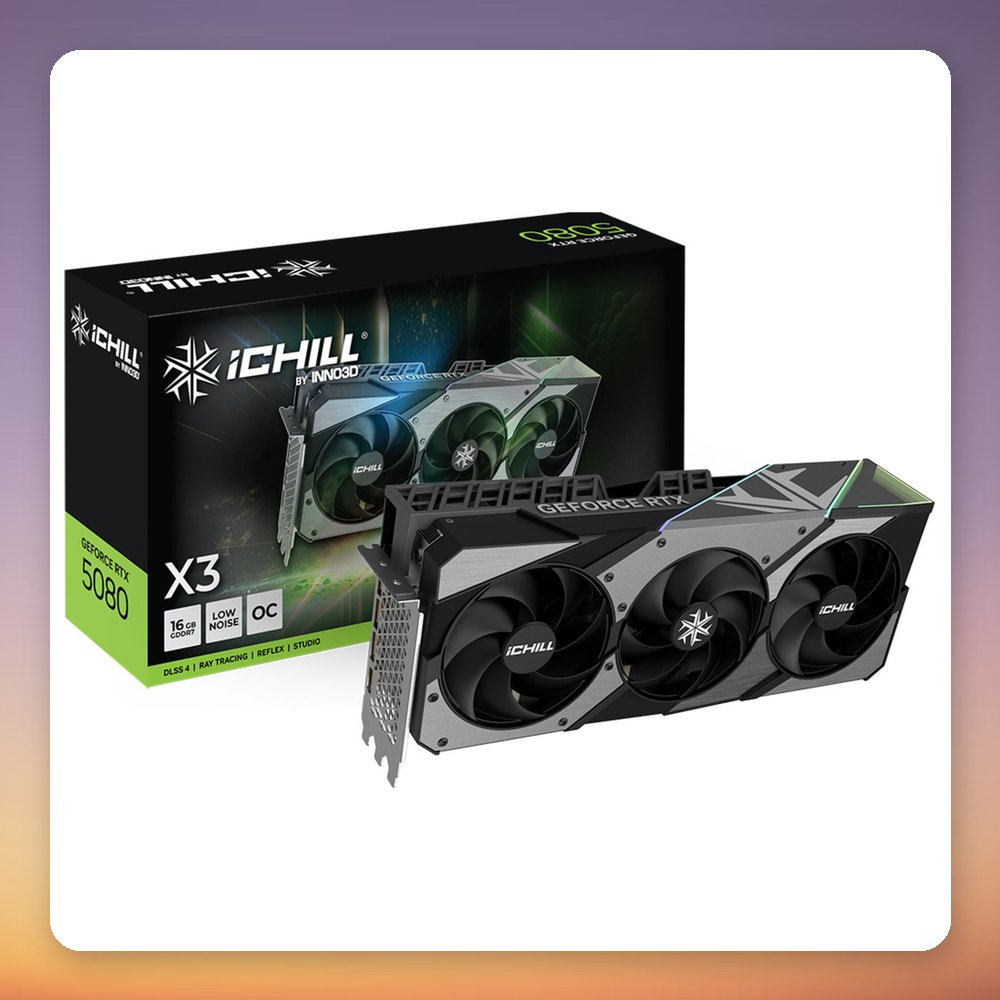

The Inno3D GeForce RTX 5080 ICHILL X3 V2 is a high-end graphics card built on the NVIDIA GeForce RTX 5080 GPU and the Blackwell architecture. It pairs 10,752 CUDA cores with 16 GB of GDDR7 memory on a 256-bit bus, with a 2295 MHz base clock and a 2715 MHz boost clock. It connects over PCIe 5.0 x16 and supports DLSS 5, Reflex 2 and fourth-generation ray tracing cores.

This card suits high-resolution gaming builds. Its outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 4K at 480 Hz or 8K at 120 Hz with DSC. It occupies 3.6 slots and measures 334 mm in length, so check case clearance. Power comes through a single 16-pin (12VHPWR) connector, and an adapter and a graphics card holder are included. NVIDIA recommends a PSU of at least 850 W.

Specification

• Manufacturer: Inno3D
• Model: GeForce RTX 5080 ICHILL X3 V2
• MPN: C50803-16D7X-176069R
• EAN: 88863077017870
• GPU: NVIDIA GeForce RTX 5080
• CUDA Cores: 10,752
• Base Clock: 2295 MHz
• Boost Clock: 2715 MHz
• Memory: 16 GB GDDR7
• Memory Bus: 256-bit
• Memory Speed: 30 Gbps
• Interface: PCIe 5.0 x16
• Video Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max Resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Power Connector: 1x 16-pin (12VHPWR)
• Average Power Consumption: 360 W
• Minimum PSU: 850 W
• Slots Occupied: 3.6
• Dimensions (W x H x D): 148 x 73 x 334 mm
• Included Accessories: Power adapter, graphics card holder
