Product Overview

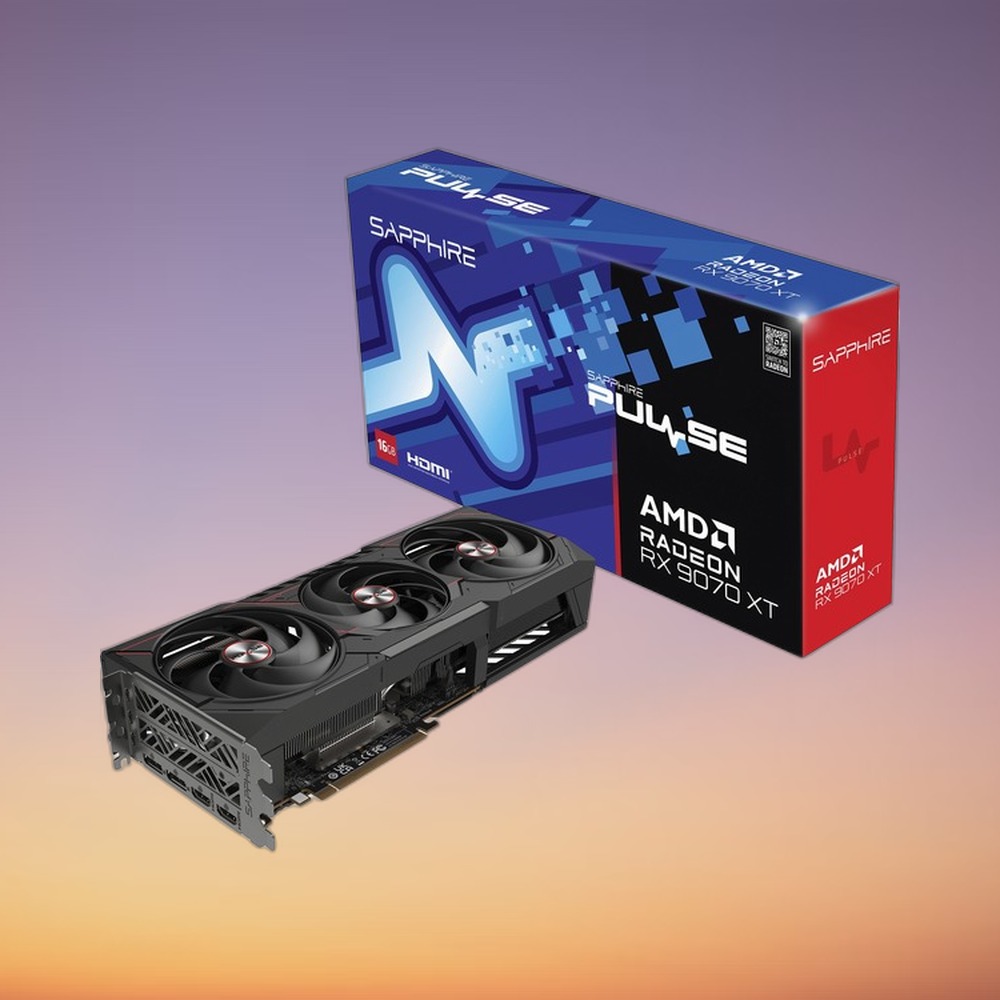

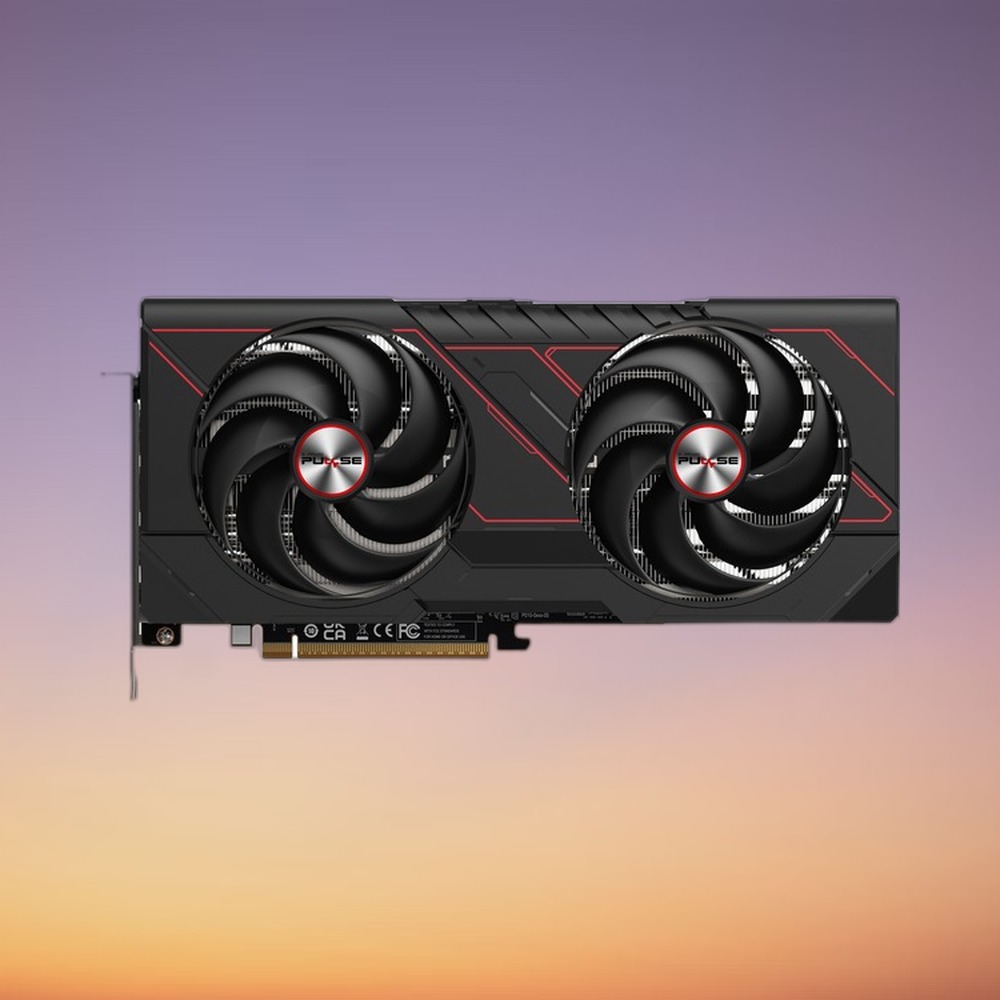

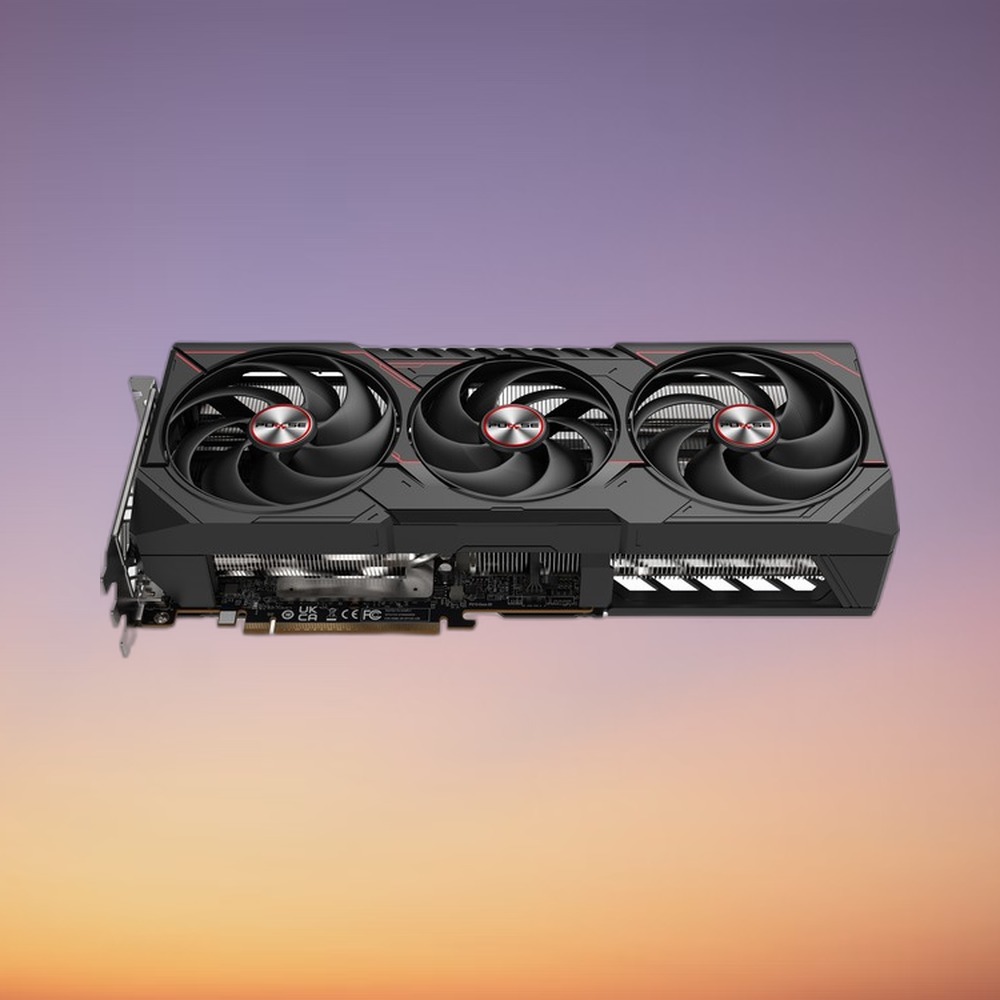

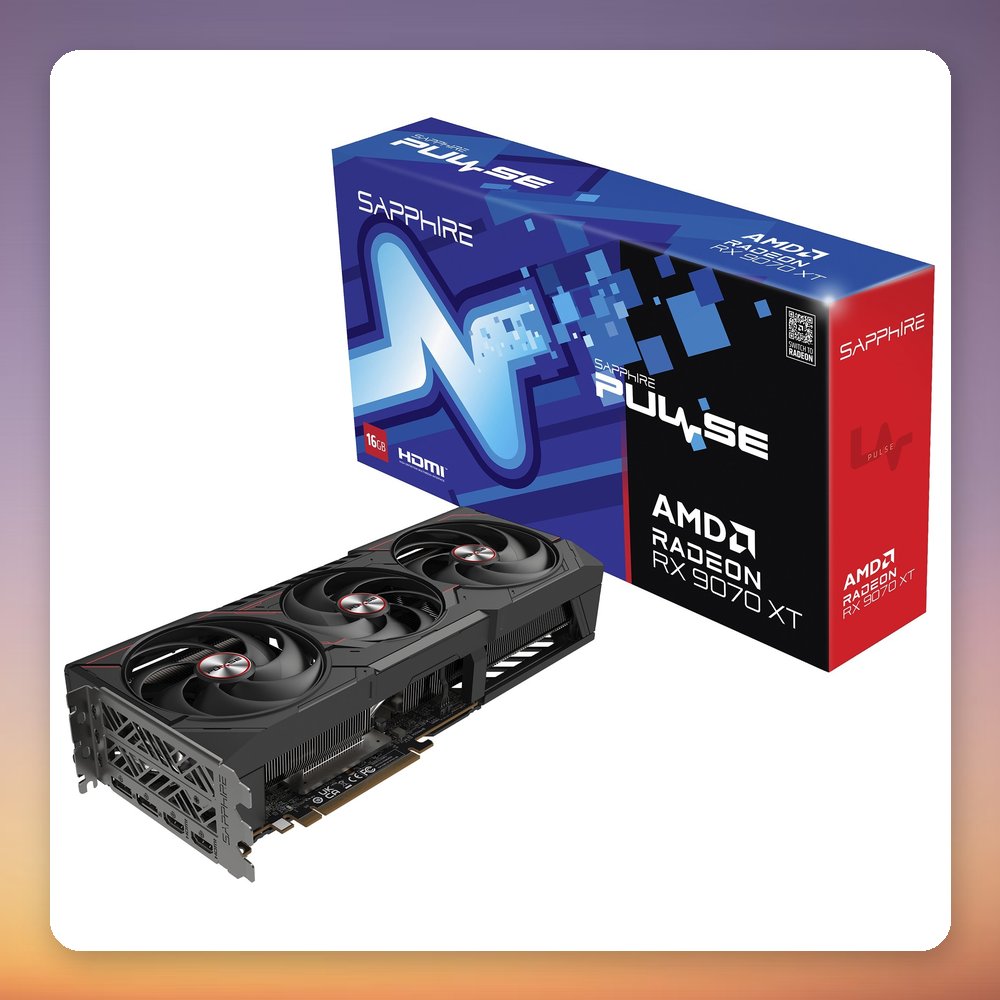

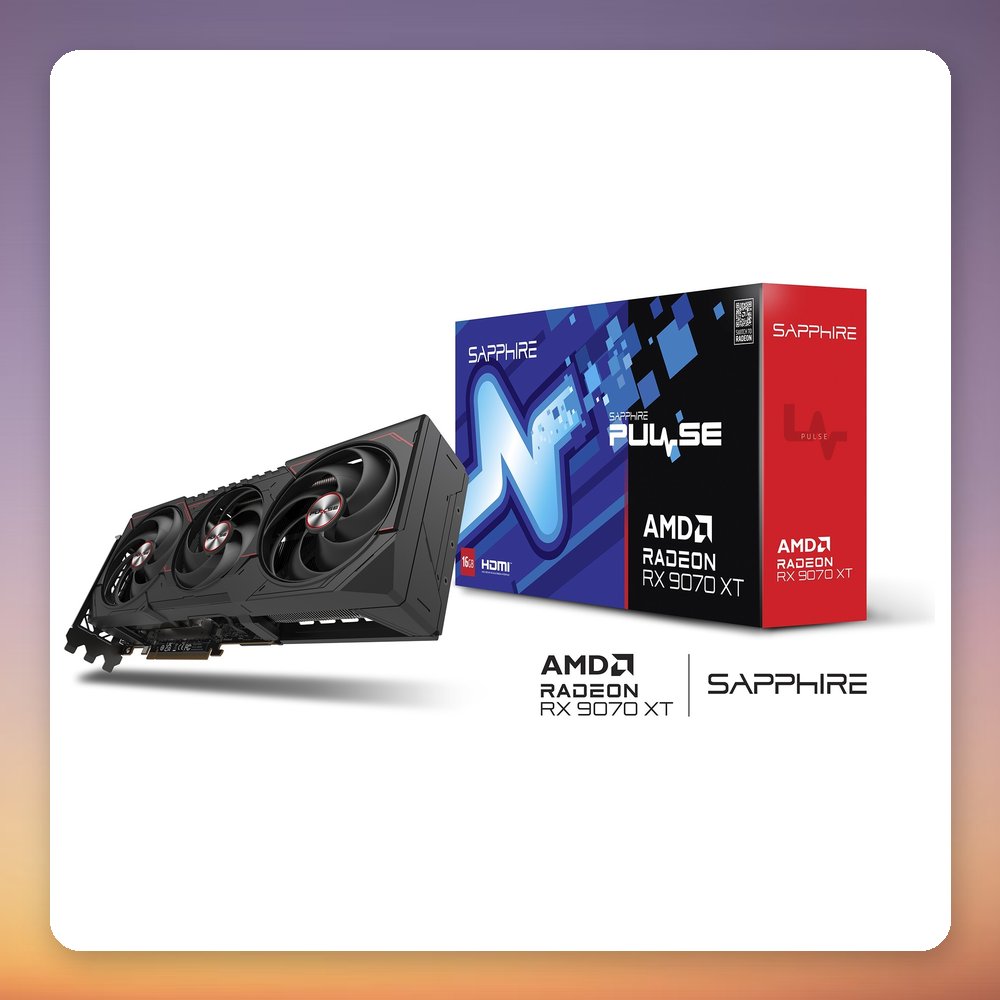

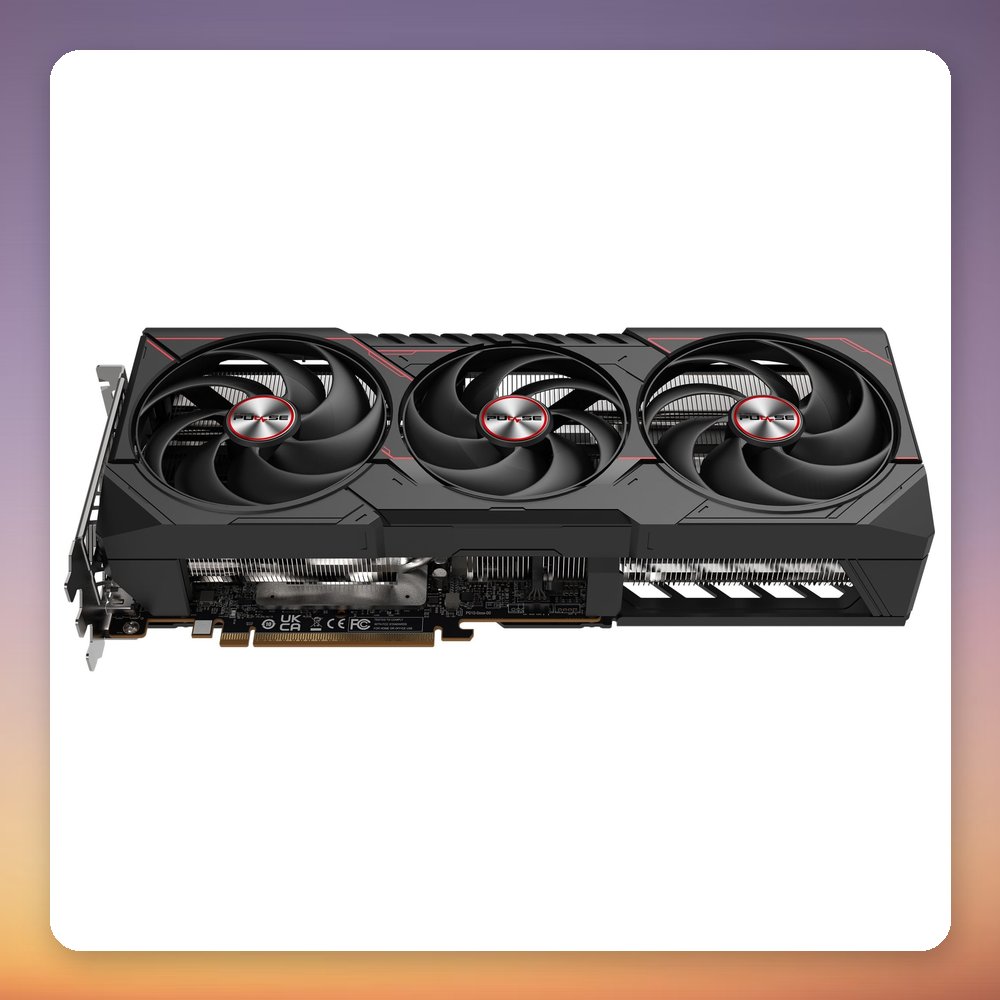

The Sapphire Radeon RX 9070 XT Pulse is a PCIe 5.0 x16 graphics card built on AMD’s RDNA 4 architecture, with 4096 stream processors and 64 Compute Units (3rd Gen ray tracing, 2nd Gen AI accelerators). It carries 16 GB of GDDR6 on a 256-bit bus at 20 Gbps, with a 2400 MHz gaming boost clock and a 2970 MHz OC boost clock.

Sapphire positions this card for 4K and 1440p gaming. It supports FidelityFX Super Resolution 4 with AI upscaling, AMD HYPR-RX with AFMF 2, Fluid Motion Frames, Radeon Anti-Lag 2 and AV1 encode/decode. The card is a triple-slot design, 320 mm long, powered by 2x 8-pin connectors, and AMD lists a minimum 750 W power supply. Display outputs are 2x DisplayPort 2.1 and 2x HDMI 2.1, so it suits multi-monitor setups.

Specification

• Manufacturer: Sapphire
• Model: Pulse
• MPN: 11348-03-20G
• EAN: 4895106295919
• GPU: AMD Radeon RX 9070 XT (RDNA 4)
• Stream processors: 4096
• Compute units: 64 (3rd Gen RT, 2nd Gen AI accelerators)
• Memory: 16 GB GDDR6, 256-bit, 20 Gbps
• Boost clock (gaming): 2400 MHz
• Boost clock (OC): 2970 MHz
• Interface: PCIe x16 5.0

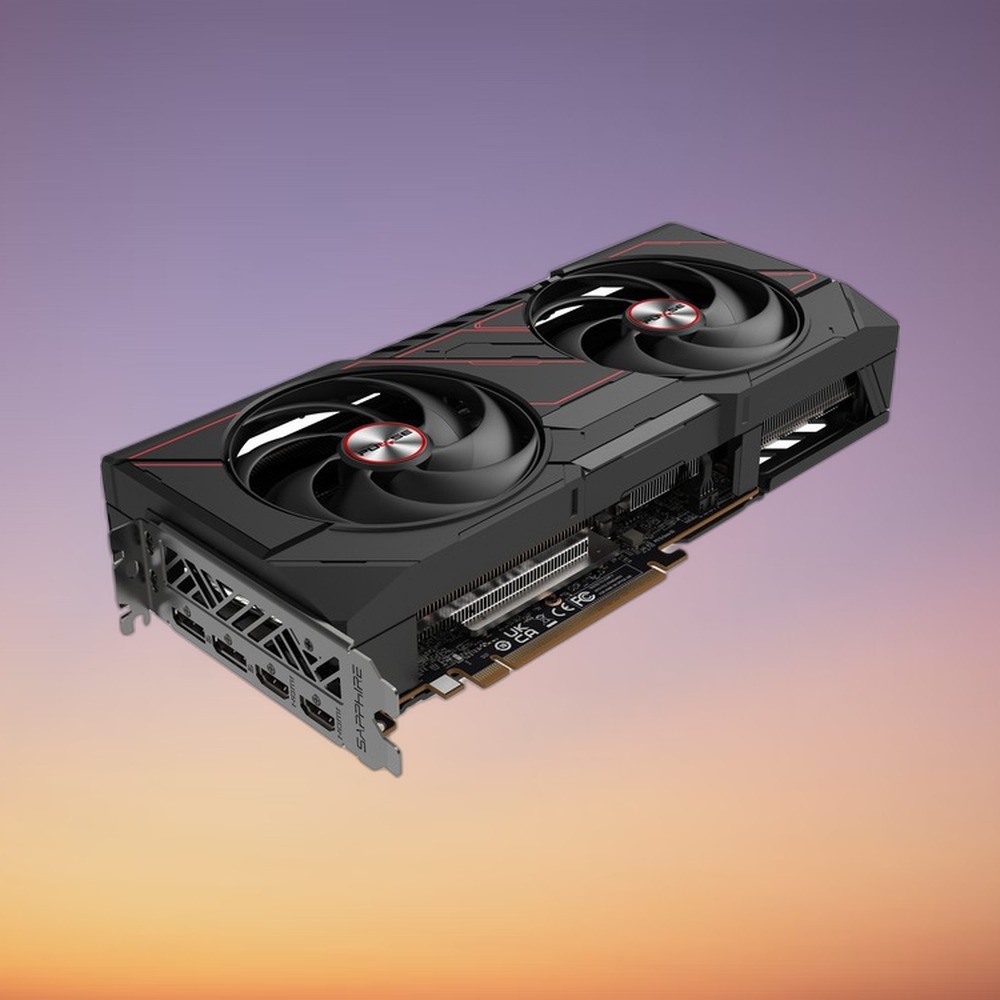

• Outputs: 2x DisplayPort 2.1, 2x HDMI
• Power connectors: 2x 8-pin (6+2)
• Average power consumption: 304 W
• Minimum PSU: 750 W
• Slots occupied: 3

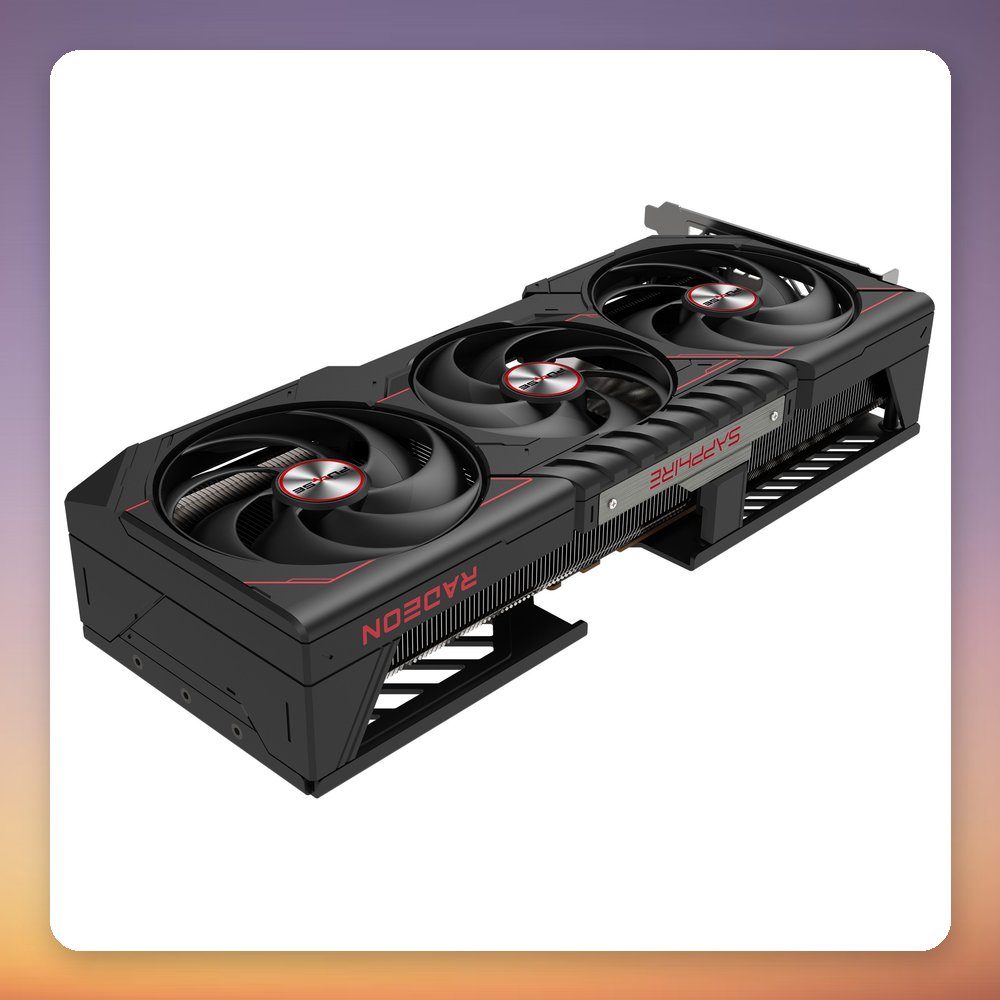

• Cooling: Fan cooling
• Colour: Black
• Dimensions (W x H x D): 120.25 x 61.6 x 320 mm
• API support: DirectX 12 Ultimate, OpenGL 4.6
