Product Overview

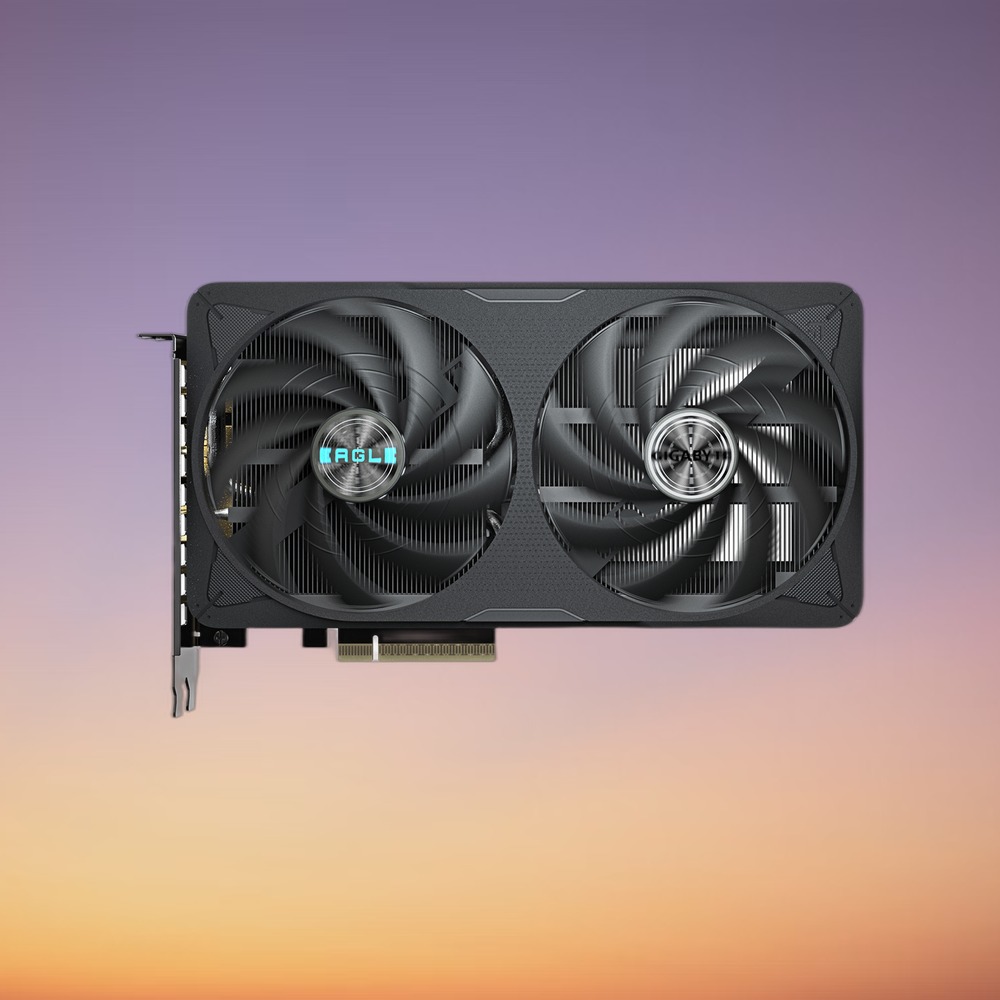

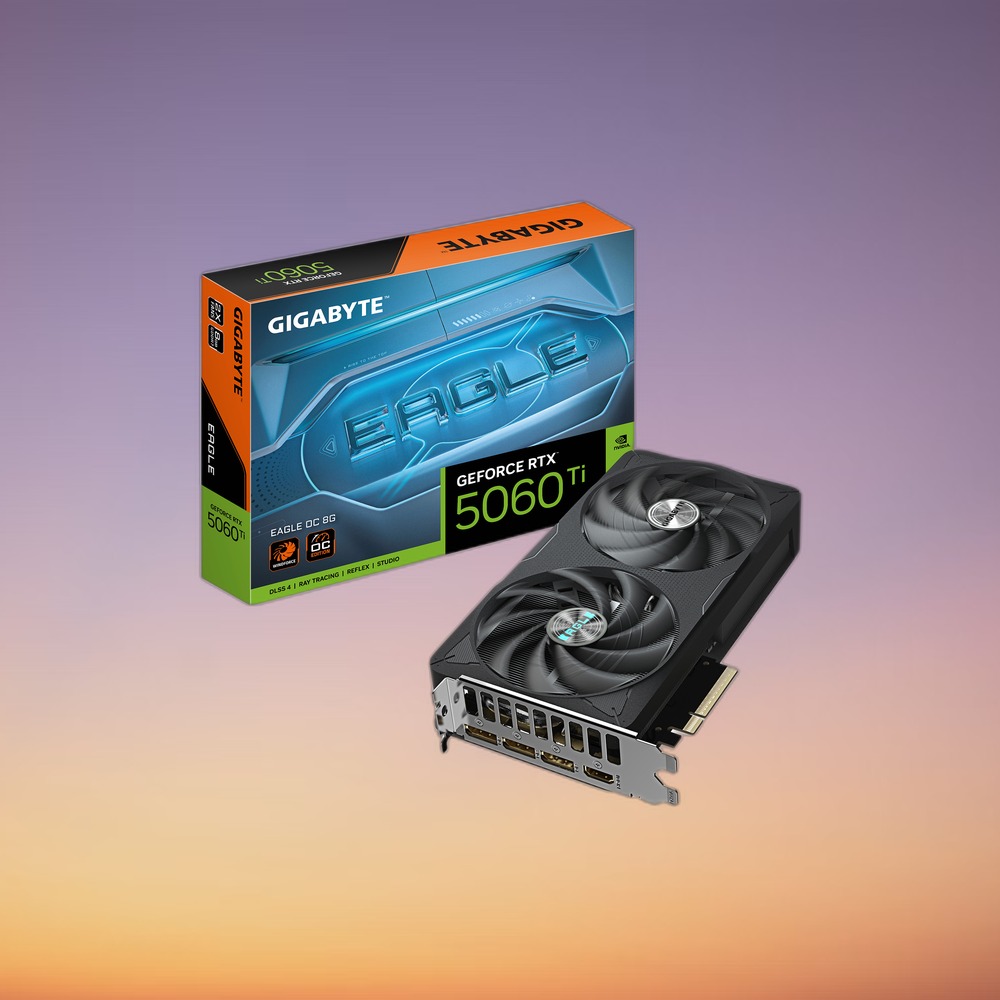

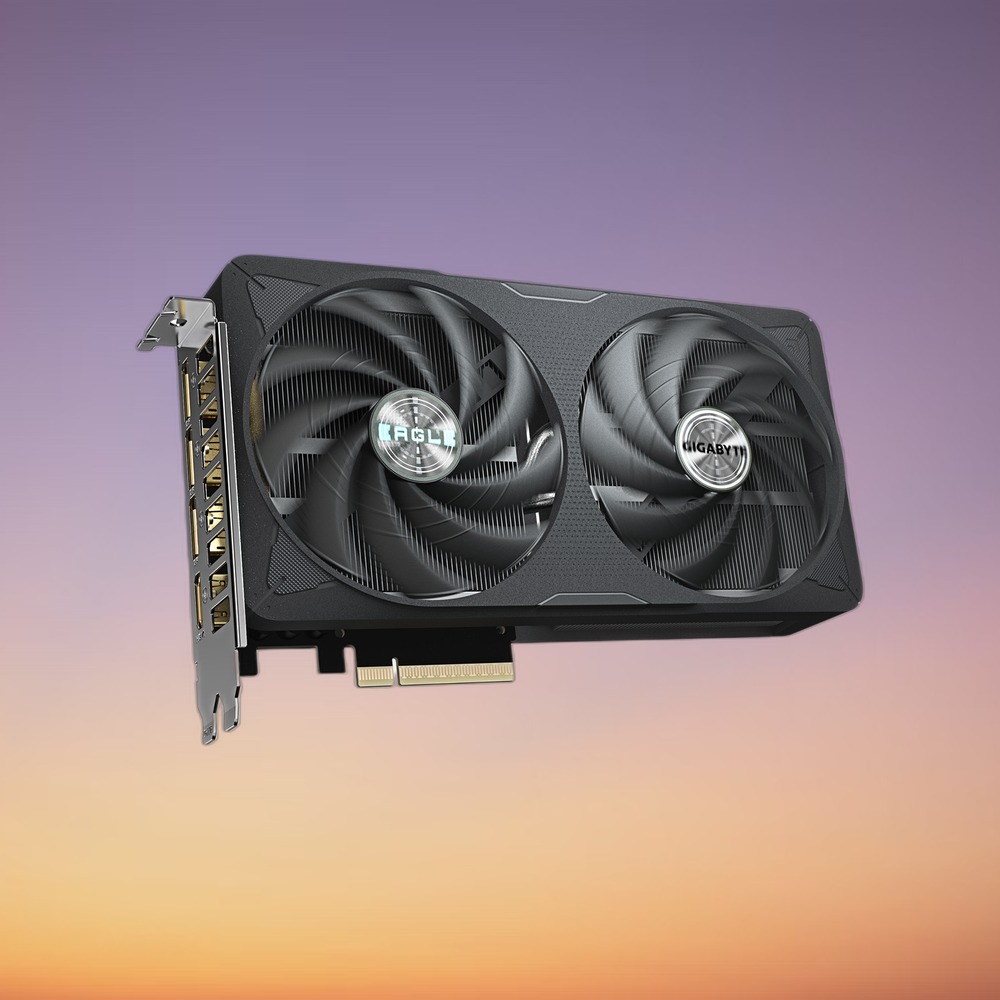

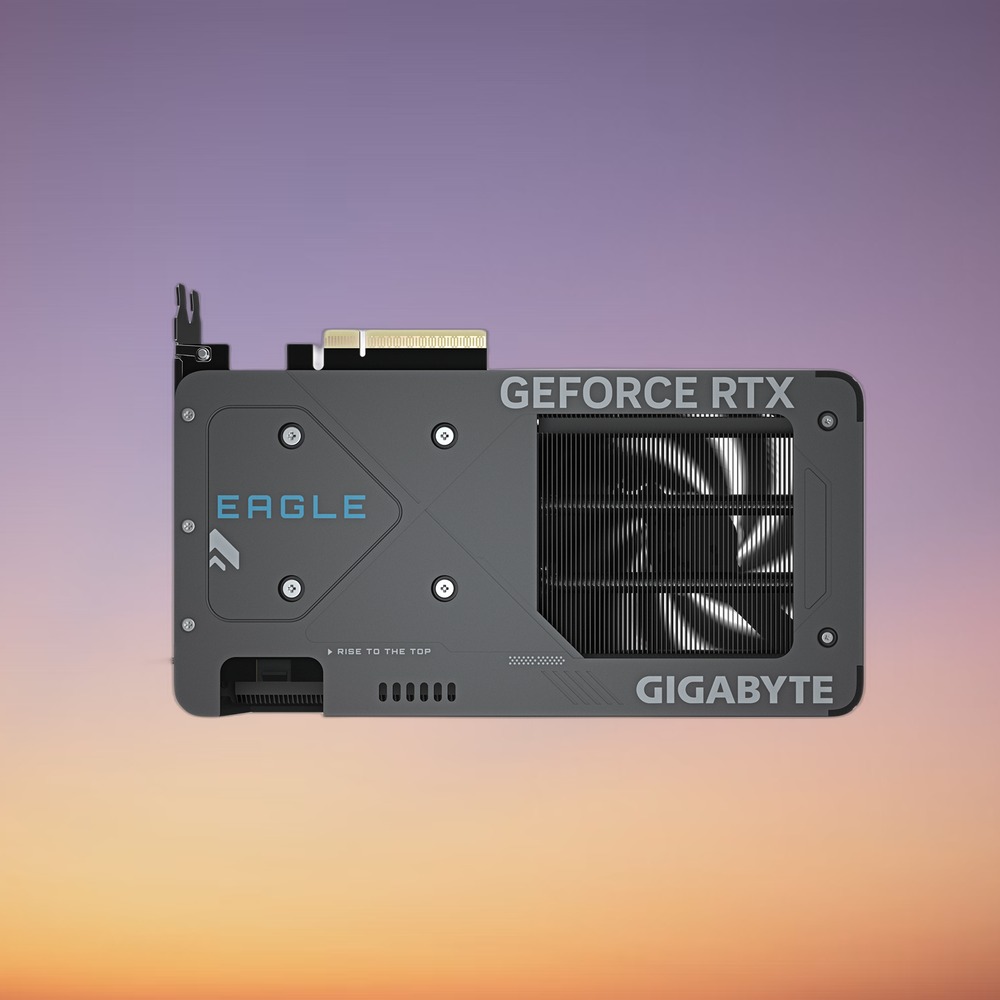

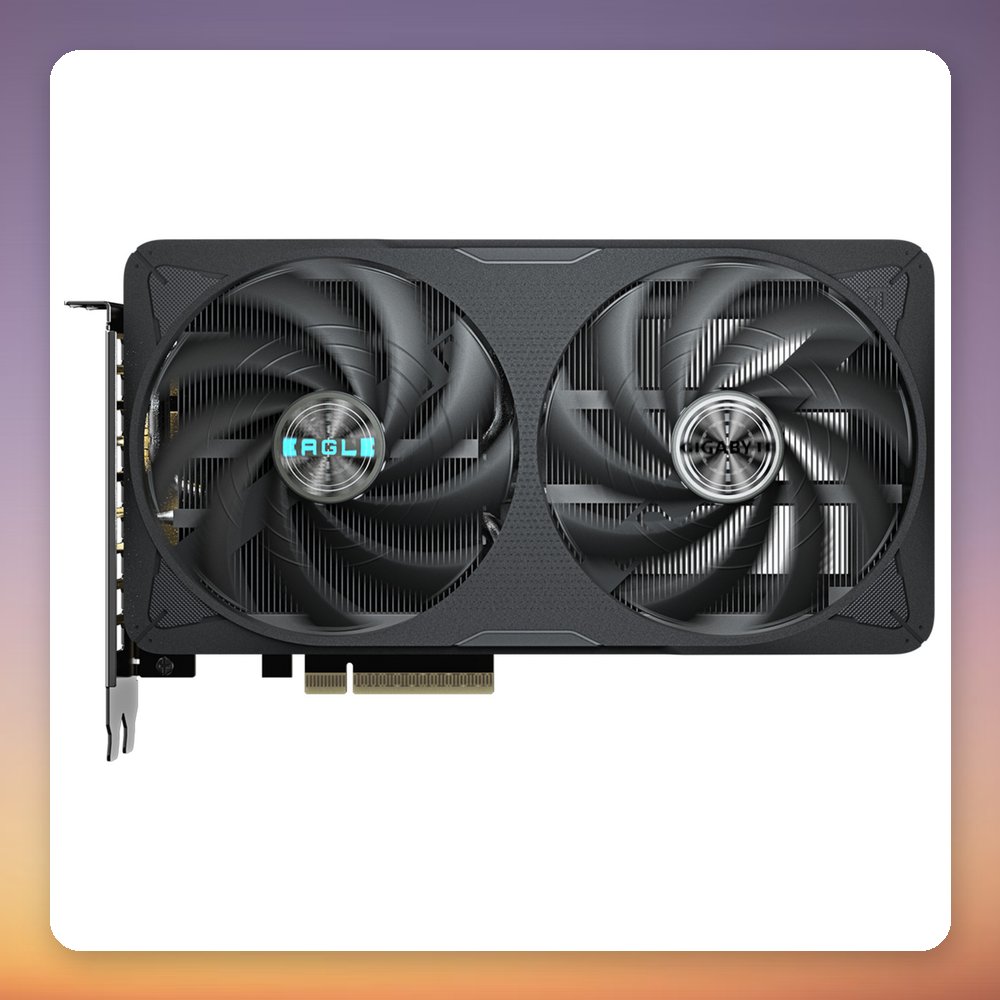

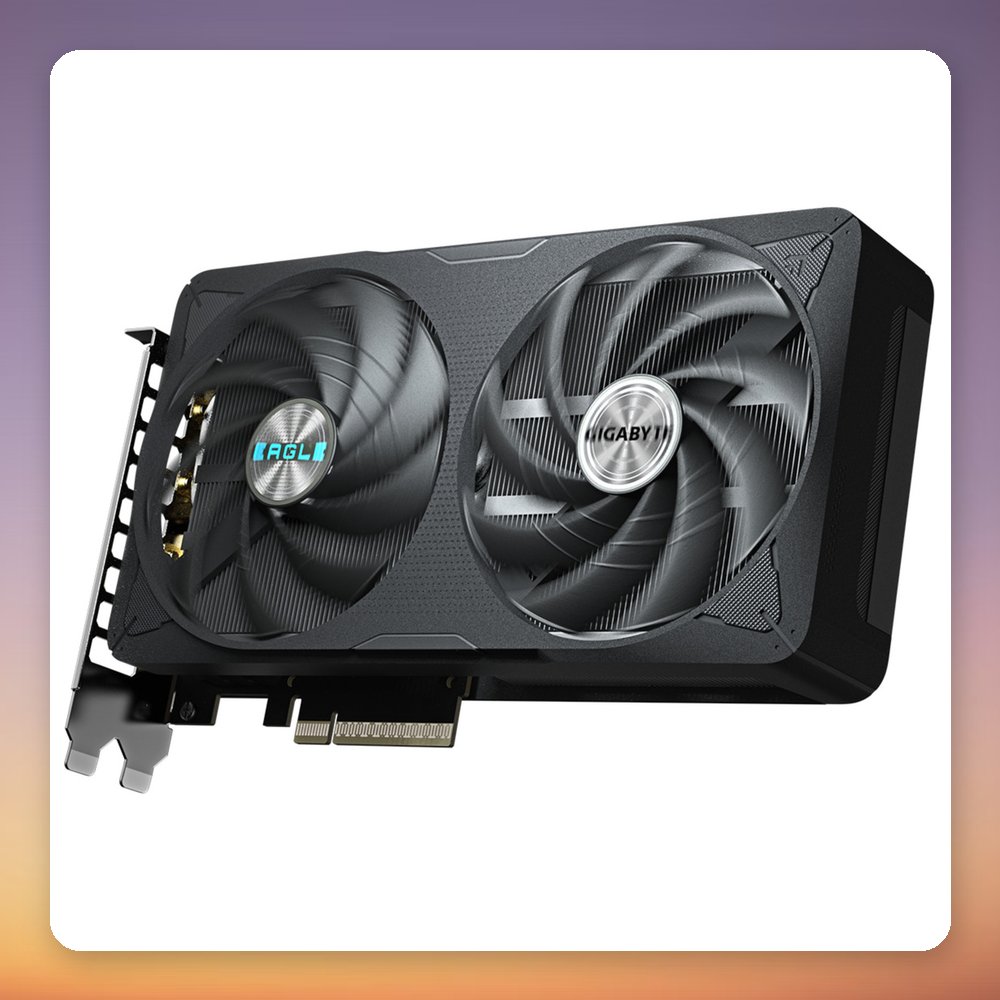

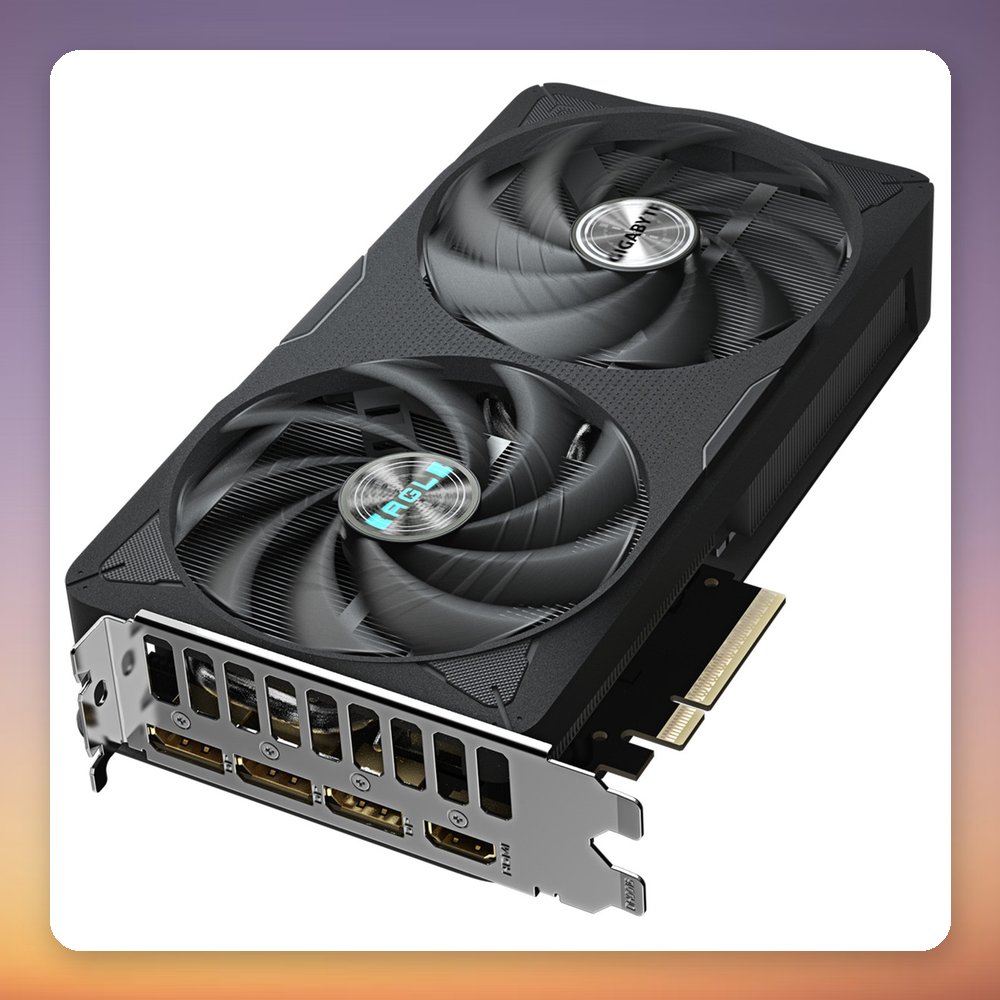

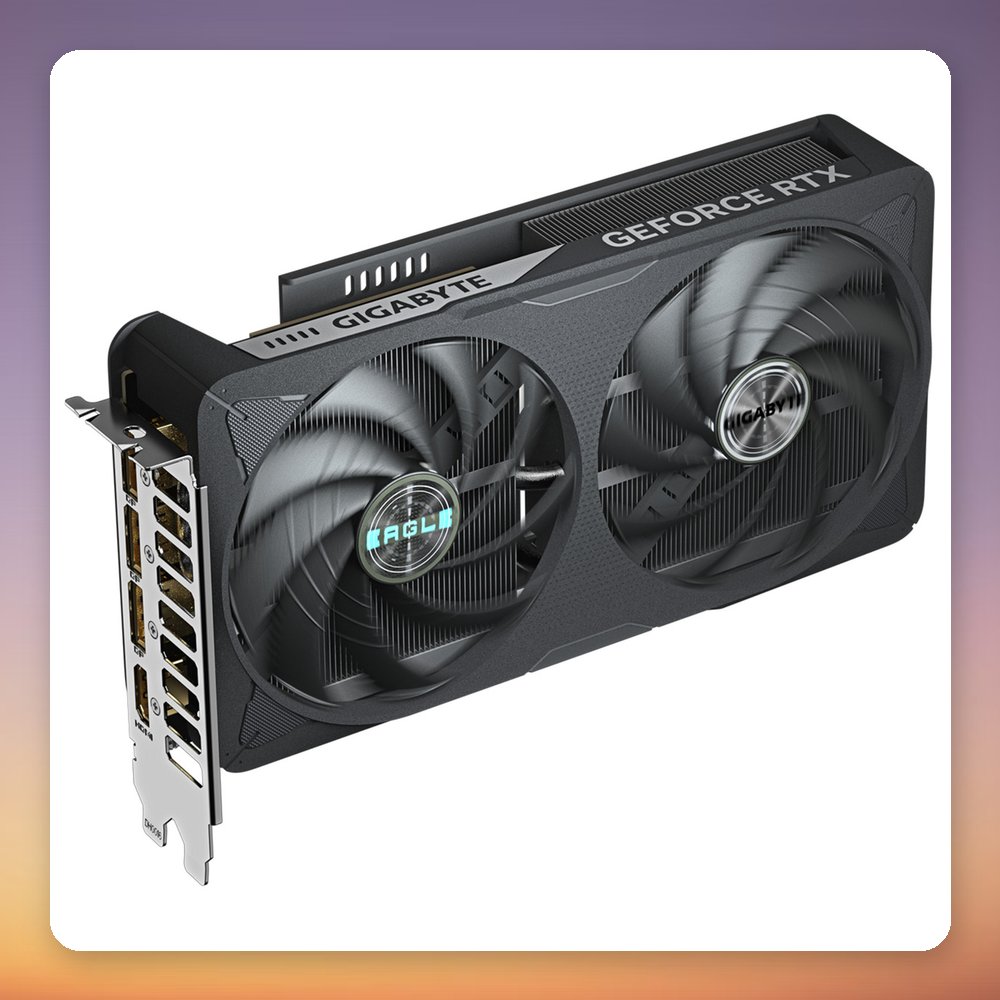

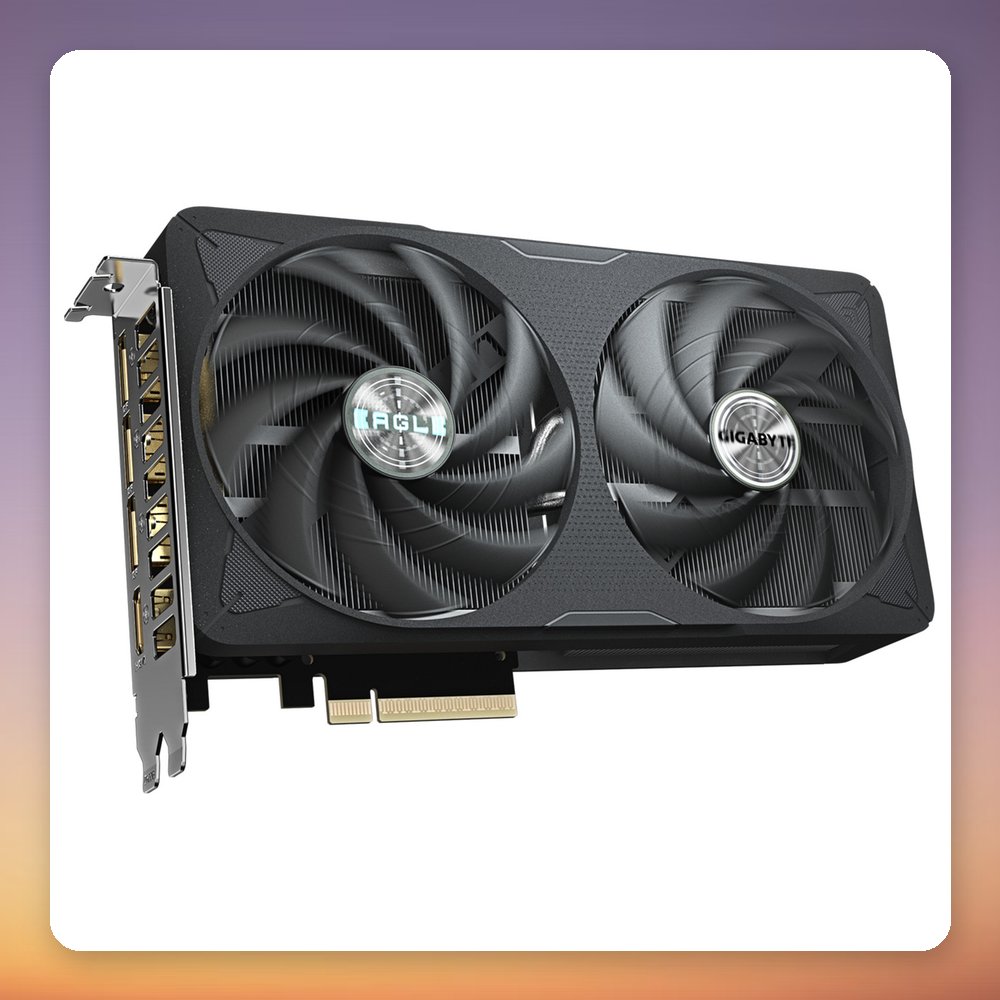

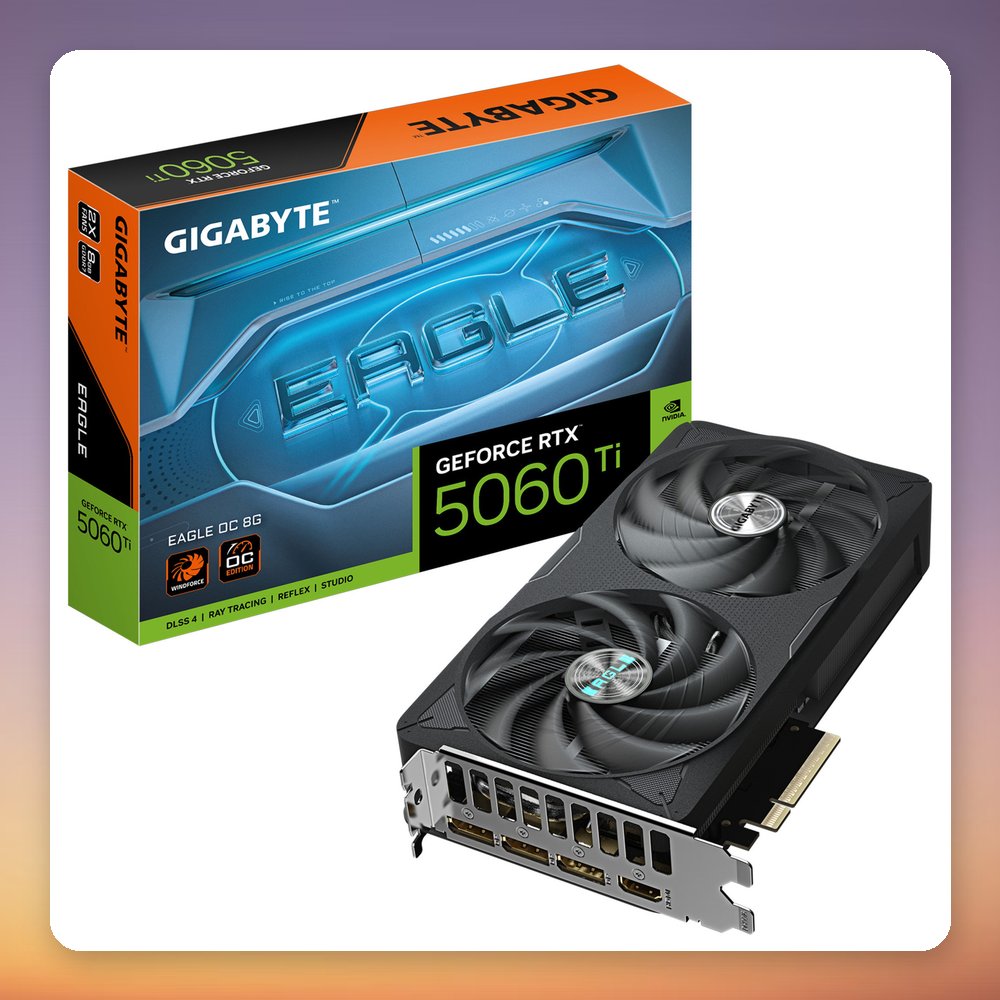

The Gigabyte GeForce RTX 5060 Ti EAGLE OC 8G is a factory-overclocked graphics card built on NVIDIA’s Blackwell architecture. It carries 4608 CUDA cores, 8 GB of GDDR7 memory on a 128-bit bus at 28 Gbit/s and a boost clock of 2617 MHz. It connects over PCIe 5.0 x8, uses a compact 2-slot, 215 mm design with Gigabyte’s WINDFORCE 2X cooling and two fans, and needs only a single 8-pin power connector.

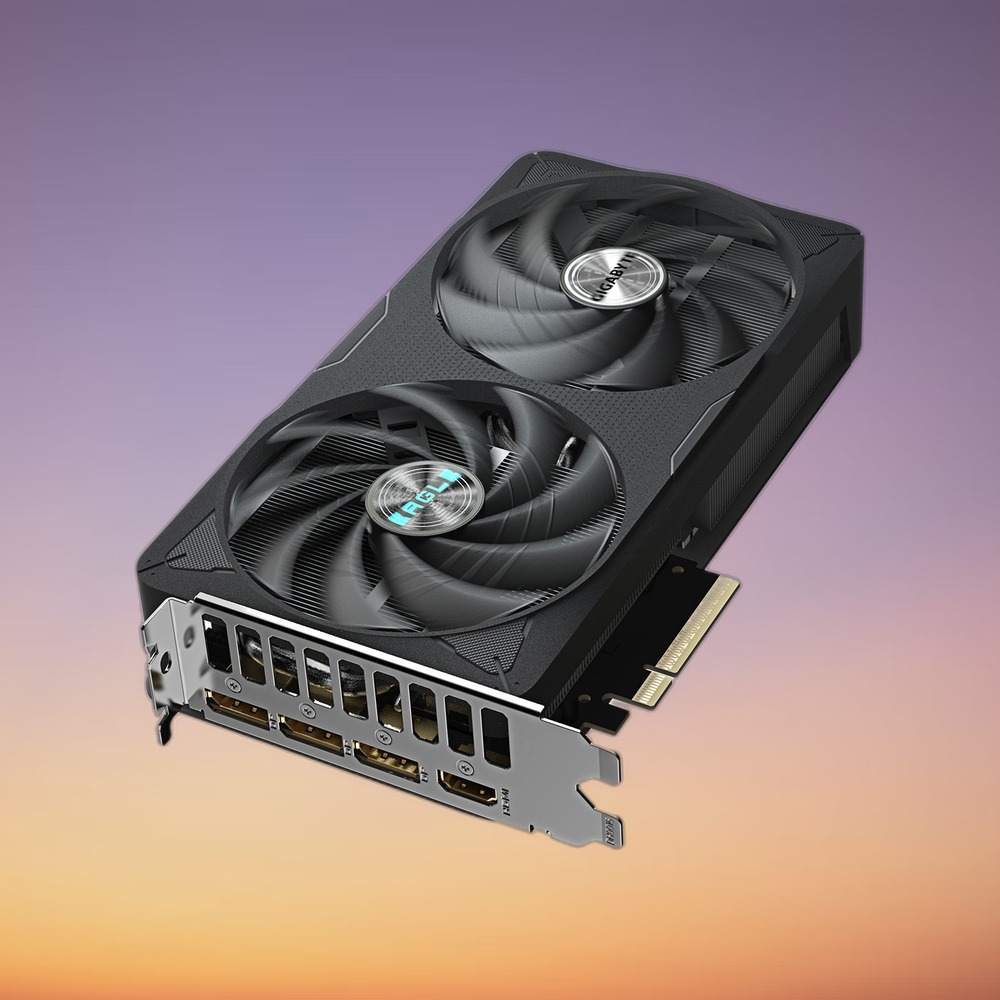

With three DisplayPort 2.1b outputs and one HDMI 2.1b port, the card supports up to four displays and resolutions up to 8K at 120Hz with DSC. NVIDIA features include DLSS 5, Reflex 2, 4th-gen ray tracing cores, 5th-gen Tensor cores, G-SYNC and AV1 encode and decode. At 215 mm long and 600 g, it suits compact and mid-size gaming builds. NVIDIA lists a minimum 650 W power supply.

Specification

• Manufacturer: GigaByte
• Model: GeForce RTX 5060 Ti EAGLE OC 8G
• MPN: GV-N506TEAGLE OC-8GD
• EAN: 4719331356101
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA Cores: 4608
• Base / Boost Clock: 2407 MHz / 2617 MHz
• Memory: 8 GB GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbit/s
• Interface: PCI Express 5.0 x8
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max Resolution: 4K at 480Hz or 8K at 120Hz with DSC
• Cooling: Gigabyte WINDFORCE 2X, 2 fans

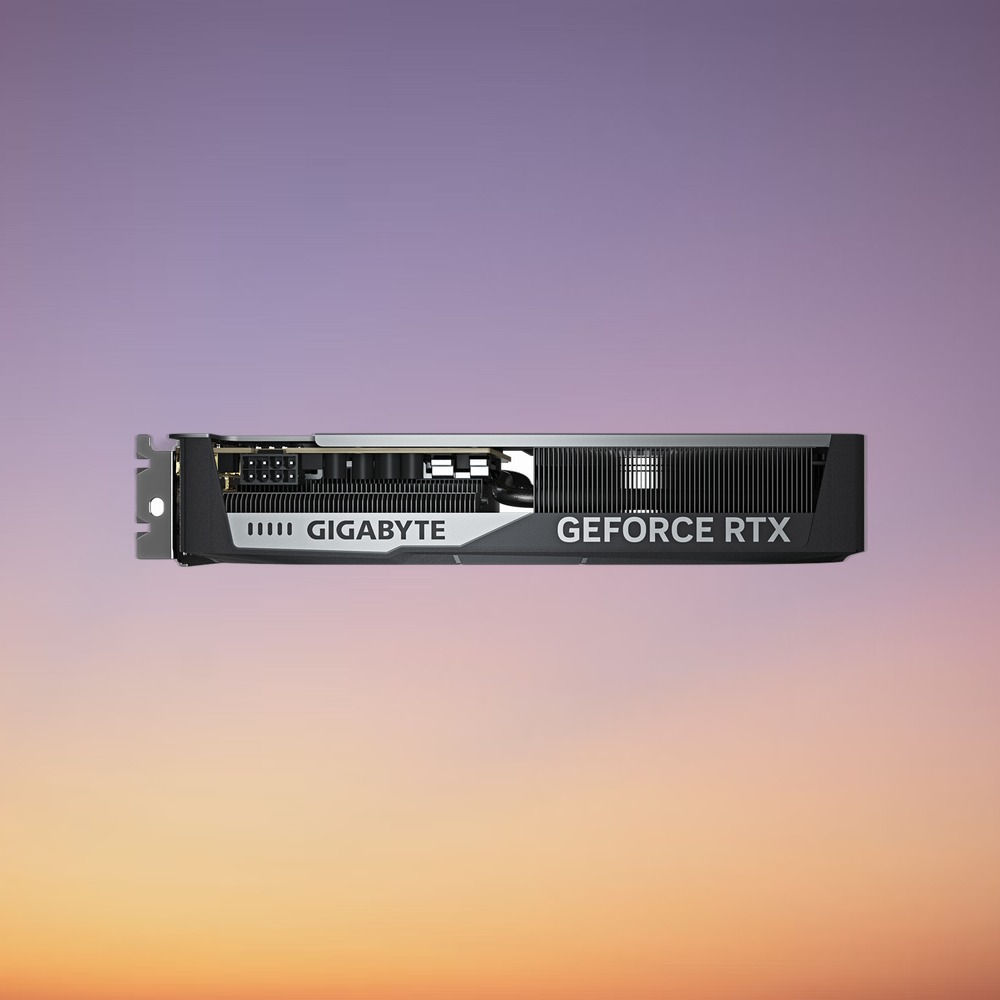

• Power Connector: 1x 8-pin
• Minimum PSU: 650 W
• Slots: 2
• Dimensions (W x H x D): 215 x 122 x 40 mm
• Weight: 600 g
• Manufacturer warranty: 3 years
