Product Overview

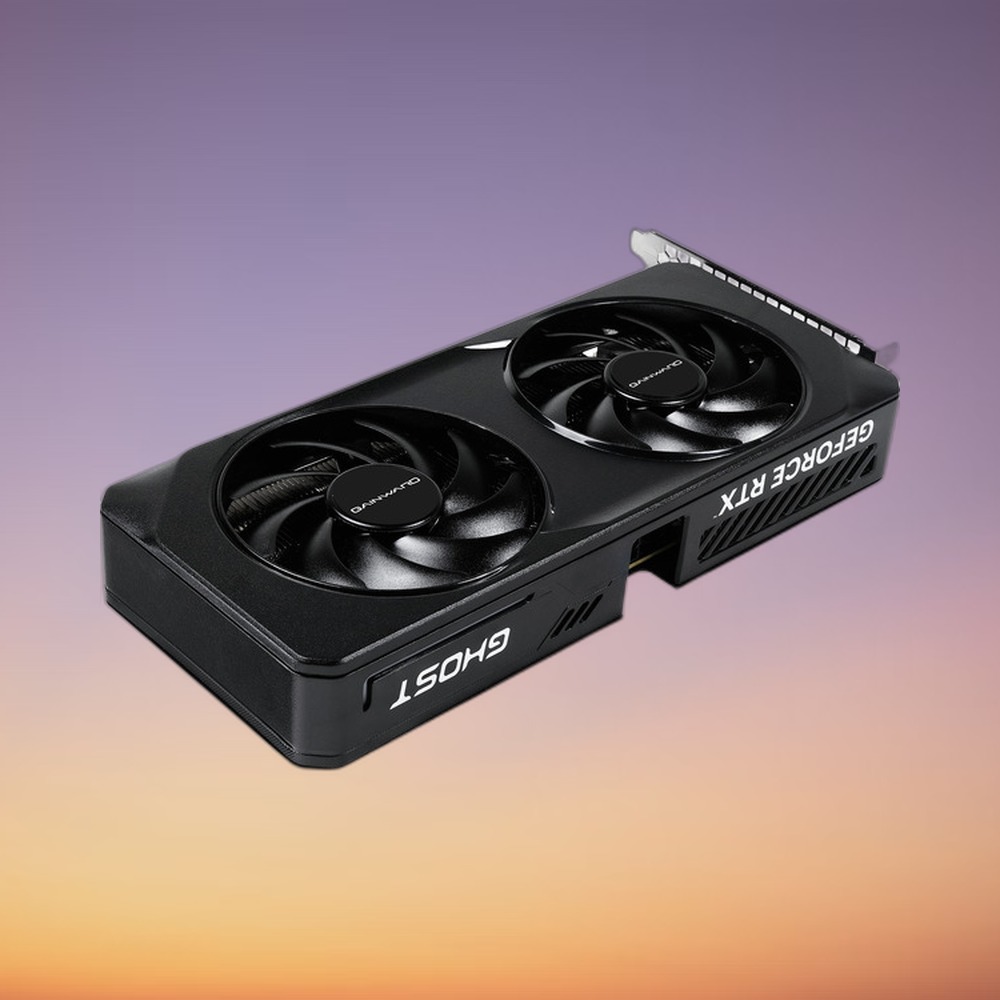

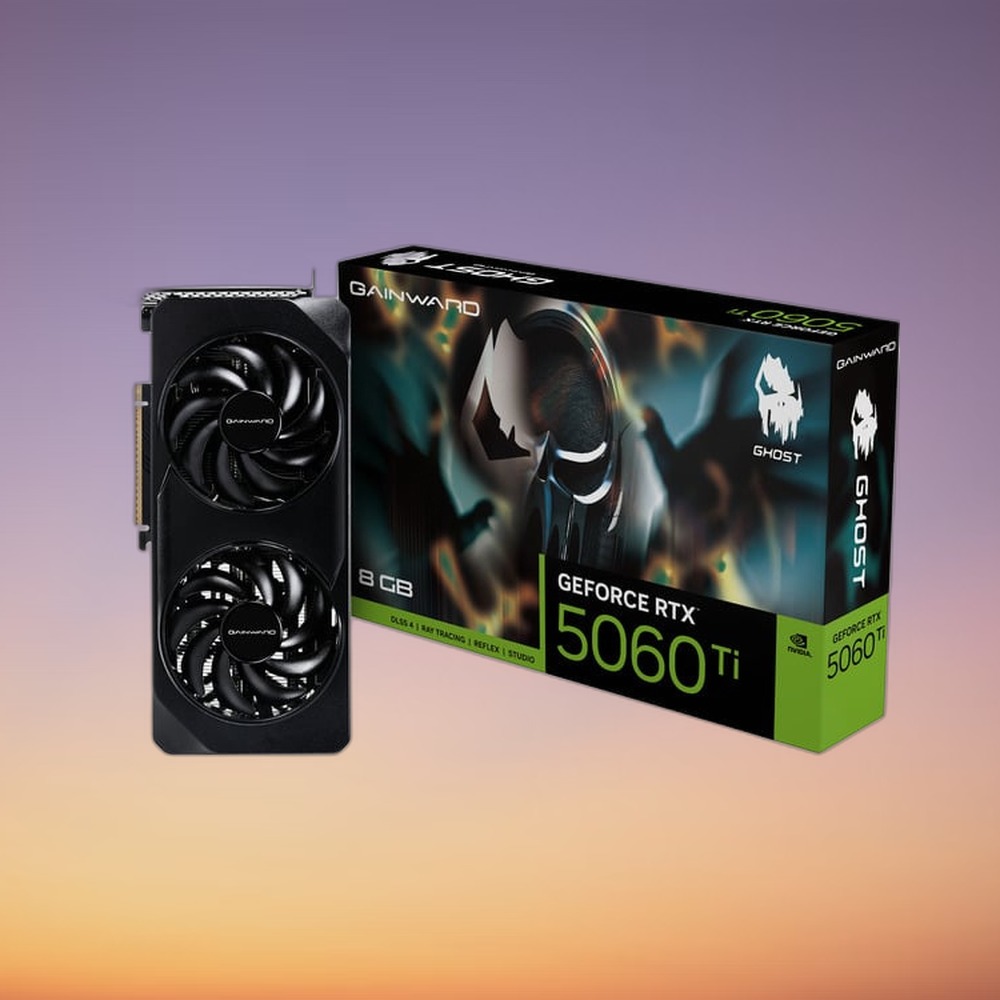

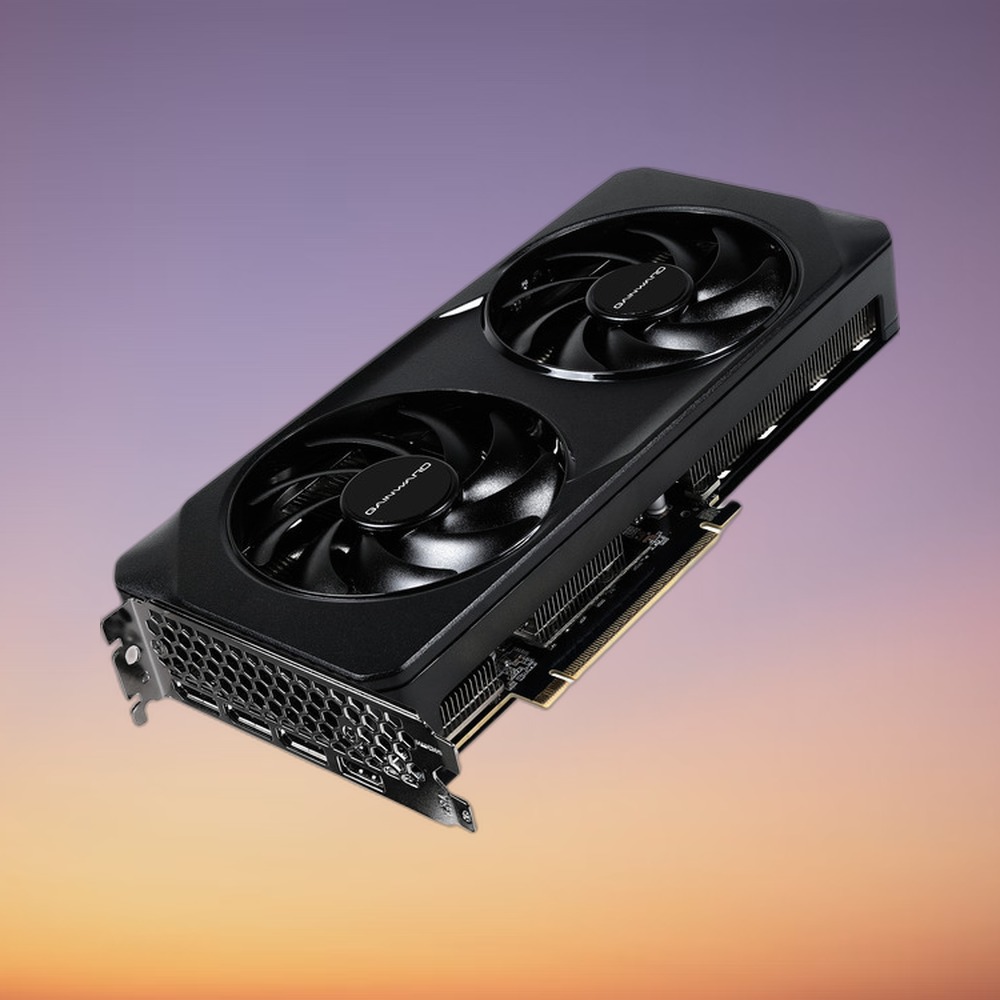

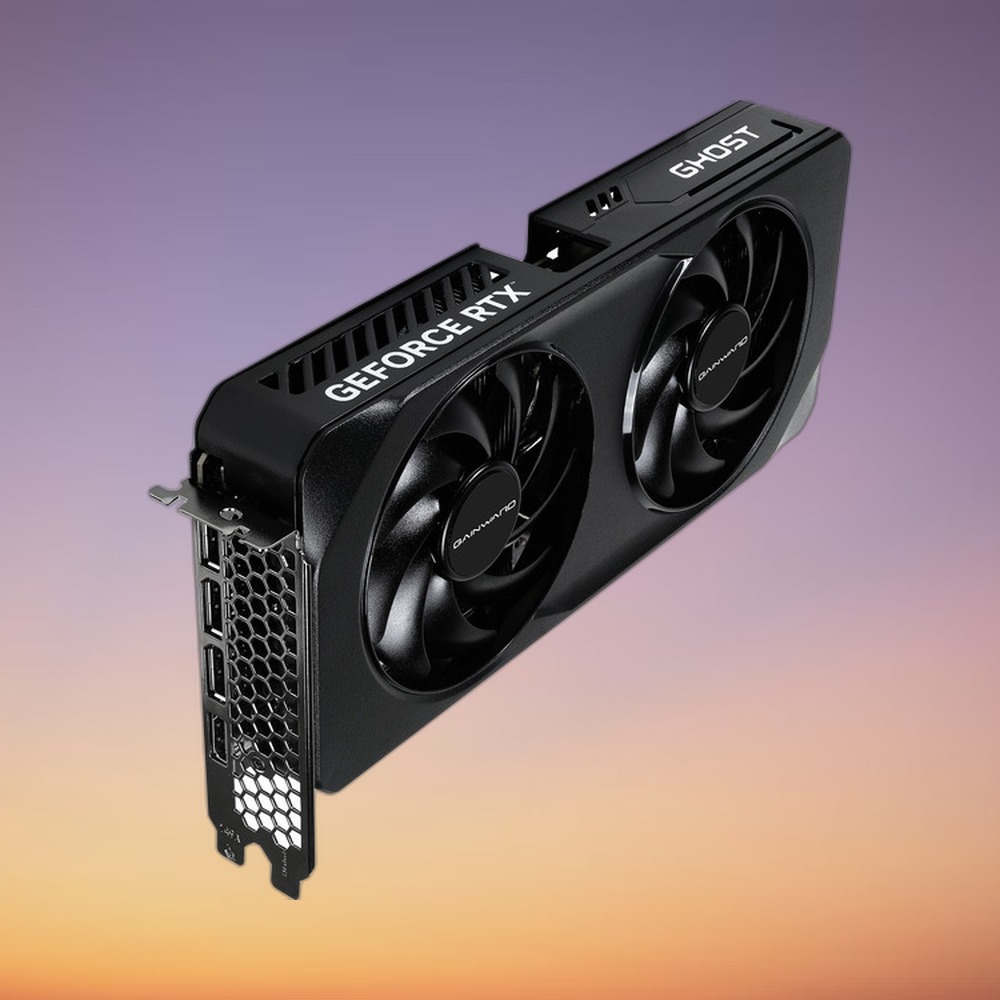

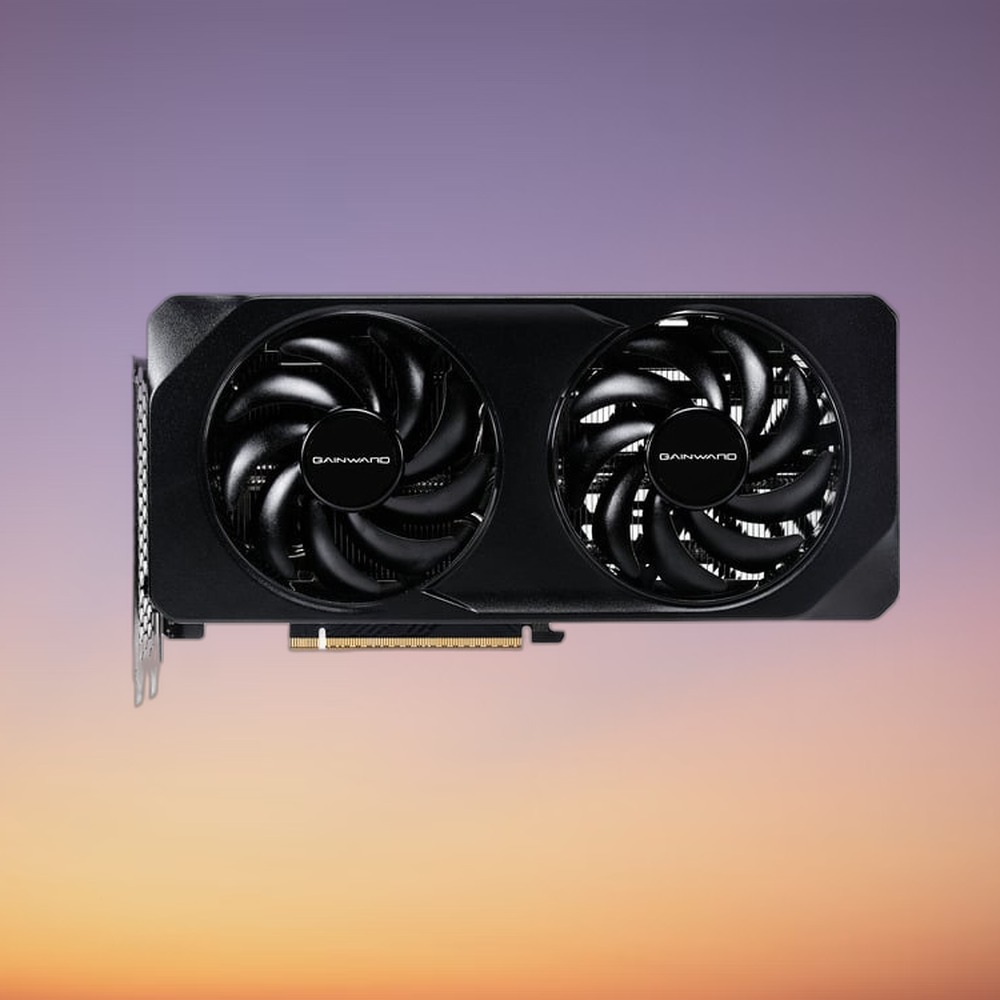

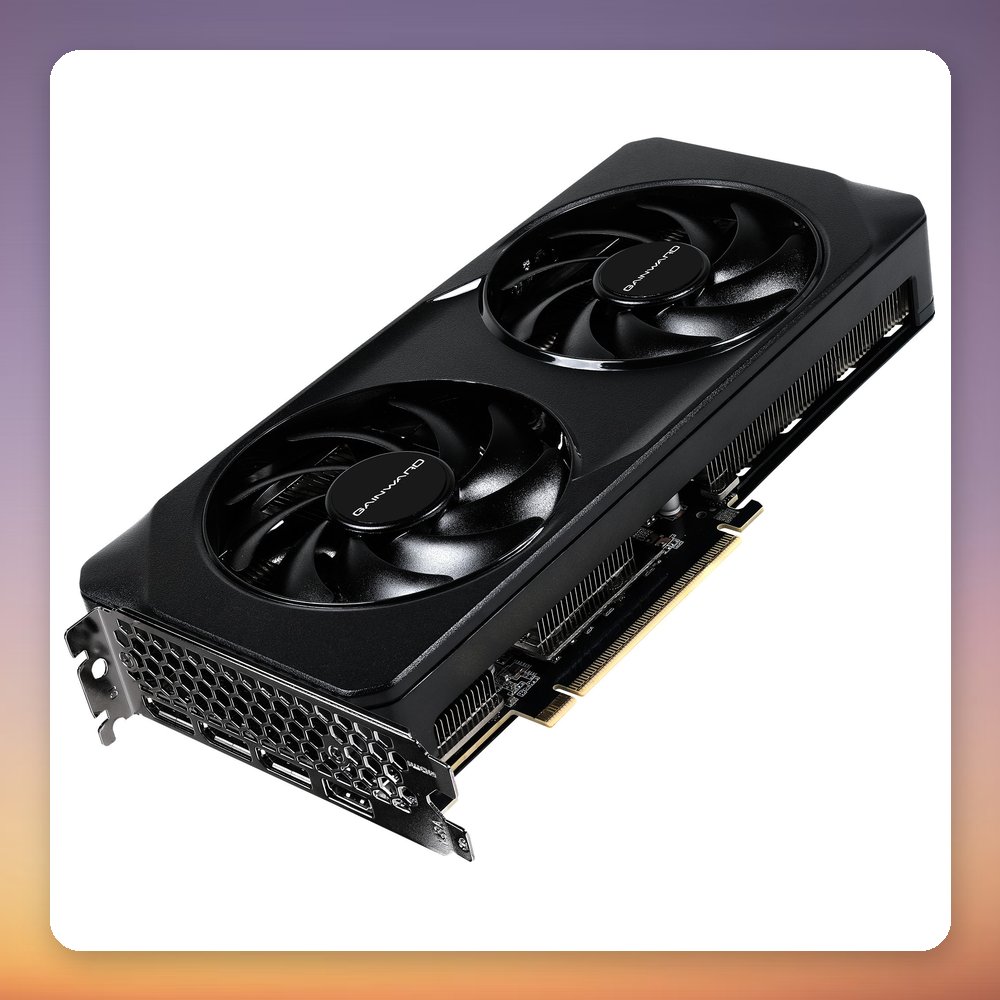

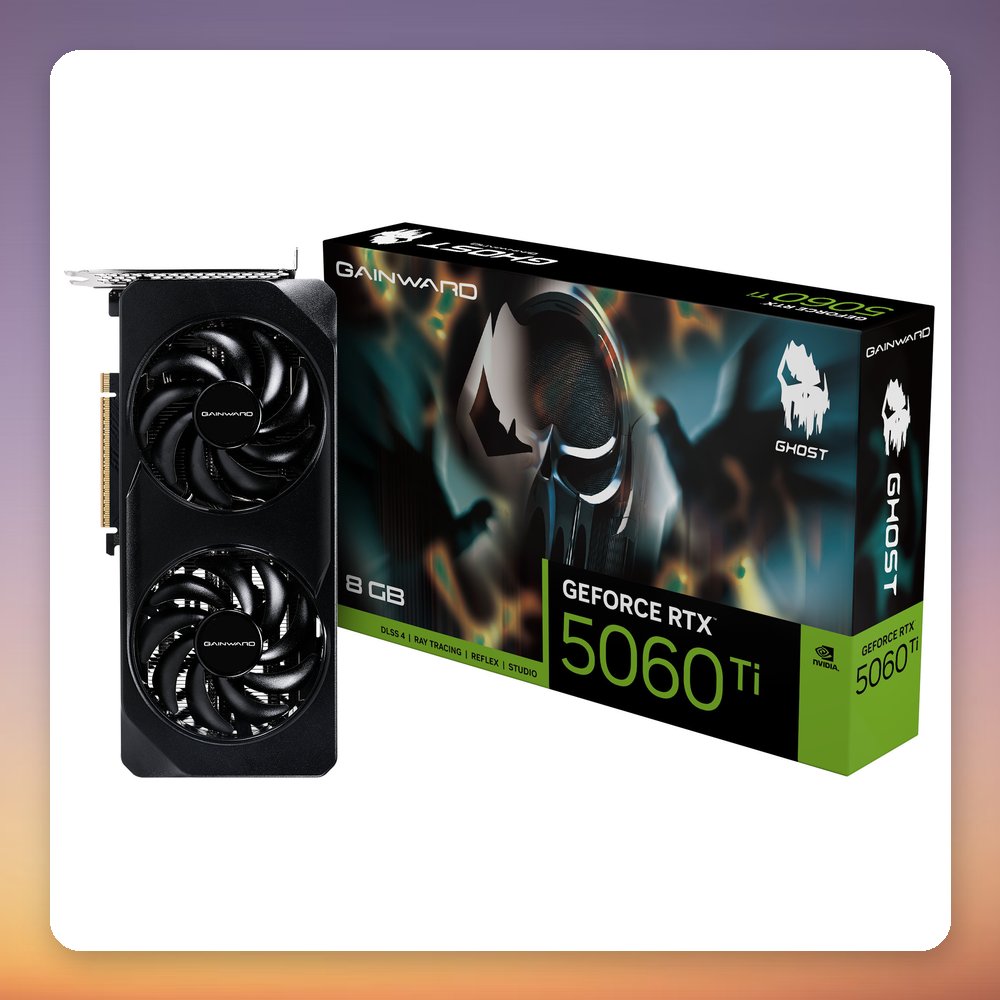

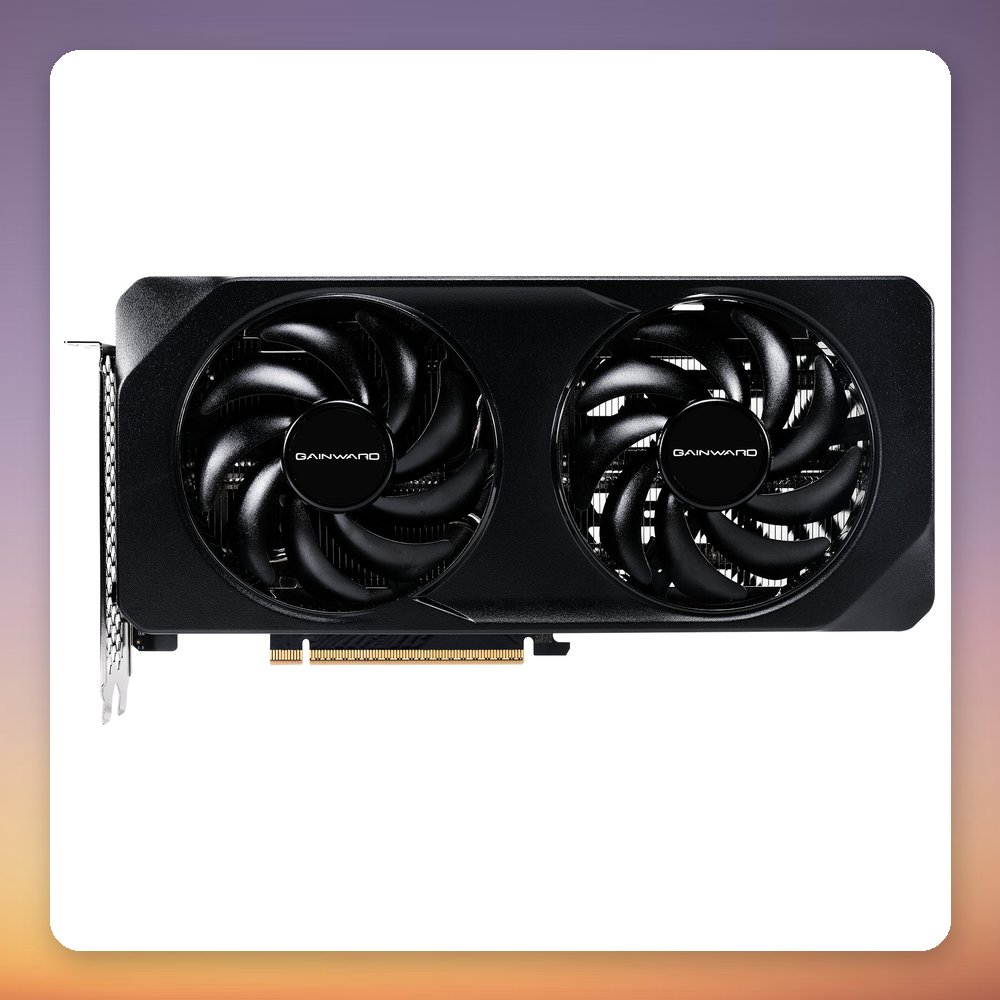

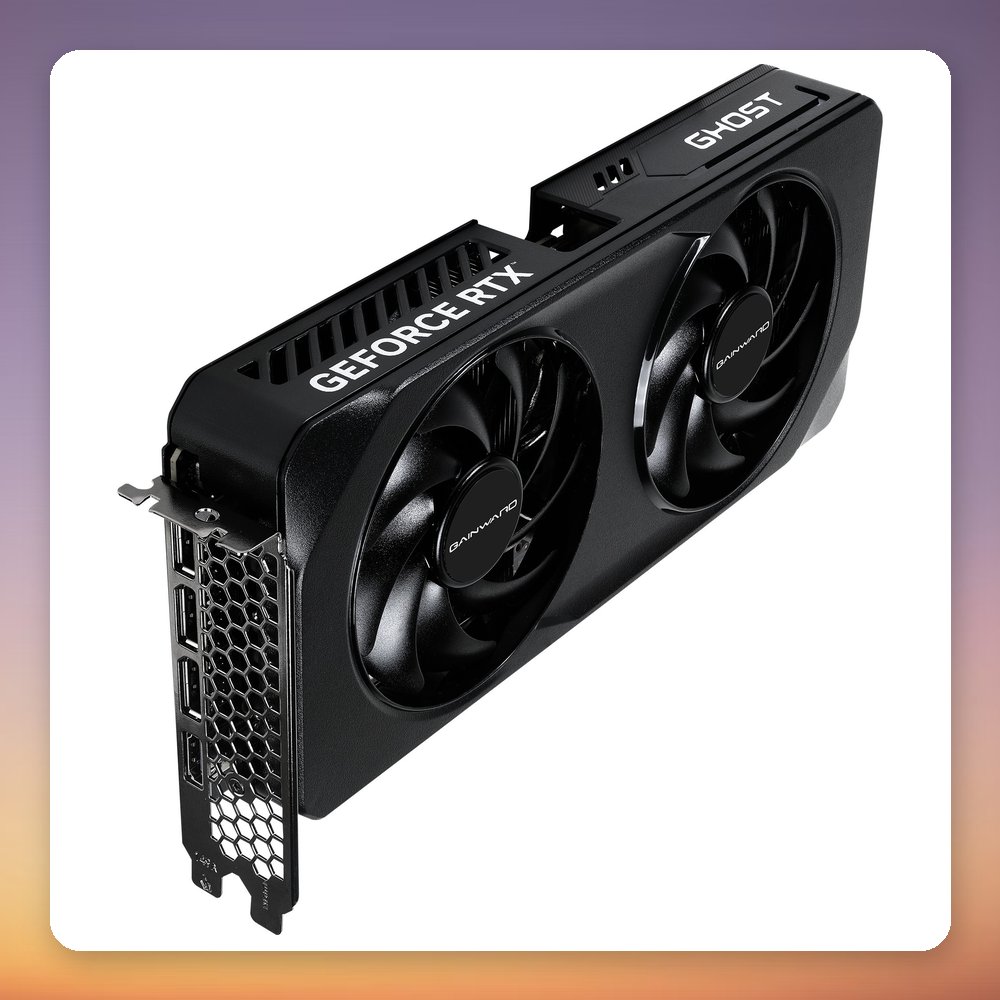

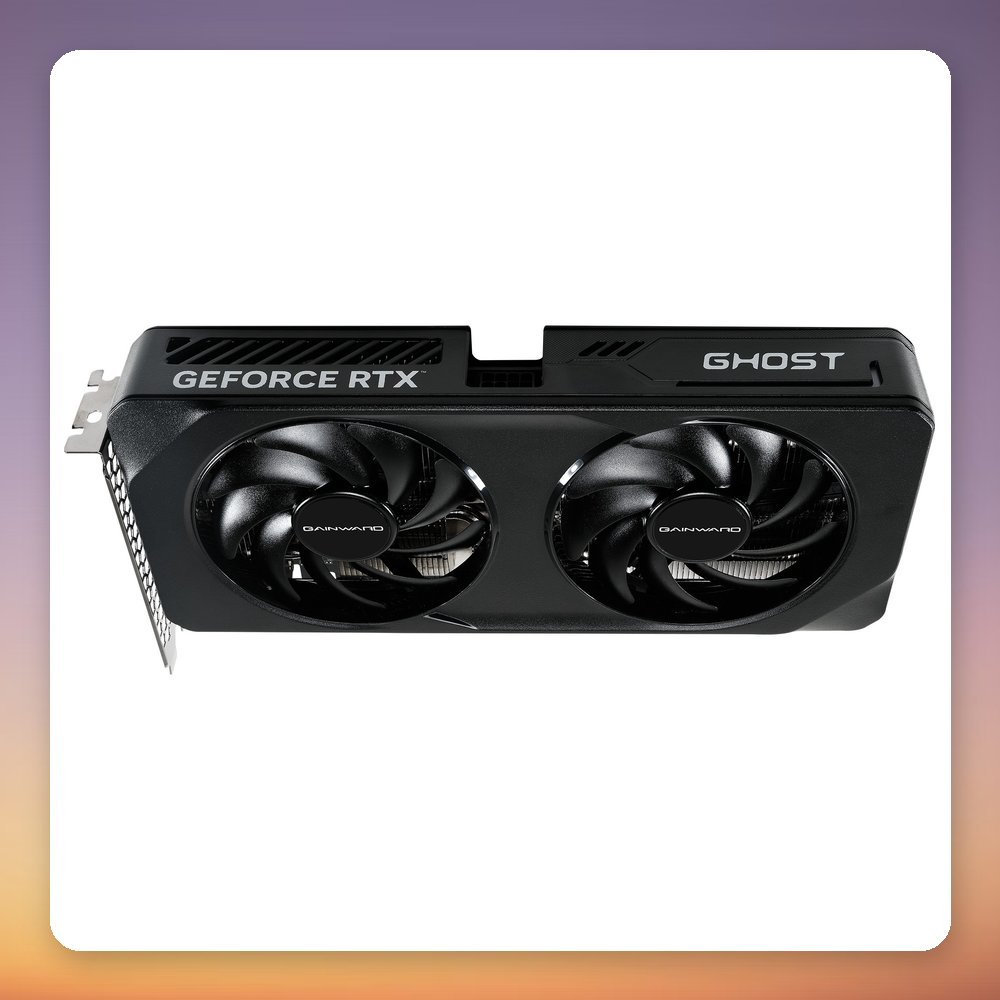

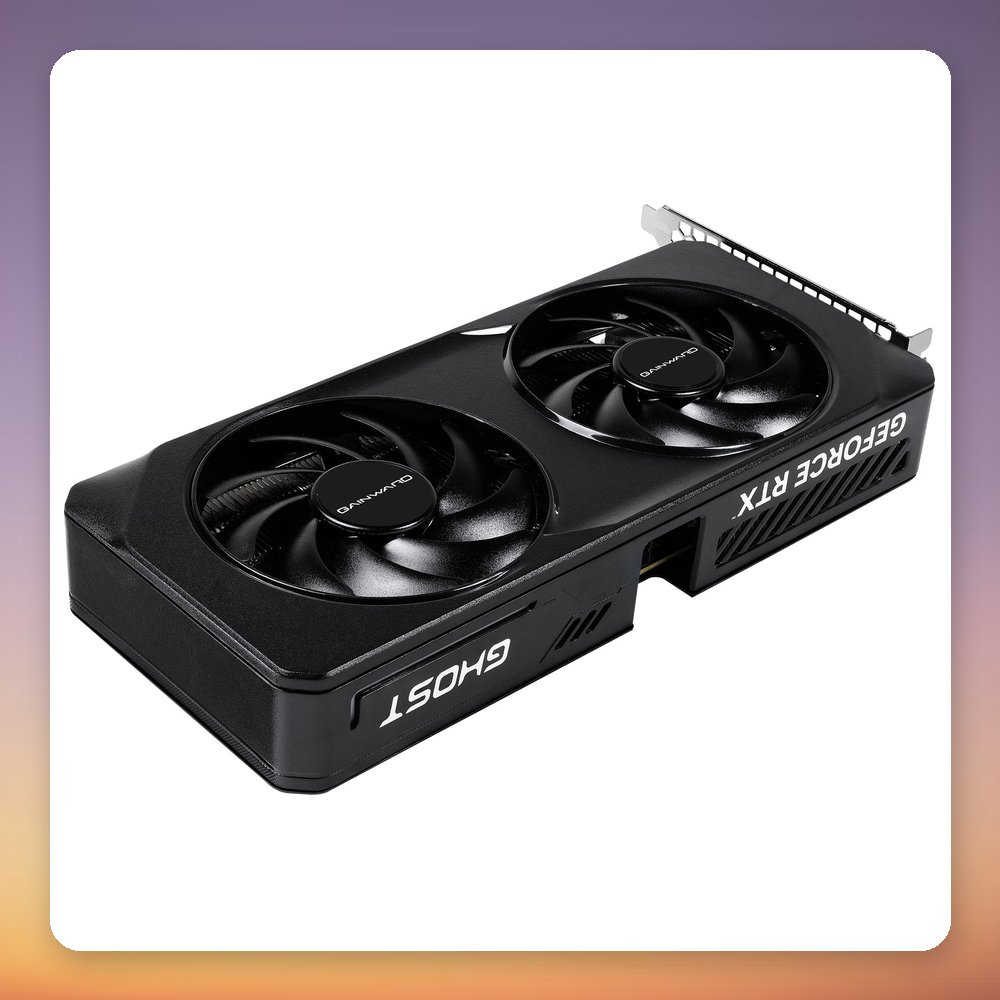

The Gainward GeForce RTX 5060 Ti Ghost 8GB is a graphics card built on NVIDIA’s Blackwell architecture, with 4608 CUDA cores, 8 GB of GDDR7 memory on a 128-bit bus and a boost clock of 2572 MHz. It connects over PCIe 5.0 x16, needs only a single 8-pin (6+2) power connector and supports 4K at 480Hz or 8K at 120Hz with DSC.

This card suits gaming PCs where you want DLSS 5, Multi Frame Generation and real-time ray tracing in a compact two-slot design measuring 262.1 mm in length. It draws an average of 180 W and NVIDIA recommends a power supply of at least 600 W. NVENC Gen 9 and AV1 encoding and decoding also make it useful for streaming and recording with ShadowPlay and NVIDIA Broadcast.

Specification

• Manufacturer: Gainward
• Model: GeForce RTX 5060 Ti Ghost
• MPN: NE7506T019P1-GB2062B
• EAN: 4710562245288
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA Cores: 4608
• Memory: 8 GB GDDR7
• Memory Interface: 128-bit
• Memory Data Rate: 28 Gbps
• Base Clock: 2407 MHz
• Boost Clock: 2572 MHz
• Interface: PCIe 5.0 x16
• Video Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max. Resolution: 4K at 480Hz or 8K at 120Hz with DSC
• Power Connector: 1x 8-pin (6+2)
• Average Power Consumption: 180 W
• Minimum PSU: 600 W
• Slot Width: 2 slots
• Dimensions (W x H x D): 126.3 x 40.1 x 262.1 mm
