Product Overview

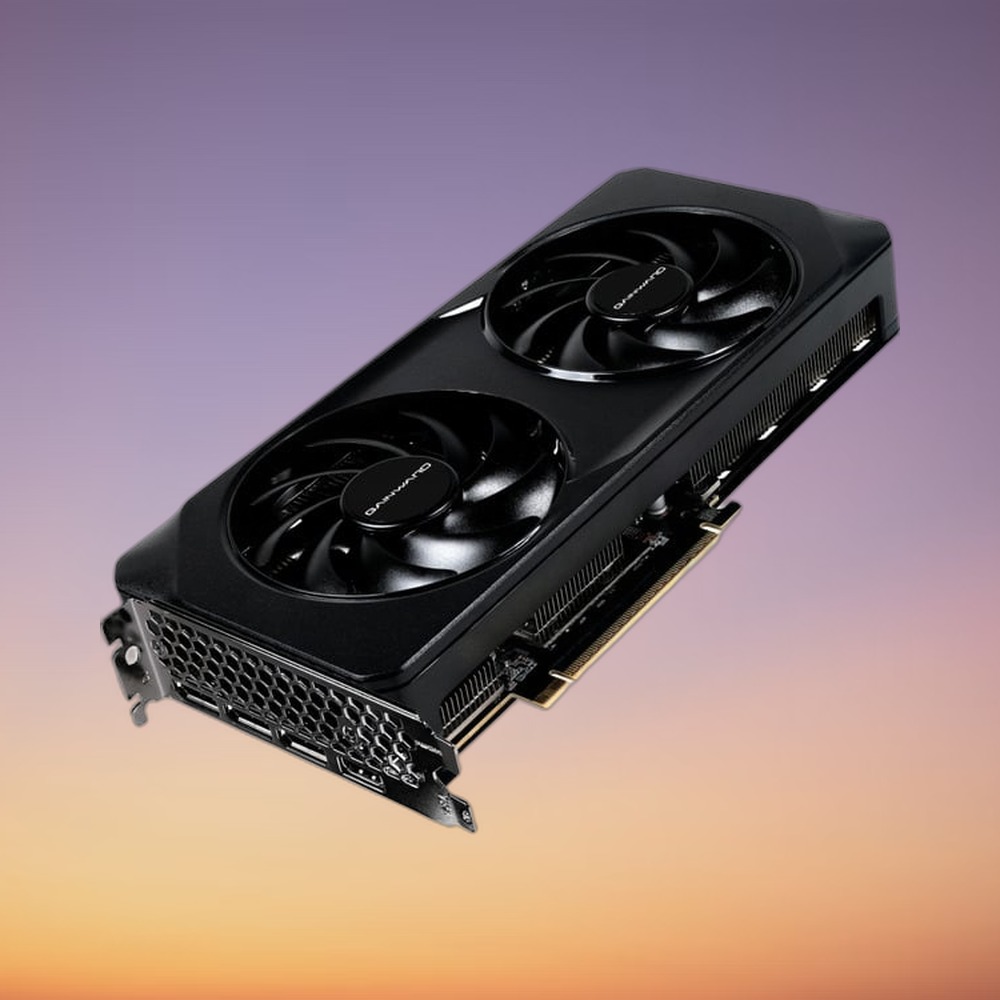

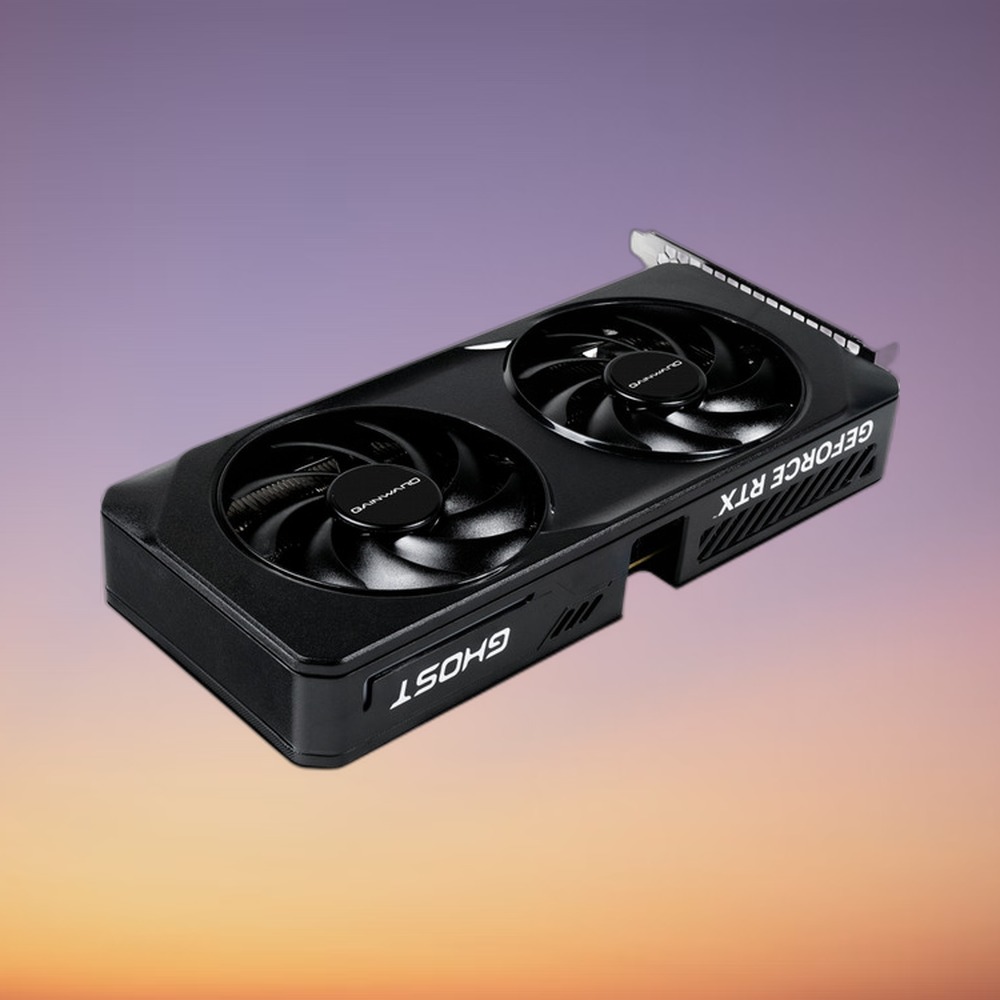

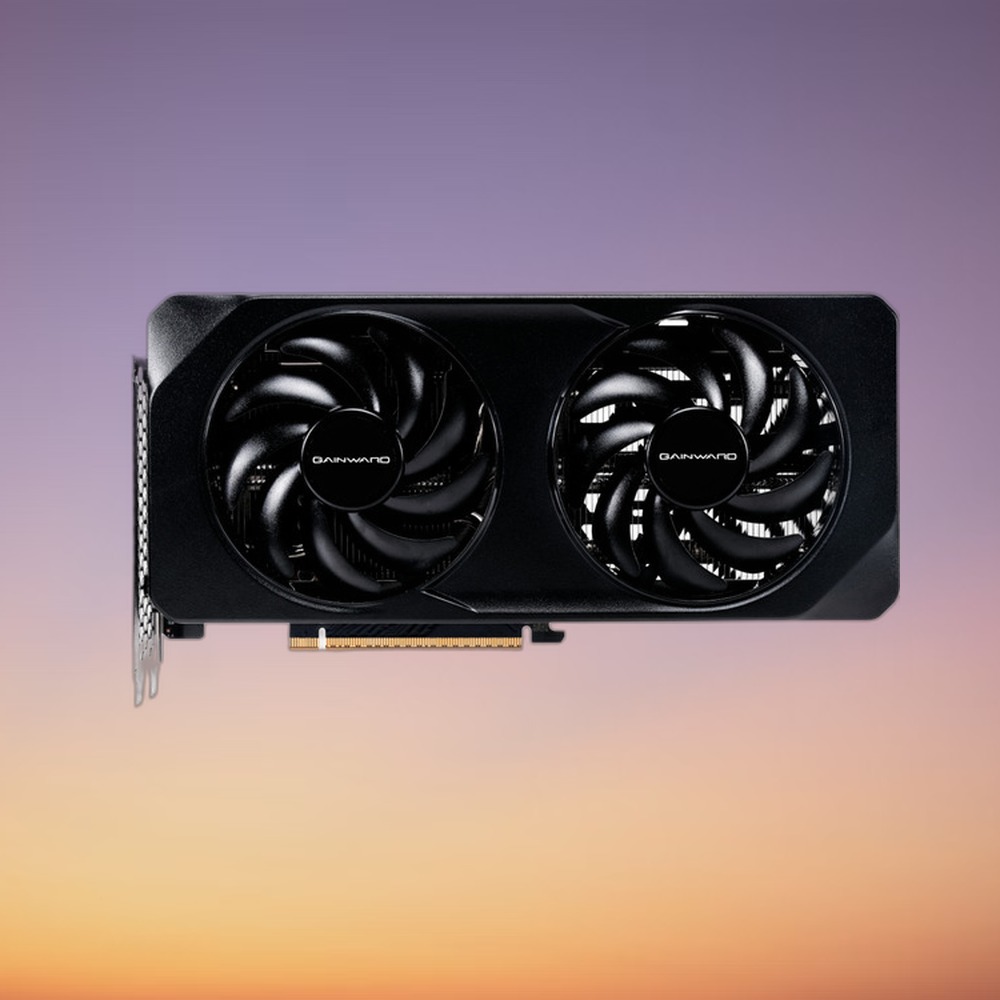

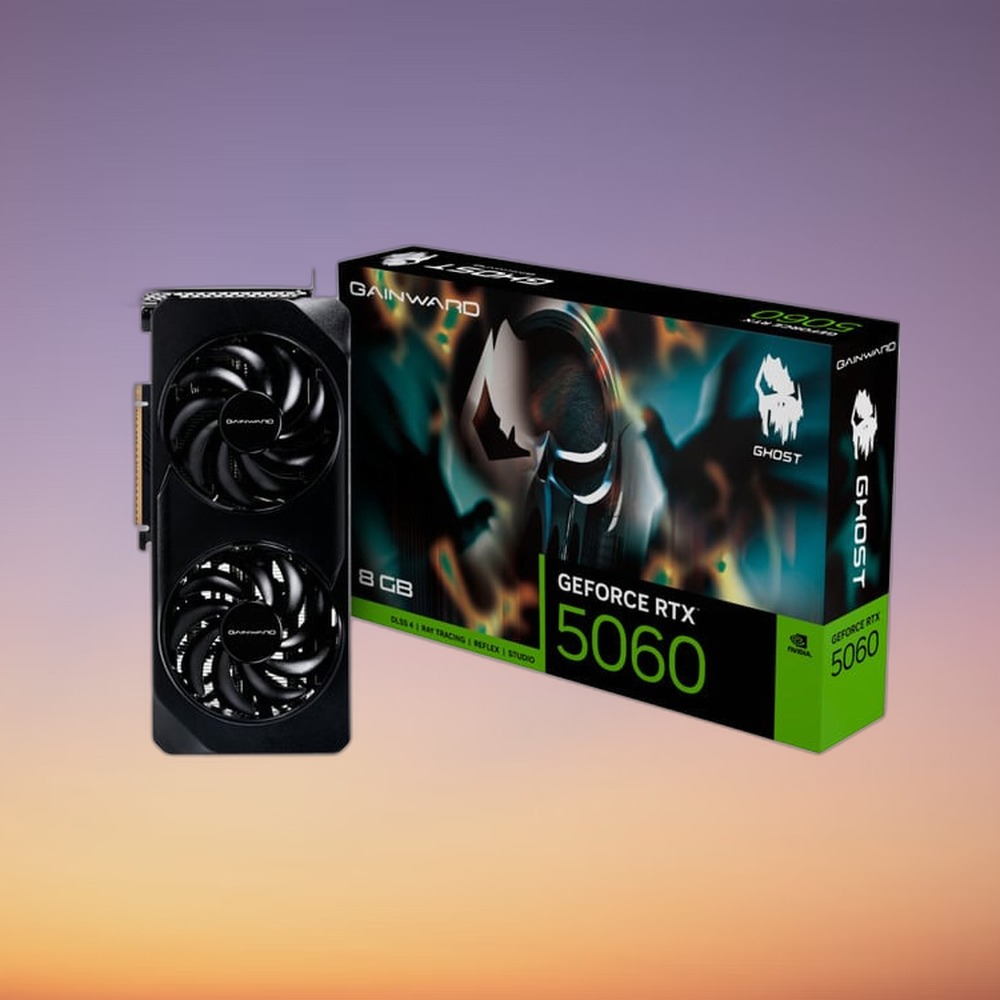

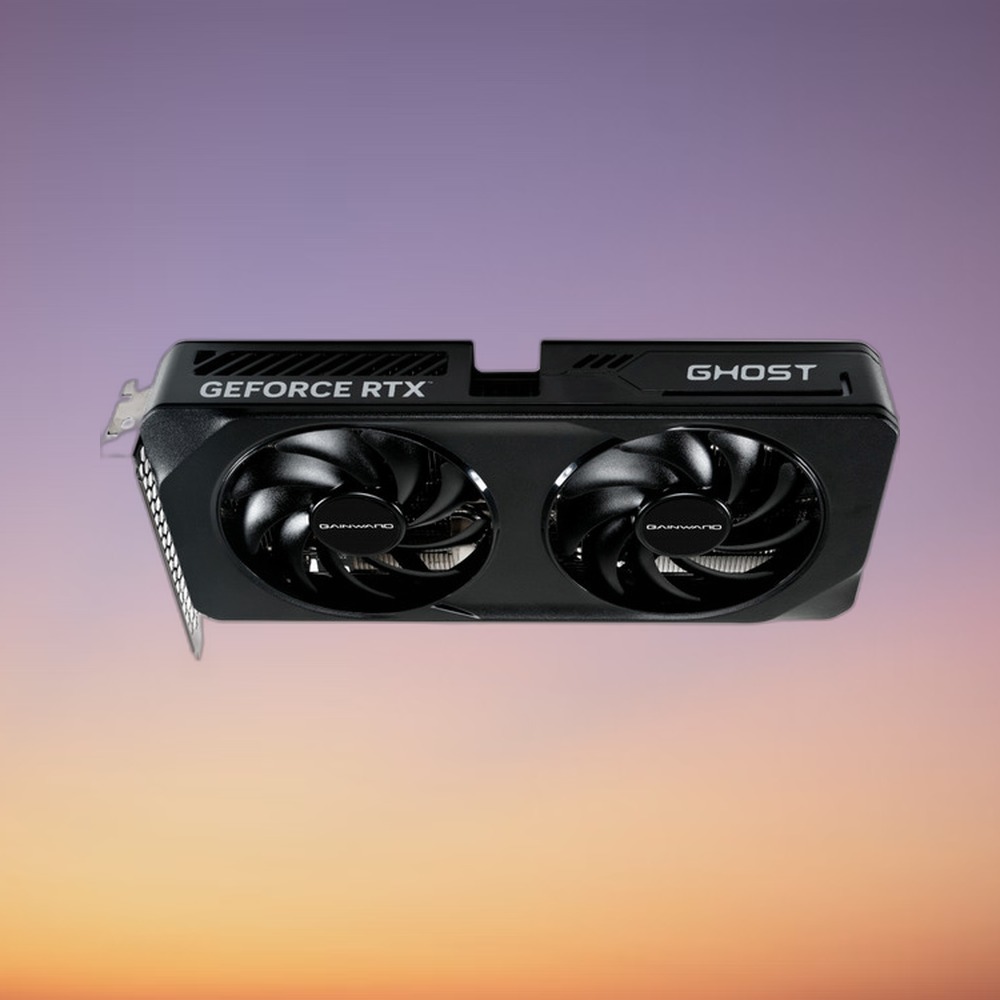

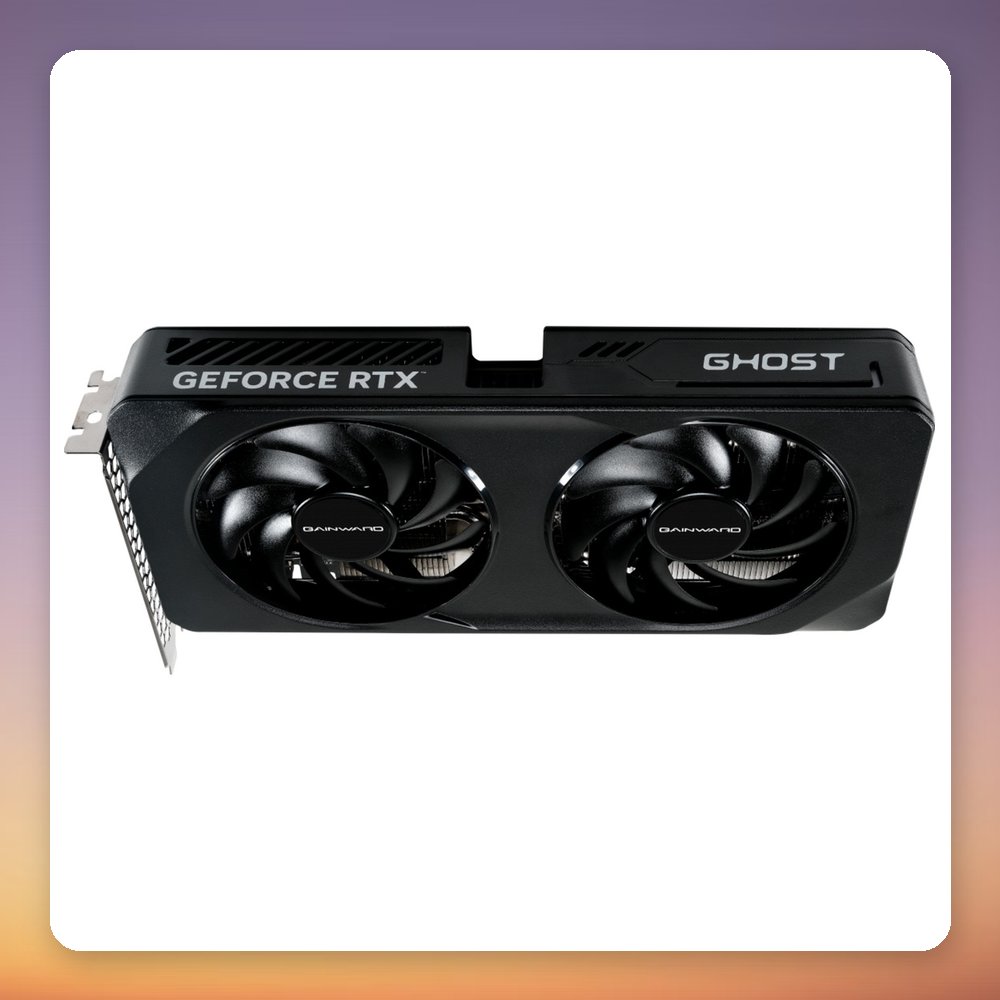

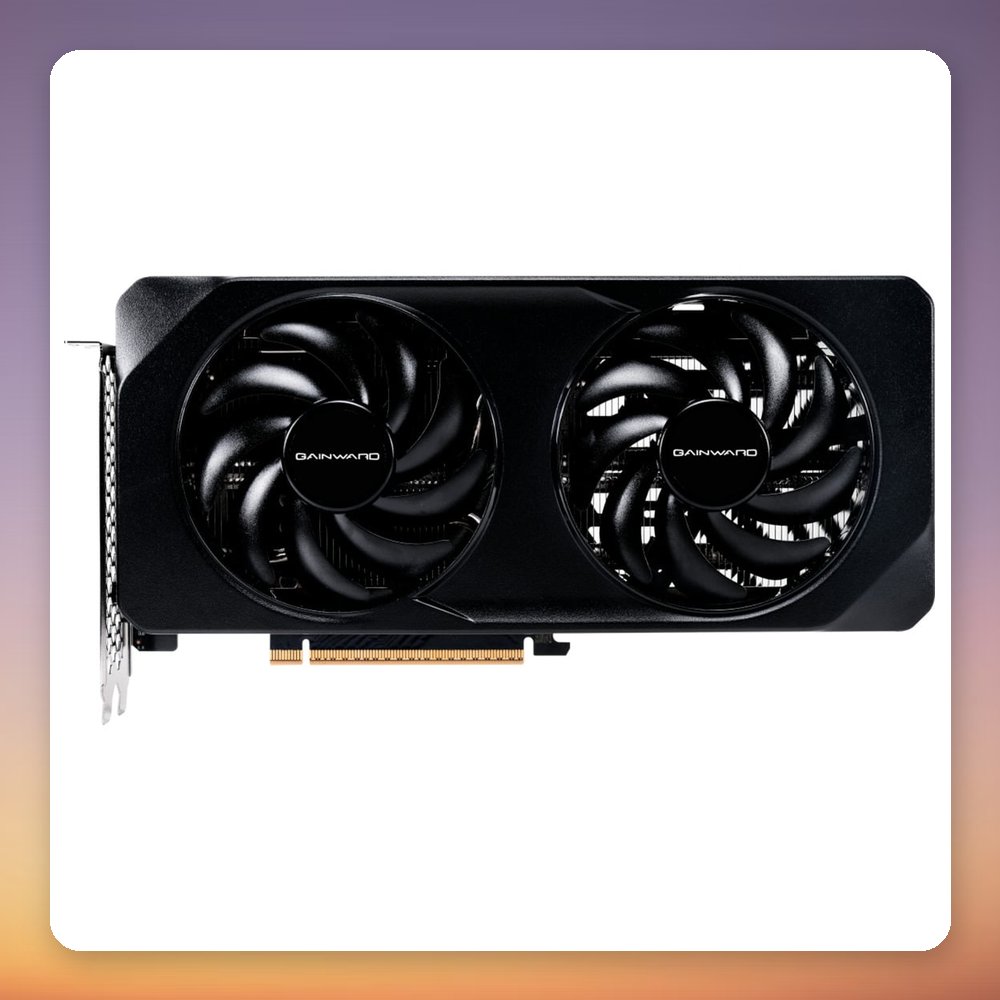

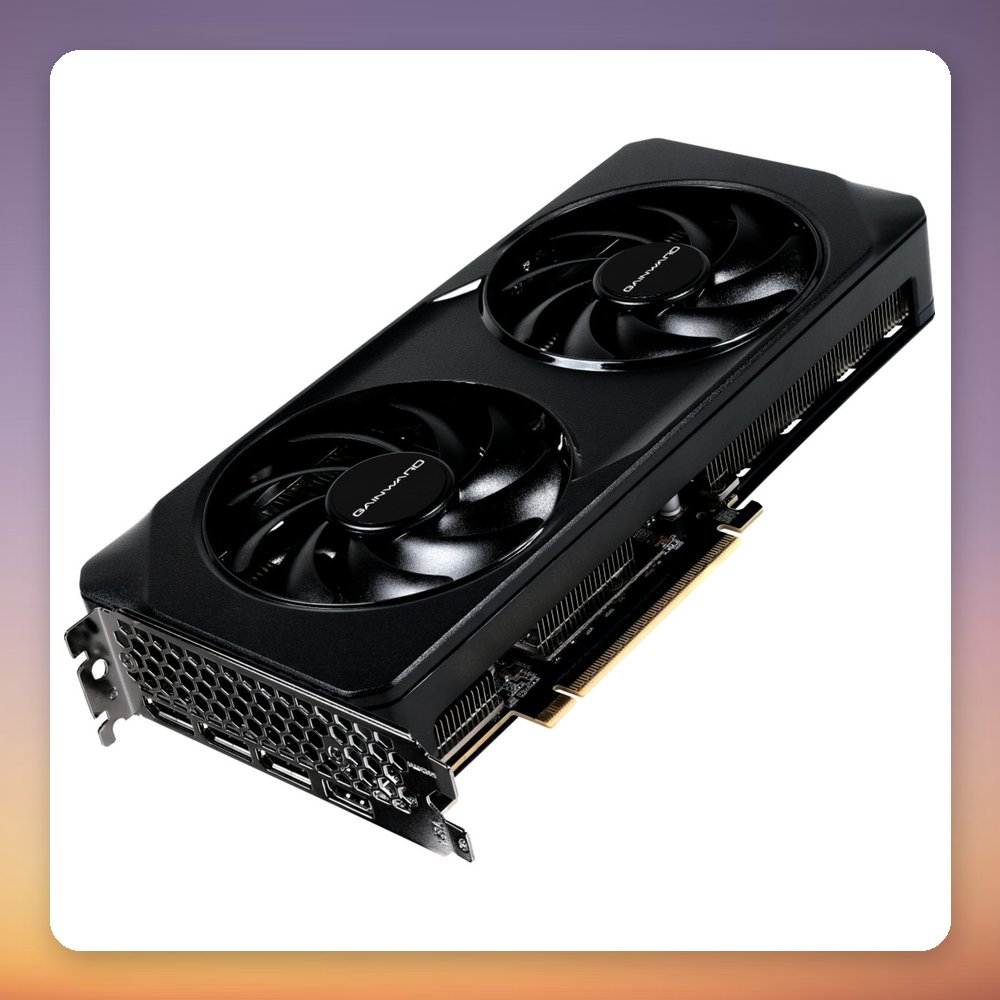

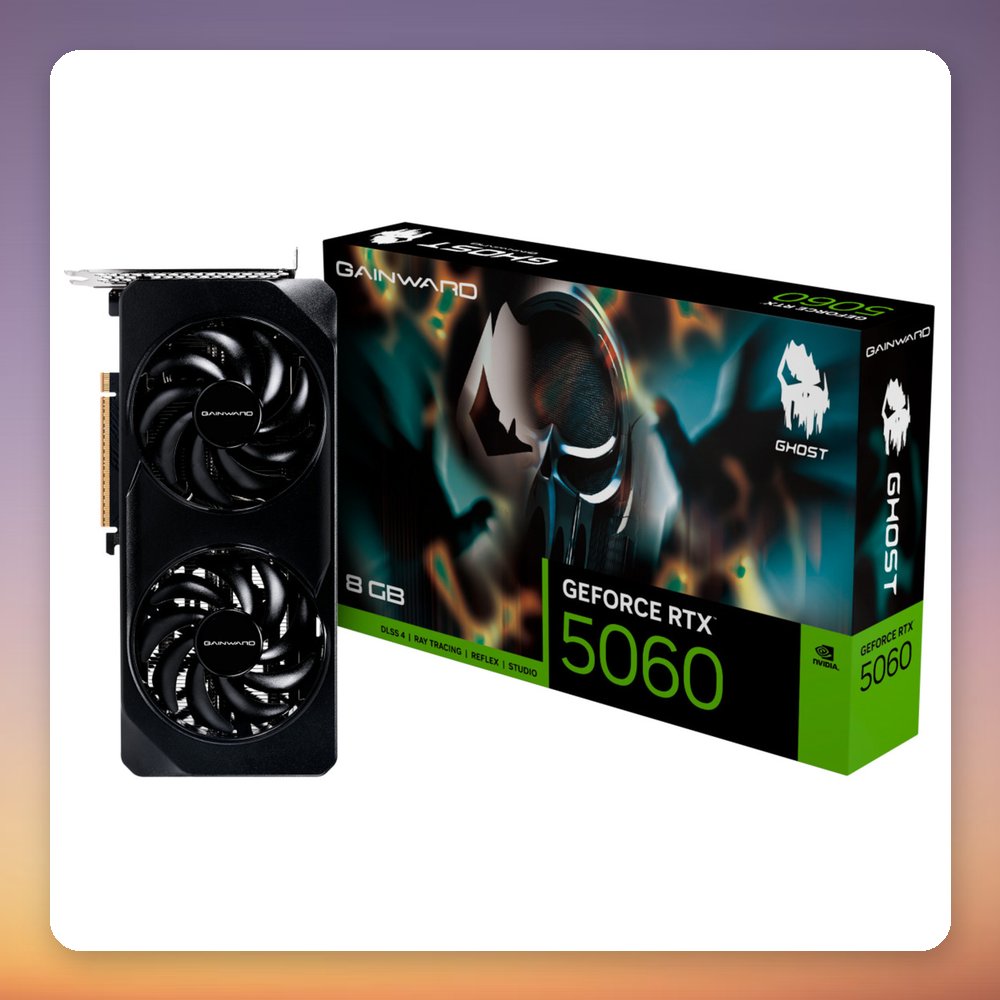

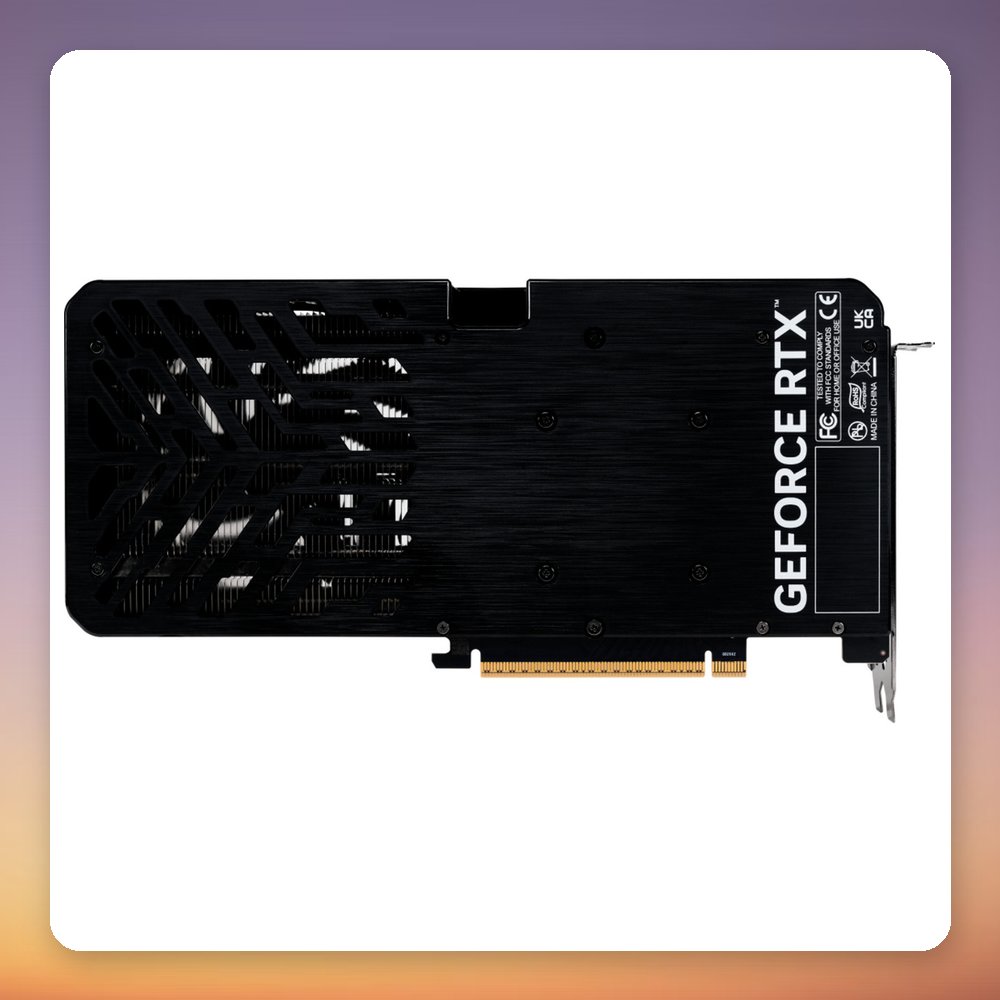

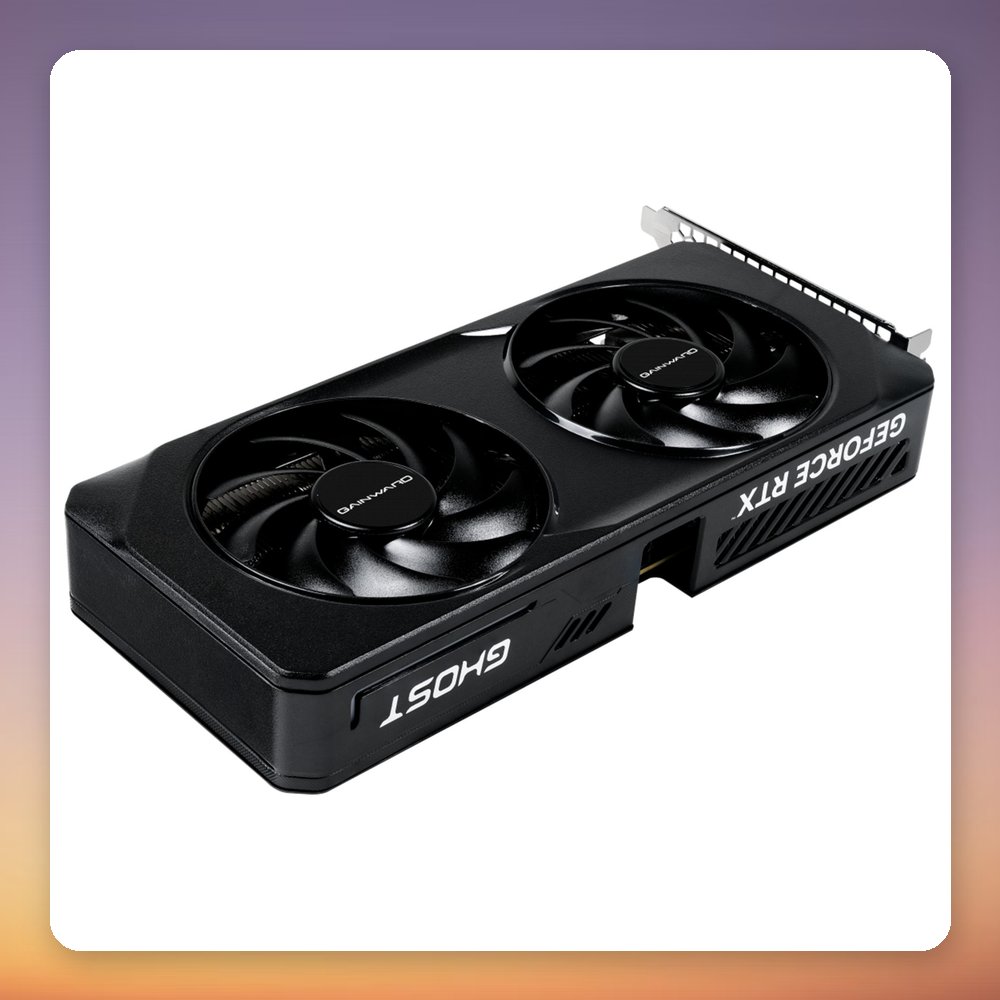

The Gainward GeForce RTX 5060 Ghost 8 GB is a graphics card built on the NVIDIA GeForce RTX 5060 GPU with the Blackwell architecture. It combines 3840 CUDA cores with 8 GB of GDDR7 memory on a 128-bit bus, giving 448 GB/s of memory bandwidth, and runs at a boost clock of up to 2497 MHz. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b.

It suits 1080p and 1440p gaming builds that want NVIDIA features such as DLSS, Multi Frame Generation, Reflex 2, fourth-generation ray tracing cores and AV1 encoding and decoding. It uses a single 8-pin power connector with a 145 W average power draw and needs a PSU of at least 550 W. At 262.1 mm long and two slots wide, it fits many compact cases.

Specification

• Manufacturer: Gainward
• Model: GeForce RTX 5060 Ghost
• MPN: NE75060019P1-GB2063B
• EAN: 4710562245387
• GPU: NVIDIA GeForce RTX 5060
• Boost clock: 2497 MHz
• CUDA cores: 3840
• Memory: 8 GB GDDR7
• Memory interface: 128-bit
• Memory speed: 28 Gbps
• Memory bandwidth: 448 GB/s
• Interface: PCIe 5.0 x16
• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Max. resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Power connector: 1x 8-pin (6+2)
• Average power consumption: 145 W
• Minimum PSU: 550 W
• Slots occupied: 2
• Cooling: Fan cooling
• Dimensions (W x H x D): 126.3 x 40.1 x 262.1 mm
