Product Overview

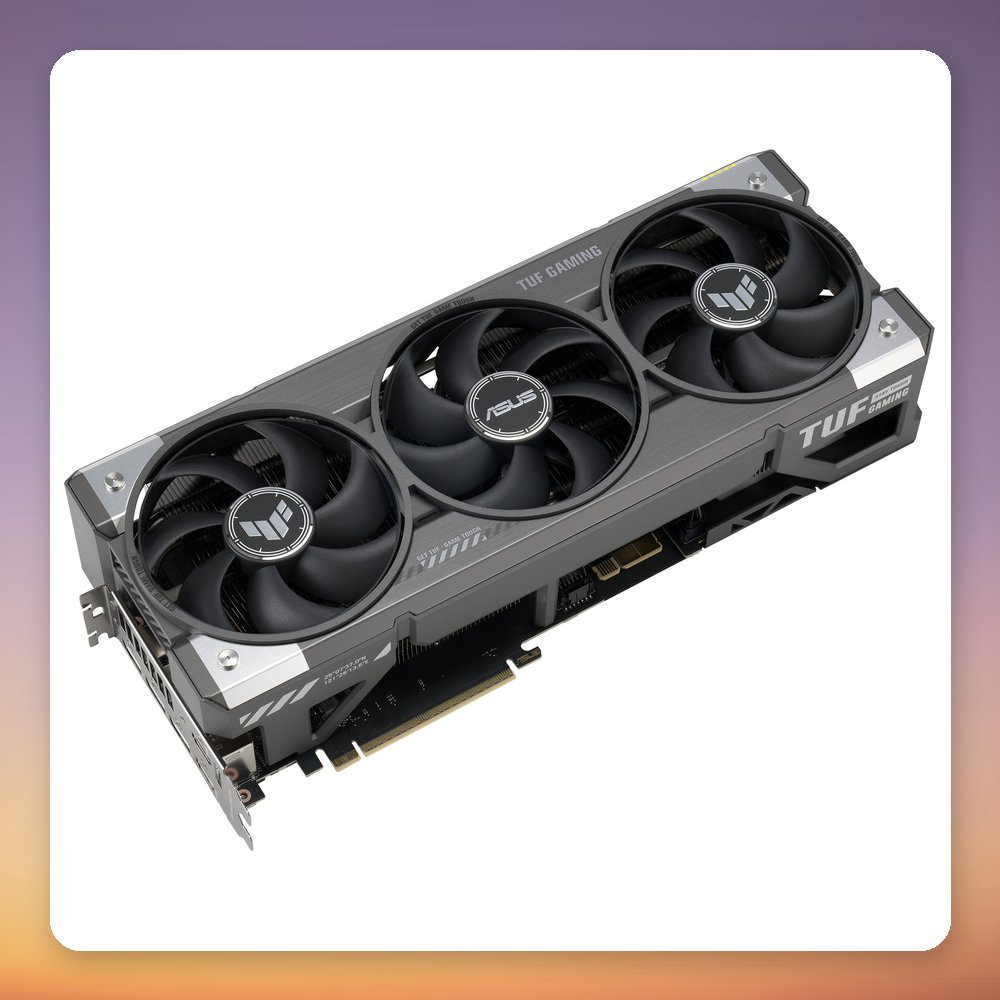

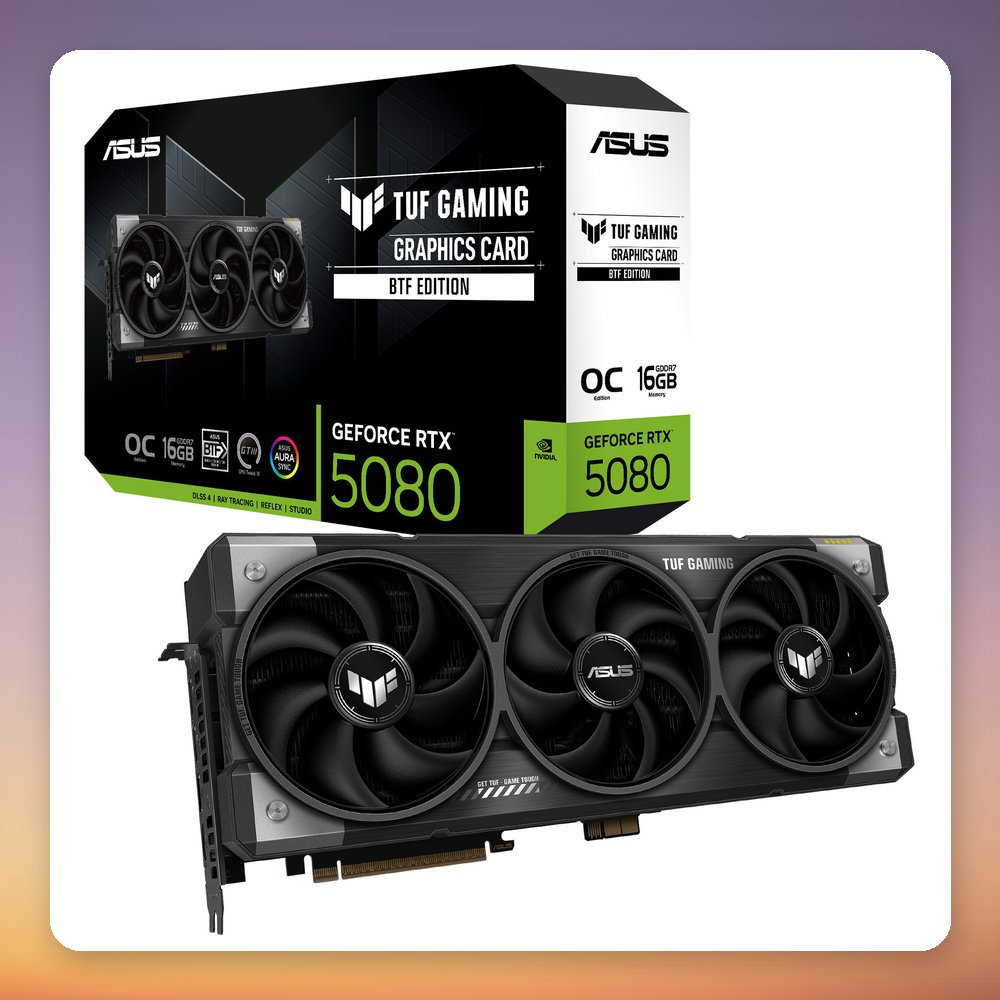

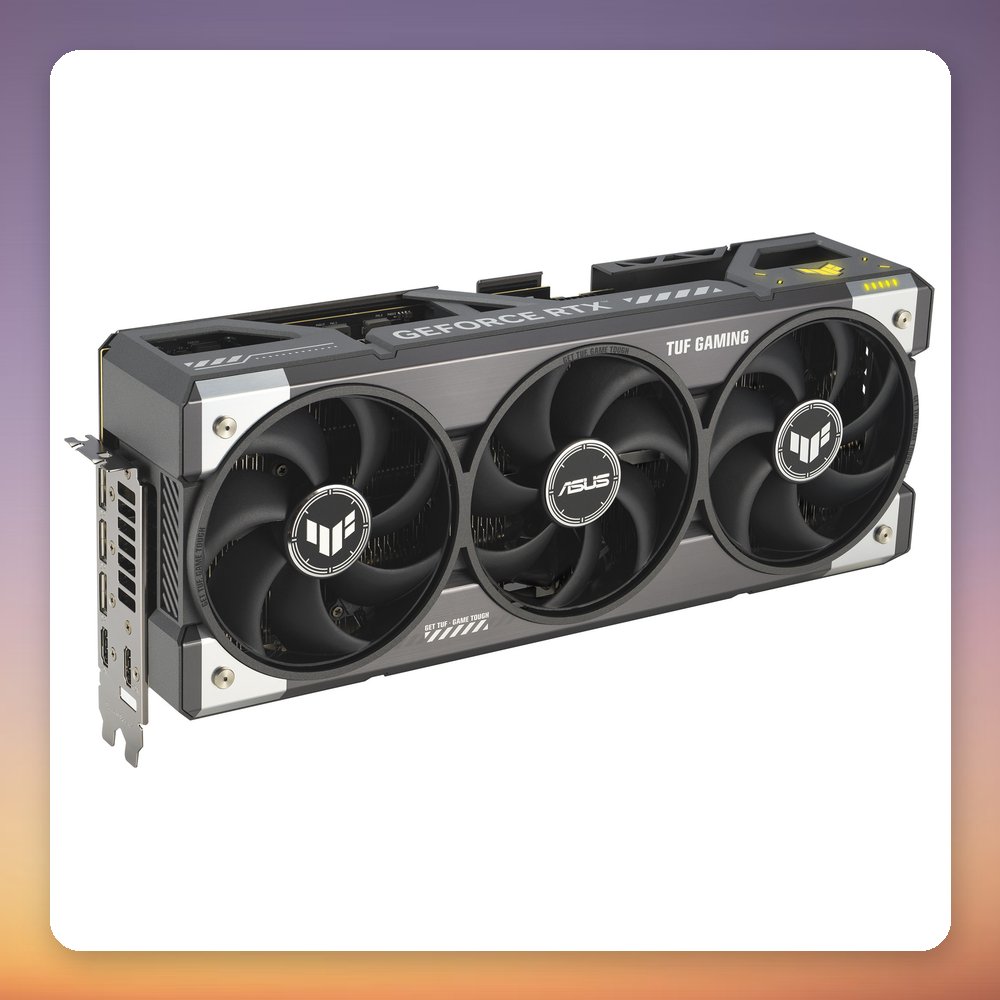

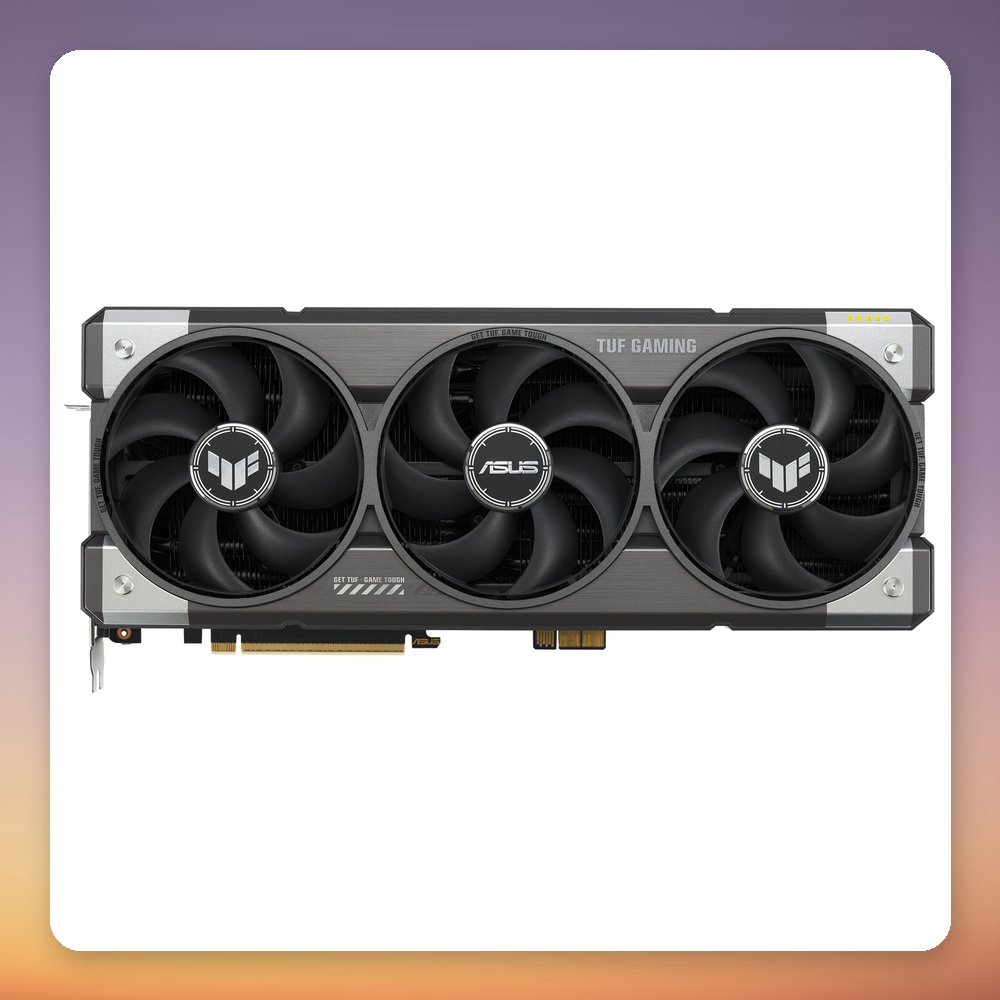

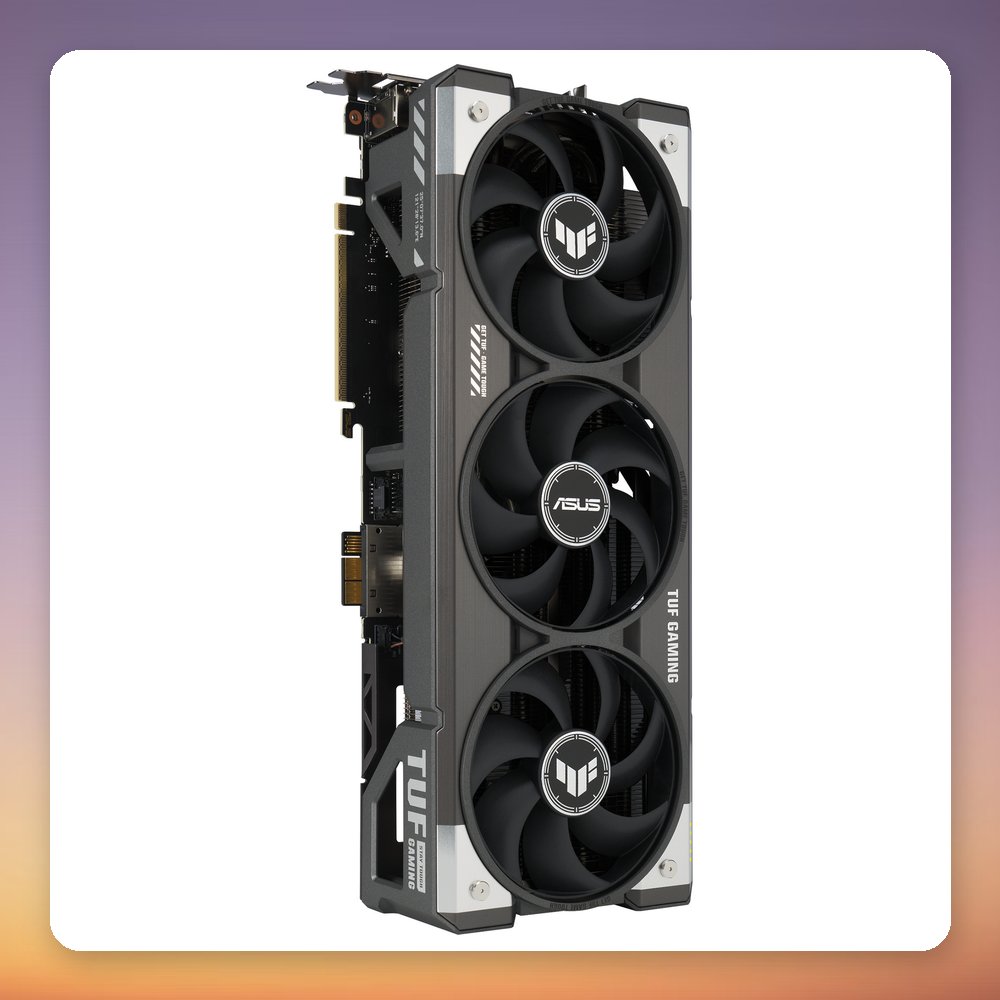

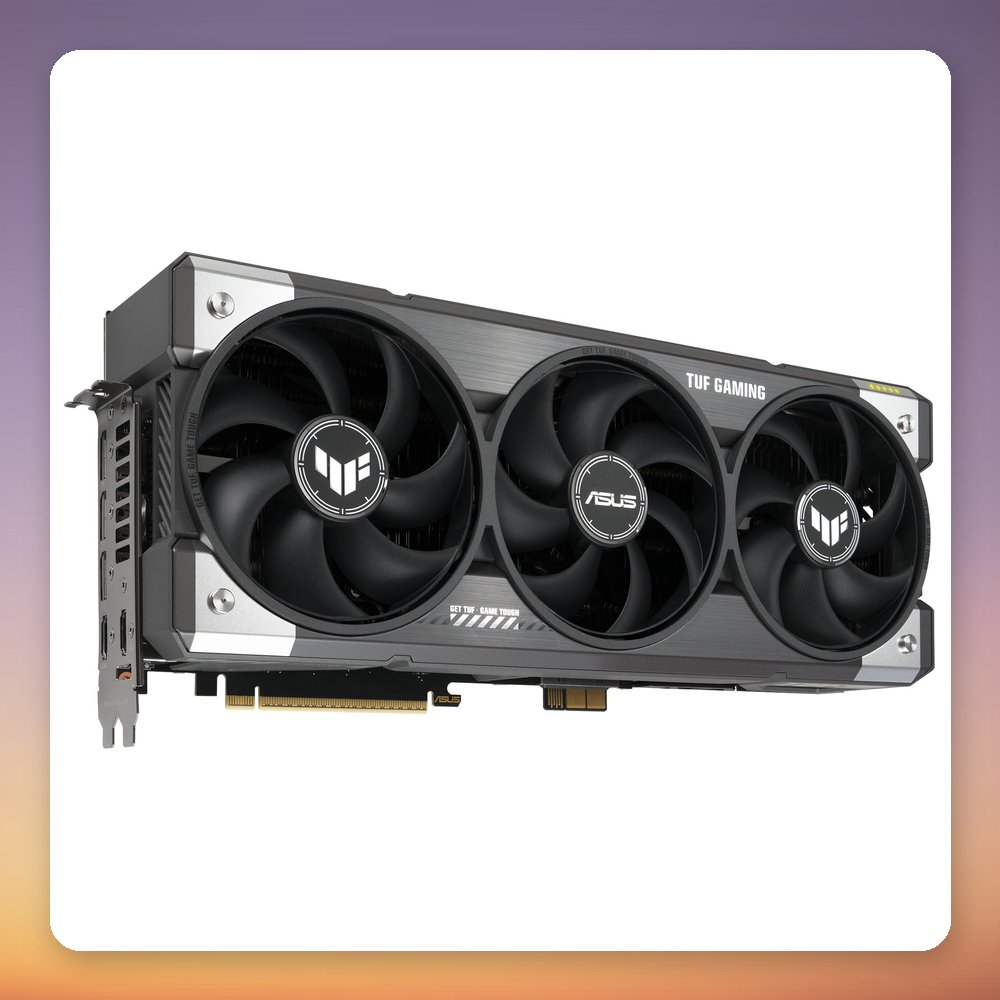

The ASUS TUF Gaming GeForce RTX 5080 OC BTF graphics card is built on NVIDIA’s Blackwell architecture with 10,752 CUDA cores and 16 GB of GDDR7 memory on a 256-bit bus. It is factory overclocked, with a boost clock of 2,730 MHz in OC mode (2,700 MHz standard). The BTF design moves the power connector to the bottom of the card, and it uses ASUS Axial-tech cooling with three fans.

This card suits high-end gaming builds at 4K, with outputs of 3x DisplayPort 2.1b and 2x HDMI 2.1b, and support for up to 4K at 480 Hz or 8K at 120 Hz with DSC. It also supports DLSS 5, Reflex 2 and AV1 encoding and decoding. It needs an 850 W minimum power supply with either a native 16-pin connector or 3x 8-pin PCIe for the supplied adapter. The detachable GC-HPWR adapter means it works with both standard and BTF motherboards.

Specification

• Manufacturer: Asus
• Model: TUF Gaming GeForce RTX 5080 OC BTF Edition
• MPN: 90YV0PU0-M0NA00
• EAN: 47116366093400
• GPU: NVIDIA GeForce RTX 5080
• CUDA cores: 10,752
• Memory: 16 GB GDDR7, 256-bit
• Boost clock: 2,700 MHz (2,730 MHz in OC mode)
• Interface: PCI Express 5.0 x16
• Video outputs: 3x DisplayPort 2.1b, 2x HDMI 2.1b
• Power connector: 1x 16-pin (12VHPWR), on bottom of card
• Recommended PSU: 850 W minimum
• Average power consumption: 360 W
• Cooling: ASUS Axial-tech, 3 fans
• Slots occupied: 3.6
• Dimensions (W x H x D): 147 x 72 x 348 mm
• Weight: 1.9 kg
• Included accessories: Power adapter, TUF GPU holder, TUF Velcro hook and loop strap
