Product Overview

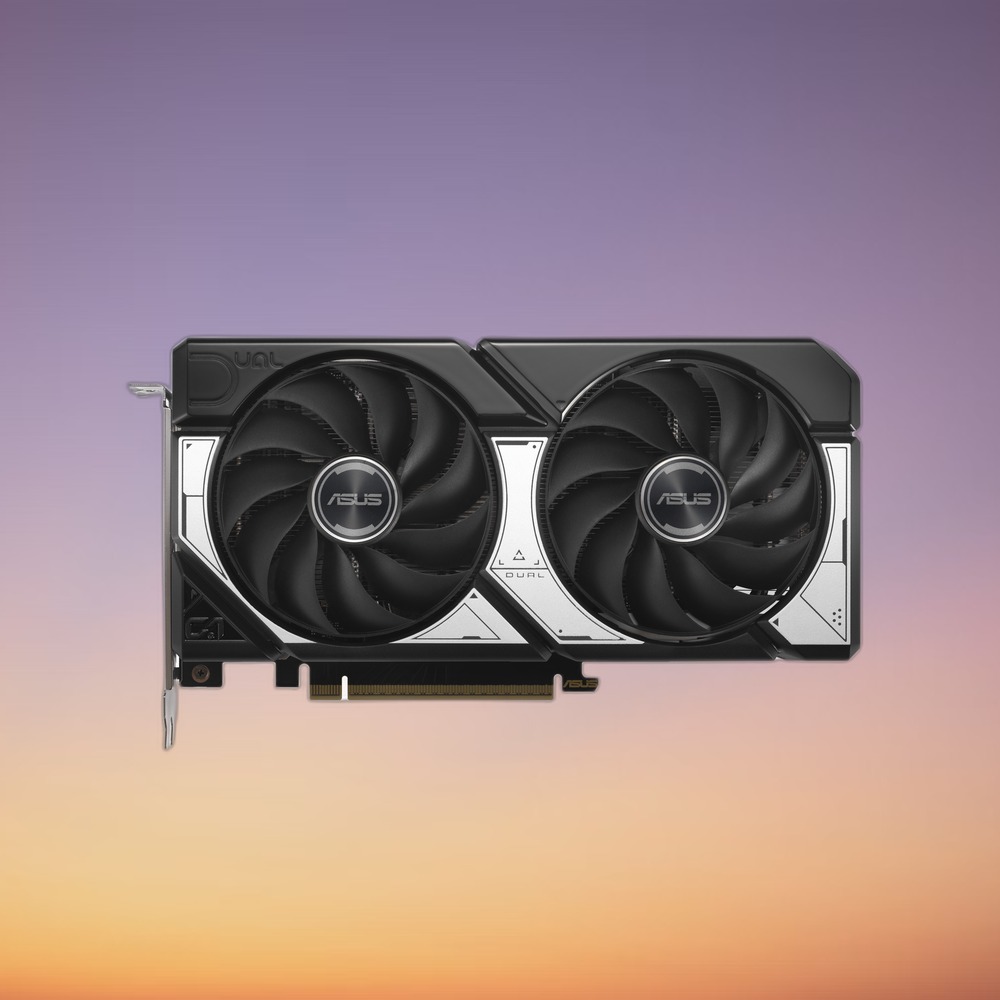

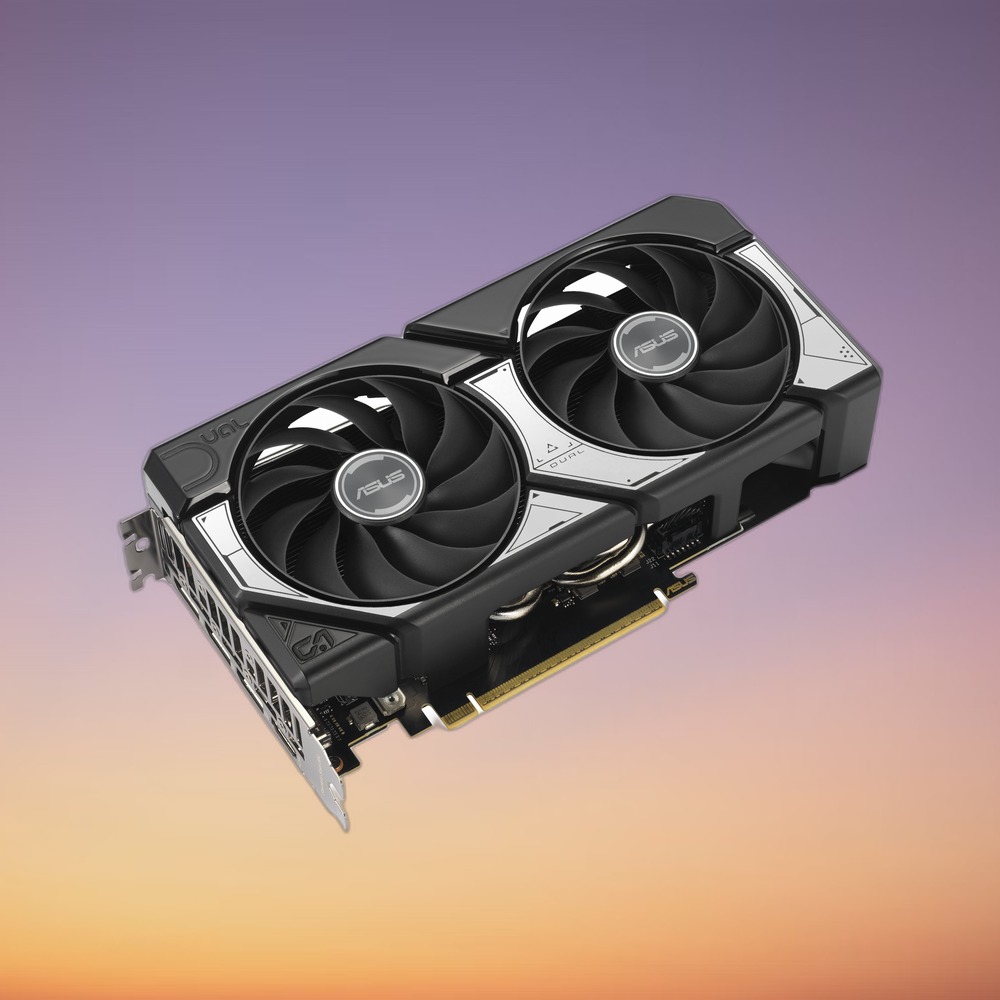

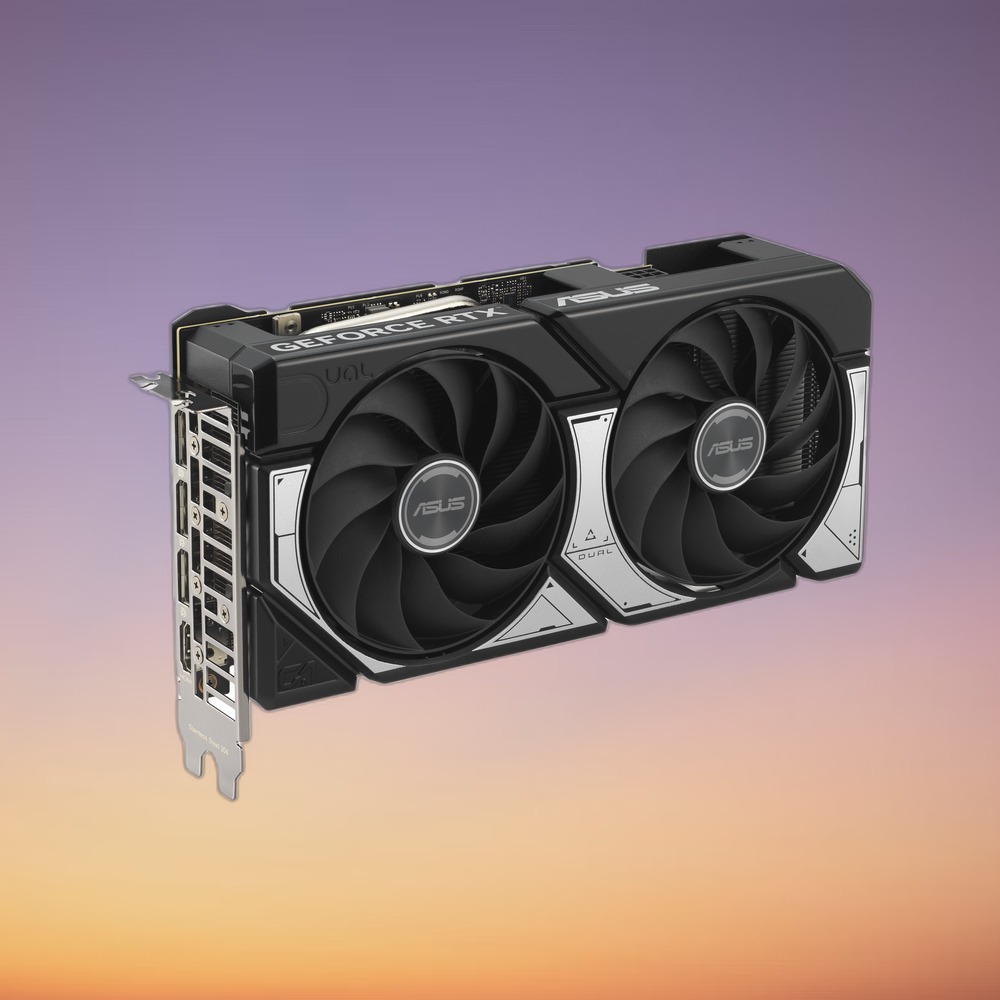

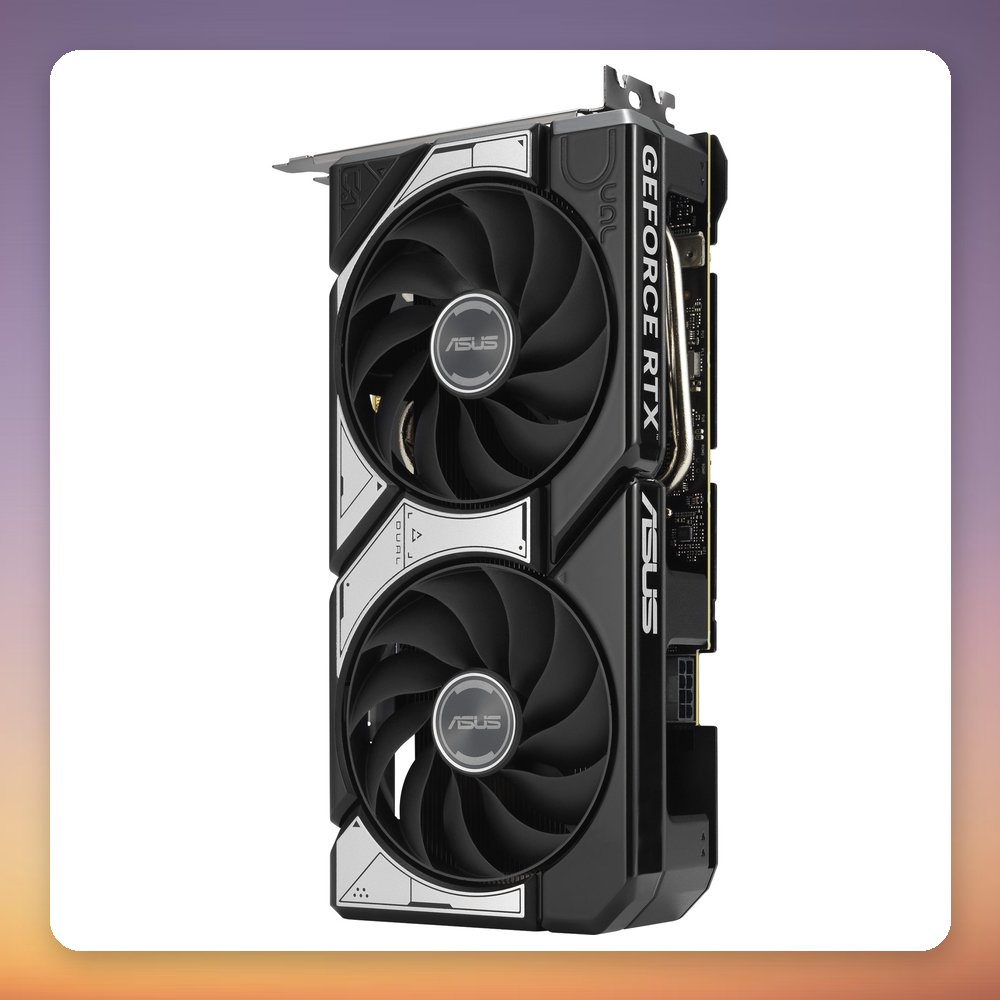

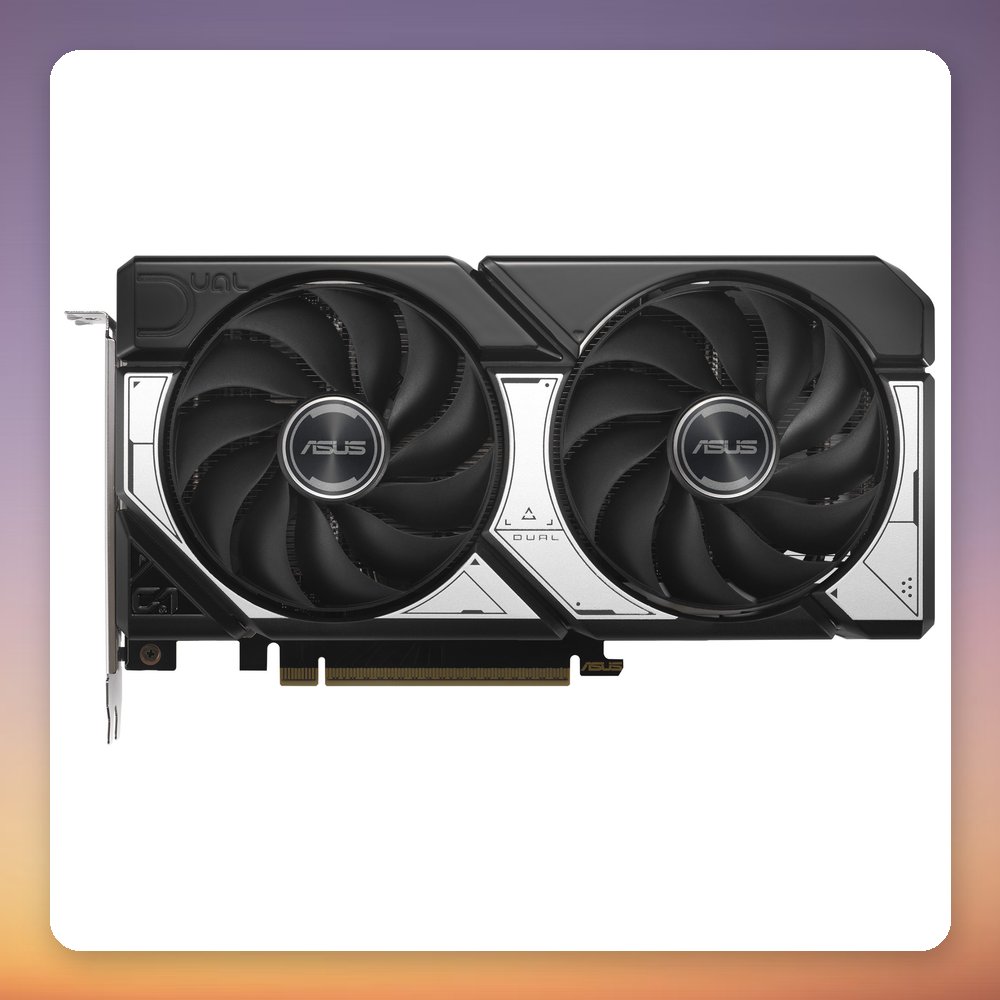

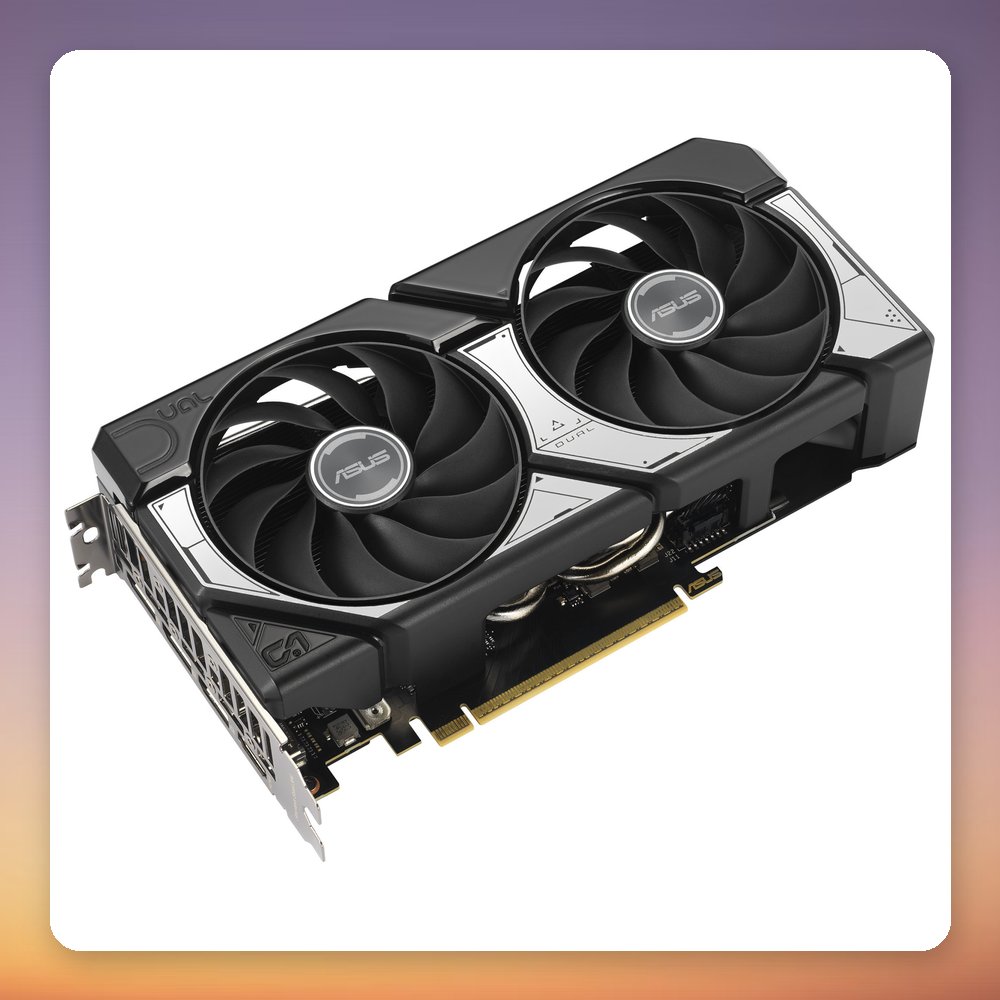

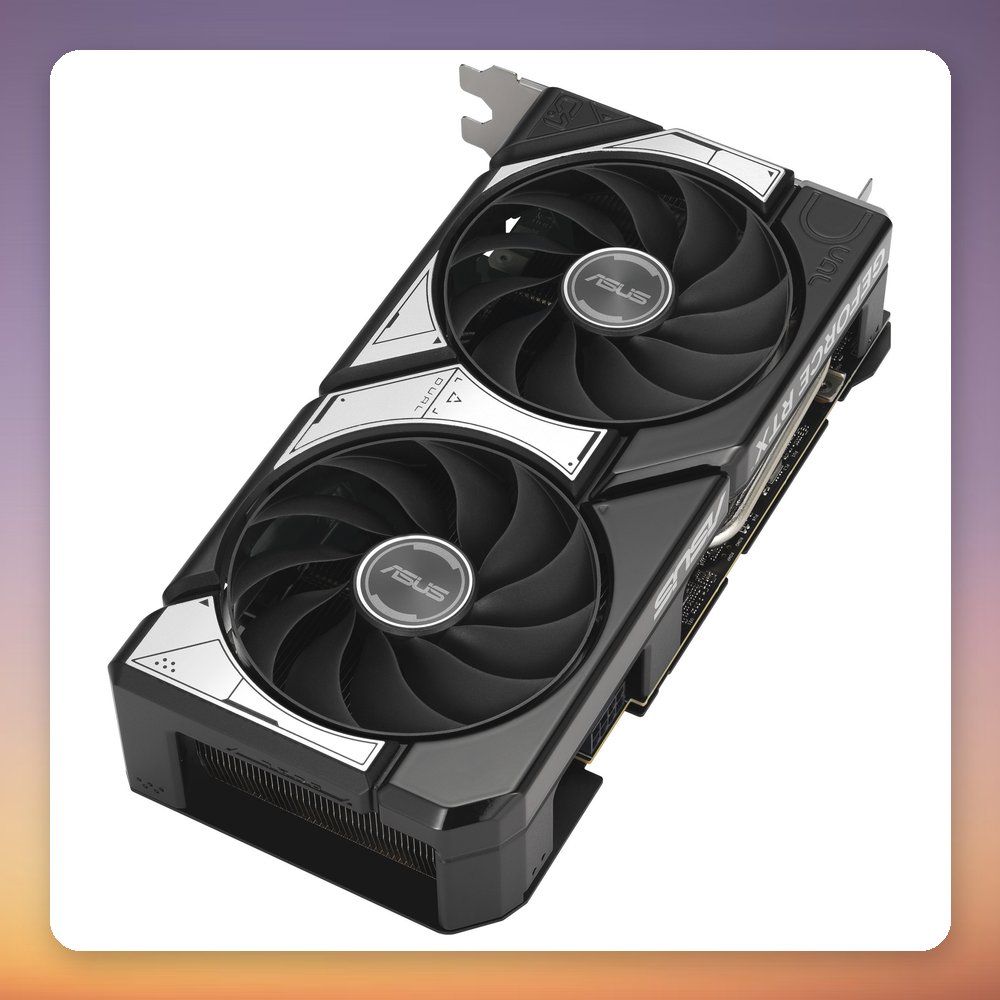

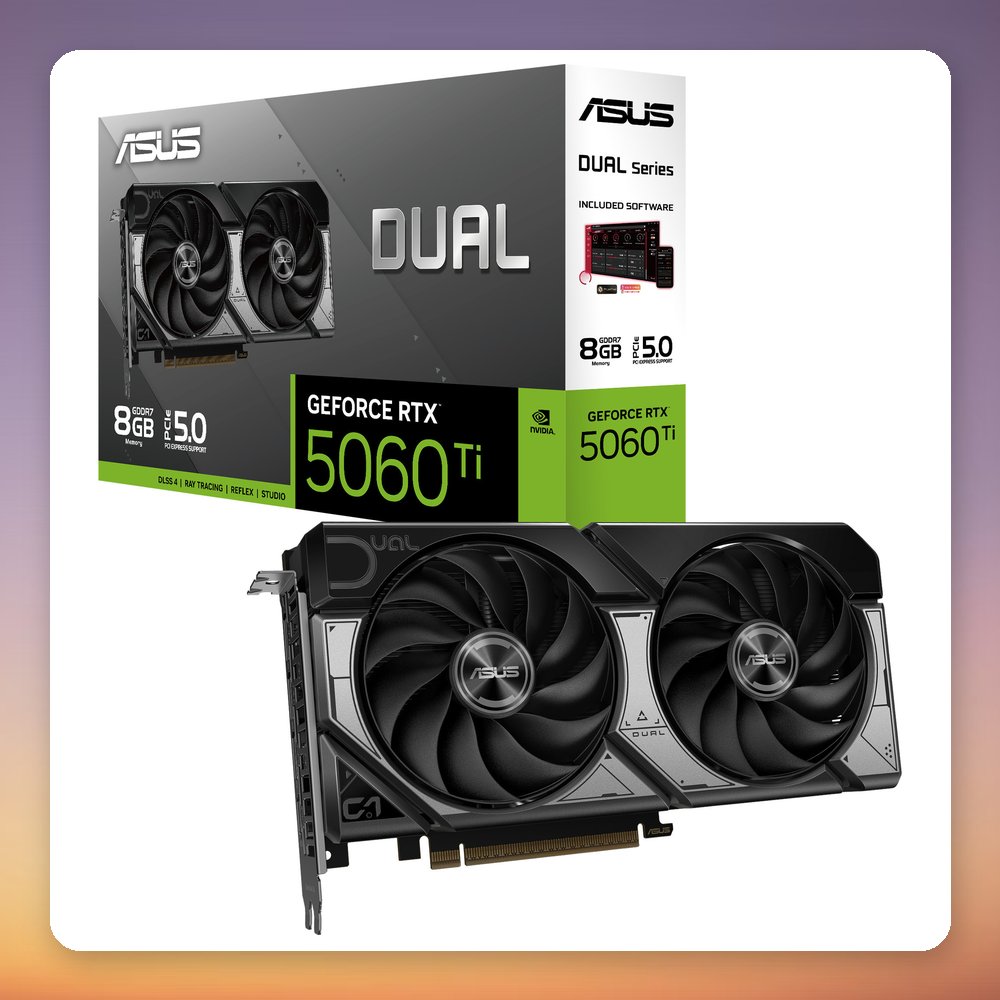

The Asus Dual GeForce RTX 5060 Ti 8GB is a compact graphics card built around the NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores and 8 GB of GDDR7 memory on a 128-bit bus. It runs a 2572 MHz boost clock (2602 MHz in OC mode) and measures just 229 mm in length. Two Axial-tech fans cool it in a 2.5-slot design, and it needs only a single 8-pin power connector.

With a 229 mm length and a 2.5-slot cooler, this card suits compact and small-form-factor builds as well as standard ATX cases, and the single 8-pin connector keeps cabling simple. It fits gamers who want an RTX 50-series card for 1080p and 1440p play. It supports DLSS, fourth-generation ray tracing cores, fifth-generation Tensor cores, NVIDIA G-SYNC and AV1 encode and decode. NVIDIA recommends a power supply of at least 550 W. The card connects over PCIe 5.0 x16.

Specification

• Manufacturer: Asus
• Model: Dual GeForce RTX 5060 Ti 8GB
• MPN: 90YV0MP3-M0NA00
• EAN: 4711636014182
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA cores: 4608
• Memory: 8 GB GDDR7, 128-bit, 28 Gbit/s
• Boost clock: 2572 MHz (2602 MHz in OC mode)
• Interface: PCI Express 5.0 x16

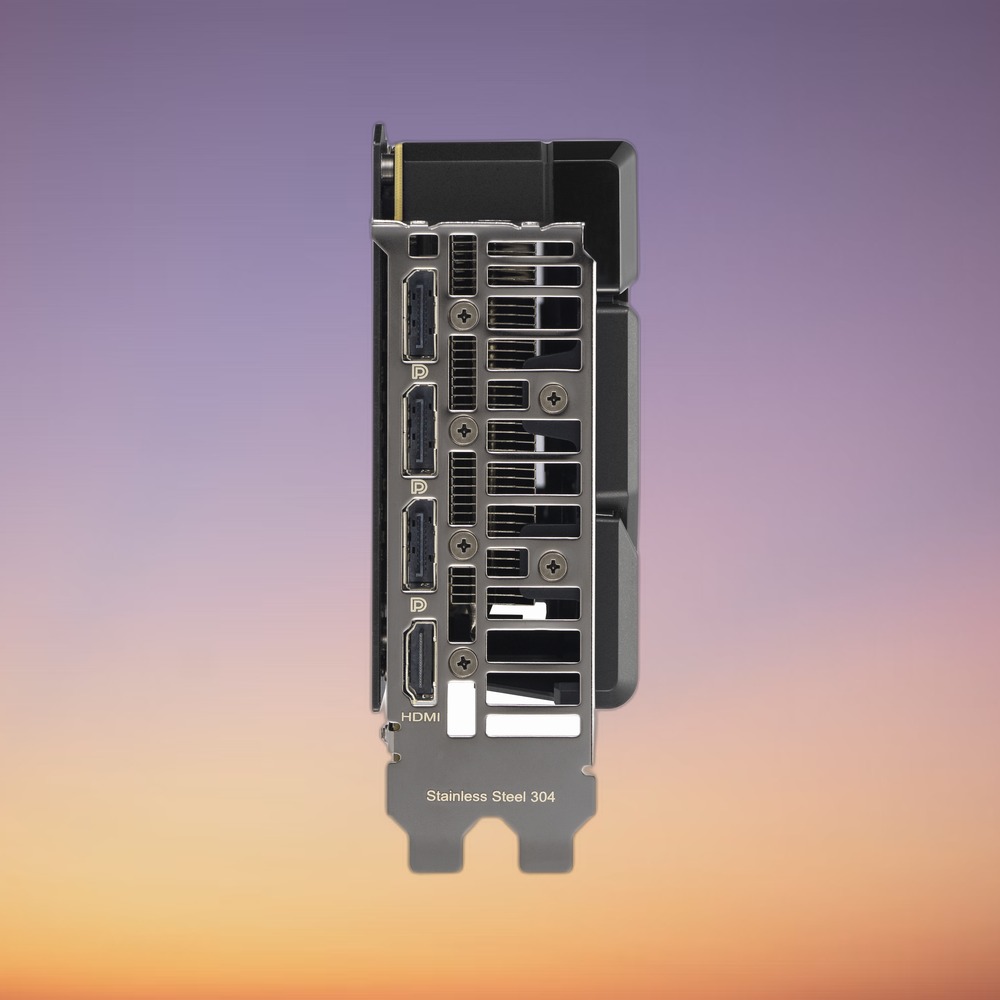

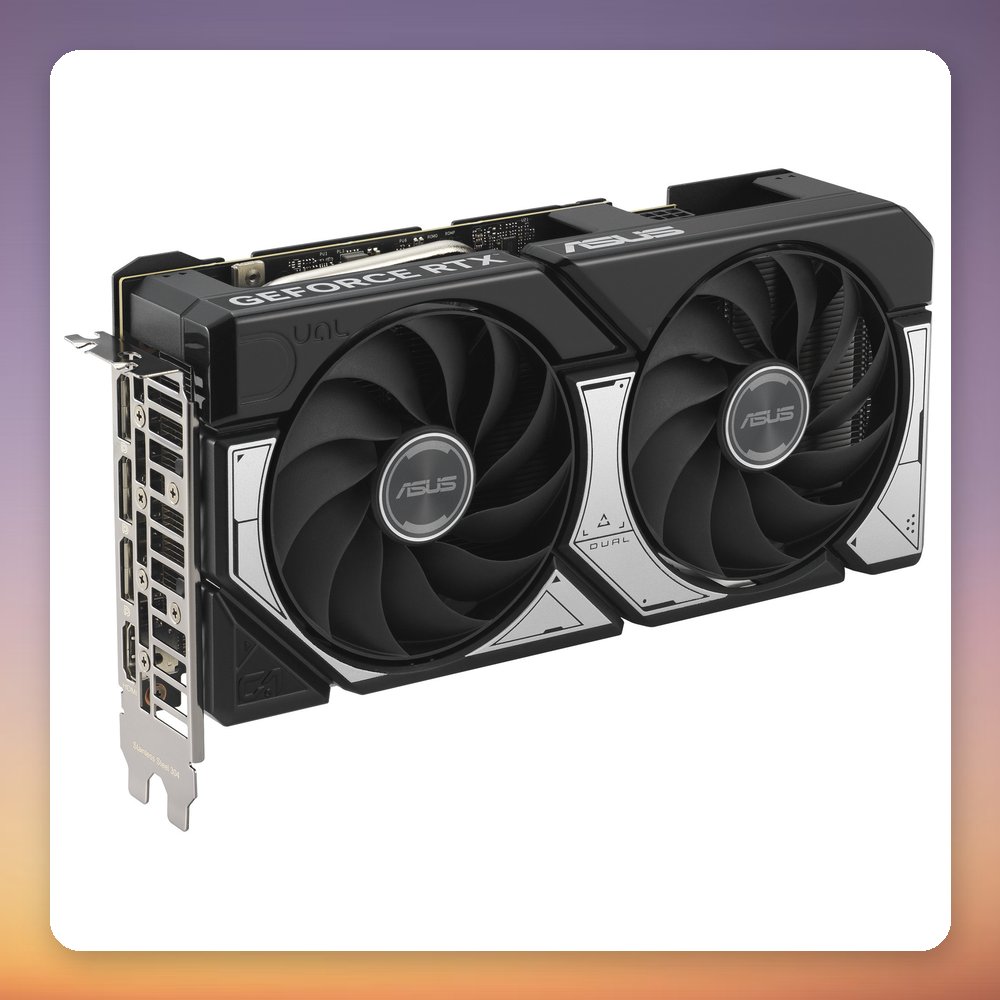

• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

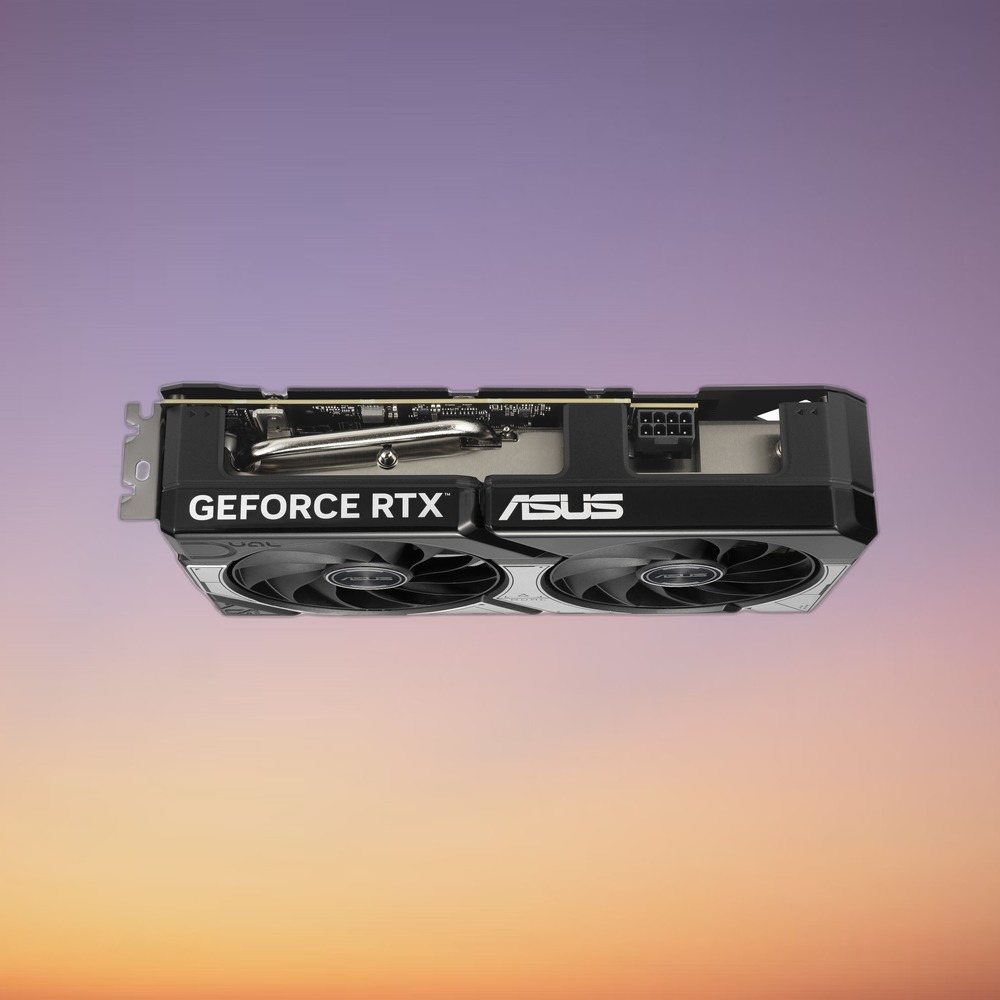

• Power connector: 1x 8-pin (6+2)
• Average power consumption: 180 W
• Minimum PSU: 550 W
• Cooling: 2x fans, ASUS Axial-tech
• Slots occupied: 2.5
• Dimensions (W x H x D): 120 x 50 x 229 mm
• Weight: 656 g
• Maximum resolution: 7680 x 4320 (8K)
