Product Overview

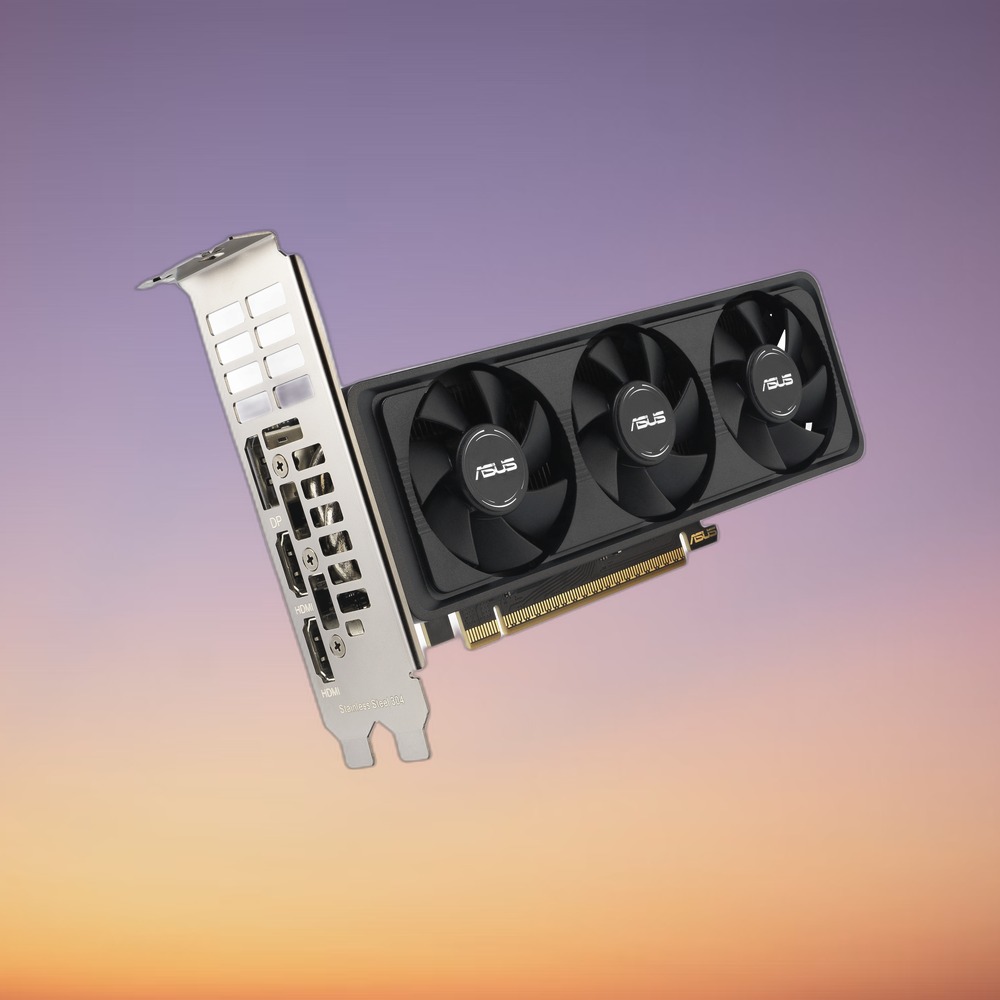

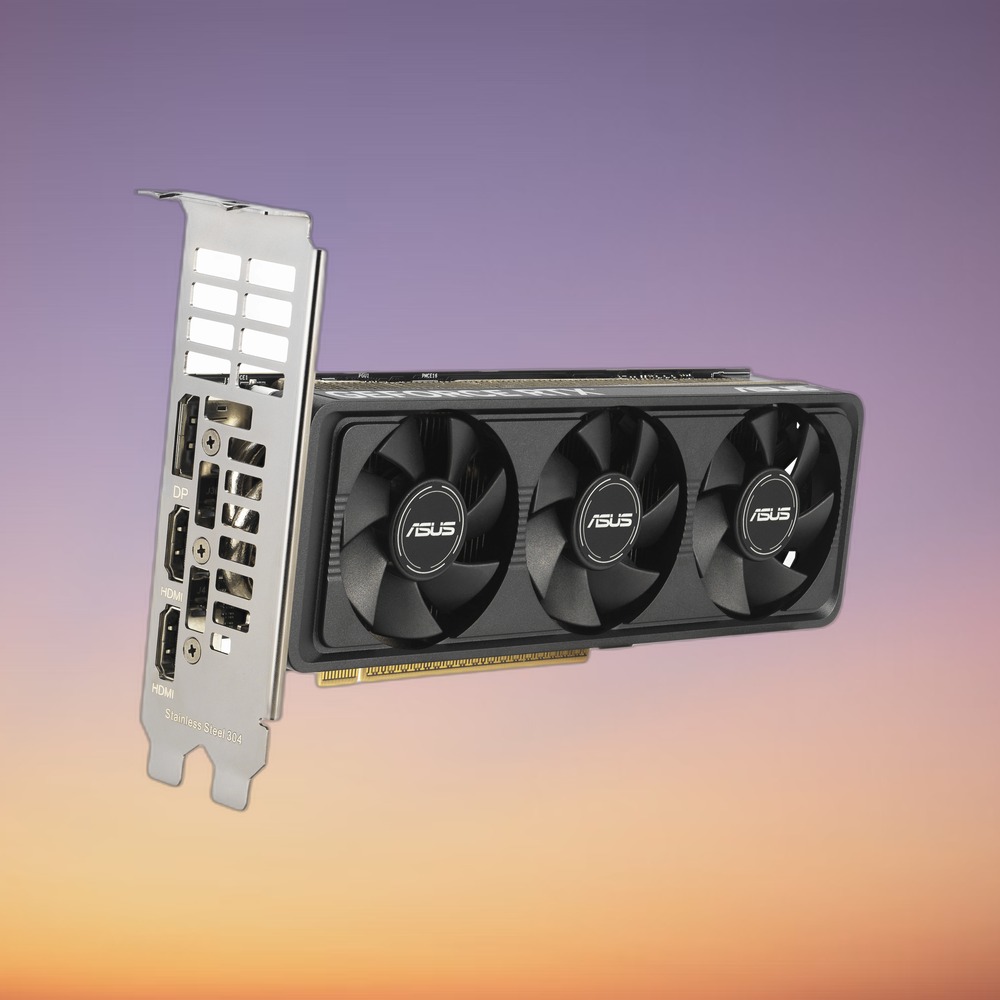

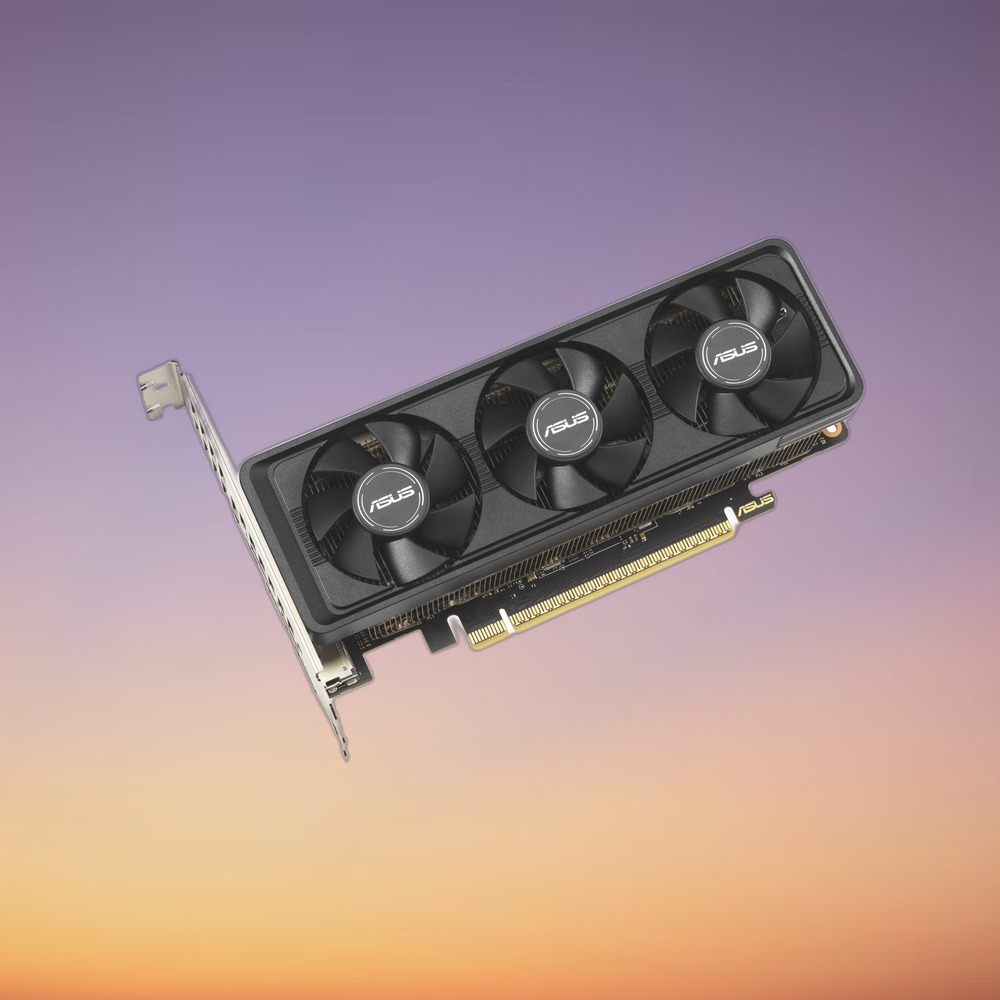

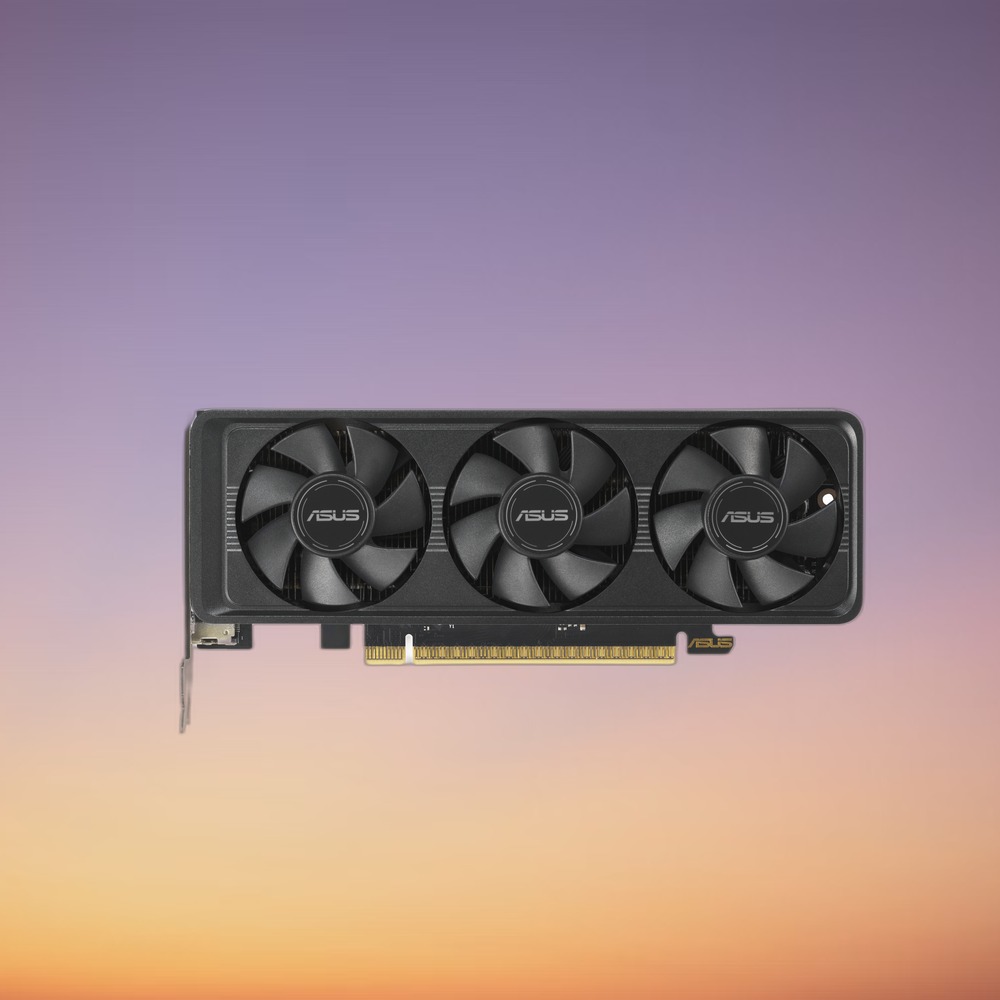

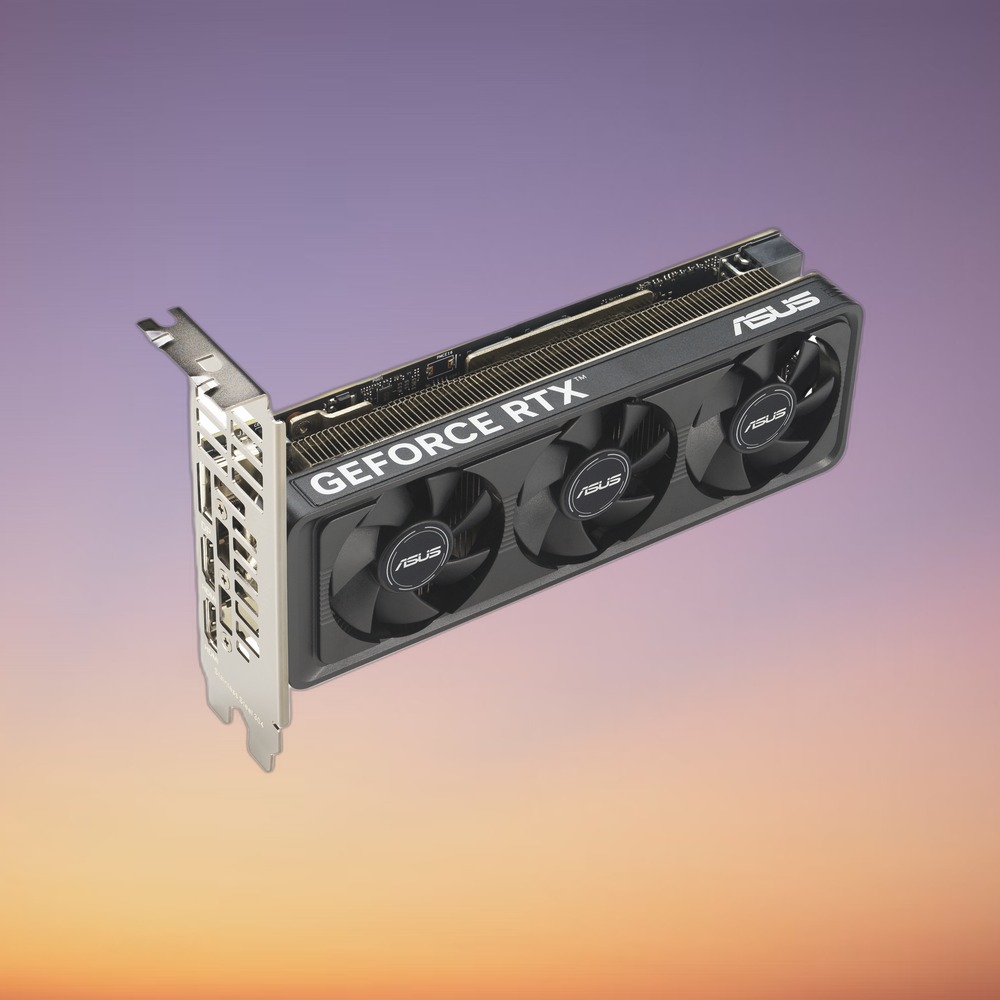

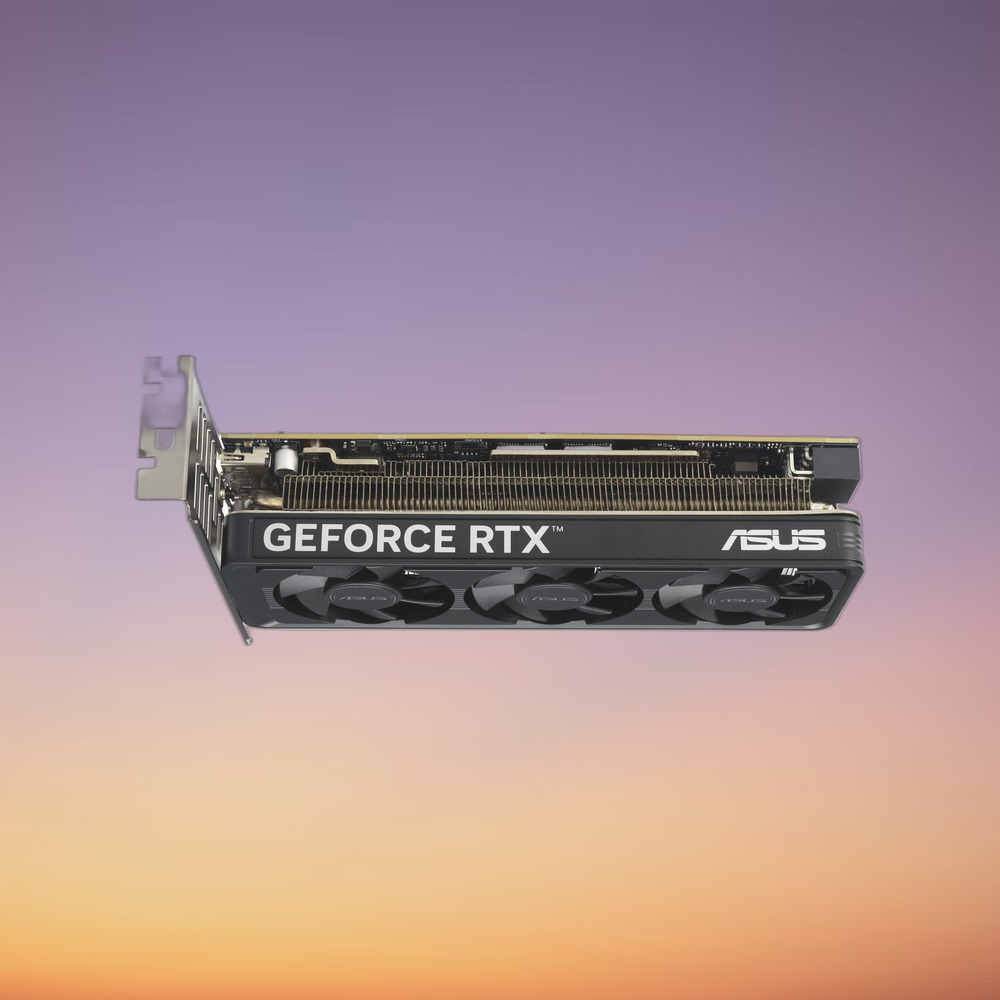

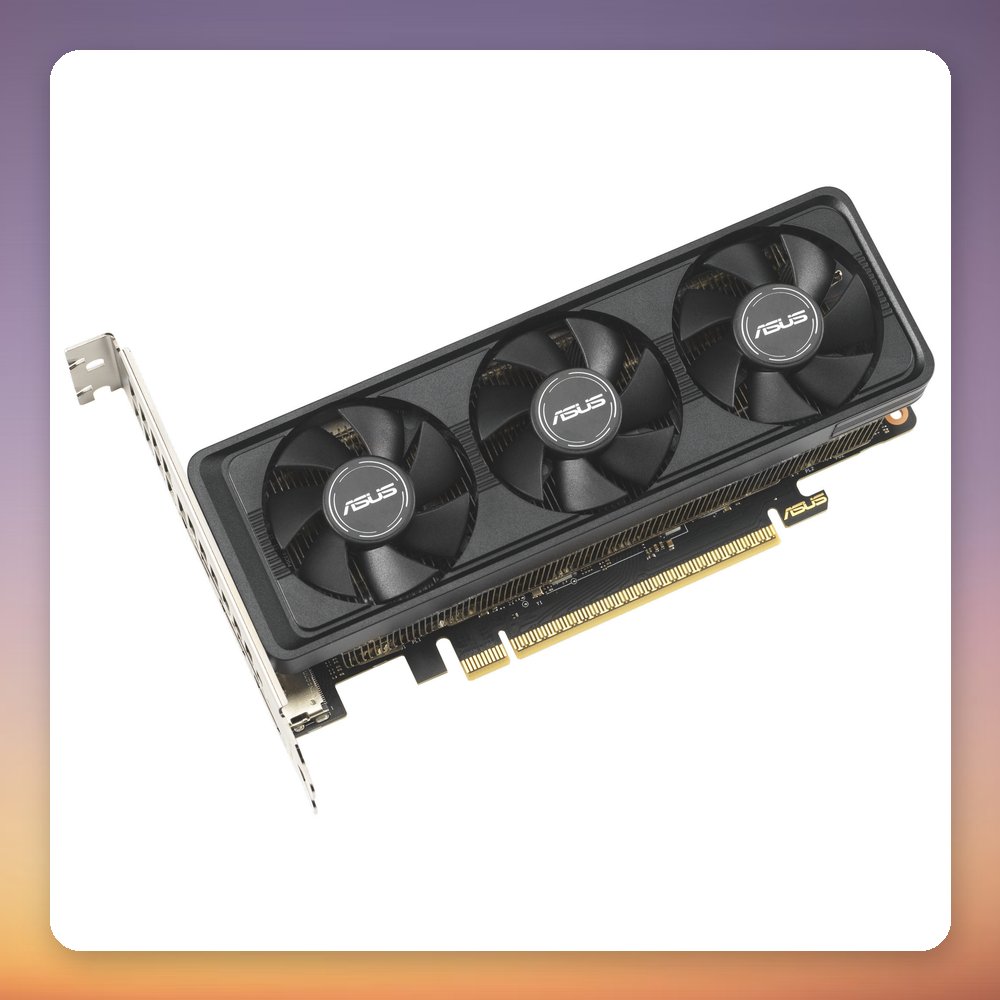

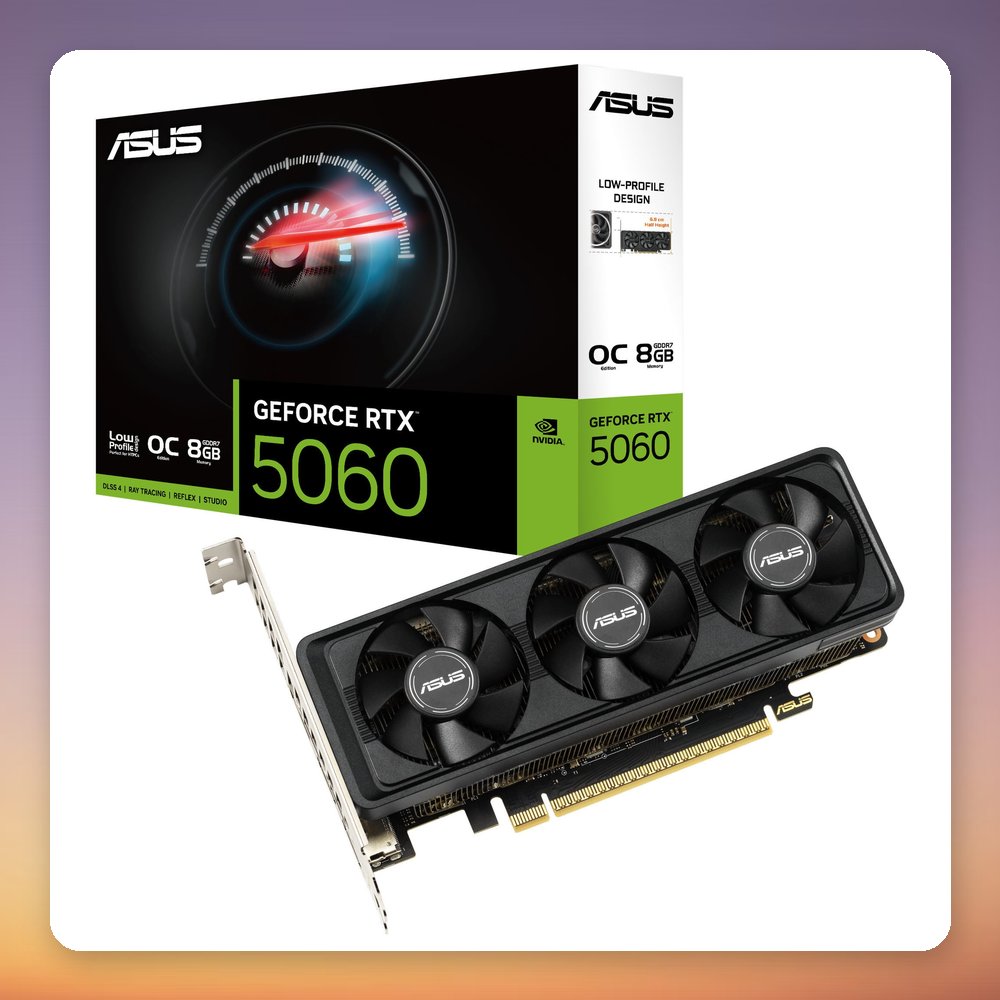

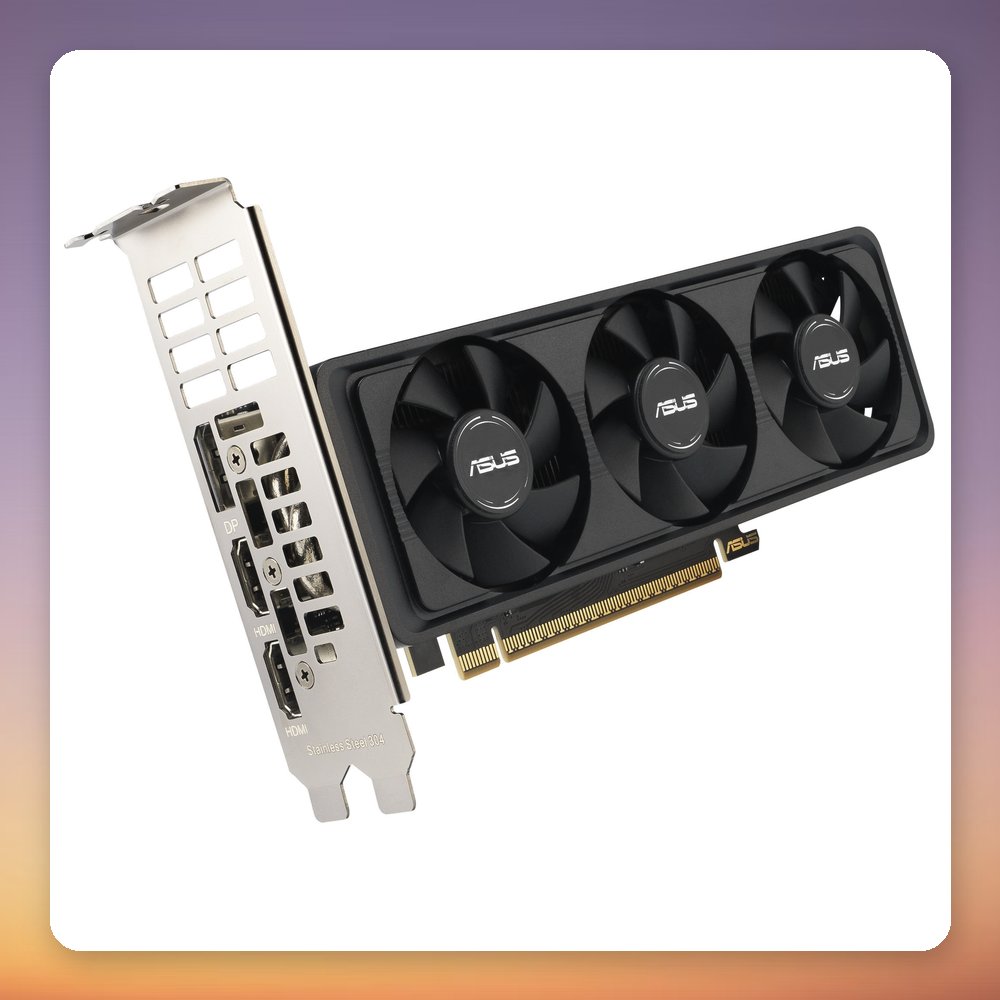

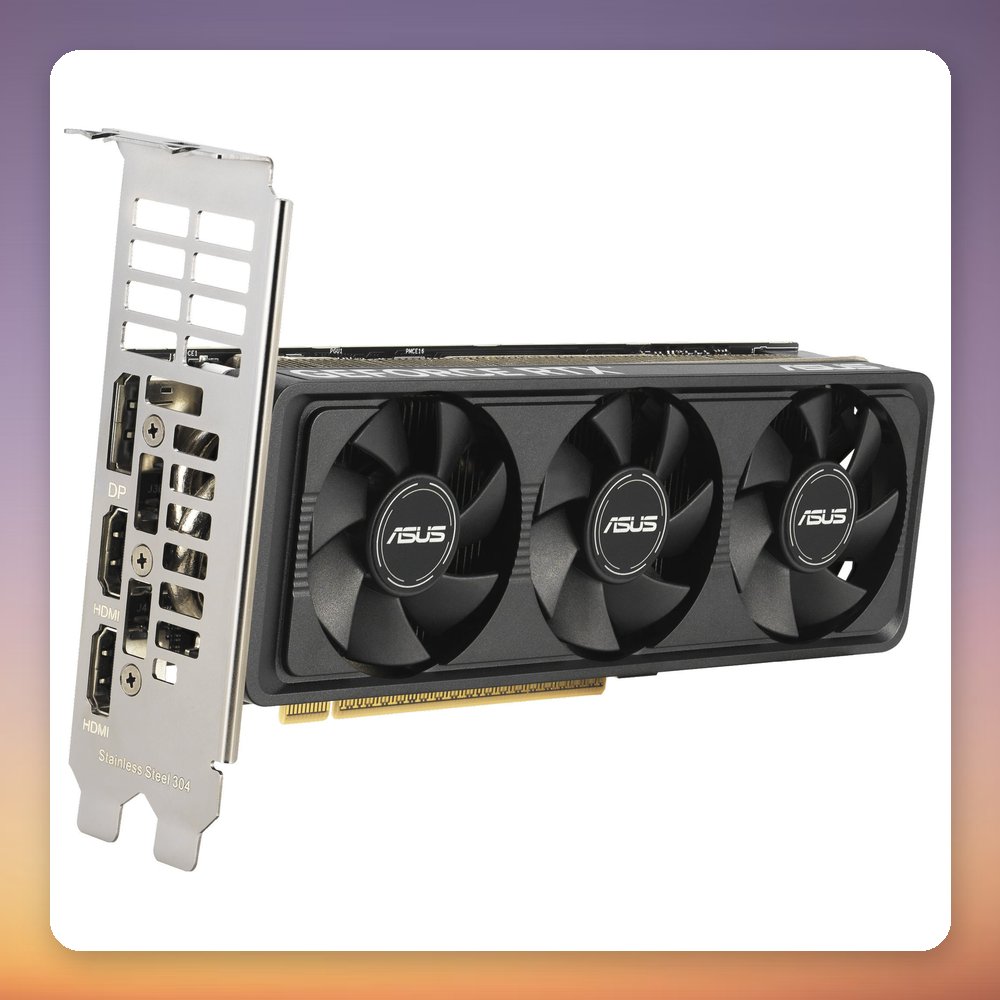

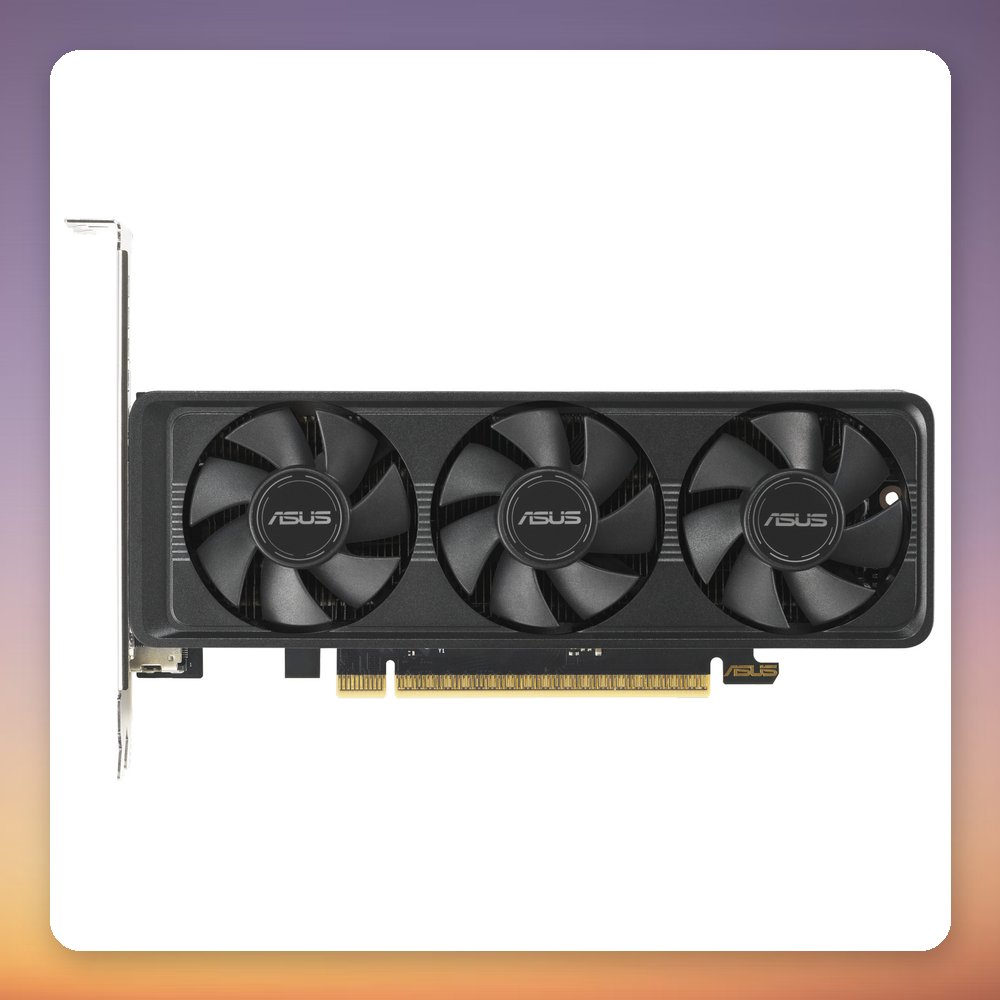

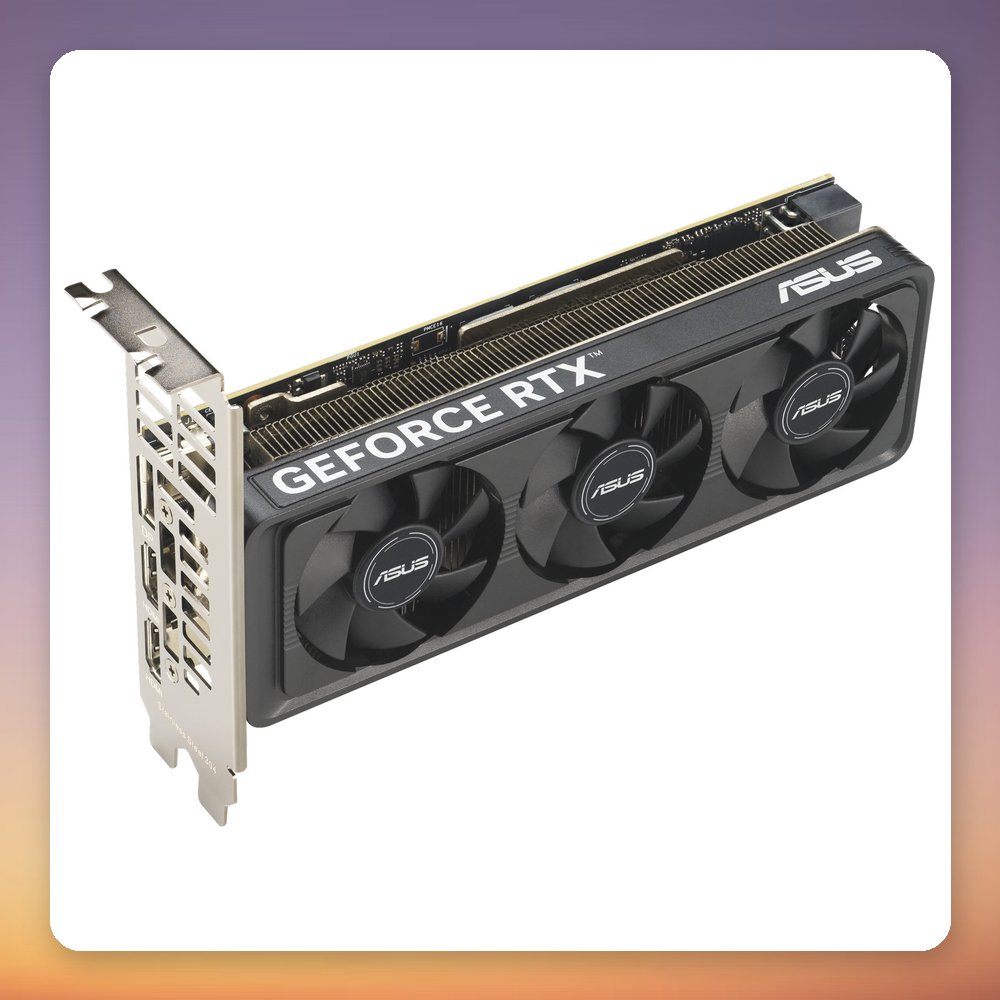

The Asus GeForce RTX 5060 LP BRK OC is a compact graphics card built on the NVIDIA GeForce RTX 5060 GPU with 3840 CUDA cores and 8 GB of GDDR7 memory on a 128-bit bus. It runs a 2550 MHz boost clock, rising to 2580 MHz in OC mode, and uses a PCIe 5.0 x16 interface. At just 175.8 mm long, it is a short card with three fans.

This card suits small-form-factor gaming PCs and compact productivity builds where a standard graphics card will not fit. It offers 2x HDMI 2.1 and 1x DisplayPort 2.1a, supports up to four displays, and handles up to 8K at 120 Hz with DSC. It needs a single 8-pin power connector and a minimum 550 W power supply. DLSS, Reflex 2, 4th-gen RT cores, 5th-gen Tensor cores and AV1 encode/decode are included.

Specification

• Manufacturer: Asus
• Model: GeForce RTX 5060 LP BRK OC
• MPN: 90YV0N90-M0NA00
• EAN: 4711636177139
• GPU: NVIDIA GeForce RTX 5060
• CUDA cores: 3840
• Memory: 8 GB GDDR7, 128-bit
• Memory data rate: 28 Gbit/s
• Boost clock: 2550 MHz (2580 MHz in OC mode)
• Interface: PCI Express 5.0 x16
• Video outputs: 2x HDMI 2.1, 1x DisplayPort 2.1a
• Max. displays: 4
• Max. resolution: 4K at 480 Hz or 8K at 120 Hz with DSC
• Power connector: 1x 8-pin
• Average power consumption: 145 W
• Minimum PSU: 550 W
• Cooling: Active, 3 fans
• Dimensions (W x H x D): 69 x 38 x 175.8 mm
