Product Overview

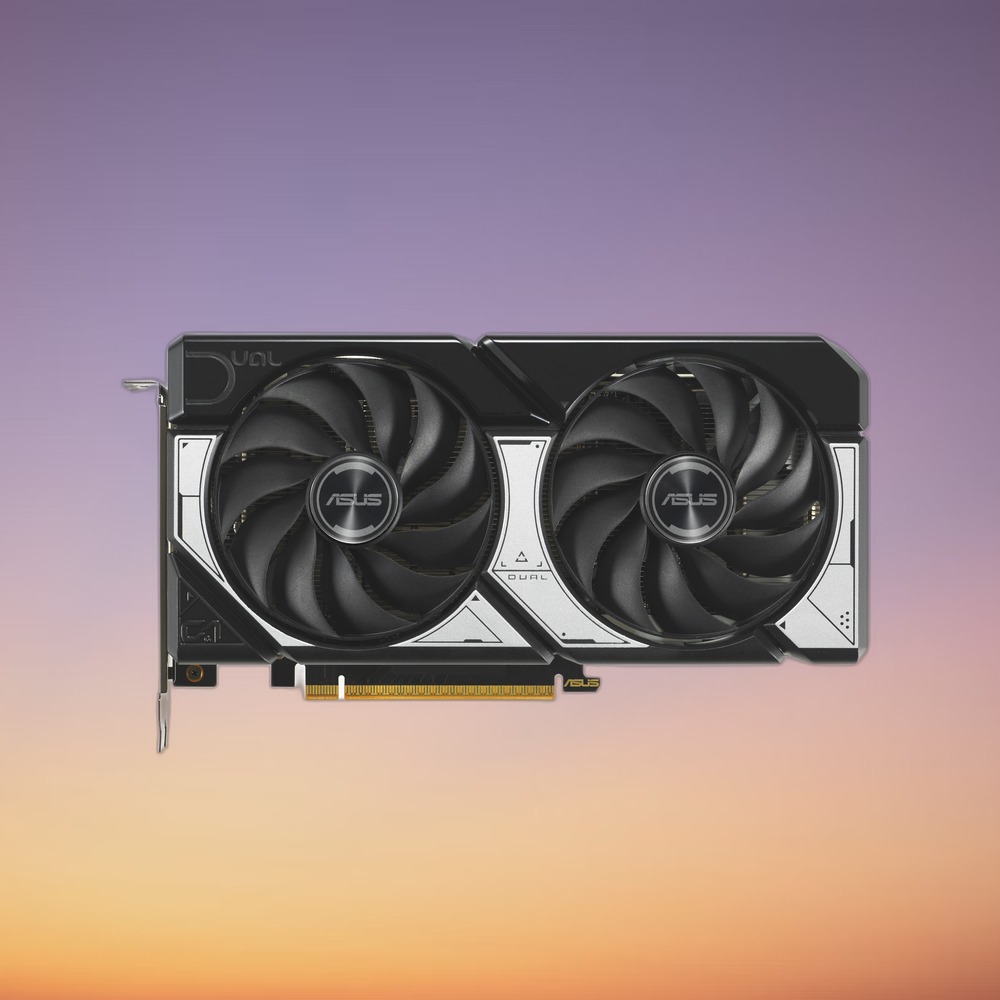

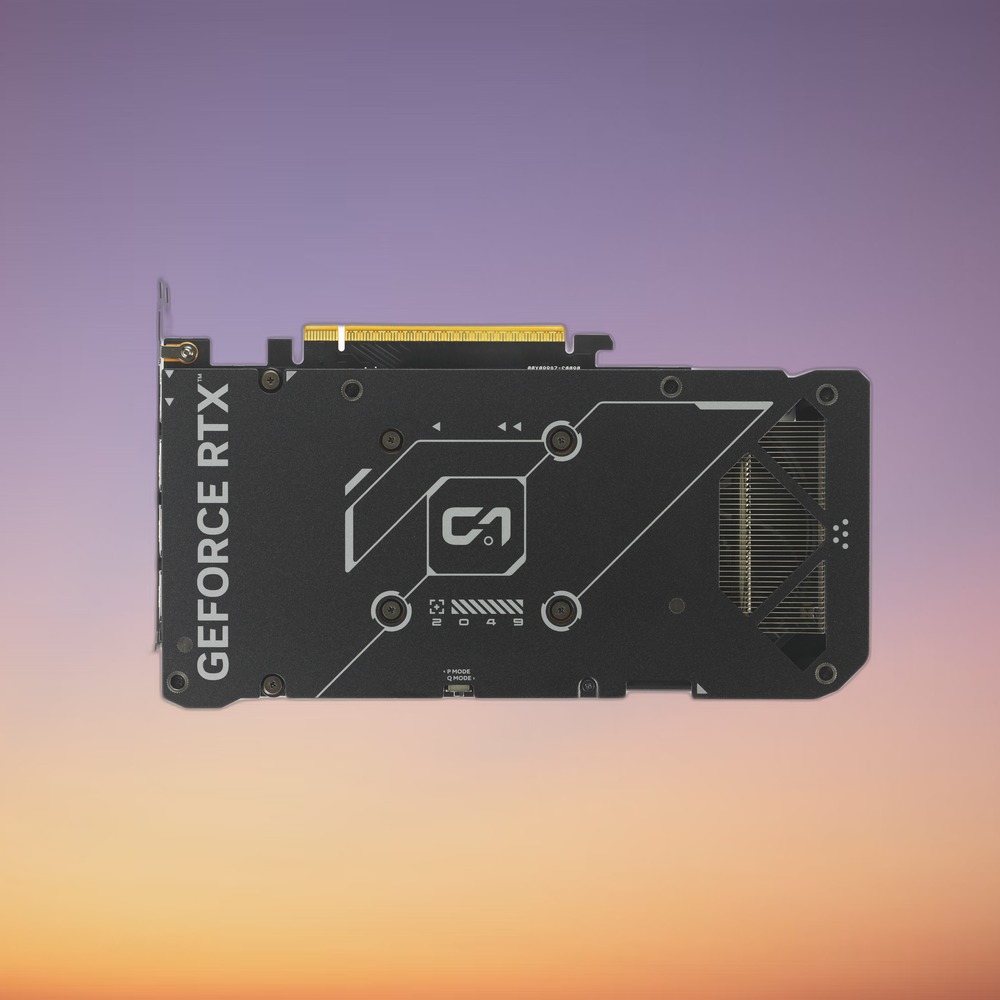

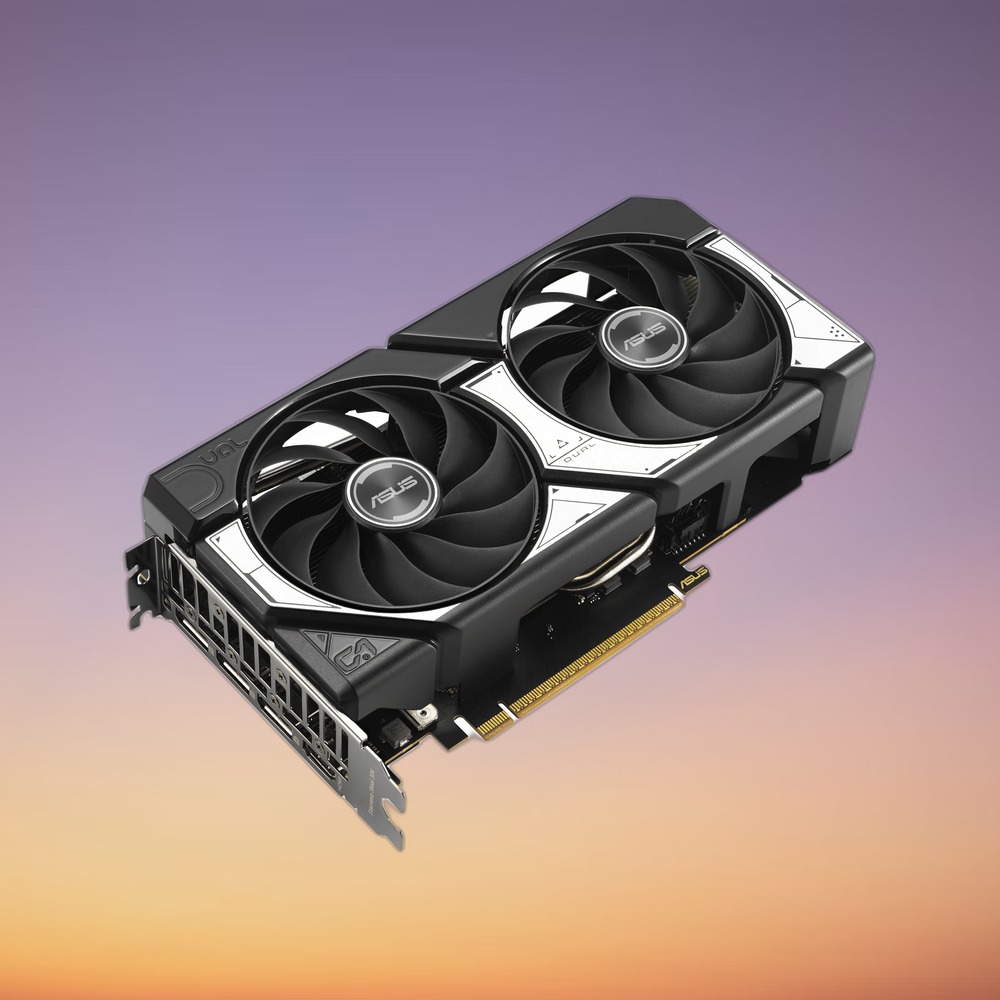

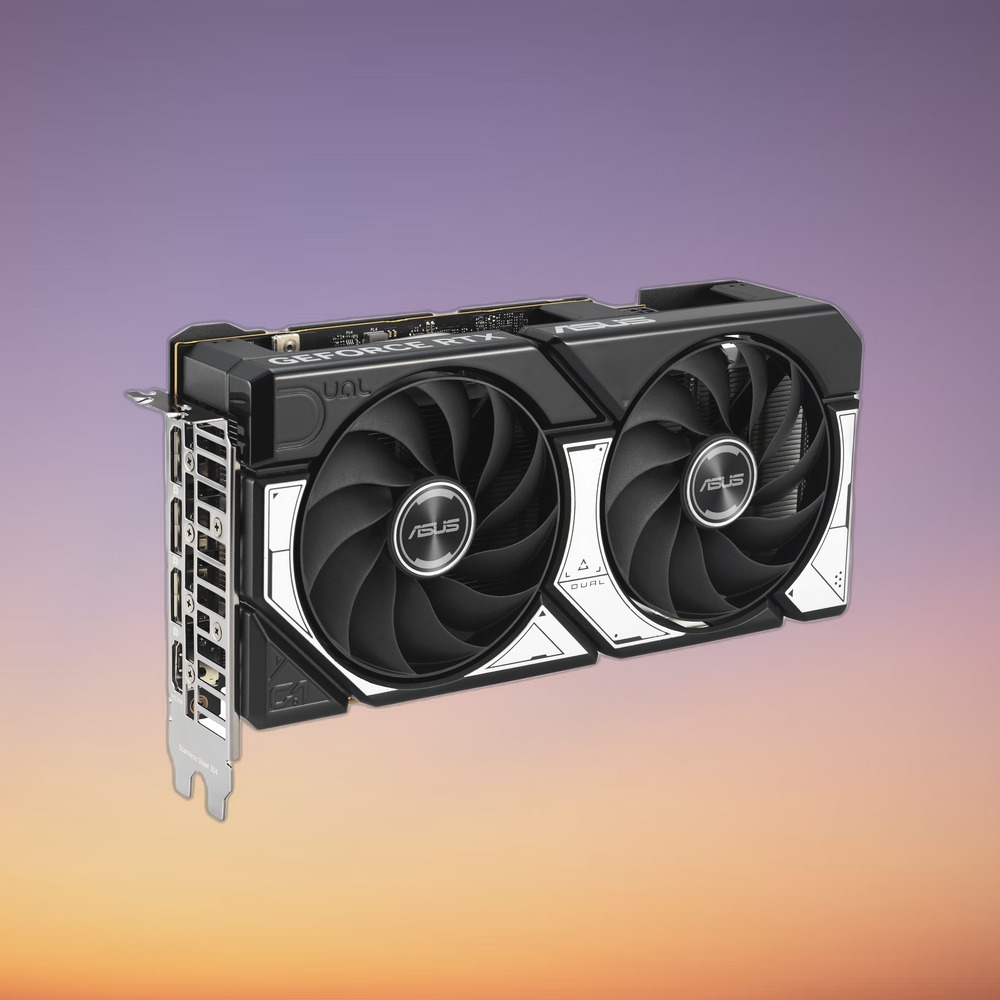

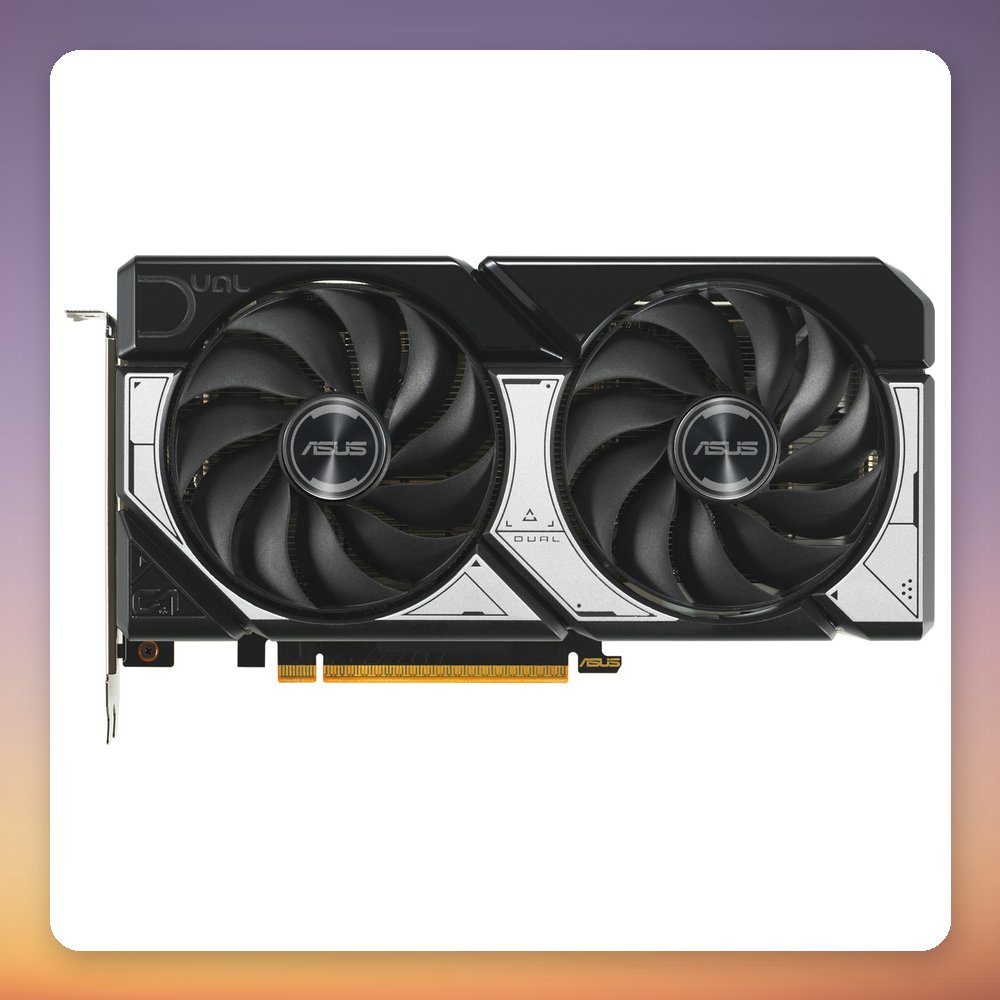

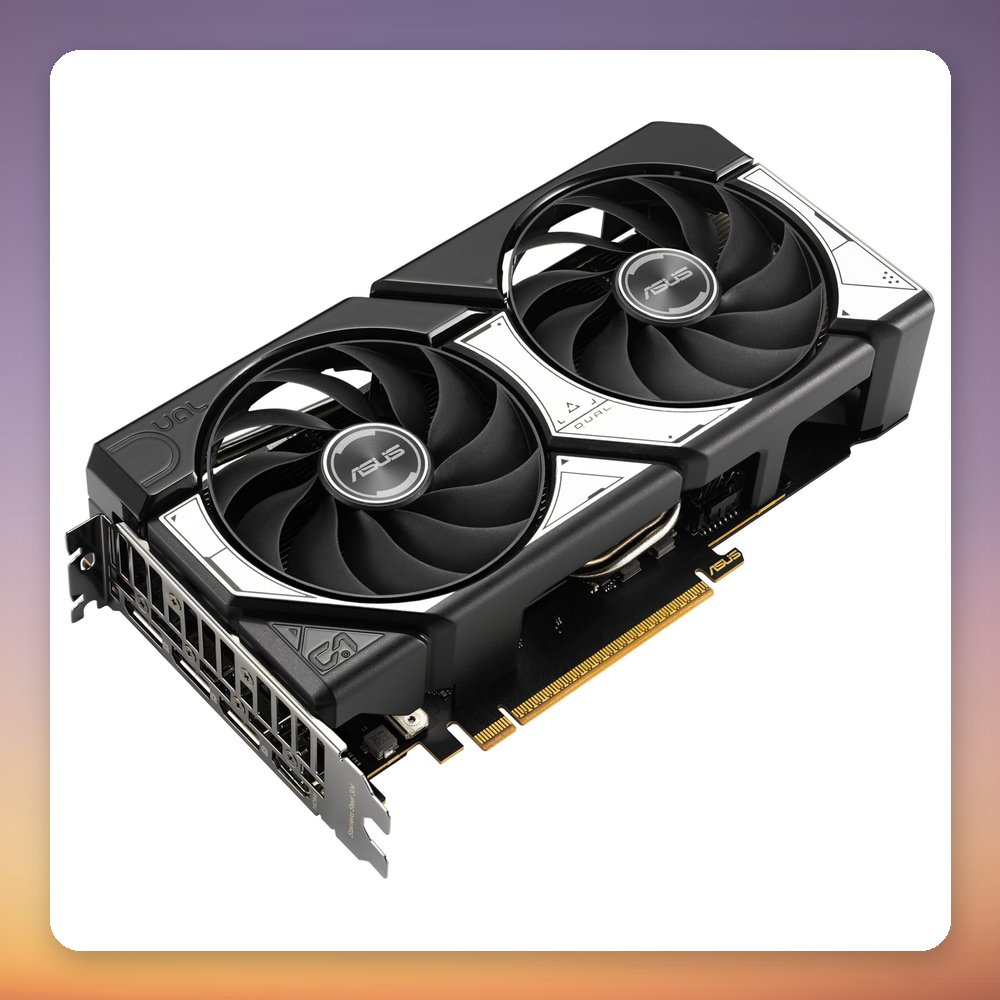

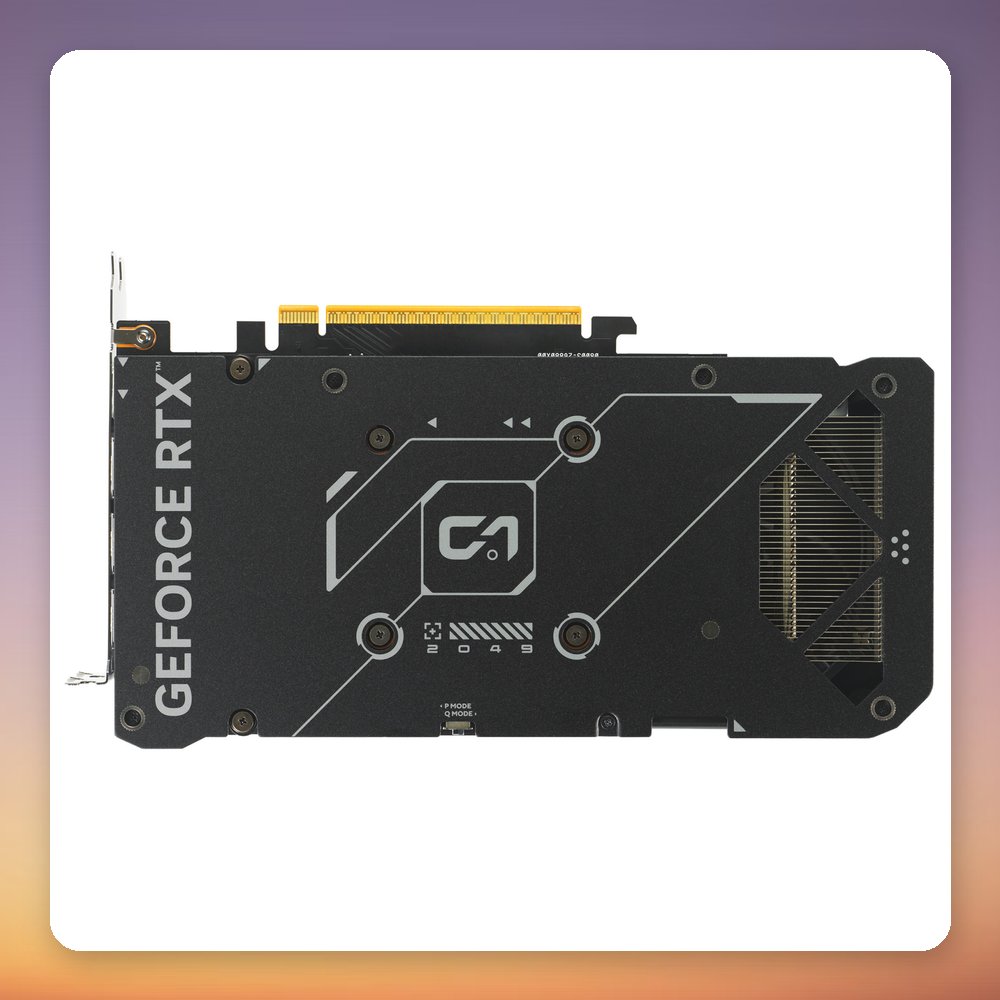

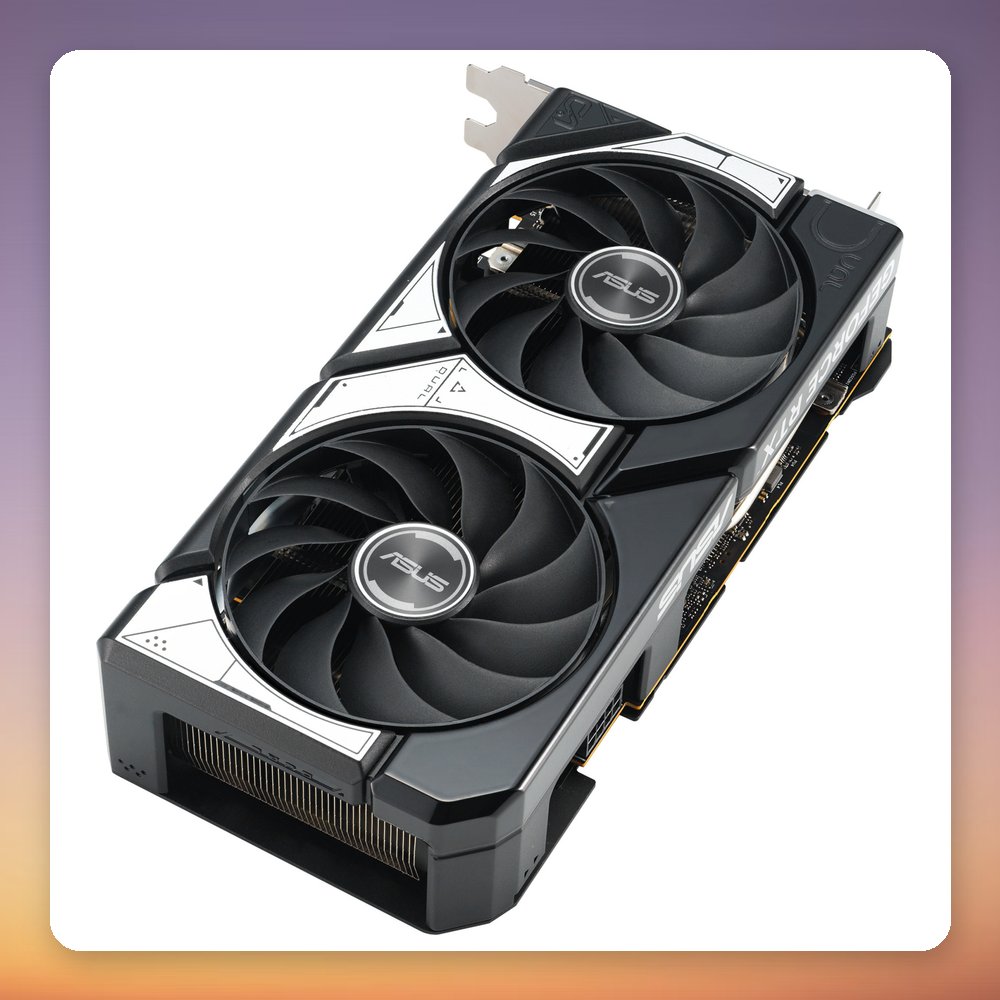

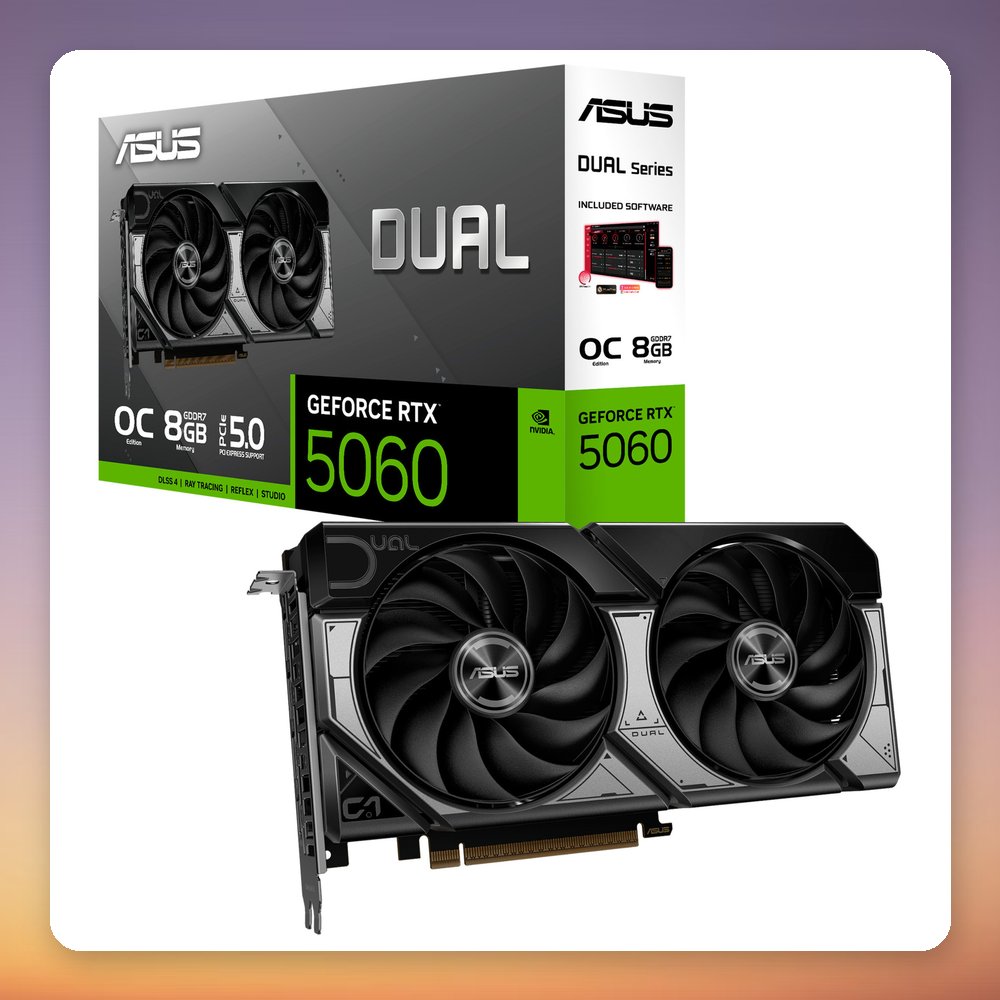

The Asus Dual GeForce RTX 5060 OC 8GB is a graphics card built on the NVIDIA GeForce RTX 5060 with 3840 CUDA cores and 8 GB of GDDR7 memory on a 128-bit bus at 28 Gbit/s. It is factory overclocked, with the boost clock rising from 2535 MHz to 2565 MHz in OC mode. Cooling comes from two Axial-tech fans, a vented backplate and a compact 2.5-slot design.

At 228 mm long and 647 g, this card suits compact and small-form-factor builds, and Asus lists it as SFF-Ready. It needs one 8-pin power connector and a PSU of at least 550 W. Outputs are 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to four displays. The fans stop completely below 50 degrees at low power draw, which keeps light desktop use quiet. It is a good fit for gaming PCs where space is limited.

Specification

• Manufacturer: Asus
• Model: Dual GeForce RTX 5060 OC
• MPN: 90YV0N12-M0NA00
• EAN: 4711636057899
• GPU: NVIDIA GeForce RTX 5060
• CUDA cores: 3840
• Boost clock: 2535 MHz (2565 MHz in OC mode)
• Memory: 8 GB GDDR7, 128-bit, 28 Gbit/s
• Interface: PCIe 5.0 x16

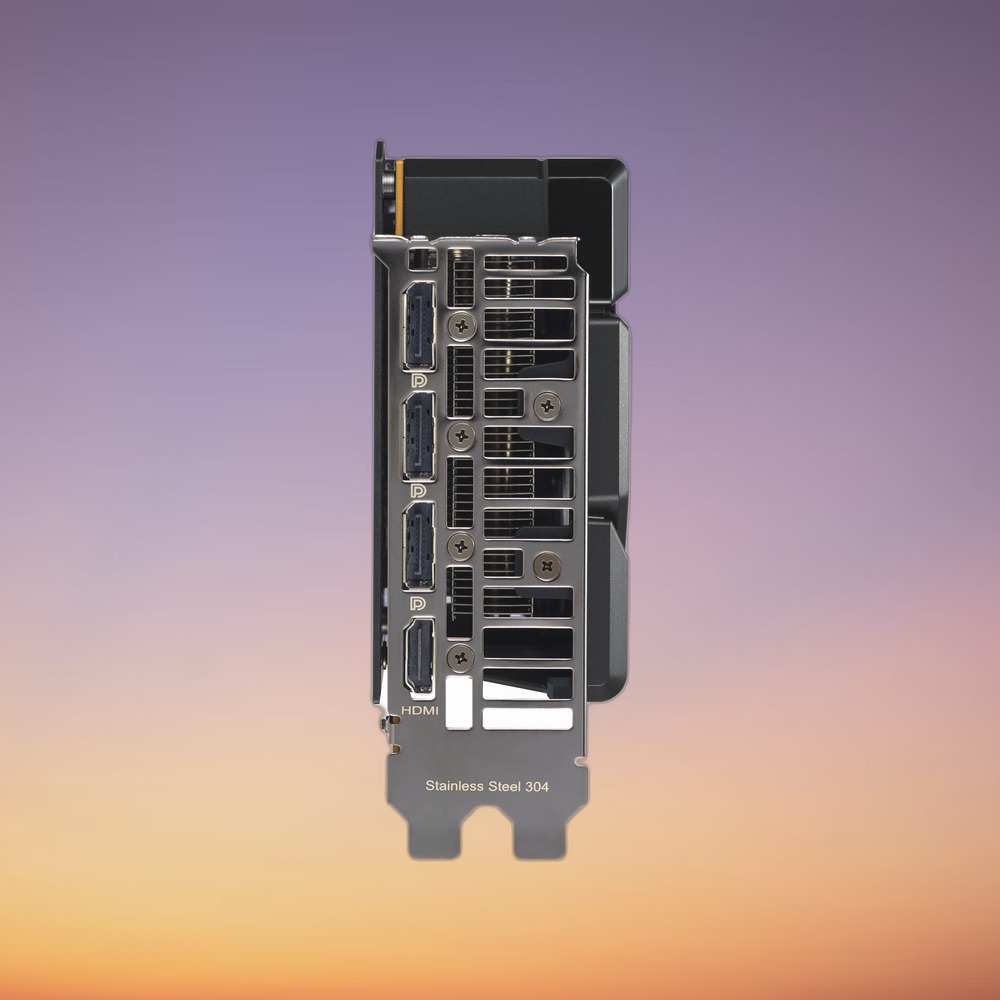

• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b

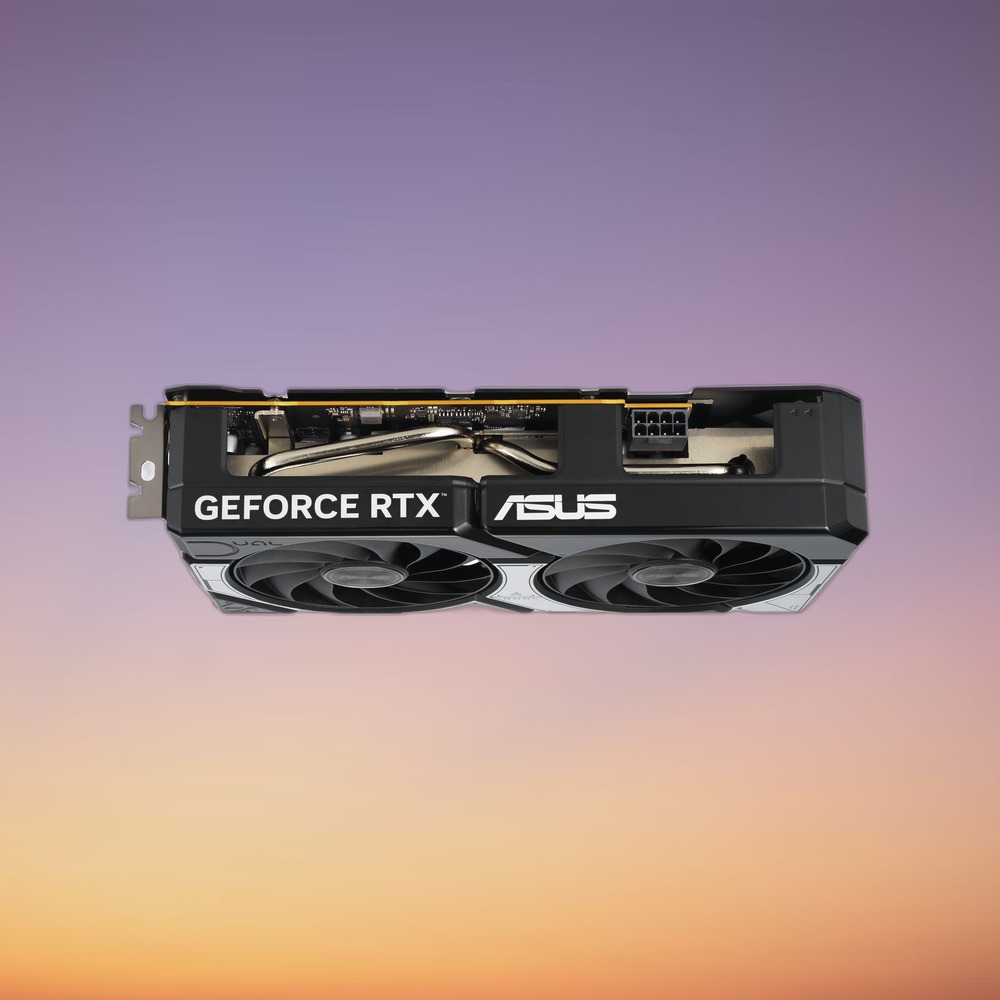

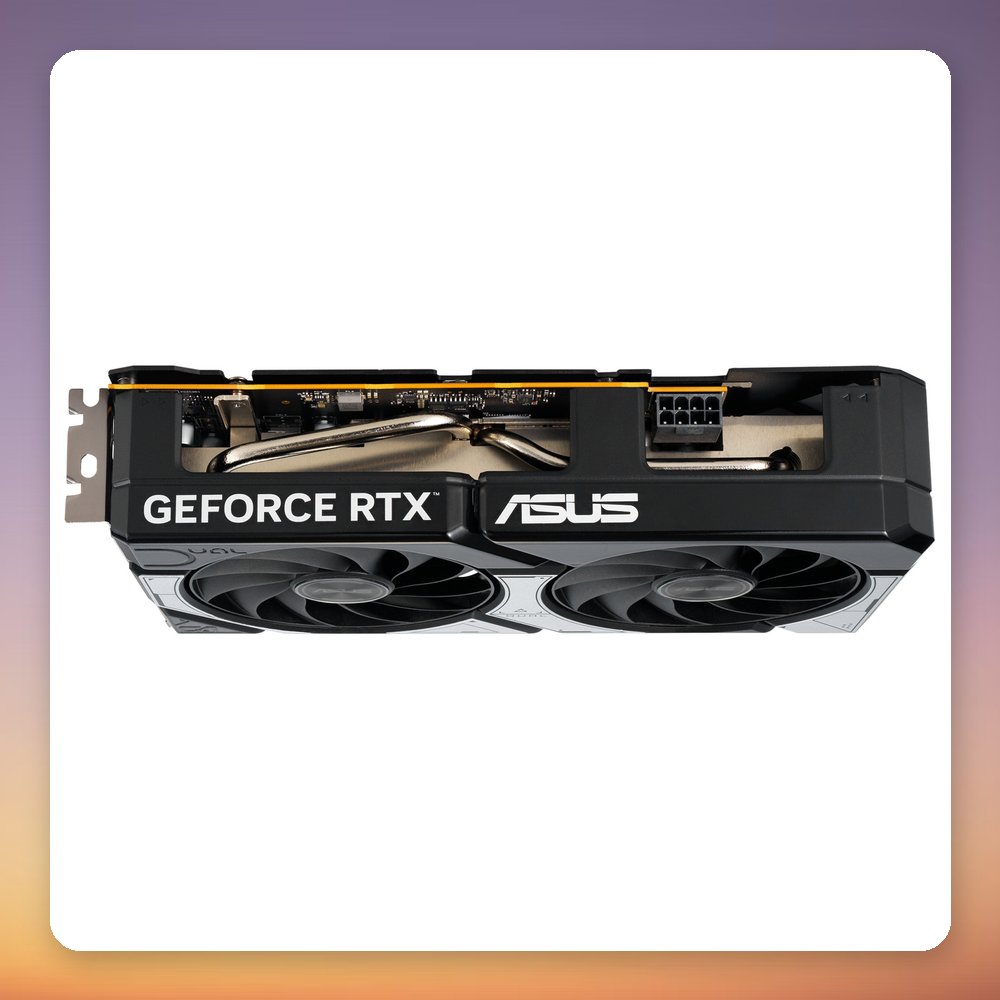

• Power connector: 1x 8-pin (6+2)
• Average power consumption: 145 W
• Minimum PSU: 550 W
• Cooling: ASUS Axial-tech, 2 fans, 0dB stop mode
• Slots: 2.5
• Dimensions (L x W x D): 228 x 123 x 50 mm
• Weight: 647 g
• Maximum resolution: 7680 x 4320 (8K at 120 Hz with DSC)
