Product Overview

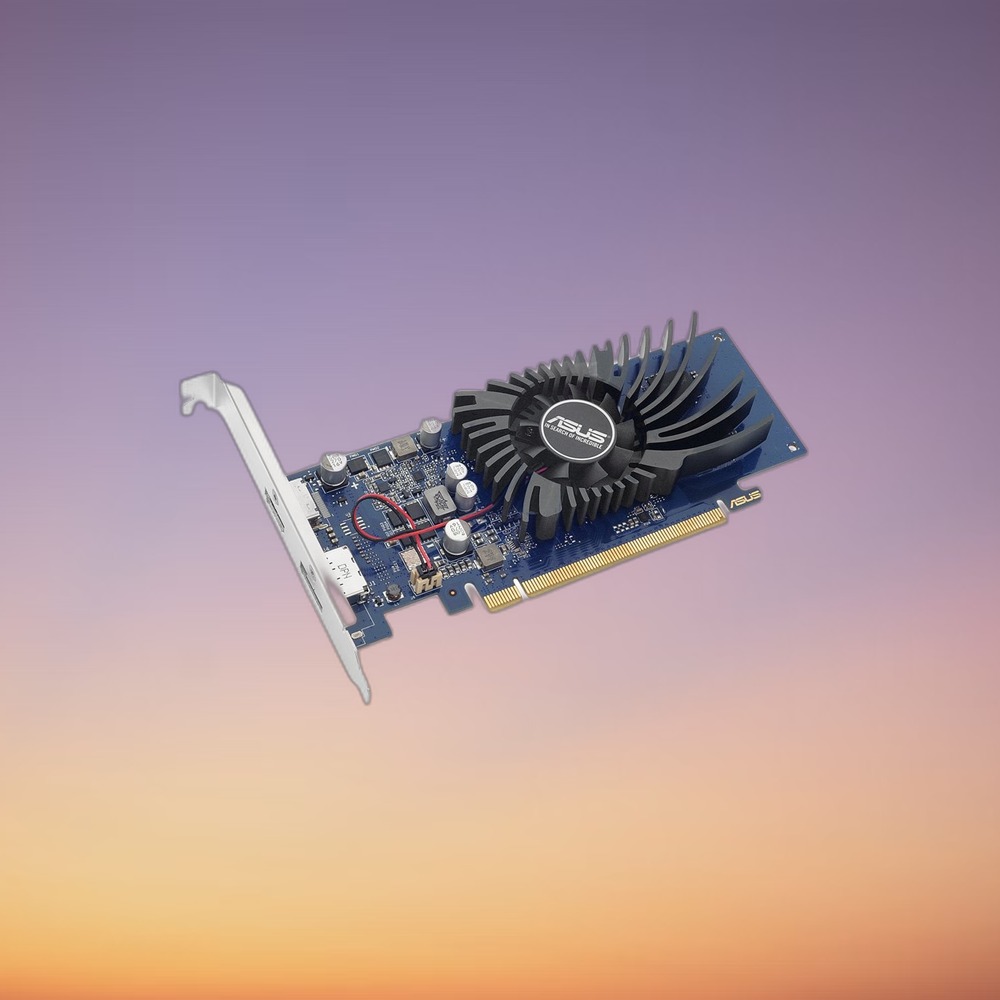

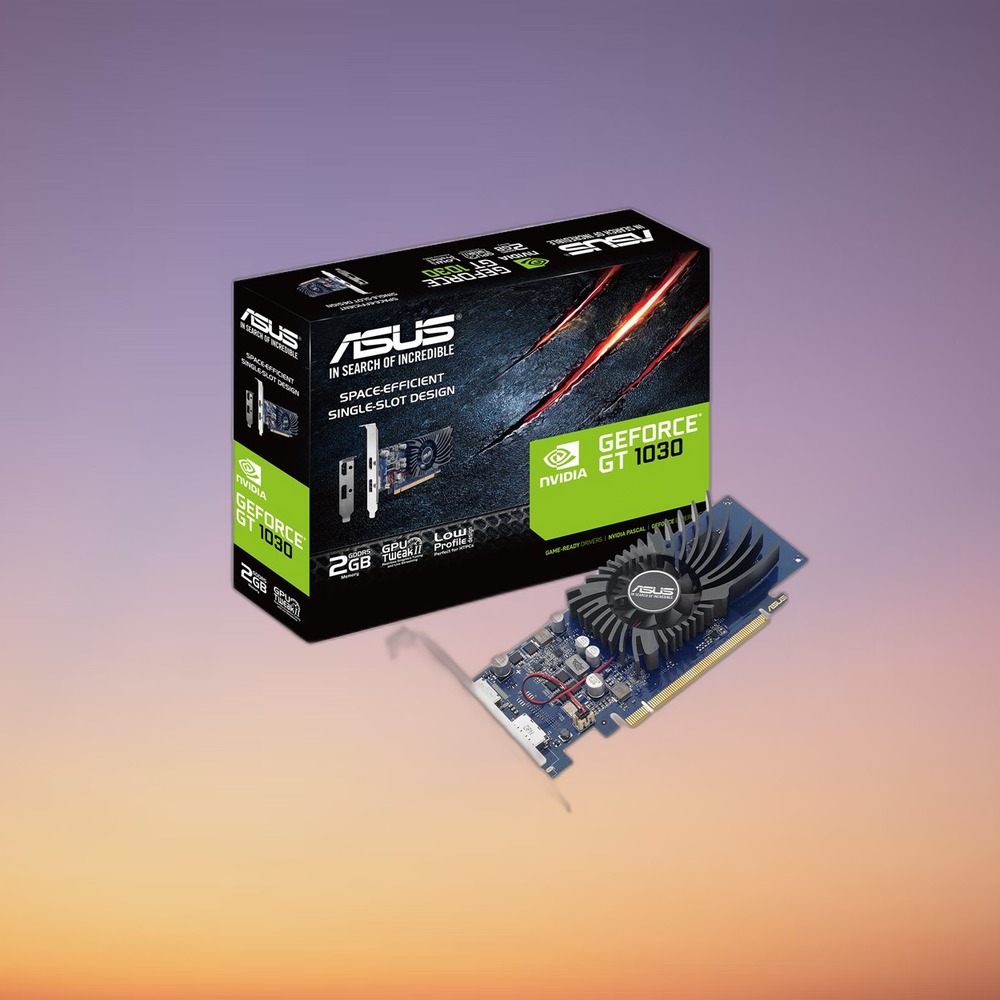

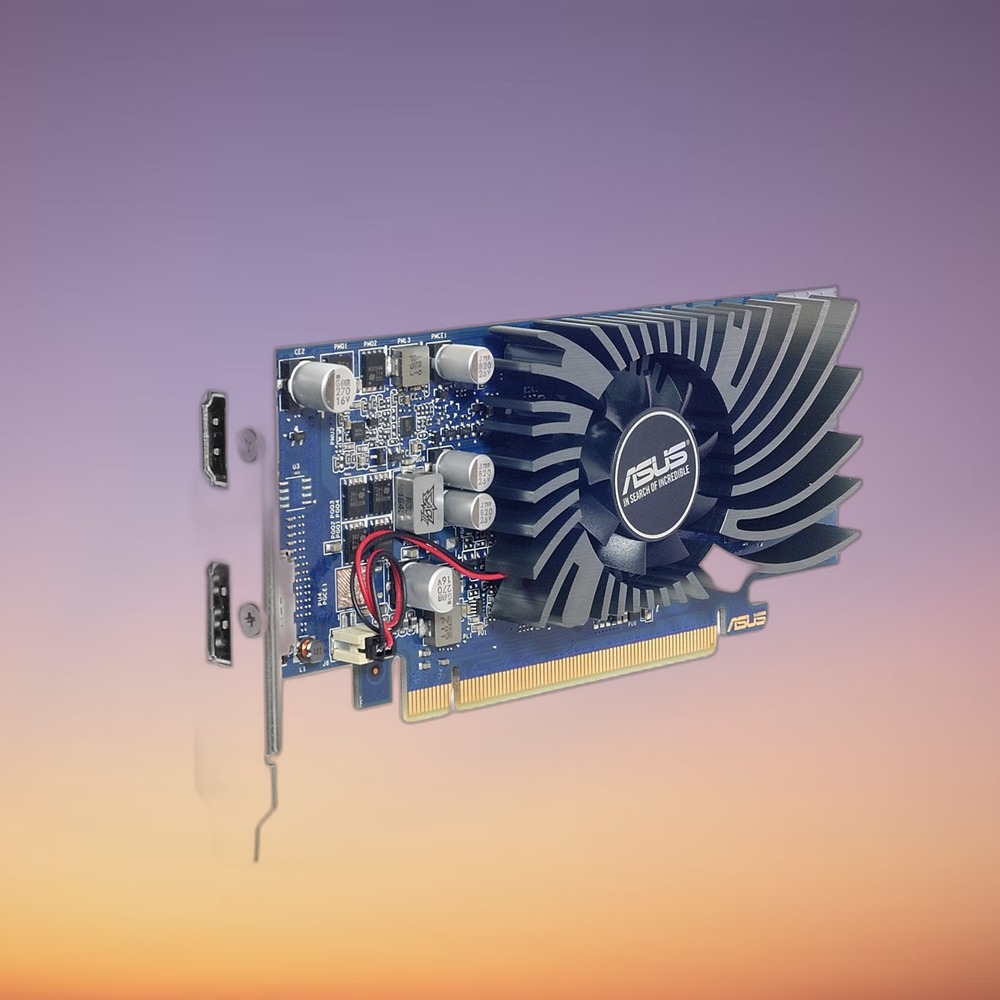

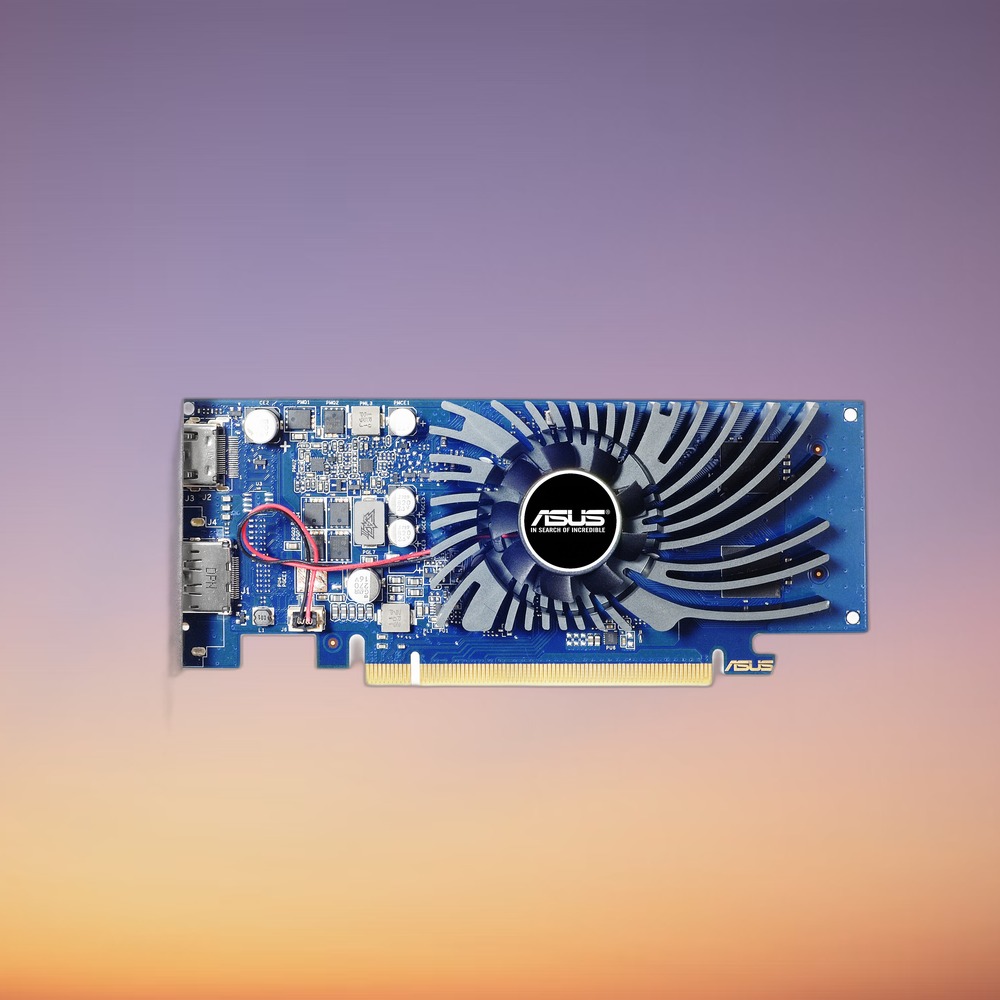

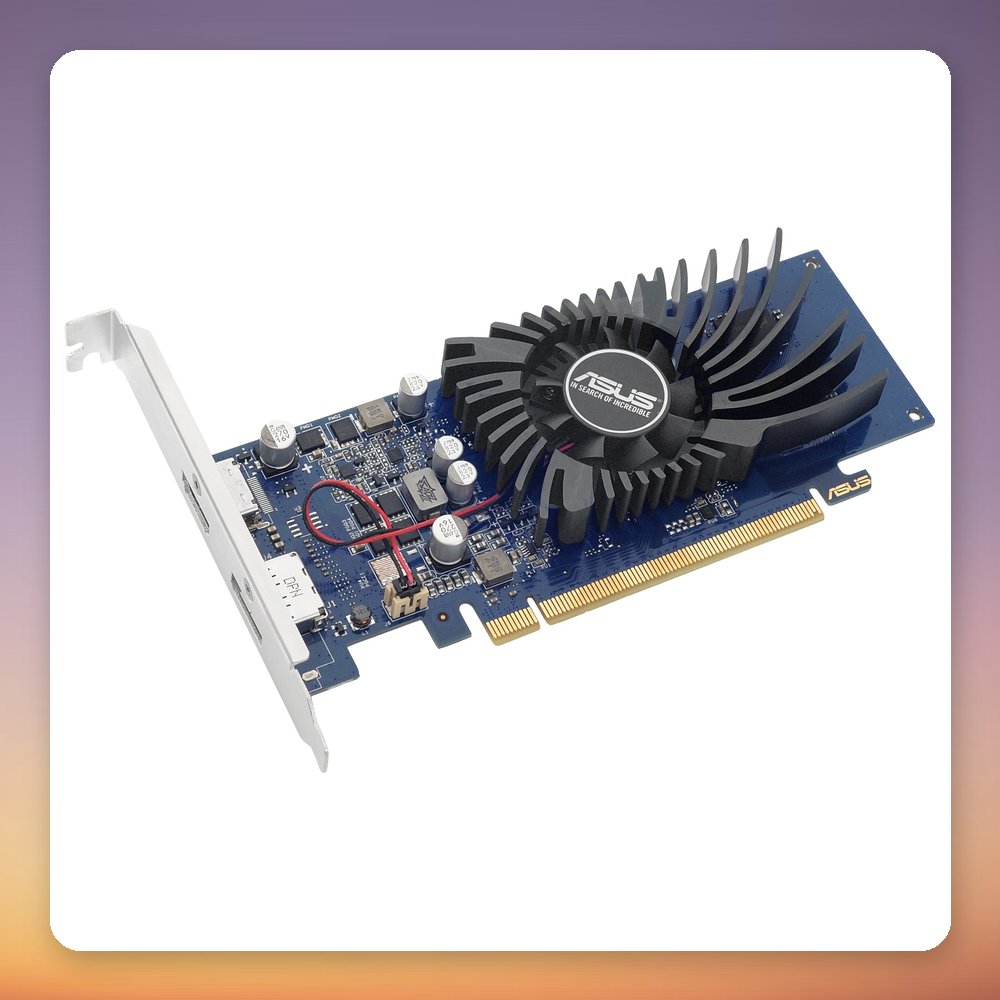

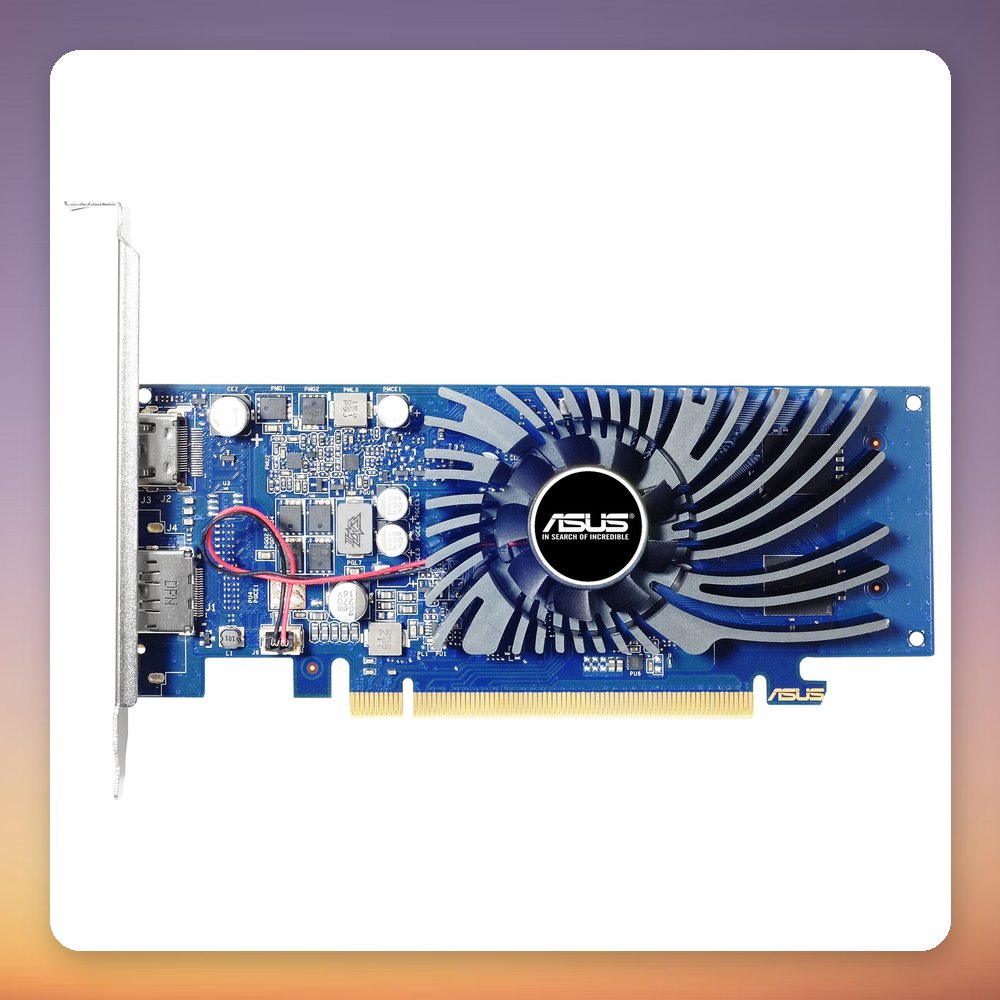

The Asus GeForce GT 1030 BRK is a 2 GB GDDR5 graphics card built on NVIDIA’s GeForce GT 1030 GPU with 384 CUDA cores. It runs at a 1266 MHz clock with a 1506 MHz boost (OC mode), uses a 64-bit memory bus and has a single-slot design, so it leaves neighbouring PCIe slots free. Video output is covered by one HDMI 2.0 port and one DisplayPort 1.4 port.

With an average power draw of 75 W and a recommended PSU of at least 300 W, this card suits compact, low-power builds such as HTPCs and small-form-factor systems. A low-profile bracket is optional, and the card is 129 mm long according to the manufacturer details. It supports NVIDIA PhysX, GPU Boost and the Vulkan API, comes with ASUS GPU Tweak software, and is cooled by a single fan.

Specification

• Manufacturer: Asus
• Model: GeForce GT1030-2G-BRK
• MPN: 90YV0AT2-M0NA00
• EAN: 4712900910223
• GPU: NVIDIA GeForce GT 1030
• CUDA cores: 384
• Core clock (gaming mode): 1228 MHz, boost 1468 MHz
• Core clock (OC mode): 1266 MHz, boost 1506 MHz
• Memory: 2 GB GDDR5
• Memory bus: 64-bit
• Memory speed: 6008 MHz effective (6 Gbps)
• Interface: PCIe 3.0 x16

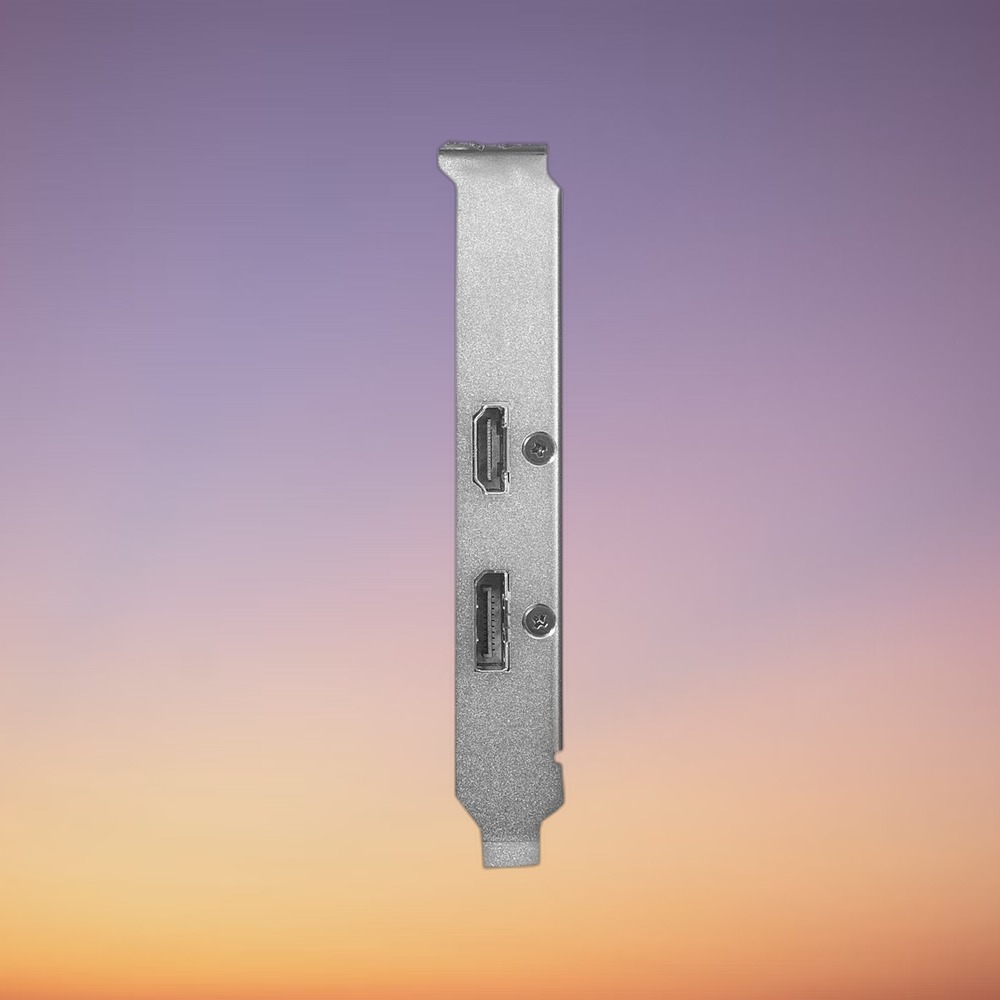

• Outputs: 1x HDMI 2.0, 1x DisplayPort 1.4
• Max resolution: 7680 x 4320
• Cooling: Active, 1 fan
• Power consumption: 75 W average
• Recommended PSU: 300 W minimum
• Slot width: 1 slot
• Bracket: Low profile optional
• Dimensions (W x H x D): 69 x 21 x 129 mm
• Weight: 361 g
