Product Overview

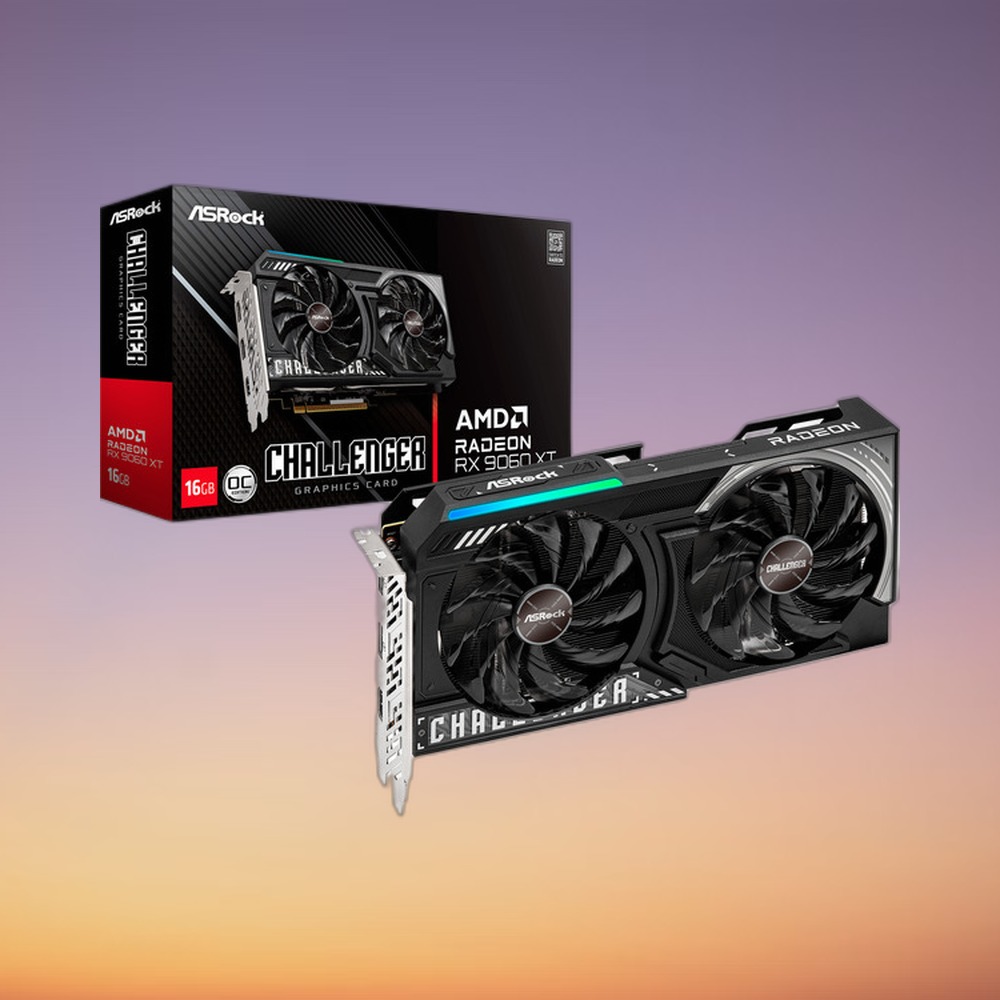

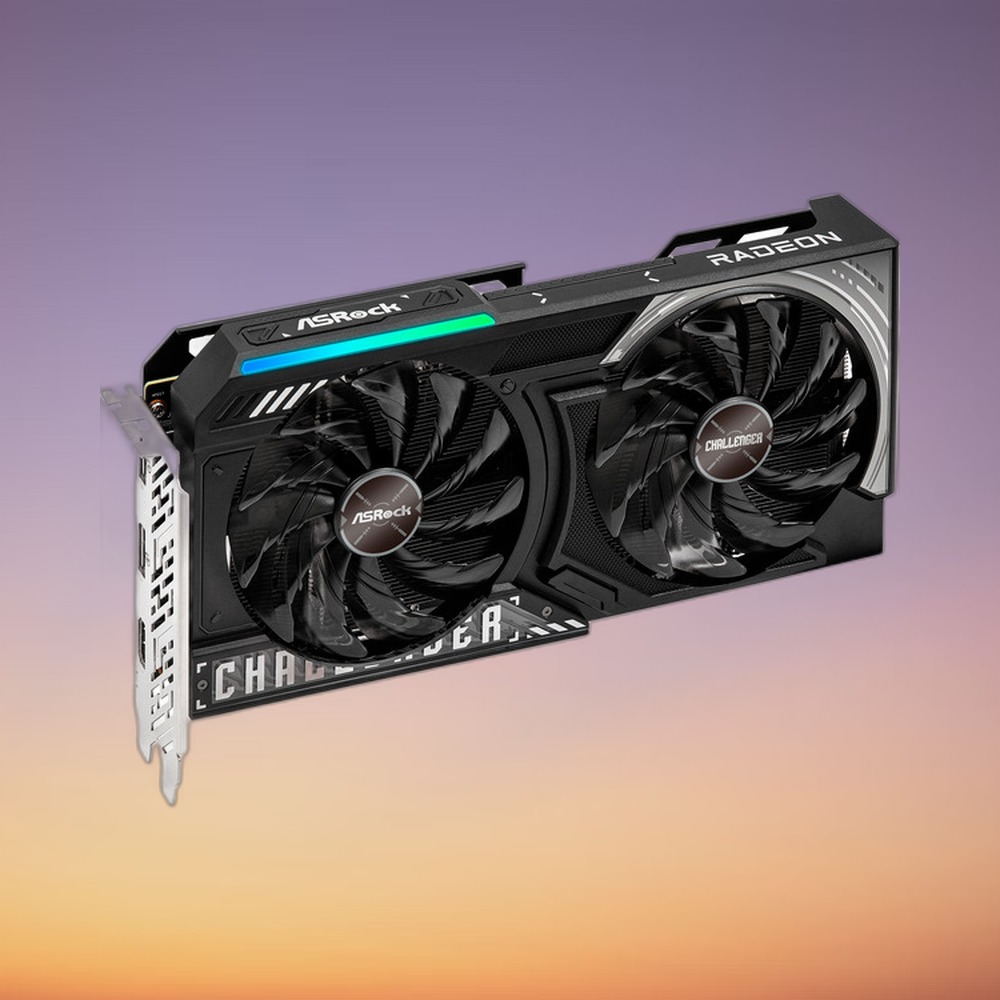

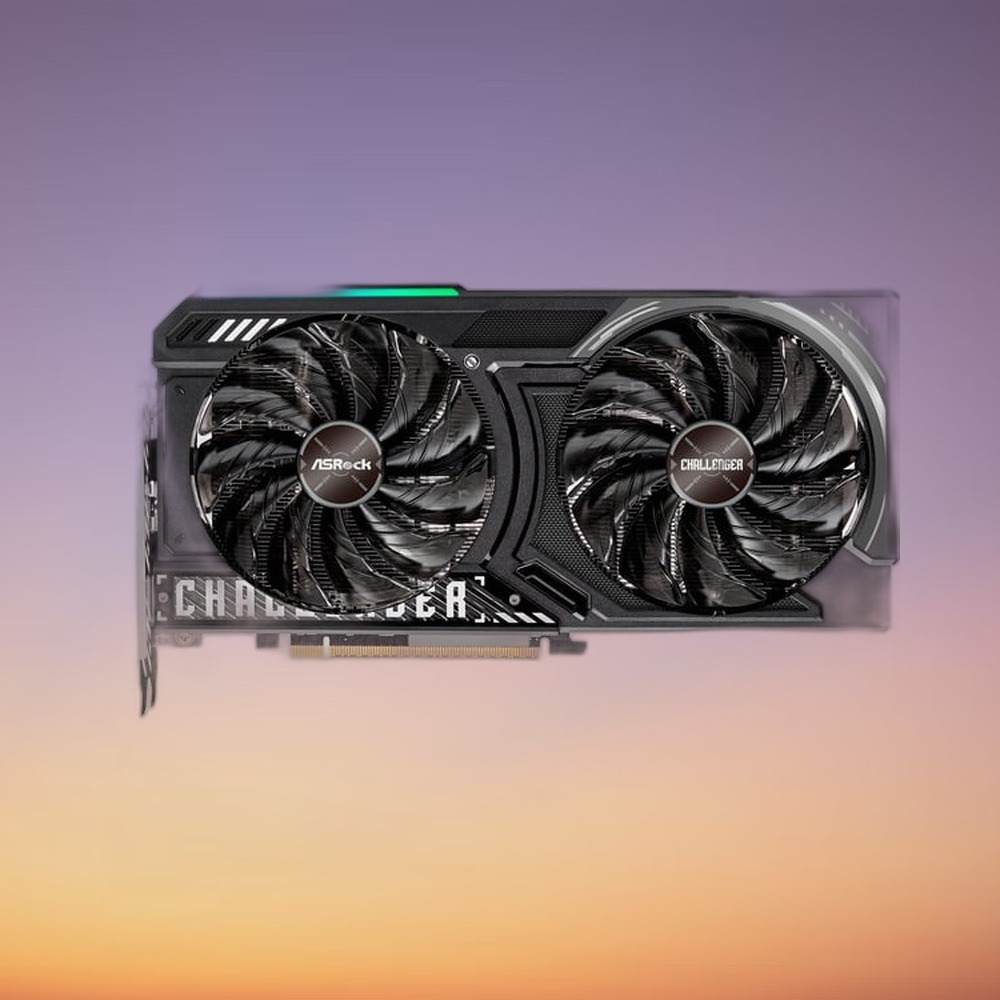

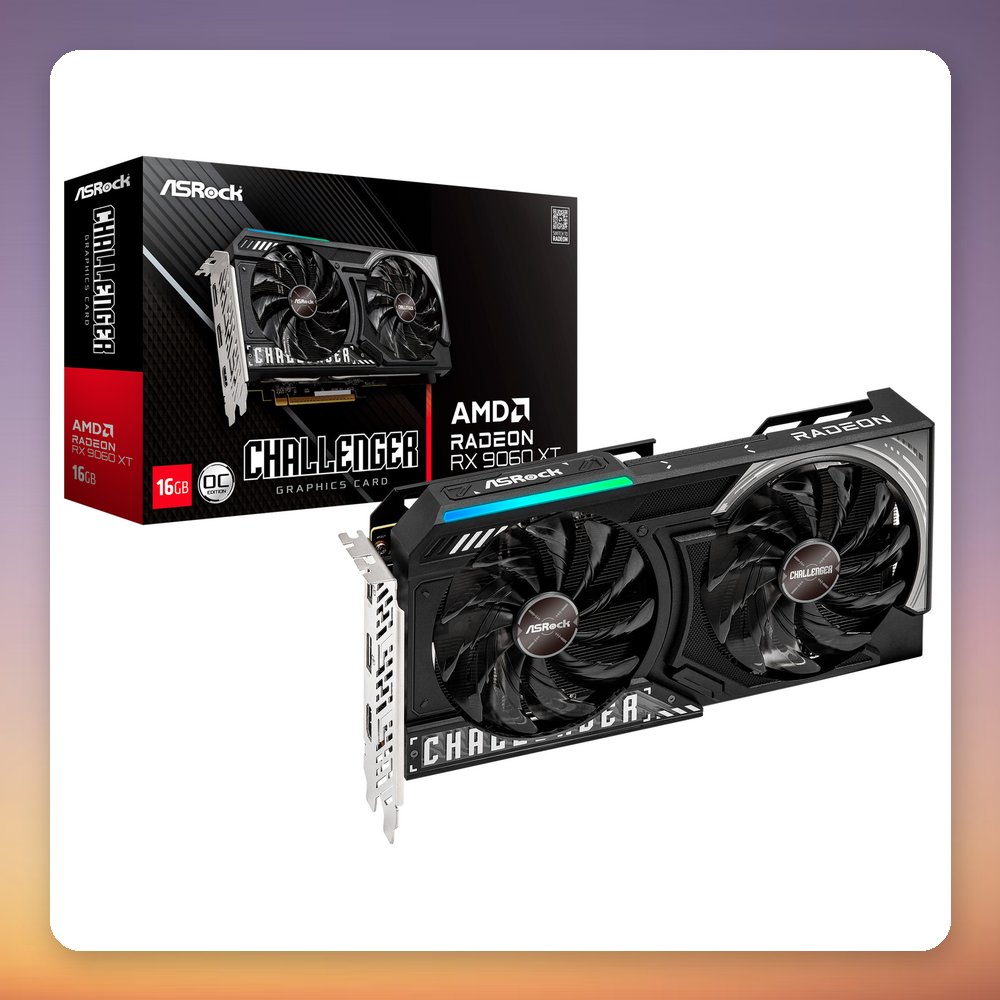

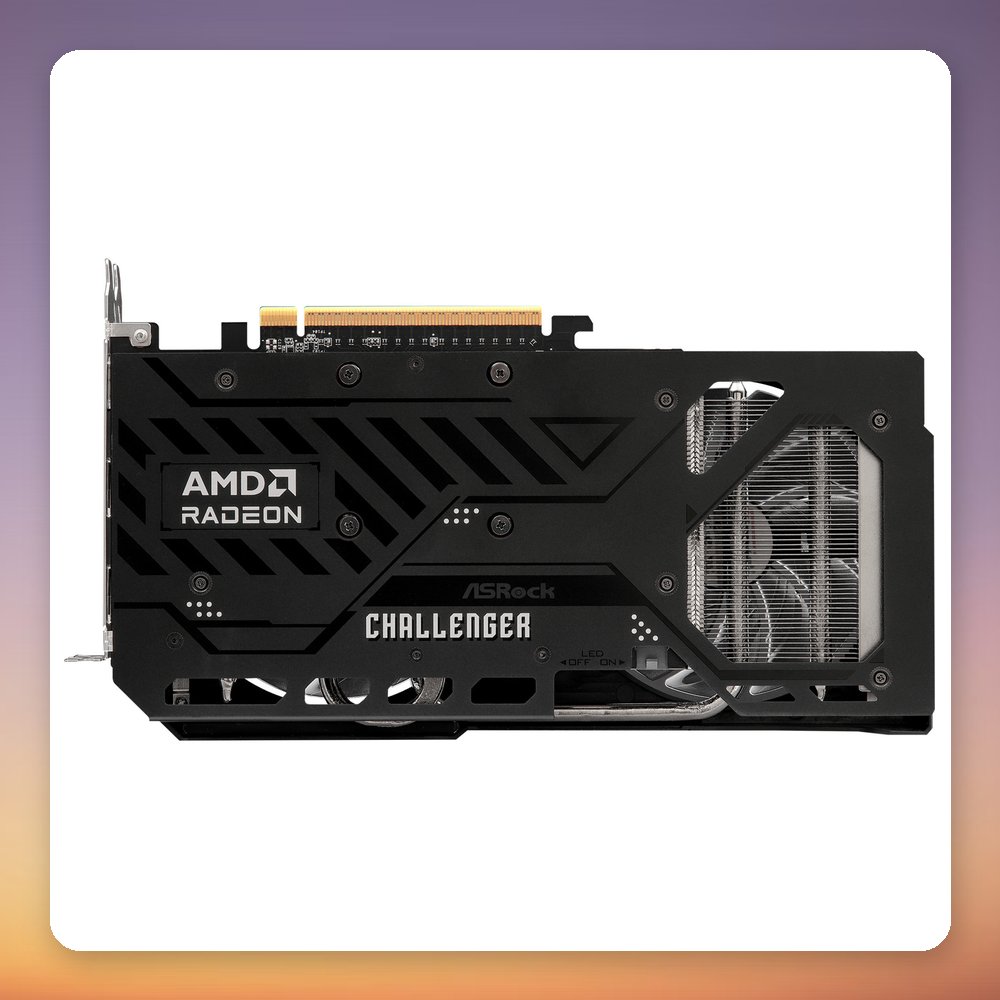

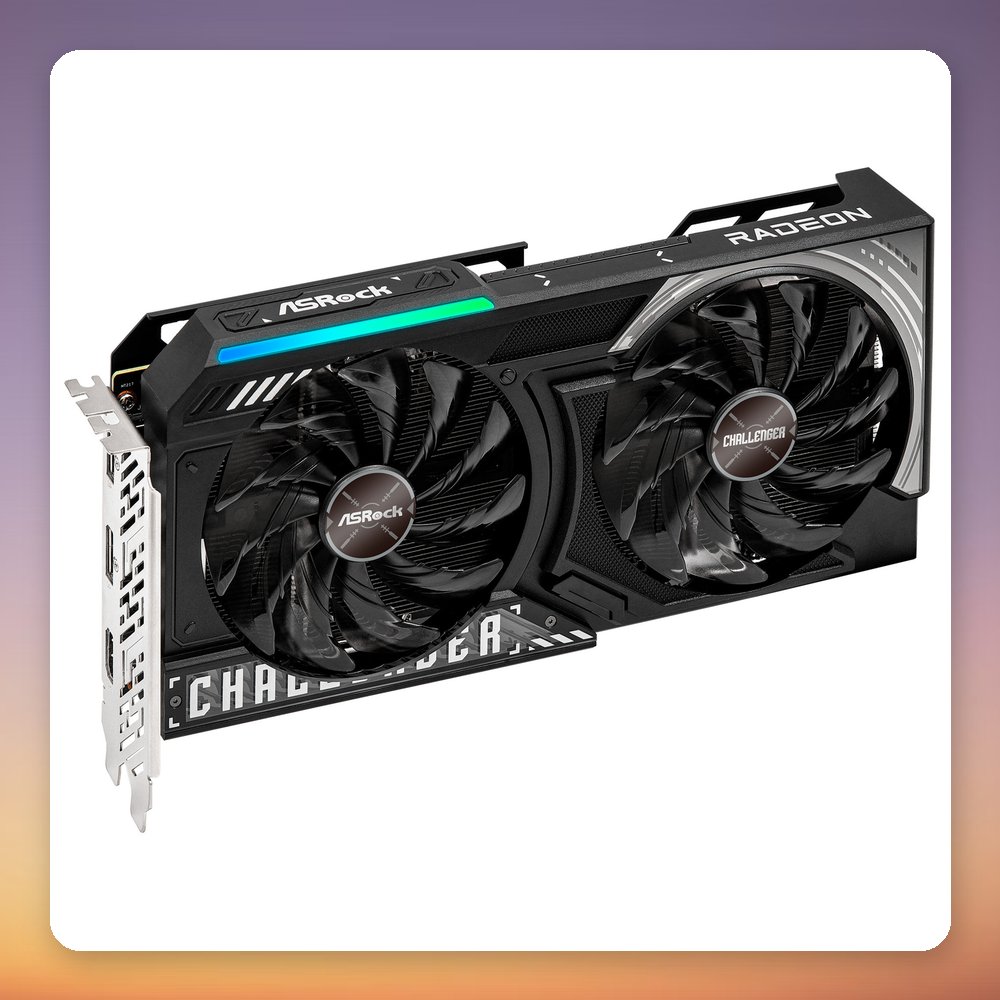

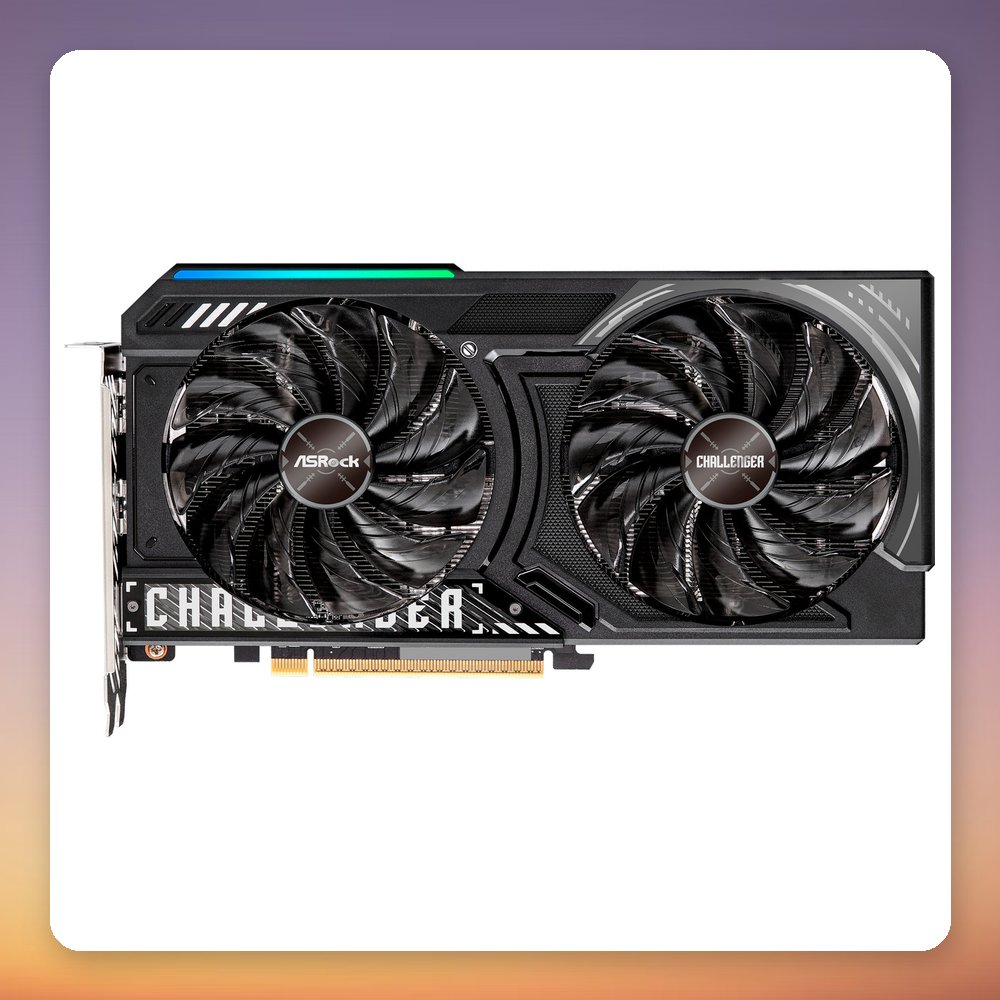

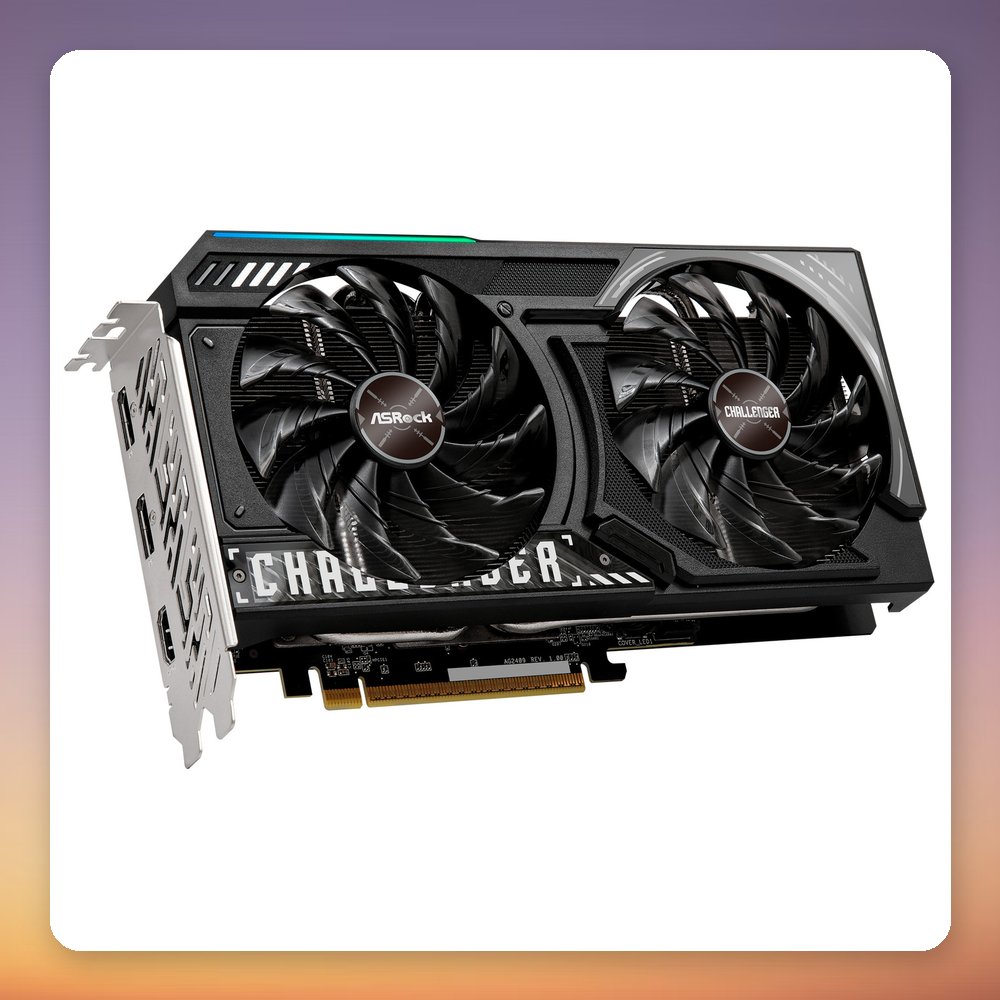

The ASRock Radeon RX 9060 XT Challenger OC is a 16 GB GDDR6 graphics card built on AMD’s RDNA 4 architecture, aimed at 1440p and 1080p gaming. It has 2048 stream processors across 32 Compute Units, a 2530 MHz gaming clock and a 3290 MHz boost clock, with a 128-bit memory bus delivering 320 GB/s of bandwidth.

At 249 mm long and two slots wide, it suits compact and mid-size gaming builds. It needs just a single 8-pin (6+2) power connector, with an average power draw of 185 W and a recommended PSU of at least 550 W. Display outputs are HDMI 2.1b and two DisplayPort 2.1a, and it supports FSR 4 with AI upscaling, AMD HYPR-RX, Fluid Motion Frames and AV1 encode/decode.

Specification

• Manufacturer: Asrock
• Model: Radeon RX 9060 XT Challenger OC
• MPN: 90-GA5QZZ-00UANF
• EAN: 4711581491205
• GPU: AMD Radeon RX 9060 XT
• Architecture: AMD RDNA 4
• Memory: 16 GB GDDR6
• Memory interface: 128-bit
• Memory bandwidth: 320 GB/s
• Boost clock: 3290 MHz
• Game clock: 2530 MHz
• Stream processors: 2048

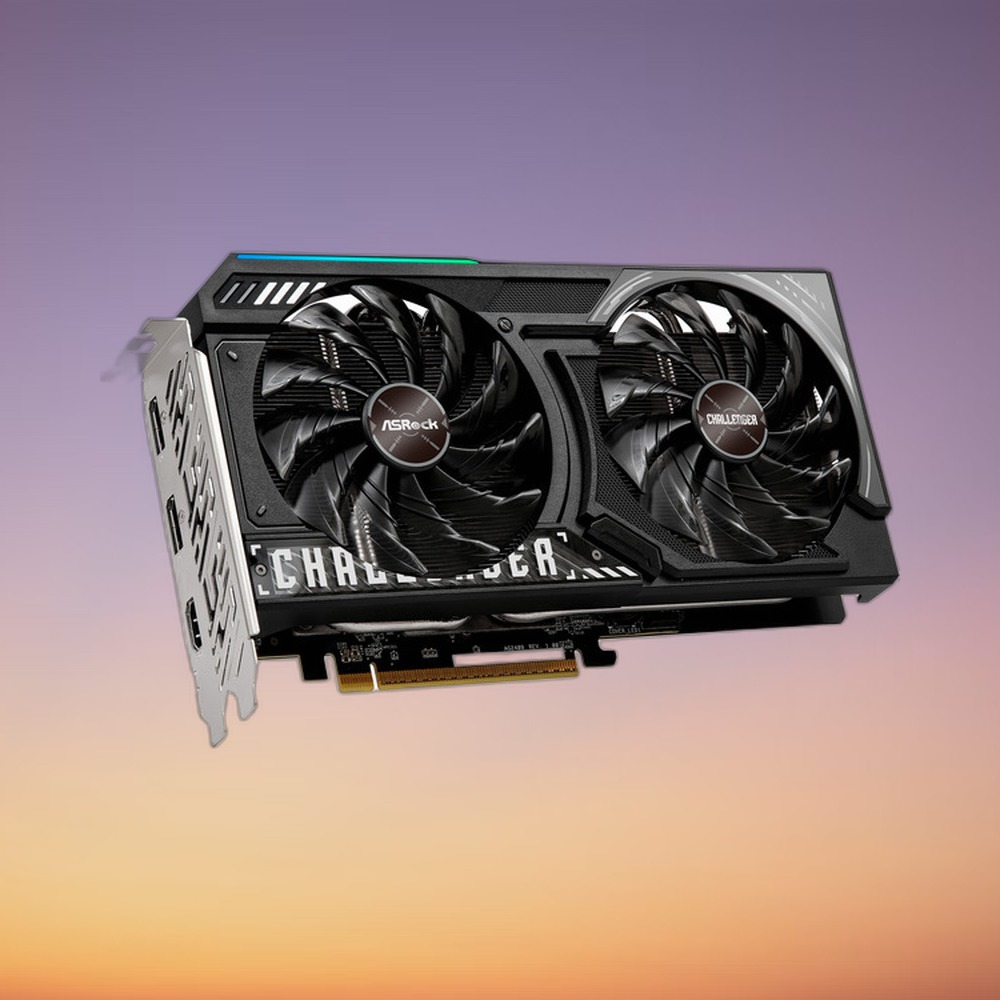

• Interface: PCIe 5.0 x16
• Outputs: 1x HDMI 2.1b, 2x DisplayPort 2.1a

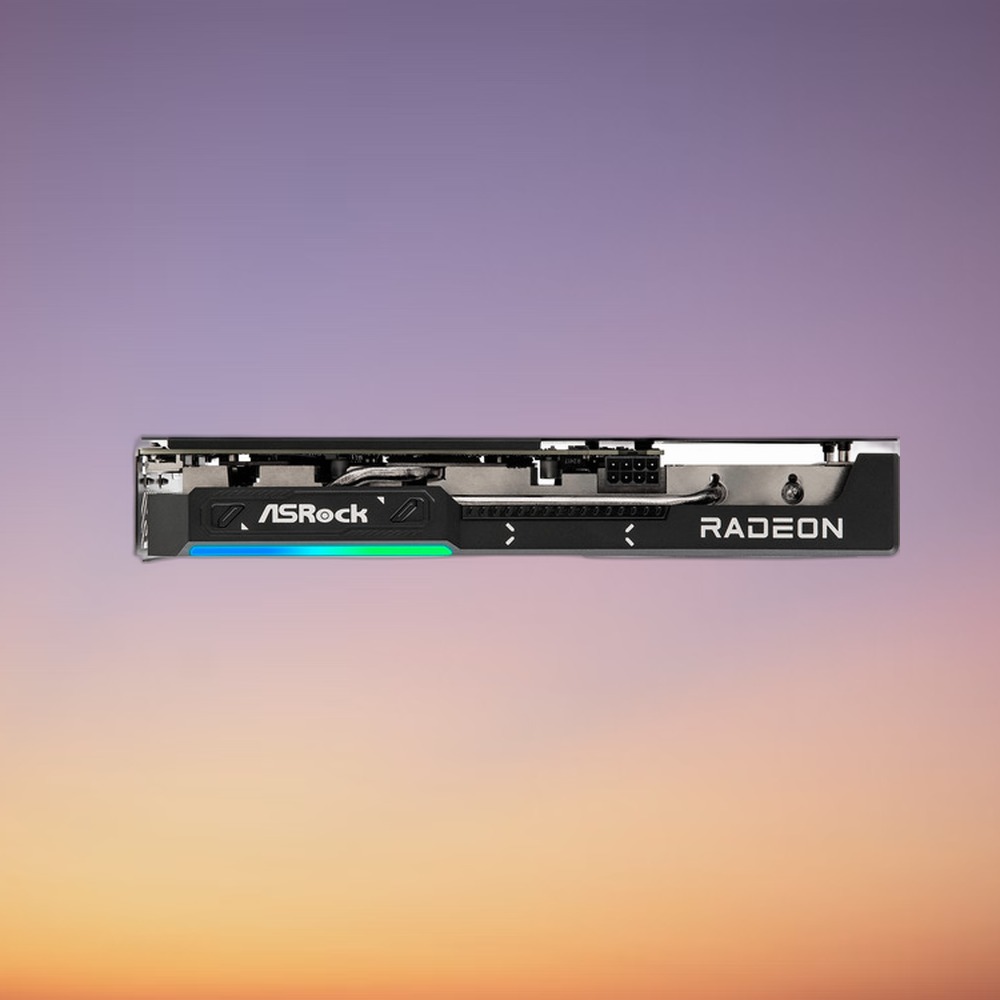

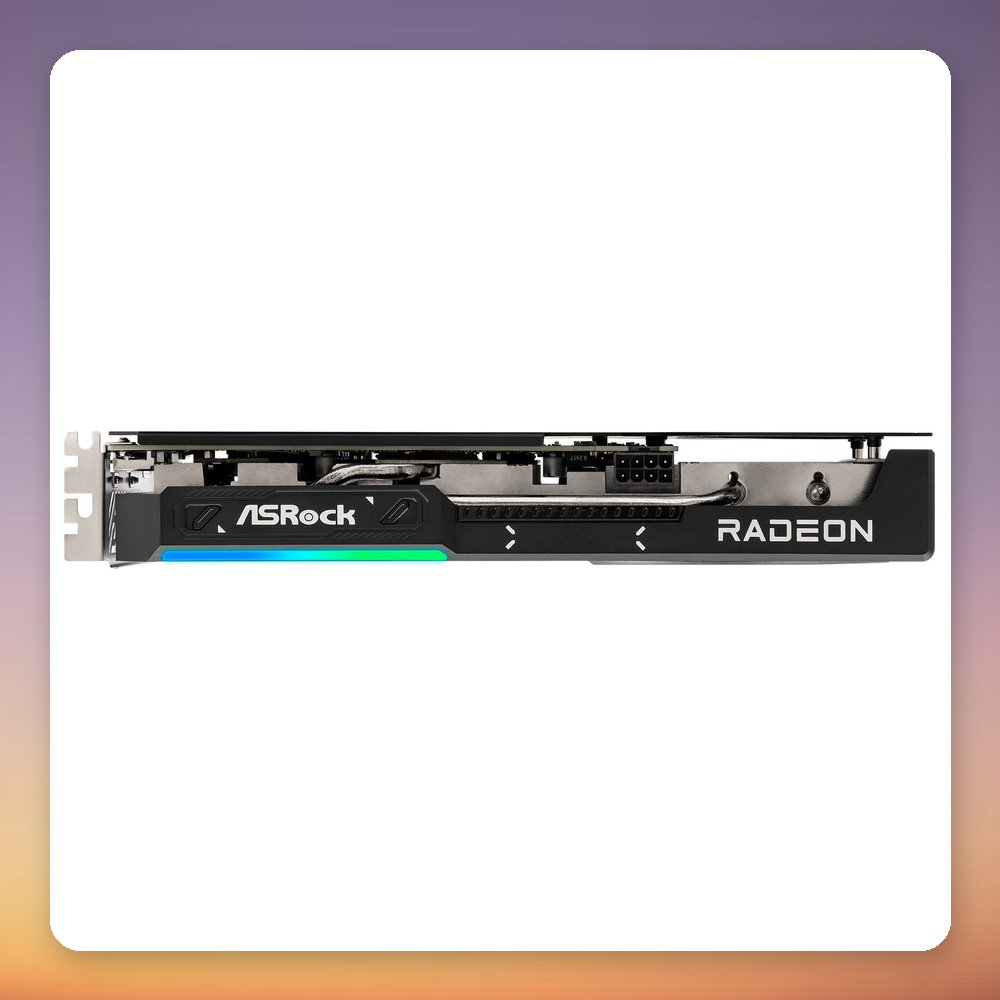

• Power connector: 1x 8-pin (6+2)
• Average power consumption: 185 W
• Recommended PSU: 550 W minimum
• Slots occupied: 2
• Dimensions (W x H x D): 132 x 41 x 249 mm
• Weight: 645 g
