Product Overview

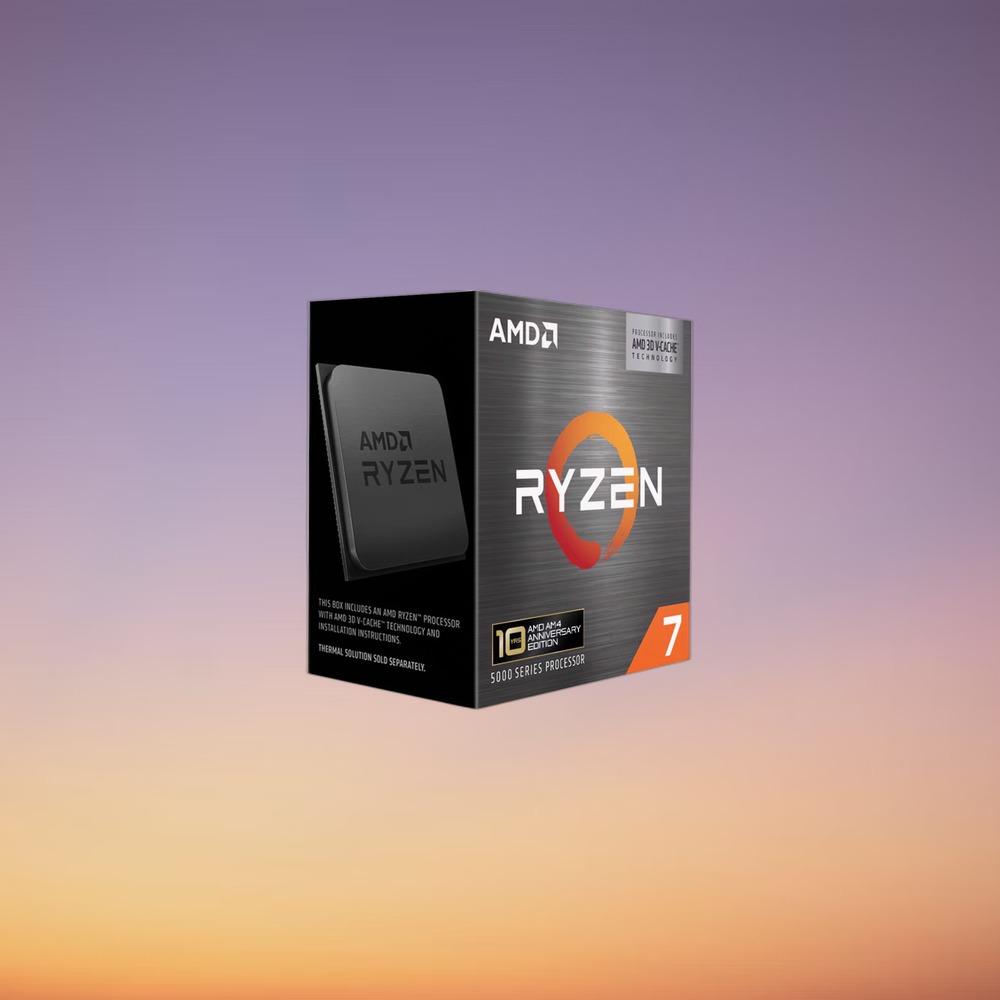

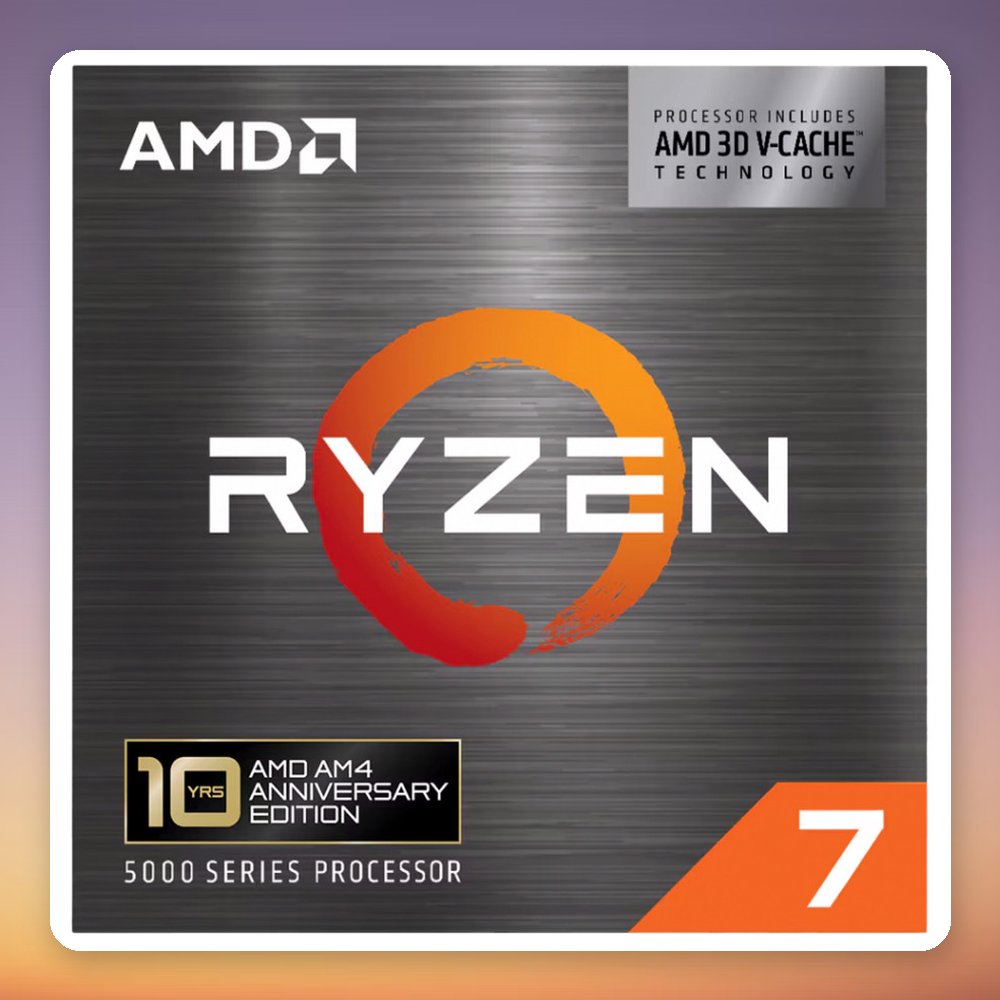

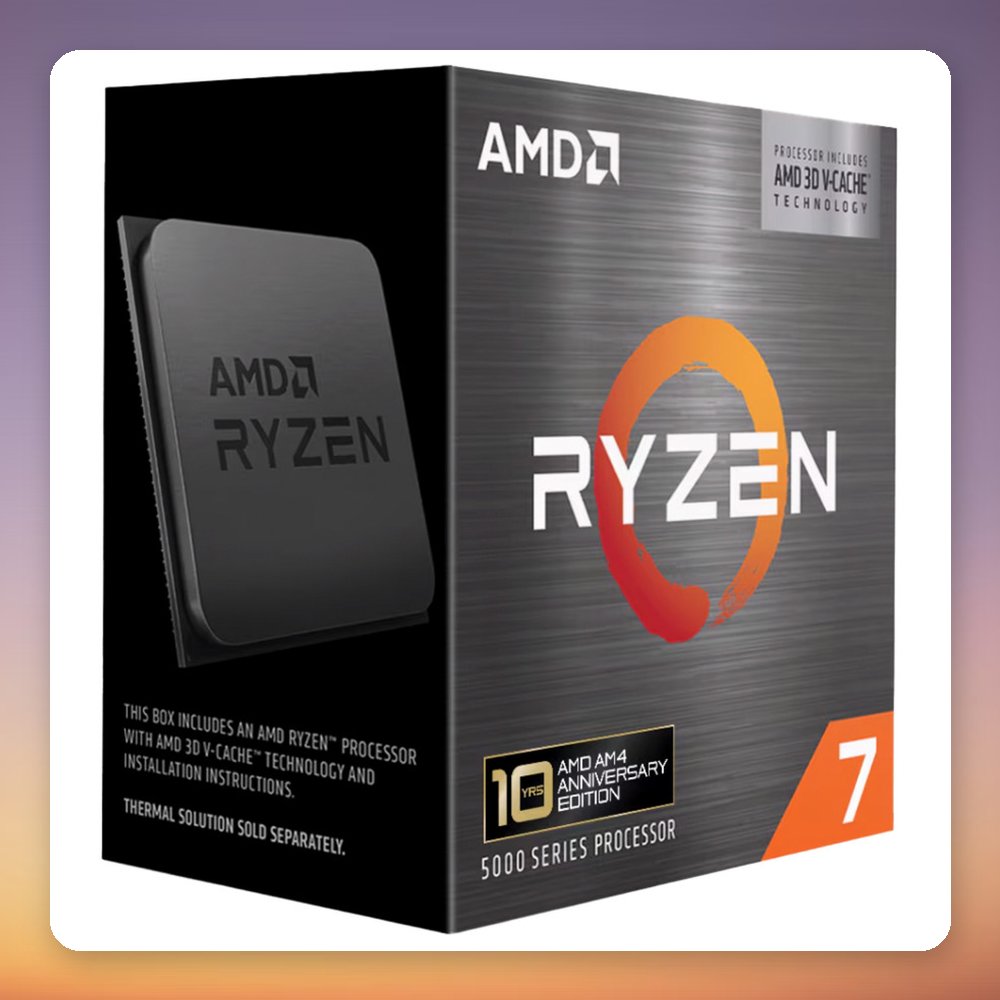

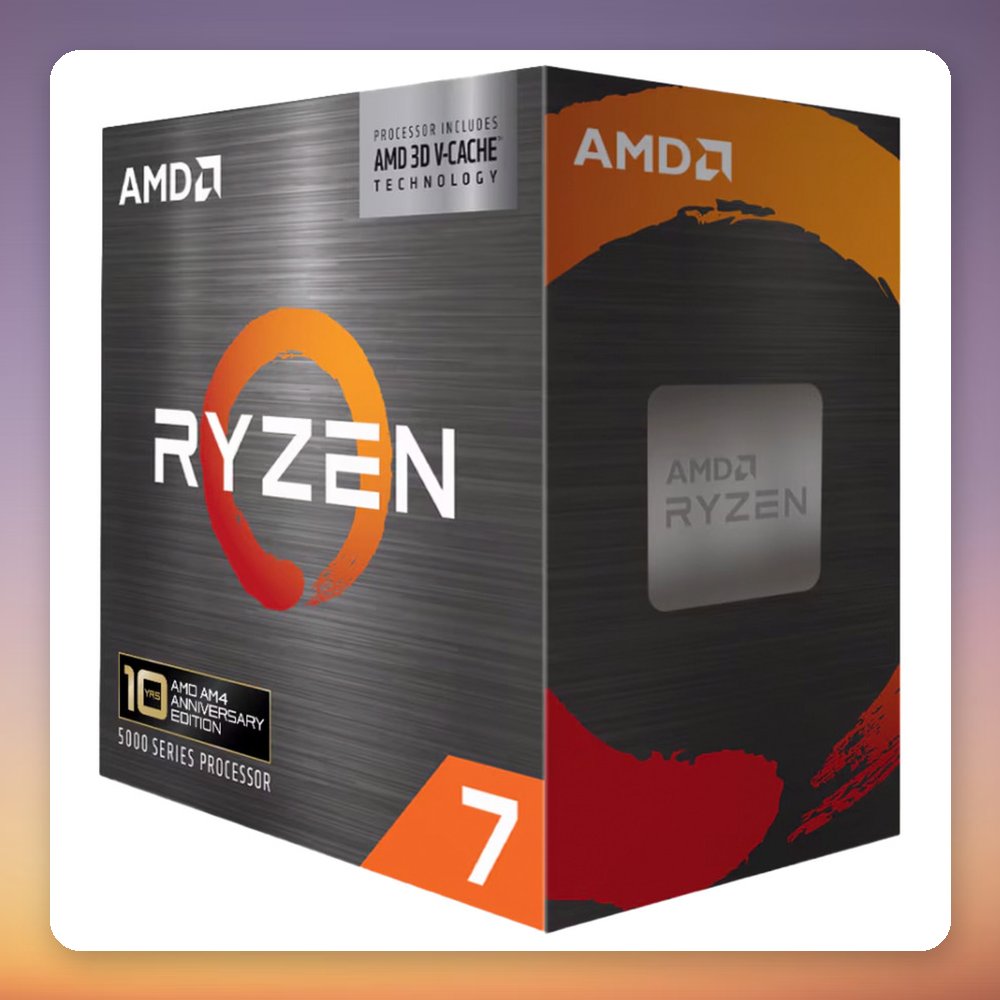

The AMD Ryzen 7 5800X3D is an 8-core, 16-thread desktop processor for socket AM4, built on the Zen 3 architecture. What sets it apart from other AM4 chips is AMD 3D V-Cache technology, which gives it 96 MB of L3 cache (98,304 KB). It runs at a 3.4 GHz base clock with a boost of up to 4.5 GHz and has a TDP of 105 W.

This is a drop-in upgrade for gamers and builders who already have an AM4 motherboard and want more performance without changing platform. It supports PCIe 4.0 and dual-channel memory with ECC support, and it is sold as the boxed version with a Carbice Ice Pad included. Note that there is no cooler in the box and no integrated graphics, so you will need a separate CPU cooler and a dedicated graphics card.

Specification

• Manufacturer: AMD
• Model: Ryzen 7 5800X3D
• MPN: 100-100000651POF
• EAN: 730143318471
• Socket: AM4 (PGA)
• Cores / Threads: 8 / 16
• Base clock: 3.4 GHz
• Max boost clock: up to 4.5 GHz
• L3 cache: 96 MB (98,304 KB) with AMD 3D V-Cache
• L2 cache: 4 MB (4,096 KB)
• L1 cache: 512 KB
• Architecture: Zen 3 (Vermeer)
• Process: 7 nm
• TDP: 105 W
• Memory channels: 2 (ECC supported)
• Max PCIe version: 4.0
• Integrated graphics: None
• Cooler included: No (boxed version without cooler)
