Product Overview

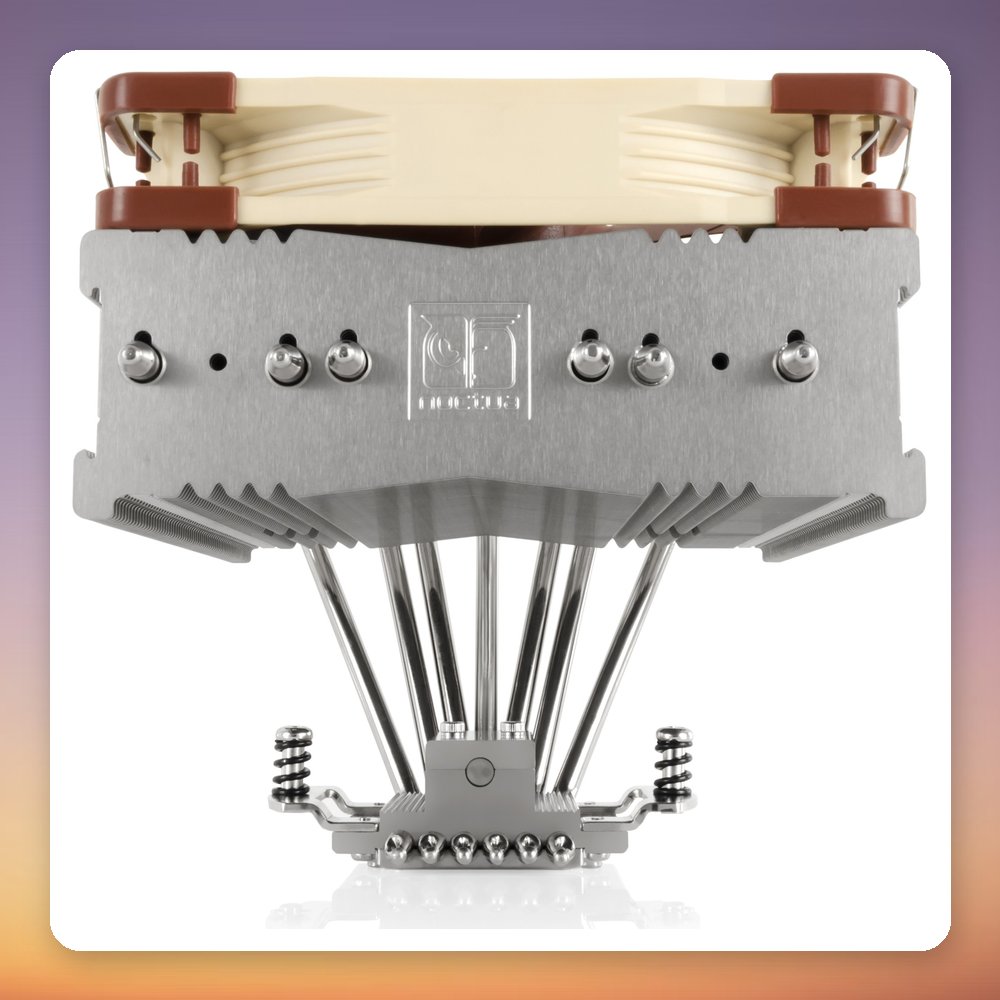

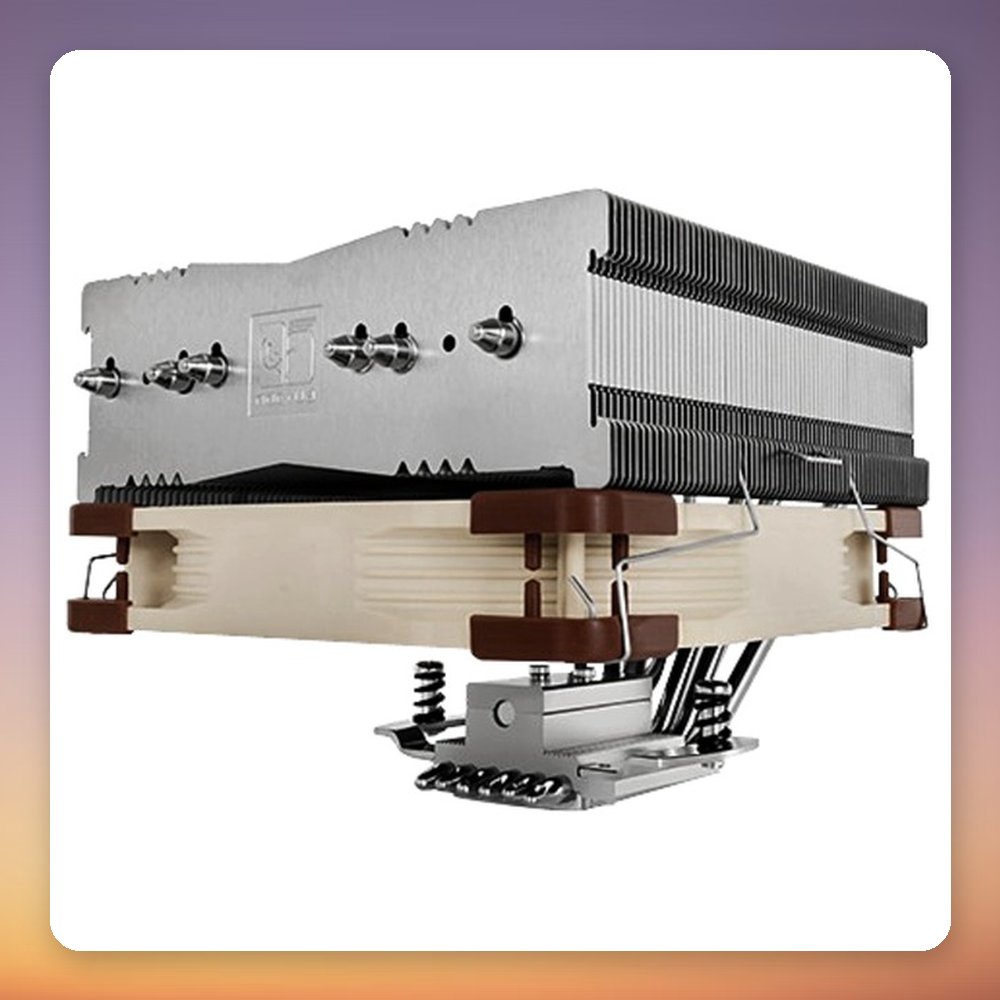

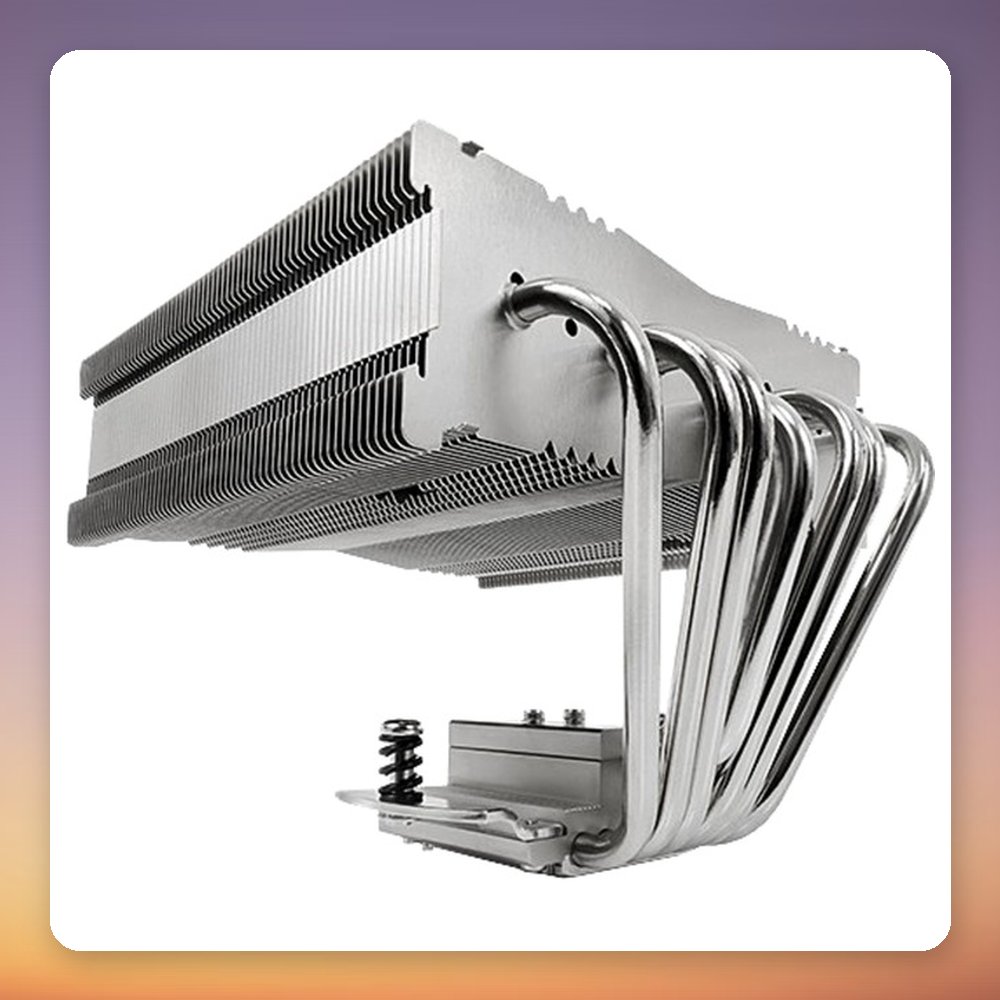

The Noctua NH-C14S is a Noctua NH-C14S top-blower CPU cooler with a C-shaped horizontal design, built around a single 140 mm NF-A14 PWM fan and six heatpipe connections. Noctua states that the deeper cooling fins let this single-fan model reach silent cooling performance comparable to its two-fan predecessor, while the fan runs from 300 to 1,500 RPM at 19.2 to 24.6 dB.

It suits compact and mid-size builds where height or RAM clearance matters. With the fan mounted above the fins, the cooler leaves room for memory modules up to 65 mm tall. With the fan mounted below the fins, the total height drops to 115 mm, so it also fits many HTPC cases. The offset design means it does not overhang the top PCIe slot on most µATX and ATX motherboards. Sockets 1150, 1151, 1155, 1156, 1200, 1700, 1851, AM4 and AM5 are supported.

Specification

• Manufacturer: Noctua
• Model: NH-C14S
• MPN: NH-C14S
• EAN: 4716123315698
• Cooler type: Top blower, C-shaped horizontal design
• Compatible sockets: Intel 1150, 1151, 1155, 1156, 1200, 1700, 1851; AMD AM4, AM5 (FM2+ with backplate)
• Fan: 1x 140 mm (140 x 140 x 25 mm), SSO bearing
• Fan speed: 300 to 1,500 RPM
• Noise level: 19.2 to 24.6 dB
• Airflow: 115.5 to 140.2 m³/h (68 to 82.5 CFM)
• Heatpipes: 6
• Heatsink material: Aluminium
• Fan connector: 4-pin PWM, 12 V, 1.56 W
• Mounting: Screw-fixed
• Dimensions, heatsink (W x H x D): 140 x 115 x 163 mm
• Dimensions, total (W x H x D): 140 x 142 x 163 mm
• Weight: 1,015 g (cooler), approx. 1 kg total
