Product Overview

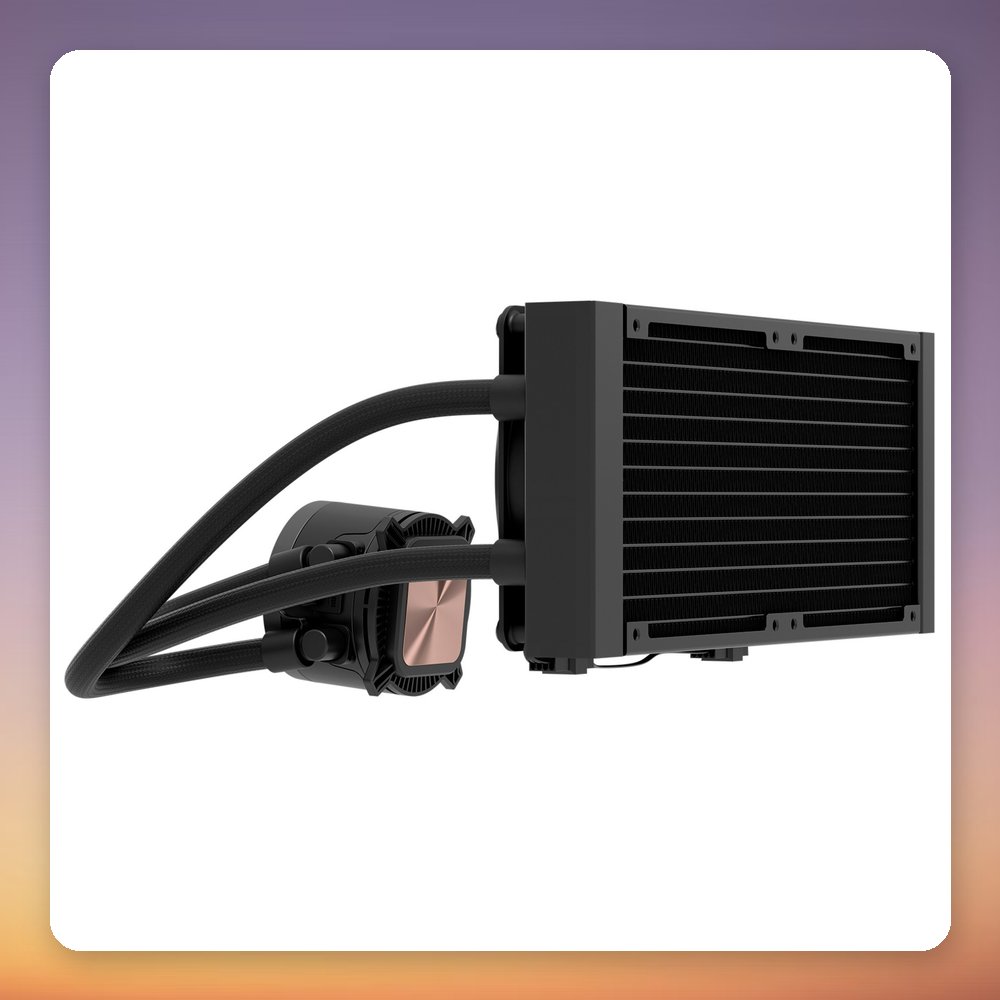

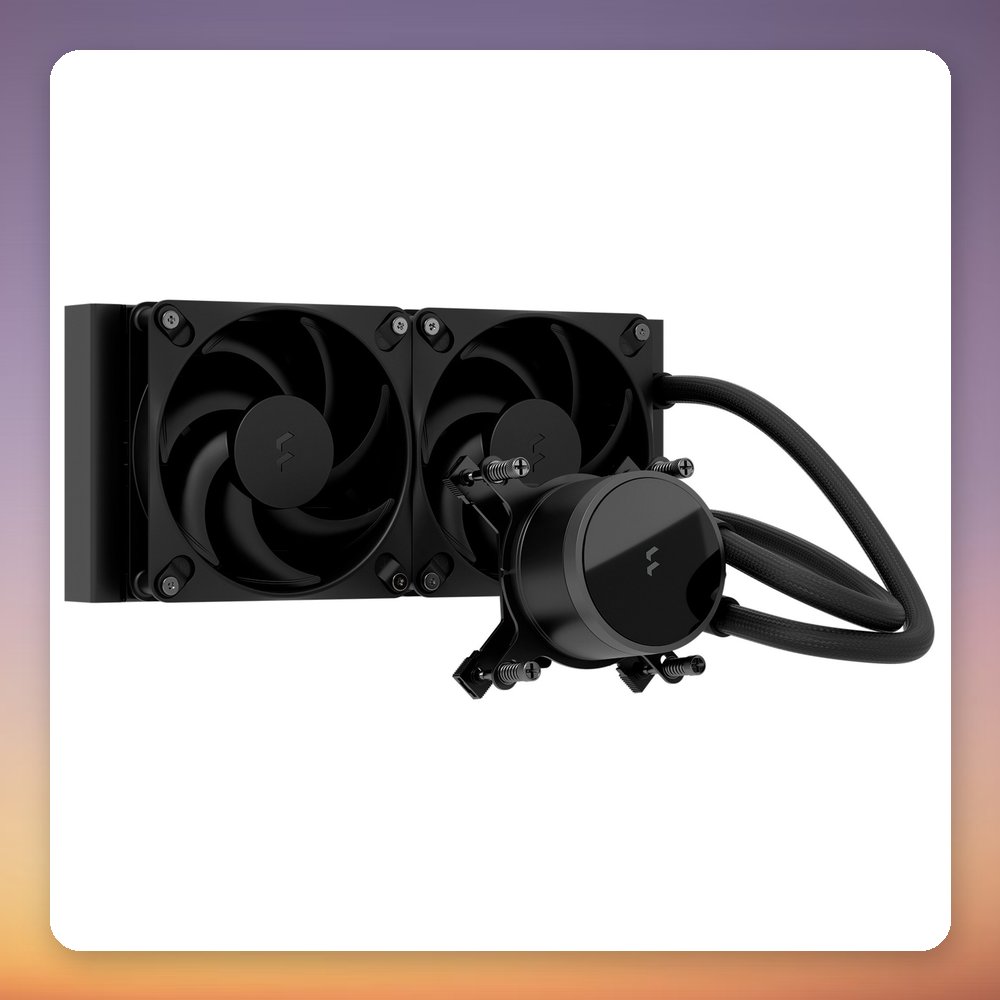

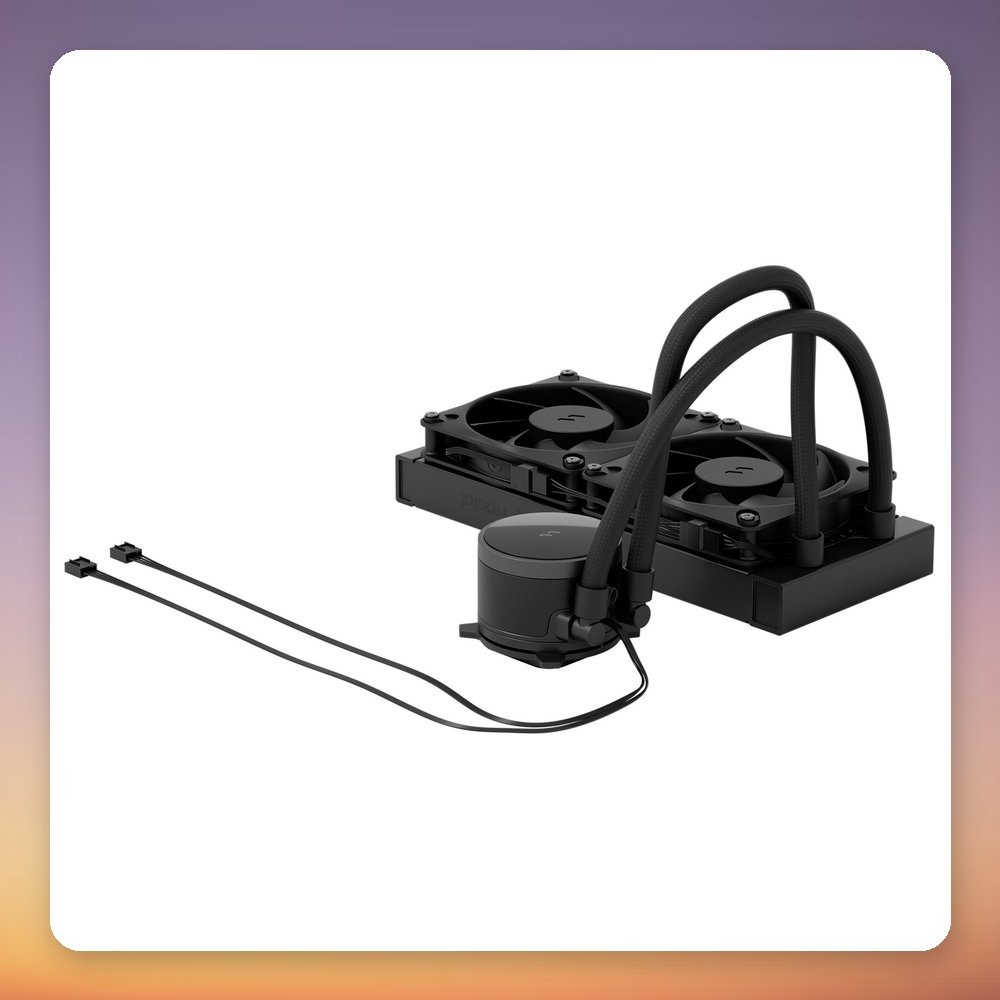

The Fractal Design Radius 240 is a closed-loop all-in-one liquid cooler with a 2x 120 mm radiator (277 x 120 x 27 mm), built around a copper cold plate and a PWM pump with a ceramic bearing. Two pre-mounted Dynamic 3 120 mm fans run at 350 to 2,200 RPM, moving up to 108.5 m³/h (63.9 CFM) with a rated noise level of 31.9 dB.

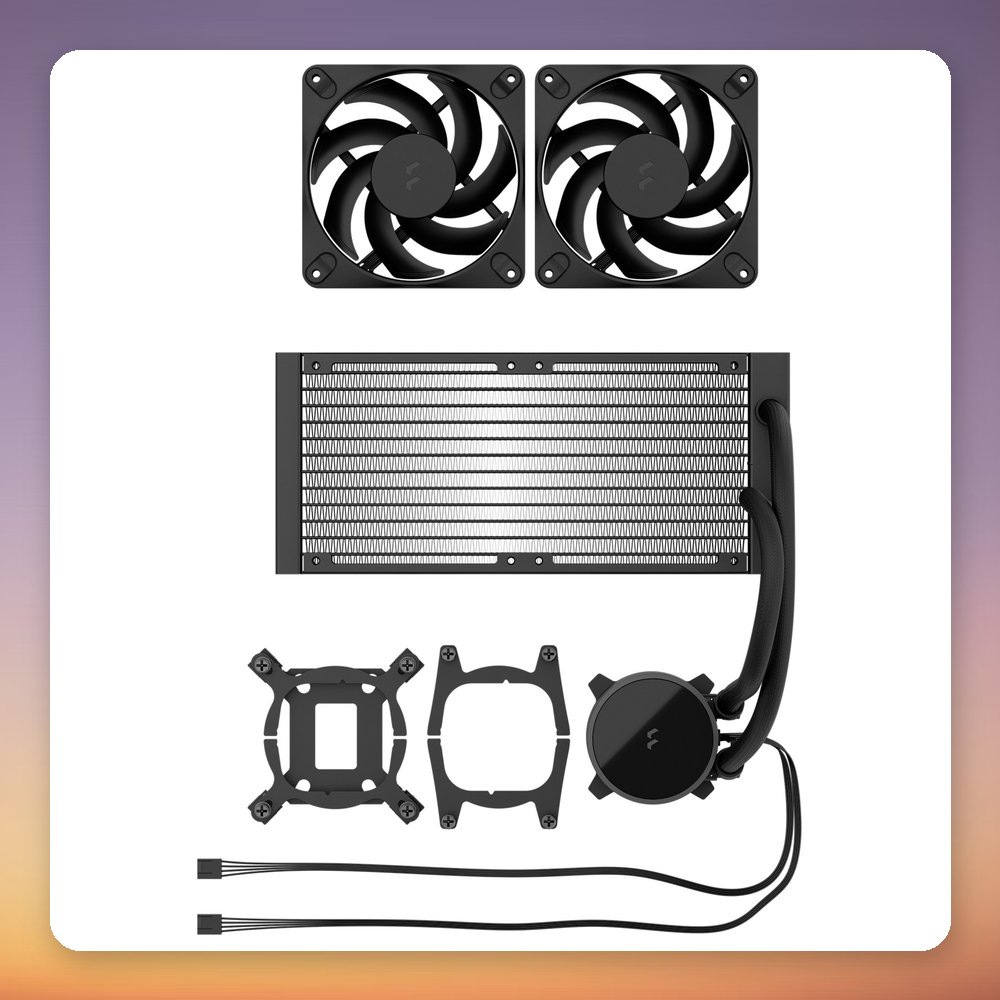

It suits gaming and general-purpose builds with a 240 mm radiator mount in the case and a recent Intel or AMD CPU: supported sockets run from LGA1150 up to LGA1851, plus AM4 and AM5. Installation is kept simple, with thermal paste pre-applied and mounting brackets for current sockets supplied. Cable management is tidied up by integrated cable routing, daisy-chained fans and a rotatable pump cover. The tubing is 400 mm long and the whole unit weighs 1.4 kg.

Specification

• Manufacturer: Fractal Design
• Model: Radius 240
• MPN: FD-W-RA1-2401
• EAN: 7340172714644
• Type: All-in-one liquid CPU cooler (closed loop)
• Radiator size: 2x 120 mm (240 mm)
• Compatible sockets: Intel 1150, 1151, 1155, 1156, 1200, 1700, 1851; AMD AM4, AM5
• Fans: 2x 120 mm Dynamic 3 (120 x 120 x 25 mm)
• Fan speed: 350 – 2,200 RPM
• Airflow: 108.5 m³/h (63.9 CFM)
• Static pressure: Up to 2.82 mm H2O
• Noise level: 31.9 dB
• Pump speed: 3,400 RPM
• Cold plate / radiator material: Copper / Aluminium
• Tubing length: 400 mm
• Connector: 4-pin PWM
• Power consumption: 2.58 W
• Radiator dimensions (W x H x D): 277 x 120 x 27 mm
• Total dimensions (W x H x D): 277 x 120 x 52 mm
• Weight: 1.4 kg
