Product Overview

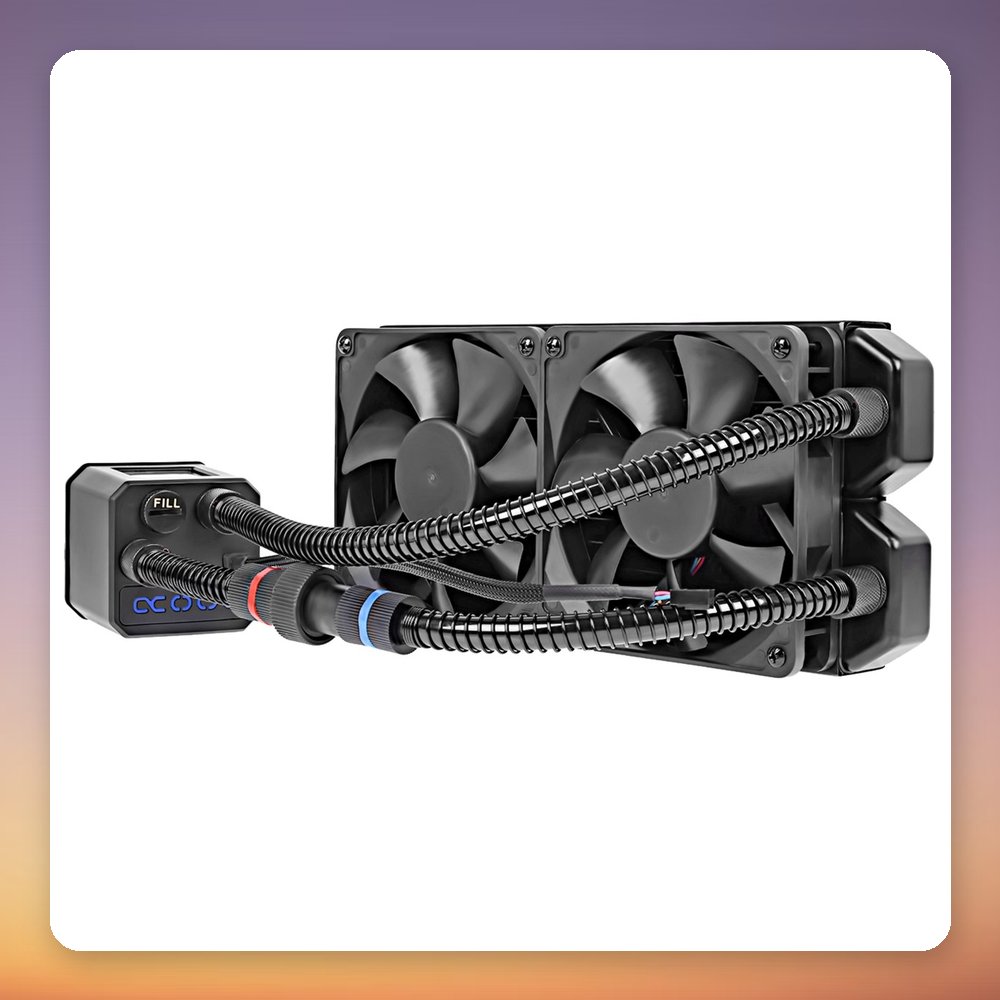

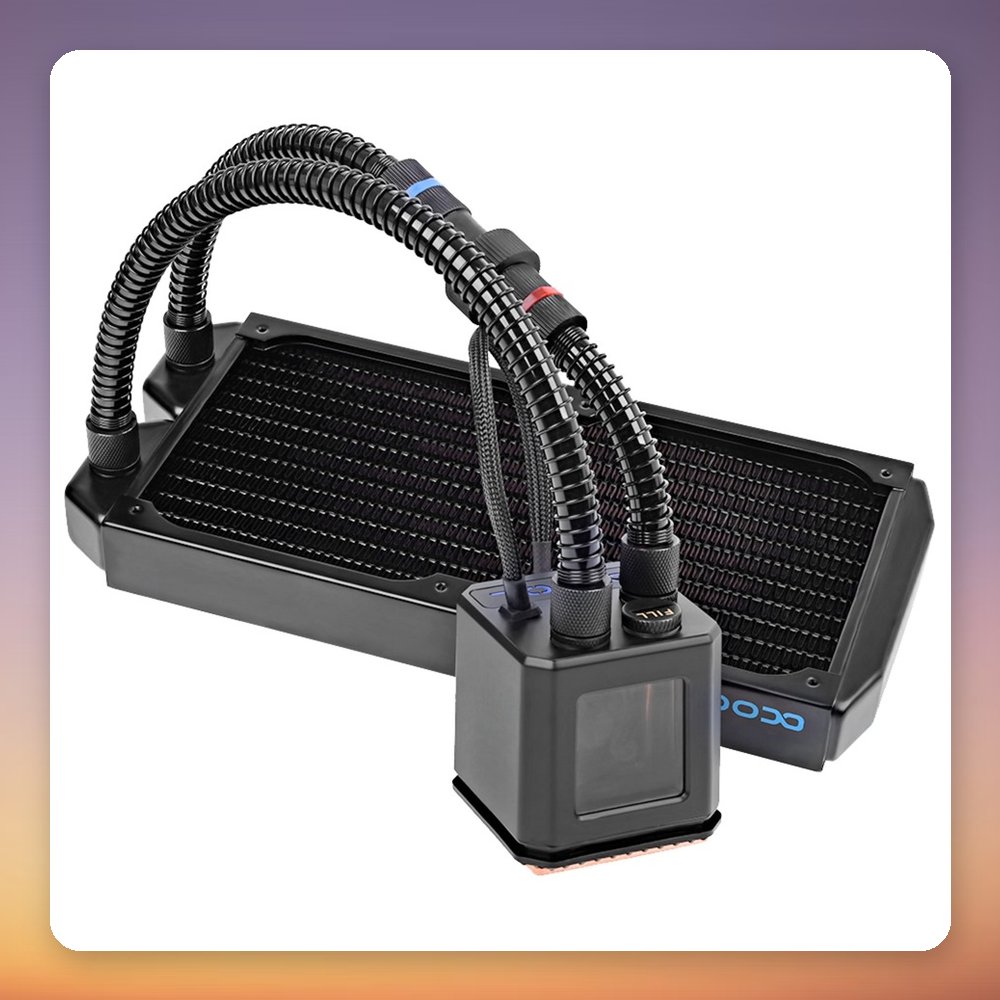

The Alphacool Eisbaer 240 CPU is a 240 mm all-in-one liquid cooler with a full copper radiator (2x 120 mm, 30 mm thick) instead of the aluminium radiators used on typical AIOs. It is built from classic water cooling components, based on Alphacool’s NexXxoS radiator range, so it can be expanded, modified or refilled. Its low fin density keeps cooling performance up when the fans run at low speeds.

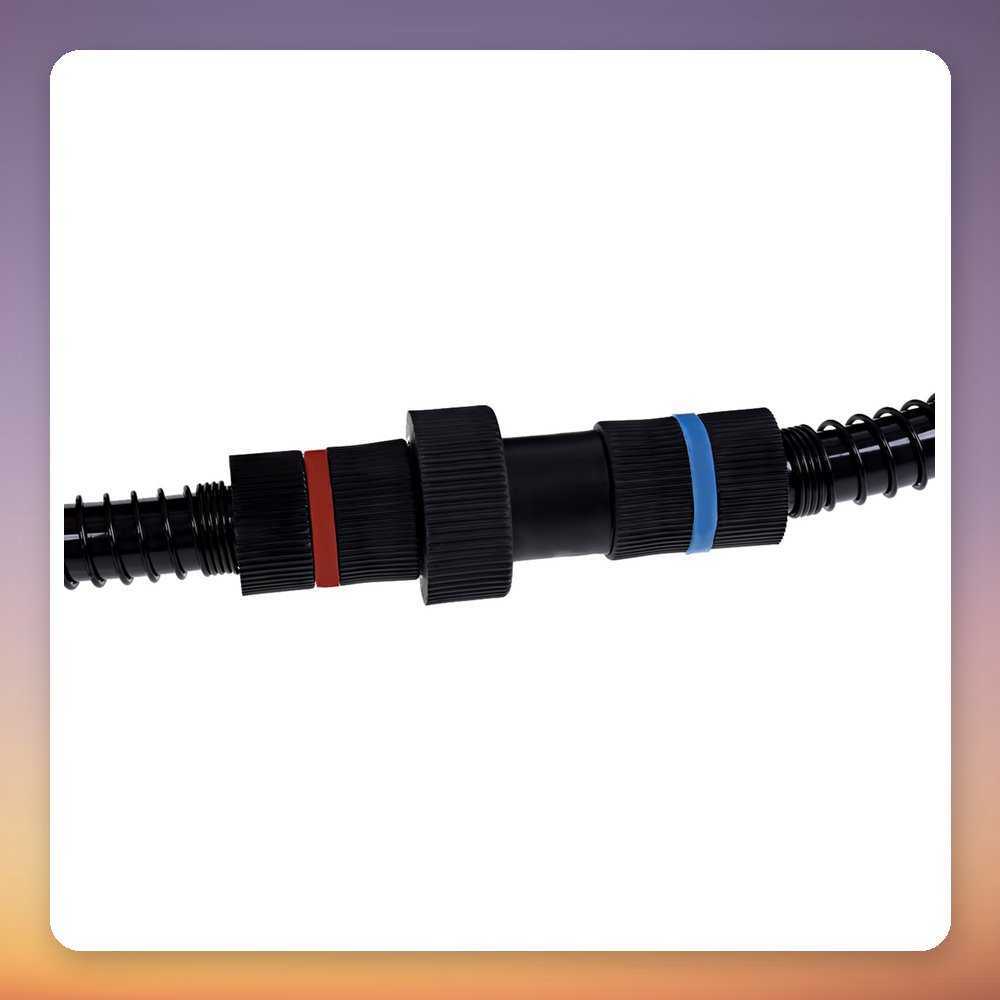

The Eisbaer 240 suits PC builders who want a quiet AIO that can grow with their loop. One of the tubes has a quick-release coupling compatible with Alphacool HF quick-disconnects, so a GPU cooler and radiator can be added later. The two Eiswind fans run from 550 to 1,700 RPM over PWM and share one header via the supplied Y-adapter. It supports a wide range of Intel and AMD sockets, including LGA 1700, LGA 1851 and AM5.

Specification

• Manufacturer: Alphacool
• Model: Eisbaer 240
• MPN: 11285
• EAN: 4250197112857
• Type: All-in-one liquid cooler (closed system)

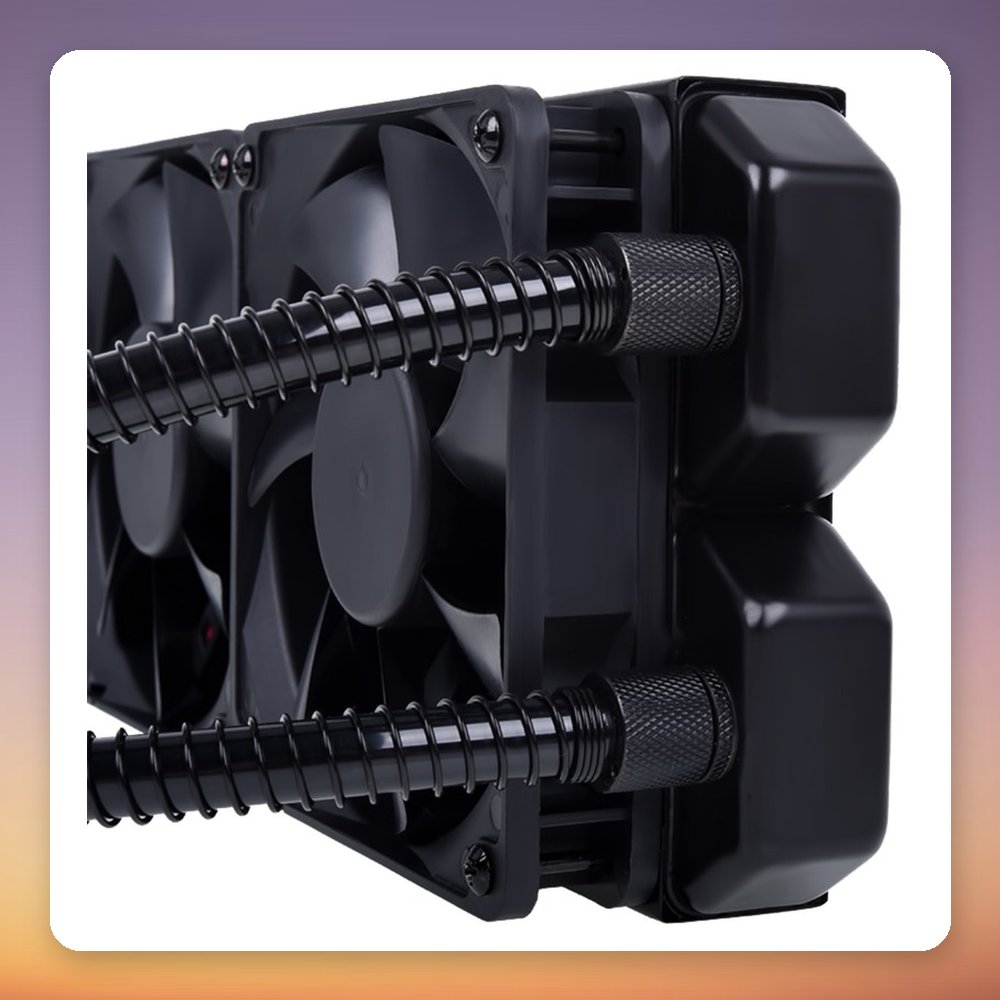

• Radiator size: 2x 120 mm (240 mm), 30 mm thick
• Radiator and cold plate material: Copper

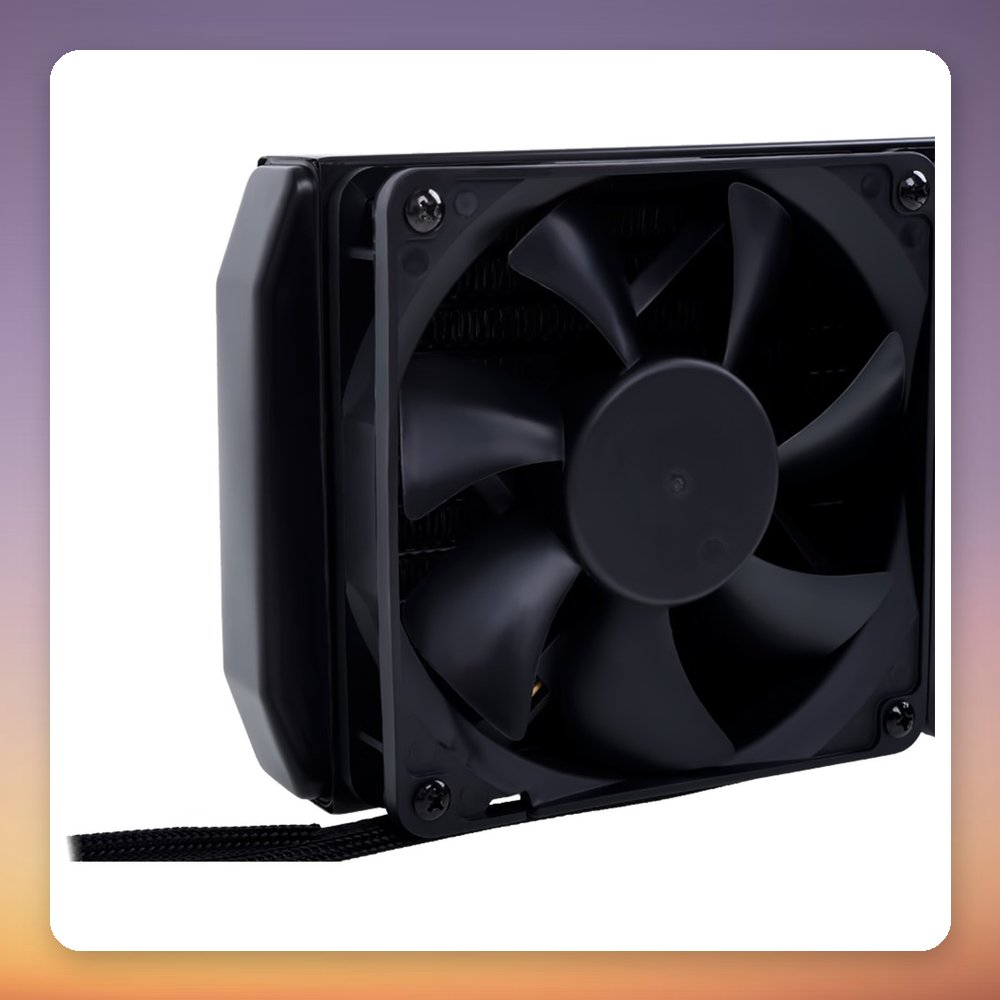

• Fans: 2x 120 x 120 x 25 mm, sleeve bearing
• Fan speed: 550 to 1,700 RPM (PWM)
• Airflow: 108.5 m³/h (63.85 CFM)
• Noise level: 29 dB

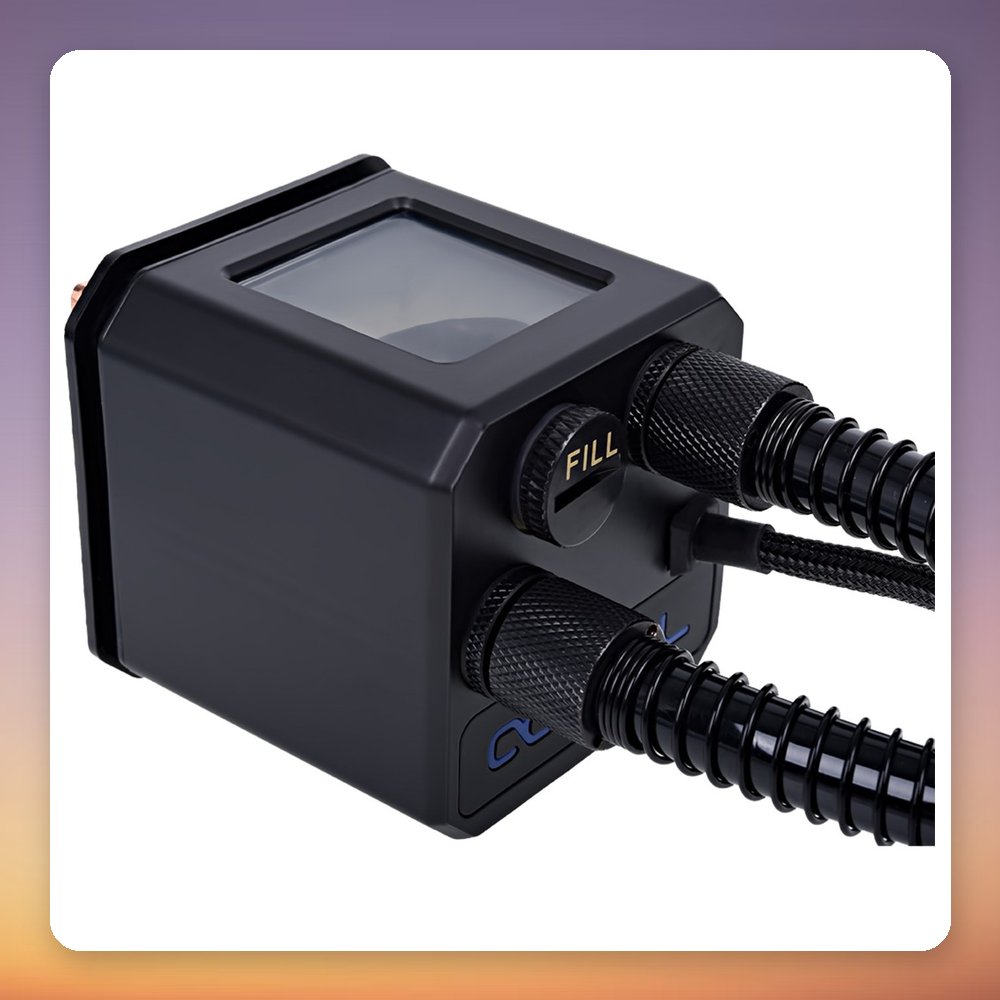

• Pump: Alphacool DC-LT 2600 Ultra Low Noise Ceramic, 2,600 RPM, 4 W
• Pump max flow / head: 70 L/h / 0.85 m
• Pump voltage: 7 to 13.5 V DC
• Tubing: Flexible PVC, 11/8 mm, with kink protection springs
• Connector: 4-pin PWM
• Supported sockets: Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 1700, 1851, 2011, 2066, 775, 771, 604; AMD AM2, AM3, AM4, AM5, FM1, FM2, 939, G34
• Included: Thermal paste/pad, PWM Y-adapter
• Dimensions (W x H x D): 279 x 124 x 55 mm
• Weight: 2.3 kg
