Product Overview

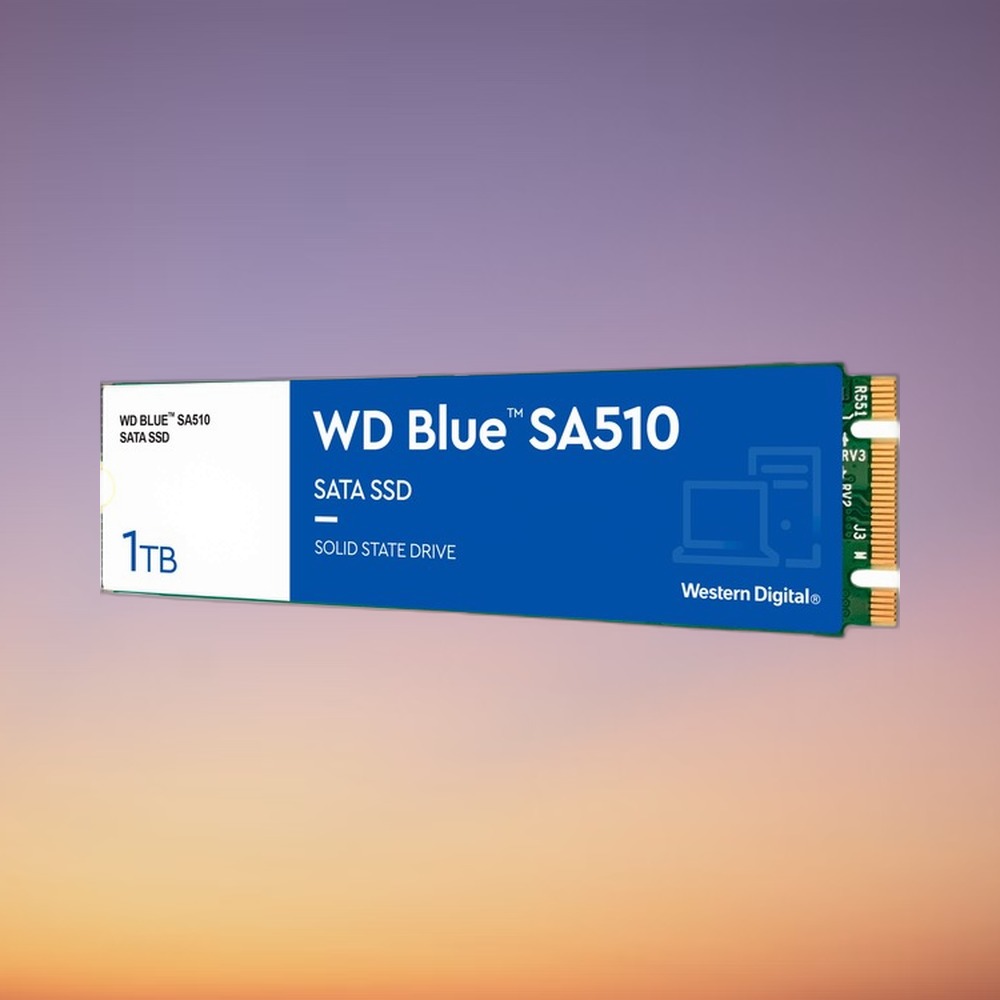

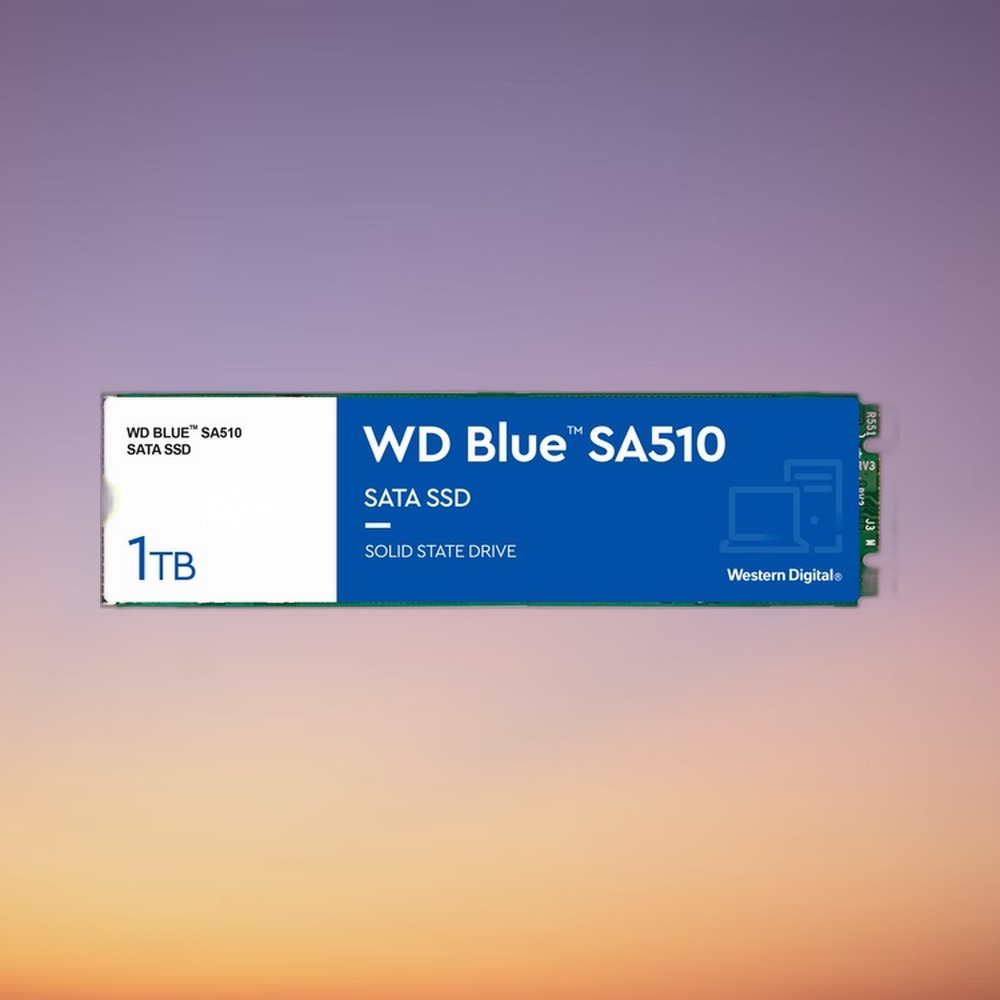

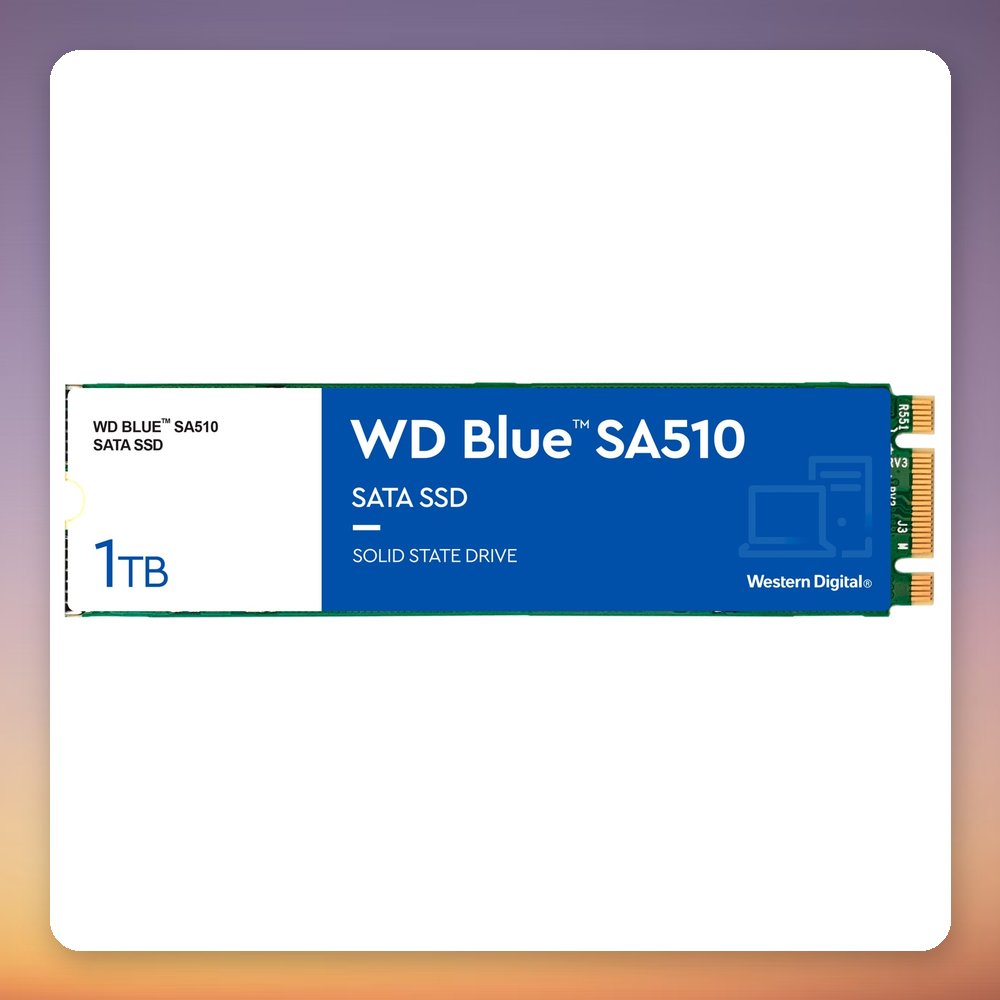

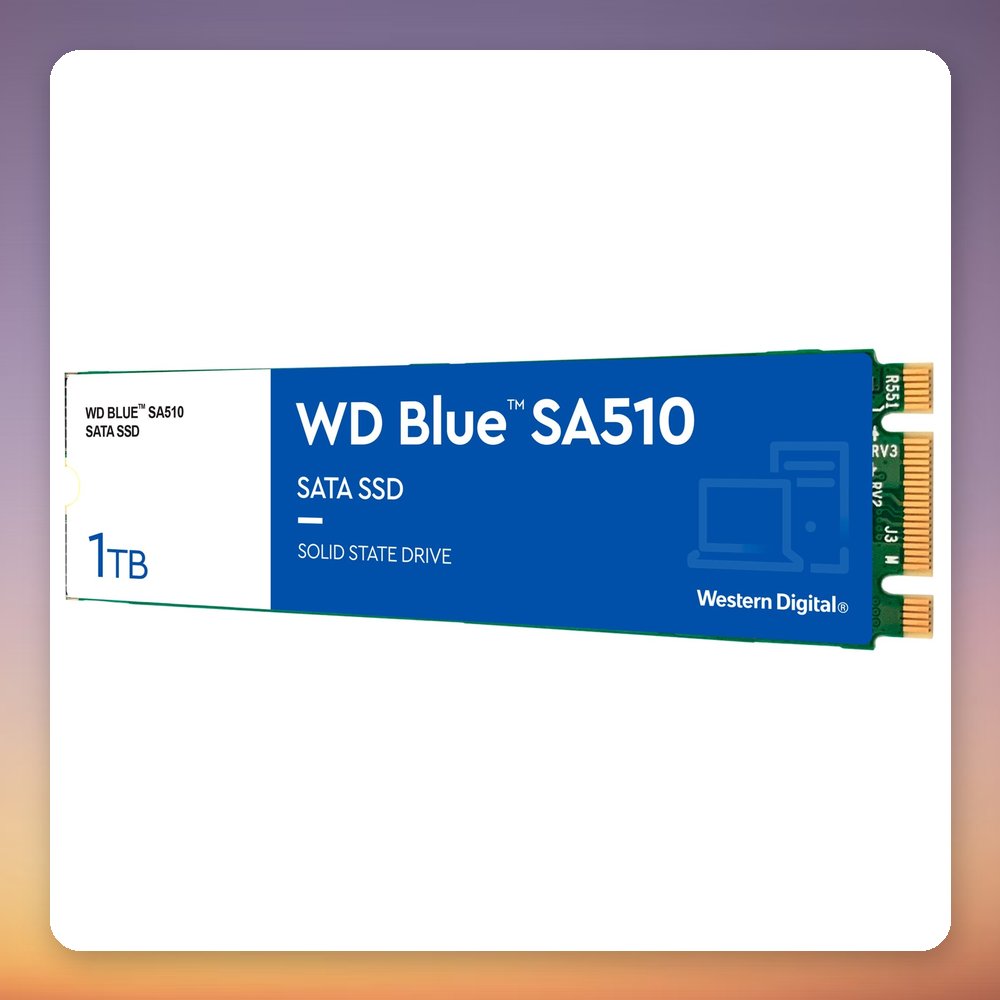

The Western Digital Blue SA510 SATA SSD is a 1 TB drive in the M.2 2280 format, connecting over SATA 6 Gb/s rather than PCIe. It reaches sequential speeds of up to 560 MB/s read and 520 MB/s write, with random performance of up to 90,000 IOPS read and 82,000 IOPS write. It is rated for 400 TBW and a 1,750,000-hour MTBF.

This drive suits anyone upgrading an older PC or laptop with an M.2 slot that supports SATA, or looking for a low-power storage upgrade for a gaming PC. It draws just 2 W in operation, 60 mW at idle and 12 mW in sleep, and weighs only 5 g. The free Western Digital SSD Dashboard download lets you monitor drive health, available capacity, temperature and firmware version.

Specification

• Manufacturer: Western Digital
• Model: Blue SA510
• MPN: WDS100T3B0B
• EAN: 7180378847070
• Capacity: 1 TB
• Form factor: M.2 2280 (22 x 80 mm)
• Interface: SATA 6 Gb/s via M.2 (Key B + M)
• Sequential read: Up to 560 MB/s
• Sequential write: Up to 520 MB/s
• Random read: Up to 90,000 IOPS
• Random write: Up to 82,000 IOPS
• Endurance (TBW): 400 TB
• MTBF: 1,750,000 hours
• Power consumption (active): 2 W
• Power consumption (idle): 60 mW
• Power consumption (sleep): 12 mW
• Dimensions (W x H x D): 22 x 2.38 x 80 mm
• Weight: 5 g
