Product Overview

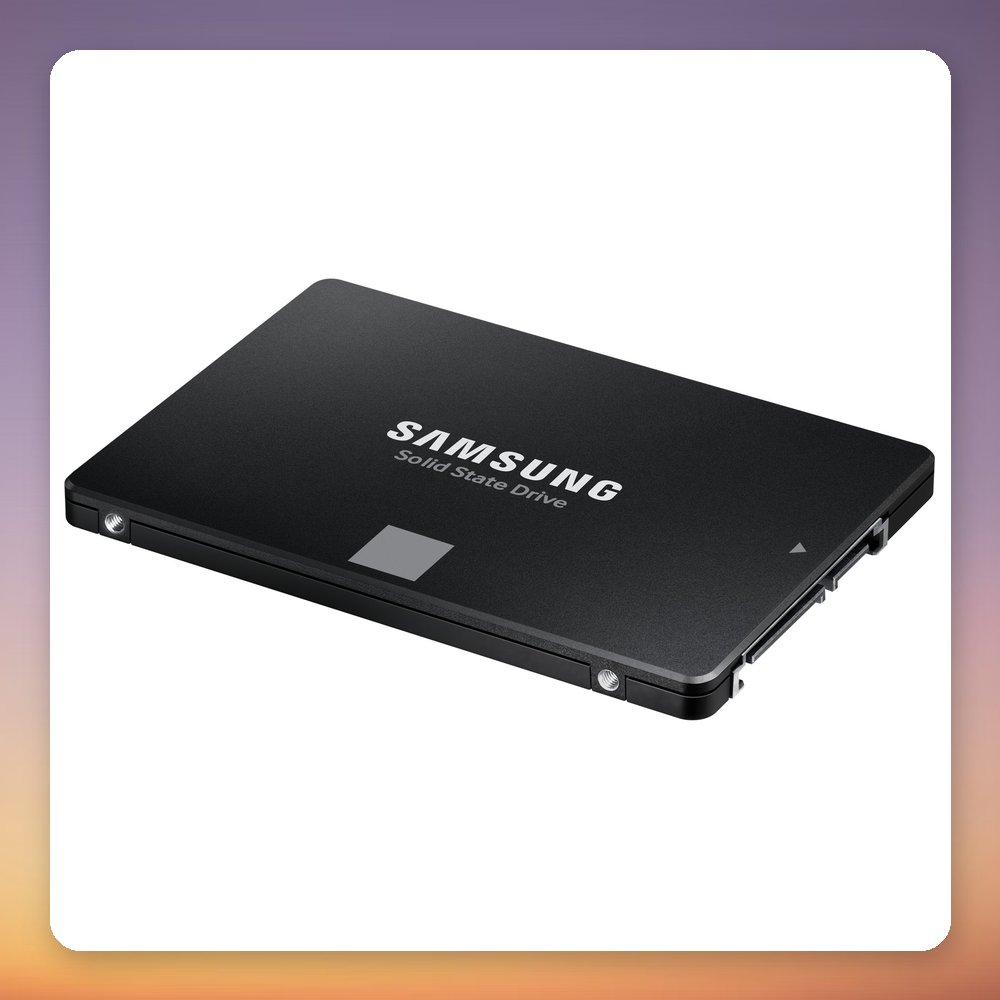

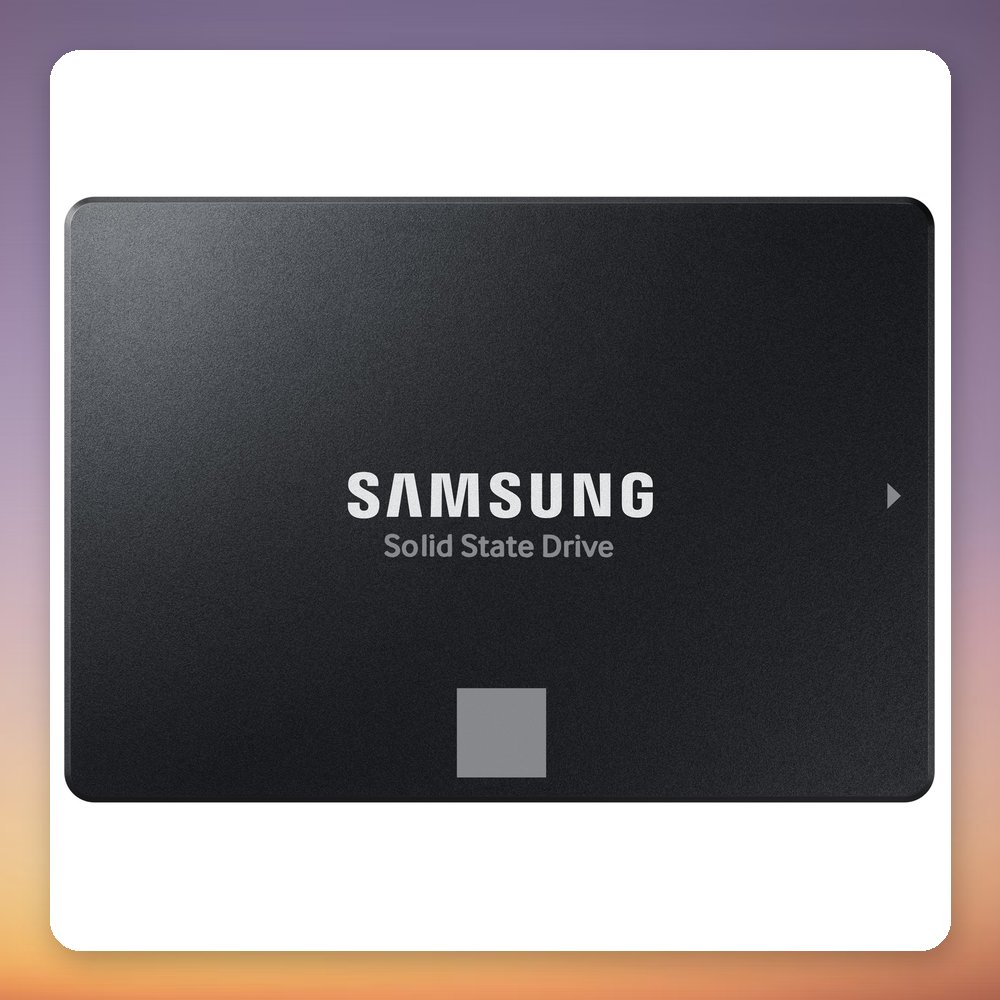

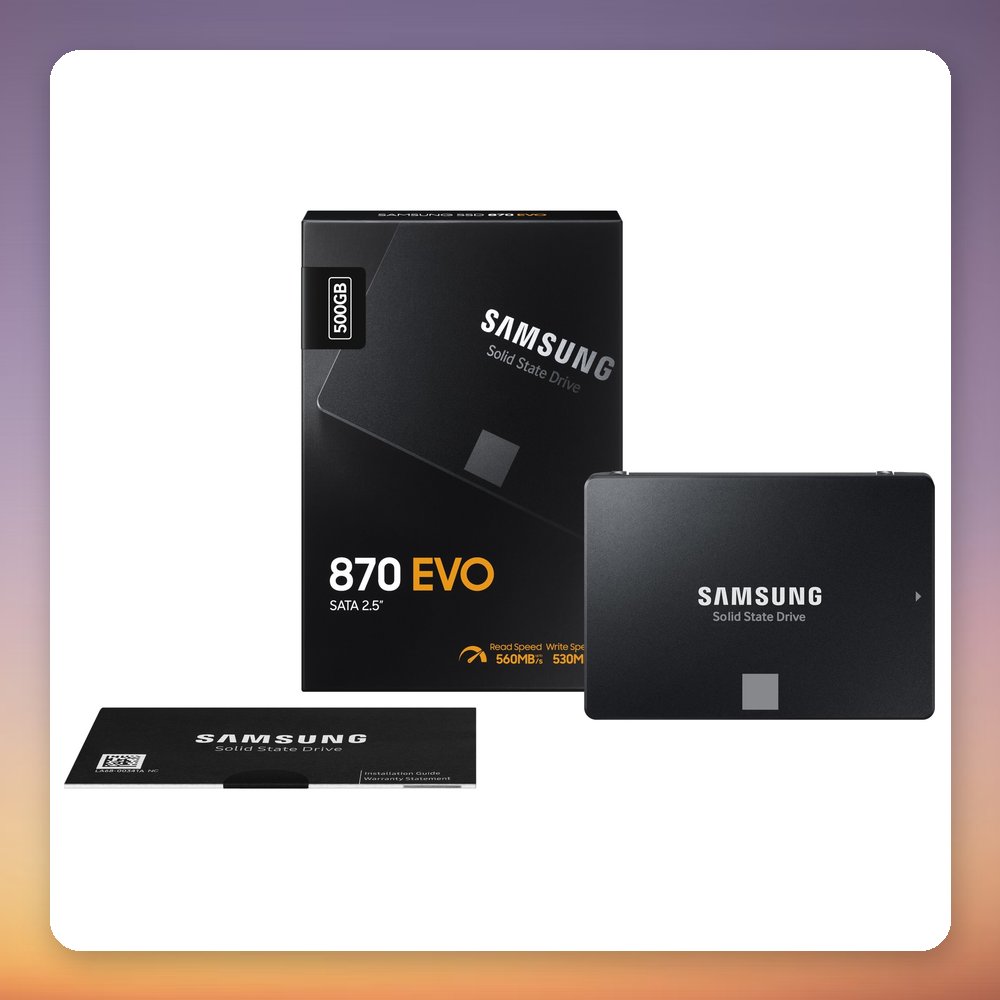

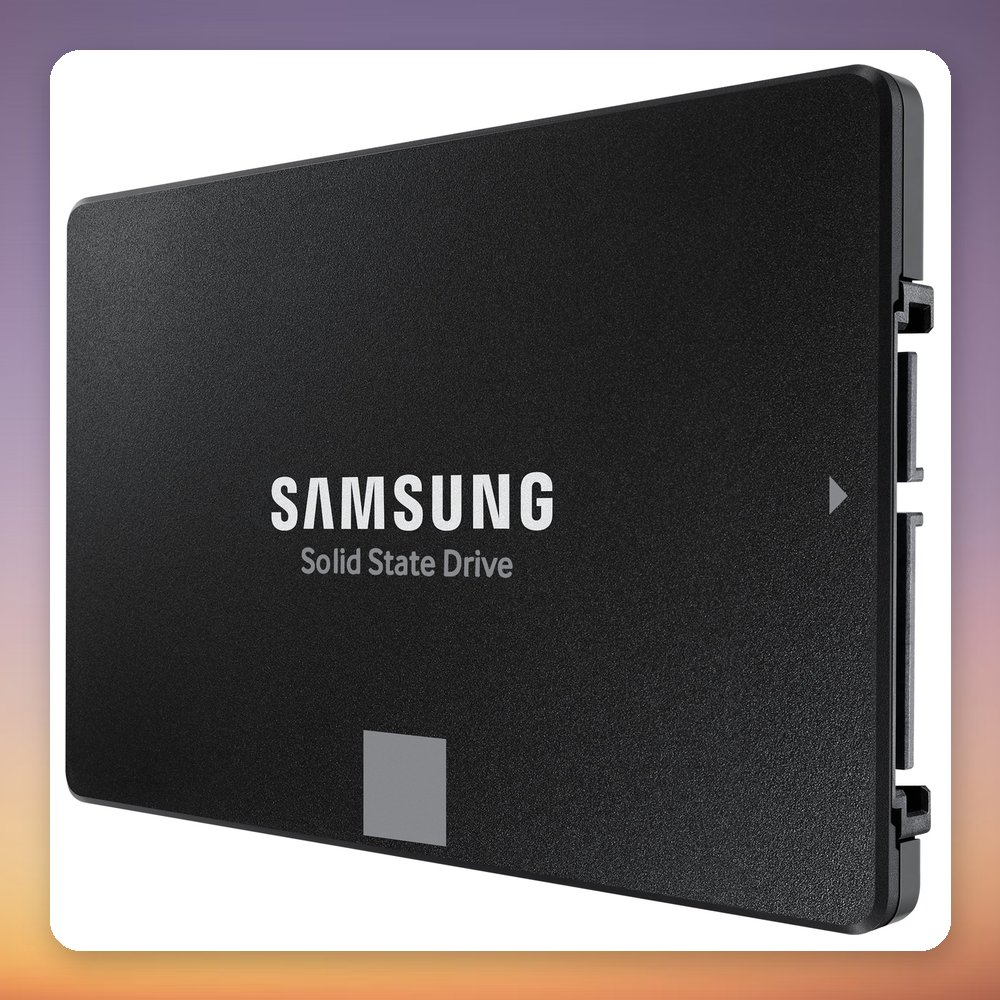

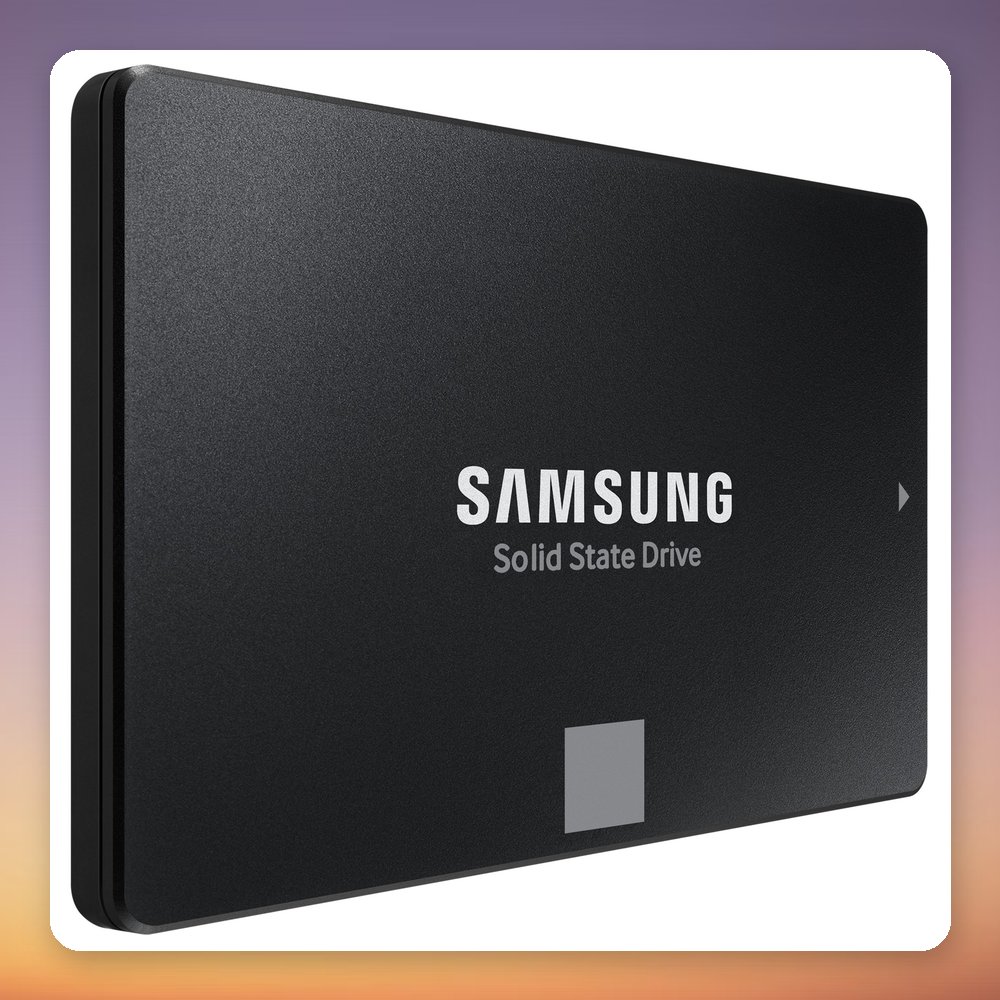

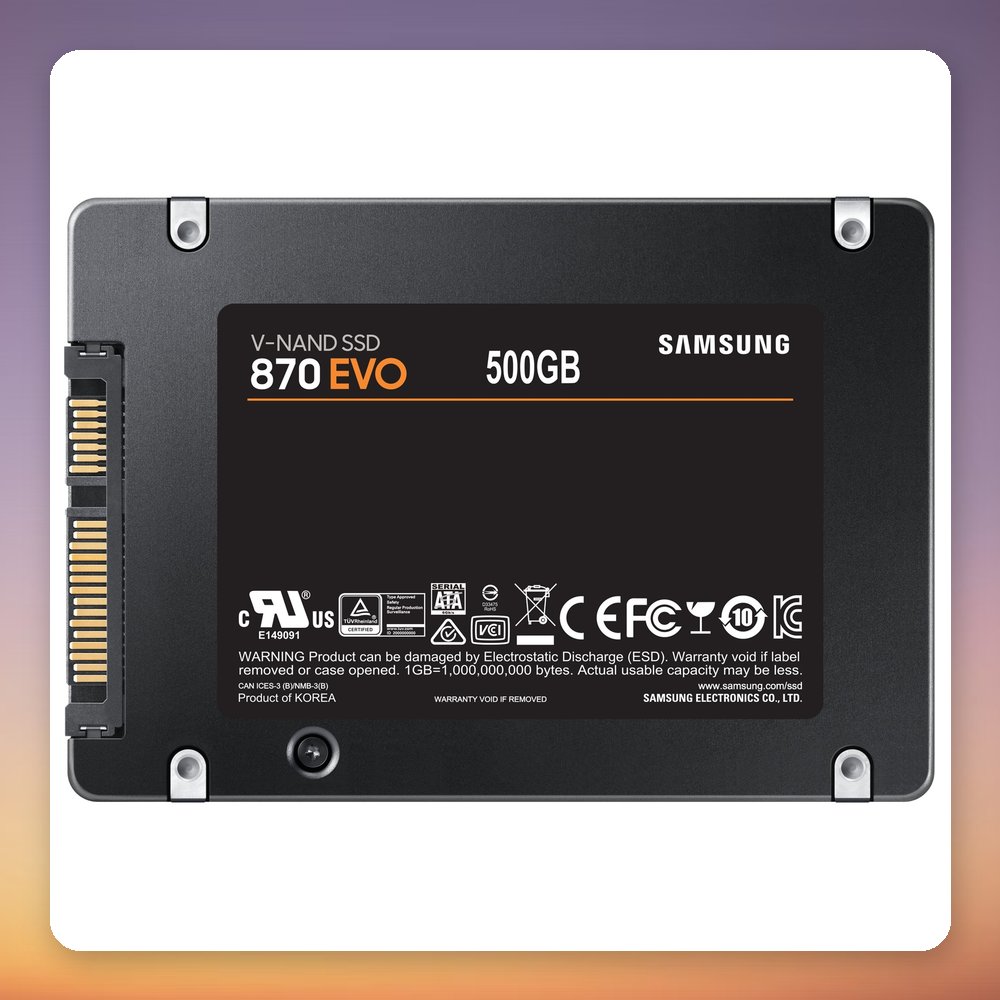

The Samsung 870 EVO 500 GB SATA SSD is a 2.5-inch internal drive that reaches 560 MB/s sequential reads and 530 MB/s sequential writes, which is the maximum the SATA 6 Gb/s interface allows. It uses TLC V-NAND with the Samsung MKX controller, a 512 MB cache and Intelligent TurboWrite, a dynamic write buffer of 4 to 22 GB. Random performance is rated at 98,000 IOPS read and 88,000 IOPS write.

This drive suits anyone upgrading a desktop PC or laptop that has a standard 2.5-inch SATA slot, replacing a hard drive or adding fast secondary storage to a gaming build. It carries a 300 TB TBW rating (per Wave), supports AES 256-bit encryption, TRIM, S.M.A.R.T. and Device Sleep, and is listed as NAS-capable. At just 45 g and 6.8 mm thick, it fits easily into compact systems.

Specification

• Manufacturer: Samsung
• Model: 870 EVO
• MPN: MZ-77E500B/EU
• EAN: 88060905459240
• Capacity: 500 GB
• Form factor: 2.5″
• Interface: SATA 6 Gb/s (SATA III)
• Sequential read: 560 MB/s
• Sequential write: 530 MB/s
• Random read: 98,000 IOPS
• Random write: 88,000 IOPS
• NAND type: TLC V-NAND
• Controller: Samsung MKX
• Cache: 512 MB
• Endurance (TBW): 300 TB
• MTBF: 1,500,000 hours
• Power consumption (active): 2 W
• Encryption: AES 256-bit
• Weight: 45 g
• Dimensions (W x H x D): 69.9 x 6.8 x 100 mm
