Product Overview

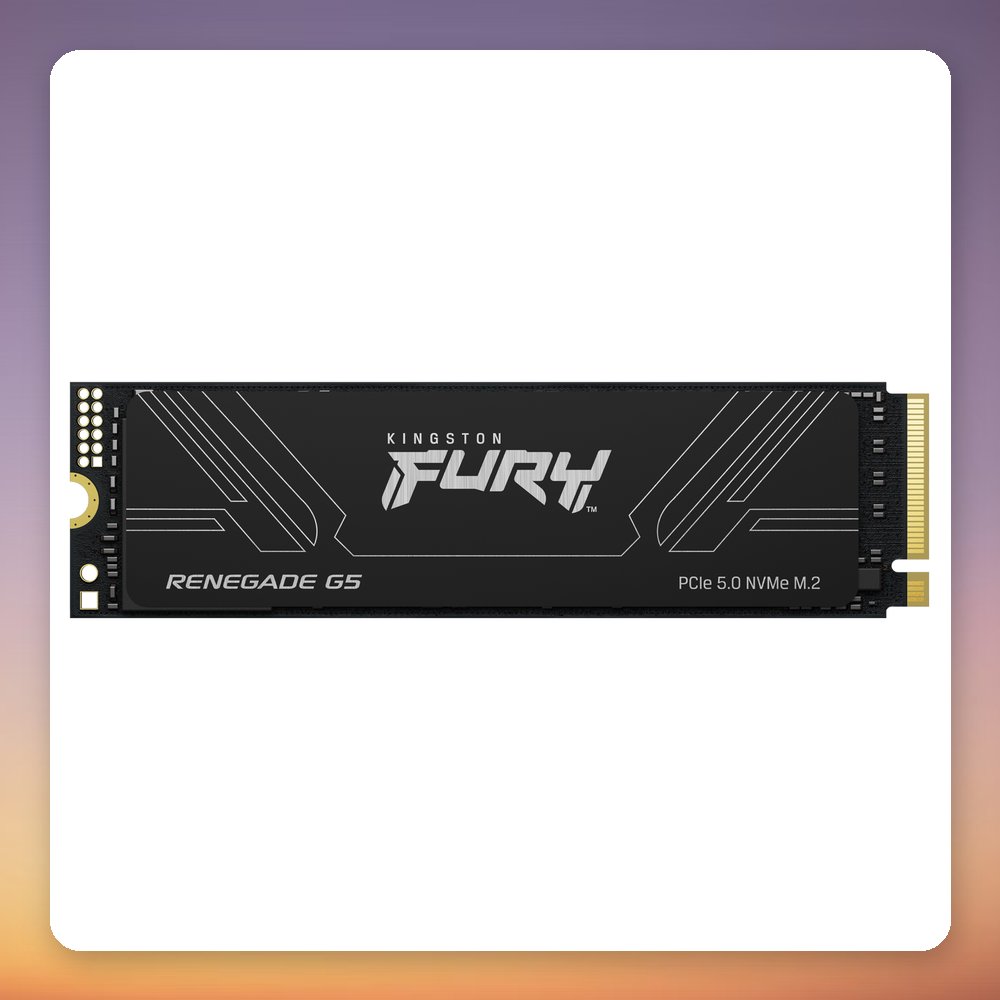

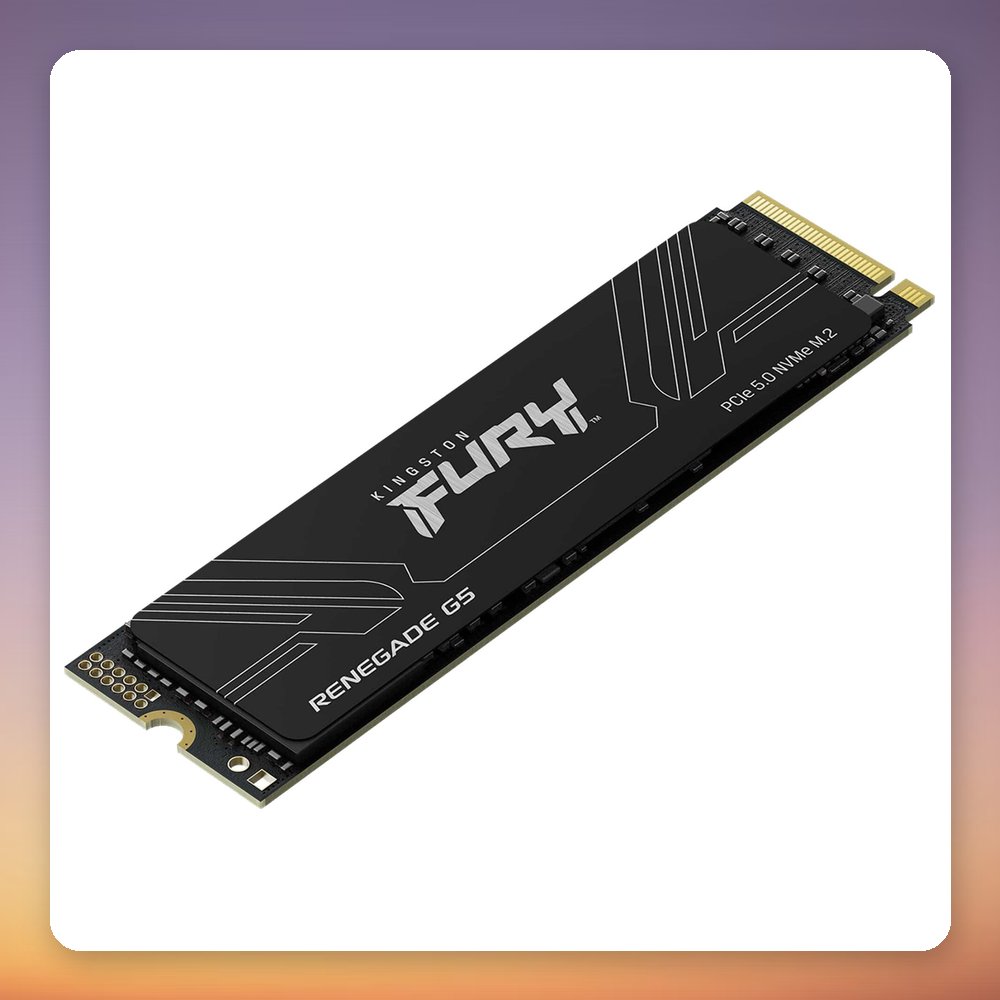

The Kingston FURY Renegade G5 2 TB NVMe SSD is a PCIe 5.0 x4 drive in the M.2 2280 format, rated at 14,700 MB/s sequential read and 14,000 MB/s sequential write. Random performance is listed at up to 2,200,000 IOPS for both reads and writes. It uses a Silicon Motion SM2508 controller built on 6nm lithography, 3D TLC NAND and a low-power DDR4 DRAM cache, which keeps power draw down.

This drive suits gamers, hardware enthusiasts and high-power users building a PCIe 5.0 system, with the speed to cut game and app load times and handle data-heavy workflows. A 12-layer PCB is used for better signal quality, and the 2 TB model is rated for 2,000 TBW with an MTBF of 2,000,000 hours. The compact M.2 2280 module is backwards compatible with Gen3 and Gen4 systems, so it also works in older boards at lower speeds.

Specification

• Manufacturer: Kingston
• Model: FURY Renegade G5
• MPN: SFYR2S/2T0
• EAN: 0740617349498
• Capacity: 2 TB
• Interface: PCIe 5.0 x4, NVMe
• Form factor: M.2 2280 (Key M)
• Sequential read: up to 14,700 MB/s
• Sequential write: up to 14,000 MB/s
• Random read / write: 2,200,000 / 2,200,000 IOPS
• NAND type: 3D TLC
• Controller: Silicon Motion SM2508
• DRAM cache: Yes (low-power DDR4)
• Endurance (TBW): 2,000 TB
• MTBF: 2,000,000 hours
• Power consumption: 7 W max, 0.27 W average
• Operating temperature: 0 – 70 °C
• Dimensions (W x H x D): 22 x 2.3 x 80 mm
• Weight: 8 g
