Product Overview

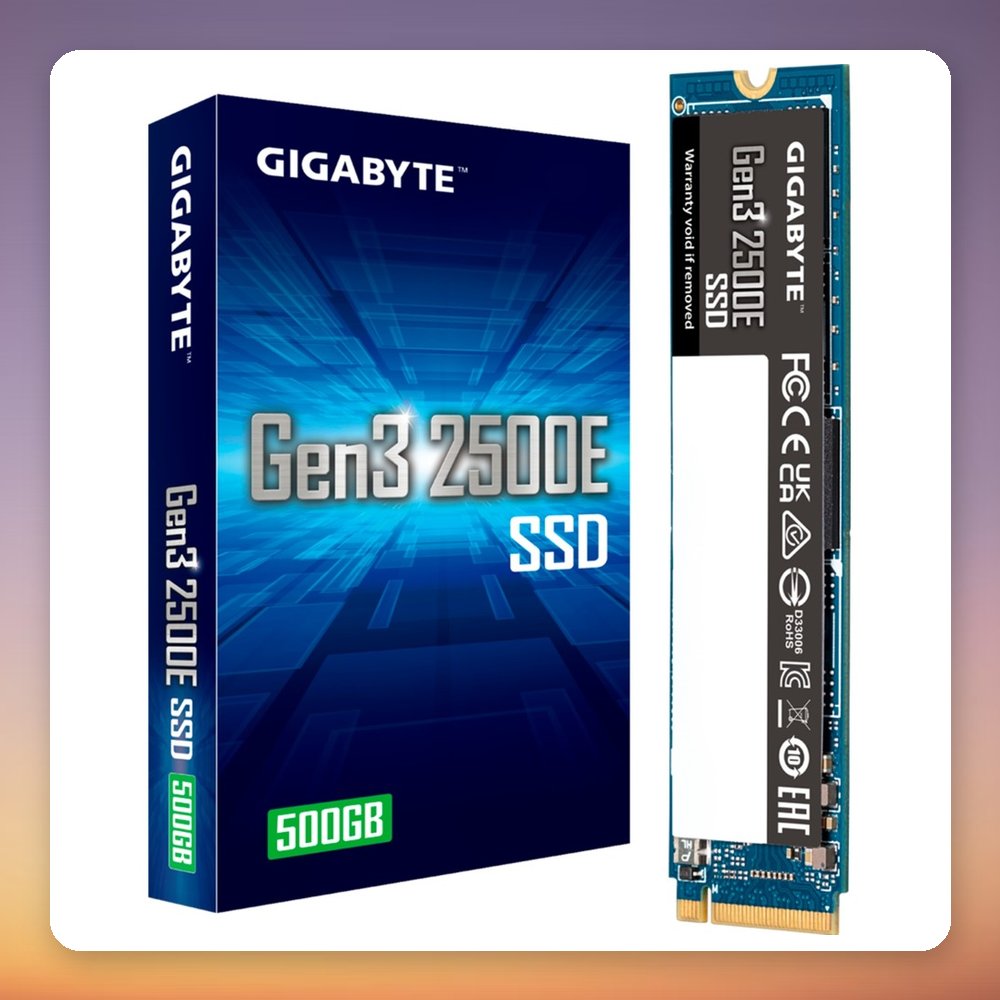

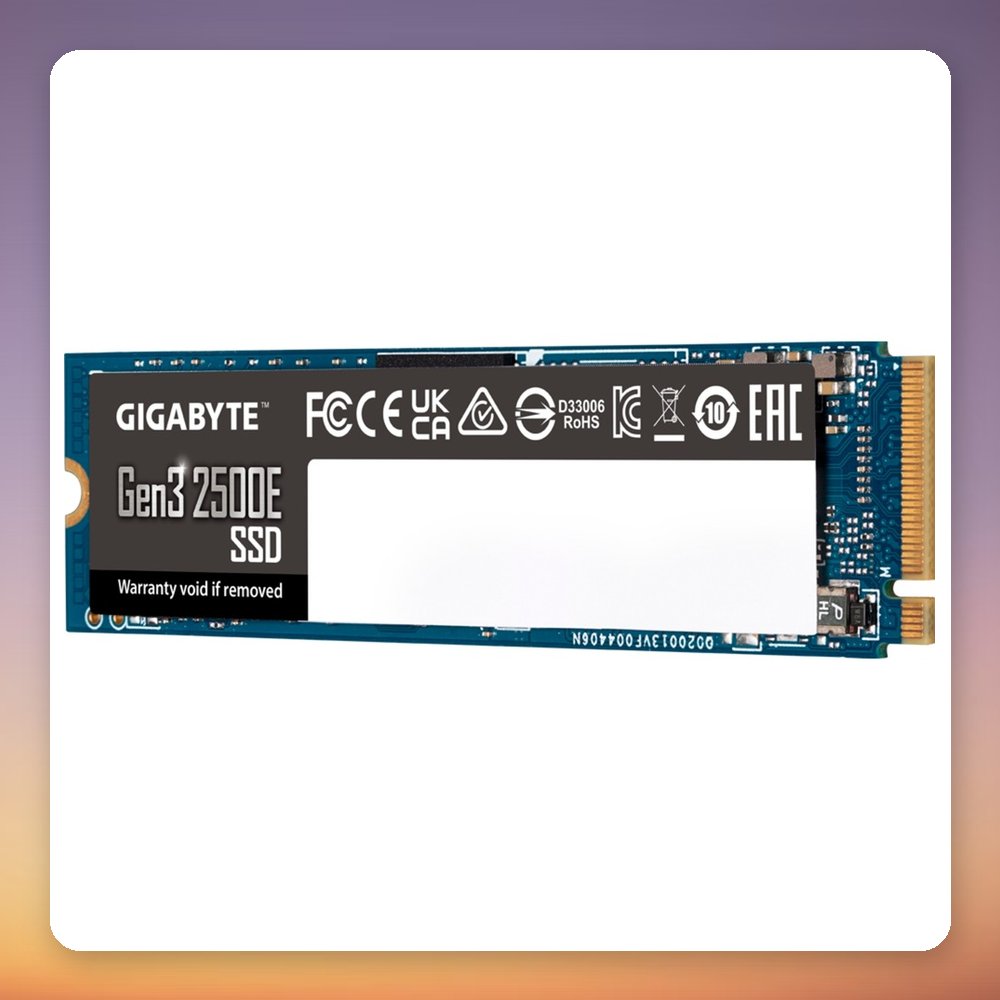

The GigaByte Gen3 2500E 500 GB is an M.2 2280 NVMe SSD that uses a PCIe 3.0 x4 interface and NVMe 1.3. It delivers sequential speeds of up to 2,300 MB/s read and 1,500 MB/s write, with random performance of 60,000 IOPS read and 240,000 IOPS write. It is built around a Phison controller and 3D NAND, and is rated for 120 TBW.

This drive is a straightforward upgrade for a desktop PC or laptop that still relies on a SATA drive or a hard disk, giving noticeably faster data transfers than a 2.5″ SATA SSD. It uses Host Memory Buffer technology instead of its own DRAM, supports TRIM, SMART and Over-Provisioning, and draws 2.3 W in operation. The SSD Tool Box software shows drive health and temperature and offers Secure Erase.

Specification

• Manufacturer: GigaByte
• Model: Gen3 2500E
• MPN: G325E500G
• EAN: 4719331844370
• Capacity: 500 GB
• Form factor: M.2 2280
• Interface: PCIe 3.0 x4, NVMe 1.3
• Sequential read: Up to 2,300 MB/s
• Sequential write: Up to 1,500 MB/s
• Random read (4KB): 60,000 IOPS
• Random write (4KB): 240,000 IOPS
• Endurance (TBW): 120 TB
• MTBF: 1,500,000 hours
• Power consumption (operating): 2.3 W
• Controller: Phison
• Memory: 3D NAND, Host Memory Buffer (no onboard DRAM)
• Dimensions (W x H x D): 22 x 2.3 x 80 mm
• Compatible with: PC / laptop
