Product Overview

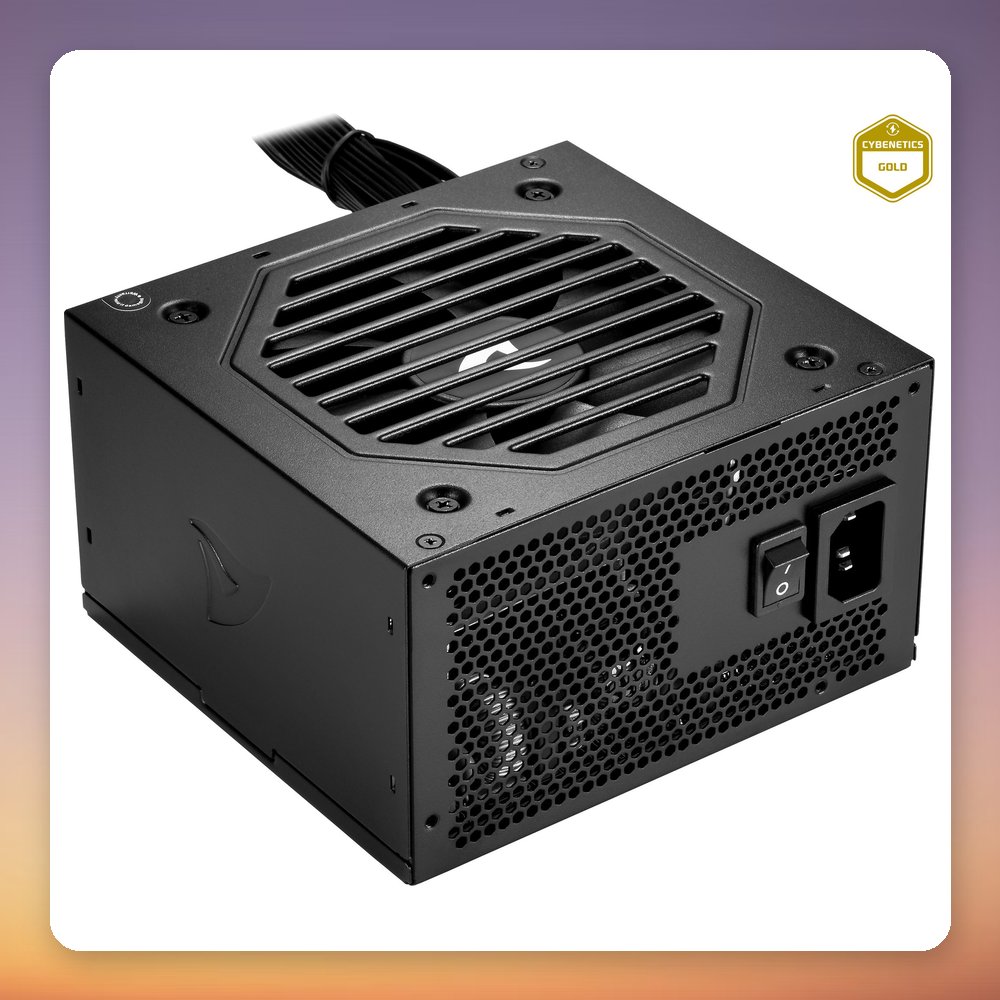

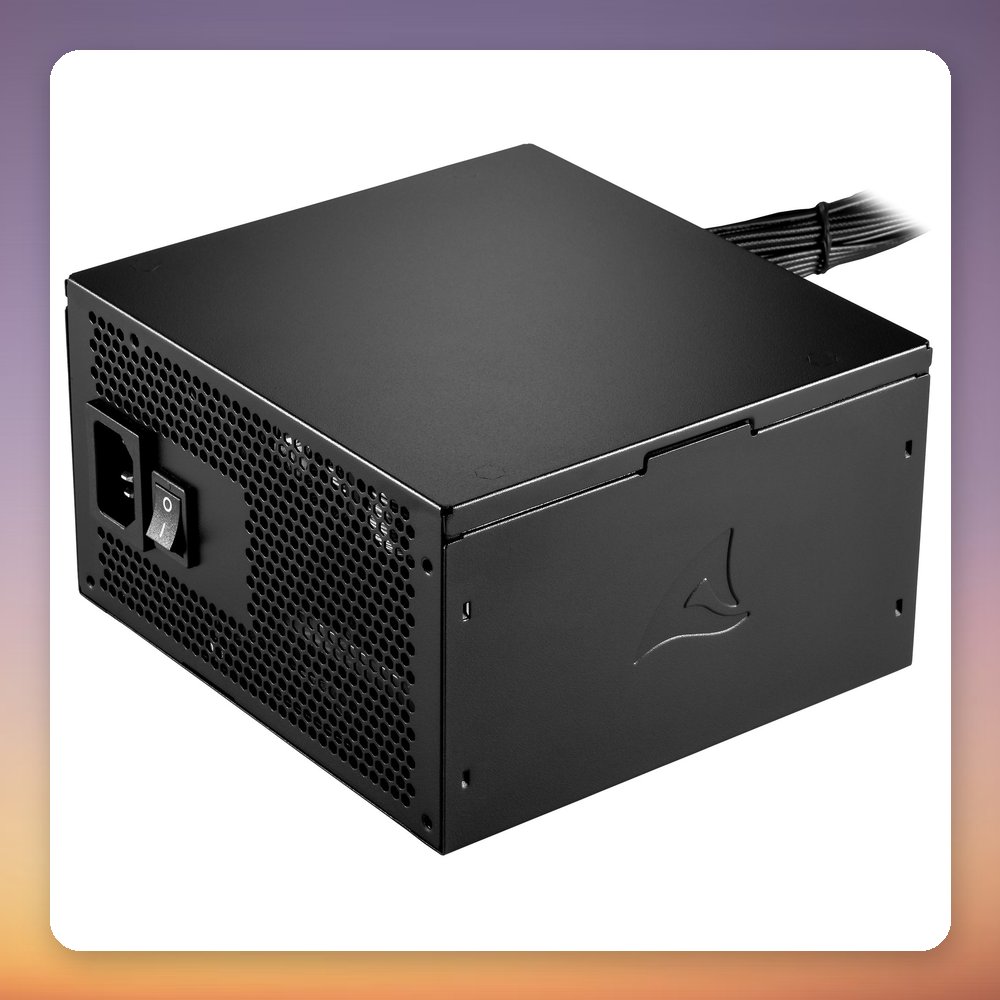

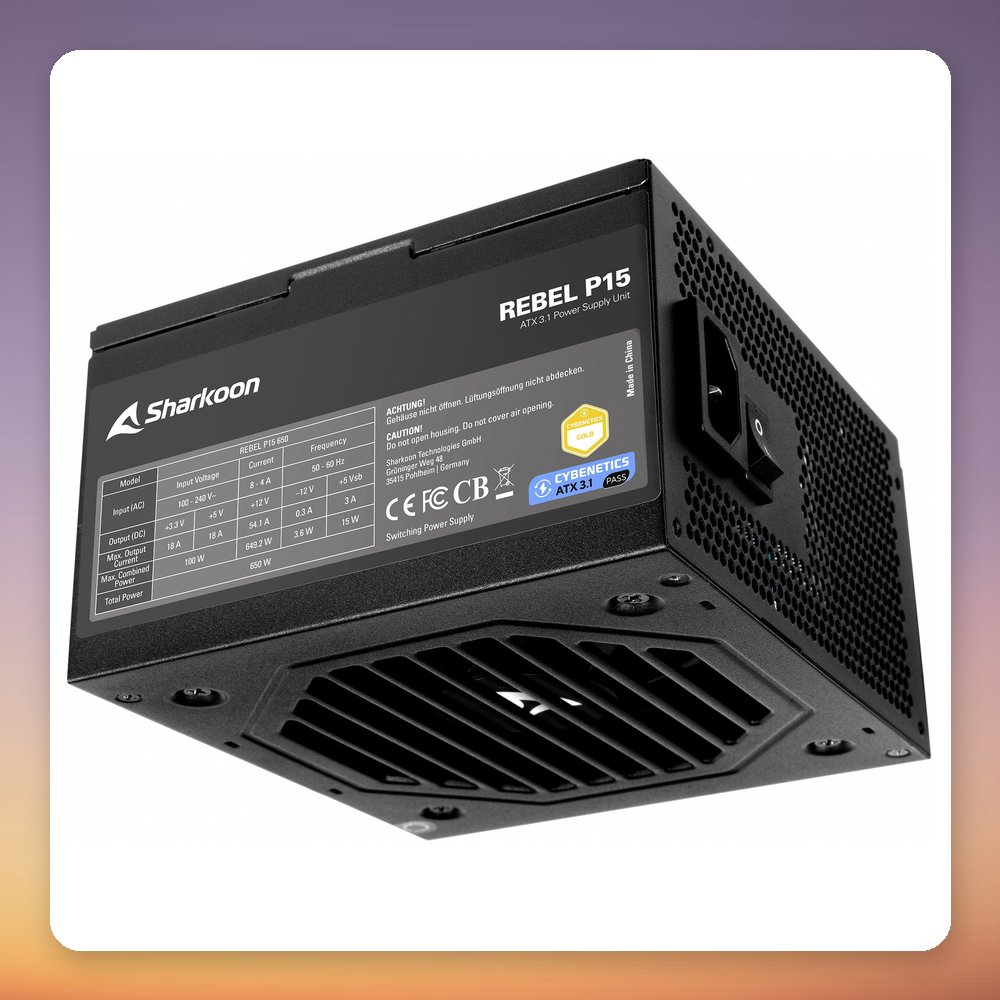

The Sharkoon Rebel P15 650 is a 650 W ATX 3.1 power supply with Cybenetics Gold efficiency and a native 12+4-pin (12V-2×6) connector for current graphics cards. It delivers 649.2 W on the +12V rail, with two +12V rails rated at 54.1 A each, and uses active PFC across a 100-240 V input range.

With a 12V-2×6 cable, two 6+2-pin PCIe connectors, six SATA connectors and dual 4+4-pin CPU connectors, it suits a mid-range gaming build with a modern graphics card. Cooling comes from a single 120 mm fan with a hybrid magnetic bearing, and the full set of protections (OCP, OVP, UVP, OPP, SCP, OTP) is included. The standard ATX unit measures 150 x 85 x 140 mm and ships with a mains cable and mounting screws.

Specification

• Manufacturer: Sharkoon
• Model: Rebel P15 650
• MPN: 4044951045013
• EAN: 40449510450130
• Power: 650 W
• Standard: ATX12V 3.1
• Efficiency certification: Cybenetics Gold
• Form factor: ATX
• +12V total power: 649.2 W
• +12V rails: 2x +12V, 54.1 A each
• +3.3V / +5V total: 100 W (18 A each)

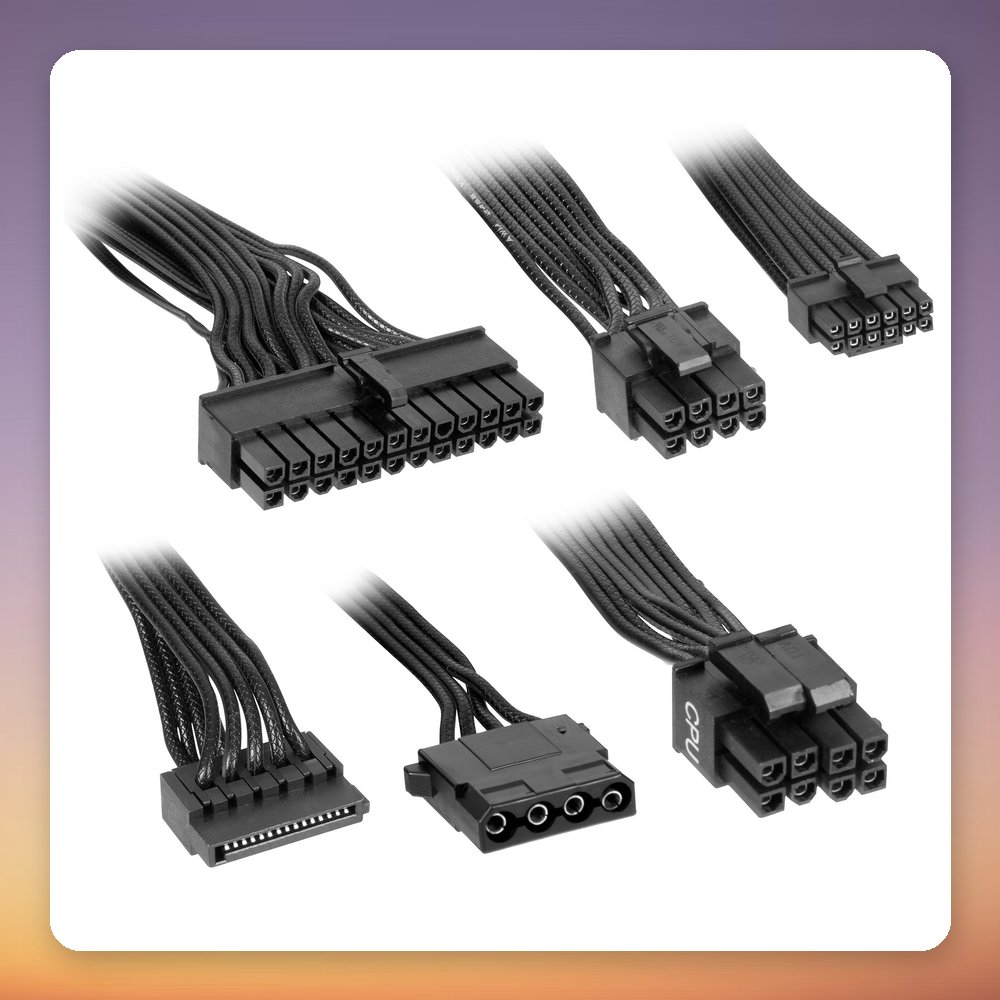

• GPU connectors: 1x 12+4-pin (12V-2×6), 2x 6+2-pin PCIe
• Other connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 6x SATA, 2x 4-pin Molex

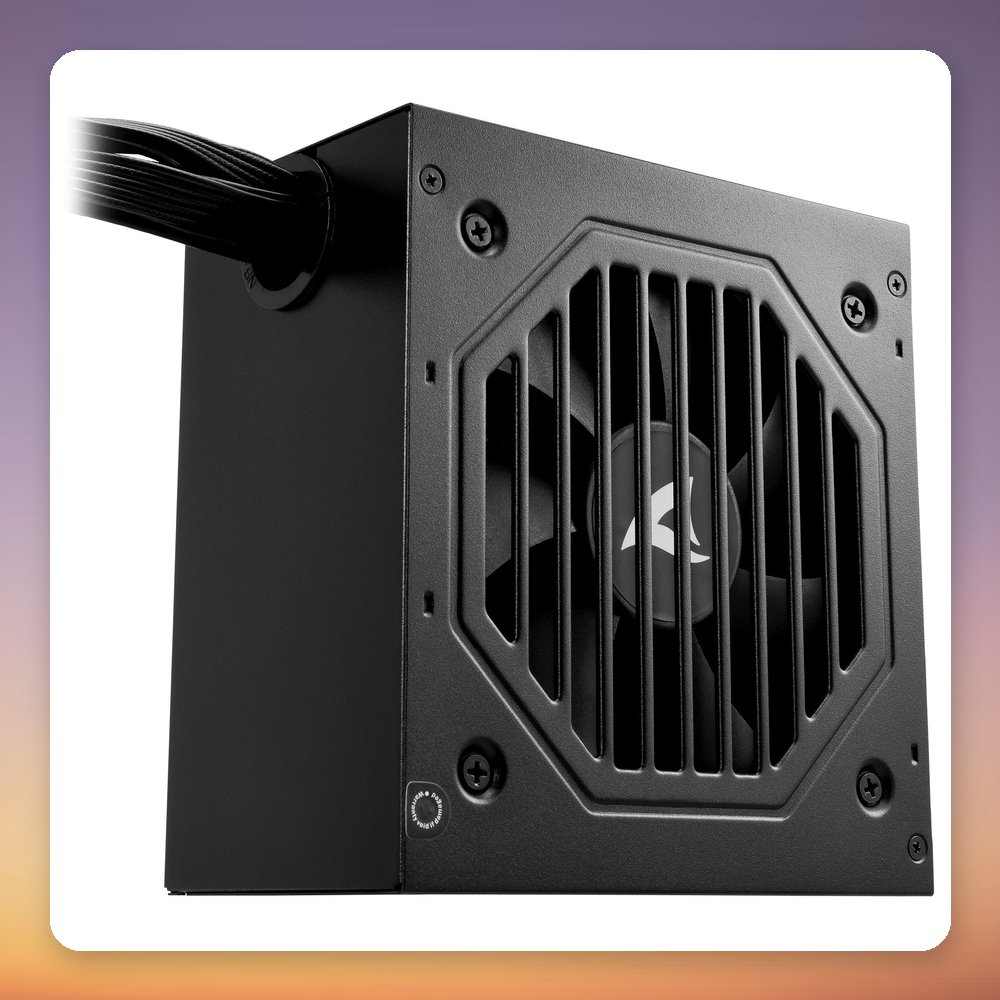

• Cooling: 1x 120 mm fan
• Input voltage: 100-240 V
• PFC: Active PFC
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Dimensions (W x H x D): 150 x 85 x 140 mm
• Colour: Black
