Product Overview

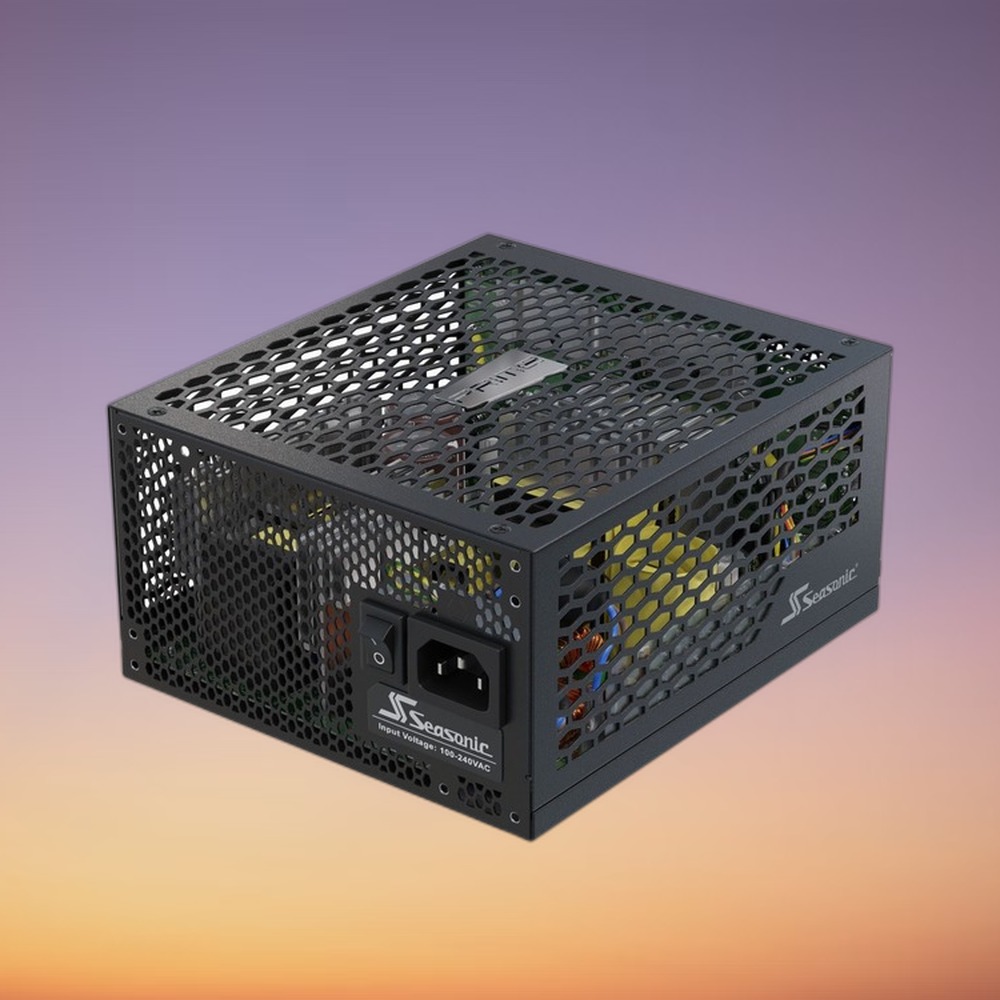

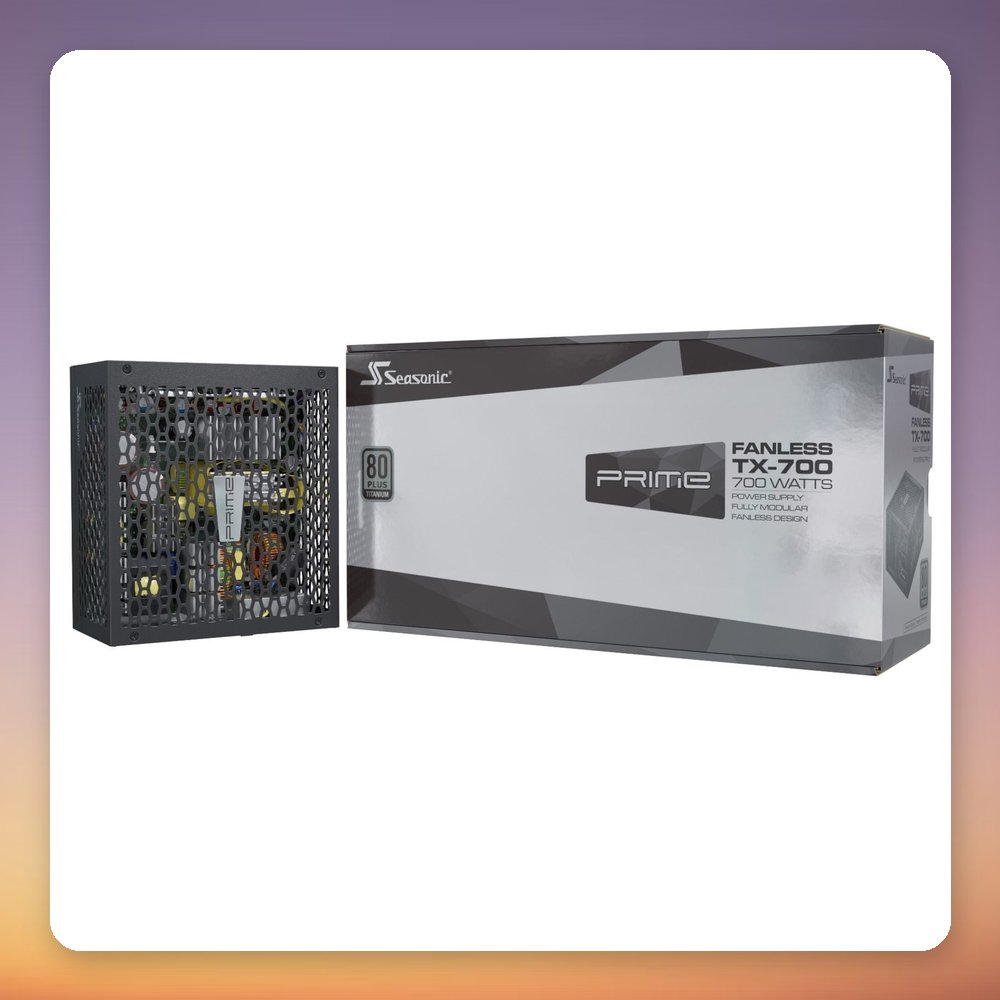

The Seasonic PRIME Fanless TX-700 is a 700 W ATX power supply that uses passive cooling, so it has no fan and produces no fan noise at all. It carries an 80 PLUS Titanium certification with efficiency of up to 94 %, and a single +12 V rail rated at 58 A (700 W combined). The fully modular cabling is designed to make cable management easier in the case.

With four 6+2-pin graphics connectors, two 4+4-pin 12V CPU connectors and ten SATA connectors, it suits quiet gaming and general-purpose builds where silence matters. Seasonic cites high-quality internal components and an improved circuit design for clean, stable power. Protection covers OCP, OVP, UVP, OLP/OPP, SCP and OTP. It measures 150 x 86 x 170 mm and weighs 3.4 kg, and it is PCIe 5.1 listed on a standard ATX12V 2.4 design.

Specification

• Manufacturer: Seasonic
• Model: PRIME Fanless TX-700
• MPN: PRIME-TX-700
• EAN: 4711173876175
• Wattage: 700 W
• Efficiency Certification: 80 PLUS Titanium (up to 94 % efficiency)
• Cooling: Passive (fanless)
• Modularity: Fully modular
• Form Factor: ATX
• +12 V Output: 58 A single rail (700 W)
• +3.3 V / +5 V Combined: 100 W (20 A each)
• Graphics Connectors: 4x 6+2-pin PCIe

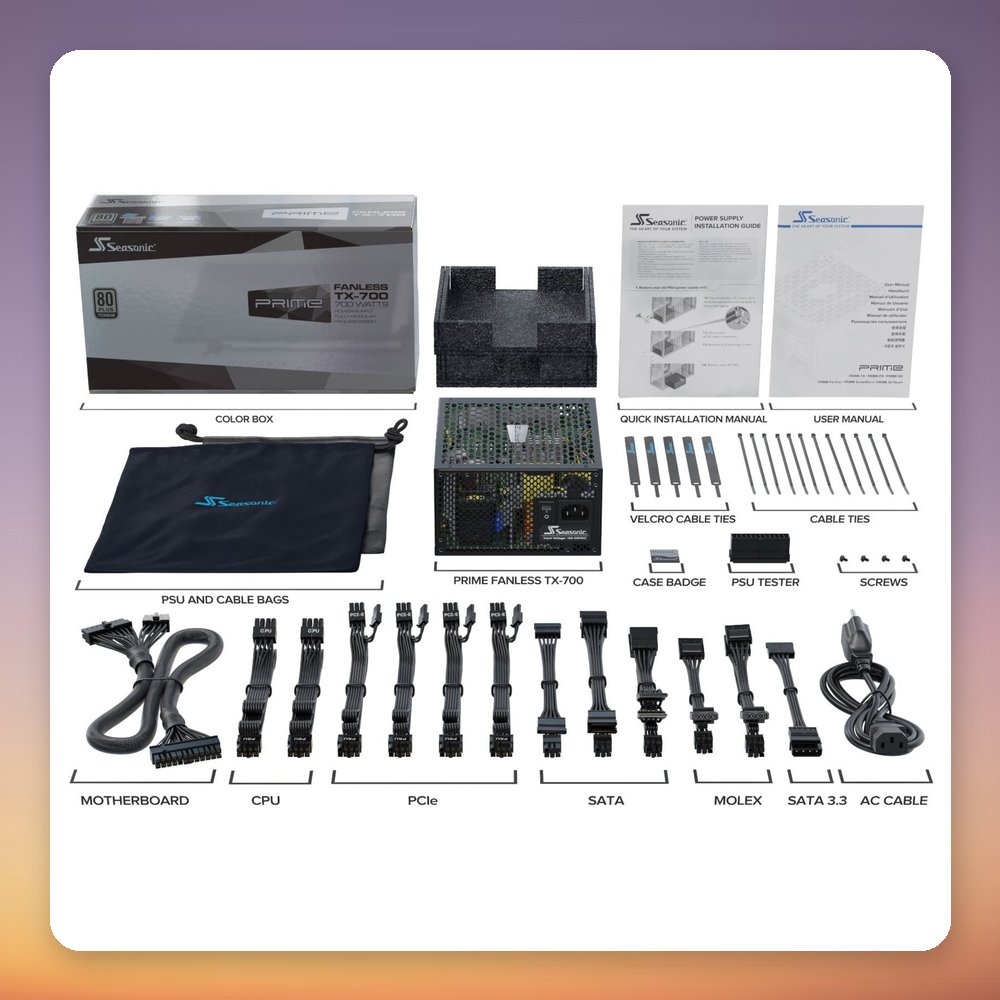

• Other Connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 10x SATA, 5x 4-pin Molex
• Standard: ATX12V 2.4, PCIe 5.1
• Input Voltage: 100-240 V
• Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
• Dimensions (W x H x D): 150 x 86 x 170 mm
• Weight: 3.4 kg
