Product Overview

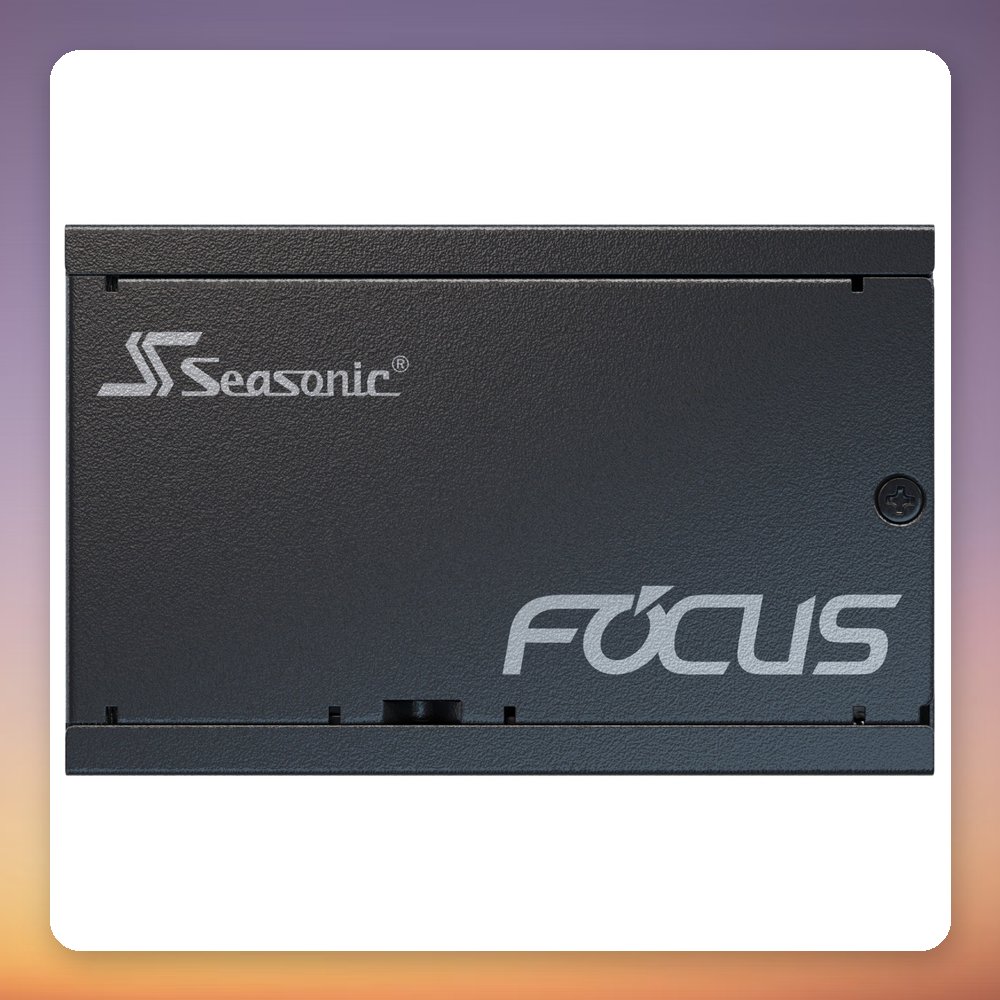

The Seasonic FOCUS SGX-750 is a 750W SFX power supply with 80 PLUS Gold certification and a cable-managed (modular) design. It packs a single 62 A +12V rail rated at 744 W into a compact body measuring just 125 x 100 x 63.5 mm, and it supports up to four 6+2-pin PCIe connectors for graphics cards, which is plenty of capacity for a small-form-factor system.

This PSU suits compact builds in SFX cases, but it also ships with an SFX-to-ATX adapter bracket, so it can be mounted in a standard ATX case if you want more room for airflow. The 92 mm fan is temperature controlled, and Seasonic’s hybrid fan control is always active. Protection covers OCP, OVP, UVP, OPP, SCP and OTP, and active PFC handles input from 100 to 240 V.

Specification

• Manufacturer: Seasonic
• Model: FOCUS SGX-750
• MPN: FOCUS-SGX-750
• EAN: 4711173877110
• Power output: 750 W
• Efficiency rating: 80 PLUS Gold (up to 90%)
• Form factor: SFX
• Modularity: Cable management (modular)
• +12V output: 744 W (62 A, single rail)
• +3.3V/+5V combined: 100 W
• PCIe connectors: 4x 6+2-pin

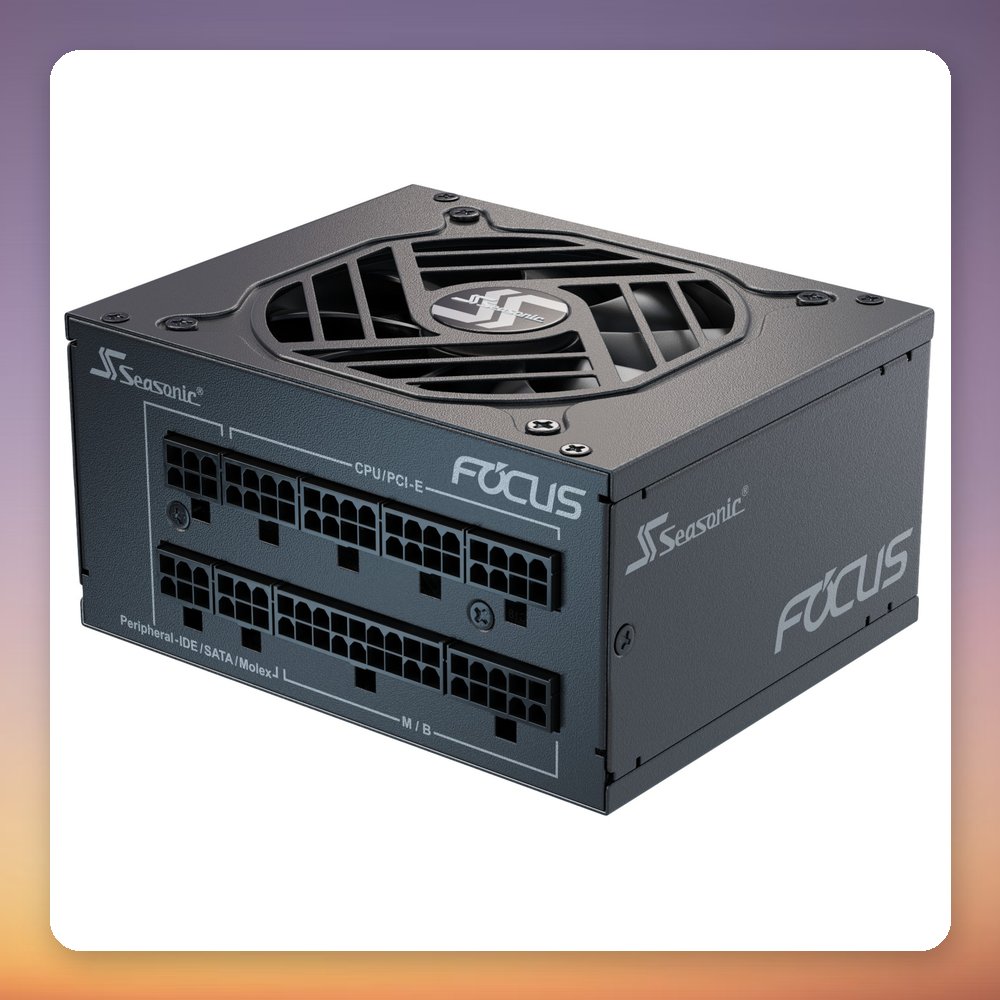

• Other connectors: 1x 24-pin ATX, 1x 4+4-pin CPU, 4x SATA, 3x 4-pin Molex

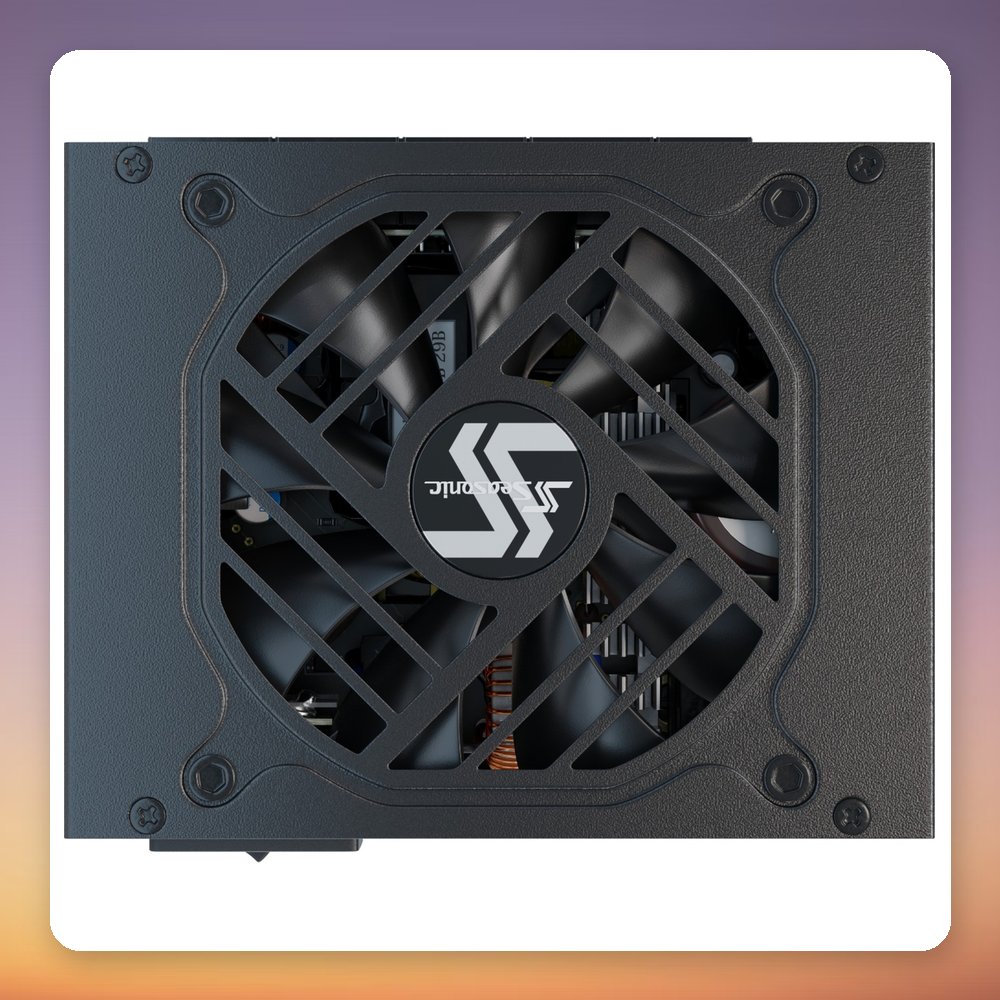

• Cooling: 1x 92 mm fan, temperature controlled
• Input voltage: 100-240 V, active PFC
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Included accessory: SFX-to-ATX adapter bracket
• Dimensions (W x H x D): 100 x 63.5 x 125 mm
• Colour: Black
