Product Overview

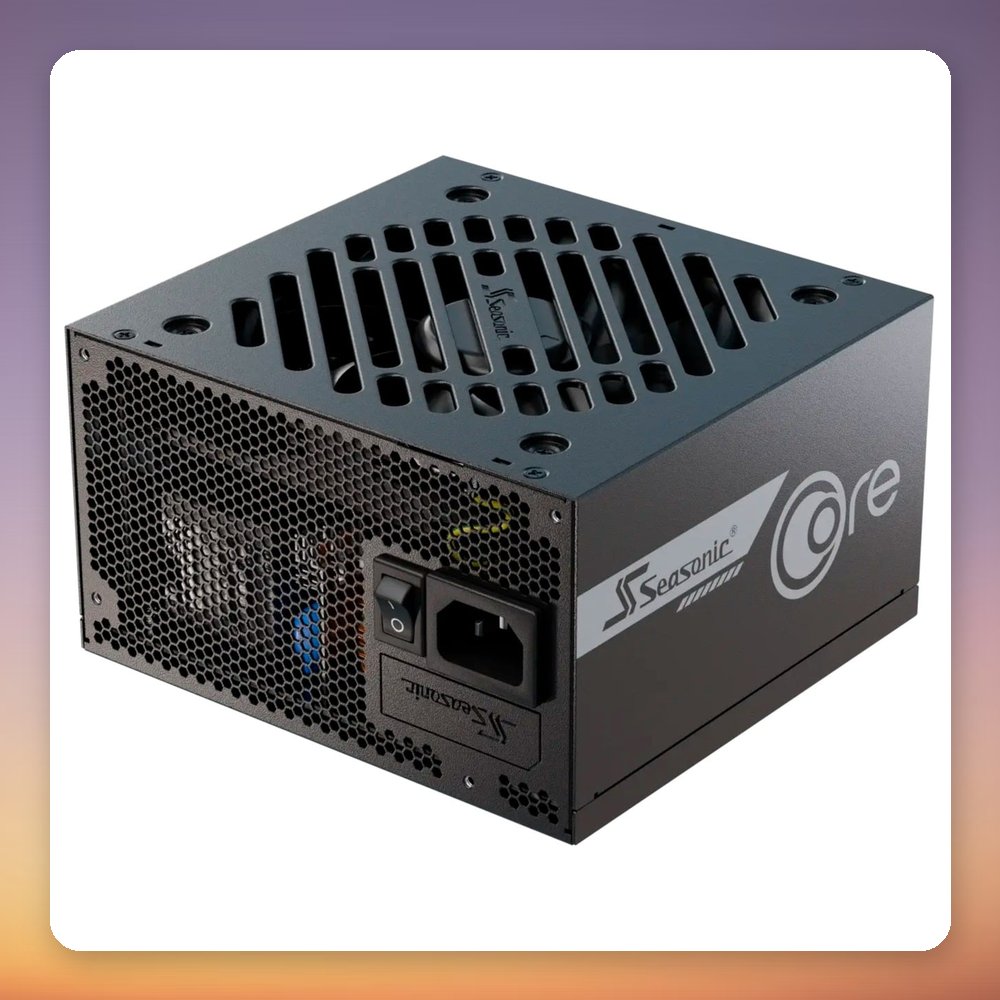

The Seasonic CORE GX-750 V2 750W is an ATX 3.1 power supply with PCIe 5.1 support and a native 12+4 pin (12V-2×6) connector for modern graphics cards. It carries 80 PLUS Gold and Cybenetics Platinum certification, delivers up to 744 W on a single 62 A +12V rail, and uses a semi-passive, temperature-controlled 120 mm fan for quiet running.

This PSU suits mid-range to high-end gaming builds that need a 12V-2×6 connector without an adapter. Full cable management and individual black braided cables keep the case tidy, while the compact 150 x 86 x 150 mm ATX design fits standard cases. Six SATA, three 4-pin Molex, two 6+2 pin PCIe and two 4+4 pin CPU connectors cover most component lists. Protection includes OCP, OVP, UVP, OPP, SCP and OTP.

Specification

• Manufacturer: Seasonic
• Model: CORE GX-750 V2
• MPN: SRP-CGX751-A5A32SF
• EAN: 4711173878469
• Power output: 750 W
• Efficiency certification: 80 PLUS Gold, Cybenetics Platinum
• Standard: ATX12V 3.1, EPS12V 2.9x, PCIe 5.1
• Form factor: ATX
• Modularity: Cable management (modular)
• +12V output: 744 W (62 A, single rail)
• +3.3V/+5V combined: 100 W (20 A each)
• GPU connectors: 1x 12+4 pin (12V-2×6), 2x 6+2 pin PCIe
• Other connectors: 1x 24-pin ATX, 2x 4+4 pin CPU, 6x SATA, 3x 4-pin Molex
• Cooling: 1x 120 mm fan, semi-passive, temperature-controlled
• Input voltage: 100-240 V, active PFC
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Cables: Individual black braided cables
• Dimensions (W x H x D): 150 x 86 x 150 mm
• Colour: Black
