Product Overview

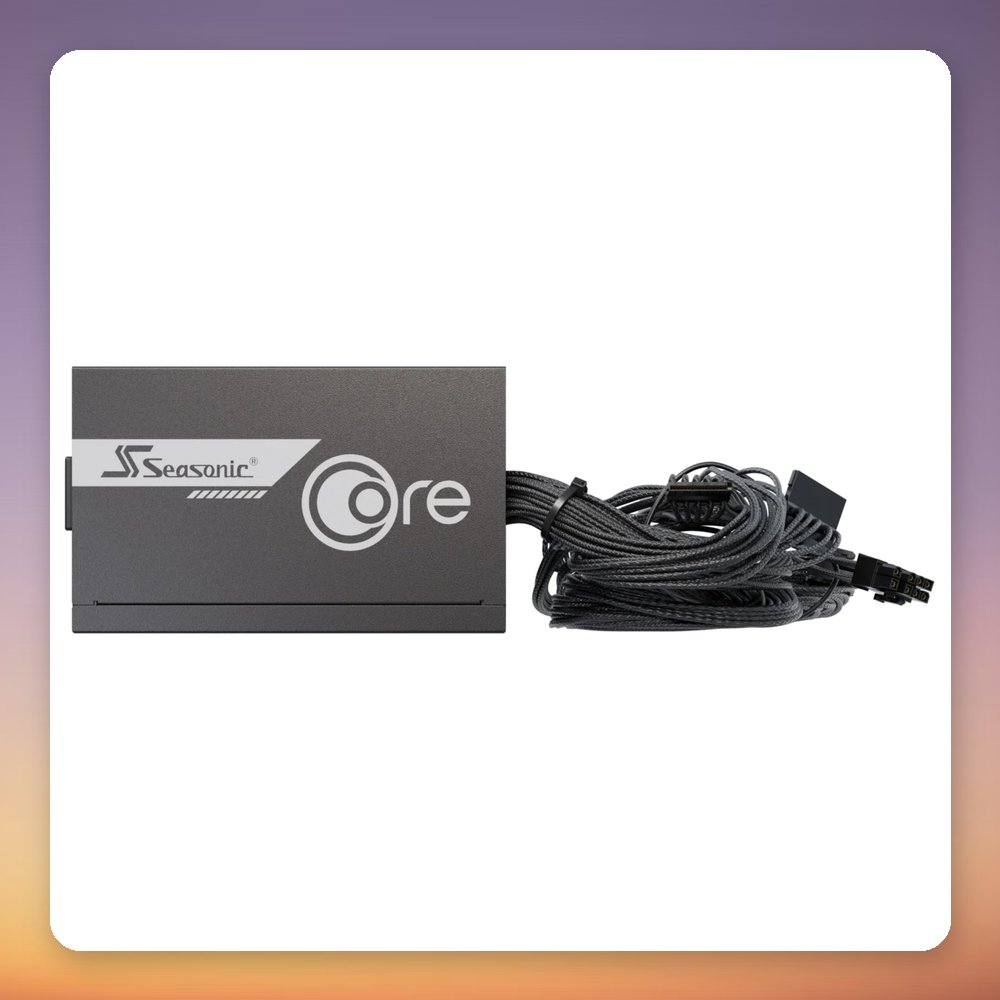

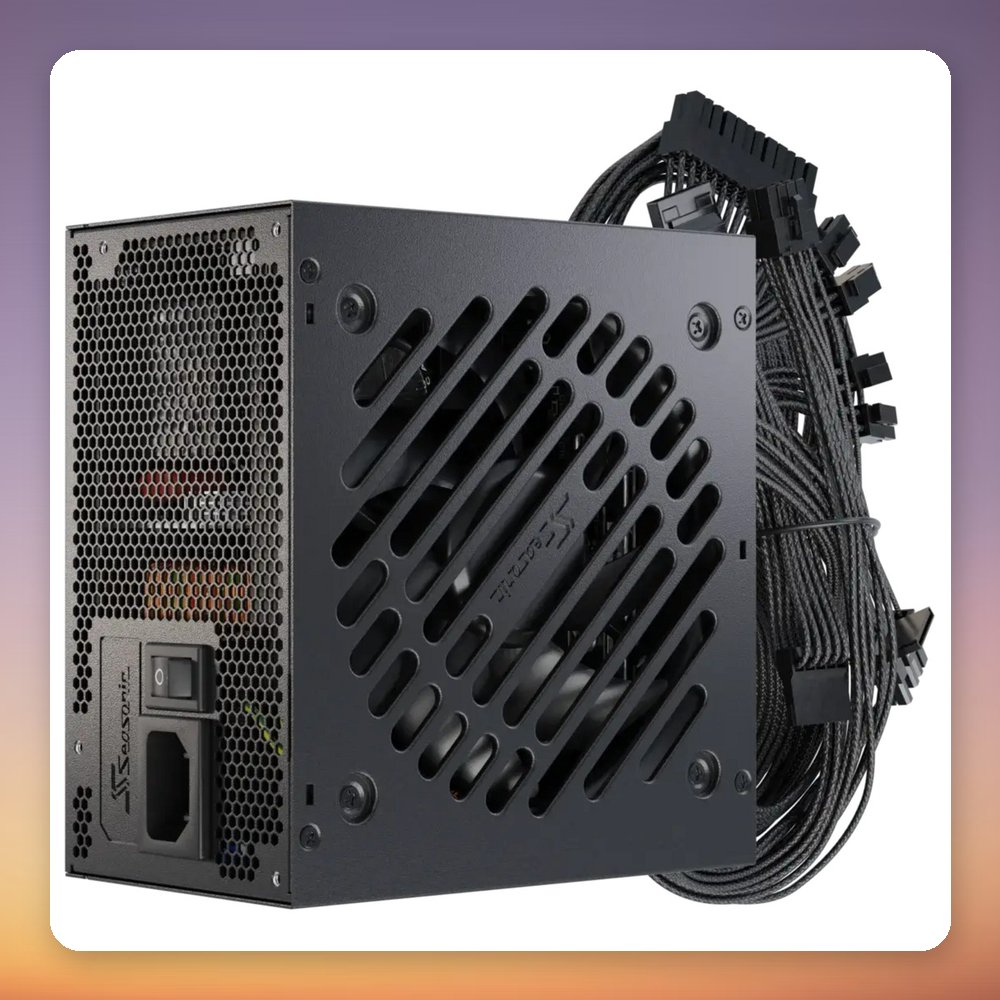

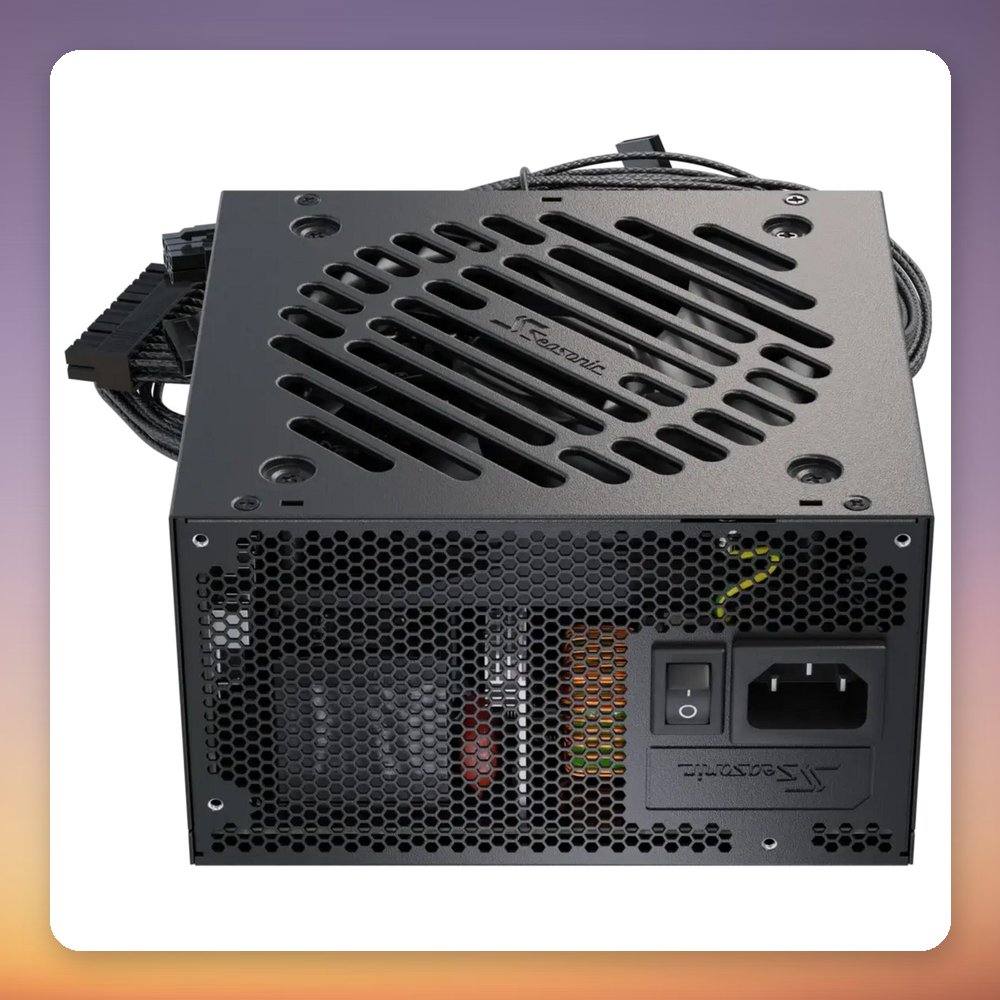

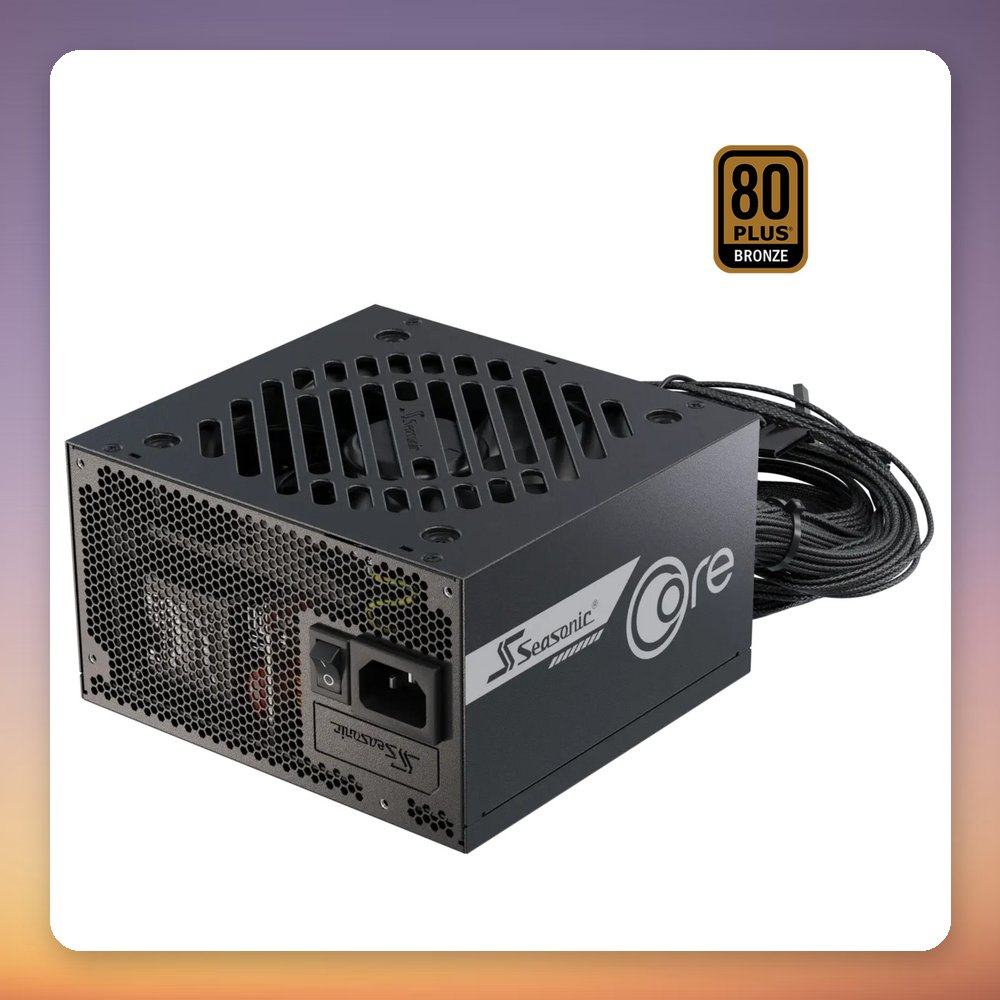

The Seasonic CORE BC-650 is a 650W ATX power supply that meets the ATX 3.1 standard and is certified 80 PLUS Bronze. It delivers 648W on the single +12V rail (54A) and comes in a compact 140 mm-long ATX chassis with a scratch-resistant finish, which helps in tighter cases.

It suits mainstream gaming and general-purpose PC builds that need a reliable, no-frills unit with two 6+2-pin PCIe connectors. Cooling comes from a 120 mm HDB fan with Smart and Silent Fan Control (S2FC), which is temperature controlled. Active PFC, a 100-240V input range and the full set of protections (OCP, OVP, UVP, OPP, SCP, OTP) round out the specification.

Specification

• Manufacturer: Seasonic
• Model: CORE BC-650
• MPN: SRP-CBC651-A5A51JF
• EAN: 47111738794350
• Power: 650 W
• Efficiency Rating: 80 PLUS Bronze
• Standard: ATX 3.1 (ATX12V 3.1, ATX12V 2.3, EPS)
• PCIe Version: 5.1
• Form Factor: ATX
• +12V Output: 648 W (54 A, single rail)
• +3.3V/+5V Combined: 100 W
• Connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 2x 6+2-pin PCIe, 3x 15-pin SATA
• Cooling: 1x 120 mm fan, temperature controlled (S2FC)
• Input Voltage: 100-240 V
• PFC: Active PFC
• Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
• Colour: Black
• Dimensions (W x H x D): 150 x 86 x 140 mm
