Product Overview

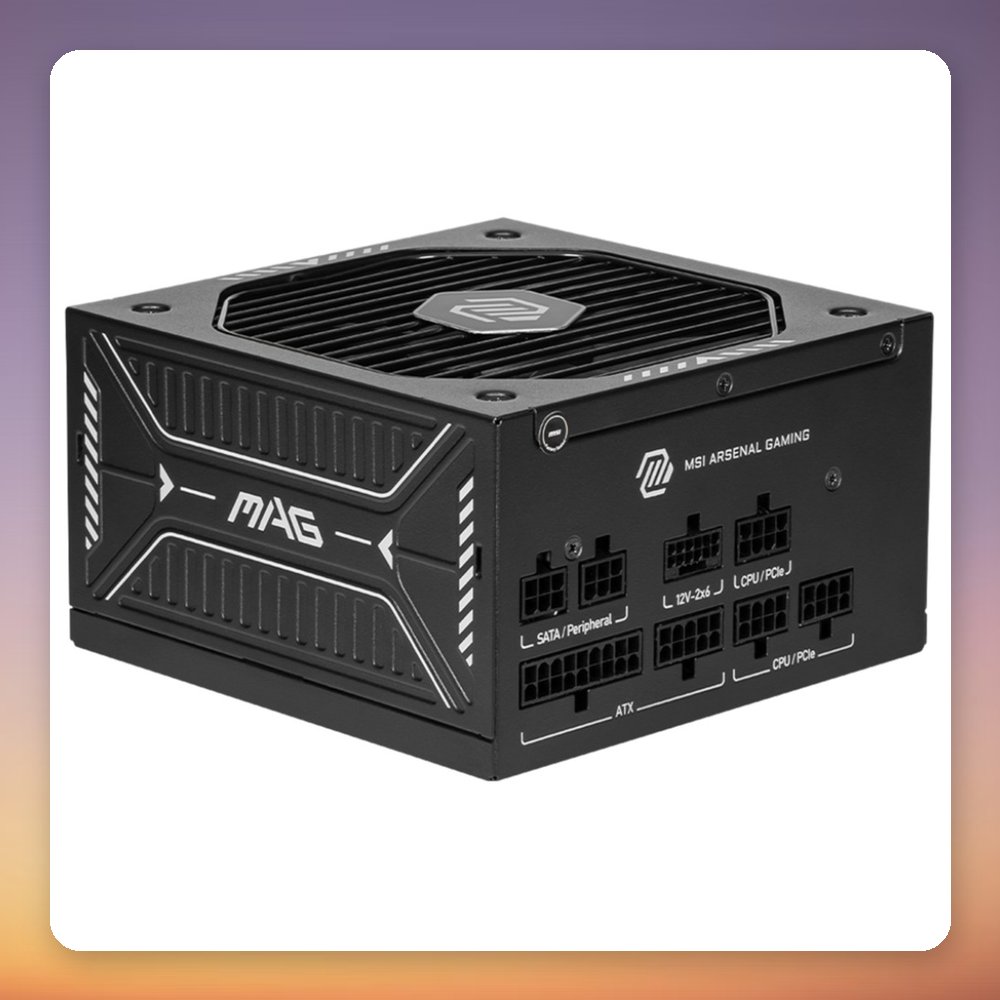

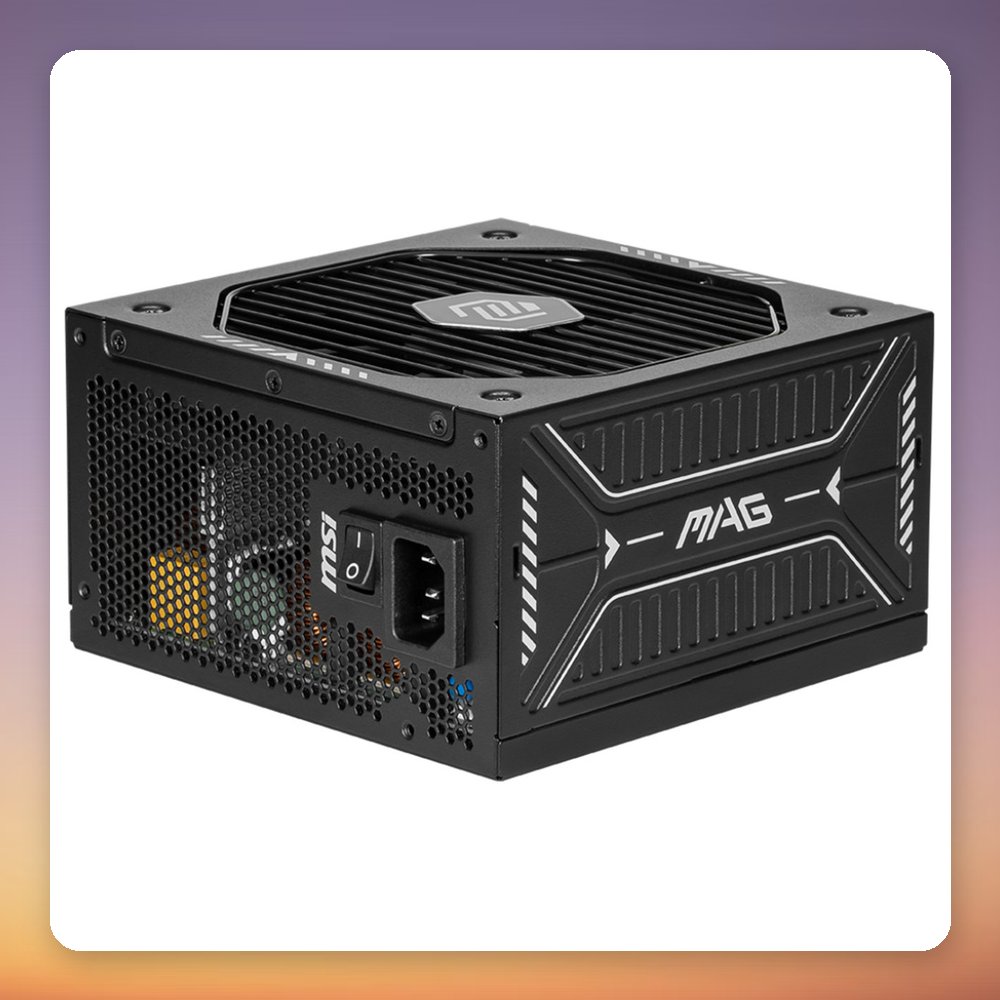

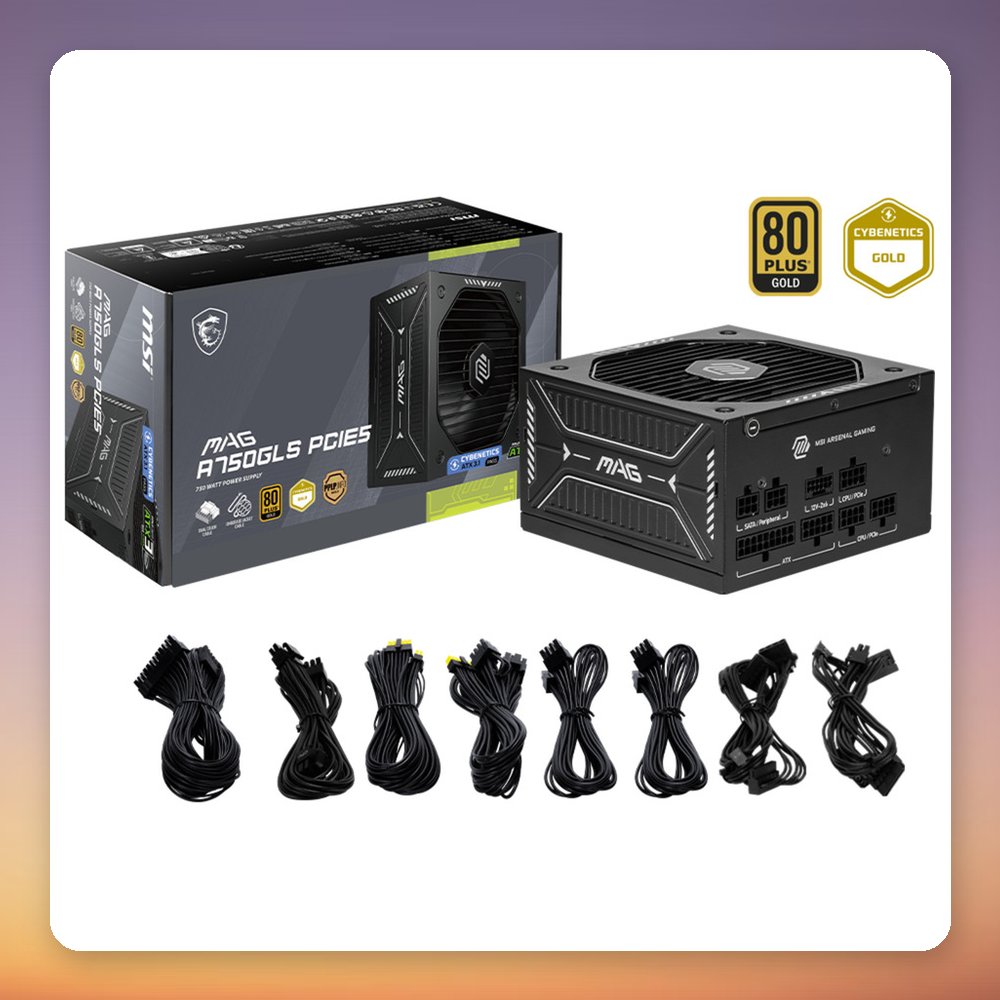

The MSI MAG A750GLS PCIE5 is a 750 W ATX power supply that is fully modular, certified 80 PLUS Gold and Cybenetics Gold, with efficiency of up to 90 %. It follows the ATX 3.1 standard with PCIe 5.1 support and a native 12+4 pin (12V-2×6) connector. It can also take short power excursions of up to 2x total power and 3x GPU power, with a peak rating of 1650 W.

With a 12+4 pin PCIe 5.x connector plus 4x 6+2 pin PCIe connectors, this unit suits modern gaming PCs built around recent graphics cards. Flat cables make cable management easier and leave more room for airflow, and the 16-pin connector uses a dual colour scheme so you can see whether it is seated correctly. A single 135 mm temperature-controlled fan with FDB bearing cools the unit, which measures 150 x 86 x 150 mm in a standard ATX form factor.

Specification

• Manufacturer: MSI
• Model: MAG A750GLS PCIE5
• MPN: 306-7ZPHX11-HD8
• EAN: 4711377292283
• Total power: 750 W
• Peak power: 1650 W
• Standard: ATX 3.1, PCIe 5.1
• Efficiency certification: 80 PLUS Gold, Cybenetics Gold (up to 90 % efficiency)
• Cabling: Fully modular, flat cables
• +12V output: 750 W (62.5 A)
• Form factor: ATX

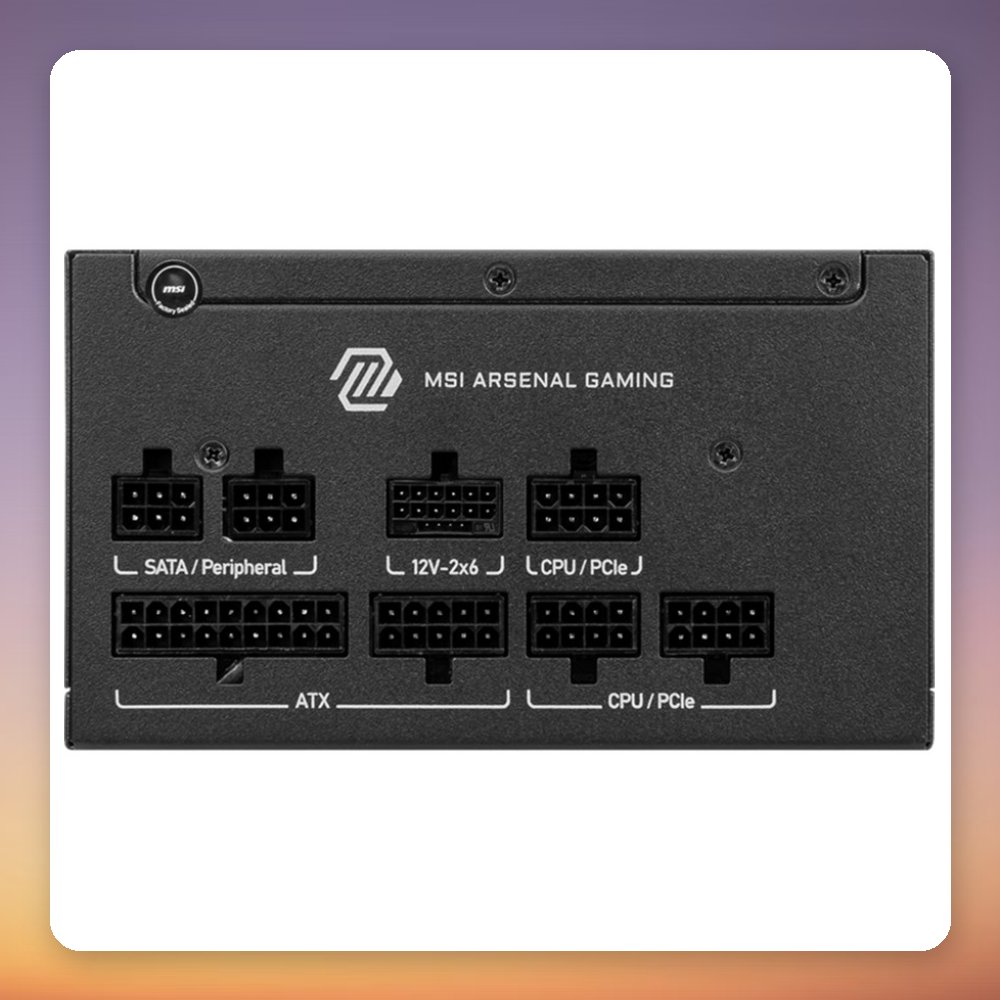

• Graphics power connectors: 1x 12+4 pin (12V-2×6), 4x 6+2 pin PCIe
• Motherboard / CPU connectors: 1x 24-pin ATX, 2x 4+4 pin EPS
• Storage / peripheral connectors: 5x SATA, 2x 4-pin Molex

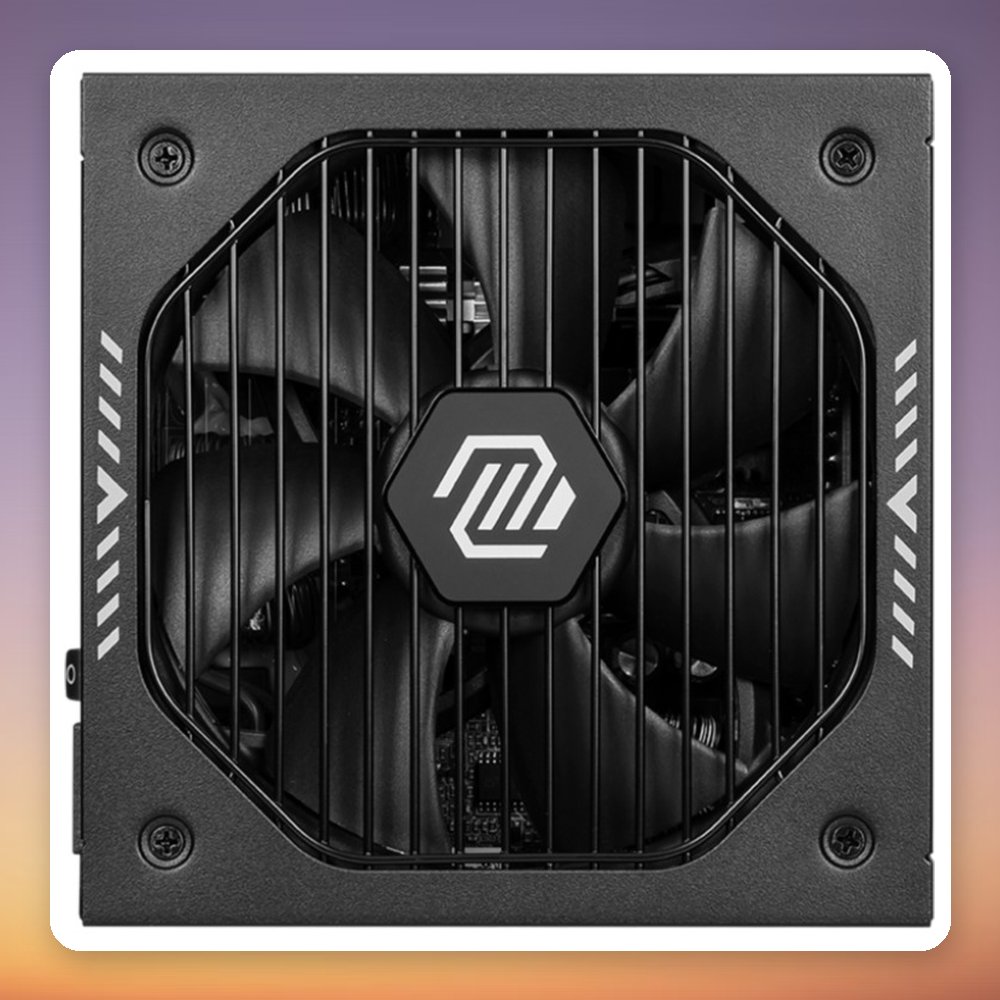

• Cooling: 1x 135 mm fan, temperature-controlled, FDB bearing
• Input voltage: 100-240 V, 50/60 Hz, active PFC
• Protections: OCP, OVP, UVP, OPP, SCP, OTP, NLO, SIP
• Dimensions (W x H x D): 150 x 86 x 150 mm
• Colour: Black
